300-445 Designing and Implementing Enterprise Network Assurance (300-445 ENNA) Questions and Answers

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, the native integration of ThousandEyes within the Meraki portfolio is specifically focused on the Meraki MX security and SD-WAN appliances. This integration allows users to install ThousandEyes Enterprise Agents directly on supported Meraki MX hardware, providing critical visibility into the performance of services that distributed users rely on. 4

The Meraki MX (Option A) supports the ThousandEyes Enterprise Agent as a containerized service that can be activated with a single click within the Meraki Dashboard. 5 This integration is designed to provide better monitoring and testing capabilities for customers interested in improving the quality of their experience and adding the appropriate SD-WAN policies to optimize network performance. By running the agent natively on the MX, administrators can monitor the performance of external applications and services directly from the SD-WAN sites, bridging the gap between local branch health and global internet performance. 6

While Cisco continues to expand its assurance integrations across the portfolio, the MR (Wireless) , MS (Switching) , MV (Camera) , and MG (Cellular) series do not currently support the native, " on-box " execution of the ThousandEyes Enterprise Agent. For these other platforms, visibility is typically achieved through passive monitoring via Meraki Insight (MI) or by deploying ThousandEyes agents on connected client devices (Endpoint Agents) or nearby infrastructure. Therefore, the Meraki MX is the only verified platform supporting native ThousandEyes agent deployment in this context.

In the framework of Designing and Implementing En 8 terprise Network Assurance (300-445 ENNA) , selecting the correct agent type depends heavily on the vantage point required for the specific observation. For this scenario, the architect must collect metrics from the internal network access layer —the point closest to where the users or devices reside within the corporate perimeter—towards a cloud-hosted destination.

The Enterprise Agent (Option B) is the most appropriate choice because it is specifically designed to be deployed on infrastructure owned and managed by the organization. These agents are " inside-out " vantage points that can be installed directly on Cisco Catalyst 9300 or 9400 Series switches at the access layer using Docker containers. By deploying an Enterprise Agent at the access layer, the architect gains visibility into the entire network path, starting from the internal LAN, traversing the edge/WAN, and reaching into the cloud-hosted web server. This allows for the identification of issues such as local congestion, ISP peering problems, or cloud provider latency.

Other options do not meet the criteria:

Synthetic Agent (Option A): This is a distractor term. All ThousandEyes agents (Cloud, Enterprise, and Endpoint) are synthetic agents because they all perform active synthetic testing.

Cloud Agent (Option C): These are pre-deployed by Cisco in global ISP data centers and provide an " outside-in " view. 14 While useful for monitoring public-facing availability, they cannot provide visibility into the internal network or the access layer of the organization.

Endpoint Agent (Option D): While these are installed on end-user machines and provide a " user-centric " view, they are generally not used for infrastructure-level path analysis from the access layer switches themselves.

Thus, the Enterprise Agent is the definitive choice for monitoring from the access layer to the cloud.

The architecture for Designing and Implementing Enterprise Network Assurance (300-445 ENNA) specifies that ThousandEyes WAN Insights relies on deep integration with the Cisco SD-WAN management stack. To generate its predictive path recommendations, the platform must ingest specific telemetry data that reflects both the network ' s behavior and the applications traversing it.

The first essential data source is historical network performance metrics collected by vAnalytics (Option B). Before WAN Insights can be activated, vAnalytics must be enabled to collect and enrich raw network telemetry from the edge routers. 34 This data includes granular metrics for every SD-WAN tunnel, such as packet loss, latency, and jitter. 35 WAN Insights analyzes these historical trends to forecast future path quality and determine which transport circuits are most likely to meet application SLAs over a long-term period.

The second essential data source is application traffic flow data (Option D). WAN Insights must understand which applications are currently active in the fabric to prioritize recommendations for " business-critical " services like Office 365, Webex, or custom internal apps. 38 This information is ingested as flow records from the SD-WAN data plane and categorized based on the Application Lists defined in Cisco Catalyst SD-WAN Manager (vManage) .

Options A and E are configuration or logging data that, while useful for general management, are not the raw telemetry inputs used by the WAN Insights predictive engine. Option C is incorrect because WAN Insights explicitly uses infrastructure telemetry rather than ThousandEyes agent-based synthetic data for its SD-WAN fabric calculations. By combining vAnalytics performance metrics and application flow data , WAN Insights can provide the " Predictive Path Recommendatio 41 ns " that are a hallmark of modern network assurance.

Establishing an accurate baseline is a cornerstone of the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) methodology. A baseline must represent the " typical " behavior of the network across its standard operating cycle to be useful for anomaly detection and capacity planning. When monitoring interface utilization on a critical link, it is vital to capture both peak and off-peak traffic patterns (Option C).

Most enterprise networks exhibit cyclical traffic patterns, often referred to as " diurnal " cycles, where utilization spikes during business hours (peak) and drops significantly at night or on weekends (off-peak). If an engineer only collects data during the lowest volume period (Option A), the baseline will be unrealistically low, leading to " false positive " alerts when normal business traffic returns. Conversely, only capturing peak data might hide background synchronization tasks or backup windows that occur during off-hours.

By selecting a representative time period—typically one full week or a month—the engineer ensures the baseline accounts for variations such as Monday morning " logon storms, " mid-week steady states, and weekend maintenance. This comprehensive view allows the assurance platform (such as Cisco Catalyst Center or ThousandEyes ) to calculate a standard deviation and establish dynamic thresholds. If utilization deviates from these historically representative norms, the system can trigger an alert based on a true anomaly rather than a predictable daily surge. Aligning with a financial year (Option B) is irrelevant to technical performance, and limiting the data (Option D) compromises the baseline ' s statistical validity.

56

In the Designing and Implement 7 ing Enterpr 8 ise Network Assurance (300-445 ENNA) framework, configuring effective alert rules is critical for distinguishing between standard network noise and actionable application-layer failures. For Web - HTTP Server tests, ThousandEyes allows engineers to monitor both network-level metrics (like Connect time) and application-level indicators (like HTTP response codes).

The requirement is to trigger an alert specifically when the HTTP server responds with a server error . In the HTTP protocol, server errors are categorized as the 5XX series of status codes (e.g., 500 Internal Server Error, 503 Service Unavailable, 504 Gateway Timeout). To meet this requirement, the engineer must configure a location alert condition where the Metric is set to Response Code and the condition value is server error(5XX) (Option D).

Reviewing the other options:

Error type is any (Option A): While this would capture server errors, it would also trigger for 4XX client errors (like 404 Not Found) and network-layer timeouts, making it too broad for a specific " server error " requirement.

Wait Time is Dynamic (Option B): This monitors the time-to-first-byte using statistical baselining. While high wait times often precede 5XX errors, this condition only alerts on latency, not on the actual error code itself.

Response Time (Option C): Similar to wait time, this monitors performance speed rather than the logical success or failure of the server ' s response.

By specifically selecting Response Code: server error(5XX) , the engineer ensures that the operations team is only notified when the application backend is experiencing a functional failure, rather than just a slow response or a client-side misconfiguration.

As shown in Exhibit 4.1-1 (image_6e19fb.png), the alert rule is configured for the BGP layer with the name " AS origin AS 1234 " . The critical logic is defined in the Alert Conditions section, which specifies: BGP Origin meets all of: ASN not in 1234.

This specific configuration is the standard method used in ThousandEyes to detect BGP hijacking (Option C). BGP hijacking occurs when an unauthorized Autonomous System (AS) announces a network prefix that it does not own, effectively stealing the traffic meant for the legitimate owner. By setting an alert that triggers when a monitored prefix is seen originating from an Autonomous System Number (ASN) that is not the expected authorized ASN (in this case, AS 1234), ThousandEyes provides immediate notification of a routing takeover.

Identifying this via BGP Origin alerts is superior to simple connectivity checks because it catches the issue at the routing control plane.

DNS Issues (Options B and D): These involve the translation of names to IPs and would be detected via DNS-specific tests rather than BGP Origin checks.

Route Poisoning (Option A): This is a generic term often referring to the manipulation of distance-vector protocol metrics to make a route unreachable; while related to routing, BGP Origin checks are the specific tool for detecting external prefix hijacks.

By monitoring the ASN origin, network engineers can quickly distinguish between a local ISP outage and a global security event where their traffic is being misdirected to an illegitimate network.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework, application health is not just about reachability, but about the functionality of business-critical paths. For an e-commerce checkout process, which involves multiple interactive steps such as " Add to Cart, " " Enter Shipping Info, " and " Finalize Payment, " Transaction monitoring (Option B) is the most beneficial functionality.

Transaction tests provide a high-level view of application performance by executing a script that simulates a real user ' s interaction with the site ' s various components. Unlike HTTP server monitoring (Option A), which merely verifies that a single URL returns a specific status code (like 200 OK), Transaction monitoring validates that the underlying application logic and database transactions are working as expected across the entire session. If a user can reach the homepage but the " Checkout " button fails due to a slow backend API call or a JavaScript error, only a Transaction test will identify the failure and provide a granular waterfall chart to show exactly where the process broke down.

While DNS monitoring (Option C) and Routing visibility (Option D) are crucial for identifying foundational connectivity issues, they are insufficient for monitoring complex transactional workflows. A DNS failure would prevent access to the site entirely, but a " broken " checkout process often occurs while the network and DNS appear perfectly healthy. Transaction monitoring bridges this gap by providing " layer 7 " visibility into the end-to-end user experience, making it the definitive choice for e-commerce performance assurance.

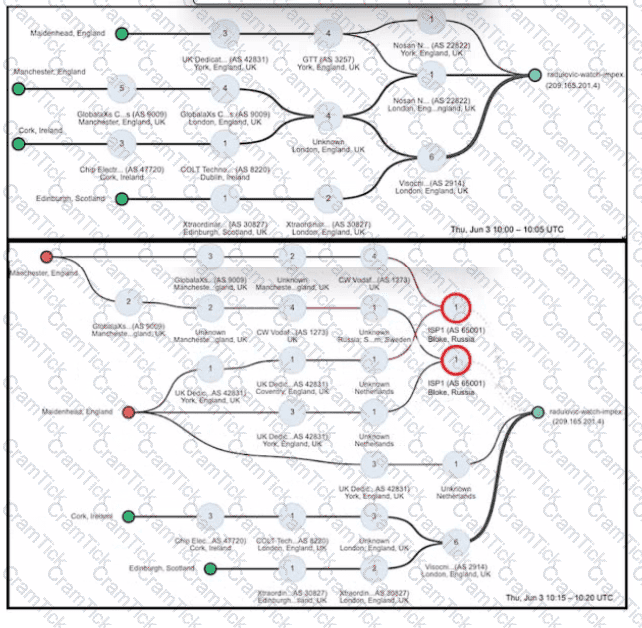

The Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework emphasizes that the goal of internet intelligence is to enable rapid and accurate escalation to the party responsible for a service degradation. Based on the evidence of a BGP Hijack identified in the previous question, the issue is occurring entirely within the public internet ecosystem.

The most appropriate next step is to reach out to the Internet Service Provider (ISP) to report the suspected BGP hijacking incident (Option B). Since the traffic is being misdirected by an external Autonomous System (AS 10297) before it reaches the intended destination (AS 16509), the fix must occur at the routing policy level of the major transit providers. The network administrator should provide the ISP with the ThousandEyes " Share Link " or screenshots showing the path change and the unauthorized AS announcement, as this data serves as proof to accelerate the ISP ' s mitigation efforts, such as implementing prefix filters or contacting the offending network.

Other options are ineffective for this specific scenario:

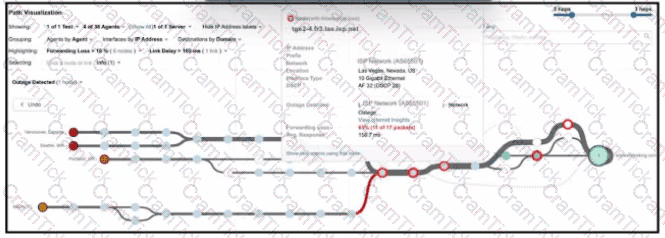

Option A: The path visualization shows that traffic is successfully leaving the local network and reaching the public internet; the problem is many hops away from the internal routers.

Option C: Blocking traffic from AS 10297 does not solve the problem of your traffic being attracted to it. The hijack affects how the rest of the world (including your ISP) sees the route to your destination.

Option D: DNS is not the issue; the agent successfully resolved the hostname to the correct IP, but the BGP layer misdirected the packets at the routing level.

By identifying the issue as an external routing event, the administrator avoids wasting internal resources and directly triggers the necessary external remediation.

In wireless network assurance, high channel utilization and increased retransmissions are clear indicators of RF interference or over-subscription. Retransmissions are particularly damaging to voice call quality because they introduce significant jitter and late-arrival packet loss that the jitter buffer cannot overcome.

The recommended optimization is to change the access point to a different, less congested channel (Option B). This directly reduces the competition for airtime (Channel Utilization) and the likelihood of collisions from neighboring access points (Co-Channel Interference), which in turn lowers the retransmission rate. Modern wireless controllers using Radio Resource Management (RRM) often automate this, but a manual adjustment based on SNMP telemetry is a valid operational fix.

Other options are technically flawed:

Option A: Increasing transmit power often increases interference and channel utilization for surrounding cells, making the problem worse for everyone.

Option C: Disabling all non-voice traffic is an extreme measure that is rarely feasible in a real business environment.

Option D: Admission control limits the number of users but doesn ' t solve the underlying issue of poor channel health for those already connected.

Detailed Explanation:

This analysis requires extracting two specific browser-rendering metrics from the IT Operations Dashboard. By placing the cursor over the latest metrics data points:

Page Load time: 1479.6 ms.

DOM load time: 1354.3 ms.

By subtracting the DOM time from the Page Load time ($1479.6\text{ ms} - 1354.3\text{ ms} = 125.3\text{ ms}$), the engineer identifies the duration spent rendering the page after the initial document structure was established.

Within the framework of Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , network monitoring is categorized into two primary methodologies: active and passive monitoring. 1 Active monitoring (Option C) is characterized by the generation of synthetic or " probes " traffic specifically designed to measure network performance. 2 These probes simulate real-world user activity, such as HTTP requests, DNS queries, or ICMP pings, to baseline performance metrics like latency, jitter, and packet loss.

The core benefit of the active approach is its independence from actual user traffic. By sending a continuous ping or synthetic HTTP probe, an engineer can verify path availability and performance even during off-peak hours when no real users are on the network. In the context of Cisco ThousandEyes—a central platform in the ENNA certification—this is the primary mode of operation for Cloud, Enterprise, and Endpoint agents. For instance, a ThousandEyes network test proactively sends packets to a target IP or URL to visualize the hop-by-hop underlay and overlay paths.

Conversely, options A, B, and D represent passive monitoring techniques. Passive monitoring involves observing and analyzing traffic that is already traversing the network. 3 Methods such as SNMP (Option A) provide device-level health data like CPU load and interface utilization, while packet captures (Option B) and NetFlow (Option D) analyze the characteristics of existing user flows to determine top talkers or traffic patterns. While passive monitoring is excellent for volume and utilization analysis, it lacks the proactive capability to test a path ' s performance before a user encounters a failure. Therefore, sending a synthetic probe like a continuous ping is the definitive example of active monitoring.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) best practices, the goal of a successful endpoint assurance rollout is to maximize coverage while minimizing the burden on both IT staff and end-users. The most effective strategy for achieving this is to use a centralized software deployment tool (e.g., GPOs, Intune) that supports silent installation (Option B).

Centralized deployment tools allow administrators to push the ThousandEyes Endpoint Agent to thousands of machines simultaneously from a single management console. 12 By using silent installation parameters (such as /quiet or /qn for MSI packages), the agent is installed in the background without requiring any user interaction or even showing a setup wizard. 13 This " minimally disruptive " approach ensures that business operations are not interrupted. Furthermore, centralized tools provide a " secure " deployment method because the IT team retains control over the version of the agent being installed and can ensure that the Account Group Token is correctly embedded, which is necessary for the agent to register with the ThousandEyes dashboard.

Contrasting this with other methods:

Manual Installation (Option A): This is not scalable and is highly labor-intensive, making it unsuitable for large enterprises.

Emailing links (Option C) or Web Portals (Option D): These methods rely on the end-user to perform the installation correctly and to have the necessary local administrative privileges. This often leads to low adoption rates, inconsistent configurations, and security risks associated with users running installers manually.

By leveraging existing enterprise infrastructure like Active Directory GPOs or Microsoft Intune , organizations can ensure a 100% compliant deployment that immediately begins providing the " user-centric " visibility required for modern network assurance.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, secure administrative access via Single Sign-On (SSO) is a critical component of platform governance. The exhibit illustrates the ThousandEyes SSO configuration panel being integrated with Microsoft Entra ID (formerly Azure AD). When configuring SAML-based authentication, the " Identity Provider Issuer " (Option D) is a unique identifier provided by the IdP (Microsoft) that must match exactly between the two systems.

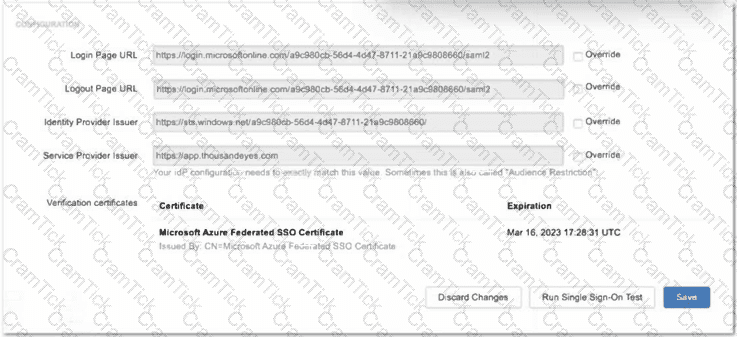

According to ENNA implementation guidelines, ThousandEyes populates default fields based on standard SAML metadata. However, Microsoft Entra ID often utilizes a specific GUID-based format for the Issuer URL (e.g., https://sts.windows.net/tenant-id/) that may differ from the generic URL format expected by the platform ' s initial auto-fill. To ensure a successful SAML handshake, the engineer must select the " Override " checkbox next to the Identity Provider Issuer field. This action unlocks the field, allowing the engineer to manually paste the exact string provided in the Entra ID Federation Metadata document. If this value is not overridden and matched precisely, the SAML assertion will be rejected, resulting in a failed authentication attempt.

While the Login and Logout URLs (Options B and C) are also critical, they are typically correctly identified during the initial setup or metadata import; the Identity Provider Issuer is the most frequent point of mismatch requiring an manual override in Entra ID environments due to its strict " Audience Restriction " requirements. The Service Provider Issuer (Option A) is generally a fixed value (https://app.thousandeyes.com) that rarely requires overriding as it defines ThousandEyes ' own identity to the IdP.

Therefore, selecting the override for the Identity Provider Issuer is the necessary step to complete the integration and allow enterprise users to authenticate securely using their corporate credentials.

Detailed Explanation:

In the IT Operations Dashboard, performance metrics are displayed per agent to facilitate granular troubleshooting. By reviewing the latest metrics table, the Mexico City Mexico (TelMex) agent displays a Connect time of 0.51 ms, which is significantly lower (and therefore " better " ) than the corresponding time for the San Jose CA agent. Connect time measures the duration for the TCP three-way handshake; a lower value indicates faster network-layer establishment.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) implementation guide, the Cisco IOS XE Application Hosting lifecycle is a critical concept for troubleshooting and configuration management. When an application environment variable—such as proxy settings or account tokens—is modified in the app-hosting configuration, a simple restart of the container is insufficient to apply those changes.

The correct procedure involves moving the application back through its lifecycle states to ensure the new environment variables are injected. This requires executing the full agent lifecycle (Option C): Stop, Deactivate, Activate, and Start .

Stop: Terminates the current running process of the container.

Deactivate: Releases the allocated hardware resources (CPU, Memory) and, most importantly, clears the runtime environment.

Activate: Re-allocates the resources and injects the updated configuration parameters into the container ' s environment variables.

Start: Initiates the container with the newly applied configuration settings.

After the application is up and running, the ThousandEyes-agent process attempts to connect to the controller in the cloud environment. Without the deactivate/activate sequence, the container continues to use the environment variables present at the time of its initial activation, causing the agent to remain offline as it fails to reach the ThousandEyes portal without the proxy. Reinstalling (Option B) would work but is an unnecessarily lengthy process, while No action (Option D) will result in no change to the agent ' s connectivity status.

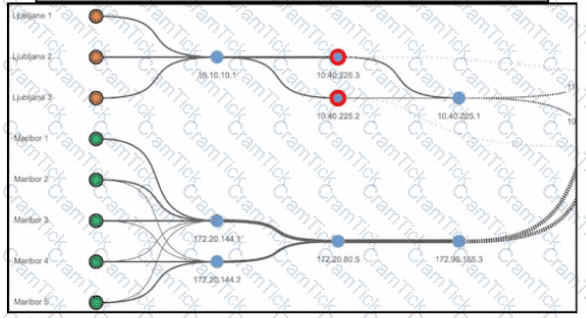

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, a critical challenge in active synthetic monitoring is ensuring that test probes accurately reflect user traffic without being dropped by intermediate security appliances. Standard network tests often utilize separate connections for measuring performance metrics (latency/loss) and for path discovery (hop-by-hop visualization). This behavior can be flagged by stateful firewalls or Intrusion Prevention Systems (IPS) as suspicious or malicious scanning activity.

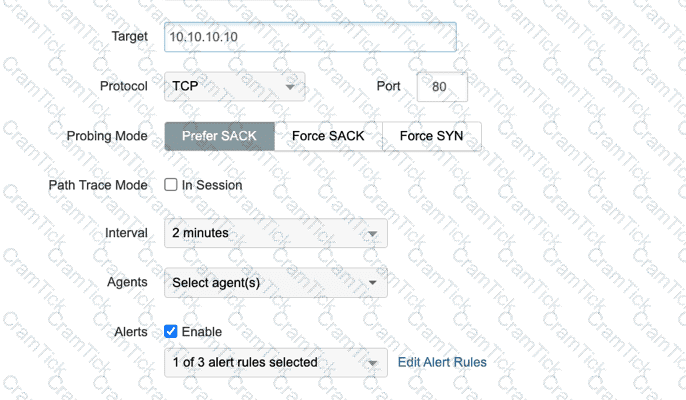

To mitigate this, the engineer should enable Path Trace Mode: In Session (Option A). When this mode is active, ThousandEyes performs path discovery using the exact same TCP session established for the performance measurement. By embedding path discovery probes within an active, established session, the traffic appears to firewalls as part of a legitimate, ongoing communication stream rather than an independent series of probes with varying TTL values that might trigger " anti-spoofing " or " scanning " alerts.

Reviewing the alternative options:

Protocol: TCP (Option B): While using TCP is generally more firewall-friendly than ICMP, the exhibit shows TCP is already selected. The issue is not the protocol itself, but how the path discovery probes are handled relative to the session.

Port: 5000 (Option C): Changing the port to a non-standard value like 5000 often makes traffic more likely to be scrutinized or blocked by default firewall policies compared to standard web ports like 80.

Probing Mode: Force SYN (Option D): Forcing SYN packets is a technique used to bypass certain types of load balancers but does not address the fundamental issue of path discovery probes being seen as a separate, malicious scan by stateful inspection engines.

Therefore, enabling In Session path trace mode is the most effective way to ensure consistent visibility through security-hardened environments.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, monitoring modern APIs often requires handling complex authentication flows, such as OAuth 2.0 with specific client credential parameters. The provided exhibit illustrates the HTTP Authentication options available within a standard HTTP Server test: None, Basic, NTLM, Kerberos, and OAuth.

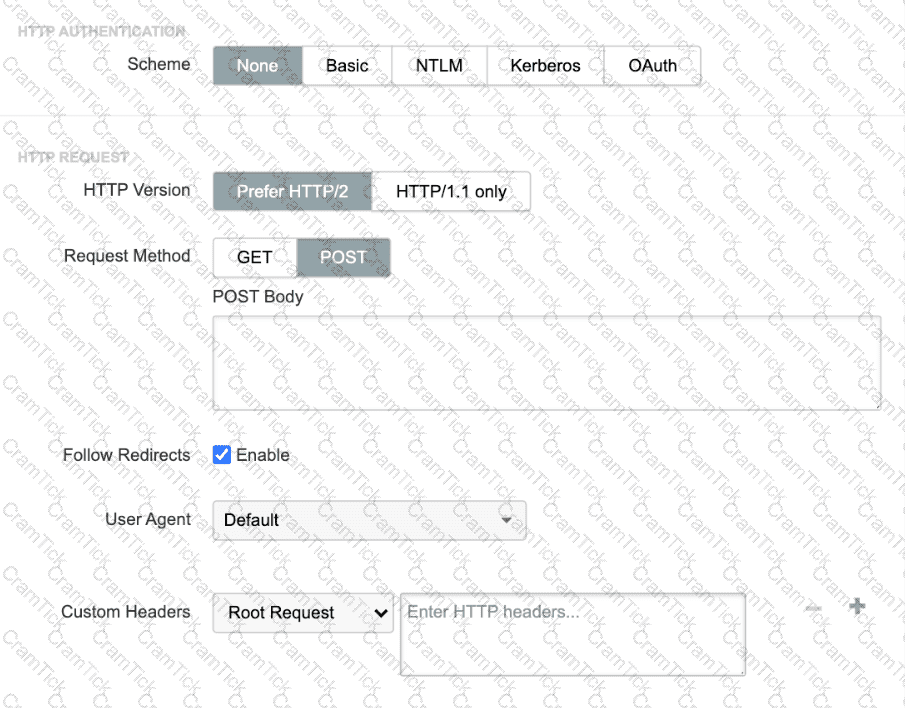

According to the ENNA implementation standards, while the HTTP Server test type supports OAuth (Option C), its native implementation is limited. Specifically, it is designed to use a pre-existing token or a simple token refresh flow; it does not support the injection of custom parameters in the initial POST request required to obtain a token in many enterprise client-credential scenarios. Basic and NTLM (Options A and B) are legacy protocols that rely on simple username/password headers and cannot facilitate the multi-step token exchange process described.

To fulfill the requirement of a two-step flow (POST for token, followed by GET for resource), engineers must use more flexible test types:

Transaction scripts (Option D): These allow the engineer to write custom JavaScript using the ThousandEyes transaction library to programmatically handle the POST request, parse the resulting JSON token, and then pass that token into the subsequent GET request ' s header.

API tests (Option E): These are purpose-built for API monitoring and natively support the definition of variables and multi-step requests where the output of one call (the token) serves as the input for the next.

By utilizing these advanced test types, the engineer can successfully navigate complex authentication requirements that the standard HTTP Server test cannot accommodate.

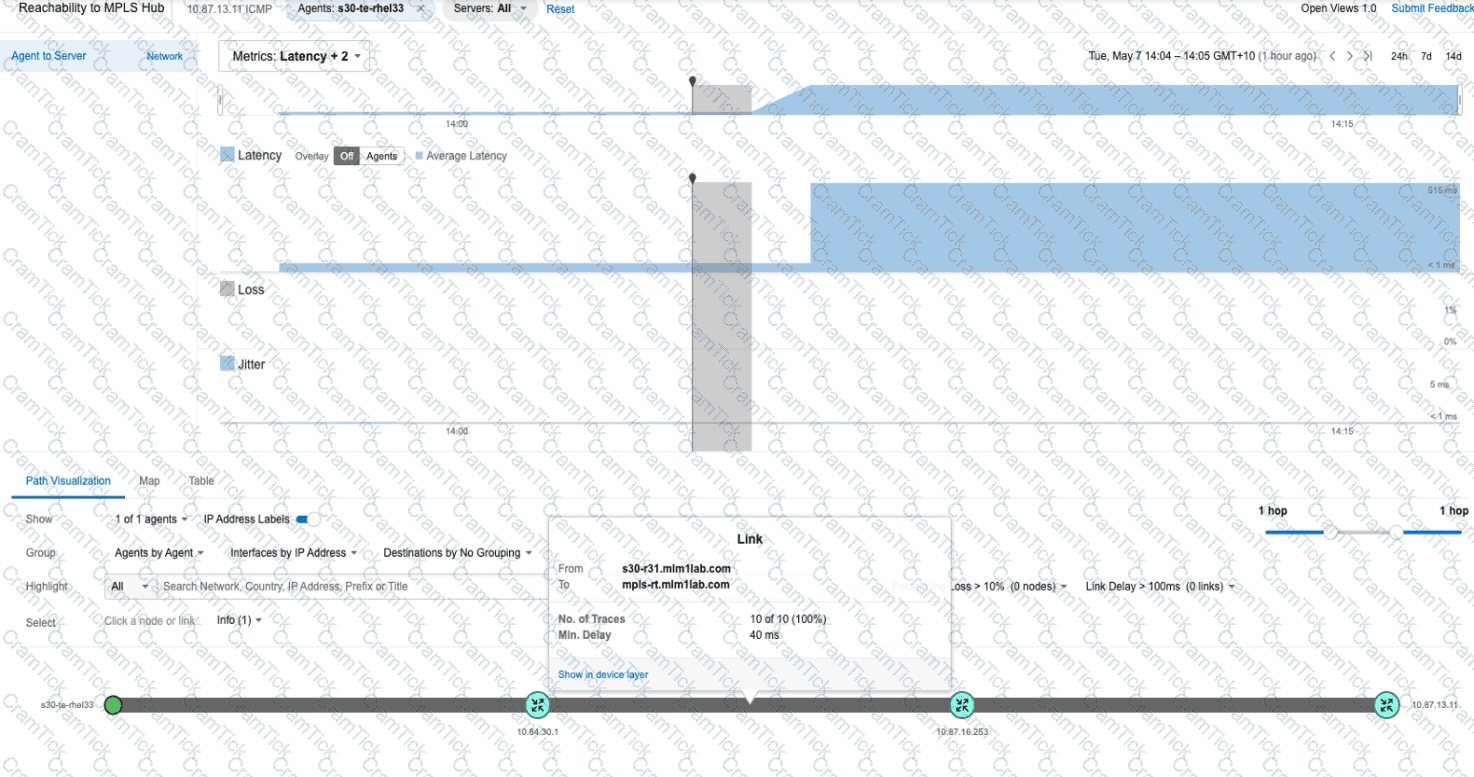

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, capacity planning and optimization are driven by telemetry data such as NetFlow. When NetFlow identifies that delay and jitter—metrics highly impactful to real-time traffic—spike during peak hours, it indicates that high-priority packets are competing for resources with bulk data.

The most appropriate recommendation is to tune the existing QoS configuration (Option C). This involves adjusting the Queuing and Scheduling policies on the routers to ensure that voice and video traffic (typically marked with EF and AF41/AF42 DSCP values) is serviced before other traffic classes during periods of congestion. This solution is targeted, cost-effective, and directly addresses the observed jitter issues without the need for massive capital expenditure.

Reviewing other options:

Option A: A complete QoS redesign is often unnecessary and too invasive for solving peak-hour jitter if a basic QoS framework is already in place.

Option B: Increasing bandwidth on " all " links is a " brute force " approach that is expensive and fails to address the underlying problem of traffic prioritization.

Option D: Hardware replacement is a last resort and would not resolve delay/jitter if the new hardware still lacks a properly tuned QoS policy.
