3V0-22.25 Advanced VMware Cloud Foundation 9.0 Operation Questions and Answers

The correct setting is ssl_accept_any_trusted=yes in the agent configuration. VCF Operations for Logs agent SSL communication is controlled from the agent configuration file under the [server] section. A secure agent configuration uses proto=cfapi, ssl=yes, and the secure ingestion port, and then defines how the agent validates the server certificate. Broadcom documentation examples for secure Operations for Logs agent communication show the agent configuration using ssl_accept_any_trusted=yes, with ssl=yes and the certificate trust settings, to allow the agent to establish encrypted communication while accepting the trusted certificate presented by the server . Broadcom’s Operations for Logs SSL parameter documentation also states that ssl_accept_any accepts any certificate when set to yes or 1, but that is broader and less controlled than accepting the trusted self-signed certificate path . Port 9000 is not the SSL ingestion setting, and proto=syslog is not the Log Insight agent CFAPI configuration. Copying the certificate alone is not the requested agent.ini modification. Reference topic: Objective 4.12 – VCF Operations for Logs / Agent SSL Parameters / Encrypted Agent Communication .

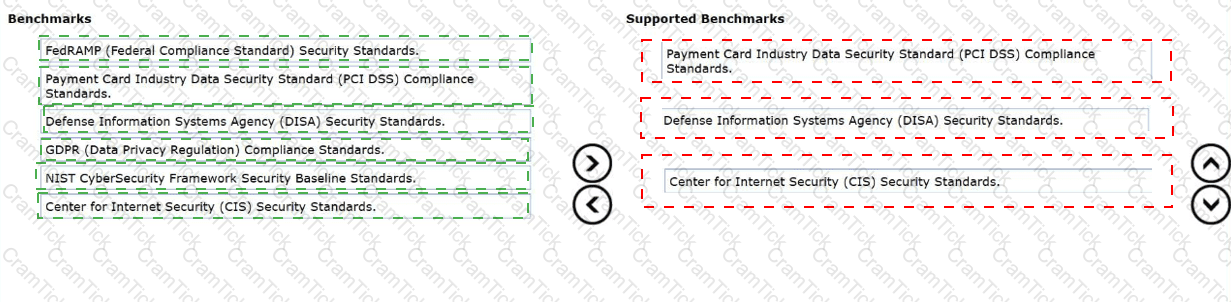

Payment Card Industry Data Security Standard, PCI DSS, Compliance Standards

Defense Information Systems Agency, DISA, Security Standards

Center for Internet Security, CIS, Security Standards

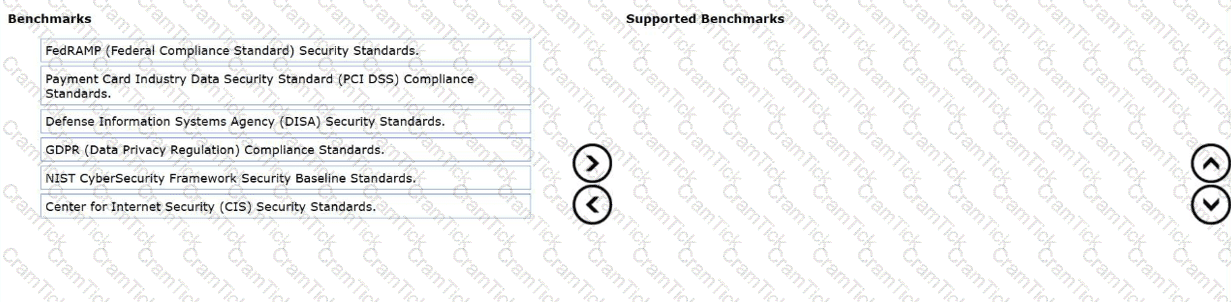

The supported benchmarks from the provided list are PCI DSS , DISA , and CIS . VCF Operations compliance monitoring is accessed from Security > Compliance , where compliance scorecards are based on alert definitions with the Compliance subtype. The official VCF 9.0 documentation states that Regulatory Benchmarks display benchmarks for industry-standard regulatory compliance requirements and explicitly lists Defense Information Systems Agency (DISA) Security Standards , Payment Card Industry Data Security Standard (PCI DSS) Compliance Standards , and CIS Security Standards as supported regulatory benchmark options. DISA is available as a native pack, PCI DSS is listed as a regulatory compliance standard, and CIS is supported through a compliance pack from VMware Marketplace . FedRAMP and GDPR are not listed in the VCF Operations regulatory benchmark set shown in the guide. NIST is supported only as specific NIST SP 800-171 and NIST SP 800-53 R5 packs, not as the generic “NIST CyberSecurity Framework Security Baseline Standards” option shown in the question . Reference topic: Objective 4.16 – Monitor Security, Compliance and Configuration / Compliance Benchmarks / Regulatory Benchmarks .

The administrator must deregister the second VCF Instance from the existing Single Sign-On configuration . In this scenario, the second VCF Instance is currently attached to an SSO configuration whose identity source is managed by the first VCF Instance. The requirement is not merely to change the LDAP provider on the existing shared configuration; it is to connect the second instance to a new SAML 2.0 Identity Provider and a new VCF Single Sign-On configuration . The VCF 9.0 documentation provides a specific workflow for this condition: when a VCF Instance must be removed from an existing SSO configuration, the administrator navigates to the VCF Instance, opens Component Configuration , filters configured components, selects all configured components, and clicks Deregister Component . After all registered components are deregistered, the page reloads and allows the administrator to either connect to an existing SSO configuration or create a new SSO configuration for that VCF Instance . Resetting the first instance would disrupt the controlling SSO configuration. Resetting the second instance is used for changing identity-source details within its own SSO lifecycle, not for detaching it from an SSO configuration managed by another instance. Reference topic: Objective 4.14 – Fleet Management / Identity and Access Management / VCF Single Sign-On / Deregister VCF Instance from SSO .

VCF Operations log analysis uses the search bar under Infrastructure Operations > Analyze > Logs to refine log-event results by keyword, phrase, glob, regular expression, or field operation. In the main search text box, multiple keywords entered together are treated as a logical AND , not an OR. The official guidance states that to find events containing specified keywords, the administrator enters complete keywords, globs, or phrases in the search text box, and that entering a space in the main search field is a logical AND operator . Therefore, entering esx.audit and firewall returns only log events that contain both terms: events matching esx.audit and also matching firewall. This is the correct behavior when the administrator is searching for ESX audit events specifically related to firewall changes. Option C would apply to OR-style behavior, but that applies to multiple values inside a single filter row when entered as separate filter values, not to the main search bar keyword syntax . Options A and B introduce unrelated terms and do not match the provided search criteria. Reference topic: Objective 4.12 – Log Event Monitoring and Analysis in VCF Operations / Searching and Filtering Log Events / Search bar keyword logic .

The administrator should model the phased migration by using What-If Analysis workload planning, not migration execution workflows. Because the target workload domain uses vSAN , the correct planning model is the hyperconverged workload-planning workflow, where VCF Operations lets the administrator add or remove VM workloads in a vSAN environment and evaluate the capacity effect on the selected cluster . Each migration phase should be represented as a separate scenario: small VMs, medium VMs, and large VMs. In each scenario, the administrator configures an Application Profile to represent the t-shirt size by defining vCPU, memory, and disk space, then adds the corresponding number of VM workloads for that phase . Since the source vCenter is unmanaged, importing profiles or VM templates directly from the source environment is not the correct method. After the scenarios are created, VCF Operations allows compatible saved scenarios that target the same object to be selected and run together, so the administrator can evaluate the cumulative impact of all planned phases on the target cluster . Reference topic: Objective 4.3 – Forecast VCF Capacity Growth / What-If Analysis / Add VM Workloads / Run Multiple Scenarios Cumulatively .

The OUT_OF_SYNC state indicates that the configuration template state in VCF Operations no longer matches the corresponding state expected from Source Control. VCF Operations supports GitHub-based source control so configuration templates can be synchronized to and from a repository, and the documented sync workflow explicitly changes template status back to IN_SYNC after the administrator uses the Sync option in VCF Operations . A template can become out of sync when it is modified outside the VCF Operations workflow, such as being edited directly in the GitHub repository. It can also become out of sync if the corresponding template file is deleted from the repository, because VCF Operations can no longer reconcile the local template object with its source-controlled copy. If the source-control configuration itself is deleted, VCF Operations loses the configured repository association required to validate and synchronize templates. Removing a template from a policy or removing a vCenter instance from a drift-detection job affects drift evaluation scope, not Git template synchronization. Reference topic: Objective 4.16 – Configuration Drift / Source Control Integration / Syncing Configuration Templates with GitHub .

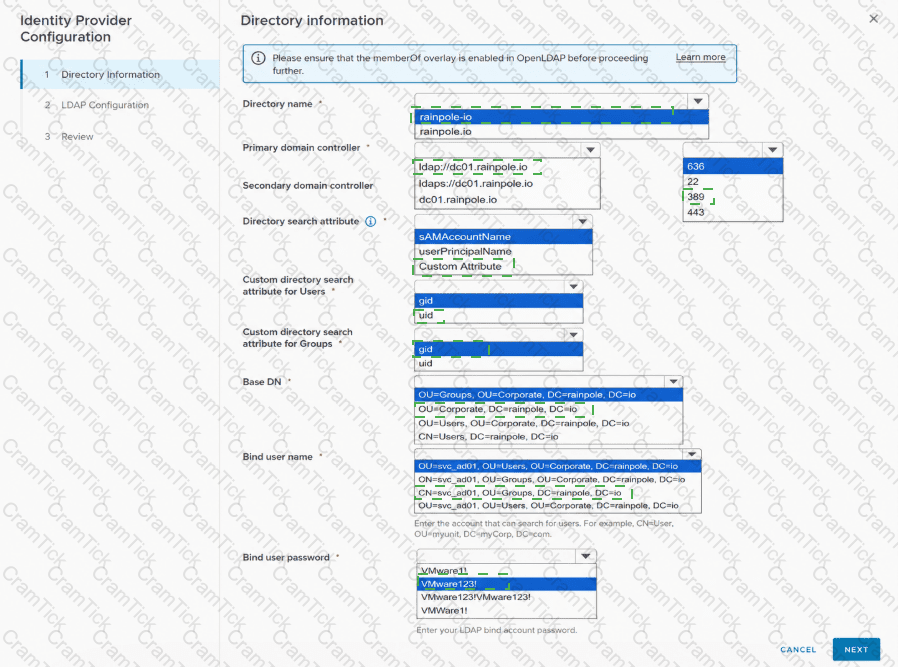

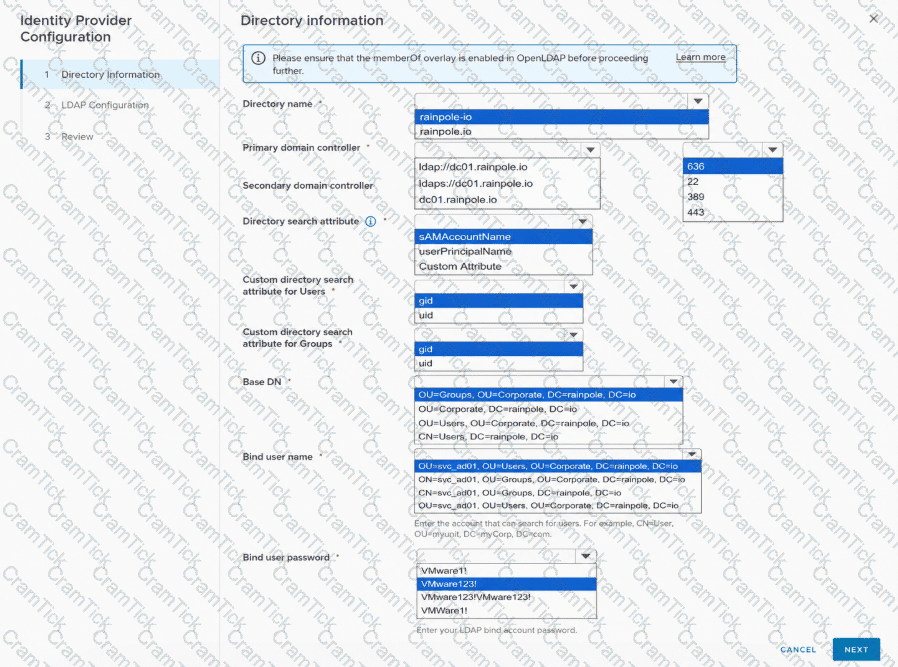

Directory name: rainpole-io

Primary domain controller: ldap://dc01.rainpole.io

Primary domain controller port: 389

Directory search attribute: Custom Attribute

Custom directory search attribute for Users: uid

Custom directory search attribute for Groups: gid

Base DN: OU=Corporate, DC=rainpole, DC=io

Bind user name: CN=svc_ad01, OU=Users, OU=Corporate, DC=rainpole, DC=io

Bind user password: VMware123!

The configuration must match the OpenLDAP hierarchy and transport requirements. Because the directory does not support SSL/TLS, the primary domain controller must use the non-secure LDAP scheme, ldap://dc01.rainpole.io , with standard LDAP port 389 , not LDAPS port 636. The directory name should use the VCF SSO directory identifier format, therefore rainpole-io is selected. Since the environment uses OpenLDAP-specific attributes rather than Active Directory defaults, the directory search attribute must be set to Custom Attribute . The user identifier is uid , so the custom user search attribute is uid; the group identifier is gid , so the custom group search attribute is gid. The Base DN must cover both the Users and Groups OUs. Because both are inside OU=Corporate , the correct base scope is OU=Corporate, DC=rainpole, DC=io , not only Users or only Groups. The bind user resides in the Users OU, so the bind DN is CN=svc_ad01, OU=Users, OU=Corporate, DC=rainpole, DC=io with password VMware123! . Reference topic: Objective 4.14 – Fleet Management / Identity and Access Management / VCF Single Sign-On / LDAP Identity Provider Configuration .

The administrator should use a List View. In VCF Operations, views present collected information for objects depending on the selected view type, and the View widget can be added to custom dashboards to display operational data that is relevant to dashboard users . A List View is specifically designed to provide tabular data about selected objects in the monitored environment, where each object appears as a row and the selected metrics or properties appear as columns . This directly satisfies the requirement to monitor CPU, memory, and disk usage across all VMs in a workload domain because the administrator can select Virtual Machine as the subject and add the required usage metrics as columns. The documentation also states that the View widget supports Export as CSV, and that views can be exported in CSV format . Scoreboard is best for current metric tiles, Object Relationship is for topology, and Trend View is for historical trends and forecasts, not detailed tabular extraction. Reference topic: Objective 4.10 – Creating Custom Dashboards, Views and Reports / Create a View / List View / View Widget Export as CSV.

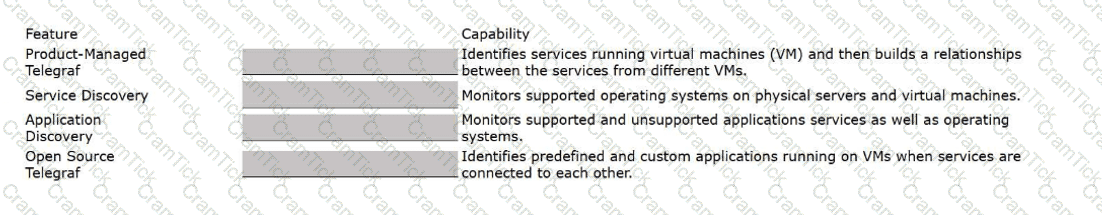

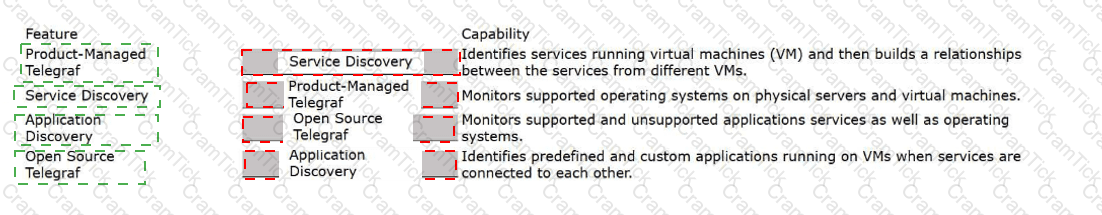

The correct mapping is based on the monitoring method and discovery scope. Service Discovery identifies services running in each VM and builds relationships or dependencies between services running on different VMs, allowing administrators to understand service impact, outage dependency, and escalation paths . Application Discovery builds on service relationships by identifying predefined and custom applications when services are connected to and communicating with one another; VCF Operations can show the VMs connected to those services and how those services interact . Product-Managed Telegraf is managed directly by VCF Operations and is used to monitor supported operating systems and application services on vCenter-managed VMs, unmanaged VMs, and physical servers categorized as endpoints . Open Source Telegraf is user-managed and can monitor operating systems plus both supported and unsupported application services, although lifecycle actions such as start, stop, upgrade, and plugin activation are not managed by VCF Operations . Reference topic: Objective 4.7 – Monitor Applications with VCF Operations / Service Discovery, Application Discovery, Product-Managed Telegraf, and Open Source Telegraf .

The Aggregator Management Pack controls what data is collected from remote VCF Operations instances through its configuration file, not through policy permissions, object tagging, or an interactive metric selector. The official VCF 9.0 documentation states that when an Aggregator adapter instance is configured, a configuration file must be specified, and that file defines the type of information the adapter instance collects. Therefore, when management requests additional metrics, the administrator must update or create the appropriate federation_config file containing the additional metric/property definitions and then associate that file with the relevant aggregator adapter connections. This ensures the Federation instance receives the expanded data set from each contributing VCF Operations instance. Option A is incorrect because policies influence metric activation, thresholds, alerts, and analysis behavior after data exists, but they do not define the Aggregator collection schema. Option C is incorrect because the Federation instance does not use a simple per-connection metric-pick workflow for this function. Option D is incorrect because tagging resources as “aggregator” is not the mechanism used by the Management Pack. Reference topic: Objective 4.8 – Installing Management Packs and configuring Management Packs / Federation Management Pack / Aggregator configuration files .

The next required step is to download and run the helper script from the cloud proxy, then restart Telegraf . Installing Telegraf and defining OS or application input plug-ins is only part of the configuration. To send data to VCF Operations, Telegraf must also be configured with the correct output plug-in that targets the VCF Operations cloud proxy. The documentation states that after installing open source Telegraf, the administrator must run the helper script to configure Telegraf to send data to the cloud proxy. Running the helper script creates the cloudproxy-http.conf file and adds the output plug-in properties required for sending data; it also updates input plug-ins for OS metrics . The same workflow then requires the Telegraf service to be started or restarted so the new configuration is loaded . Direct communication to the VCF Operations load balancer is not the collection path; Telegraf sends to the cloud proxy or collector group. Operator rights do not control the Telegraf service runtime, and rebooting cloud proxies is unnecessary. Reference topic: Objective 4.7 – Managed/Open Source Telegraf / OS and Application Monitoring / Cloud Proxy Output Configuration .

The administrator should configure Workload Optimization - Consolidate . In VCF Operations, Operational Intent defines how workload placement and optimization should behave across clusters. The Consolidate mode is specifically intended to minimize the number of clusters used by workloads while still maintaining acceptable performance. Broadcom’s Workload Automation policy documentation describes Consolidate as the mode used to proactively minimize the number of clusters used by workloads, which directly aligns to the requirement to use the smallest possible number of clusters in the data center while continuing to meet performance goals. ( TechDocs ) Admission Control based on slots is a vSphere HA construct and does not provide VCF Operations workload-placement intent across multiple clusters. DRS aggressiveness affects balancing inside a cluster, not strategic placement across 10 clusters. Cluster Headroom reserves capacity buffer, but by itself it does not drive consolidation behavior. Reference topic: Objective 4.6 – Workload Optimization in VCF Operations / Operational Intent / Consolidate, Balance, and Moderate modes .

The correct troubleshooting sources are the Request Log , the Management Pack Builder Adapter log , and the Integration Designer Controller log . Management Pack Builder troubleshooting is centered on validating the API requests, collection execution, adapter behavior, and server-side design processing. The VCF 9.0 documentation states that every test request or test collection in Management Pack Builder exposes request tabs showing the body, headers, and logs; these are used to diagnose response-code errors and request/response issues . For collection problems after installation, the administrator should review Management Pack Builder Adapter logs , located under $VCOPS_BASE/user/log/adapters/MPBAdapter on the selected node or cloud proxy, because these logs show adapter-side warnings and errors during collection . If the issue appears to be with Management Pack Builder itself, the official guidance identifies /usr/lib/vmware-vcops/user/log/integration-designer-controller.log as the server-side log to review . The Design Screen is used to build and verify definitions, but it is not one of the listed troubleshooting data sources. Observability Workbench is for infrastructure troubleshooting, not Management Pack Builder design diagnostics. Reference topic: Objective 4.8 – Management Pack Builder / Troubleshooting a Design .

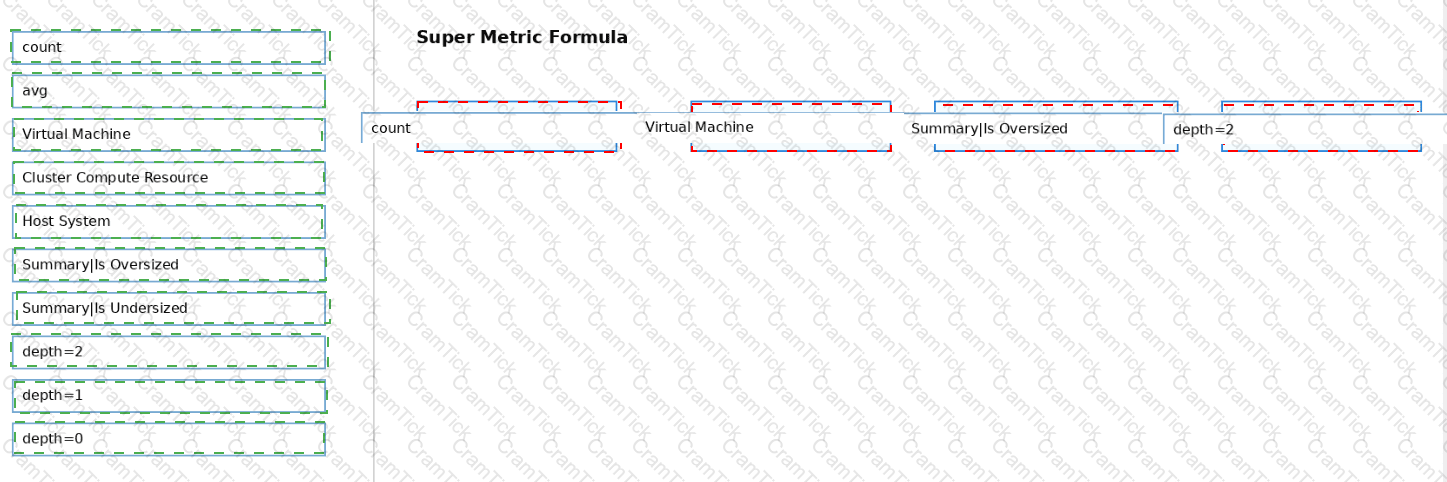

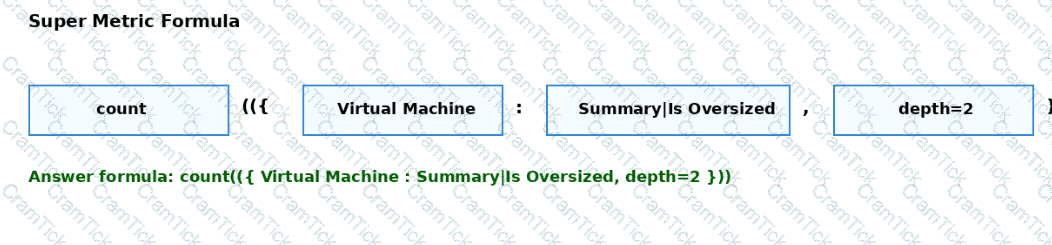

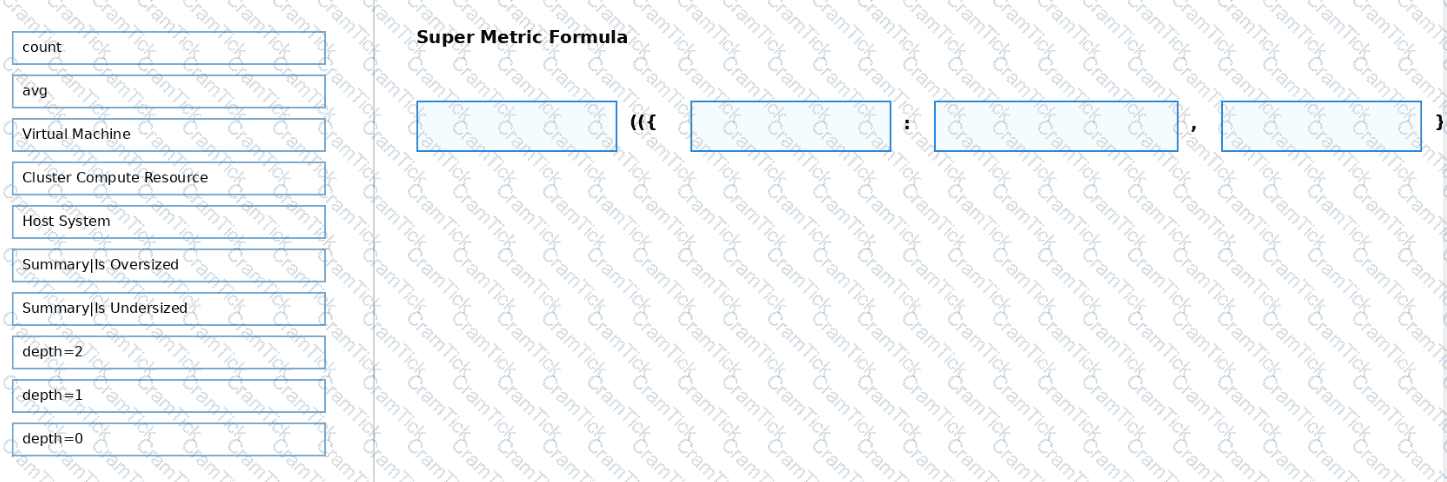

The report must count oversized Virtual Machine objects beneath the workload domain cluster. The correct aggregate function is count , because the requirement is a total number, not an average. The correct object type is Virtual Machine , because the oversized state is a VM-level metric. The correct metric is Summary|Is Oversized , which maps to the VM metric key summary|oversized and returns whether the VM is oversized . The correct relationship depth is depth=2 , because the VCF Operations super metric guidance states that when a super metric is assigned to a cluster and calculates across virtual machines, the cluster is two levels above the VM in the relationship chain, so depth must be changed to 2

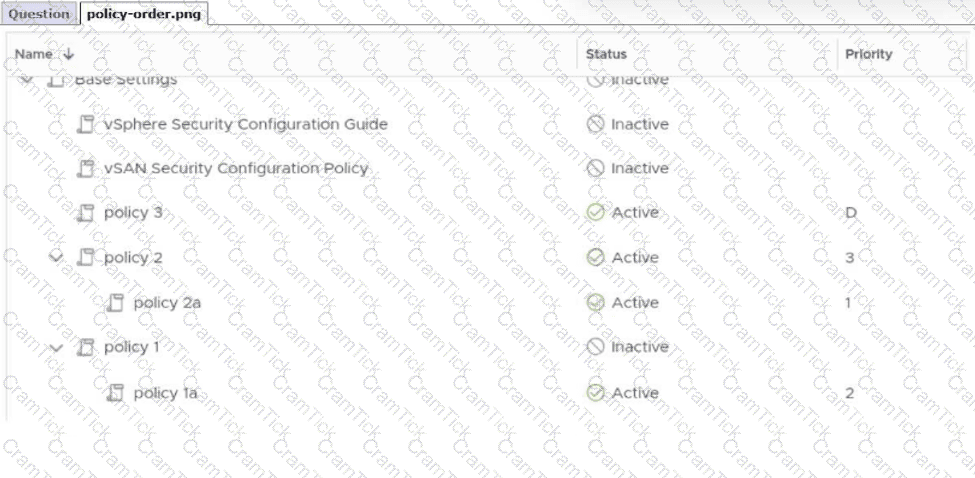

The applied policy is policy 2a because VCF Operations resolves multiple policy assignments by using active policy priority , not by custom group name, policy inheritance tree location, or alphabetical order. The exhibit shows policy 2a as active with priority 1 , policy 1a as active with priority 2 , and policy 2 as active with priority 3 . policy 1 is inactive, so it is not eligible to become the effective policy for the workload. VCF Operations documentation states that policies are applied in priority order as shown on the Active Policies tab, and that priority 1 is the highest priority. It further states that when an object is a member of multiple object groups and each group has a different policy assigned, VCF Operations associates the highest ranking policy with that object . Therefore, even though Workload-01 belongs to all four custom groups, the effective policy is the active policy with the highest rank: policy 2a . Reference topic: Objective 4.5 – Managing VCF Operations with VCF Policy / Policy Hierarchy / Policy Assignment / Active Policy Priority .
