AI-200 Developing AI Cloud Solutions on Azure Questions and Answers

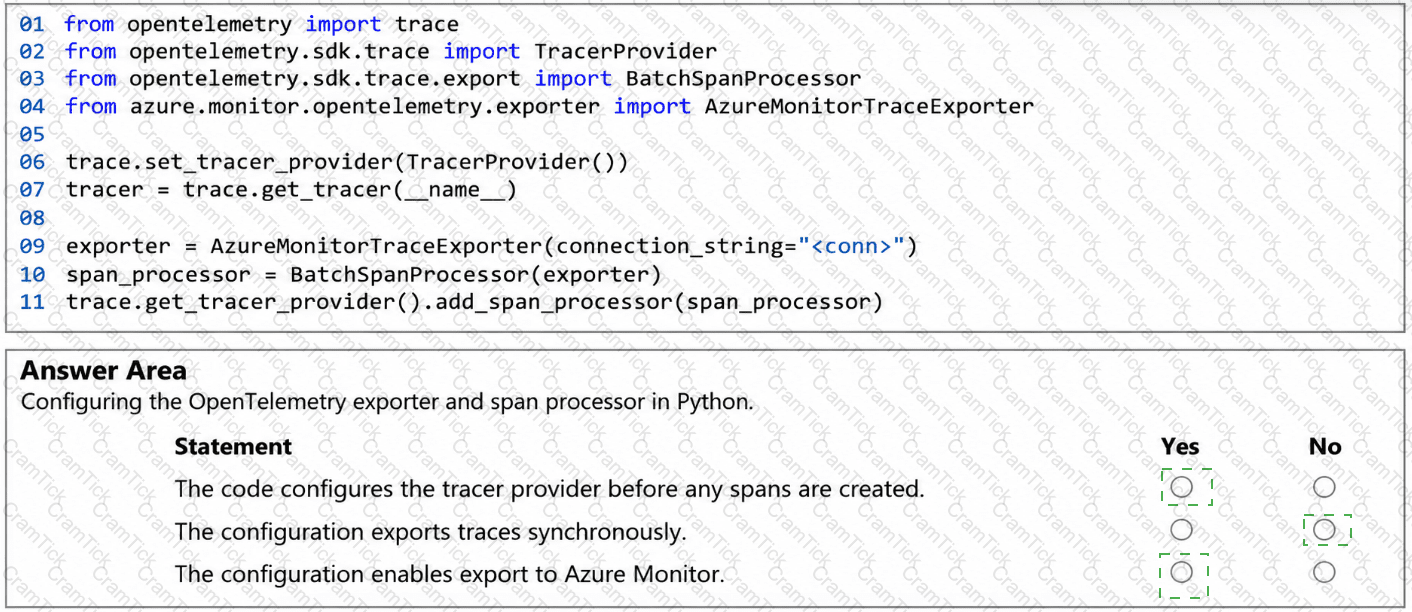

The code configures the tracer provider before any spans are created: Yes

The configuration exports traces synchronously: No

The configuration enables export to Azure Monitor: Yes

The first statement is Yes. The code calls trace.set_tracer_provider(TracerProvider()) before obtaining the tracer and before any span-creation operation occurs. In OpenTelemetry, retrieving a tracer by using trace.get_tracer() does not itself create a span; spans are created later through methods such as start_span() or start_as_current_span().

The second statement is No. The code uses BatchSpanProcessor, which batches completed spans and exports them through a background processing mechanism rather than exporting every span synchronously on the application ' s execution path. OpenTelemetry documentation states that BatchSpanProcessor batches ended spans before sending them to the configured exporter, and the Python implementation uses a background thread for export processing.

The third statement is Yes. AzureMonitorTraceExporter is instantiated with an Azure Monitor/Application Insights connection string and passed to BatchSpanProcessor. That processor is then registered with the tracer provider. Microsoft provides this same pattern specifically for exporting OpenTelemetry traces to Azure Monitor/Application Insights.

Study Guide references: Azure Monitor OpenTelemetry; TracerProvider; BatchSpanProcessor; AzureMonitorTraceExporter; distributed tracing.

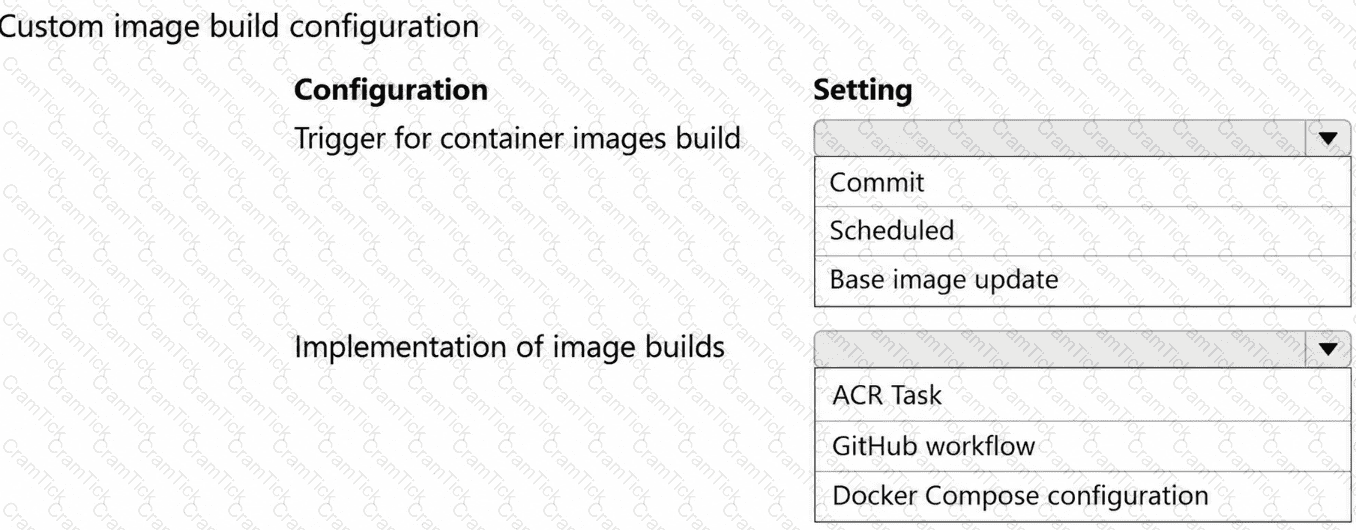

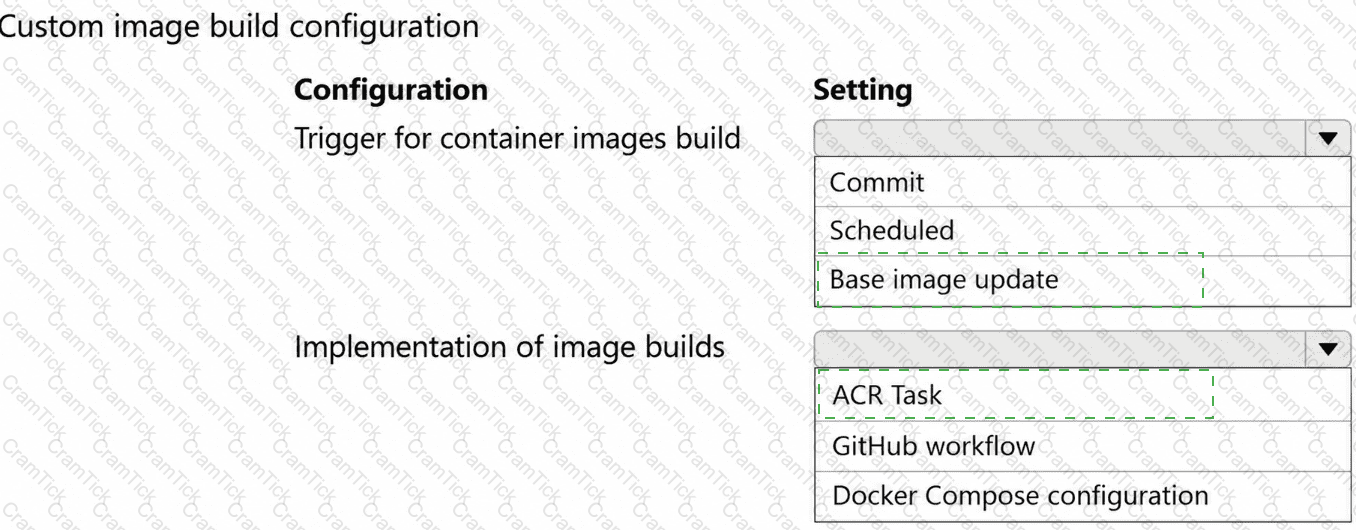

Trigger for container images build: Base image update

Implementation of image builds: ACR Task

The correct trigger is Base image update because Proseware requires every custom container image to be rebuilt automatically whenever its Docker Hub base image changes. Azure Container Registry Tasks can detect base-image dependencies from the Dockerfile FROM instruction and automatically trigger a rebuild when that base image is updated. Microsoft confirms that ACR Tasks can track base images in public repositories such as Docker Hub and Microsoft Container Registry, as well as images stored in Azure Container Registry.

The build implementation must be an ACR Task . This directly satisfies the technical requirement that image-build automation run inside Azure Container Registry , eliminating dependencies on local developer machines or separate external build services. ACR Tasks provides cloud-based container building and can automate builds based on source-code commits, base-image updates, or scheduled triggers.

A GitHub workflow could orchestrate CI/CD, but using it as the actual image-building implementation would conflict with the explicit requirement that builds execute inside ACR. Docker Compose defines multi-container applications; it is not the native ACR build automation mechanism. A Commit trigger addresses source changes rather than the stated base-image update requirement, while Scheduled builds would introduce unnecessary periodic execution.

Study Guide references: Azure Container Registry Tasks; base-image dependency tracking; automated rebuilds; Docker Hub base-image triggers; cloud-native container builds.

Detailed Explanation: For a multiplexed request/reply pattern, ReplyToSessionId on the request tells the responder which SessionId to place on the reply, so carrying the request SessionId into ReplyToSessionId provides the reply-session routing context. For correlation, the standard request/reply pattern copies the original request MessageId into the reply CorrelationId. SequenceNumber and DeliveryCount are broker-managed delivery metadata and are not writable application correlation fields, so they cannot be used as the proposed audit-link mechanism.

Study Guide Alignment: Azure service integration: Service Bus, Event Grid, Azure Functions triggers/bindings, and event-driven processing.

Official Microsoft Learn References: AI-200 Study Guide | Service Bus messages, routing, and correlation | Service Bus message sessions

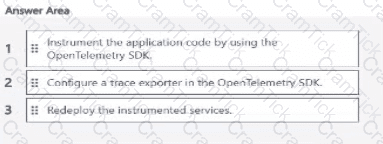

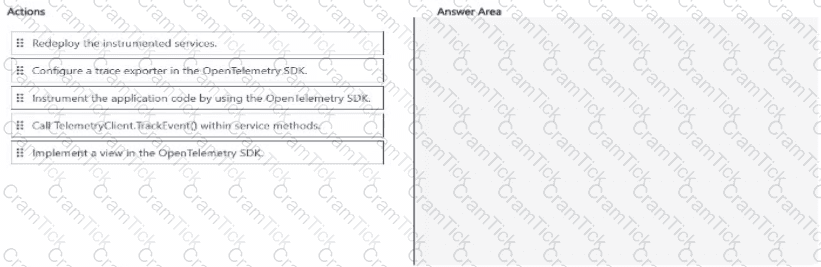

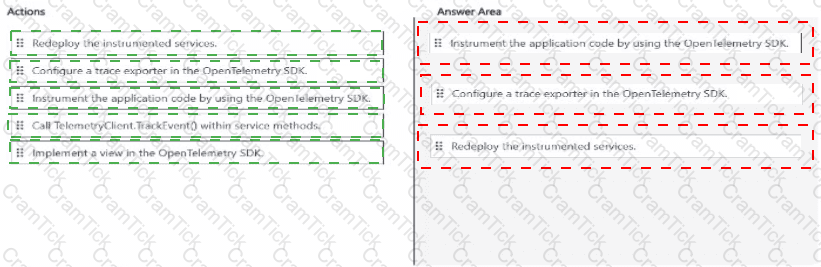

Verified Answer: 1) Instrument the application code with the OpenTelemetry SDK; 2) configure an Azure Monitor trace exporter in the OpenTelemetry SDK; 3) redeploy the instrumented services.

Detailed Explanation: Trace correlation requires the application to create OpenTelemetry spans and an exporter to send those spans to Azure Monitor. Instrumentation must therefore be present before the updated service is deployed. The previous Application Insights SDK instrumentation does not satisfy the case-study requirement that all tracing use OpenTelemetry. Configuring an OpenTelemetry view is unrelated to basic distributed-trace export, and calling TrackEvent is an Application Insights SDK pattern rather than the required OpenTelemetry approach.

Study Guide Alignment: Security and operations: Key Vault, App Configuration, managed identity, OpenTelemetry, Azure Monitor, and KQL-based troubleshooting.

Official Microsoft Learn References: AI-200 Study Guide | Enable Azure Monitor OpenTelemetry

Use GitHub Actions because Proseware requires an automated, version-controlled deployment pipeline and explicitly prohibits local and command-line deployments. Microsoft documents GitHub Actions as a supported CI/CD mechanism for Azure Functions: a workflow stored under .github/workflows can build and deploy Function app code automatically in response to repository events such as pushes or pull requests. The Azure Functions deployment action can deploy the application package directly to the target Function app.

GitHub Actions also satisfies the infrastructure requirement. Microsoft provides first-class support for deploying Bicep templates through GitHub Actions , enabling Azure resources to be provisioned declaratively from the same source-controlled pipeline. A pull-request workflow can perform validation or Bicep what-if analysis before changes are merged, while a main-branch workflow can perform the actual deployment after approval. This provides repeatability, auditing, and separation from individual developer machines.

Azure Functions Core Tools and Azure CLI are commonly used for interactive/local deployments, which directly conflicts with the requirement to eliminate command-line deployment. Local Git deployment also fails the requirement for a centrally automated Bicep-based deployment process.

Study Guide references: Azure Functions CI/CD; GitHub Actions; infrastructure as code with Bicep; automated Azure deployments; version-controlled deployment workflows.

Choose a Standard pay-as-you-go deployment . Microsoft Foundry documentation identifies Standard deployments as appropriate for low-to-medium volume workloads with high burstiness . Standard uses pay-per-token billing , so charges are based on actual inference consumption rather than continuously reserved model capacity. This makes it well suited to workloads whose traffic varies significantly and may have long idle periods.

By contrast, Provisioned Throughput Units (PTUs) reserve model-processing capacity and are designed for sustained, predictable high-throughput workloads where consistent latency is important. Microsoft states that PTUs are billed based on deployed capacity even when that capacity is not actively serving requests. Consequently, PTU deployments can be economically inefficient when the endpoint is frequently idle or traffic is highly variable.

A Batch deployment is optimized for asynchronous, non-latency-sensitive processing and is not appropriate for an interactive endpoint receiving unpredictable live traffic. Dedicated managed compute with fixed capacity introduces continuously allocated infrastructure and therefore does not align with the requirement to minimize idle-period cost.

Microsoft also recommends Standard or Global Standard for variable, bursty traffic , while provisioned types are recommended for consistent high-volume workloads.

Study Guide references: Microsoft Foundry Models → Standard deployments; pay-per-token billing; bursty workloads; provisioned throughput; batch processing.

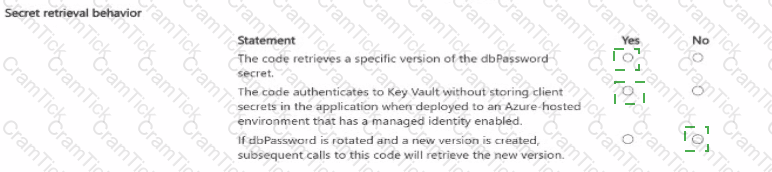

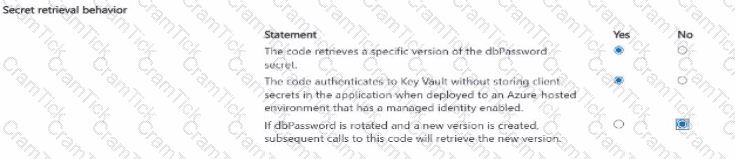

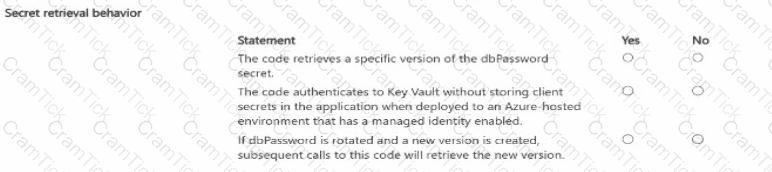

Verified Answer: Yes; Yes; No.

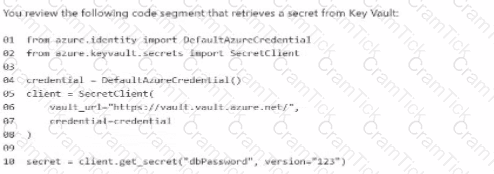

Detailed Explanation: The get_secret call supplies an explicit version value, so it retrieves that particular version of dbPassword. DefaultAzureCredential can authenticate to Key Vault by using the Azure-hosted application’s managed identity without embedding a client secret in the application. Because the code requests a fixed version, later secret rotation creates a newer version but subsequent executions of this exact code continue to request the specified old version. To follow the latest version automatically, the version parameter must be omitted.

Study Guide Alignment: Security and operations: Key Vault, App Configuration, managed identity, OpenTelemetry, Azure Monitor, and KQL-based troubleshooting.

Official Microsoft Learn References: AI-200 Study Guide | Managed identities for Azure resources | Use Key Vault references for App Service and Functions

Enable semantic ranking in Azure AI Search . Semantic ranking is a query-time secondary re-ranking stage that evaluates the initial candidate results using Microsoft language-understanding models and promotes documents that are more semantically aligned with the user ' s actual query intent. It can operate over BM25 results, hybrid results, and the textual content associated with vector-search results.

This directly addresses the stated problem. Vector similarity retrieval often has strong recall but can return passages that are broadly related rather than specifically useful for answering the question. Microsoft ' s RAG guidance explains that reranking improves precision by taking the retrieved candidate set and reordering it so that the most query-relevant chunks are placed first. This reduces irrelevant context passed to the generation model and improves grounding quality without retraining either the embedding model or the LLM.

Increasing embedding dimensionality alone does not guarantee better relevance. Disabling vector search sacrifices semantic retrieval capability, while reducing the index size arbitrarily removes potentially useful content rather than improving ranking quality.

Therefore, semantic re-ranking is the correct precision-improvement mechanism .

Study Guide references: Azure AI Search → semantic ranker; RAG information retrieval; hybrid/vector search; secondary ranking; relevance optimization.

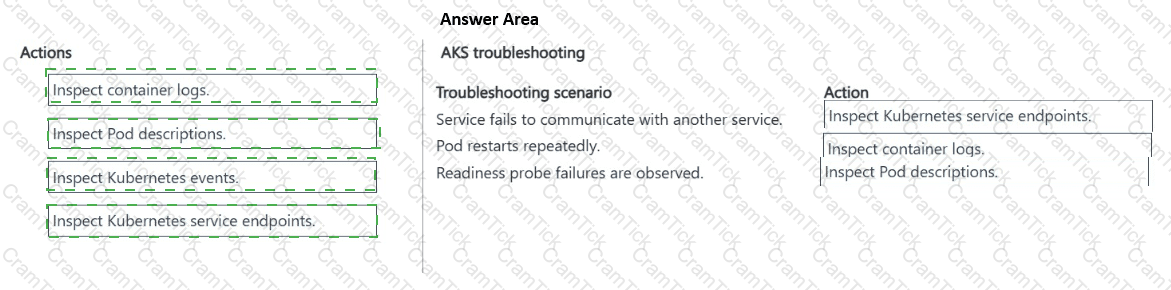

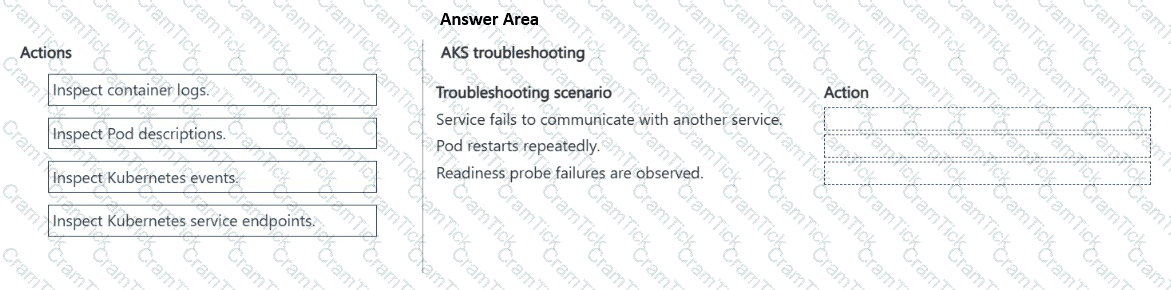

Service fails to communicate with another service: Inspect Kubernetes service endpoints.

Pod restarts repeatedly: Inspect container logs.

Readiness probe failures are observed: Inspect Pod descriptions.

For a service-to-service communication failure , first inspect the Kubernetes service endpoints . Microsoft’s AKS troubleshooting guidance recommends verifying that the destination pod IP address and application port appear as endpoints for the Kubernetes Service. An empty or incorrect endpoint list commonly indicates a selector/label mismatch, incorrect port configuration, or unavailable backend pods.

For a pod that restarts repeatedly , inspect the container logs , including the previous container instance when necessary. Microsoft specifically recommends kubectl logs < pod > --previous for workloads that repeatedly restart because it exposes application errors and termination messages from the container immediately before the restart.

For readiness probe failures , inspect the Pod description by using kubectl describe pod. The description exposes the configured health probes, pod conditions, container state, and associated probe-failure events, allowing you to determine whether the probe path, port, timing, or application readiness behavior is incorrect. Microsoft recommends reviewing kubectl describe output when pods are not Ready or health probes are failing.

Therefore, the correct mapping is service endpoints → container logs → Pod descriptions .

Study Guide references: AKS troubleshooting; Kubernetes Services and endpoints; container logging; Pod health; readiness/liveness probes; kubectl describe and kubectl logs.

The batch embedding workload is planned to run in Azure Kubernetes Service (AKS) , and Kubernetes workloads should be defined declaratively by using YAML manifest files . Microsoft states that a Kubernetes manifest defines the desired state of cluster resources, including Deployments, Jobs, Services, ConfigMaps, and other Kubernetes objects. These manifests can then be deployed by using kubectl apply -f < manifest > .yaml.

For this case, YAML is particularly appropriate because the technical requirements emphasize repeatable, version-controlled, automated deployments . A batch vector embedding regeneration process would typically be represented as a Kubernetes workload such as a Job or another batch-oriented resource, with its configuration committed to Git alongside the rest of the deployment definitions.

kubectl run and kubectl create are imperative commands and are less appropriate for a controlled Git-based deployment model because they do not inherently preserve the complete desired-state definition as source-controlled configuration. XML is not the standard Kubernetes manifest format. az aks commands are primarily used to provision and manage the AKS cluster itself rather than declaratively define application workloads running inside the cluster.

Therefore, the correct choice is YAML-formatted Kubernetes manifest files .

Study Guide references: Azure Kubernetes Service → Kubernetes manifests; declarative deployments; kubectl apply; Git-based workload configuration.

The correct solution is to implement connection pooling , ideally by using the built-in PgBouncer capability in Azure Database for PostgreSQL Flexible Server. Connection pooling allows many concurrent application requests to share and reuse a smaller set of established PostgreSQL server connections instead of repeatedly opening and closing database sessions. Microsoft notes that creating a new PostgreSQL connection for each operation consumes server resources because each connection involves its own backend process. Reusing pooled connections therefore reduces connection overhead, lowers CPU and memory consumption, and improves throughput for high-concurrency workloads.

This directly matches Fabrikam ' s stated requirement that database connections support high concurrency with minimal latency through connection optimization . PgBouncer can efficiently multiplex large numbers of client connections onto fewer PostgreSQL connections, particularly in transaction pooling mode.

Increasing max_connections is not the preferred solution because each additional PostgreSQL connection consumes memory and other resources; Microsoft explicitly recommends PgBouncer instead when more concurrent connections are required. Increasing shared_buffers addresses caching and memory allocation rather than connection-management overhead. Read replicas can scale read workloads, but they do not optimize the application ' s connection lifecycle.

Study Guide references: Azure Database for PostgreSQL Flexible Server → connection pooling; PgBouncer; connection management and high-concurrency performance.

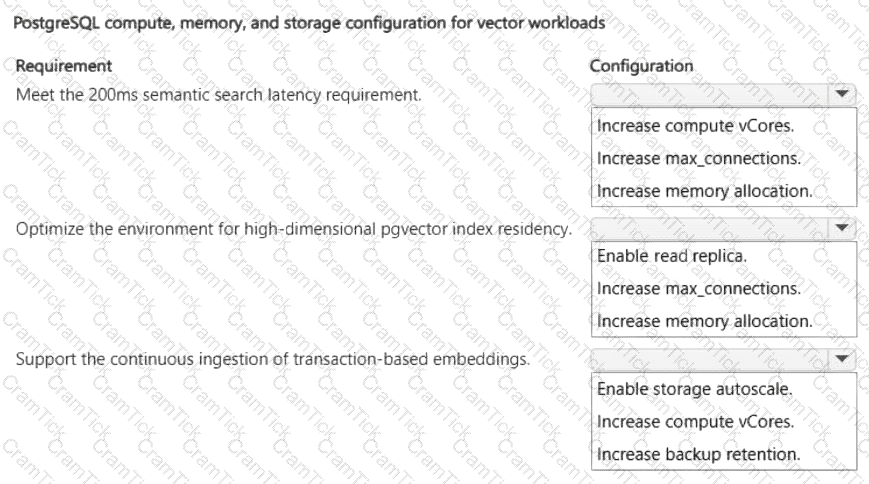

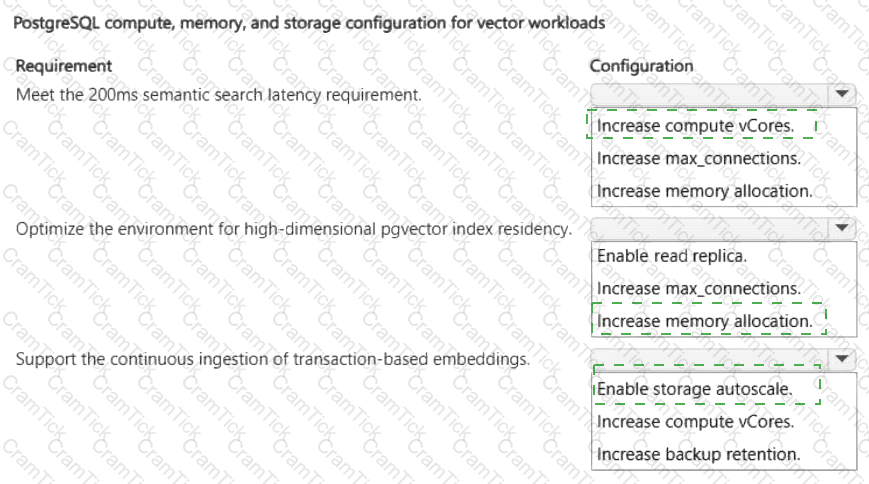

Meet the 200-ms semantic search latency requirement: Increase compute vCores.

Optimize the environment for high-dimensional pgvector index residency: Increase memory allocation.

Support the continuous ingestion of transaction-based embeddings: Enable storage autoscale.

For the strict sub-200-ms vector-search latency target, increasing compute vCores is the appropriate choice. Vector similarity operations are computationally intensive, and additional CPU capacity improves mathematical throughput and parallel query execution. Microsoft’s pgvector guidance emphasizes query-plan optimization, ANN indexes such as HNSW, and sufficient compute resources when optimizing vector workloads.

For high-dimensional pgvector index residency , increase memory allocation . HNSW provides strong query-performance characteristics but consumes more memory than IVFFlat. Keeping frequently accessed vector index structures in memory minimizes disk access and materially improves latency. Microsoft explicitly notes that HNSW requires more memory while providing a better speed/recall tradeoff.

For the continuous ingestion of millions of embeddings, enable storage autoscale . Azure Database for PostgreSQL Flexible Server can automatically increase allocated storage as capacity approaches configured thresholds, avoiding an out-of-storage condition as data volumes grow. Microsoft recommends storage autogrow for workloads whose storage demand can increase dynamically.

Increasing max_connections does not directly improve vector computation or index residency, read replicas primarily scale reads, and backup retention does not address ingestion capacity.

Study Guide references: Azure Database for PostgreSQL Flexible Server → pgvector performance optimization; compute and memory sizing; HNSW indexing; storage autogrow.

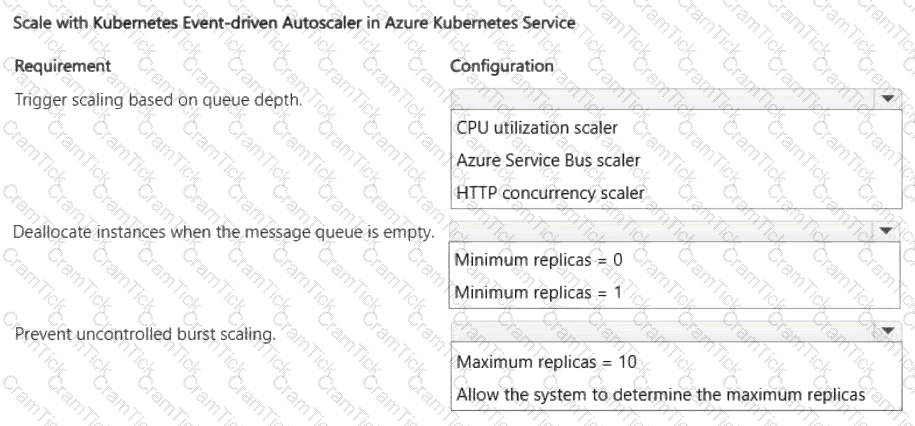

Trigger scaling based on queue depth: Azure Service Bus scaler

Deallocate instances when the message queue is empty: Minimum replicas = 0

Prevent uncontrolled burst scaling: Maximum replicas = 10

The batch retraining workload must scale according to queue length , so the correct KEDA trigger is the Azure Service Bus scaler . KEDA integrates with Azure Service Bus and monitors queue or subscription metrics, allowing AKS workloads to scale according to the number of pending messages rather than CPU utilization or HTTP request concurrency. Microsoft documents KEDA as the event-driven autoscaling mechanism for AKS and specifically supports Azure-based scalers for queue-driven workloads.

To meet the requirement to deallocate workload instances when no messages remain, configure minimum replicas = 0 . KEDA supports scale-to-zero for event-driven workloads, which is particularly appropriate for intermittent batch or machine-learning processing because no pods need to remain running while the queue is empty. Microsoft specifically identifies scale-to-zero as a KEDA capability and recommends it for sporadic ML workloads where cost optimization is important.

Finally, configure maximum replicas = 10 . A finite maximum replica count establishes an explicit upper scaling boundary, preventing large queue bursts from creating an uncontrolled number of worker replicas and protecting both infrastructure cost and downstream services.

Study Guide references: AKS → KEDA; Azure Service Bus event-driven scaling; minReplicaCount; maxReplicaCount; scale-to-zero; autoscaling limits.

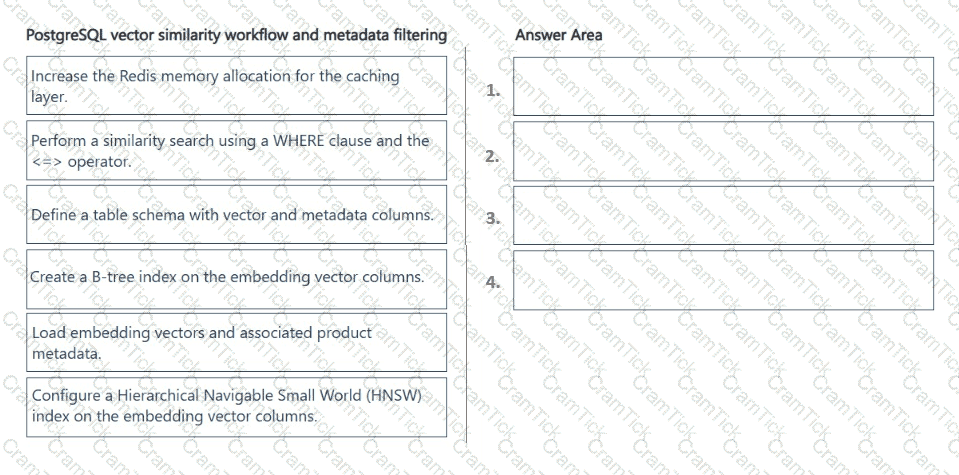

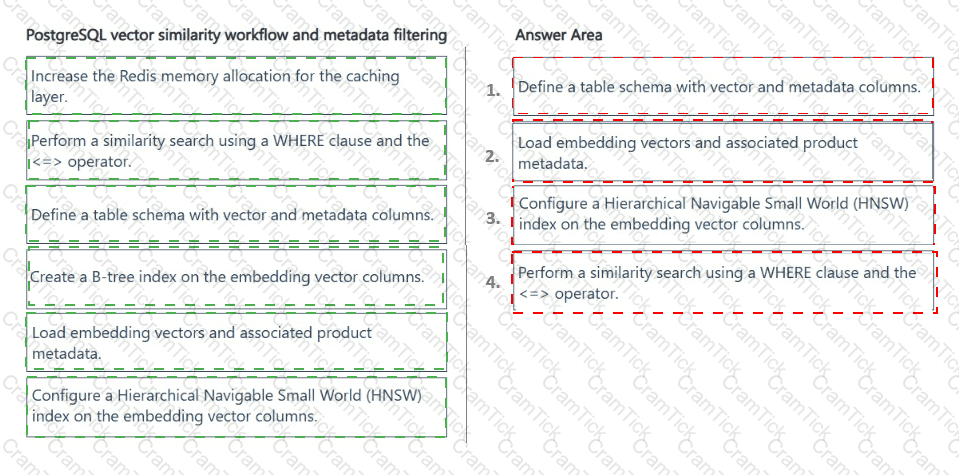

Define a table schema with vector and metadata columns.

Load embedding vectors and associated product metadata.

Configure a Hierarchical Navigable Small World (HNSW) index on the embedding vector columns.

Perform a similarity search using a WHERE clause and the < = > operator.

The workflow must first establish a PostgreSQL schema containing both the pgvector embedding column and the product metadata required for filtering. The embeddings and their associated metadata are then bulk-loaded. This ordering is important because Microsoft recommends loading data before creating vector indexes ; creating the index afterward provides faster ingestion and a more optimal index layout.

After loading, configure an HNSW index on the embedding column. HNSW is an approximate-nearest-neighbor index supported by pgvector and provides a strong speed/recall tradeoff for low-latency vector retrieval. Microsoft specifically documents HNSW for efficient cosine-distance searches in Azure Database for PostgreSQL.

Finally, execute the retrieval query so that mandatory product metadata constraints are applied through a WHERE clause , while vector similarity is evaluated with the < = > cosine-distance operator . This satisfies Fabrikam ' s requirement to calculate similarity only for eligible products.

A B-tree index is not an ANN vector index, and increasing Redis memory does not implement PostgreSQL semantic retrieval.

Study Guide references: Azure Database for PostgreSQL → pgvector, HNSW indexing, bulk-load optimization, vector similarity operators, metadata-filtered retrieval.

Detailed Explanation: The objective is to reduce RU consumption from vector similarity queries. Microsoft guidance identifies vector numeric precision and vector-index selection as major cost and performance levers. Using a lower supported vector precision can reduce storage and processing cost, while quantizedFlat and DiskANN are designed to reduce latency and RU consumption compared with flat search for appropriate data sizes. Strong consistency would increase resource cost rather than solve vector-search efficiency. A regular composite index is not a substitute for the vector index. Option B should be read as reducing vector numeric precision, not changing a generic “indexing precision” setting.

Study Guide Alignment: AI data-management workloads: Cosmos DB, PostgreSQL, caching, vector storage, vector retrieval, consistency, and connection optimization.

Official Microsoft Learn References: AI-200 Study Guide | Vector search in Azure Cosmos DB | Optimize Cosmos DB vector search performance

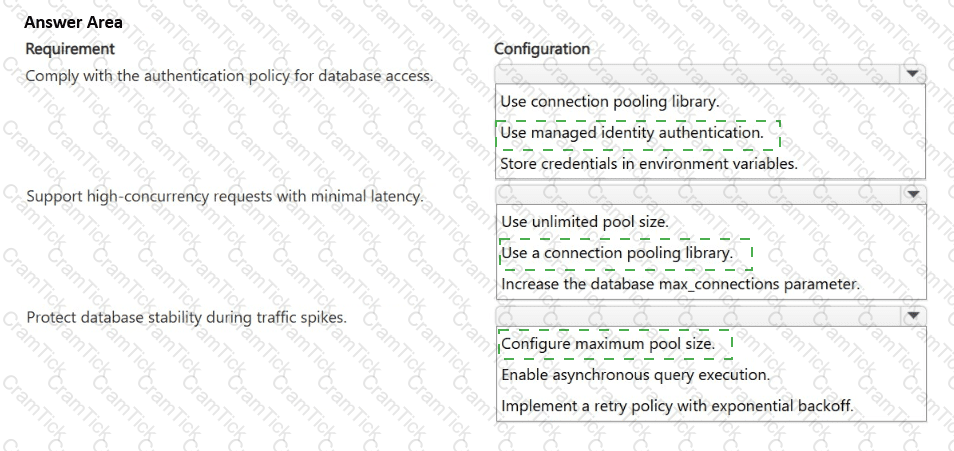

Comply with the authentication policy for database access: Use managed identity authentication.

Support high-concurrency requests with minimal latency: Use a connection pooling library.

Protect database stability during traffic spikes: Configure maximum pool size.

The Recommendation API should use managed identity authentication because Fabrikam explicitly requires service-to-database authentication without long-lived credentials. Azure Container Apps managed identities allow applications to obtain Microsoft Entra tokens at runtime and access supported Azure resources without storing usernames, passwords, or connection secrets in application configuration.

For high-concurrency PostgreSQL access, implement a connection pooling library . Azure Database for PostgreSQL documentation recommends connection pooling because repeatedly opening new database connections creates backend processes and consumes CPU and memory. Reusing existing connections reduces connection-establishment overhead and improves latency and throughput. Azure also provides PgBouncer as a built-in pooling option for Flexible Server.

To protect PostgreSQL during sudden traffic spikes, configure a maximum pool size . An unlimited pool can allow application demand to create excessive concurrent connections, which can exhaust database memory and increase contention. Microsoft warns that increasing connection counts can cause significant performance degradation and recommends conservative connection limits combined with pooling.

Therefore, the optimal configuration combines managed identity + connection pooling + bounded pool size .

Study Guide references: Azure Container Apps managed identities; Azure Database for PostgreSQL connection management; PgBouncer; connection-pool sizing and resource protection.

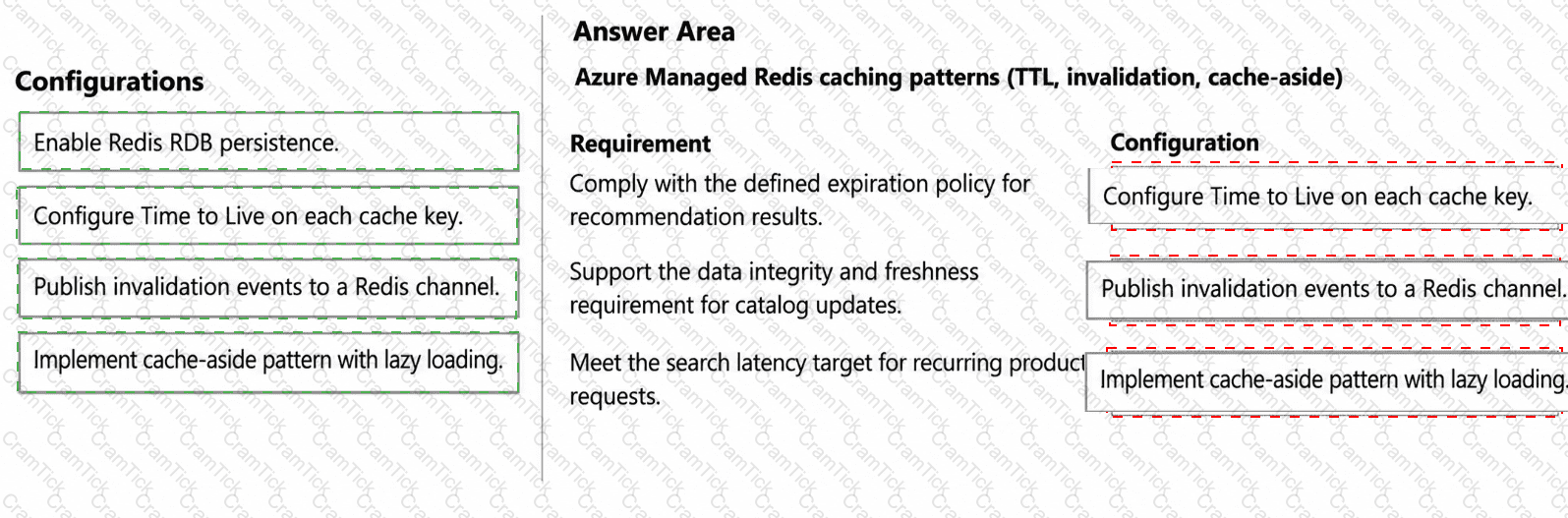

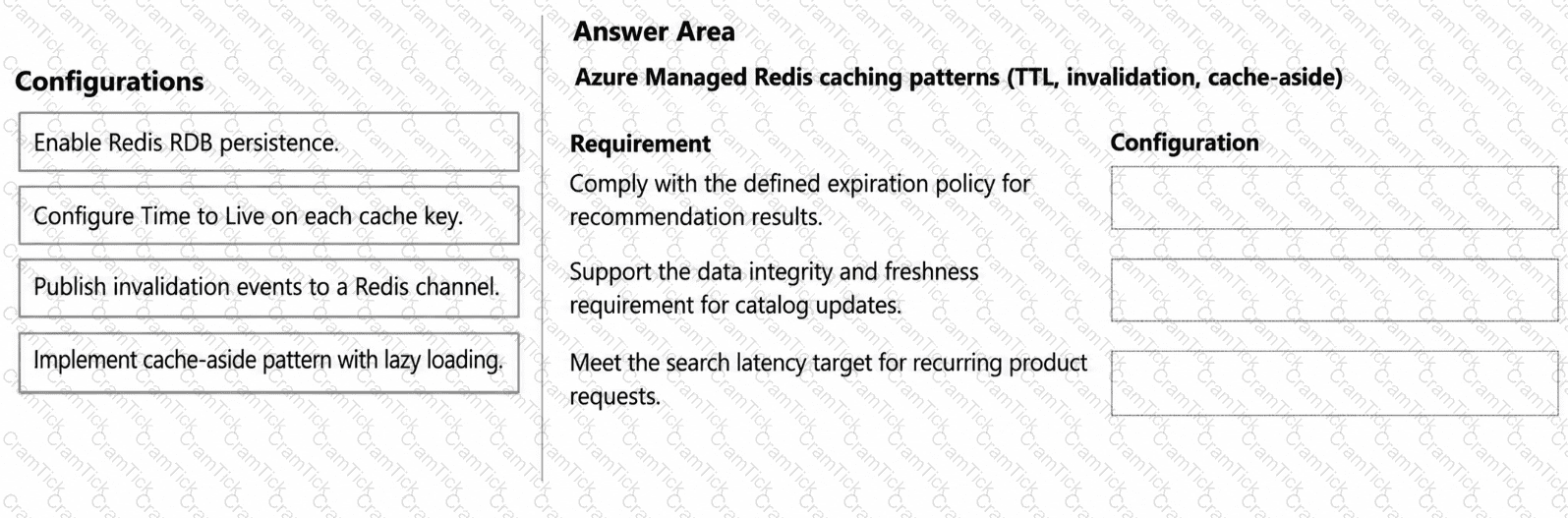

Comply with the defined expiration policy for recommendation results: Configure Time to Live on each cache key.

Support the data integrity and freshness requirement for catalog updates: Publish invalidation events to a Redis channel.

Meet the search latency target for recurring product requests: Implement cache-aside pattern with lazy loading.

The 10-minute expiration requirement should be implemented by configuring a Time to Live (TTL) on each Redis cache key. Redis automatically removes a key after its assigned expiration interval, ensuring recommendation results cannot remain cached indefinitely. Microsoft documents expiration as a standard mechanism for preventing cached data from becoming stale.

For catalog changes, Fabrikam explicitly requires a reactive invalidation mechanism . Publishing invalidation events to a Redis Pub/Sub channel allows application components to notify subscribers immediately when product metadata or pricing changes. Redis Pub/Sub broadcasts messages to channel subscribers, which can then invalidate affected cache entries instead of waiting for TTL expiration.

For repeated recommendation queries, implement the cache-aside pattern with lazy loading . The application first checks Redis; on a cache hit, results are returned from the low-latency in-memory cache. On a miss, the application retrieves data from PostgreSQL, places the result in Redis, and returns it. Microsoft identifies cache-aside as an appropriate pattern for frequently read data and explicitly notes that Azure Managed Redis provides low-latency, high-throughput access.

Redis RDB persistence is unnecessary for these requirements because the cache is an optimization layer rather than the authoritative data store.

Study Guide references: Azure Managed Redis → cache-aside pattern; TTL/expiration; Pub/Sub; cache invalidation and data freshness.

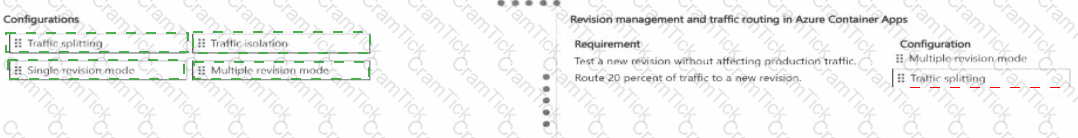

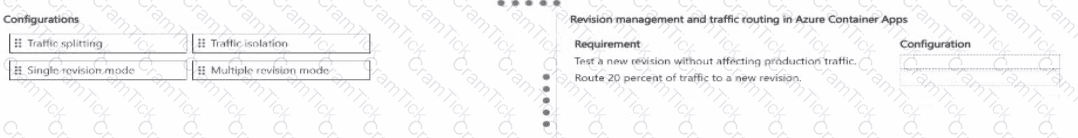

oncurrent active versions: Multiple revision mode. Route a percentage to the secondary version: Traffic splitting.

Detailed Explanation: Azure Container Apps supports side-by-side application versions through multiple revision mode. Once multiple revisions can be active, ingress traffic can be distributed by percentage across those revisions. This is the required combination for canary or controlled rollout scenarios. Single revision mode deactivates the previous revision as a new one becomes active, while traffic splitting is the specific feature that assigns a percentage of incoming requests to each active revision.

Study Guide Alignment: Containerized Azure workloads: registry builds, App Service containers, Container Apps revision/scaling behavior, and AKS deployment choices.

Official Microsoft Learn References: AI-200 Study Guide | Azure Container Apps revisions
