H12-811_V2.0 HCIA-Datacom V2.0 Questions and Answers

Huawei network devices use file extensions to distinguish software images, patches, configuration files, and other packages. A patch package uses the .pat extension, so test.pat is the only option that represents a Huawei patch file. A .cc file is normally associated with a VRP system software package rather than a patch. Configuration data is stored in supported configuration formats and is not identified by the .pat extension. An administrator can transfer the patch file to the device by FTP, SFTP, or another supported file-transfer method and then activate or load it according to the platform ' s patch procedure. The purpose of a patch is to correct defects or vulnerabilities without necessarily replacing the complete system software package. Because the question asks specifically for the file that can be uploaded as a patch to remediate a security vulnerability, the filename ending in .pat is the technically correct selection. The source answer B is therefore consistent with Huawei Datacom file-management conventions.

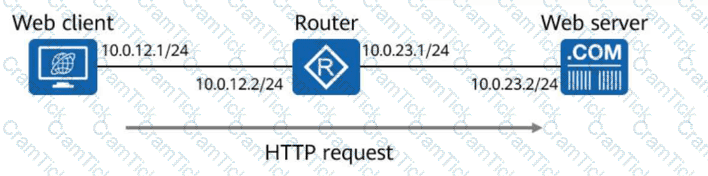

In the standard TCP/IP forwarding model, transport-layer headers such as TCP and UDP headers are added by the source host and are mainly interpreted by the destination host. Routers that forward packets between the source and destination operate primarily at the network layer , using the destination IP address in the IP header to make forwarding decisions. Therefore, under normal routing behavior, routers do not process transport-layer header information when deciding how to forward packets.

This is a key concept in layered communication. The source host encapsulates application data with a transport-layer header, then with an IP header, and finally with a data-link header. Each router along the path removes only the Layer 2 frame header, checks the Layer 3 destination IP information, decrements TTL, recalculates the IP header checksum when required, and forwards the packet. The transport-layer content remains unchanged in normal forwarding. HCIA-Datacom uses this principle to explain end-to-end communication and layer responsibilities. Although advanced devices may inspect higher-layer information for security or policy purposes, standard router forwarding in the basic TCP/IP model does not depend on transport-layer processing.

In an Eth-Trunk working in manual mode , multiple physical member links are bundled into one logical interface to provide higher bandwidth and link redundancy. If one of four 1 Gbit/s member links fails, the Eth-Trunk does not go down as long as at least one valid member link remains active. Therefore, statement A is correct. Since one link has failed and three member links remain available, the total available bandwidth becomes 3 Gbit/s , so statement B is also correct.

Statement C is incorrect because the traffic originally hashed to the failed link is not permanently stopped. Instead, after the link failure is detected, traffic is redistributed across the remaining active member links according to the trunk load-balancing mechanism. Statement D is also incorrect because Eth-Trunk provides link-level redundancy. Existing upper-layer sessions such as TCP are not necessarily interrupted and re-established simply because one member link fails. HCIA-Datacom emphasizes that Eth-Trunk improves reliability and bandwidth utilization by allowing traffic to continue across surviving links when a single member fails. This is one of the main advantages of link aggregation in campus and data center switching networks.

Python identifiers and string values are case-sensitive. The variables Test and test are therefore two different variable names, and the assigned strings also differ in capitalization. Test contains the string ' Hello World ' , whereas test contains ' hello world ' . Calling print(Test) outputs the capitalized form, while print(test) outputs the lowercase form. Python does not automatically normalize case when resolving variable names or when displaying strings. The same principle applies to function names, class names, dictionary keys, and most other identifiers or values used in network automation scripts. In Datacom automation work, case sensitivity matters when processing device output, JSON/YANG data, NETCONF payloads, interface names, and user-defined variables. A script that refers to Test when only test has been defined can even raise a NameError because Python treats the two identifiers as unrelated. In this question both variables are defined, but their printed output is visibly different. Consequently, the statement that the two print operations produce the same output is FALSE, option B.

IPv6 text representation permits zero compression to make long addresses easier to read and write. One or more consecutive 16-bit groups containing only zeros can be replaced by a double colon, subject to the rule that the double-colon compression is used only once in a single IPv6 address; otherwise the number of omitted groups would be ambiguous. In the address 2001:DBFF:130F:0:0:0:0:130B, four consecutive zero groups appear between 130F and 130B. Replacing that run with :: produces 2001:DBFF:130F::130B, which expands back unambiguously to the original eight groups. Leading zeros within an individual 16-bit group can also be omitted, but that is a separate abbreviation rule. The example in the question follows valid IPv6 notation and does not alter the numeric address. Consequently, the statement that the address can be compressed in the manner shown is TRUE. The correct answer is A. The compression changes only the written representation of the IPv6 address; it does not change the underlying 128-bit address value itself in any way.

The IEEE 802.11 channel plan for the 2.4 GHz ISM band defines channels numbered 1 through 14, with adjacent channel center frequencies separated by 5 MHz. Because a traditional 20 MHz Wi-Fi channel occupies substantially more spectrum than the 5 MHz center-frequency spacing, neighboring channels overlap. This is why WLAN planning normally uses a limited set of non-overlapping or minimally overlapping channels, such as 1, 6, and 11 in many regulatory domains. The fact that fourteen channel numbers exist in the standard does not mean that every country permits operation on every one of them. Regulatory domains restrict the usable subset; for example, channel 14 is not generally available worldwide and has historically been associated with specific Japanese operation. Huawei APs apply the configured regulatory domain to determine which channels may actually be selected. The statement concerns the standard channelization itself rather than regional permission to use every channel. On that basis, the statement is TRUE and option A is correct.

The correct statements are B and C . Option B is true because general-purpose computing data center networks focus heavily on stability, reliability, service continuity, and flexible VM deployment. Technologies such as M-LAG improve gateway and uplink redundancy and support fast failover, while VXLAN enables large-scale Layer 2 extension for VM mobility and resource flexibility.

Option C is also true because intelligent computing networks, especially those serving AI training and distributed GPU clusters, require an extremely low-loss or lossless forwarding environment. Technologies such as PFC and ECN are standard methods used to build such networks and reduce congestion-related packet loss. Option A is not selected because modern general-purpose data center networks do not necessarily require the traditional core-aggregation-access three-layer architecture ; contemporary data centers commonly use leaf-spine fabrics instead. Option D is not selected because although intelligent computing networks do require ultra-low latency and RoCE helps reduce network communication latency, the wording about “latency of data transmission within a compute node” is not the standard network-side requirement emphasized in HCIA-Datacom. The focus is mainly on inter-node network transport efficiency and lossless forwarding.

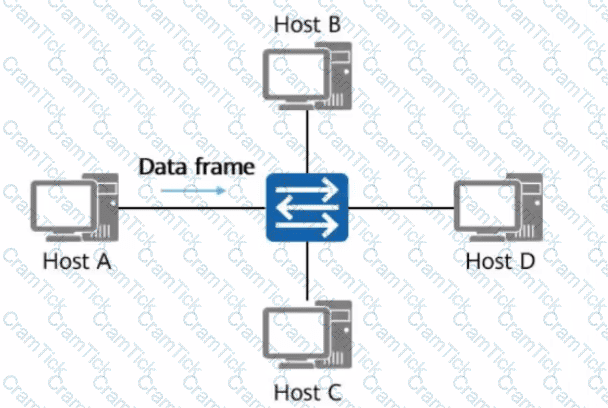

The destination address FF-FF-FF-FF-FF-FF is the Ethernet broadcast address. A switch floods a broadcast frame through the other eligible ports in the same VLAN, so both Host B and Host C can receive the frame. Option C, 53-80-C2-00-00-01, is a multicast MAC address because the individual/group bit, which is the least significant bit of the first octet, is 1. The first octet 0x53 has a binary least significant bit of 1, identifying a group address. Multicast frames may therefore be delivered to multiple receivers in the same Layer 2 domain, depending on multicast handling and membership behavior. By contrast, the first octets in options B and D, 0x98 and 0x34, have a least significant bit of 0 and are unicast addresses. A unicast frame is intended for a single MAC destination and is not normally delivered simultaneously to both hosts. Therefore A and C are the correct choices. This classification is fundamental when predicting whether a switched Ethernet frame is delivered to one station or replicated to multiple receivers simultaneously.

All four configured static routes have the same destination prefix, 20.0.0.0/30, and the question states that every next hop is reachable. Huawei route selection first considers route preference when choosing among routes from the same or different route sources. For static routes, a smaller preference value means a higher priority. The four preferences shown are 60 for next hop 10.1.1.2, 70 for 10.1.2.2, 100 for 10.1.3.2, and 50 for 10.1.4.2. Because 50 is the smallest preference, the route through 10.1.4.2 is selected as the active route in the IP routing table. The other configured static routes can remain as lower-priority alternatives and may become active if the preferred route becomes invalid, depending on reachability and configuration. Equal-cost load balancing would require routes with the same relevant preference and cost after route selection. That is not the case here. Therefore, the next hop of the selected route to 20.0.0.0/30 is 10.1.4.2, making option A correct.

The acronym in the source file is mistyped as PCF. The correct intelligent lossless Ethernet technology is PFC, which stands for Priority-based Flow Control. PFC extends Ethernet flow control by applying pause behavior to selected traffic priorities rather than stopping all traffic on an interface. When a downstream device detects that a lossless priority queue is approaching congestion, it can send a priority-specific pause indication to the upstream sender. The upstream device temporarily stops transmitting traffic for that priority, preventing the downstream buffer from overflowing and thereby supporting zero-packet-loss behavior for the protected traffic class. This capability is important in intelligent computing and data center fabrics carrying storage or high-performance computing workloads that are sensitive to packet loss. Huawei describes PFC as a foundational technology for intelligent lossless networks, often used together with congestion-management mechanisms such as ECN and related optimization features. Therefore, the blank must be filled with PFC in uppercase. The original answer PCF should be corrected to PFC.

ARP resolves an IPv4 address to a Layer 2 MAC address only within the local broadcast domain. When Host A determines, from its IP address and subnet mask, that Host B is on a different subnet, Host A does not broadcast an ARP request for Host B ' s MAC address. Instead, it forwards the packet to its default gateway. If the gateway ' s MAC address is not already cached, Host A broadcasts an ARP request for the gateway interface ' s IPv4 address. The gateway replies with its own MAC address, and Host A uses that MAC address as the Ethernet destination while retaining Host B ' s IP address as the IP destination. The router then forwards the packet toward Host B and may perform ARP on the destination subnet to learn Host B ' s MAC address. Therefore, the statement incorrectly describes cross-subnet forwarding as direct ARP resolution between the two hosts. The correct answer is FALSE, option B.

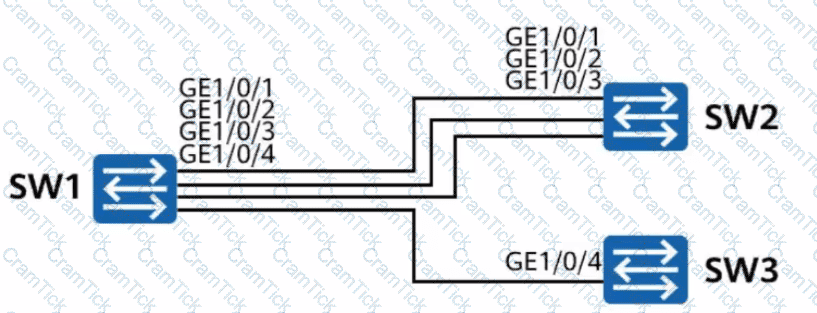

LACP mode and manual load-balancing mode behave differently when an Eth-Trunk contains a link connected to the wrong peer. In LACP mode, member interfaces exchange LACPDUs and the switches determine which physical links can participate in the same aggregation. GE1/0/1 through GE1/0/3 are correctly connected between SW1 and SW2, so they can form an operational LACP Eth-Trunk. GE1/0/4 is connected to SW3 and cannot successfully negotiate as a member of the SW1-SW2 LAG; it is therefore not used for service forwarding to SW3. This makes A and B true. In manual mode, there is no LACP negotiation to validate that every member terminates on the same peer. If GE1/0/4 is manually placed in the trunk, the device may treat it as a forwarding member and hash some traffic onto that link toward SW3. The trunk does not automatically go Down solely because of that incorrect peer connection. Therefore C is false and D is true.

On a Huawei WAC, the VAP profile is the profile that brings together the service attributes required to instantiate a wireless service on an AP radio. The service VLAN is configured in this VAP profile using the service-vlan command. The VAP profile can also reference an SSID profile and a security profile and can define the data forwarding mode, allowing the wireless service to map associated STA traffic into the correct wired VLAN. The SSID profile primarily defines the WLAN name and related SSID behavior. The security profile defines authentication and encryption policies such as WPA/WPA2/WPA3 parameters. The regulatory domain profile controls radio regulatory settings such as country-specific channel and transmit-power constraints. None of those profiles is the location in which the service VLAN itself is defined. Huawei configuration examples explicitly show the administrator entering the VAP profile view and then applying service-vlan vlan-id or a VLAN pool. Therefore, the correct choice is C, VAP profile.

In a WAC + Fit AP architecture, the WAC (Wireless Access Controller) centrally manages and controls the Fit APs, so option A is correct. Service configurations such as SSIDs, security policies, radio parameters, and access control are generally delivered from the WAC to the APs. The Fit AP mainly forwards wireless user traffic and executes the configuration issued by the controller.

Option D is also correct because a Fit AP provides 802.11 wireless access for stations (STAs) and serves as a bridge between the wireless side and the wired network. This is one of its basic roles in enterprise WLAN deployment. Option B is incorrect because users or administrators do not normally need to log in to each Fit AP individually to configure wireless services; centralized management by the WAC is the whole advantage of this architecture. Option C is incorrect because CAPWAP communication between the WAC and AP does not require Layer 2 adjacency ; the WAC and AP can communicate over Layer 3 as long as IP connectivity exists. HCIA-Datacom emphasizes centralized configuration, simplified operations, and scalable deployment as key benefits of WAC + Fit AP networking.

In STP, the root bridge has all its active ports elected as designated ports on each connected segment. On non-root switches, one port is selected as the root port , and on each LAN segment, one designated port is elected based on the best BPDU. Since SW1 is the root bridge and all links have equal cost, the election depends first on the path cost to the root, then on bridge ID, and then on port ID if needed.

According to the topology, the ports that become designated are GE1/0/2 of SW2 , GE1/0/1 of SW2 , and GE1/0/3 of SW3 , which correspond to option A , B , and C . Option D is not a designated port in this topology because that segment has another port with a superior BPDU and therefore SW4’s port does not win the designated-port election. HCIA-Datacom emphasizes that designated ports are elected per segment , not per switch, and that every non-root switch must compare received BPDUs to determine root and designated roles. This question tests the ability to apply STP election logic rather than simply memorizing port-role definitions.

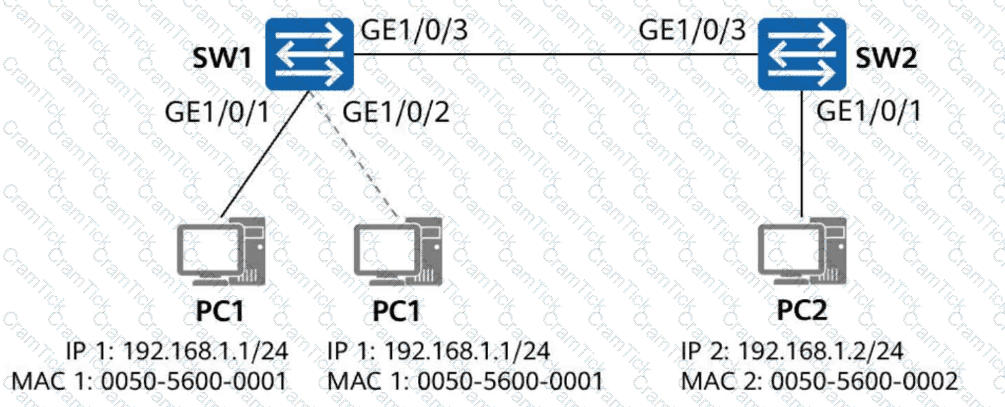

This statement is true . ARP is a Layer 2 broadcast-based protocol used to resolve an IPv4 address into a MAC address within the same broadcast domain. If two PCs are connected to the same switch but cannot learn each other’s ARP entries, one likely reason is an incorrect VLAN configuration .

For example, if PC1 and PC2 are placed in different VLANs, or if one interface is configured with the wrong access VLAN, ARP broadcast frames from one PC will not reach the other PC because VLANs separate Layer 2 broadcast domains. As a result, the ARP request will not be received by the peer, and the MAC address cannot be resolved. Other causes may also exist, such as incorrect IP addressing, port isolation, or security policies, but VLAN misconfiguration is a very common and valid cause in campus switching scenarios. HCIA-Datacom teaches that ARP communication depends on correct Layer 2 domain membership, and VLAN planning or interface configuration errors often directly affect host-to-host communication even when both hosts are physically connected to the same switch.

All four statements are correct. The code uses the Paramiko library to automate SSH login to a network device. import paramiko and import time load the Python modules required for SSH communication and delay control, so option C is correct. The statement ssh = paramiko.SSHClient() creates an SSH client object, and ssh.set_missing_host_key_policy(paramiko.AutoAddPolicy()) allows the client to accept an unknown host key automatically in this example scenario.

The command ssh.connect( ' 192.168.1.254 ' , username= ' python ' , password= ' Huawei@123 ' ) establishes an SSH connection to the target device, so option B is correct. Then channel = ssh.invoke_shell() opens an interactive shell channel , which is commonly used to send CLI commands and receive output just as an administrator would in a terminal session, making option D correct. The command channel.send( ' screen-length 0 temporary\n ' ) disables page-by-page output for the current session, which is useful in network automation. Finally, ssh.close() closes the SSH session and releases the connection, so option A is correct. HCIA-Datacom automation knowledge often uses Paramiko examples to demonstrate basic Python-based device O & M.

The uploaded key includes all four options, but option B is not a valid requirement for normal source NAT and should be removed. Source NAT translates the private source address of outbound traffic into a public address before the packet enters the public network. The public-side router therefore needs reachability to the translated public address for return traffic, not a route to the original private intranet address. By contrast, A can prevent access if NAT is not applied on the proper outbound interface or direction. C can also prevent translation when the configured address pool has no usable address available, depending on the NAT mode and session requirements. D is valid because traffic whose source address does not match the NAT policy or referenced ACL will not be translated; private-source packets then normally cannot traverse the Internet as intended. Routing on the enterprise egress device must of course also be correct, but the specific absence described in B is not inherently a failure when source NAT is working. The verified selections are A, C, and D.

When two OSPF routers reach the Full state, it means that adjacency establishment has been successfully completed and the routers have synchronized the necessary link-state information for that area. For this to happen, the two routers must have different router IDs, so option A is correct. They must also belong to the same OSPF area on the interfaces used to form the adjacency, making option B correct. Once adjacency reaches Full state, the routers have synchronized their link-state databases for that area, so option D is also correct.

Option C is incorrect because the OSPF process ID is only locally significant on a device. Two neighboring routers do not need to use the same process ID to establish adjacency. HCIA-Datacom teaches that OSPF neighbor formation depends on matching parameters such as area ID, network type, hello/dead timers, authentication settings, and subnet consistency, but not on the locally configured process number. This question is important because many learners mistakenly believe the process ID must match between devices, while in fact OSPF uses protocol parameters exchanged in packets rather than local process labels to form neighbor relationships.

To check OSPF-learned routes in the global IP routing table , the correct command is display ip routing-table protocol ospf , so option A is correct. This command filters the routing table and shows only the routes whose source protocol is OSPF. It is especially useful when verifying whether OSPF-learned routes have been successfully installed into the forwarding table after neighbor establishment and LSDB calculation.

Option B , display ospf peer, is used to check OSPF neighbor information and adjacency states, not the routing table. Option C , display ospf interface, shows OSPF-related parameters on interfaces such as timers, network type, and cost. Option D , display ospf routing, displays OSPF route information maintained by the OSPF process itself, but the question specifically asks about routes in the global routing table , which is the RIB used for actual forwarding decisions. HCIA-Datacom distinguishes between protocol-specific route information and the final routing table seen by the device. Understanding this distinction helps engineers verify whether a protocol has only learned topology information or has actually produced usable forwarding entries.

The authentication-mode radius local configuration defines an authentication sequence in which RADIUS is attempted first and local authentication is used as a fallback under the conditions defined by Huawei AAA processing. A critical distinction exists between a RADIUS service being unavailable and a RADIUS server explicitly rejecting the credentials. If the RADIUS server is unreachable, times out, or otherwise cannot perform the authentication service, local authentication may be used as the backup method. However, when the device successfully contacts the RADIUS server and receives an explicit authentication failure or Access-Reject response, that is a definitive authentication result rather than a server-unavailable condition. The device does not simply bypass the rejection and retry the same user against the local database, because doing so would undermine centralized authentication policy. The question explicitly states that R1 is properly connected to the RADIUS server and that the server sends an authentication failure message. Therefore, the claimed fallback to local authentication does not occur in this situation. The statement is FALSE and option B is correct.

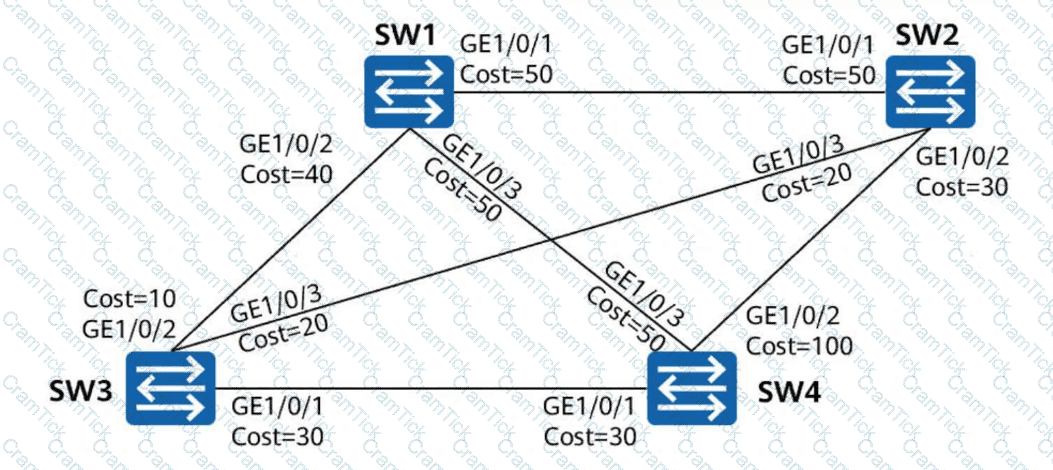

After STP convergence, only ports in the forwarding state participate in active traffic forwarding, while redundant ports may be placed into the blocking or discarding state to eliminate loops. According to the topology and STP role election shown in the question, the valid forwarding path from SW1 to SW4 is SW1 → SW3 → SW4, so option B is correct.

This means that the direct alternative path or the path through SW2 is not the active spanning-tree forwarding path after election and state transition. STP selects paths based on the root bridge, path cost, bridge ID, and port ID. Once the root bridge and port roles are determined, some links remain active and others are blocked to ensure a loop-free Layer 2 topology. HCIA-Datacom emphasizes that the resulting forwarding topology is a tree, not a mesh, even if the physical topology contains redundant links. Understanding the actual forwarding path after STP convergence is important for troubleshooting connectivity, predicting traffic behavior, and verifying whether bridge priority and path-cost settings have produced the intended design outcome in campus switching networks.

RADIUS and HWTACACS are AAA protocols that support accounting functions in addition to authentication and authorization. Accounting records can be used to track login sessions, service usage, command activity, or other information required by the deployment. LDAP and Microsoft Active Directory, by contrast, are directory-based identity technologies. Huawei documentation describes LDAP/AD integration primarily for authentication and authorization by querying directory information and validating user credentials. They are not used as the native AAA accounting protocol between a Huawei AAA client and an AAA server in the same way as RADIUS or HWTACACS. Therefore, when the question asks which listed protocols cannot be used for accounting between the AAA client and AAA server, AD and LDAP are the appropriate selections. RADIUS explicitly carries accounting messages, and HWTACACS also separates and supports authentication, authorization, and accounting functions. The source file leaves the answer blank, but the Datacom AAA model supports a verified answer of B and D.

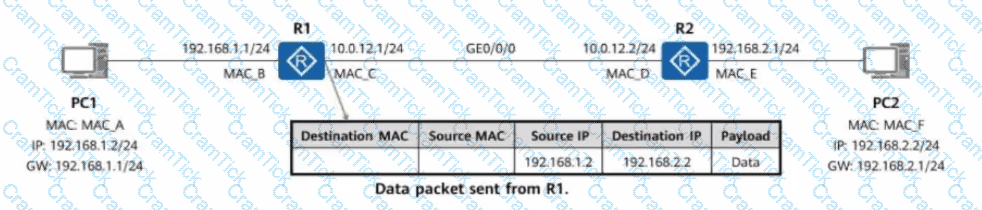

This question tests the difference between Layer 3 addressing and Layer 2 encapsulation during routing. The IP packet originated by PC1 keeps PC1 ' s IP address as its source IP and PC2 ' s IP address as its destination IP as it traverses the routers. Ethernet MAC addresses, however, are rewritten at every routed hop. When R1 forwards the packet across the link toward R2, R1 builds a new Ethernet frame on its outgoing interface. According to the exhibit, R1 ' s outgoing interface on the R1-R2 link uses MAC_C, so MAC_C is the source MAC address. The next-hop device on that link is R2, whose receiving interface uses MAC_D, so MAC_D is the destination MAC address. MAC_A belongs to PC1 and was relevant only on the first local Ethernet segment. MAC_F belongs to PC2 and is used on the final Ethernet segment from R2 to PC2, not on the R1-R2 link. Therefore the correct statements are B and D. The uploaded key B, C is incorrect.

STP and link aggregation are not mutually exclusive technologies. They solve different problems and can coexist on the same switch. Link aggregation combines multiple physical Ethernet links into a logical Eth-Trunk, increasing available bandwidth and providing member-link redundancy. STP or a related spanning-tree protocol prevents Layer 2 loops by calculating a loop-free active topology and can treat an Eth-Trunk as a logical interface. In a well-designed campus network, several physical links between two switches may first be aggregated into one Eth-Trunk, while STP operates over that logical link together with other Layer 2 paths. Conversely, if separate redundant links are not aggregated, STP may block one or more paths to prevent a loop. Choosing link aggregation can use parallel member links more efficiently than allowing STP to block individual links, but enabling one function does not prohibit use of the other elsewhere on the device. Therefore, the assertion that only STP or link aggregation can be configured on a device at one time is incorrect. The verified answer is FALSE, option B.

The address 224.0.0.1/24 cannot be configured as a normal host IP address by default because it belongs to the Class D multicast address range . IPv4 multicast addresses range from 224.0.0.0 to 239.255.255.255 and are reserved for multicast group communication rather than assignment to host interfaces as ordinary unicast addresses. Therefore, option D is correct.

The other three options are all private unicast address ranges and can be configured on hosts in private networks. 10.0.0.1/8 belongs to the 10.0.0.0/8 private range, 172.16.1.1/16 belongs to the 172.16.0.0/12 private range, and 192.168.1.1/24 belongs to the 192.168.0.0/16 private range. These are commonly used in enterprise and campus networks. HCIA-Datacom teaches that host IP address planning must distinguish between unicast, multicast, loopback, broadcast, and other special-purpose ranges. Multicast addresses identify multicast groups and are processed differently by hosts and network devices, so they are not valid default host addresses for ordinary end-to-end IP communication.

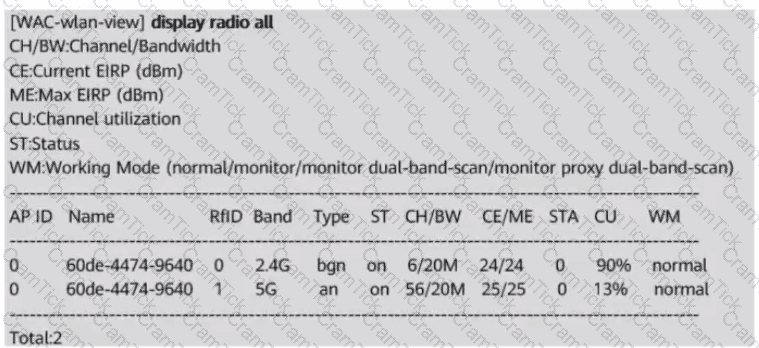

The command output in the exhibit shows that both AP radios are enabled, so a disabled radio is not supported by the evidence. The 5 GHz radio has relatively low channel utilization, while the 2.4 GHz radio reports channel utilization of approximately 90 percent. Such a high utilization value indicates that the air interface is heavily occupied by transmissions or interference. Huawei WLAN troubleshooting guidance identifies a busy air interface and a heavily loaded AP as possible causes of STA association failures because management and authentication frames may be delayed or lost when contention is severe. The displayed radio information alone does not prove that the affected STAs are in a blacklist or absent from a whitelist; those conditions require separate STA or VAP access-control information. Therefore, option A is the only choice directly supported by the command output. The correct troubleshooting interpretation is that excessive channel utilization on the radio can make the air interface busy and prevent some STAs from completing association successfully. The verified answer is A.
