HPE7-S02 Advanced HPE Compute Integrator Solutions Written Exam Questions and Answers

C is correct. In a retrieval-augmented generation pipeline, initial retrieval can return a set of candidate passages or vectors that are approximately relevant to the user’s query. The retriever reranking NIM evaluates those candidates more precisely and reorders them so that the items with the strongest semantic relevance are placed first. The highest-quality context can then be supplied to the generative model, improving answer relevance and reducing the amount of weak context passed into the prompt.

Option A describes ingestion and preprocessing, which occurs before the content is indexed in a RAG datastore. Option B describes retrieval or database-query activity, not reranking itself. Option D is the role of the LLM or generation NIM that produces the final natural-language response. Reranking sits between retrieval and generation.

The distinction is important because RAG quality is not determined only by the embedding search. A reranker can use a stronger relevance model on a limited candidate set, trading a small amount of additional computation for substantially better context selection.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 5, NVIDIA NeMo deep dive; NVIDIA NeMo Retriever documentation, retrieval and reranking services.

D is correct. NVIDIA Spectrum-X is engineered for Ethernet-based AI fabrics where synchronized GPU traffic can create short, extremely large bursts. Its congestion-management architecture uses high-frequency telemetry and flow metering to identify the sources contributing to congestion and react with much finer control than conventional static Ethernet behavior. This is especially valuable for RDMA/RoCE AI traffic, where packet loss, tail latency, and uneven use of parallel paths can materially reduce GPU utilization.

Option A reverses the relationship between ECN and PFC. Spectrum-X does not simply replace ECN with Priority Flow Control; modern AI Ethernet designs combine congestion signaling and control mechanisms to avoid relying on broad pause behavior. Option B is also inaccurate because static ECMP hashing is not the defining fine-grained balancing mechanism; Spectrum-X uses adaptive routing and telemetry-aware decisions. Option C describes dedicated per-port buffering as the basis for losslessness, which is not the principal Spectrum-X innovation.

The exam objective is to understand why an AI network differs from ordinary data-center Ethernet: the network must react rapidly to elephant flows and collective-communication bursts while keeping accelerated nodes productive.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, AI/HPC networking objectives; NVIDIA Spectrum-X Ethernet networking documentation, congestion control and telemetry.

B is correct. Airflow is the workflow-orchestration component in HPE AI Essentials. It is designed to define directed acyclic graphs (DAGs) whose tasks execute in a controlled sequence based on dependencies. If a team has several Spark applications that prepare, transform, and validate data before model fine-tuning, Airflow can schedule those applications as stages in a repeatable pipeline and coordinate retries, dependencies, and execution order.

Katib and Ray Tune are focused on hyperparameter optimization rather than general-purpose workflow orchestration. MLflow tracks experiments, runs, artifacts, and model lifecycle information; it is not the scheduler that executes an ordered series of Spark jobs. Airflow complements these components rather than replacing them.

The key exam distinction is between orchestration and execution engines. Spark performs distributed data processing. Airflow controls when the Spark applications run and how one stage depends on another. That separation permits the data-preparation pipeline to be automated without embedding orchestration logic inside each Spark application.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 4 “Using Spark” and “Airflow”; HPE AI Essentials Software Airflow documentation.

A is correct. VMware vSAN is designed to manage its storage devices directly so that it can create disk groups or storage pools, apply its own data-placement policies, and monitor device health and performance. On HPE ProLiant servers using a supported storage controller, vSAN data drives should therefore be presented in passthrough/HBA mode where the controller and vSAN design support it. This exposes the individual drives rather than hiding them behind a hardware RAID virtual disk.

RAID 1 and RAID 5 in options D and C would move redundancy and data placement into the controller, preventing vSAN from managing the devices as intended. Option B incorrectly treats erasure coding as a storage-controller mode. vSAN can apply software-defined RAID/erasure-coding policies at the datastore layer, but that is separate from configuring the physical controller.

The exact controller, firmware, driver, and device configuration must match the VMware Compatibility Guide and HPE vSAN design guidance. Passthrough is the architectural principle; supportability still depends on the validated hardware stack.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 8 “VMware vSAN on HPE solutions”; HPE and VMware vSAN configuration guidance.

A is correct. HPE AI Essentials provides platform-level identity and access management for connected data sources. After the S3 object store is configured, an administrator can use the Identity and Access Management interface to grant the required users privileges to that object-store data source. This gives the selected users access from supported tools such as notebooks and Spark applications while leaving other users without permission.

The HPE GreenLake cloud user-management page controls broader workspace or service access, but it is not the place to assign the fine-grained HPE AI Essentials data-source privilege described in this scenario. Embedding user lists directly in the object-store connection settings is not the documented access-control workflow. Creating credential secrets manually in every user namespace is also the wrong pattern: it duplicates sensitive credentials, increases rotation overhead, and bypasses the platform’s centralized authorization model.

The operational principle is separation of connection configuration from authorization. The platform stores the data-source integration, while Identity and Access Management determines who may use it. That model is more auditable and maintainable than distributing access keys.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 4 “Connecting to data”; HPE AI Essentials Software documentation, Identity and Access Management and user access to data.

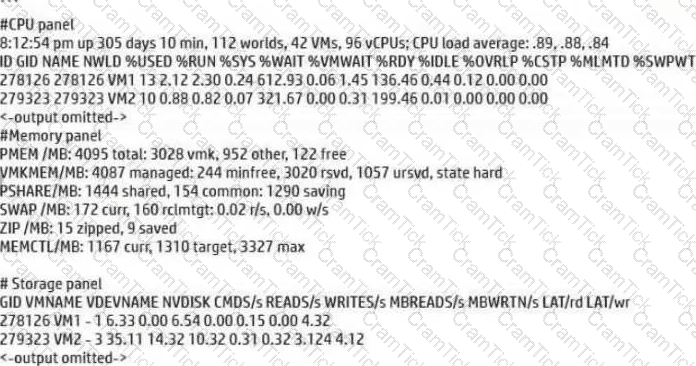

A is correct. The esxtop output indicates memory pressure rather than CPU or storage saturation. The host has only about 122 MB of free physical memory, the VMkernel memory state is shown as hard, ballooning is active, and swap is in use. Those are strong indicators that ESXi is reclaiming memory because demand is approaching or exceeding comfortable physical capacity. Reclamation can increase latency sharply, especially when guest memory is swapped to storage.

The CPU figures do not show the classic signature of CPU contention. The displayed VMs have low %RDY values, so they are not spending excessive time waiting for physical CPU scheduling. The storage panel also shows relatively low read/write latency for the displayed workloads, which does not support a storage-controller or storage-network bottleneck as the primary cause.

The appropriate remediation is therefore to add physical memory, reduce VM memory commitments, or evacuate some VMs to other hosts. The screenshot is a good example of why VMware troubleshooting should correlate multiple esxtop panels rather than infer the bottleneck from utilization alone.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 8 “Troubleshooting HPE running VMware”; VMware ESXi esxtop memory-reclamation concepts.

A is correct. When the objective is automated renewal of the HPE AI Essentials ingress certificate, cert-manager should control the certificate lifecycle. A ClusterIssuer is part of that implementation because it defines the certificate-authority or ACME issuing service that cert-manager can use cluster-wide. Once the issuer and the corresponding Certificate resource are configured correctly, cert-manager can request, replace, and renew the certificate rather than requiring repeated manual secret replacement.

Option C describes a manually supplied secret containing certificate material. That can be appropriate when an organization already has a certificate and wants to install it manually, but by itself it does not provide automated renewal. An AuthorizationPolicy controls traffic authorization, not certificate issuance, so B is unrelated. The Istio ingress gateway already exists as part of HPE AI Essentials; creating another gateway is not the required certificate-renewal step.

Rev. 26.21 specifically updates certificate material for HPE AI Essentials 1.9 and later, making it important to distinguish automated cert-manager workflows from manual ingress-cert replacement.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 3 “Replacing the Istio ingress gateway certificate”; HPE AI Essentials documentation, “Using cert-manager to Generate and Replace SSL Certificate.”

A is correct. Importing a VMware ESXi cluster into HPE OneView for VMware vCenter enables health integration between HPE infrastructure management and vCenter. One of the most valuable outcomes is VMware Proactive HA support: when HPE hardware health information indicates a degrading host, vSphere can place that host into a remediation state and migrate virtual machines away before the condition becomes a service-impacting failure. This aligns infrastructure telemetry with workload mobility.

Option B concerns disk-group and vSAN capacity configuration, which is not the specific capability created by simply importing the cluster. Option C describes SAN datastore provisioning and is a storage-management task rather than the distinctive cluster-health action in this scenario. Option D resembles functionality formerly associated with orchestration products; current HPE material also removes references to the end-of-life HPE OneView for vRealize Orchestrator.

For an integrator, the architectural value is that HPE hardware awareness becomes actionable inside the virtualization control plane. Administrators can protect application availability without waiting for a complete server outage.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 8, HPE integrations with VMware; HPE OneView for VMware vCenter documentation, VMware Proactive HA integration.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 4 “Airflow”; June 15, 2026 HPE7-S02 release notes noting the updated Airflow RBAC method; HPE AI Essentials 1.11 “Defining RBACs on DAGs.”
