NSE7_PBC-7.2 Fortinet NSE 7 - Public Cloud Security 7.2 Questions and Answers

When deploying resources in multiple places and regions in the public cloud using Terraform, the most efficient way is:

A.Use multiple terraform.tfvars files with a variables.tf file.

• Terraform.tfvars File:This file is used to assign values to variables defined in your Terraform configuration. By having multiple.tfvarsfiles, you can define different sets of values for different deployments, such as for different regions or environments, without changing the main configuration.
• Variables.tf File:This file contains the definition of variables that will be used within your Terraform configuration. It works in conjunction withterraform.tfvarsfiles, allowing you to parameterize your configuration so that you can deploy the same template in multiple environments with different variables.

References:This method is outlined in Terraform's official documentation and is a best practice for reusing code for different environments in infrastructure as code (IaC) deployments.

• A is incorrect because the FortiGate public IP is not the next-hop for all the traffic. The FortiGate public IP is only used for incoming traffic from the internet. The Azure load balancer distributes the incoming traffic to the active FortiGate VM based on a health probe123. The FortiGate public IP is not used for outgoing traffic or internal traffic.
• B is correct because an internal load balancer listener is the next-hop for outgoing traffic. The internal load balancer listener is configured with a floating IP address that is assigned to the active FortiGate VM. The internal load balancer listener also has a health probe to monitor the status of the FortiGate VMs123. The internal load balancer listener forwards the outgoing traffic to the internet through the public load balancer.
• C is incorrect because you do not need to add a route to the Microsoft VIP used for the health check. The Microsoft VIP is an internal IP address that is used by the Azure load balancer to send health probes to the FortiGate VMs123. The Microsoft VIP is not reachable from outside the Azure network and does not require any routing configuration on the FortiGate VMs.
• D is correct because a dedicated management interface can be used for load balancing. In this deployment, port4 is used as a dedicated management interface that connects to the management network3. The dedicated management interface can be used to access the FortiGate VMs for configuration and monitoring purposes. The dedicated management interface can also be used to synchronize the configuration and session information between the primary and secondary devices in an HA cluster2.

For Transit Gateway Connect peers in an IPv4 BGP configuration, the correct statements are:

• The inside CIDR blocks are used for BGP peering (Option A):In a BGP configuration for Transit Gateway Connect, the inside CIDR blocks, typically within the 169.254.0.0/16 range, are designated for the BGP peering connections. These blocks are reserved for internal network protocols and are commonly used in AWS for automatic IP address assignment within managed networking services.
• You must specify a /29 CIDR block from the 169.254.0.0/16 range (Option C):It is a requirement to specify a /29 CIDR block within the 169.254.0.0/16 range for setting up the network interfaces that facilitate BGP peering. This specific range allows for the necessary number of IP addresses to establish BGP sessions effectively between the transit gateway and on-premises or other virtual appliances.

References:These practices are in line with AWS guidelines for Transit Gateway Connect, which stipulate the use of specified CIDR blocks for internal networking and BGP configurations, ensuring seamless connectivity and routing management.

Based on the provided exhibit showing an active-passive FortiGate High Availability (HA) pair with external and internal Azure load balancers and without the use of an SDN connector, the administrator should implement a Probe IP address with two static routes (Option B).

• Probe IP Address:Azure load balancers use a health probe to determine the health of the instances in the backend pool. The health probe ensures that the load balancer only directs traffic to the active (primary) FortiGate in an HA pair.
• Two Static Routes:Given that this is an active-passive setup, static routing should be used to ensure deterministic traffic flow. Two static routes would be configured to ensure that traffic can flow to the active unit and be correctly routed to the protected subnets in failover scenarios.

References:The recommendation for using a Probe IP address with static routes is based on Azure's best practices for load balancer configuration, particularly for HA scenarios, as well as on Fortinet's HA documentation for clouddeployments. This setup ensures high availability while allowing proper traffic distribution based on the health probe's findings.

For administrators seeking to gain insights into user activities and data within major SaaS applications across multicloud environments, deploying FortiCASB (Cloud Access Security Broker) is the most effective solution (Option C).

• Role of FortiCASB:FortiCASB is specifically designed to provide security visibility, compliance, data security, and threat protection for cloud-based services. It acts as a mediator between users and cloud service providers, offering deep visibility into the operations and data handled by SaaS applications.
• Capabilities of FortiCASB:This product enables administrators to monitor and control the access and usage of SaaS applications. It helps in assessing security configurations, tracking user activities, and evaluating data movement across the cloud services. By doing so, it assists organizations in enforcing security policies, detecting anomalous behaviors, and ensuring compliance with regulatory standards.
• Integration and Functionality:FortiCASB integrates seamlessly with major SaaS platforms, providing a centralized management interface that allows for comprehensive analysis and real-time protection measures. This integration ensures that organizations can maintain control over their data across various cloud services, enhancing the overall security posture in a multicloud environment.

References:Fortinet’s official documentation on FortiCASB details its functionalities and integration capabilities with SaaS applications, highlighting its role in providing enhanced security measures for cloud-based services.

The variables.tf file shows that the FortiGate VM will be deployed in the eu-West-Ia region with private and public subnets. The region variable is set to “eu-west-1” and the availability_zone variable is set to “eu-west-1a”. The vpc_id variable is set to “vpc-0e9d6a6f” and the subnets variable is set to a list of two subnet IDs: “subnet-0f9d6a6f” and “subnet-1f9d6a6f”. The license_type variable is set to “on-demand” and the ami_id variable is set to “ami-0e9d6a6f”.

References: https://docs.fortinet.com/document/fortigate/6.4.0/aws-cookbook/236478/deploying-fortigate-vm-on-aws-using-terraform

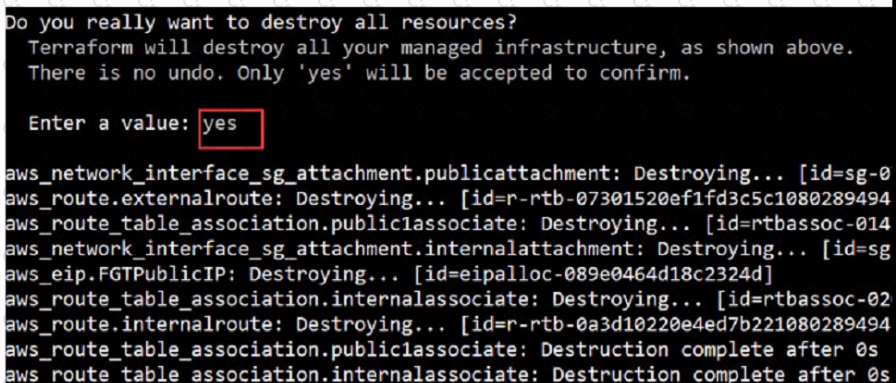

Confirming to delete all the resources in Terraform will have the following impact:

D.It destroys all the resources in the state file.

• Terraform State File Role:Theterraform.tfstatefile contains a real-time mapping of the resources that Terraform manages, including their current configuration and relationships. This file tracks the actual state of resources provisioned by Terraform.
• Impact of Destruction:When Terraform prompts for confirmation to destroy resources, and 'yes' is entered, Terraform reads the state file and systematically removes all the resources that are managed as part of that state. This is not limited to a specific .tfvars file, IAM user, or resource group—it is a global action that affects all resources tracked by the state file associated with the current Terraform workspace and configuration.

References:The function of theterraform.tfstatefile and the impact of resource destruction are detailed in Terraform's official documentation. This behavior is fundamental to how Terraform manages infrastructure as code.

• Spoke VPC Routing: The 0.0.0.0/0 (default) route in the spoke VPC must point to the Transit Gateway attachment for traffic to reach other VPCs or external destinations.
• Security VPC Routing: Traffic from the security VPC needs to pass through the FortiGate for inspection and security controls. Therefore, the 0.0.0.0/0 route in the security VPC's TGW subnet routing table must point to the FortiGate's internal port.
• FortiGate Routing: The FortiGate's internal subnet must have its 0.0.0.0/0 route configured to point to the Transit Gateway attachment, allowing traffic to be returned to other VPCs or reach the internet.

In an SD-WAN TGW Connect topology, when routing traffic from a spoke VPC to a security VPC through a Transit Gateway, the mandatory initial steps include:

• From the spoke VPC internal routing table, point 0.0.0.0/0 traffic to the TGW (Option A):This step is crucial for ensuring that all traffic from the spoke VPC destined for external networks is directed through the Transit Gateway, allowing for centralized management and security inspection.
• From the security VPC TGW subnet routing table: point 0.0.0.0/0 traffic to the FortiGate internal port (Option B):Routing all traffic from the TGW subnet in the security VPC to the FortiGate's internal port ensures that traffic is subjected to the necessary security policies and inspections provided by the FortiGate appliance before it proceeds to other destinations or returns to the spoke VPCs.
• From the security VPC FortiGate internal subnet routing table, point 0.0.0.0/0 traffic to the TGW (Option D):This configuration ensures that traffic returning from the security processes handled by the FortiGate is routed back through the Transit Gateway, maintaining the integrity of the secure transit path and ensuring proper routing back to the originating spoke or onward to the internet.

References:These steps align with best practices for implementing SD-WAN solutions in a cloud environment, ensuring that all traffic is appropriately routed through security appliances for necessary controls and monitoring, asdetailed in the Fortinet SD-WAN documentation and AWS Transit Gateway connectivity guidelines.

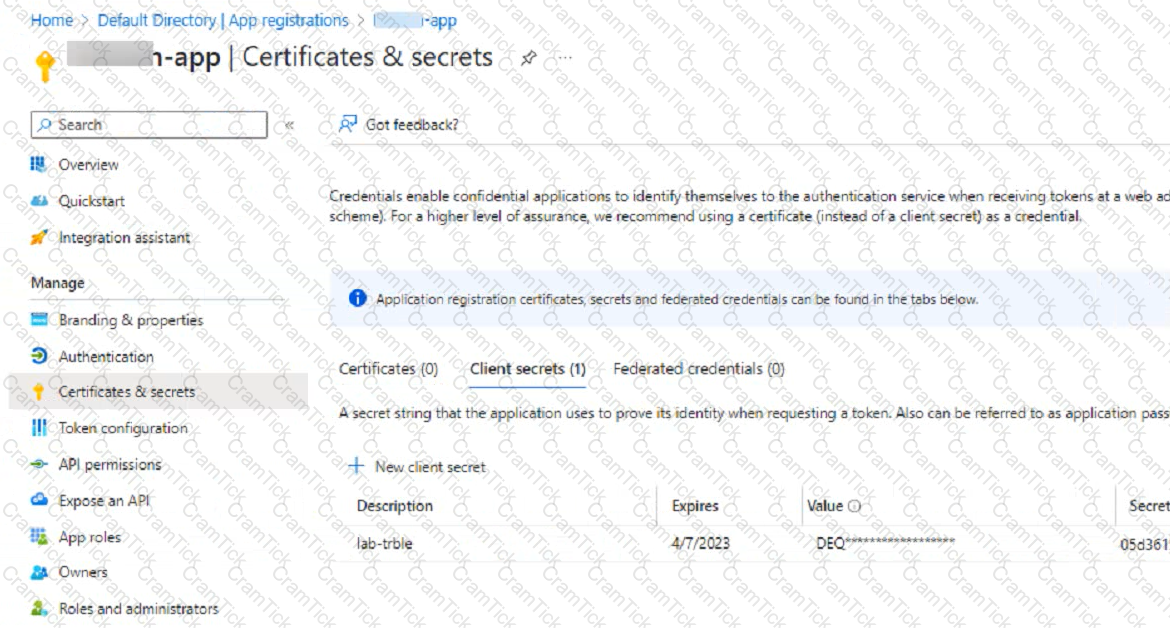

 The Azure client secret is a one-time value that is only visible when it is created. If the administrator loses or forgets the client secret, they cannot retrieve it from the Azure portal. However, they can create a new client secret and use it to configure Terraform. To create a new client secret, they need to follow these steps12:

• Sign in to the Azure portal and navigate to the Azure Active Directory service.
• Select the application name under the App Registrations.
• Select Certificates & Secrets > New client secret to create a new client secret.
• Add a description and an expiration date for the client secret and select Add.
• Copy the value of the new client secret immediately as it will not be shown again.

References:

• Generate new Client Secret and link to key-vault | Microsoft Learn
• Azure Quickstart - Set and retrieve a secret from Key Vault using Azure portal | Microsoft Learn

The two best connection solutions available between your company headquarters, branch sites, and the Azure vWAN hub are A. ExpressRoute and E. VPN Gateway.

According to the Azure documentation for Virtual WAN, ExpressRoute and VPN Gateway are two of the supported connectivity options for connecting your on-premises sites and Azure virtual networks to the Azure vWAN hub1. These options provide secure, reliable, and high-performance connectivity for your network traffic.

ExpressRoute is a service that lets you create private connections between your on-premises sites and Azure.ExpressRoute connections do not go over the public internet, and offer more reliability, faster speeds, lower latencies, and higher security than typical connections over the internet2.

VPN Gateway is a service that lets you create encrypted connections between your on-premises sites and Azure over the internet using IPsec/IKE protocols.VPN Gateway also supports point-to-site VPN connections for individual clients using OpenVPN or IKEv2 protocols3.

The other options are incorrect because:

• GRE tunnels are not a supported connectivity option for Azure vWAN. GRE is a protocol that encapsulates packets for tunneling purposes.GRE tunnels are established between the connect attachment and your appliance in Azure vWAN4.
• SSL VPN connections are not a supported connectivity option for Azure vWAN. SSL VPN is a type of VPN that uses the Secure Sockets Layer (SSL) protocol to secure the connection between a client and a server.SSL VPN is not compatible with the Azure vWAN hub5.
• An L2TP connection is not a supported connectivity option for Azure vWAN. L2TP is a protocol that creates a tunnel between two endpoints at the data link layer (Layer 2) of the OSI model.L2TP is not compatible with the Azure vWAN hub.

1:Azure Virtual WAN Overview | Microsoft Learn2: [ExpressRoute overview - Azure ExpressRoute | Microsoft Docs]3: [VPN Gateway - Virtual Networks | Microsoft Azure]4: [Transit Gateway Connect - Amazon Virtual Private Cloud]5: [SSL VPN - Wikipedia] : [Layer 2 Tunneling Protocol - Wikipedia]

In this scenario, the issue is caused by the Azure service principle account nothaving a contributor role. This is required for the FortiGate HA floating IP to work properly. Without this role, the new primary device will not have the previous primary device floating IP address after failover. References: Fortinet Public Cloud Security knowledge source documents or study guide.

https://docs.fortinet.com/product/fortigate-public-cloud/7.2

• Simplified and Scalable Connectivity: Transit Gateway Connect allows you to establish GRE tunnels to your SD-WAN appliances natively within the AWS network. This eliminates the complexity of managing individual IPsec VPN connections, especially as your cloud presence grows.
• Potential for Enhanced Performance: GRE offers lower overhead compared to IPsec, which can result in higher throughput for bandwidth-intensive SD-WAN applications.
• Flexibility: While IPsec is supported for scenarios requiring strong encryption, the focus on GRE highlights the performance and scalability benefits that are often prioritized when integrating SD-WAN with AWS.
• Dynamic Routing: The integration with BGP further streamlines network management by automating route updates and distribution.

Addressing the IPsec Consideration:

It's important to acknowledge that SD-WAN Transit Gateway Connect does support IPsec. If your question is specifically framed within the context of Fortinet's FCSS 7.2 materials and they emphasize the hybrid usage of GRE and IPsec, then a modified answer might be appropriate:

To keep track of sensitive data files located in AWS S3 buckets and protect them from malware, the administrator should use:

C.FortiCNP DLP policies.

• Data Loss Prevention (DLP):DLP policies are designed to detect and prevent unauthorized access or sharing of sensitive data. In the context of AWS S3, DLP policies can be used to scan for sensitive information stored in S3 objects and enforce protective measures to prevent data exfiltration or compromise.
• FortiCNP Integration:FortiCNP is Fortinet’s cloud-native protection platform that offers security and compliance solutions across cloud environments. By applying DLP policies within FortiCNP, the administrator can ensure sensitive data within S3 is monitored and protected consistently.

References:Fortinet's FortiCNP documentation provides information on implementing DLP policies within cloud environments, highlighting the capabilities for protecting sensitive data within cloud storage services like AWS S3.

According to the AWS documentation for Transit Gateway, a transit gateway is a network transit hub that connects VPCs and on-premises networks. A transit gateway route table is a set of rules that determines how traffic is routed among the attachments to the transit gateway1.

A transit gateway can have multiple route tables, and you can associate different attachments with different route tables. This allows you to control how traffic is routed between your VPCs and VPNs based on your network design and security requirements1.

The other options are incorrect because:

• Both the TGW attachment and propagation must be in the same TGW route table is not true. You can associate an attachment with one route table and enable propagation from another attachment to a different route table. This allows you to separate the routing domains for your attachments1.
• A TGW attachment can be associated with multiple TGW route tables is not true. You can only associate an attachment with one route table at a time. However, you can change the association at any time1.
• The TGW default route table cannot be disabled is not true. You can disable the default route table by deleting all associations and propagations from it. However, you cannot delete the default route table itself1.

1: Transit Gateways - Amazon Virtual Private Cloud
