300-830 Implementing Cisco Collaboration Cloud Customer Experience Questions and Answers

The Exclusive multimedia profile type is used when an agent must handle only one interaction at a time. Cisco's multimedia-profile model controls how many simultaneous contacts an agent can receive and how different media types are blended. A blended profile can allow multiple channels, and a blended real-time profile is designed for voice plus real-time digital interactions under concurrency rules. Voice Only would restrict agents to voice and would not satisfy a team that handles voice, email, and chat. The scenario is not asking to remove digital channels; it says a few agents cannot focus on multiple interactions. Exclusive solves that by allowing the agent to work one contact regardless of channel, preventing simultaneous assignments that could reduce quality or agent performance. This is a tenant and desktop-experience configuration decision, not a queue routing problem. The agent can still be eligible for the configured channels, but the desktop capacity model keeps workload to one active interaction. Reference: Cisco Help, Webex Contact Center Setup and Administration Guide; Manage desktop profiles.

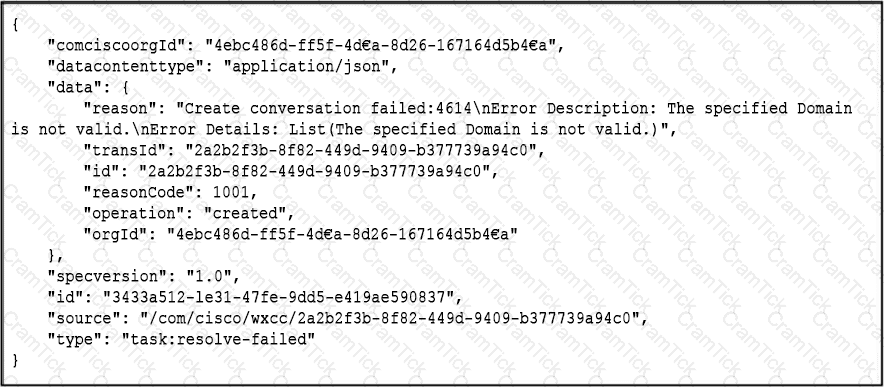

The failure occurs after the standard Live Chat workflow template is deployed and the widget can be started, so the website widget itself is not the main issue. The Resolve node response in the exhibit points to a missing or invalid Live Chat domain value used by the workflow. Cisco's Webex Connect live chat and create conversation documentation identifies Livechat Website Domain as a value stored under custom variables and used when resolving or creating live chat conversations. The standard template depends on that workflow custom variable being populated with the valid domain where the Live Chat widget is embedded. Changing media type and media channel on the Resolve node would not fix a missing domain variable in the deployed template. The option using chat Domain is close but not the named workflow custom variable indicated by the template. Setting the Workflow Custom Variable LiveChat Domain to a valid value resolves the failure. Reference: Webex Connect Help, Livechat; Create conversation - WxEngage standalone; Resolve Conversation - WXCC.

Agent Desktop connectivity depends on the Webex service domains and the Contact Center service domain being reachable over HTTPS. Cisco's security and network documentation for Webex Contact Center includes domain allow-listing so the browser desktop can load scripts, APIs, authentication paths, media-related services, and Contact Center application components. The official domain patterns include Webex domains such as *.wbx.com on port 443 and Contact Center service domains such as *.ciscoccservice.com on port 443. Blocking either can prevent the desktop from loading, authenticating, or communicating with Contact Center services. The ucce.com domain is associated with Unified Contact Center Enterprise naming, not Webex Contact Center Agent Desktop. The generic amazonaws.com domain may appear in some cloud service paths, but it is not one of the two direct required domain answers here. The wxcc.com option is also not the official service domain in the documented network requirement list. Reference: Cisco Help, Set up security for Webex Contact Center; System requirements for Webex Contact Center Desktop.

The Microsoft Dynamics 365 connector provides CRM integration from the Webex Contact Center agent experience and includes configuration that allows agent workflows and screen-pop behavior to be customized around Dynamics records. Cisco's Dynamics integration guide describes installing the CRM connector, configuring the channel provider, and customizing screen-pop and workflow behavior using parameters and variables. OAuth certificate-based authentication is also part of secure connector authorization patterns used in Cisco integration workflows where an application uses certificate/private-key material instead of a simple shared secret. Agent state syncing between platforms is not the defining connector characteristic in this option set; there are synchronization features involving Webex App or CRM presence, but the connector question is focused on Dynamics connector capabilities. TLS encryption is expected for HTTPS communications but is too generic to be a distinctive answer. Read-only/read-write is not the pair Cisco emphasizes for this connector question. Reference: Cisco Help, Integrate Webex Contact Center CRM Connector for Microsoft Dynamics 365; Configure custom connector for Webex Contact Center.

Outdial calling in Webex Contact Center needs both a tenant or system caller-ID source and a desktop permission path that lets the agent place outbound calls. Cisco's Control Hub voice settings document the Default Outdial ANI field, which determines the default caller ID used for outdial behavior when a dial number is not otherwise mapped. Cisco's desktop profile documentation then controls whether an agent can actually use outdial from Agent Desktop. When Outdial is enabled on the desktop profile, the administrator selects the outdial entry point and, where applicable, the Outdial ANI list. Adding an agent to an outbound team is campaign-related and not a prerequisite for ordinary outdial. ANI in Flow Designer can influence call presentation in flows, but it is not the required administrative setup for agent outdial. A wrap-up reason for an outdial queue is useful for classification after a contact, not the base telephony enablement. Reference: Cisco Help, Set up voice settings for Webex Contact Center; Manage desktop profiles.

The number of times an agent took or placed a call is counted from customer/contact activity data because the metric is tied to handled interactions, not simply to agent state. Cisco Analyzer divides data into agent records and customer records. Agent Activity Record is useful for state transitions such as available, idle, break, and activity-state duration. Agent Session Record summarizes the agent's login session. Customer Session Record summarizes the overall customer session. Customer Activity Record captures contact activities and interaction legs, which is where answered calls, outbound calls, transfer-related activity, and agent handling events are represented. When the business question is how many calls an agent took or placed, the repository must count interaction activity associated with the agent. That is why Customer Activity Record is the correct source. The distinction is important: agent repositories explain what the agent was doing over time, while customer activity repositories explain what happened to contacts and calls. Reference: Cisco Help, Cisco Webex Contact Center Analyzer User Guide; Webex Contact Center Analyzer Stock Reports.

To verify which contact sessions were recorded, the manager needs a contact-session report, not a team or site inventory report. Cisco's Analyzer stock reports include CSR reports that are based on Customer Session Record data. The CSR Report - Yesterday is a stock historical report suitable for reviewing completed customer sessions and whether those sessions include recording-related indicators. Team Contact Details and Site Contact Details can be useful for operational breakdowns by team or site, but the question asks which contact sessions were recorded, which aligns with the customer session record. A Usage Report is generally used for consumption or system usage and is not the direct stock report for contact session recording verification. The exam wording points to the standard Analyzer repository/reporting structure: CSR summarizes the end-to-end customer interaction and is the right source when validating recorded contact sessions. Reference: Cisco Help, Webex Contact Center Analyzer User Guide; Webex Contact Center Analyzer Stock Reports.

In Flow Designer, a Play Message activity must have a valid prompt source. Cisco documents that Flow Designer can play prerecorded audio files or text-to-speech prompts and that TTS content must be configured correctly for Cisco Cloud Text-to-Speech. The exhibit indicates a simple flow that should play a message and then disconnect. If callers hear nothing and the call immediately drops, the most direct cause is that the message node has no valid TTS message configured or the TTS value is invalid. A codec mismatch would typically affect media negotiation more broadly, not only the absence of configured prompt text. A missing audio file would apply if the node used an audio file, but the answer choice points to TTS configuration. Cisco Cloud Text-to-Speech being unavailable would be a service-side outage, which is less consistent with a designer-created flow issue. The local misconfiguration is the invalid or missing TTS message. Reference: Cisco Help, Build and manage flows with Flow Designer; Text-to-Speech in Webex Contact Center.

Queue ranking is the feature designed for this exact business rule. Cisco's Webex Contact Center team configuration documentation allows administrators to rank queues for a team by media type, with lower numerical rank having higher priority. Cisco's routing documentation explains that ranked queues take precedence over queues without the same priority and that queue ranking can be used across media types. In the scenario, Sales must always be handled before Accounting, even when an Accounting call has waited longer. This is not a normal first-in-first-out queue rule; it is a cross-queue prioritization requirement. Configuring capacity-based queues would change the queue operating model but would not impose Sales-before-Accounting precedence. Asking agents to ignore Accounting calls is not a system configuration and would produce inconsistent reporting and service levels. A Sales-only skill profile would prevent Accounting handling rather than defer it until Sales is empty. Queue ranking is the controlled team-based mechanism that satisfies the requirement. Reference: Cisco Help, Manage teams in Webex Contact Center; Understand Routing and Queueing in Webex Contact Center.

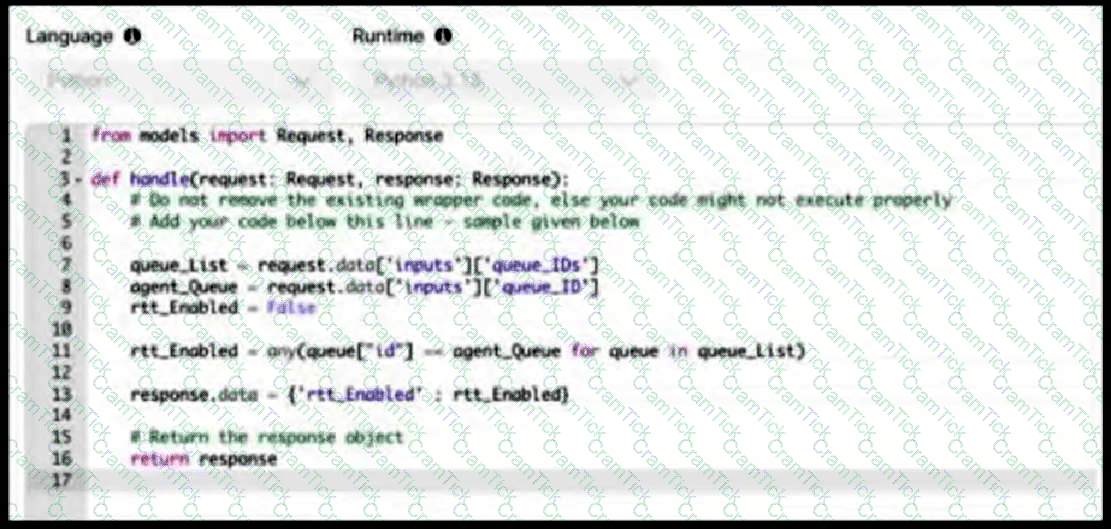

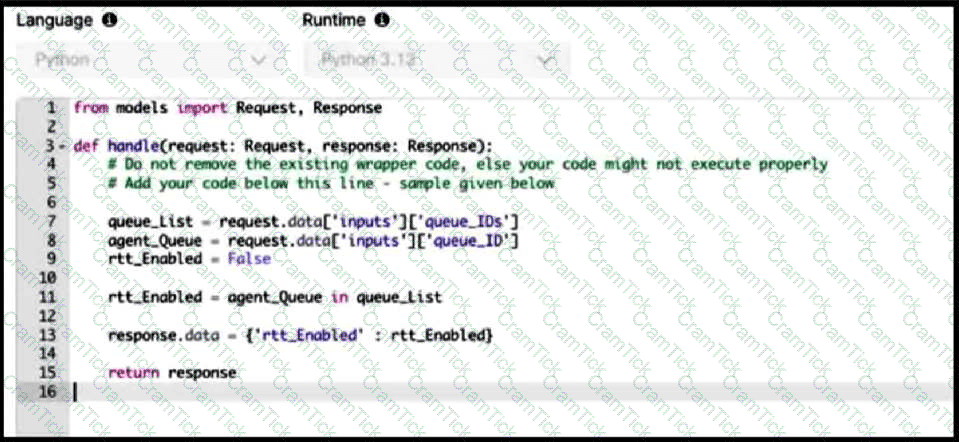

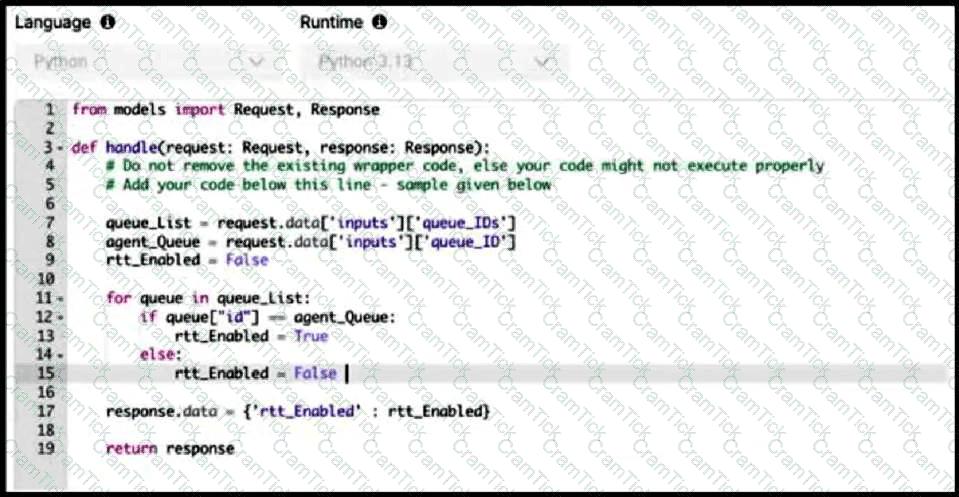

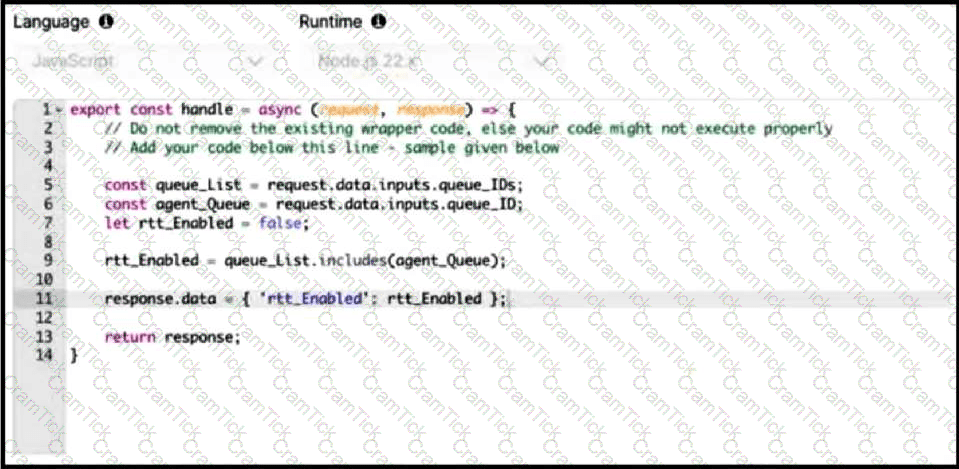

Option C is correct because it checks membership by comparing the selected queue_ID string to the id value in each dictionary in the queue_IDs list. The input structure says queue_ID is a string and queue_IDs is a list of dictionaries, with each dictionary containing an id key. A direct expression like agent_Queue in queue_List fails because it compares a string to whole dictionary objects, not to their id values. A loop that sets rtt_Enabled to False inside the else branch can also produce wrong results because a nonmatching later dictionary can overwrite a previous match. The Python any() expression is the cleanest correct logic: it returns True if at least one dictionary has an id equal to the selected queue. The function then writes rtt_Enabled into response.data for the flow to consume before deciding whether to start the media stream. Reference: Cisco Help, Build and manage flows with Flow Designer; Flow Designer function runtime documentation.

Webex Contact Center APIs use OAuth 2.0 for authentication and authorization. Cisco's developer documentation for Webex and Webex Contact Center describes integrations as the mechanism used to request permission and obtain access tokens for API calls, using the OAuth 2.0 authorization framework rather than static API keys or basic HTTP authentication. OAuth 2.0 gives the platform scoped access control, token issuance, and administrative consent behavior appropriate for enterprise automation. Mutual TLS may be used in specific transport-security or trunking contexts, but it is not the authorization specification for normal Webex Contact Center REST APIs. Basic HTTP authentication would require sharing credentials directly with the client and does not match the Webex developer model. API key authentication is also not the supported authorization pattern for these Contact Center APIs. The typo in the original option has been corrected to OAuth 2.0. Reference: Webex Developer, Integrations and Authorization; Webex Contact Center API documentation.

In Webex Contact Center, skill-based routing is built from two sides: the queue must express the skill requirement, and the agent must have the matching skill profile. Cisco's official routing and queueing documentation separates skill-based queues from non-skill queues and describes both skill criteria assigned directly to a queue and skill requirements assigned in a flow. Because the question specifically says the customer wants to use skill criteria assigned to queue functionality, the queue configuration must include the skill criteria. The agent side is handled through the skill profile assigned in the agent's settings; that profile carries the agent's skill values and proficiencies used by routing. Associating agents directly to the queue is a non-skill or agent-assignment model, and call distribution groups are for expanding team eligibility over time, not for defining agent skills. Assigning skill criteria to teams is also not the model Cisco documents. Reference: Cisco Help, Understand Routing and Queueing in Webex Contact Center; Create queues and configure routing patterns.

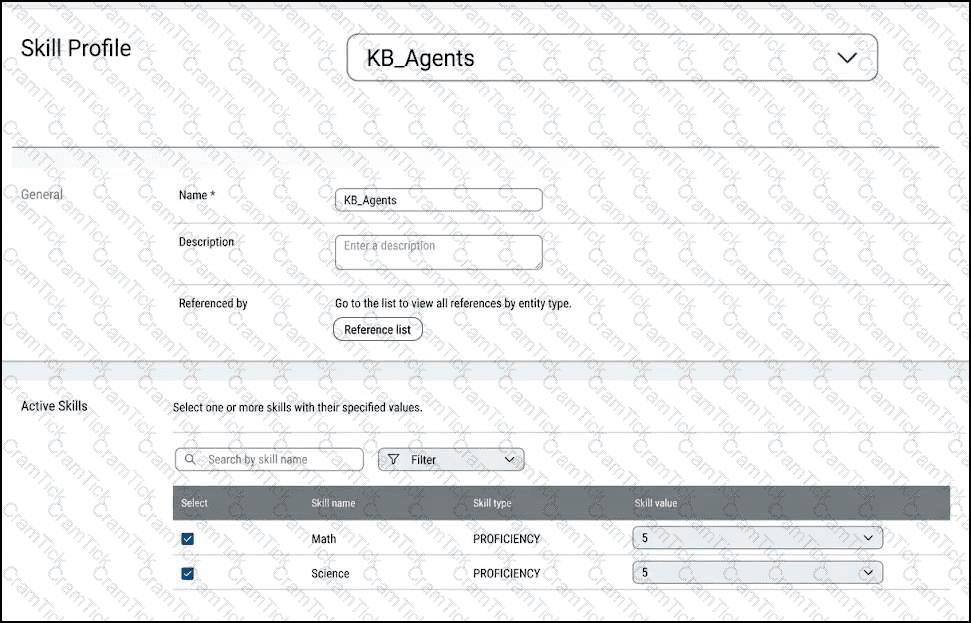

Cisco documents two places where skill requirements can be applied for skill-based routing in Webex Contact Center: on the queue and in the flow. Assigning skills to a queue creates fixed skill criteria for contacts that enter that queue. Assigning skills in a flow lets the flow set or adjust the skill requirements dynamically each time the Queue Contact activity is used. The screenshot shows Agent X with a skill profile and skill proficiencies; those are agent-side attributes. Routing criteria must be defined on the contact-routing side so the platform knows which agent skill profile qualifies for the contact. Desktop profiles, channels, and generic capacity-based teams do not define the skill criteria used to match this agent. Capacity-based teams are typically used for destinations that are not individual Webex Contact Center agents. Therefore, the two valid configuration locations are the queue skill settings and the flow-based skill assignment. Reference: Cisco Help, Understand Routing and Queueing in Webex Contact Center; Create queues and configure routing patterns.

The registration refresh interval is derived from the expires value multiplied by the refresh ratio. In Cisco IOS XE Local Gateway configuration for Webex Calling, the registrar command commonly uses an expires value and a refresh-ratio. With expires 240 and refresh-ratio 50, the gateway refreshes registration at 50 percent of 240 seconds, which is 120 seconds, or exactly two minutes. Option B uses refresh-time, which is not the documented parameter used in the provided command style. Option C would refresh at 60 seconds because 50 percent of 120 is 60. Option D would refresh at 150 seconds because 50 percent of 300 is 150. The correct answer is therefore the command that sets expires to 240 with refresh-ratio 50 over TLS using the sips scheme. This aligns with Cisco's registration-based Local Gateway model, where the SBC must keep SIP registration active toward Webex Calling. Reference: Cisco Help, Configure Local Gateway on Cisco IOS XE for Webex Calling; Configure trunks, route groups, and dial plans for Webex Calling.

For OAuth 2.0 custom connector authentication in Webex Contact Center, Cisco documents client credentials using either a client secret or a private key/certificate method. The custom connector configuration supports Client credentials - client secret, where the administrator enters a client ID and client secret, and Client credentials - private key, where the private key corresponds to the certificate material used by the application. Those two choices are valid grant/authentication methods for service-to-service integration because a backend connector needs machine-to-machine authorization rather than a user authorization code flow. Client credentials - token is not a grant type; the token is the output of a successful OAuth exchange. Client credentials - certificate is too imprecise in the option set because Cisco's configuration wording identifies private key/certificate material. Server credentials - certificate is not a documented OAuth grant type for the Webex Contact Center custom connector. Reference: Cisco Help, Configure custom connector for Webex Contact Center; Webex Developer, Integrations and Authorization.
