Kubernetes Role-Based Access Control (RBAC) is implemented through theRBAC API group(rbac.authorization.k8s.io) and defines the core authorization primitives used to grant permissions to users, groups, and service accounts. The cluster-scoped objects declared by the RBAC API areClusterRoleandClusterRoleBinding. AClusterRoledefines a set of permissions (verbs such as get/list/watch/create/update/delete) over resources at thecluster scope(including cluster-wide resources and optionally namespaced resources across namespaces). AClusterRoleBindingthenbindsthat ClusterRole to a subject (user/group/serviceaccount), making those permissions effective cluster-wide.

This differs from namespace-scoped RBAC objects (RoleandRoleBinding) which apply only within a single namespace. The other options are incorrect becauseClusterObject/ClusterNodeare not RBAC API objects,ValidatingAdmissionPolicybelongs to the admission control API surface (policy enforcement),ResourceQuotais a namespace resource governance object, andContainer/Deploymentare workload/runtime concepts defined in the core/apps APIs rather than authorization primitives.

Harbor reduces the risk of running vulnerable or tampered images primarily throughvulnerability scanningandimage signing.Vulnerability scanning (E)detects known CVEs in image layers (OS packages and application dependencies, depending on the scanner configuration). This allows teams to identify—and gate the use of—images that contain high/critical vulnerabilities before those images are deployed to Kubernetes clusters. Enforcing scanning as part of the image promotion process helps prevent outdated images with known CVEs from being pulled into production.Image signing (A)provides integrity and provenance controls by enabling consumers to verify that an image was produced and approved by a trusted publisher and has not been altered. When combined with admission controls/policies (for example, only allowing signed images from specific projects), signing helps block unauthorized or unapproved images from being deployed, which is critical when the incident involves exposed internal APIs and supply-chain risk.

The other choices do not directly prevent recurrence:automatic image update (B)is not a core Harbor registry control,deploy both container and VM images (C)is a content capability rather than a security control, andautomatic image validation (D)is not a standard Harbor registry capability distinct from signing/scanning.

In a vSphere Kubernetes Service (VKS) environment, resource management follows aDeclarative Model. When an administrator uses kubectl edit deployment to manually scale a running workload from 5 to 10 replicas, they are modifying thelive stateof the deployment. However, thesource of truthfor a Tanzu Kubernetes cluster in VCF 9.0 is theCluster YAML specificationmaintained by the Cluster API (CAPI) provider within the Supervisor.

If the administrator redeploys the cluster or if the Supervisor’s controller performs a reconciliation loop, it refers back to the original configuration file. If that cluster YAML file still defines the replica count as 5, the Supervisor will terminate the 5 " extra " pods to match the desired state defined in the configuration. This is a common administrative pitfall; for changes to be persistent across redeployments or updates in VCF 9.0, the underlying manifest (the " Desired State " ) must be updated. Manually editing the live object only provides a temporary change that will be overwritten during the next synchronization or lifecycle event because the cluster YAML file was not updated to reflect the requested increase.

VCF 9.0 documentation explicitly indicates thatvCenter upgrades and the Supervisor/cluster (Workload Management) upgrade are distinct, noting that “if you have only upgraded vCenter and not the cluster” then DevOps engineers have reduced permissions until the cluster is upgraded. This supports the stated standard that VKS/Workload Management lifecycle can be treated separately from vCenter. For the private registry requirement, VCF 9.0 provides an operational mechanism to authenticate and pull artifacts from private registries: “Registry secrets allow package and repository consumers to authenticate to and pull images from private registries,” implemented via a standard Kubernetes Secret of type kubernetes.io/dockerconfigjson.

Taken together, the standard implies (1)asynchronoushandling (separate lifecycle from vCenter) and (2)privatesourcing (images pulled from an internal registry with registry secrets). Therefore, selectingAsynchronous Privatebest matches both requirements in a single configuration choice, aligning with the documented separation of upgrades and the documented need to use authenticated access to private registries.

VCF 9.0 states that you can provision Kubernetes clusters using both GUI and CLI approaches, and it explicitly calls out the CLI clients: “the VCF CLI and kubectl provide command-line interfaces for provisioning Kubernetes clusters.” That directly maps tokubectl (A)andVCF CLI (E)as supported clients for provisioning and lifecycle operations. Separately, VCF 9.0 explains that vSphere administrators can “manage and monitor vSphere Pods, VMs, and VKS clusters by using the vSphere Client,” which corresponds tovSphere UI (C)in the question. In addition, the vSphere Client is used to access Supervisor-facing self-service interfaces (for example, the Local Consumption Interface through the vSphere Client), reinforcing vSphere UI as an operational entry point for managing Supervisor-backed services and workloads.

By contrast,Cluster APIis a controller framework (not an operator “client” for admins in this context), andesxtop/esxcliare ESXi host tools that do not represent the documented, supported interfaces for provisioning and managing VKS clusters at the Kubernetes service layer.

The VCF 9.0 documentation explicitly states that“the VKS exposes three layers of controllers to manage the lifecycle of a VKS cluster.”Those three controller layers map directly to the answer choices:

Cloud Provider Plug-in: VKS-provisioned clusters include components needed to integrate with vSphere Namespace resources, including aCloud Provider Plug-inthat integrates with the Supervisor and supports infrastructure-integrated functions (for example, passing persistent volume requests to the Supervisor which integrates with Cloud Native Storage).

Cluster API: The documentation describesCluster APIas providing declarative APIs for “cluster creation, configuration, and management,” including resources for the VMs and cluster add-ons.

Virtual Machine Service: TheVirtual Machine Serviceprovides declarative APIs to manage VMs and associated vSphere resources, and is used to manage the lifecycle of the control plane and worker node VMs that host a VKS cluster.

CNI and CSI are important cluster components, but the document distinguishes these from thethree controller layersresponsible for lifecycle management.

In VMware Cloud Foundation 9.0 and vSphere Supervisor architectures, the decision to deploy aSingle-Zoneor aMulti-ZoneSupervisor is made at the time ofinitial enablement. A Single-Zone Supervisor is tied to a specific vSphere Cluster. A Multi-Zone Supervisor requires a minimum of three vSphere Zones (each mapped to a cluster) to be defined before the Supervisor is deployed so that the Control Plane VMs can be distributed for high availability.

Currently, there is no supported " in-place " migration path to convert a deployed Single-Zone Supervisor into a Multi-Zone Supervisor by simply adding zones later. If an organization requires the high availability provided by a three-zone architecture, the administrator must decommission the existing Single-Zone Supervisor and then re-enable the Supervisor Service using the Multi-Zone configuration wizard. This design ensures that the underlying Kubernetes Control Plane components are correctly instantiated with the necessary quorum and anti-affinity rules that can only be established during the initial " Workload Management " setup phase.

VCF 9.0 design guidance for theSupervisor NSX Load Balancer modelstates that theNSX load balancers run on NSX Edges, and sets explicit sizing requirements at theEdge nodelevel. In the “NSX Load Balancer Design Requirements,” VCF 9.0 requires that theNSX Edge cluster must be deployedbecause “NSX Load Balancers run on NSX Edges.” It further requires that“NSX Edge nodes must be deployed with a minimum of Large form factor”because NSX load balancers havefixed resource allocations on NSX Edge nodes, and the Large form factor is needed to accommodate basic system and workload needs.

This directly ties “deployment size” of the load balancer service capacity to theEdge node form factor(Small/Medium/Large, etc.) rather than the number of pods or the number of clusters. The document also notes that if additional load balancers are required, NSX Edges can bescaled up or out, again reinforcing that sizing is anEdge nodesizing decision.

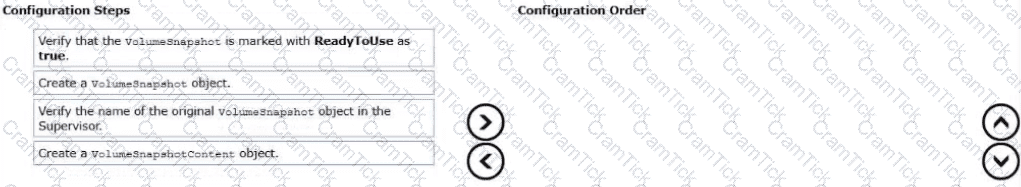

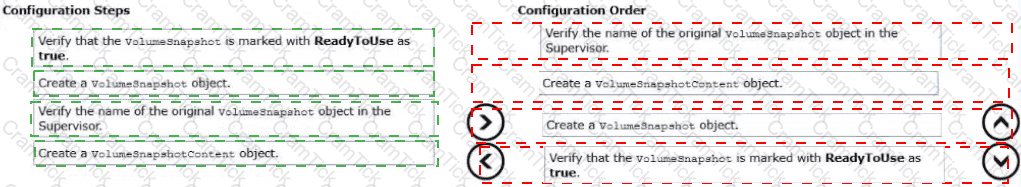

Configuration Order (in order):

Verify the name of the original VolumeSnapshot object in the Supervisor.

Create a VolumeSnapshotContent object.

Create a VolumeSnapshot object.

Verify that the VolumeSnapshot is marked with ReadyToUse as true.

Apre-provisioned snapshotworkflow means the snapshot already exists at the Supervisor/storage layer, and you are “importing” it into Kubernetes by creating the Kubernetes objects that reference it. That’s why the first step is toidentify/verify the exact snapshot nameas it exists in the Supervisor context—this is the authoritative identifier you must point to when you create Kubernetes snapshot metadata. Next, you create theVolumeSnapshotContentobject, which represents theactual snapshot on the storage backendand includes the handle/reference to that pre-existing snapshot. With the content object in place, you then create theVolumeSnapshotobject, which is theuser-facing Kubernetes object(namespaced) that binds to the pre-provisioned VolumeSnapshotContent (either explicitly or via binding rules). Finally, you validate the outcome by checking that theVolumeSnapshot shows ReadyToUse: true, confirming the binding succeeded and Kubernetes can use the snapshot for restore/clone workflows.

VCF 9.0 describes a standardized approach to deploying optional capabilities on VKS clusters viastandard packages. In the VCF Automation cloud services overview, VMware listsIstioamong the packages that “can be optionally installed” for VKS. For installing those packages, the VCF CLI provides a dedicatedpackage pluginthat “works on a workload cluster” and exposes explicitinstallworkflows.

The VCF CLI command reference shows the syntax for installing a package:

vcf package install INSTALLED_PACKAGE_NAME --package PACKAGE_NAME --version VERSION (with optional values files and overlays). This is the supported, VCF-aligned way to install standard packages such as Istio onto a VKS workload cluster in a controlled, declarative manner, including tracking reconciliation status and providing configuration via a values file.

Options that rely on ad-hoc downloads (curl) or building tooling (docker build) do not match the documented VCF package-management workflow for VKS standard packages. Therefore, the correct command family isvcf package install.

VCF 9.0 describesCloud Native Storage (CNS) on vCenteras the component that implements “provisioning and lifecycle operations for persistent volumes.” When provisioning persistent volumes, CNS “interacts with the vSphere First Class Disk functionality to create virtual disks that back the volumes,” and it “communicates with Storage Policy Based Management to guarantee a required level of service to the disks.” This is exactly the storage-policy-to-backed-virtual-disk relationship the question is testing: storage policies (via policy-based management) define requirements, and CNS is the vCenter-side service that applies those requirements while creating and managing the backing storage objects.

In contrast,CSI(including Supervisor CNS-CSI and VKS pvCSI) is the Kubernetes-facing interface/driver used to request and consume storage, but it does not “provide” the vSphere storage policy system; rather, it relies on CNS/CNS-CSI and vCenter services to fulfill provisioning requests. Therefore,vSphere Cloud Native Storage (CNS)is the correct choice.

Harbor is used as aprivate registry serviceto store and distribute container artifacts for Kubernetes consumption, which is exactly what’s needed for a multi-tenant platform where multiple teams require isolated repositories. The VMware documentation treats Harbor as aVMware Tanzu Harbor Registry service, including governance around who can operate it and how teams are separated intoprojects(a key multi-tenancy boundary). For example, vSphere privileges explicitly cover the ability tocreate or delete a Harbor registryand tocreate, delete, or purge Harbor registry projects, reinforcing that Harbor is operated as a managed registry with project-scoped administration and access control.

In practice for regulated environments, the registry role is not just storage—Harbor is commonly used to enforce enterprise controls likepolicy-driven access (RBAC), and it supports security capabilities such asimage vulnerability scanningandimage trust/signing, which directly address the requirement to prevent unsafe images from being promoted or deployed.

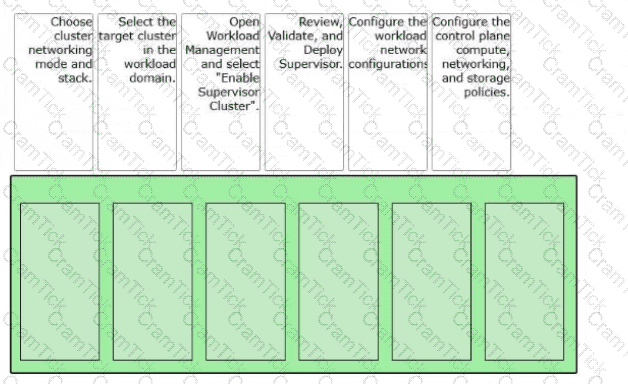

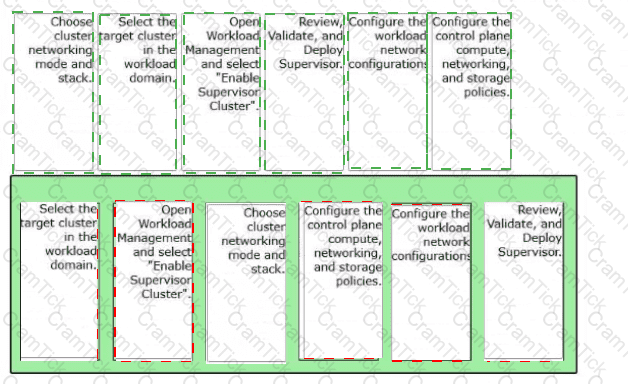

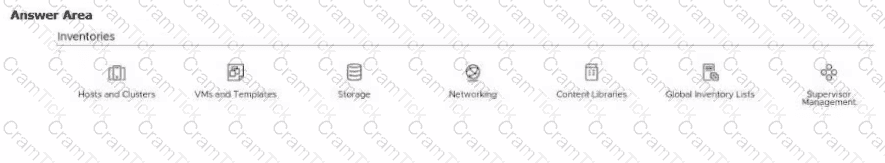

Answer (Correct Order):

Select the target cluster in the workload domain.

Open Workload Management and select “Enable Supervisor Cluster”.

Choose cluster networking mode and stack.

Configure the control plane compute, networking, and storage policies.

Configure the workload network configurations.

Review, Validate, and Deploy Supervisor.

You start by selecting theexact vSphere cluster(in the workload domain) that will host the Supervisor, because Supervisor enablement is performedagainst a specific cluster. From there you launch the enablement workflow inWorkload Management(“Enable Supervisor Cluster”). Early in the wizard you must decide thenetworking mode(for example, VDS-based vs NSX-backed) and theIP stack, because those choices drive the remaining configuration screens and what inputs are required. Next you define theSupervisor control plane settings—compute sizing and the core policies the Supervisor will use (including storage policy selections and related defaults). After the control plane foundation is defined, you configure theworkload networkingused by namespaces and Kubernetes workloads (IP ranges, routing/LB integration depending on the selected mode). Finally, youreview/validateall inputs anddeployso the platform can create and configure the Supervisor control plane and supporting components.

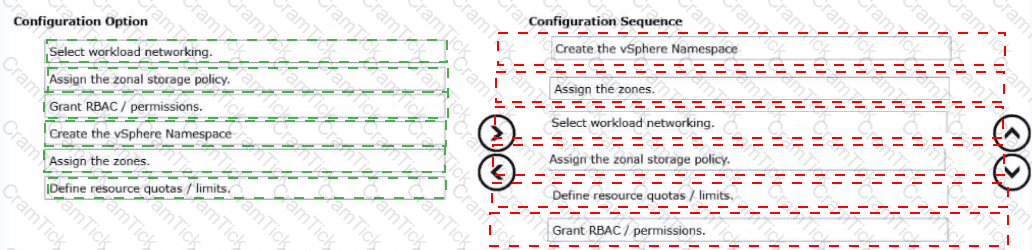

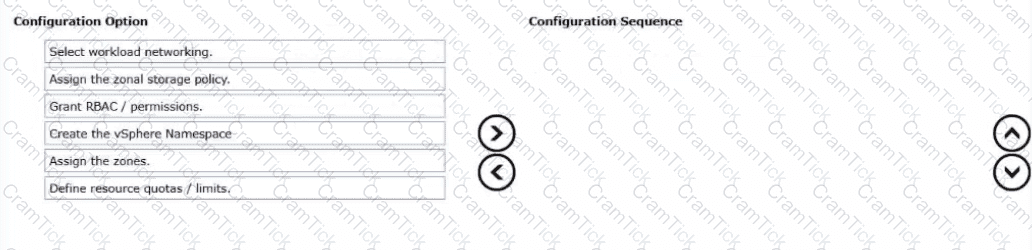

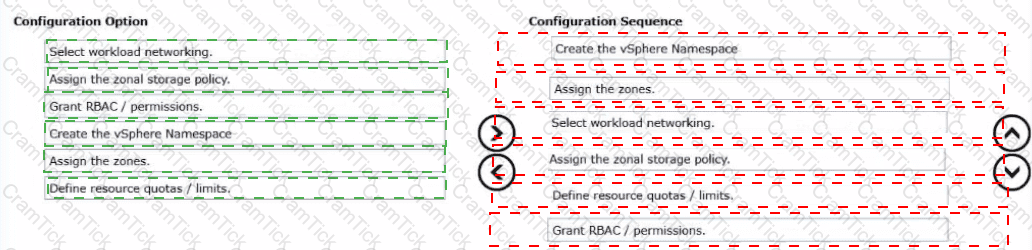

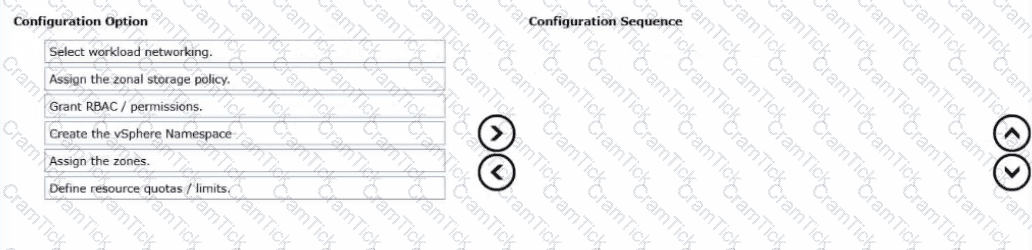

Configuration Sequence (in order):

Create the vSphere Namespace

Assign the zones

Select workload networking

Assign the zonal storage policy

Define resource quotas / limits

Grant RBAC / permissions

A zonal vSphere Namespace is created as a standard namespace first, then “zonalized” by associating it with one or morevSphere Zonesso workloads can be scheduled according to zone placement rules. You start bycreating the namespacebecause it is the tenancy and governance container where networking, storage access, quotas, and permissions are applied. Next, youassign the zones, since zone association is what makes the namespace “zonal” and determines where Kubernetes workloads (and their node pools) are allowed to land.

With zones set, you configureworkload networking, because namespaces must have the correct network attachment and IP behavior for the workloads that will be placed across the selected zones. Then youassign the zonal storage policy, ensuring that persistent volumes can be provisioned using storage that is valid/available for the zone placement model you selected. After networking and storage access are defined, you setresource quotas/limits(CPU, memory, storage) so multi-tenant consumption stays within governance boundaries. Finally, yougrant RBAC/permissionsso the right DevOps/users can consume the namespace and provision clusters/workloads under the enforced controls.

In VCF 9.0, cluster autoscaling is delivered as anoptionalcapability that requires installing theCluster Autoscaleras a standard package. The VCF 9.0 materials explicitly call out Cluster Autoscaler as an optionally installed package for vSphere Kubernetes Service, alongside other optional packages (for example, Harbor, Velero, Istio, etc.). The release information further emphasizes that autoscaling features (including newer behaviors such as scaling from/to zero for supported VKr versions) require that “the autoscaler standard package” be installed.

Operationally, installing the autoscaler package provides the controller that watches pending pods and node utilization signals and then drives the required changes in desired worker capacity. After that controller is present, you typically express scaling intent through the cluster’s declarative configuration (for example, worker pool/node pool constraints and limits) so the autoscaler can act within the boundaries you define. Without the autoscaler package, changing replica counts or expecting automatic node growth/shrink will not produce autoscaling behavior because the control loop that performs those actions is missing.
