500-220 Engineering Cisco Meraki Solutions (ECMS) v2.2 Questions and Answers

https://documentation.meraki.com/MX/MX_Installation_Guides/vMX_Setup_Guide_for_Microsoft_Azure

https://documentation.meraki.com/SM/Device_Enrollment/Containerization_with_Systems_Manager

The error message “NotNow” is seen in the Event Log on an iOS device's details page when an action cannot be performed because the device is locked with a passcode. These actions include pushing managed apps, installing profiles, and other actions. When this occurs the device will attempt to re-connect with the MDM server as soon as the device is unlocked in order to retry the action. https://documentation.meraki.com/SM/Monitoring_and_Reporting/Status_of_%22NotNow%22_in_Systems_Manager_Event_Log

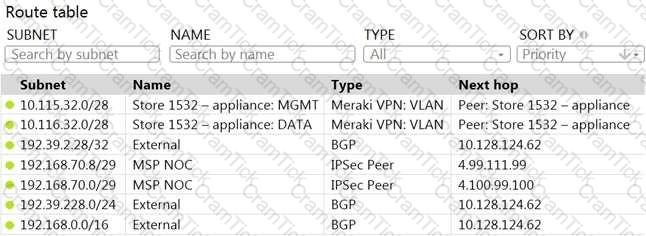

This can be determined by looking at the concentrator routing table and finding the entry for the destination IP 10.116.32.4. The next hop for this entry is the Auto VPN peer “Store 1532 – appliance”.

This question is related to the topic of Implementing Dynamic Routing Protocols in the Engineering Cisco Meraki Solutions (ECMS) official training documentation. You can find more information about this topic in the ECMS v2.2 Course Overview or the ECMS1 v2.1 Course Overview.

What happens if a network loses connectivity to the Meraki cloud?

Because of Meraki’s out of band architecture, most end users are not affected if Meraki wireless APs, switches, or security appliances cannot

communicate with Meraki’s cloud services (e.g., because of a temporary WAN failure):

• Users can access the local network (printers, file shares, etc.)

• If WAN connectivity is available, users can access the Internet

• Network policies (firewall rules, QoS, etc.) continue to be enforced

• Users can authenticate via 802.1X/RADIUS and can roam wirelessly between access points

• Users can initiate and renew DHCP leases

• Established VPN tunnels continue to operate

• Local configuration tools are available (e.g., device IP configuration

https://meraki.cisco.com/lib/pdf/meraki_datasheet_cloud_management.pdf

https://www.ciscolive.com/c/dam/r/ciscolive/latam/docs/2019/pdf/BRKCRS-1579.pdf

When a rogue access point is contained, clients will be unable to connect to the rogue AP. Additionally, any currently associated clients will lose their connection to the rogue AP. https://documentation.meraki.com/MR/Monitoring_and_Reporting/Air_Marshal

On the device, navigate to Settings > General > Device Management

Select Meraki Management, and select Remove to delete the management profile and any managed configuration profiles installed via SM

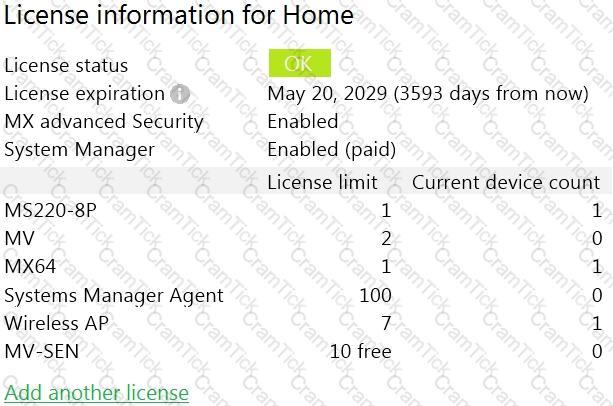

The number of devices in an organization can not exceed the license limits. If this occurs, the organization will enter a 30-day grace period, during which the organization must be brought back into compliance, otherwise it will be shut down until proper licensing is applied to the organization. https://documentation.meraki.com/General_Administration/Licensing/Meraki_Co-Termination_Licensing_Overview

See Monitoring Mesh section Mesh monitoring tools are located at the bottom of every AP detail page, which can be accessed by navigating to Wireless > Monitor > Access Points, then clicking on an Access Point. https://documentation.meraki.com/MR/Wi-Fi_Basics_and_Best_Practices/Wireless_Mesh_Networking

Which information is used to calculate whether a WAN link has high usage not how to view (To accurately identify high utilization, users must set the ISP-provided bandwidth limits under Security and SD-WAN > SD-WAN and Traffic Shaping > Uplink Configuration for each uplink. If the bandwidth usage is higher than 80% of the defined limit, it will mark that uplink as High Usage.) https://documentation.meraki.com/MI/MI_WAN_Health#:~:text=To%20accurately%20identify%20high%20utilization,that%20uplink%20as%20High%20Usage .

When band steering is enabled on an SSID, APs will stop advertising that SSID in 2.4GHz beacons. Since 2.4GHz-only clients that rely on a passive scan will not “see” that SSID in beacons, they might not be able to join this SSID unless they do an active scan or have been pre-configured with the SSID name and security settings (for example, a pre-shared key). https://documentation.meraki.com/MR/Radio_Settings/Band_Steering

"Inbound and outbound flows will generate a syslog message showing the source and destination along with port numbers and the firewall rule that they matched. For inbound rules, 1=deny and 0=allow." https://documentation.meraki.com/General_Administration/Monitoring_and_Reporting/Syslog_Server_Overview_and_Configuration

By default, iOS apps provisioned through Systems Manager that are found in the App Store will self-update if automatic updates has been turned on in the Settings. For custom iOS apps, or to manually push down updates, check the following steps. https://documentation.meraki.com/SM/Apps_and_Software/Updating_Managed_iOS_Apps
