ANVE Axis Network Video Exam Questions and Answers

Existing coaxial cables can be repurposed for use with network cameras through the use of media converters. These devices convert the analog signals transmitted over coaxial cables into digital signals that can be used by network cameras, allowing for the continued use of existing cabling infrastructure. This approach can be cost-effective and less disruptive compared to installing new network cables. Axis Network Video documentation provides detailed guidance on the use of media converters to leverage existing coaxial cabling for network camera installations.

Gatekeeper is a feature in Axis PTZ cameras that allows the camera to automatically zoom in on an object when motion is detected within a predefined area. This function is useful for focusing on areas of interest, such as entry points or sensitive zones, enhancing security monitoring by providing detailed views of potential security events. Axis Network Video documentation explains that Gatekeeper uses video motion detection to trigger the zoom function, ensuring that important details are captured without manual intervention.

To achieve identification at 80 pixels per face for a scene that is 2 meters (6 feet 7 inches) wide, a minimum resolution of 1280 x 720 is needed. This calculation ensures that each face captured in the frame meets the pixel density requirement for clear identification purposes.

In a switched network with Unicast, data packets are sent from the source to a single specific recipient. No other computers on the network will receive the data intended for that recipient. This method ensures that the communication is direct and private between the sender and the receiver, which helps in managing network bandwidth efficiently. [Reference: Axis Communications - Networking Basics for IP Surveillance]

Changing the capture mode on an AXIS P1346 from 2048x1536 (3 MP) to 1920x1080 (HDTV) affects both the minimum illumination and maximum frame rate. When switching to a lower resolution (HDTV), the camera's sensitivity to light improves, resulting in a decrease in the minimum illumination required to produce a clear image. Additionally, the maximum frame rate increases as the camera processes fewer pixels, allowing it to capture and transmit frames at a higher rate. Axis Network Video documentation provides detailed information on how different capture modes impact camera performance, including light sensitivity and frame rates.

Top of Form

Bottom of Form

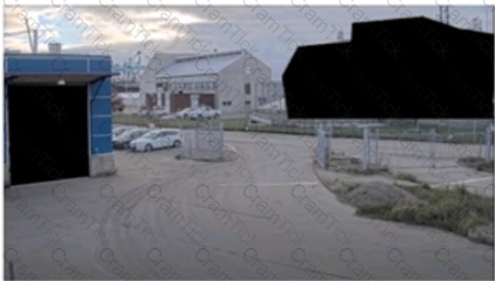

A privacy mask in Live View is used to hide parts of the scene from being viewed or recorded, ensuring privacy in specific areas of the surveillance footage. These masks can be configured in various shapes to cover the required sections effectively. Privacy masks are particularly useful in environments where certain areas need to be excluded from monitoring to comply with privacy laws and regulations. [Reference: Axis Communications - Privacy Masking Features]

Top of Form

Bottom of Form

For the best accuracy in a people counting application, the camera should be mounted directly above the entrance. This overhead position provides a clear view of the individuals entering and ensures accurate counting by minimizing obstructions and capturing each person as they cross the threshold. Axis’s guidelines for people counting applications recommend this mounting position to achieve the highest accuracy and reliability in the data collected.

The feature in Axis cameras that allows a fixed box style camera to tell a PTZ camera to move to a preset is the HTTP server. Axis cameras can use HTTP commands to communicate with each other over the network. By sending an HTTP request from a fixed camera, the PTZ camera can be directed to move to a specific preset position, enabling coordinated surveillance coverage.

Arctic Temperature Control is a feature designed to ensure the longevity and reliable performance of network cameras in extremely low-temperature environments. This feature allows the camera to perform a stepped start-up at low ambient temperatures, gradually warming up the camera to avoid potential damage caused by sudden exposure to extreme cold. This controlled start-up process helps protect the camera's internal components and ensures consistent performance. Therefore, option D is correct. For more detailed information, refer to Axis Communications' product documentation on Arctic Temperature Control technology.

Focusing a camera improves image clarity and detail but also increases the bandwidth. This happens because a sharper image contains more detailed information, requiring more data to transmit over the network. Hence, the bandwidth usage increases as the camera focuses more accurately.

Axis P-iris technology is designed to optimize the iris position for optimal depth of field, resolution, and image contrast. It also helps in managing challenging lighting conditions such as backlighting by controlling the amount of light reaching the image sensor. This allows the camera to produce clear images even when facing direct sunlight or other bright light sources.

Audio detection in Axis cameras is used to detect changes in decibel levels, which can indicate unusual or noteworthy events such as alarms, breaking glass, or raised voices. This functionality does not necessarily require a built-in microphone; it can also work with external microphones. The primary function is to trigger alerts or recordings based on significant changes in the audio environment. Axis Network Video documentation outlines the use of audio detection for enhancing security by monitoring for specific sound patterns or levels.

The AXISP7214 encoder is designed to support multiple video streams per channel and is capable of delivering high frame rates and resolutions, such as D1 resolution at 30 fps in H.264 format. This encoder can handle the strict requirements of delivering 30 fps for recorded video while managing three streams per channel. Axis Network Video documentation specifies that the AXISP7214 is optimized for high-performance video encoding, making it suitable for applications demanding multiple streams and high frame rates.

A P-iris lens is a type of DC-iris lens that incorporates feedback to maintain optimal image quality. Unlike a standard DC-iris, which only adjusts based on light levels, a P-iris lens uses a feedback mechanism to optimize the iris position, ensuring consistent image sharpness, depth of field, and optimal contrast. This technology allows for precise control over the iris, which is especially beneficial in varying lighting conditions. According to Axis documentation, P-iris lenses are designed to deliver better performance by continuously adjusting the iris for optimal image quality.

True security when using HTTPS on Axis products is implemented after a signed certificate is installed. This certificate ensures that the communication between the camera and the server is encrypted and authenticated, providing a secure channel that prevents unauthorized access and tampering.

Focusing a camera with an auto iris is more accurate when set during lowlight conditions. In low light, the iris opens wider, resulting in a shorter depth of field. This forces the focus to be more precise within that narrower range, ensuring that the focus is set correctly. When lighting conditions improve and the iris closes down, the depth of field increases, maintaining a broader range of focus.

To improve the overall quality of the image:

A. Decrease image compression setting: Lowering the compression setting will reduce artifacts and improve image clarity by preserving more of the original data in each frame. E. Change to a camera with higher resolution: Using a camera with higher resolution will capture more detail and improve the clarity of the enlarged image.

These adjustments ensure better image quality by enhancing the detail and reducing compression artifacts.

Multicast video streaming has several important characteristics:

A. Multicast can help to save bandwidth in a network because it allows the same video stream to be delivered to multiple users simultaneously, reducing the need for multiple unicast streams.

B. Multicast can typically not be used to provide video over the internet because many routers and firewalls do not support multicast traffic across the internet, which is more suited for local network environments.

D. Multicast extends the viewer capacity of a camera or an encoder from 10-20 to an unlimited number, as it does not rely on multiple individual connections to distribute the video stream.

H.264 is a video compression standard that adjusts the bit rate based on the motion in the scene. Increased motion results in a higher bit rate because more data is required to accurately represent the changes between frames. Additionally, a longer Group of Video (GOV) length, which means fewer I-frames and more P-frames in a sequence, reduces the overall bit rate since I-frames are larger and require more data. References can be found in the Axis Communications documentation and technical white papers on H.264 compression.

Video motion detection (VMD) in PTZ (Pan-Tilt-Zoom) cameras is feasible but primarily when the camera is used as a stationary camera. PTZ cameras can activate motion detection when they are not moving, as movement of the camera itself would otherwise trigger the VMD. When the camera is stationary, it can effectively detect motion within its field of view similar to a fixed camera. Therefore, option B is correct. For more detailed information, refer to Axis Communications' guidelines on VMD functionality in PTZ cameras.

When using a wireless network for video surveillance, protecting the video stream is crucial to prevent unauthorized access and ensure data integrity. VPN (Virtual Private Network) encrypts the data transmitted over the network, providing a secure tunnel between the camera and the viewing/recording device. WPA2 (Wi-Fi Protected Access 2) is a security protocol that encrypts wireless traffic, ensuring that only authorized users can access the network.

To reduce the impact on recorded video during server maintenance, Video Management Software (VMS) partners can incorporate local storage at the camera. This feature allows the camera to continue recording video on its internal storage (such as an SD card) during network or server downtime, ensuring continuous video capture. Once the server is back online, the recorded footage can be transferred back to the central storage. Axis cameras support local storage options, which are detailed in Axis Communications' product documentation and VMS integration guides.

Top of Form

Bottom of Form

ONVIF (Open Network Video Interface Forum) is the API used to ensure interoperability between products from different vendors. ONVIF provides standardized interfaces for effective interoperability among IP-based physical security products, enabling devices like cameras, video management systems, and access control systems from different manufacturers to work together seamlessly.

A camera lens with a low f-stop value, such as 1.2, has a larger aperture, allowing more light to enter the camera. This improves the camera's performance in low-light conditions by increasing its sensitivity to light, resulting in clearer and more detailed images when lighting is poor. [Reference: Axis Communications - Camera Lens and Aperture]

Adding network surveillance cameras to an existing Ethernet network will benefit from using VLANs (Virtual Local Area Networks) to keep the surveillance video separate from other network traffic. This separation reduces the risk of network congestion by prioritizing surveillance video traffic and ensuring sufficient bandwidth is available for video data. VLANs enhance network performance and security by segmenting traffic and minimizing interference from other network activities.

Broadcast network traffic involves sending data packets to all devices on a network segment, regardless of whether they need the data. This method can lead to unnecessary network congestion and is not efficient for video transmission, which typically requires sending data to specific recipients. Broadcast is generally avoided in network video transmission in favor of more efficient methods like Unicast or Multicast. [Reference: Axis Communications - Network Traffic Management]

The AXIS P1344-E and AXIS P3344-VE are outdoor-rated products designed to withstand harsh environmental conditions. The "E" in AXIS P1344-E denotes an enclosure suitable for outdoor use, providing protection against weather and vandalism. Similarly, the AXIS P3344-VE is specifically designed for outdoor environments, offering features such as weather resistance and rugged casing to ensure reliable operation in various conditions. [Reference: Axis Communications - Outdoor Surveillance Products Specifications]

Multicast is a method of data transmission in which a single stream of data is sent from a source to multiple destinations simultaneously. This technique is especially useful in video surveillance because it allows multiple viewers to receive the same video stream without duplicating the data sent across the network. In other words, the video stream only needs to be sent once from the camera, even though there are multiple viewers, reducing network bandwidth usage. This makes option C correct. For more detailed information, refer to Axis Communications' official documentation on network video fundamentals and multicast usage.

Using a smoked (tinted) dome on a camera reduces light sensitivity because the tinted material filters the amount of light that reaches the camera sensor. This can result in lower image quality, especially in low-light conditions. The decrease in light sensitivity does not affect color fidelity, field of view, or infrared capabilities directly. For more information, refer to Axis Communications' technical notes on dome coverings and their impact on camera performance.

To comply with SMPTE (Society of Motion Picture and Television Engineers) standards for HDTV, the camera must meet specific criteria including frame rate, aspect ratio, resolution, and color fidelity. These standards ensure high-quality video suitable for professional broadcast and security applications. Axis cameras designed for HDTV compliance adhere to these standards, providing high-definition video quality. For detailed standards, refer to Axis Communications' documentation on HDTV compliance.

The H.264 compression standard is highly efficient and can significantly reduce bandwidth and storage requirements compared to Motion JPEG. This is because H.264 uses both intra-frame and inter-frame compression, which reduces the amount of data needed to represent video by eliminating redundant information between successive frames. Axis Network Video documentation states that H.264 can reduce the required bandwidth and storage by up to 50% or more in typical surveillance scenarios, making it an advantageous choice for video compression in surveillance systems.

When installing Axis cameras outdoors, it's crucial to protect the equipment from electrical surges, which can occur due to lightning or other power disturbances. Installing a surge suppressor in front of each camera helps prevent damage from these surges, ensuring the longevity and reliability of the camera system. While grounding endpoints and using UPS for the network switch are also good practices, surge protection directly in front of each camera is specifically emphasized in Axis’s best practices for outdoor installations.

For 24-hour License Plate Recognition (LPR) of fast-moving cars, adequate illumination is crucial. Infrared (IR) light is essential because it allows for clear image capture in low light or nighttime conditions. IR light ensures that the camera can consistently capture high-quality images of license plates regardless of the time of day, which is vital for accurate LPR. PoE (Power over Ethernet), processing speed, and interlaced scanning are also important, but without IR light, the system cannot reliably operate 24 hours a day. This information is verified from Axis Communications’ documentation on LPR systems and best practices for lighting.

Axis recommends shielded cables for outdoor installations primarily to ensure surge protection. Shielded cables help to protect the system against electrical surges and electromagnetic interference, which can cause damage to the cameras and other connected devices. By using shielded cables, the integrity and reliability of the surveillance system are maintained, even in environments prone to electrical disturbances. [Reference: Axis Communications - Installation and Maintenance of Network Video Products]

Top of Form

Bottom of Form

The Group of Video (GOV) length setting affects both the bandwidth and storage requirements of video streams. A longer GOV length, which specifies the interval between keyframes in a video stream, reduces the frequency of keyframes, thus lowering the bandwidth consumption. However, it can also increase the storage time on an SD card because fewer keyframes are stored over a given period, making the video stream more compression-efficient.

To ensure the AXIS P3347 always delivers the full frame rate of 30 fps even in darker conditions, setting the priority to frame rate is the correct option. This setting ensures that the camera maintains a constant frame rate by adjusting other parameters like exposure time and gain accordingly. This is essential in maintaining video smoothness and capturing real-time motion without dropping frames.

To address the blurring that's occurring with faster moving objects in the image, adjusting the exposure settings is the best option. Specifically, reducing the exposure time (shutter speed) will help in capturing clearer images of fast-moving objects by reducing motion blur. This adjustment allows the camera to capture less light per frame, effectively freezing the motion and reducing the blur associated with movement.

In a network surveillance installation, the primary purpose of a switch is to forward the video stream to the correct receiver within a network. This functionality ensures that the video data captured by cameras is correctly directed to the appropriate storage device, monitoring station, or viewing client within the local network. Switches operate at the data link layer (Layer 2) of the OSI model and utilize MAC addresses to ensure that data packets reach their intended destination efficiently.

The IP51 and IP52 ratings indicate that the camera is protected against dust and dripping water. IP51 means the camera is protected against dust ingress to a level that would interfere with the operation and against vertically dripping water. IP52 offers the same dust protection but also protects against dripping water when tilted up to 15 degrees. These ratings make the cameras suitable for indoor use where dust and minor water exposure might occur. Axis Network Video documentation specifies the IP rating system and the levels of protection provided by different ratings.

A VPN (Virtual Private Network) creates a secure tunnel through the network where your information travels encrypted. This means that data transmitted over the VPN is protected from eavesdropping and unauthorized access. It is not specifically optimized for video data packets nor does it translate domain names to IP addresses. Therefore, the correct answer is C. For more detailed information, refer to Axis Communications' guidelines on secure remote access and VPN usage.

Operating cameras above their specified temperature limits can increase noise in the captured images. High temperatures can affect the electronic components of the camera, leading to higher thermal noise and degraded image quality. Ensuring cameras operate within their designated temperature ranges is critical for maintaining image clarity and overall performance. Refer to Axis Communications' product specifications and environmental guidelines for more information.

Using PoE (Power over Ethernet) to power cameras helps keep them running during a power outage because PoE cameras are centrally powered from the Ethernet switches, which are often backed up by an uninterrupted power supply (UPS). This means that in the event of a power failure, the UPS can provide temporary power to the switches and, consequently, to the connected PoE cameras, ensuring continuous operation.

IEEE 802.1X is a network access control protocol that provides an authentication mechanism for devices wishing to connect to a LAN or WLAN. It ensures that only approved devices are granted access to the network, thereby preventing unauthorized devices from connecting. This makes it impossible for someone to disconnect a camera and connect another device to eavesdrop on the network. Therefore, the correct answer is B. For more detailed information, refer to Axis Communications' documentation on network security features and IEEE 802.1X.

When zooming in on an object with a varifocal or zoom lens, the light sensitivity of the camera generally decreases. This is because zooming in reduces the amount of light reaching the sensor due to the longer focal length and narrower aperture, which can result in a darker image. This effect is more pronounced in cameras with lower-quality lenses or insufficient lighting. Axis Network Video documentation explains how lens properties and zoom settings can impact light sensitivity and overall image quality.

Top of Form

Bottom of Form

Using VLANs and IP subnets in a network infrastructure helps segregate surveillance video traffic from other network traffic. This separation improves network security by limiting access to authorized devices only and reducing the risk of video interception by malicious users. It does not inherently provide encryption or establish encrypted communication links, but it enhances security by isolating sensitive video streams. Detailed explanations can be found in Axis Communications network design guides and security best practices documents.

Top of Form

Bottom of Form

"An IR-pass filter blocks visible light and allows only infrared light to reach the camera sensor. This is commonly used for dedicated infrared imaging applications."

— Axis IR Filter Technologies

"An IR-cut filter, by contrast, blocks infrared light and lets visible light through."

— Axis Communications Academy, Network Video Fundamentals, 2022

The AXIS V5938 is a professional video broadcasting camera designed specifically for high-quality video streaming and broadcasting applications. It offers features such as 4K Ultra HD resolution, powerful zoom capabilities, and advanced image processing, making it ideal for live broadcasts, webcasting, and other professional video applications. Axis documentation highlights the V5938 as a top choice for video broadcast due to its superior image quality and streaming capabilities.

To prevent reflections from built-in IR illuminators from degrading the image quality, an installer can adjust the camera's field of view. By repositioning the camera or slightly altering its angle, the installer can minimize the direct reflection of IR light back into the lens, which often causes glare and reduces image clarity. Axis installation guidelines recommend adjusting the camera’s position to avoid reflective surfaces and ensure optimal use of IR illumination for clear, unobstructed images.

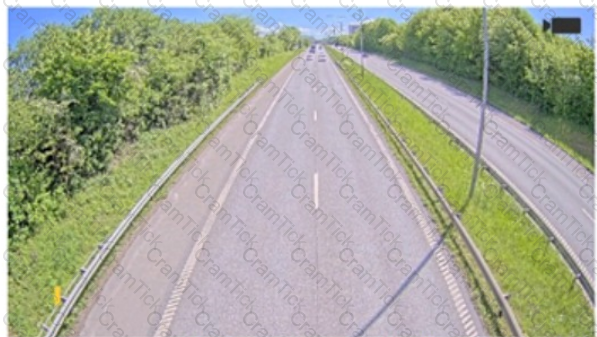

The aspect ratio of the scene depicted in the image is 16:9. This widescreen format is commonly used in modern video applications, including network video surveillance. The 16:9 aspect ratio provides a wider field of view, which is beneficial for monitoring large areas and capturing more detail horizontally. Axis cameras often support this aspect ratio to provide comprehensive coverage in surveillance environments. The documentation confirms that 16:9 is a standard aspect ratio for many Axis network cameras.

AXIS Device Manager is the tool that enables easy upgrade of device firmware. It provides a comprehensive solution for managing multiple Axis devices, including firmware upgrades, configuration, and maintenance. AXIS Device Manager allows administrators to schedule and deploy firmware updates efficiently across multiple devices, ensuring that all devices are running the latest firmware with minimal downtime. This information is confirmed by Axis Communications' documentation on device management tools.

"Both Computer 1 (192.168.1.10) and Computer 5 (192.168.1.10) have the same IP address assigned within the same network (192.168.1.0/24). This creates an IP address conflict, causing communication errors on the network."

— Axis Communications Academy, Network Video Fundamentals, 2022

"An IP address conflict occurs when two devices share the same IP address, resulting in communication issues for both devices."

— Axis Networking Basics Guide

A smoked dome might negatively affect the image quality. Smoked domes can reduce the amount of light reaching the camera sensor, leading to darker and less clear images. While they offer additional privacy and reduce the visibility of the camera’s direction, they can compromise the overall image clarity and brightness. Axis Communications' documentation on dome camera housings and their impact on image quality confirms this.

“Adjusting the white balance setting can correct color inaccuracies caused by different lighting conditions, such as the orange tint seen under sodium-vapor street lamps.”

— Axis Communications Academy, Network Video Fundamentals, 2022

“White balance ensures that white objects are rendered as white in the image, improving overall color fidelity.”

— Axis White Balance Technical Guide

For an outdoor school playground, the most appropriate IP rating is IP67. This rating indicates that the camera is completely protected against dust (the first digit '6') and can withstand immersion in water up to 1 meter for 30 minutes (the second digit '7'). This level of protection is ideal for outdoor environments where the camera may be exposed to dust, rain, and other environmental factors.

"A midspan (PoE injector) can provide the necessary power level for PoE+ (Class 4) devices when the existing switch only supports standard PoE (Class 3). The midspan is placed between the switch and the device."

— Axis PoE Solutions Overview

"A midspan is recommended when extra power is needed but the switch does not support the higher class."

— Axis Communications Academy, Network Video Fundamentals, 2022

"A parapet mount is designed for rooftop installations or building edges, allowing a camera to be installed on the side of a roof or wall to overlook streets or other areas below."

— Axis Communications, Installation Accessories Guide

"Parapet mounts are ideal for rooftop and wall edge camera installations, providing a stable platform for outdoor surveillance."

— Axis Communications Academy, Network Video Fundamentals, 2022

“When using fiber connections for network cameras that lack onboard SFP slots, a midspan with an SFP slot is recommended. This device can accept the fiber connection, provide PoE power to the camera, and transmit data over standard Ethernet.”

— Axis Communications, PoE Midspans and Network Accessories

“A PoE midspan with an SFP slot allows you to convert fiber to copper (Ethernet), power the camera via PoE, and handle data transmission all in one device.”

— Axis Communications Academy, Network Video Fundamentals, 2022

"The pixel counter tool allows you to verify that the resolution at a given distance meets identification, recognition, or detection requirements for a surveillance scene."

— Axis Communications Academy, Network Video Fundamentals, 2022

"Axis cameras have a built-in pixel counter feature, helping installers confirm if a scene has the needed pixel density."

— Axis Pixel Counter Tool

The red tip on the cable is used to keep the connectors dust-free prior to installation. It protects the RJ45 connector from dust and debris, ensuring a clean and reliable connection once installed. Maintaining clean connectors is essential for preventing connectivity issues and ensuring optimal network performance. Axis installation guides specify the importance of keeping connectors covered until installation to protect against contamination and ensure a proper connection.

The AXIS Q6315-LE is a PTZ (Pan-Tilt-Zoom) camera. This type of camera is capable of panning, tilting, and zooming to provide flexible and comprehensive surveillance coverage. PTZ cameras are often used in applications requiring dynamic monitoring of large areas, allowing operators to zoom in on specific details or track moving objects. Axis Communications' product catalog confirms the AXIS Q6315-LE as a PTZ camera.

A full HD sensor has a 1080p resolution. Full HD, or FHD, refers to a resolution of 1920 x 1080 pixels, which is commonly used in high-definition video and surveillance systems for providing clear and detailed images.

A decoder allows for displaying digital live video on a monitor. Axis decoders convert digital video streams from network cameras into standard video signals that can be displayed on monitors. This is particularly useful in surveillance setups where live monitoring on standard displays is required. Axis offers various decoders designed for seamless integration with their camera systems, as detailed in their product documentation and solution guides.

The most effective way to improve the image quality in the provided scene is to add lighting. The image appears to be very dark and grainy, which is a typical result of low light conditions. Adding additional lighting will significantly enhance the camera’s ability to capture clearer and more detailed images. This solution is supported by Axis Communications' documentation on optimizing image quality, which highlights the importance of adequate lighting in achieving optimal camera performance.

OptimizedIR technology in Axis cameras refers to the intelligent adaptation of IR illumination to the camera's field of view. This ensures even illumination across the entire scene, reducing overexposure and underexposure caused by traditional fixed IR lights. The IR LEDs adjust their intensity and spread according to the zoom level and scene requirements, providing optimal image quality in low-light conditions. Axis documentation highlights OptimizedIR as a feature that enhances night-time surveillance by ensuring balanced lighting.

A PoE switch with a power budget of 90 W can power 12 class 2 devices. Class 2 PoE devices typically require up to 7.5 W each. By dividing the total power budget (90 W) by the power requirement per device (7.5 W), we get 12 devices. This calculation aligns with the PoE standards defined in IEEE 802.3af/at, as outlined in Axis Communications' technical resources.

Keeping firmware up to date helps a device stay as cybersecure as possible by addressing vulnerabilities and incorporating security patches. Regular updates ensure that the device is protected against the latest threats. Additionally, updating firmware helps the device remain compatible with the Video Management System (VMS), ensuring that it can work seamlessly with the latest software features and improvements. References: Axis Communications security and firmware update policies.

"The AXIS Camera Application Platform (ACAP) enables the development and deployment of edge applications directly on Axis devices, allowing for advanced analytics and custom functionality."

— Axis Camera Application Platform Overview

"ACAP is an open platform that allows partners and users to develop and run applications on Axis network devices."

— Axis Communications Academy, Network Video Fundamentals, 2022

The primary purpose of the accessory on this dome camera is to reduce the weather impact. This accessory, often referred to as a weather shield or rain guard, helps protect the camera lens from rain, snow, and other environmental elements, ensuring clear visibility and reducing the need for maintenance. It also helps to minimize the impact of direct sunlight, reducing glare and improving image quality.

The primary reason for using a multisensor panoramic camera versus a single-sensor panoramic camera is to achieve higher pixel density. Multisensor cameras combine images from multiple sensors to create a high-resolution, detailed panoramic view. This approach provides superior image quality and clarity, especially in large areas where high detail is needed. Axis product literature emphasizes the advantage of higher pixel density in multisensor cameras for capturing detailed, wide-area surveillance images.

Continuous recording ensures that no incidents are missed by capturing video footage continuously, without any gaps. This is crucial in security applications where it is important to have a complete record of events, enabling thorough investigations and evidence collection. Continuous recording ensures that every moment is documented, providing comprehensive coverage and peace of mind. References: Axis Communications guidelines on video recording and storage.

"Dynamic FPS (frames per second) is a Zipstream setting that automatically lowers the frame rate when there is no activity in the scene, thus saving bandwidth and storage."

— Axis Zipstream Technology Overview

"Dynamic FPS reduces the frame count during low-activity periods to optimize bandwidth and storage usage."

— Axis Communications Academy, Network Video Fundamentals, 2022

Variable bitrate (VBR) is a video encoding method that adjusts the bitrate according to the complexity of the video scene. The primary advantage of VBR is that it maintains image quality, even in high-motion scenes, by allocating more bitrate when needed and reducing it during simpler scenes. This ensures consistent image quality while optimizing the use of bandwidth. Axis Communications’ documentation on video compression and bitrate management confirms the benefits of VBR in maintaining image quality.

The camera shown in the image is an Axis multidirectional camera, which typically features multiple sensors to cover a wide area. Based on the design and common configurations of Axis multidirectional cameras, it has a total of 4 camera sensors. Each sensor can be independently adjusted to capture different angles and areas, providing comprehensive surveillance coverage. Axis documentation on multidirectional cameras confirms that these models generally come with four sensors for optimal monitoring.

"The compass-style indicators in the user interface display the current pan direction of a PTZ camera. This helps operators orient themselves and know which direction the camera is facing in real-time."

— Axis Communications Academy, Network Video Fundamentals, 2022

"On-screen compass indicators are designed to show operators the camera’s current field of view, making navigation and incident tracking easier."

— Axis PTZ Control User Manual

The background of the scene is slightly out of focus due to a shallow depth of field. Depth of field refers to the range of distance within a photo that appears acceptably sharp. A shallow depth of field results in a narrow focus area, causing objects outside this area to appear blurred. This can be influenced by the aperture setting of the lens, the focal length, and the distance to the subject. Axis documentation on camera setup and focus adjustments provides guidance on managing depth of field to ensure optimal image clarity.

For AXIS P3247-LVE, the last digit '7' indicates the camera resolution. Axis uses a numerical system where the last digit often denotes the resolution of the camera. In this case, '7' represents a camera with a resolution of 5 MP (megapixels), providing high-quality video surveillance suitable for detailed monitoring.

If an object is placed 1 meter (3 feet) away from a light source with a lux level of 3200 lux, the lux level decreases according to the inverse square law of light. At a distance of 8 meters (24 feet), the lux level can be calculated as:

New Lux Level=3200 lux(8/1)2=3200 lux64=50 lux\text{New Lux Level} = \frac{3200 \text{ lux}}{(8/1)^2} = \frac{3200 \text{ lux}}{64} = 50 \text{ lux}New Lux Level=(8/1)23200 lux​=643200 lux​=50 lux

Thus, at 8 meters, the light intensity drops significantly to 50 lux.

“Thermal radiation does not pass through standard glass lenses, as glass is opaque to the long-wavelength infrared radiation detected by thermal sensors. Special materials such as germanium are used for thermal camera lenses because they allow infrared radiation to pass through.”

— Axis Communications Academy, Thermal Imaging, 2022

“Conventional glass lenses are not suitable for thermal imaging cameras because they block the wavelengths of infrared energy that thermal sensors use. Therefore, thermal lenses are made from materials like germanium.”

— Axis Communications, Thermal Cameras Technology

An explosion-protected camera is specifically designed to contain any internal explosion within its housing. This type of camera is built to operate in hazardous environments where flammable gases or dust may be present. The robust housing prevents the internal explosion from igniting the surrou

nding atmosphere, thereby ensuring safety. Axis Communications offers explosion-protected cameras that adhere to stringent safety standards to prevent ignition and ensure reliable operation in dangerous conditions, as detailed in their product specifications.

"An IR-corrected lens is designed to keep the image in focus for both visible and infrared light, ensuring the camera stays in focus when switching from day (color) mode to night (IR) mode."

— Axis Communications Academy, Network Video Fundamentals, 2022

"IR-corrected lenses prevent focus shift when the camera switches between visible and infrared illumination."

— Axis Lens Accessories Guide

"Axis recording appliances can function as servers (handling video data and management), clients (providing user interfaces for playback and live viewing), and PoE sources (powering connected network cameras and devices)."

— Axis S Series Recording Solutions Overview

"Many Axis recording appliances integrate server, client, and PoE switch functions in one device."

— Axis Communications Academy, Network Video Fundamentals, 2022

A visual camera enables the detection and identification of a person’s face. Visual cameras capture detailed images using visible light, which is necessary for facial recognition and identification applications. While radar, passive infrared sensors, and thermal cameras are useful for detecting movement and heat signatures, they do not provide the detailed imagery required for facial identification. This functionality is detailed in Axis Communications' documentation on camera capabilities.

"M12 lenses are easily recognized by their small size and the thread on the lens barrel. The M12 refers to the metric thread diameter (12 mm), which is much smaller than C/CS-mount lenses. These are often used in compact and modular camera models."

— Axis Communications Academy, Network Video Fundamentals, 2022

"M12-mount lenses are also called 'board lenses' and are screwed directly into the camera’s sensor module."

— Axis M12 Lens Accessories Guide

"Semi-covert IR illumination typically operates at 850 nm. This wavelength produces a faint red glow that is somewhat visible to the human eye, making it 'semi-covert.'"

— Axis Communications Academy, Network Video Fundamentals, 2022

"850 nm is considered semi-covert, while 940 nm is fully covert."

— Axis OptimizedIR Guide

The field of view of a camera is determined by the focal length of the lens and the size of the sensor. The focal length affects how wide or narrow the view appears, while the sensor size impacts the overall field of view captured by the camera. Axis technical specifications detail how different combinations of focal length and sensor size influence the camera's field of view, allowing for precise control over what is captured in the frame.

View areas enable multiview streaming by allowing users to stream different parts of the camera's field of view simultaneously. This includes the ability to stream both optically zoomed-in views and the full, normal views at the same time. This feature enhances monitoring flexibility and situational awareness by providing multiple perspectives from a single camera feed. Axis documentation on multiview streaming explains how view areas can be configured to deliver both zoomed and wide-angle views concurrently, facilitating comprehensive surveillance.

The product name extension "-L" is recommended for environments requiring low-light performance. Axis cameras with the "-L" extension are equipped with integrated IR illumination, making them suitable for low-light or nighttime surveillance. This ensures clear and detailed images even in challenging lighting conditions. Axis Communications' product naming conventions and specifications confirm this recommendation.

When using an external IR illuminator with a beam angle significantly narrower than the field of view, the exposure may be uneven. This can result in parts of the image being overexposed (too bright) while other parts remain underexposed (too dark). Ensuring that the beam angle of the IR illuminator matches the field of view of the camera is essential for achieving uniform illumination across the entire surveillance area.

RAID (Redundant Array of Independent Disks) and NAS (Network Attached Storage) are two common methods to extend server storage for video. RAID allows for increased storage capacity and data redundancy by combining multiple hard drives into a single logical unit, improving performance and fault tolerance. NAS provides additional storage over the network, enabling easy expansion and accessibility for video data. Both solutions are widely used in video surveillance systems to ensure ample storage and data reliability. This information is verified from Axis Communications’ best practices and technical guidelines on storage solutions for video surveillance.

“Axis devices can use action rules with conditions such as schedule, input, or motion detection. For example, an action rule can be set to play a sound through a network speaker if motion is detected outside of business hours.”

— Axis Communications Academy, Network Video Fundamentals, 2022

“Action rules allow users to automate responses to events by setting conditions. Example: If motion is detected after hours, play a pre-recorded message on a network speaker.”

— Axis Device Event Configuration Guide

"The Axis lens calculator helps users determine the pixel density at various distances, helping to ensure coverage meets surveillance requirements (such as detection, recognition, and identification)."

— Axis Lens Calculator Tool

"Pixel density calculations are essential for planning surveillance installations and the lens calculator provides this information based on camera and lens parameters."

— Axis Communications Academy, Network Video Fundamentals, 2022

Lowering the shutter speed can produce motion blur because the camera sensor is exposed to light for a longer period, capturing the movement of objects within the frame. This results in a blurry representation of moving objects, which can be useful for artistic effects but undesirable for capturing fast-moving subjects clearly. References: Axis Communications camera user guides and image capture documentation.

PTZ cameras use lasers to measure the distance to the target, which allows for quick and accurate focusing. The laser range finder determines the precise distance between the camera and the subject, enabling the camera to adjust its focus optimally. This technology ensures that the camera can focus rapidly and accurately, even in challenging lighting conditions or when the target is moving. Axis Communications' technical specifications for PTZ cameras confirm that laser technology is employed to enhance focus performance by providing target distance information.

Axis Official Documentation Extract:

“A video decoder is a device that receives video streams from IP cameras over the network, decodes the streams, and outputs the video to a monitor, typically using HDMI or other standard video outputs. This allows users to view live network video on standard monitors or televisions without the need for a computer.”

— Source: AXIS Video Decoder Product Page

Supporting Extract from Axis Study Guide:

"Video decoders play a crucial role in network video systems where there is a need to display live video feeds on standard monitors. Unlike video encoders, which convert analog video to digital IP video streams, decoders convert IP video streams back into video signals that can be displayed on HDMI or composite video monitors."

— Axis Communications Academy, Network Video Fundamentals, 2022

Fixed box cameras typically use a CS-mount lens, which allows for easy installation and flexibility in changing lenses to meet different surveillance needs. The CS-mount standard is widely used in the security industry and provides compatibility with a variety of lens types. Axis Communications' fixed box cameras often feature CS-mount lenses, as detailed in their product specifications and installation guides.

The most efficient method for sending a video stream to multiple recipients simultaneously is multicast. Multicast allows a single video stream to be transmitted to multiple recipients, reducing the bandwidth required compared to unicast, where separate streams are sent to each recipient. This approach optimizes network resources and ensures efficient distribution of video data. Axis Communications' networking and video streaming guidelines confirm multicast as the preferred method for such scenarios.

Fluorescent lighting can cause flickering effects in video due to the way these lights operate. Fluorescent lamps typically flicker at twice the power line frequency (50 Hz or 60 Hz), which can interfere with the camera's frame rate and shutter speed, leading to visible flickering in the recorded video. This effect is more pronounced when the camera's exposure settings are not synchronized with the frequency of the lighting. Axis Network Video documentation discusses the importance of using cameras with anti-flicker settings or adjusting the shutter speed to match the lighting frequency to mitigate this issue.
