AZ-120 Planning and Administering Microsoft Azure for SAP Workloads Questions and Answers

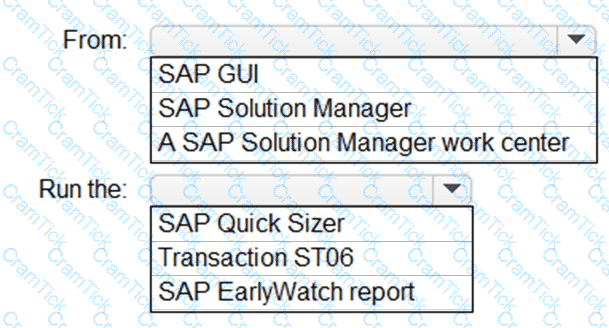

If a customer runs non-SAP systems, the only way of Sizing the required Hardware for SAP HANA is the Quick-Sizer tool.

HANA-based Cloud Quick Sizer: Please use this version, if the product that you want to size shall run in the Cloud; e.g. SAP S/4HANA Cloud and SAP Data Warehouse Cloud.

If you want to move an existing deployed system from another relational database management system (RDBMS) to HANA. SAP provides reports to run on your existing SAP system. If the database is moved to HANA, these reports check the data and calculate memory requirements for the HANA instance.

/SDF/HDB_SIZING is a standard Executable ABAP Report available within your SAP system (depending on your version and release level).

ABAP code listing snippet for SAP ABAP Report /SDF/HDB_SIZING

*&-------------------------------*

*& Report /SDF/HDB_SIZING // ZNEWHDB_SIZE

*&

*&-------------------------------*

*& Estimates the memory requirement in HANA of non-HANA databases *

*& When run on HANA, size the database using real memory consumption

*& values.

*&-------------------------------*

*

*

REPORT /SDF/HDB_SIZING LINE-SIZE 101 LINE-COUNT 90

NO STANDARD PAGE HEADING.

DATA: l_version TYPE c LENGTH 6 VALUE '54'. "54.2

TYPES: ty_para(2) TYPE n,

ty_top(3) TYPE n.

TYPE-POOLS: abap.

DATA: tabname TYPE tabname,

subrc TYPE sy-subrc,

p_prf TYPE abap_bool,

See full code listing within your SAP system using transactions such as SE80 and SE38

SAP transaction OS07N (Remote Operating System Activity) is classified in the Basis Component module under application component Operating System Monitors and runs Monitoring Operating System program RSHOST1N upon execution.

https://help.sap.com/viewer/f2ad7797884249eeb2e91dc26a991196/3.0.3.0/en-US

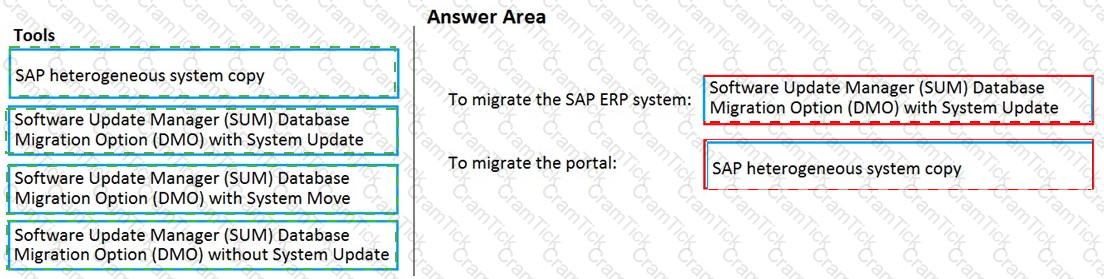

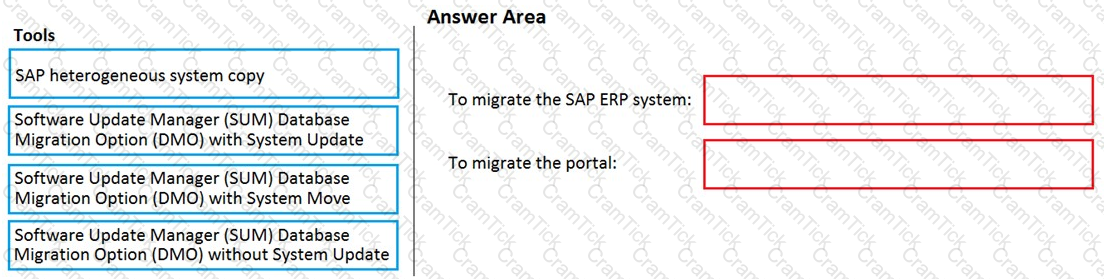

The SAP Database Migration Option (DMO) with System Move option of SUM, used as part of the migration allows customer the options to perform the migration in a single step, from source system on-premises, or to the target system residing in Microsoft Azure, minimizing overall downtime.

References:

https://blogs.sap.com/2017/10/05/your-sap-on-azure-part-2-dmo-with-system-move/

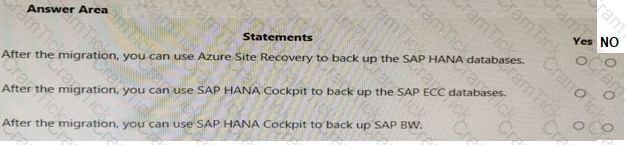

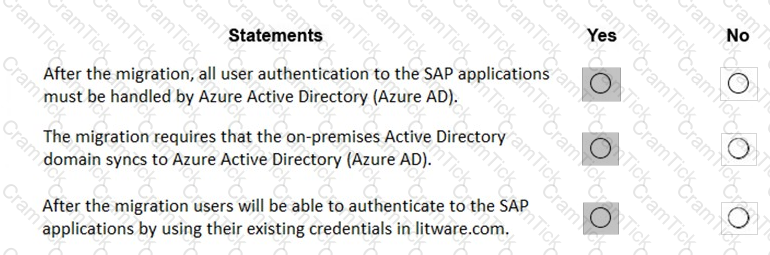

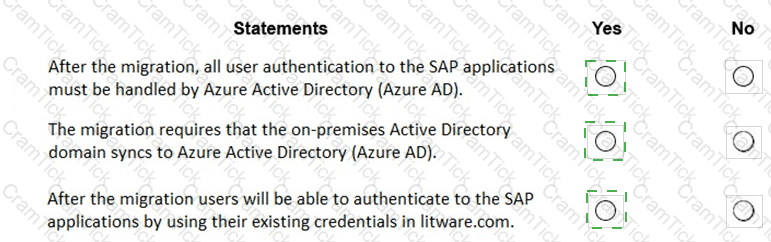

YES

YES

NO

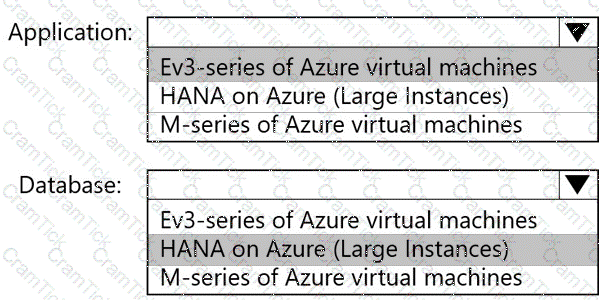

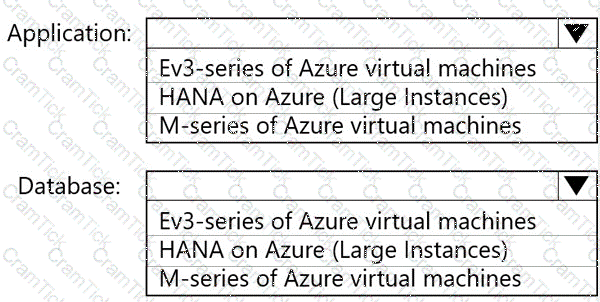

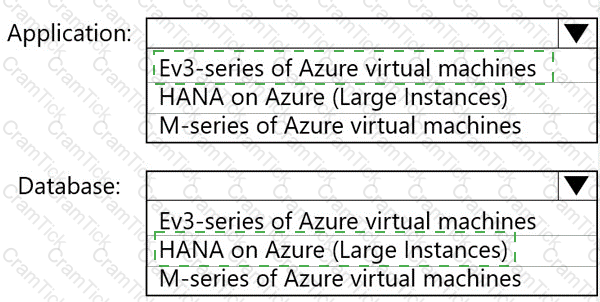

Scenario: Increase the performance of SAP ECC applications by moving to SAP HANA.

References:

https://azure.microsoft.com/en-us/pricing/details/virtual-machines/rhel- sap-hana/

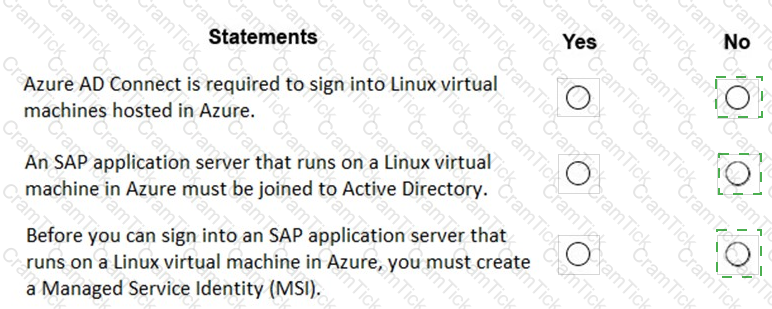

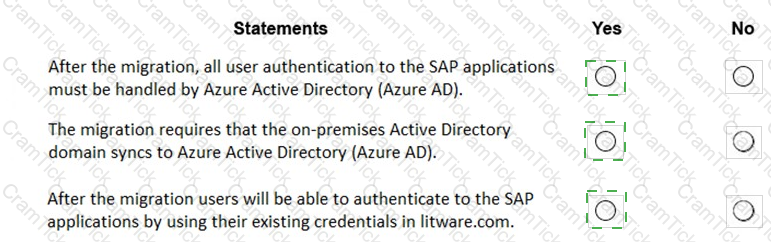

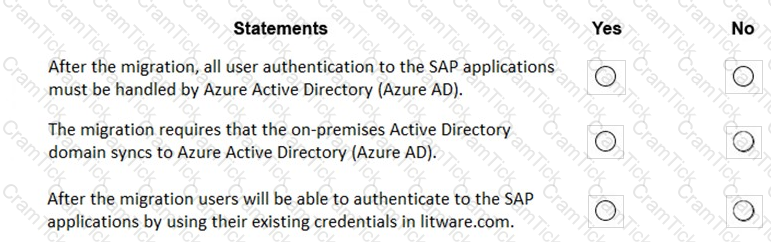

In a Hybrid-IT scenario, Active Directory from on-premises can be extended to serve as the

authentication mechanism through an Azure deployed domain controller (as well as potentially using the integrated DNS).

It is important to distinguish between traditional Active Directory Servers and Microsoft Azure Active Directory that provides only a subset of the traditional on-premises AD offering. This subset include Identity and Access Management, but does not have the full AD schema or services that many 3rd party application take advantage of. While Azure Active Directory IS a requirement to establish authentication for the Azure virtual machines in use, and it can synchronize users with customers’ on-premises AD, the two are explicitly different and customers will likely continue to require full Active Directory servers deployed in Microsoft Azure.

References:

https://www.suse.com/media/guide/sap_hana_on_azure_101.pdf

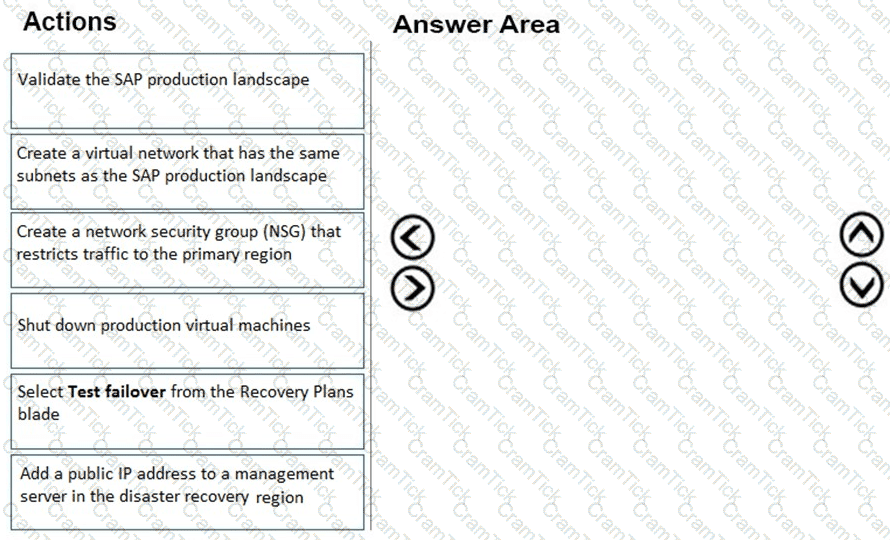

Scenario: Ensure that all the production databases can withstand the failure of an Azure region.

Note: Use Azure Site Recovery to replicate applications across regions. Azure Site Recovery replicates workloads running on physical and virtual machines from a primary site (either on-premises or in Azure) to a secondary location (in Azure). When an outage occurs at the customer's primary site, a failover can be triggered to quickly return the customer to an operational state. After the primary location is restored, customers can then fail back.

References:

https://docs.micros oft.com/en-us/azure/architecture/resiliency/recovery-loss-azure-region

Scenario: Upgrade and migrate SAP ECC to SAP Business Suite on HANA Enhancement Pack 8.

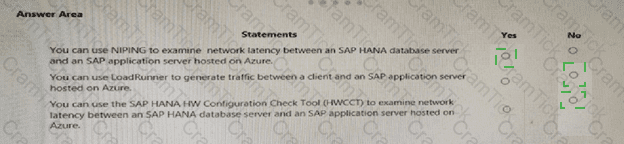

With the SAP LoadRunner application by Micro Focus, you can accelerate testing and development, reduce slowdowns and expenses, and gain a better understanding of performance issues. Validate software performance, virtualize your network, simulate workloads, benchmark production system performance, and optimize your deployment of SAP HANA software

References:

https://www.sap.com/products/loadrunner.html

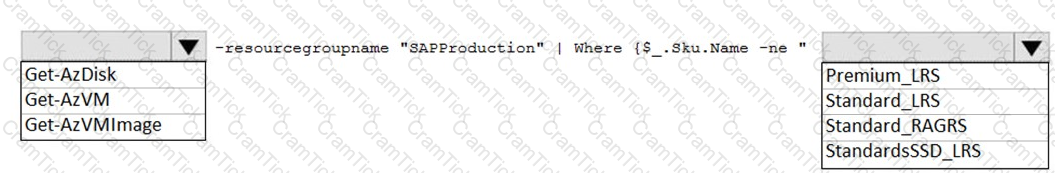

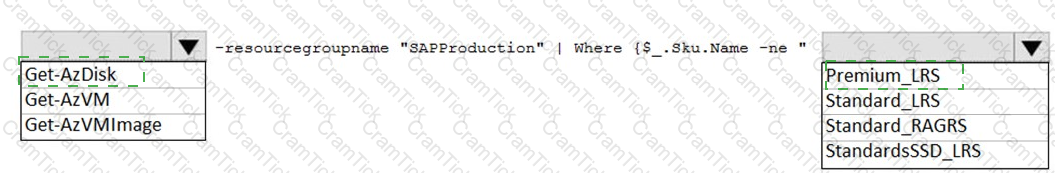

Get-AzDisk & Primium_LRS

https://docs.microsoft.co m/en-us/powershell/module/az.compute/get-azvmimage?view=azps-4.6.1 https://docs. microsoft.com/en-us/powershell/module/az.compute/get-azdisk?view=azps-4.6.1

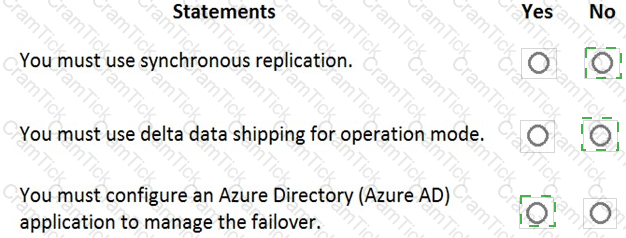

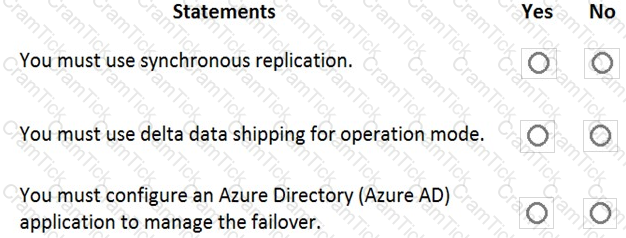

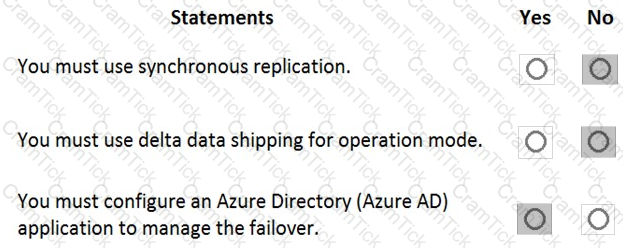

Box 1: No

SAP HANA Replication consists of one primary node and at least one secondary node. Changes to the data on the primary node are replicated to the secondary node synchronously or asynchronously.

‎

Box 2: No

Since SPS11 SAP HANA system replication can be run in two different operation

modes:

delta_datashipping

logreplay

Box 3: Yes

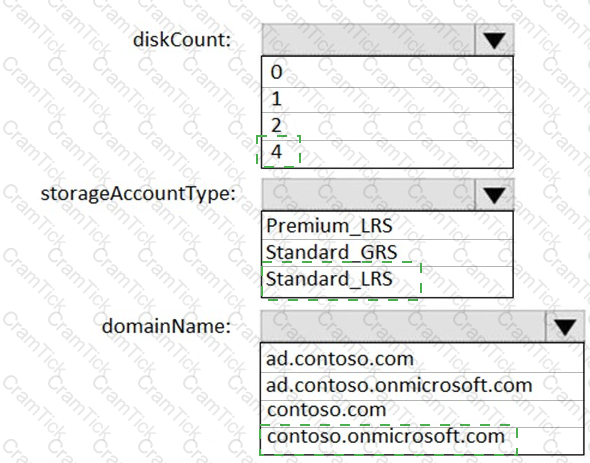

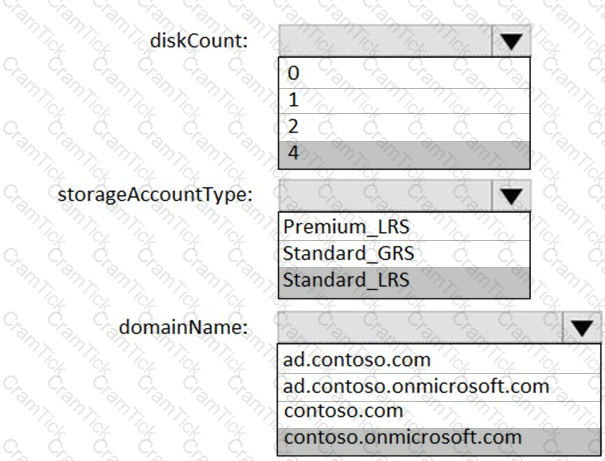

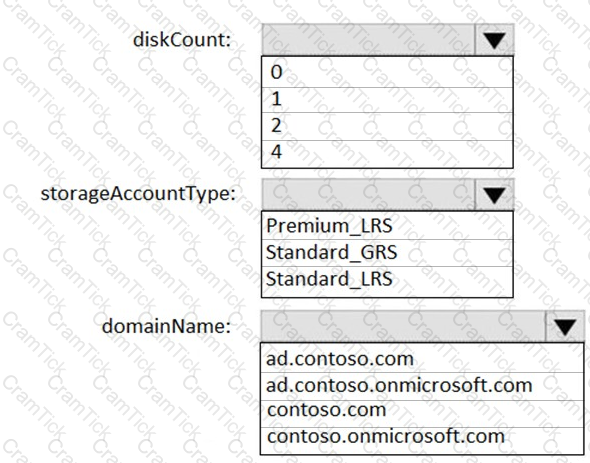

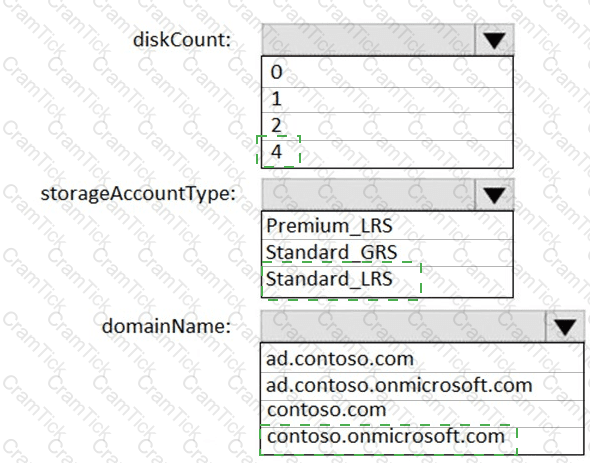

Box 1: 4

Scenario: the Azure Resource Manager template that will be used to provision the production application servers.

Ensure that each production application server has four 1-TB data disks.

Box 2: Standard_LRS

Scenario: Minimize costs whenever possible.

Box 3: contoso.onmicrosoft.com

The network contains an on-premises Active Directory domain named ad.contoso.com.

The Initial domain: The default domain (onmicrosoft.com) in the Azure AD Tenant. For example, contoso.onmicrosoft.com.

References:

https://docs.microsoft.com/en-us/azure/active-directory/hybrid/p lan-connect-userprincipalname

ExpressRoute circuits are configured to allow you to burst up to two times the bandwidth limit you procured for no additional cost.

Scenario: It is estimated that during the migration, the bandwidth required between Azure and the New York office will be 1 Gbps. After the migration, a traffic burst of up to 3 Gbps will occur.

References:

https://docs.microsoft.com/en-us/azure/expressroute/expressroute-faqs

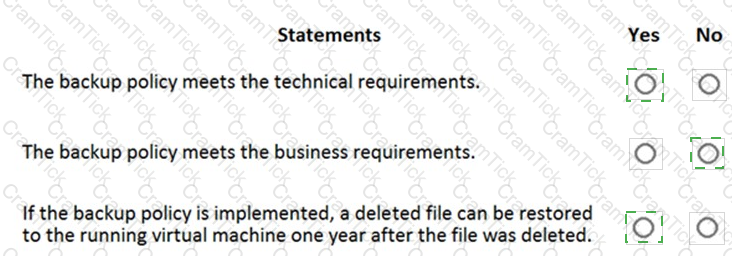

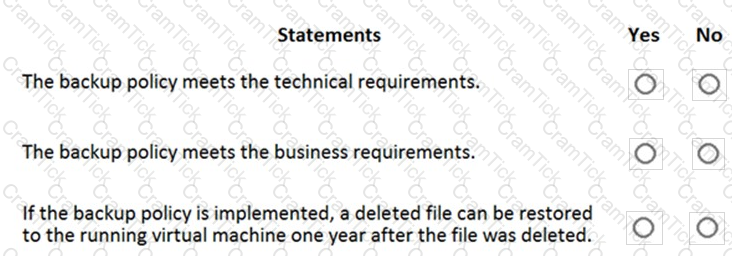

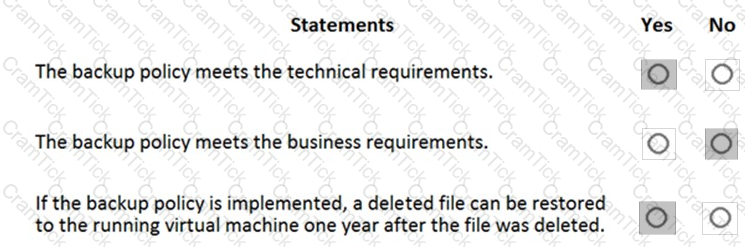

Box 1: Yes

Scenario: Technical requirements: Ensure that an application server can be restored from a backup created during the last five days within 15 minutes.

Instant Restore has 'The instance recovery snapshot(s) for 5 Day(s)'.

Box 2: No

Scenario: Ensure that all the production application servers can restore daily backups from the last 21 days.

The Retention of daily backup point is set to for 14 days only.

Box 3: Yes
