AZ-204 Developing Solutions for Microsoft Azure Questions and Answers

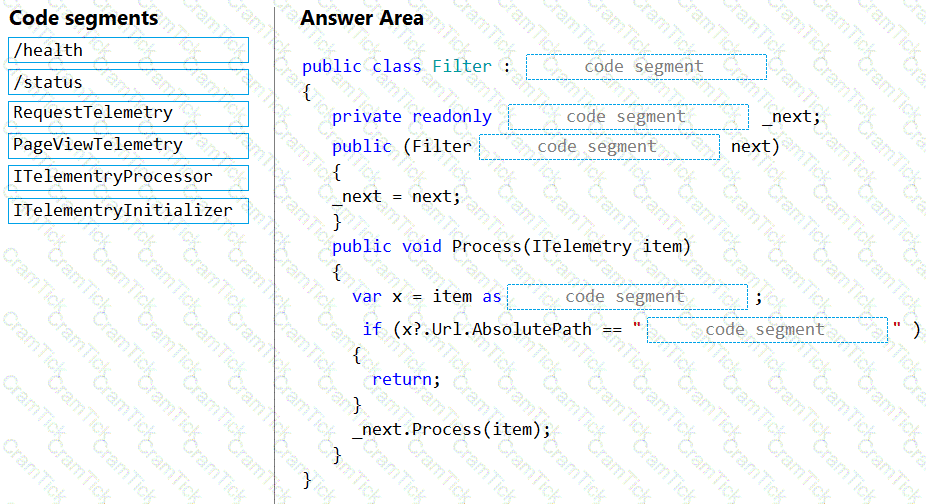

Scenario: You have a shared library named PolicyLib that contains functionality common to all ASP.NET Core web services and applications. The PolicyLib library must:

• Exclude non-user actions from Application Insights telemetry.
• Provide methods that allow a web service to scale itself.
• Ensure that scaling actions do not disrupt application usage.

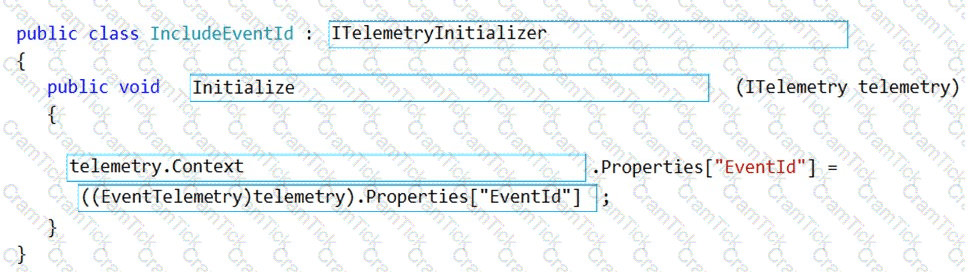

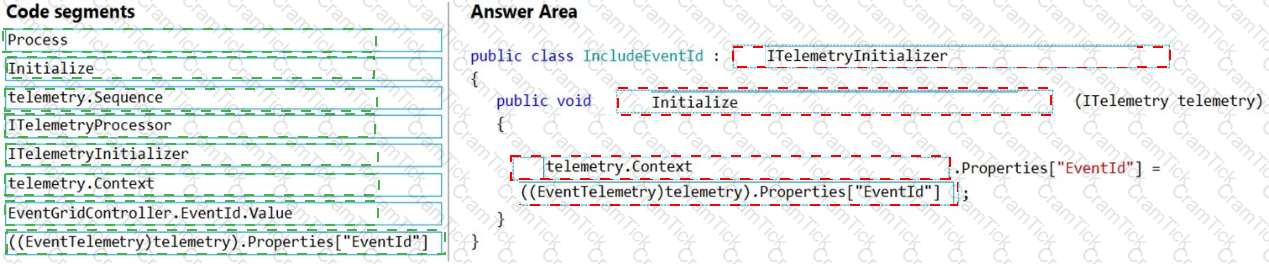

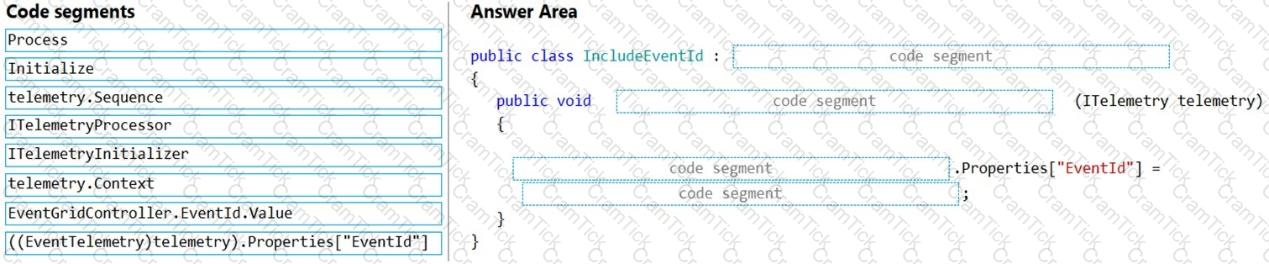

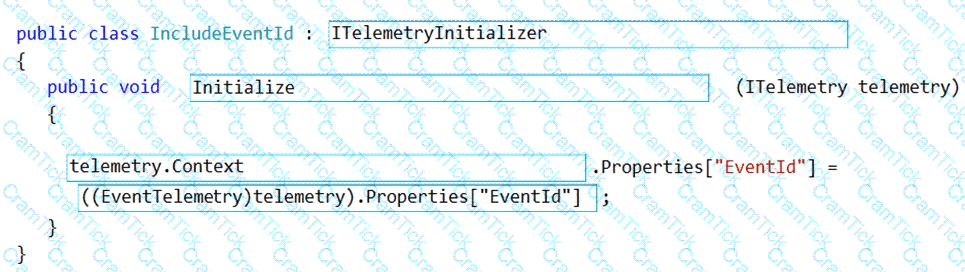

Box 1: ITelemetryInitializer

Use telemetry initializers to define global properties that are sent with all telemetry; and to override selected behavior of the standard telemetry modules.

Box 2: Initialize

Box 3: Telemetry.Context

Box 4: ((EventTelemetry)telemetry).Properties["EventID"]

Application Insights provides three additional data types for custom telemetry:

Trace - used either directly, or through an adapter to implement diagnostics logging using an instrumentation

framework that is familiar to you, such as Log4Net or System.Diagnostics.

Event - typically used to capture user interaction with your service, to analyze usage patterns.

Metric - used to report periodic scalar measurements.

Scenario:

Policy service must use Application Insights to automatically scale with the number of policy actions that it is

performing.

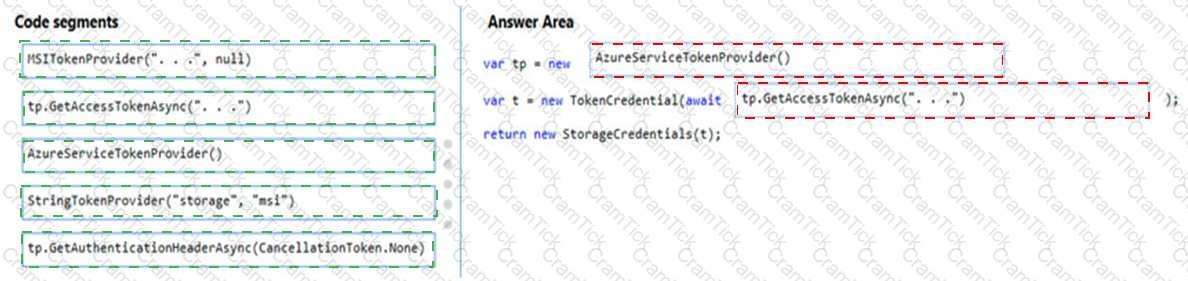

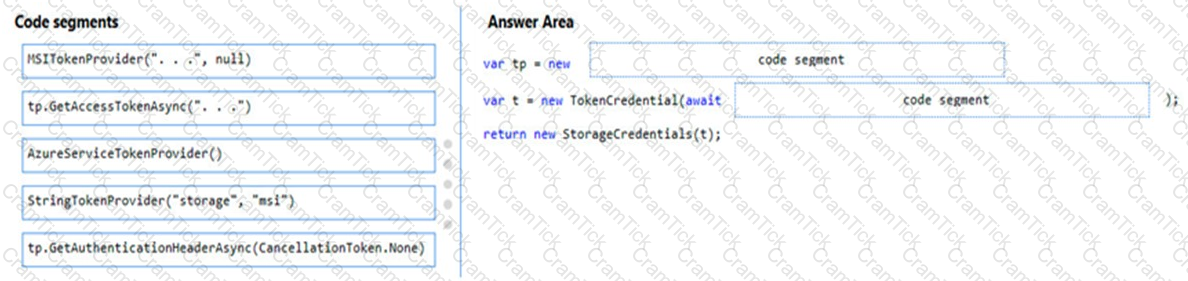

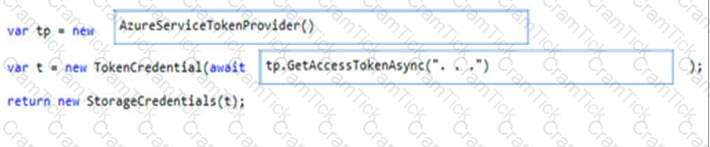

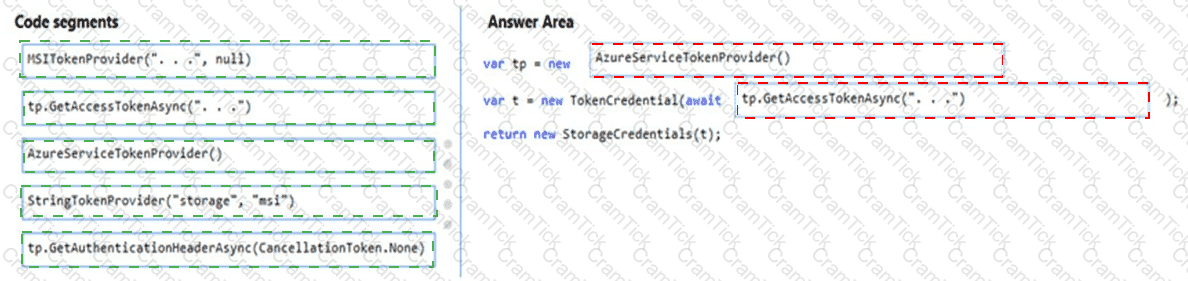

Box 1: AzureServiceTokenProvider()

Box 2: tp.GetAccessTokenAsync("..")

Acquiring an access token is then quite easy. Example code:

private async Task GetAccessTokenAsync()

{

var tokenProvider = new AzureServiceTokenProvider();

return await tokenProvider.GetAccessTokenAsync("https://storage.azure.com/ ");

}

Before you can connect to on-premises data sources from Azure Logic Apps, download and install the on-premises data gateway on a local computer. The gateway works as a bridge that provides quick data transfer and encryption between data sources on premises (not in the cloud) and your logic apps.

The gateway supports BizTalk Server 2016.

Note: Microsoft have now fully incorporated the Azure BizTalk Services capabilities into Logic Apps and Azure App Service Hybrid Connections.

Logic Apps Enterprise Integration pack bring some of the enterprise B2B capabilities like AS2 and X12, EDI standards support

Scenario: The Shipping Logic app must meet the following requirements:

• Support the ocean transport and inland transport workflows by using a Logic App.
• Support industry-standard protocol X12 message format for various messages including vessel content details and arrival notices.
• Secure resources to the corporate VNet and use dedicated storage resources with a fixed costing model.
• Maintain on-premises connectivity to support legacy applications and final BizTalk migrations.

These are valid warm-up behavior options, but are not helpful in fixing swap problems.

Instead update the web.config file to include the applicationInitialization configuration element. Specify custom initialization actions to run the scripts.

Note: Some apps might require custom warm-up actions before the swap. The applicationInitialization configuration element in web.config lets you specify custom initialization actions. The swap operation waits for this custom warm-up to finish before swapping with the target slot. Here's a sample web.config fragment.

Scenario: Shipping Function app: Implement secure function endpoints by using app-level security and include Azure Active Directory (Azure AD).

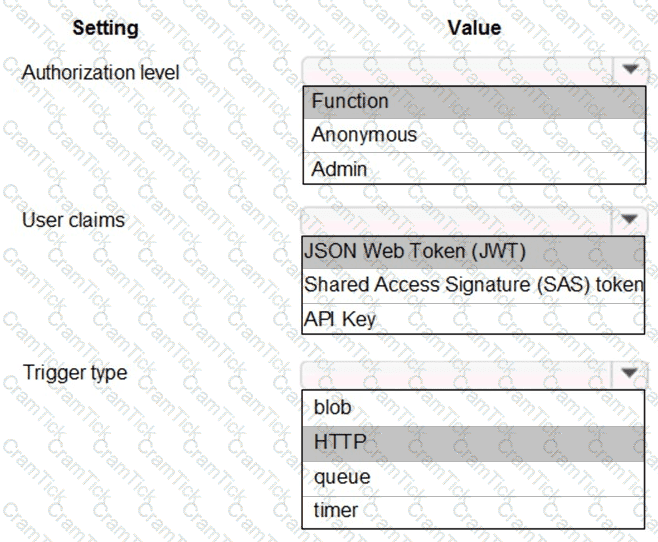

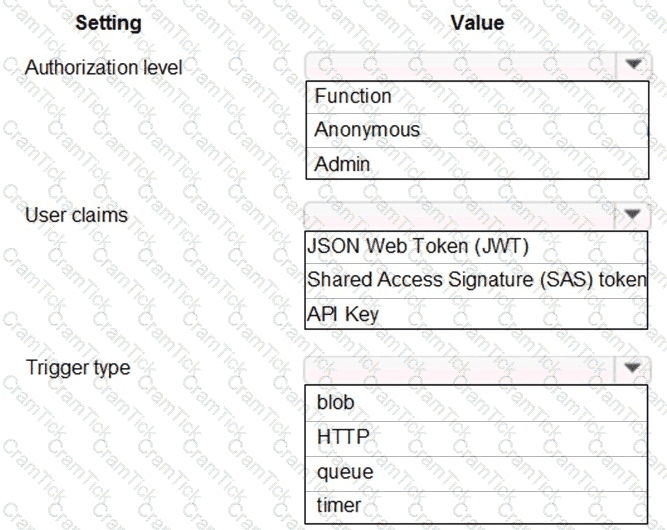

Box 1: Function

Box 2: JSON based Token (JWT)

Azure AD uses JSON based tokens (JWTs) that contain claims

Box 3: HTTP

How a web app delegates sign-in to Azure AD and obtains a token

User authentication happens via the browser. The OpenID protocol uses standard HTTP protocol messages.

References:

https://docs.m icrosoft.com/en-us/azure/active-directory/develop/authentication-scenarios

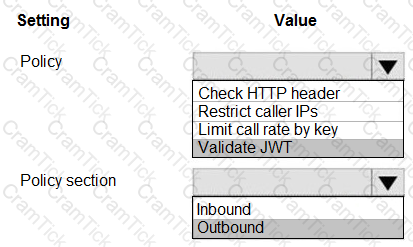

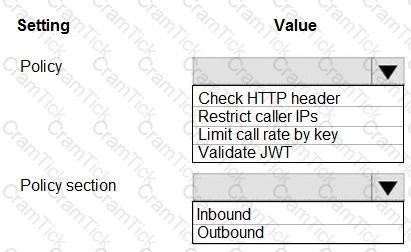

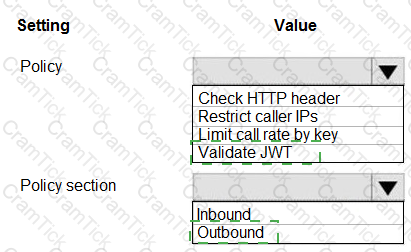

Box 1: Validate JWT

The validate-jwt policy enforces existence and validity of a JWT extracted from either a specified HTTP Header or a specified query parameter.

Scenario: User authentication (see step 5 below)

The following steps detail the user authentication process:

• The user selects Sign in in the website.
• The browser redirects the user to the Azure Active Directory (Azure AD) sign in page.
• The user signs in.
• Azure AD redirects the user’s session back to the web application. The URL includes an access token.
• The web application calls an API and includes the access token in the authentication header. The application ID is sent as the audience (‘aud’) claim in the access token.
• The back-end API validates the access token.

Box 2: Outbound

The New-AzResourceGroup cmdlet creates an Azure resource group.

The New-AzAppServicePlan cmdlet creates an Azure App Service plan in a given location

The New-AzWebApp cmdlet creates an Azure Web App in a given a resource group

The New-AzWebAppSlot cmdlet creates an Azure Web App slot.

References:

https://docs.microsoft.com/en-us/powershell/module/az.resources/new-azresourcegroup?view=azps-2.3.2

https://docs.microsoft.com/en-us/powershell/module/az.websites/new-azappserviceplan?view=azps-2.3.2

https://docs.microsoft.com/en-us/powershell/module/az.websites/new-azwebapp?view=azps-2.3.2

https://docs.microsoft.com/en-us/powershell/module/az.websites/new-azwebappslot?view=azps-2.3.2

The Azure Service Bus Queue and Topic has duplicate detection.

Enabling duplicate detection helps keep track of the application-controlled MessageId of all messages sent into a queue or topic during a specified time window.

Instead deploy and configure Azure Cache for Redis. Update the web applications.

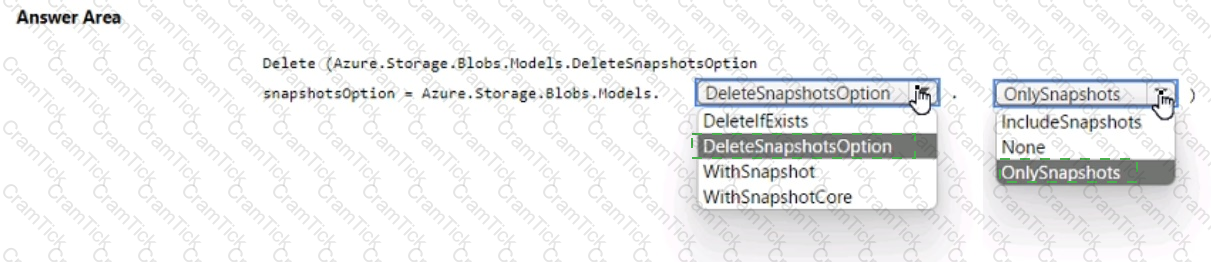

You can create a snapshot of a blob. A snapshot is a read-only version of a blob that's taken at a point in time. Once a snapshot has been created, it can be read, copied, or deleted, but not modified. Snapshots provide a way to back up a blob as it appears at a moment in time.

Scenario: Processing is performed by an Azure Function that uses version 2 of the Azure Function runtime. Once processing is completed, results are stored in Azure Blob Storage and an Azure SQL database. Then, an email summary is sent to the user with a link to the processing report. The link to the report must remain valid if the email is forwarded to another user.

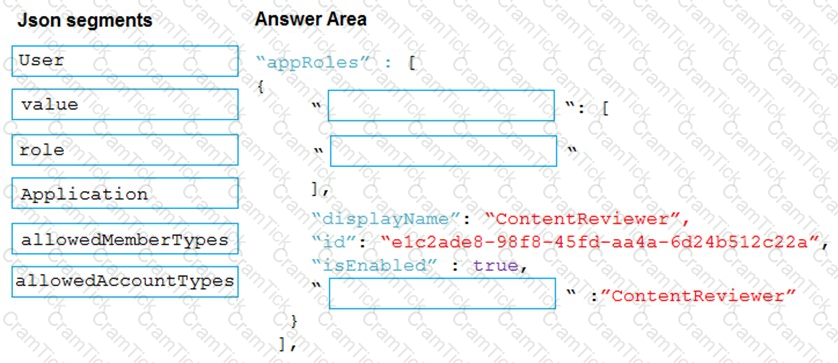

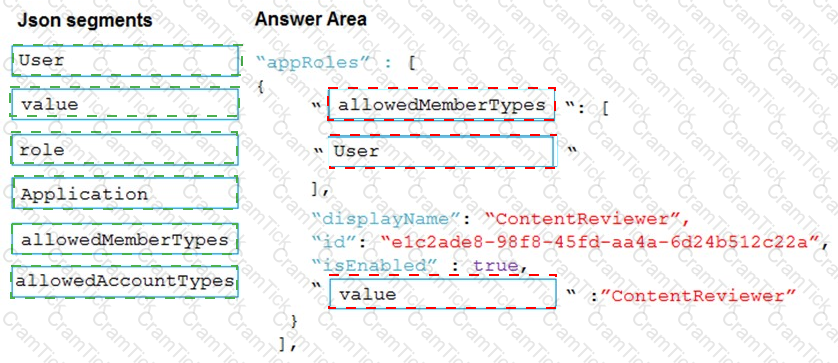

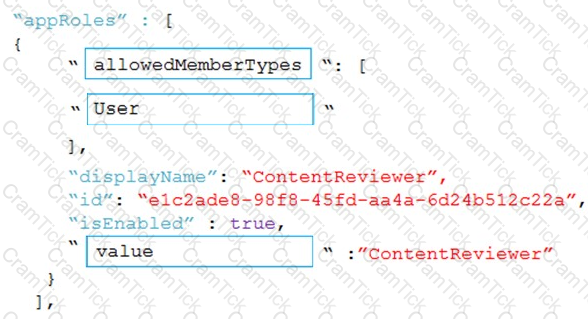

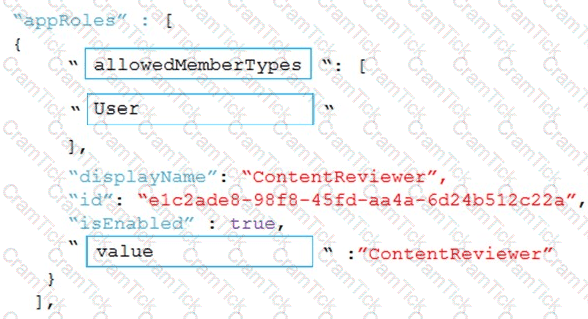

Box 1: allowedMemberTypes

allowedMemberTypes specifies whether this app role definition can be assigned to users and groups by setting to "User", or to other applications (that are accessing this application in daemon service scenarios) by setting to "Application", or to both.

Note: The following example shows the appRoles that you can assign to users.

"appId": "8763f1c4-f988-489c-a51e-158e9ef97d6a",

"appRoles": [

{

"allowedMemberTypes": [

"User"

],

"displayName": "Writer",

"id": "d1c2ade8-98f8-45fd-aa4a-6d06b947c66f",

"isEnabled": true,

"description": "Writers Have the ability to create tasks.",

"value": "Writer"

}

],

"availableToOtherTenants": false,

Box 2: User

Scenario: In order to review content a user must be part of a ContentReviewer role.

Box 3: value

value specifies the value which will be included in the roles claim in authentication and access tokens.

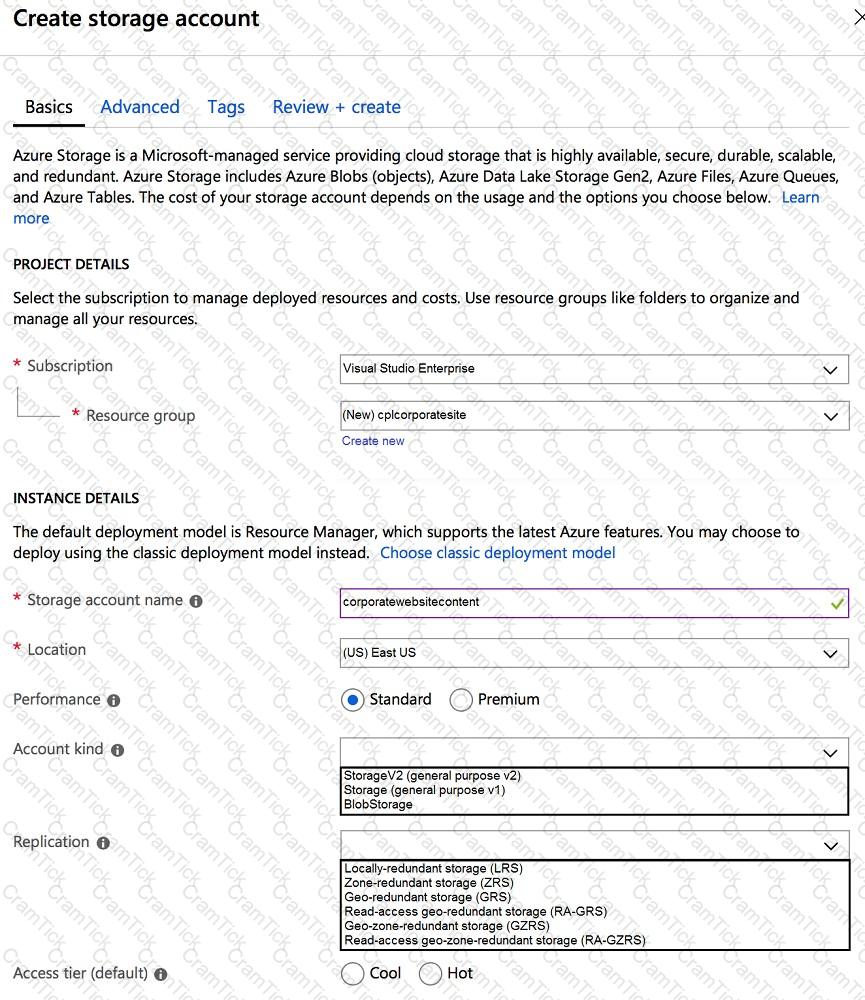

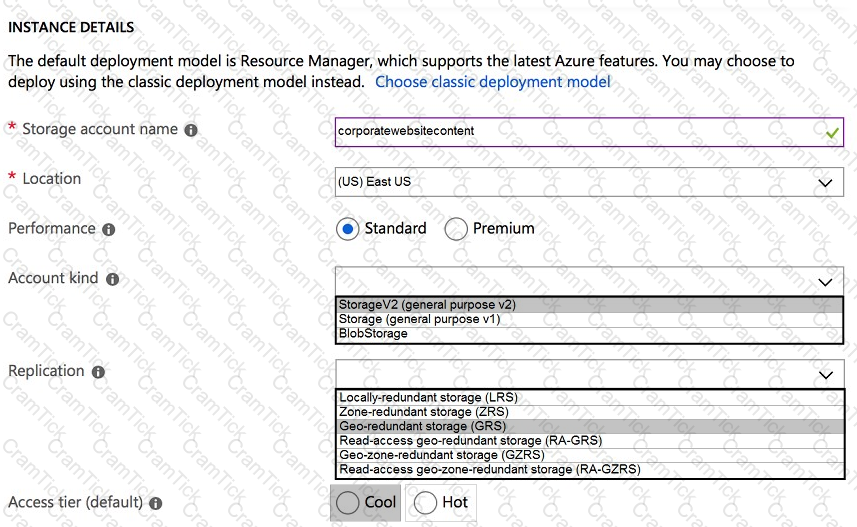

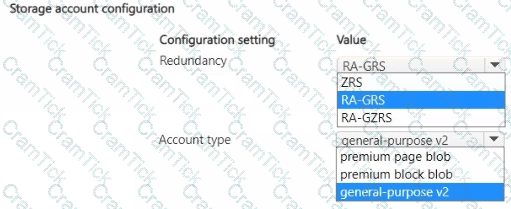

Account Kind: StorageV2 (general-purpose v2)

Scenario: Azure Storage blob will be used (refer to the exhibit). Data storage costs must be minimized.

General-purpose v2 accounts: Basic storage account type for blobs, files, queues, and tables. Recommended for most scenarios using Azure Storage.

Scenario: All certificates and secrets used to secure data must be stored in Azure Key Vault.

You must adhere to the principle of least privilege and provide privileges which are essential to perform the intended function.

The Set-AzureRmKeyValutAccessPolicy parameter -PermissionsToKeys specifies an array of key operation permissions to grant to a user or service principal. The acceptable values for this parameter: decrypt, encrypt, unwrapKey, wrapKey, verify, sign, get, list, update, create, import, delete, backup, restore, recover, purge

Migrate from on-premises or cloud implementations of MongoDB to Azure Cosmos DB with minimal downtime by using Azure Database Migration Service. Perform resilient migrations of MongoDB data at scale and with high reliability.

Scenario: Data migration from on-premises to Azure must minimize costs and downtime.

The application uses MongoDB JSON document storage database for all container and transport information.

References:

https://azure.microsoft.com/en -us/updates/mongodb-to-azure-cosmos-db-online-and-offline-migrations-are-now-available/

Claims in access tokens

JWTs (JSON Web Tokens) are split into three pieces:

• Header - Provides information about how to validate the token including information about the type of token and how it was signed.
• Payload - Contains all of the important data about the user or app that is attempting to call your service.
• Signature - Is the raw material used to validate the token.

Your client can get an access token from either the v1.0 endpoint or the v2.0 endpoint using a variety of protocols.

Scenario: User authentication (see step 5 below)

The following steps detail the user authentication process:

• The user selects Sign in in the website.
• The browser redirects the user to the Azure Active Directory (Azure AD) sign in page.
• The user signs in.
• Azure AD redirects the user’s session back to the web application. The URL includes an access token.
• The web application calls an API and includes the access token in the authentication header. The application ID is sent as the audience (‘aud’) claim in the access token.
• The back-end API validates the access token.

Register a new application using the Azure portal

• Sign in to the Azure portal using either a work or school account or a personal Microsoft account.

• If your account gives you access to more than one tenant, select your account in the upper right corner. Set your portal session to the Azure AD tenant that you want.
• Search for and select Azure Active Directory. Under Manage, select App registrations.
• Select New registration. (Step 1)
• In Register an application, enter a meaningful application name to display to users.
• Specify who can use the application. Select the Azure AD instance. (Step 2)
• Under Redirect URI (optional), select the type of app you're building: Web or Public client (mobile & desktop). Then enter the redirect URI, or reply URL, for your application. (Step 3)
• When finished, select Register.

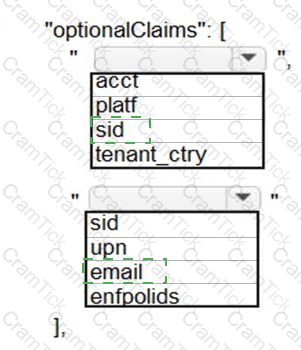

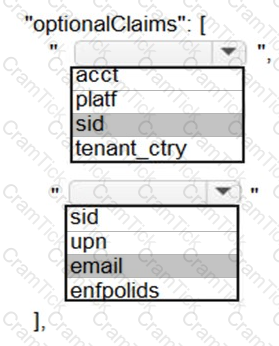

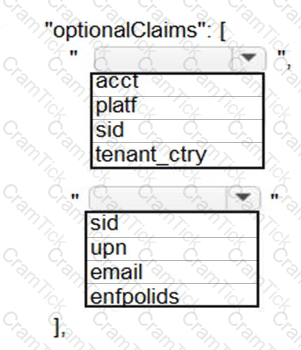

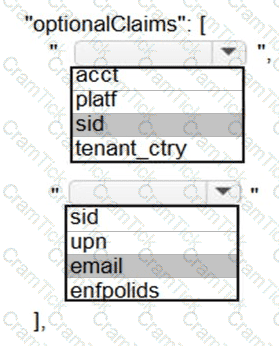

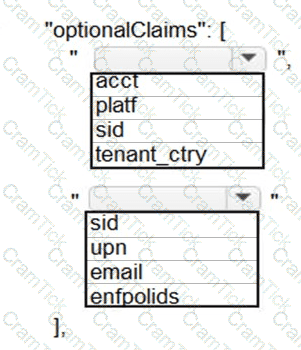

Box 1: sid

Sid: Session ID, used for per-session user sign-out. Personal and Azure AD accounts.

Scenario: Manual review

To review content, the user must authenticate to the website portion of the ContentAnalysisService using their Azure AD credentials. The website is built using React and all pages and API endpoints require authentication. In order to review content a user must be part of a ContentReviewer role.

Box 2: email

Scenario: All completed reviews must include the reviewer’s email address for auditing purposes.

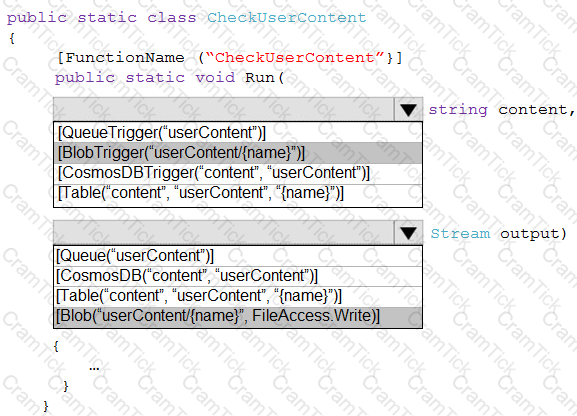

Box 1: [BlobTrigger(..)]

Box 2: [Blob(..)]

Azure Blob storage output binding for Azure Functions. The output binding allows you to modify and delete blob storage data in an Azure Function.

The attribute's constructor takes the path to the blob and a FileAccess parameter indicating read or write, as shown in the following example:

[FunctionName("ResizeImage")]

public static void Run(

[BlobTrigger("sample-images/{name}")] Stream image,

[Blob("sample-images-md/{name}", FileAccess.Write)] Stream imageSmall)

{

}

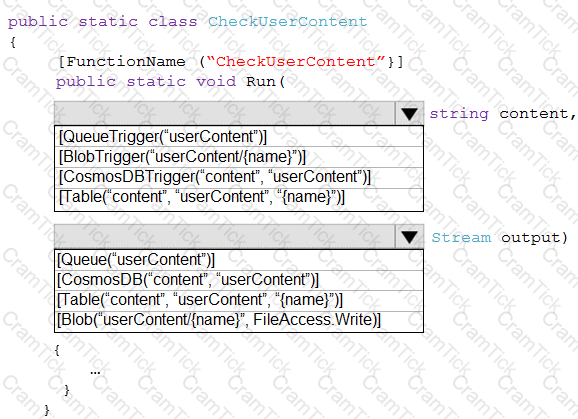

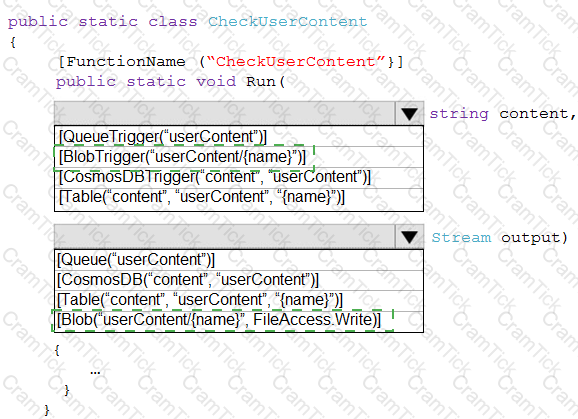

Scenario: You must create an Azure Function named CheckUserContent to perform the content checks.

The company’s data science group built ContentAnalysisService which accepts user generated content as a string and returns a probable value for inappropriate content. Any values over a specific threshold must be reviewed by an employee of Contoso, Ltd.

Scenario: All Internal services must only be accessible from Internal Virtual Networks (VNets)

There are three Network Location types – Private, Public and Domain

Scenario: Corporate website

While testing the site, the following error message displays:

CryptographicException: The system cannot find the file specified.

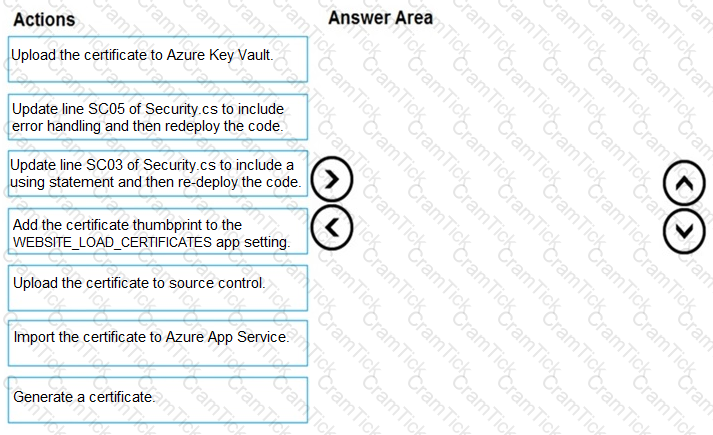

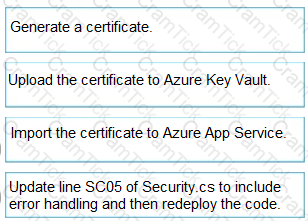

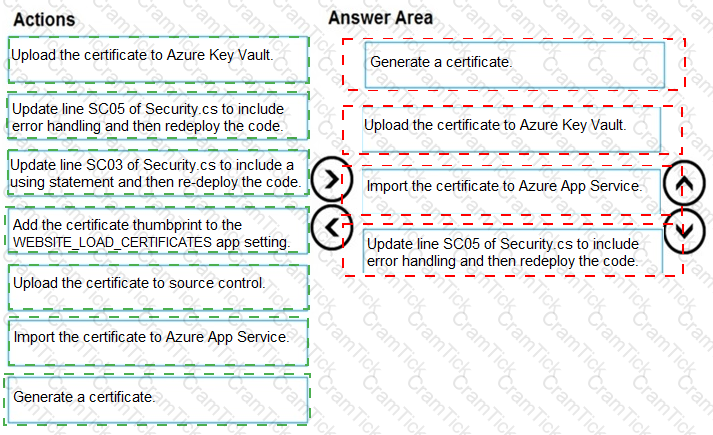

Step 1: Generate a certificate

Step 2: Upload the certificate to Azure Key Vault

Scenario: All SSL certificates and credentials must be stored in Azure Key Vault.

Step 3: Import the certificate to Azure App Service

Step 4: Update line SCO5 of Security.cs to include error handling and then redeploy the code

Scenario: An alert must be raised if the ContentUploadService uses more than 80 percent of available CPU-cores

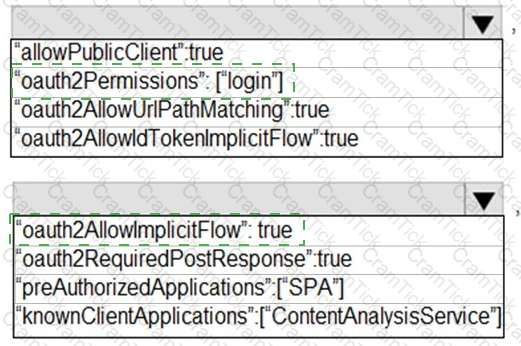

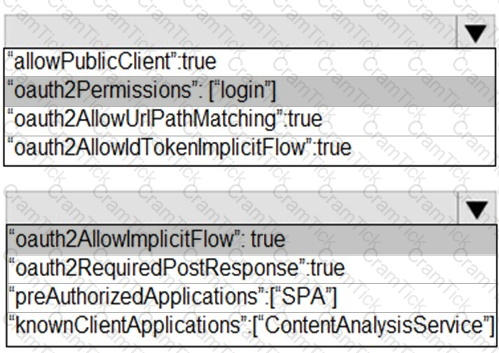

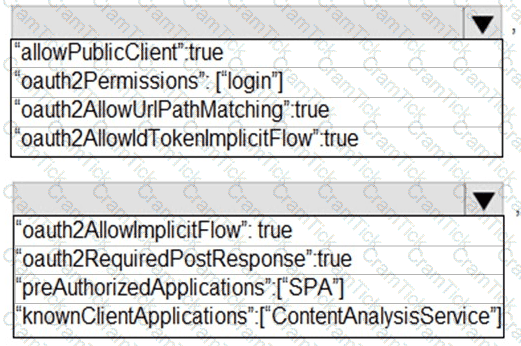

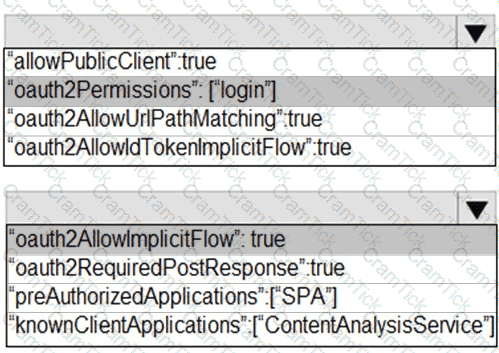

Box 1: "oauth2Permissions": ["login"]

oauth2Permissions specifies the collection of OAuth 2.0 permission scopes that the web API (resource) app exposes to client apps. These permission scopes may be granted to client apps during consent.

Box 2: "oauth2AllowImplicitFlow":true

For applications (Angular, Ember.js, React.js, and so on), Microsoft identity platform supports the OAuth 2.0 Implicit Grant flow.

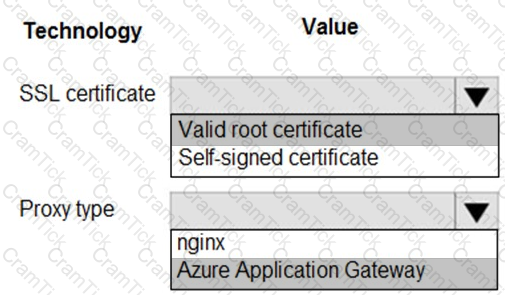

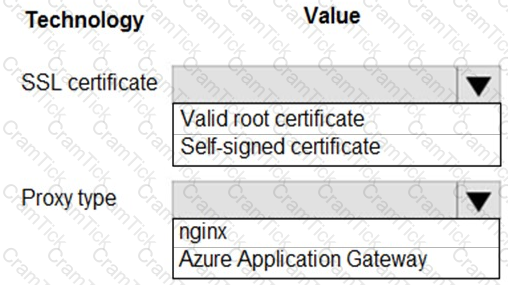

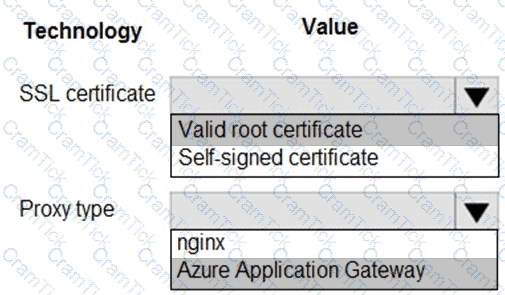

Box 1: Valid root certificate

Scenario: All websites and services must use SSL from a valid root certificate authority.

Box 2: Azure Application Gateway

Scenario:

• Any web service accessible over the Internet must be protected from cross site scripting attacks.

• All Internal services must only be accessible from Internal Virtual Networks (VNets)
• All parts of the system must support inbound and outbound traffic restrictions.

Azure Web Application Firewall (WAF) on Azure Application Gateway provides centralized protection of your web applications from common exploits and vulnerabilities. Web applications are increasingly targeted by malicious attacks that exploit commonly known vulnerabilities. SQL injection and cross-site scripting are among the most common attacks.

Application Gateway supports autoscaling, SSL offloading, and end-to-end SSL, a web application firewall (WAF), cookie-based session affinity, URL path-based routing, multisite hosting, redirection, rewrite HTTP headers and other features.

Note: Both Nginx and Azure Application Gateway act as a reverse proxy with Layer 7 load‑balancing features plus a WAF to ensure strong protection against common web vulnerabilities and exploits.

You can modify Nginx web server configuration/SSL for X-XSS protection. This helps to prevent cross-site scripting exploits by forcing the injection of HTTP headers with X-XSS protection.

Azure Event Hub is used for telemetry and distributed data streaming.

This service provides a single solution that enables rapid data retrieval for real-time processing as well as repeated replay of stored raw data. It can capture the streaming data into a file for processing and analysis.

It has the following characteristics:

• low latency
• capable of receiving and processing millions of events per second
• at least once delivery

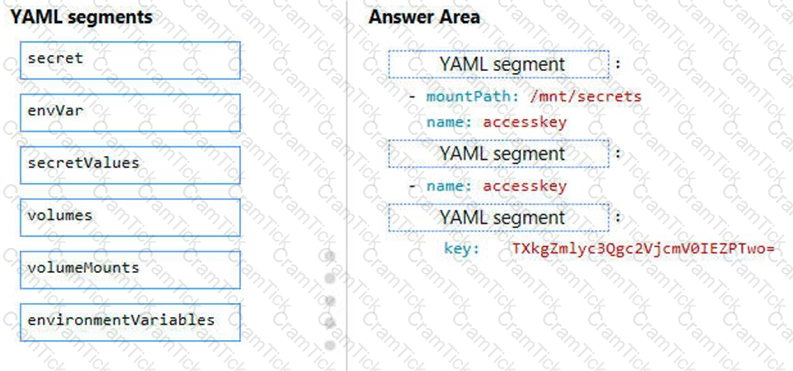

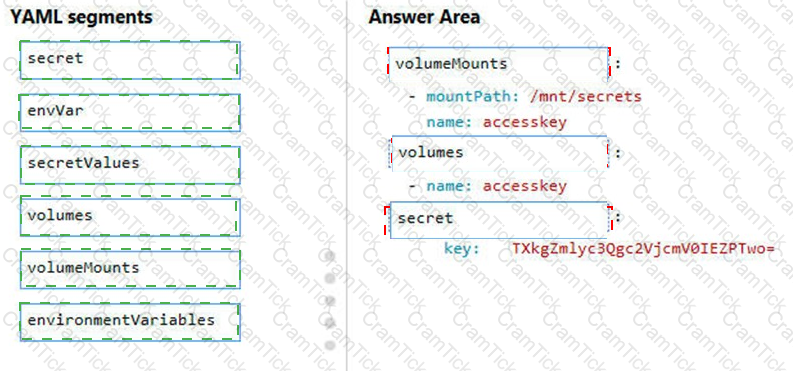

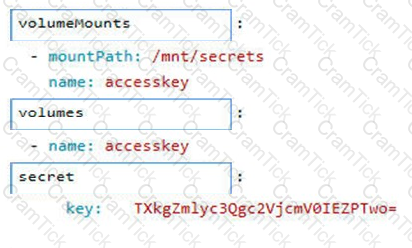

Box 1: volumeMounts

Example:

volumeMounts:

- mountPath: /mnt/secrets

name: secretvolume1

volumes:

- name: secretvolume1

secret:

mysecret1: TXkgZmlyc3Qgc2VjcmV0IEZPTwo=

Box 2: volumes

Box 3: secret

Scenario: Users of the ContentUploadService report that they occasionally see HTTP 502 responses on specific pages.

"502 bad gateway" and "503 service unavailable" are common errors in your app hosted in Azure App Service.

Microsoft Azure publicizes each time there is a service interruption or performance degradation.

The az monitor activity-log command manages activity logs.

Note: Troubleshooting can be divided into three distinct tasks, in sequential order:

• Observe and monitor application behavior
• Collect data
• Mitigate the issue

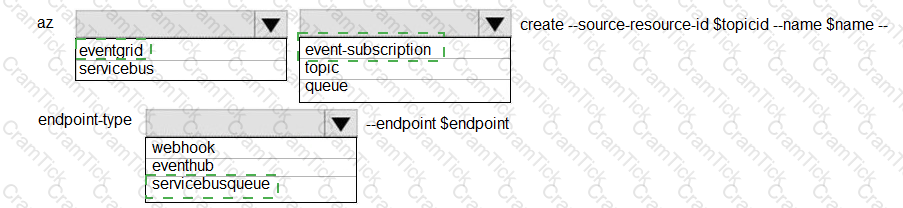

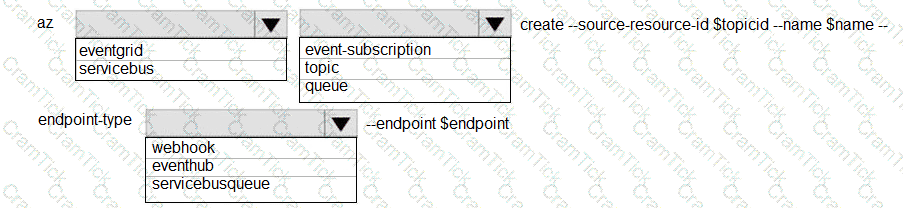

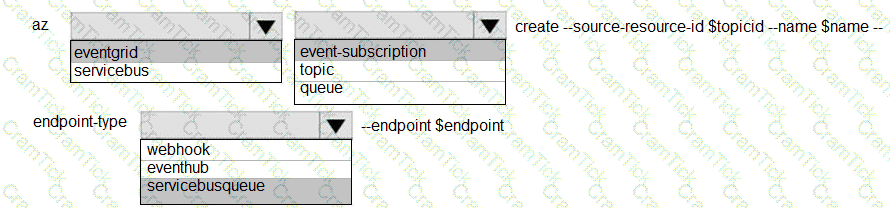

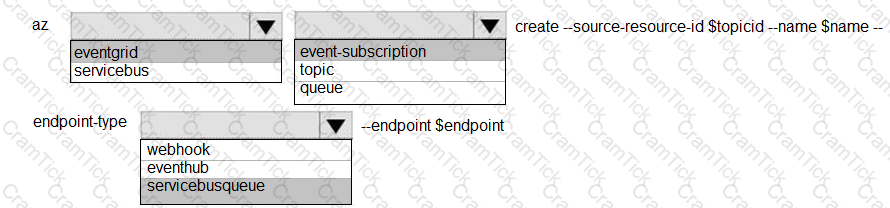

Box 1: eventgrid

To create event subscription use: az eventgrid event-subscription create

Box 2: event-subscription

Box 3: servicebusqueue

Scenario: Azure Service Bus and Azure Event Grid

Azure Event Grid must use Azure Service Bus for queue-based load leveling.

Events in Azure Event Grid must be routed directly to Service Bus queues for use in buffering.

Events from Azure Service Bus and other Azure services must continue to be routed to Azure Event Grid for processing.

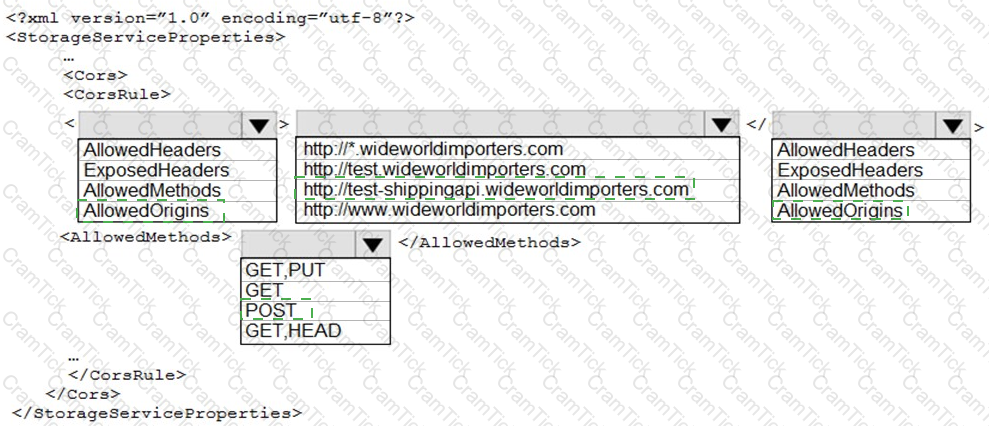

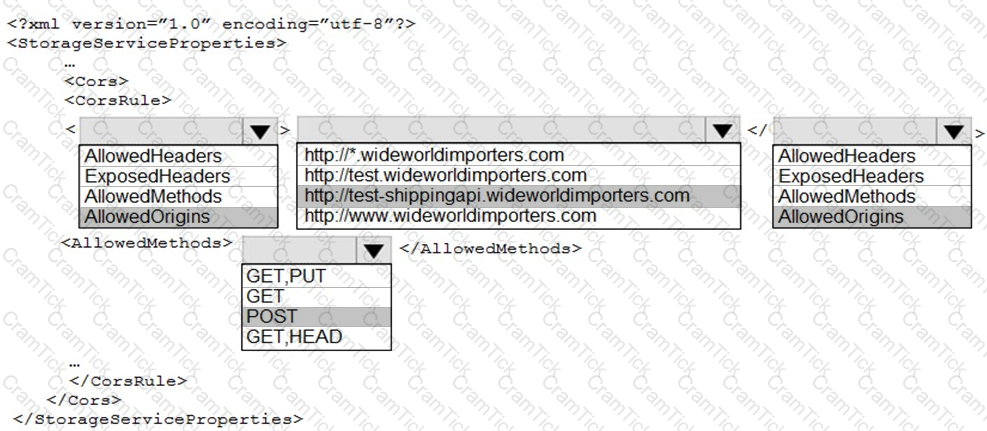

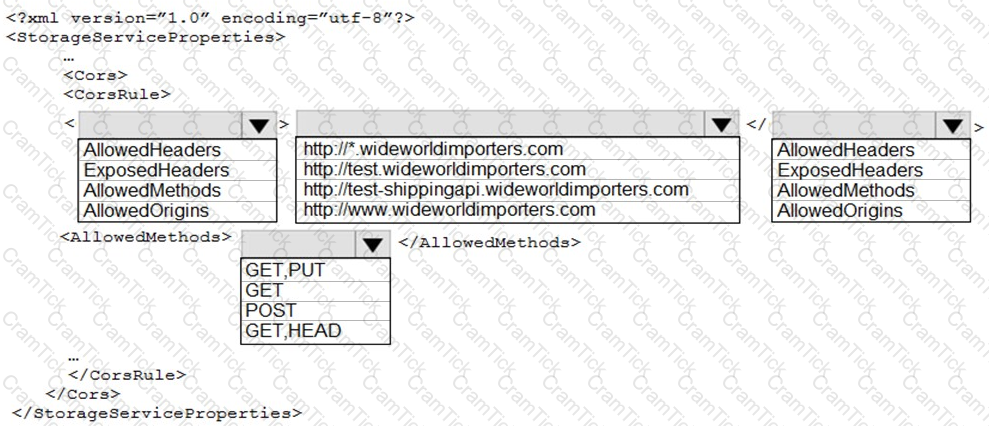

Box 1: AllowedOrigins

A CORS request will fail if Access-Control-Allow-Origin is missing.

Scenario:

The following error message displays while you are testing the website:

Box 2: http://test-shippingapi.wideworldimporters.com

Syntax: Access-Control-Allow-Origin: *

Access-Control-Allow-Origin:

Access-Control-Allow-Origin: null

Specifies an origin. Only a single origin can be specified.

Box 3: AllowedOrigins

Box 4: POST

The only allowed methods are GET, HEAD, and POST. In this case POST is used.

"" "allowedmethods" Failed to load no "Access-control-Origin" header is present

References:

https://developer.mozilla.org/en-US/docs /Web/HTTP/Headers/Access-Control-Allow-Origin

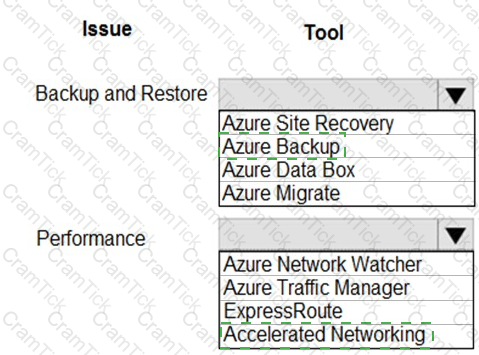

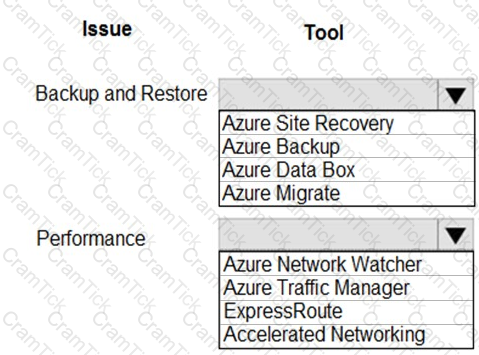

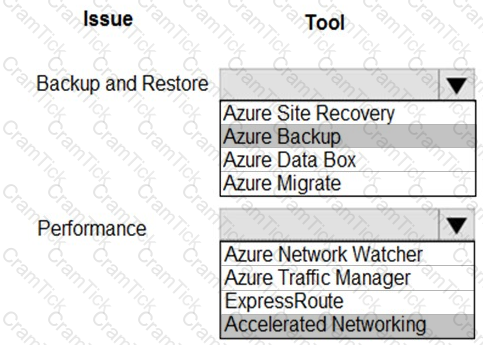

Backup and Restore: Azure Backup

Scenario: The VM is critical and has not been backed up in the past. The VM must enable a quick restore from a 7-day snapshot to include in-place restore of disks in case of failure.

In-Place restore of disks in IaaS VMs is a feature of Azure Backup.

Performance: Accelerated Networking

Scenario: The VM shows high network latency, jitter, and high CPU utilization.

Accelerated networking enables single root I/O virtualization (SR-IOV) to a VM, greatly improving its networking performance. This high-performance path bypasses the host from the datapath, reducing latency, jitter, and CPU utilization, for use with the most demanding network workloads on supported VM types.

References:

https://azure.microsoft.com/en-us/blog/an-easy-way-to-bring-back-your-azure-vm-with-in-place-restore/

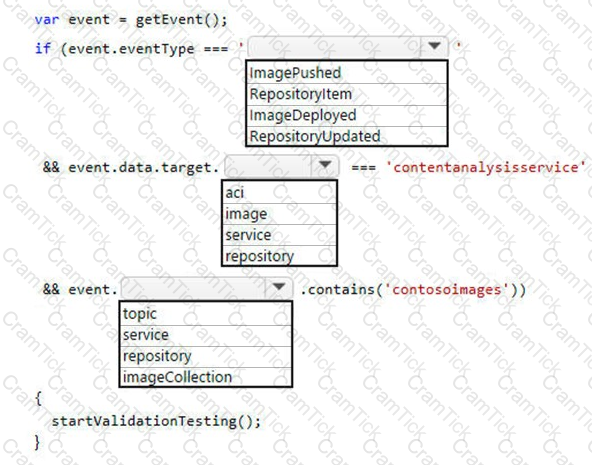

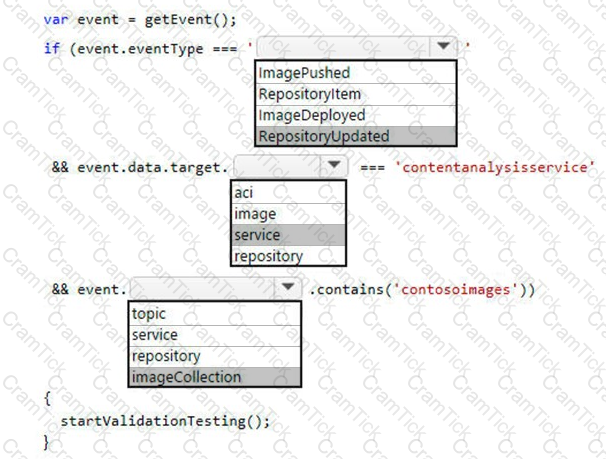

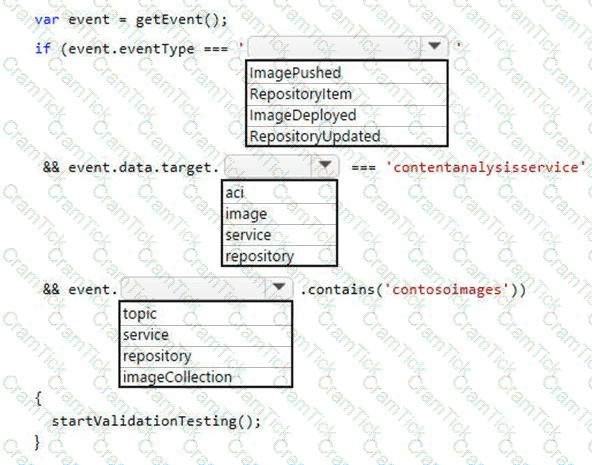

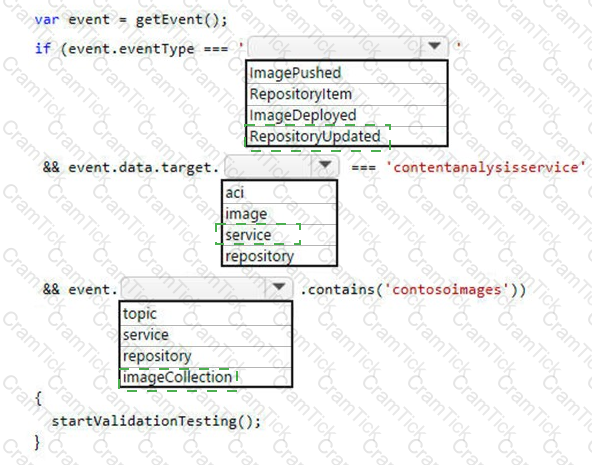

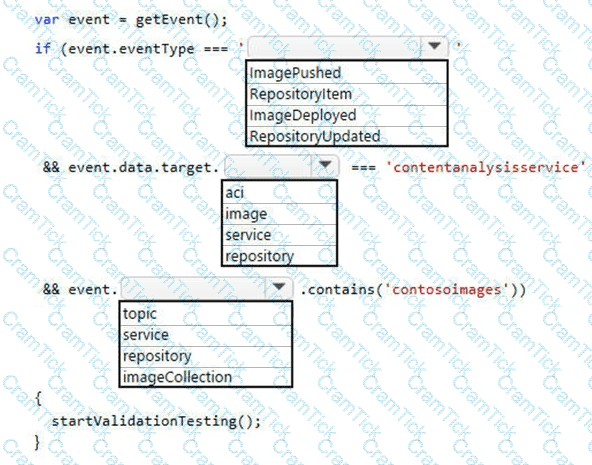

Box 1: RepositoryUpdated

When a new version of the ContentAnalysisService is available the previous seven days of content must be processed with the new version to verify that the new version does not significantly deviate from the old version.

Box 2: service

Box 3: imageCollection

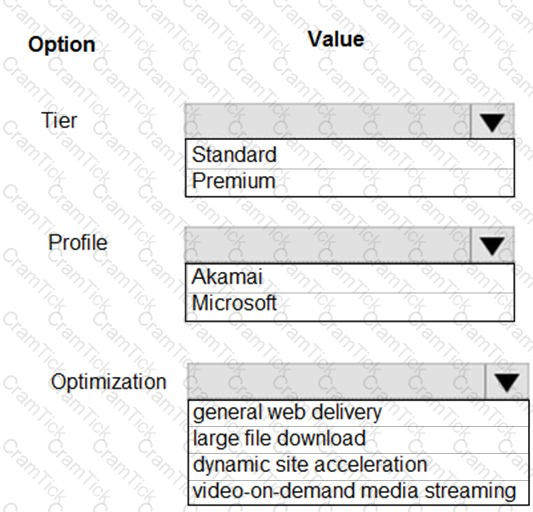

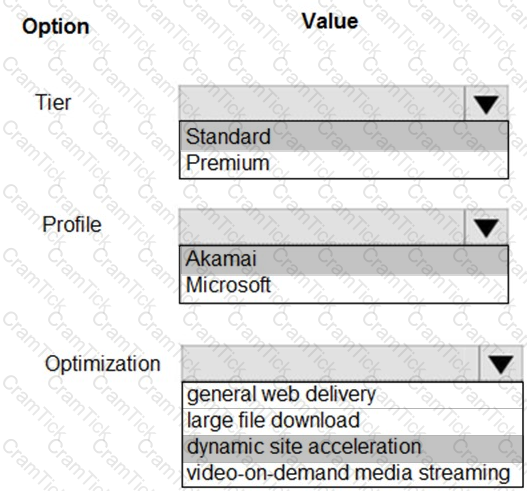

Scenario: Shipping website

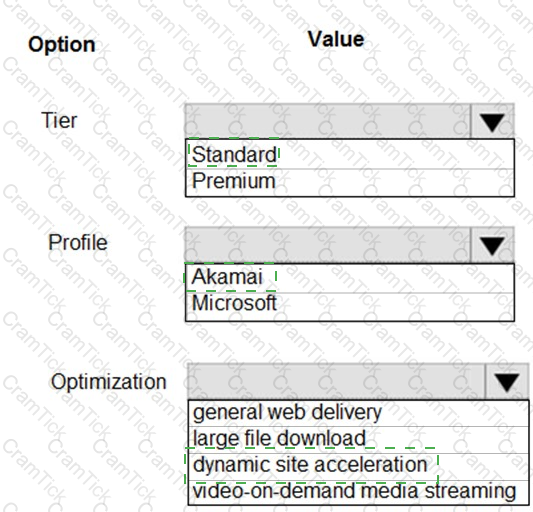

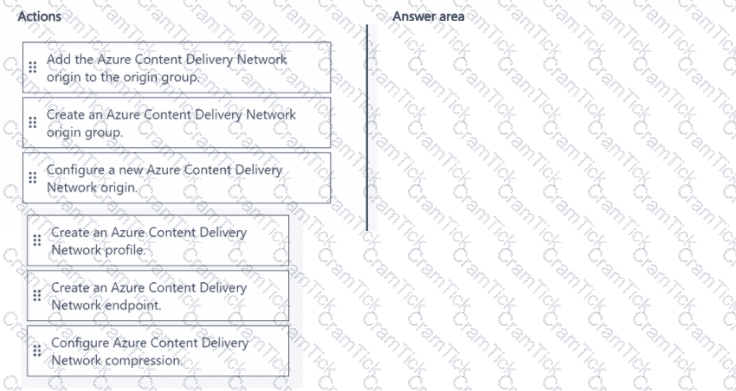

Use Azure Content Delivery Network (CDN) and ensure maximum performance for dynamic content while minimizing latency and costs.

Tier: Standard

Profile: Akamai

Optimization: Dynamic site acceleration

Dynamic site acceleration (DSA) is available for Azure CDN Standard from Akamai, Azure CDN Standard from Verizon, and Azure CDN Premium from Verizon profiles.

DSA includes various techniques that benefit the latency and performance of dynamic content. Techniques include route and network optimization, TCP optimization, and more.

You can use this optimization to accelerate a web app that includes numerous responses that aren't cacheable. Examples are search results, checkout transactions, or real-time data. You can continue to use core Azure CDN caching capabilities for static data.

Scenario: The Shipping Logic App requires secure resources to the corporate VNet and use dedicated storage resources with a fixed costing model.

You can access to Azure Virtual Network resources from Azure Logic Apps by using integration service environments (ISEs).

Sometimes, your logic apps and integration accounts need access to secured resources, such as virtual machines (VMs) and other systems or services, that are inside an Azure virtual network. To set up this access, you can create an integration service environment (ISE) where you can run your logic apps and create your integration accounts.

References:

https://docs.microsoft.com/en-us/azure/logic-apps/connect-virtual-network-v net-isolated-environment-overview

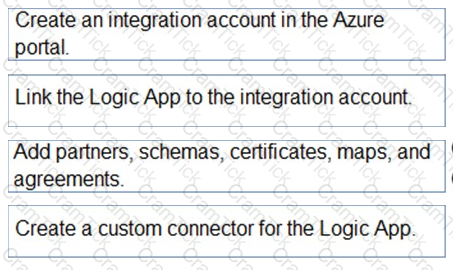

Step 1: Create an integration account in the Azure portal

You can define custom metadata for artifacts in integration accounts and get that metadata during runtime for your logic app to use. For example, you can provide metadata for artifacts, such as partners, agreements, schemas, and maps - all store metadata using key-value pairs.

Step 2: Link the Logic App to the integration account

A logic app that's linked to the integration account and artifact metadata you want to use.

Step 3: Add partners, schemas, certificates, maps, and agreements

Step 4: Create a custom connector for the Logic App.

References:

https://docs.microsoft.com/bs-latn-ba/azure/logic-apps/logic-ap ps-enterprise-integration-metadata

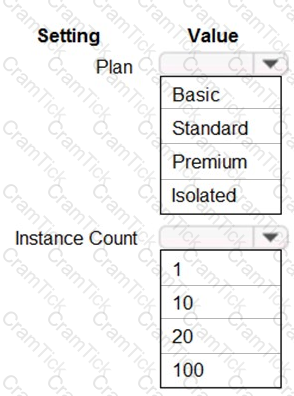

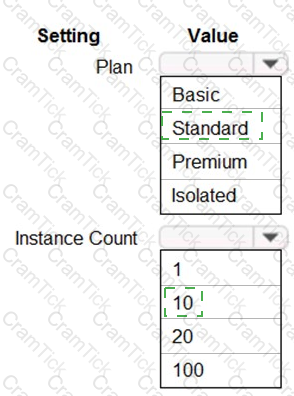

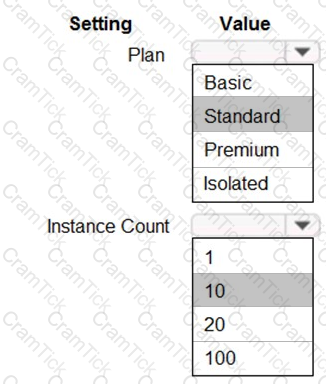

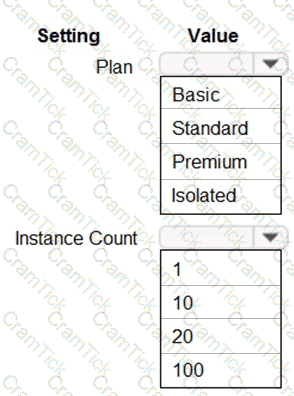

Plan: Standard

Standard support auto-scaling

Instance Count: 10

Max instances for standard is 10.

Scenario:

The REST API’s that support the solution must meet the following requirements:

• Allow deployment to a testing location within Azure while not incurring additional costs.
• Automatically scale to double capacity during peak shipping times while not causing application downtime.
• Minimize costs when selecting an Azure payment model.

References:

https://azure.microsoft.com/en-us/pricing/details/app-service/plans/

Enable Cross-Origin Resource Sharing (CORS) on your Azure App Service Web App.

Enter the full URL of the site you want to allow to access your WEB API or * to allow all domains.

Box 1: cors

Box 2: add

Box 3: allowed-origins

Box 4: http://testwideworldimporters.com/

References:

http://donovanbr own.com/post/How-to-clear-No-Access-Control-Allow-Origin-header-error-with-Azure-App-Service

Graphical user interface, application Description automatically generated

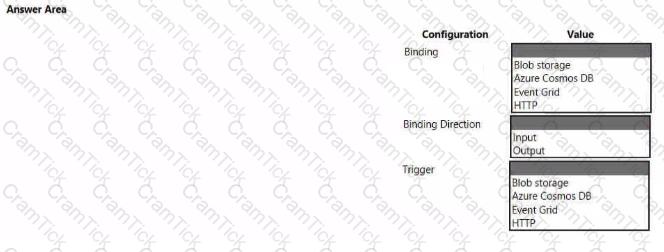

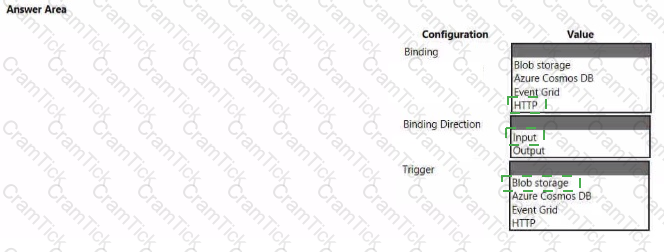

Scenario: Retail store locations: Azure Functions must process data immediately when data is uploaded to Blob storage.

Box 1: HTTP

Binding configuration example: https:// .blob.core.windows.net

Box 2: Input

Read blob storage data in a function: Input binding

Box 3: Blob storage

The Blob storage trigger starts a function when a new or updated blob is detected.

Azure Functions integrates with Azure Storage via triggers and bindings. Integrating with Blob storage allows you to build functions that react to changes in blob data as well as read and write values.

Graphical user interface, text, application Description automatically generated

Scenario: Audit store sale transaction information nightly to validate data, process sales financials, and reconcile inventory.

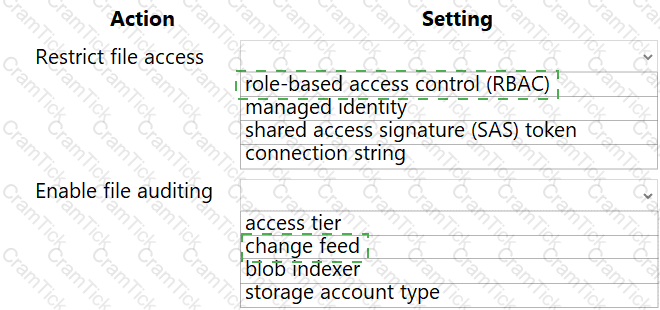

"Process the change feed logs of the Azure Blob storage account by using an Azure Function. Specify a time range for the change feed data": Change feed support is well-suited for scenarios that process data based on objects that have changed. For example, applications can:

Store, audit, and analyze changes to your objects, over any period of time, for security, compliance or intelligence for enterprise data management.

"Subscribe to blob storage events by using an Azure Function and Azure Event Grid. Filter the events by store location": Azure Storage events allow applications to react to events, such as the creation and deletion of blobs. It does so without the need for complicated code or expensive and inefficient polling services. The best part is you only pay for what you use.

Blob storage events are pushed using Azure Event Grid to subscribers such as Azure Functions, Azure Logic Apps, or even to your own http listener. Event Grid provides reliable event delivery to your applications through rich retry policies and dead-lettering.

Graphical user interface, text, application Description automatically generated

Scenario: You must perform a point-in-time restoration of the retail store location data due to an unexpected and accidental deletion of data.

Before you enable and configure point-in-time restore, enable its prerequisites for the storage account: soft delete, change feed, and blob versioning.

Graphical user interface, application, table Description automatically generated

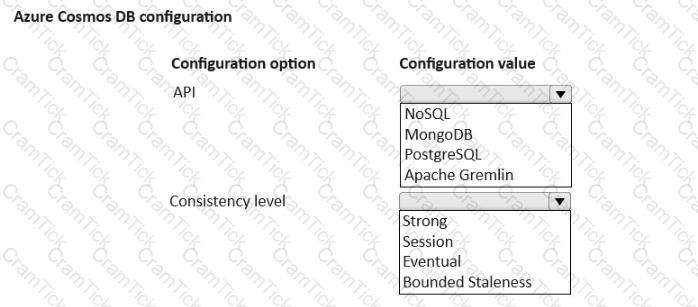

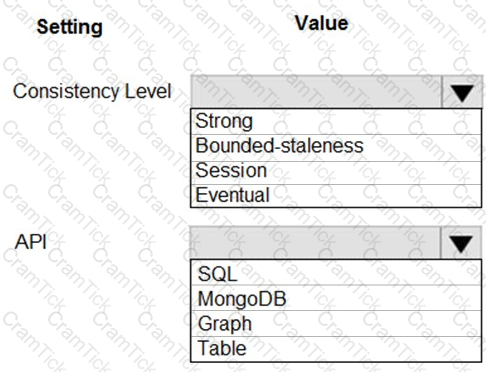

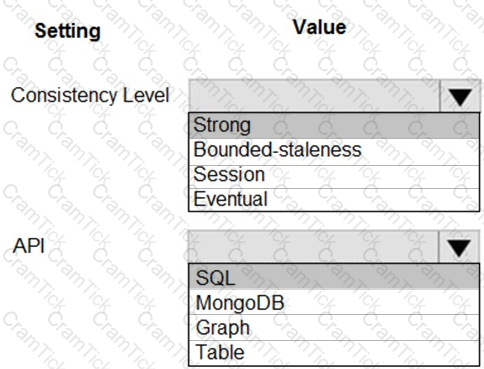

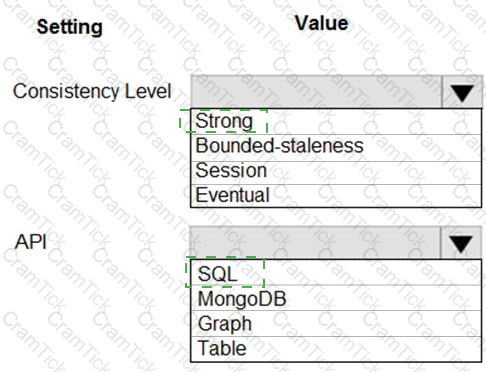

Box 1: Strong

When the consistency level is set to strong, the staleness window is equivalent to zero, and the clients are guaranteed to read the latest committed value of the write operation.

Scenario: Changes to the Order data must reflect immediately across all partitions. All reads to the Order data must fetch the most recent writes.

Note: You can choose from five well-defined models on the consistency spectrum. From strongest to weakest, the models are: Strong, Bounded staleness, Session, Consistent prefix, Eventual

Box 2: SQL

Scenario: You identify the following requirements for data management and manipulation:

Order data is stored as nonrelational JSON and must be queried using Structured Query Language (SQL).

Text, letter Description automatically generated

Methods to Get User Identity and Claims in a .NET Azure Functions App include:

ClaimsPrincipal from the Request Context

The ClaimsPrincipal object is also available as part of the request context and can be extracted from the HttpRequest.HttpContext.

User Claims from the Request Headers.

App Service passes user claims to the app by using special request headers.

A picture containing timeline Description automatically generated

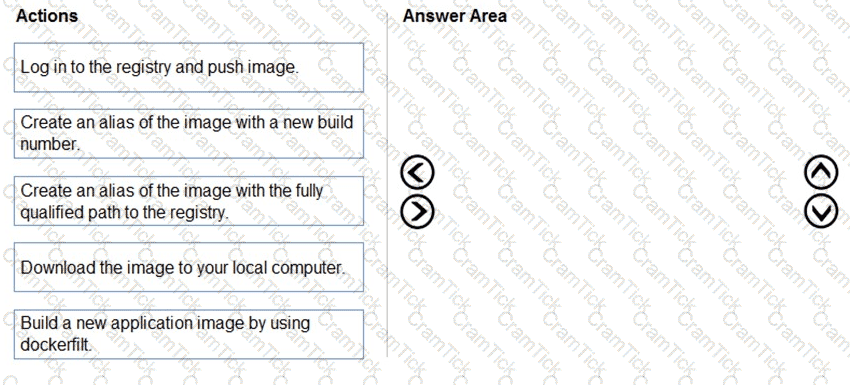

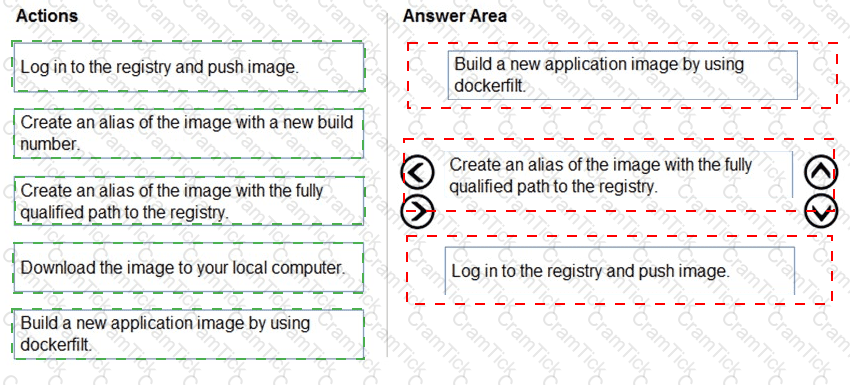

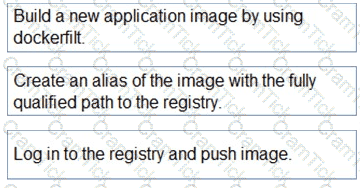

Step 1: Build a new application image by using dockerfile

Step 2: Create an alias if the image with the fully qualified path to the registry

Before you can push the image to a private registry, you’ve to ensure a proper image name. This can be achieved using the docker tag command. For demonstration purpose, we’ll use Docker’s hello world image, rename it and push it to ACR.

# pulls hello-world from the public docker hub

$ docker pull hello-world

# tag the image in order to be able to push it to a private registry

$ docker tag hello-word /hello-world

# push the image

$ docker push /hello-world

Step 3: Log in to the registry and push image

In order to push images to the newly created ACR instance, you need to login to ACR form the Docker CLI. Once logged in, you can push any existing docker image to your ACR instance.

Scenario:

Coho Winery plans to move the application to Azure and continue to support label creation.

LabelMaker app

Azure Monitor Container Health must be used to monitor the performance of workloads that are deployed to Kubernetes environments and hosted on Azure Kubernetes Service (AKS).

You must use Azure Container Registry to publish images that support the AKS deployment.

Graphical user interface Description automatically generated

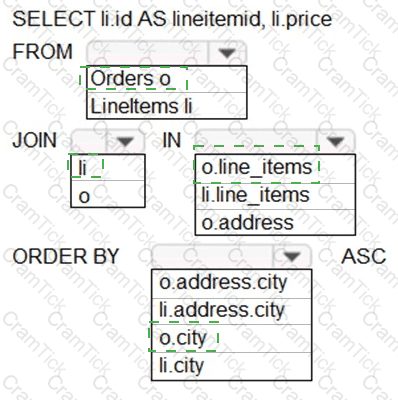

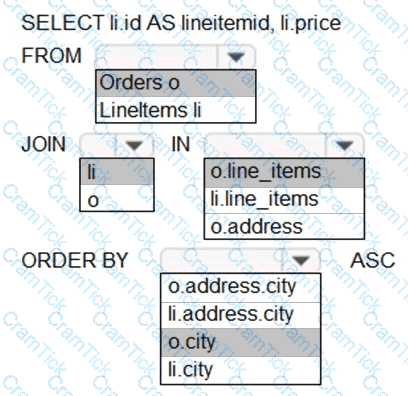

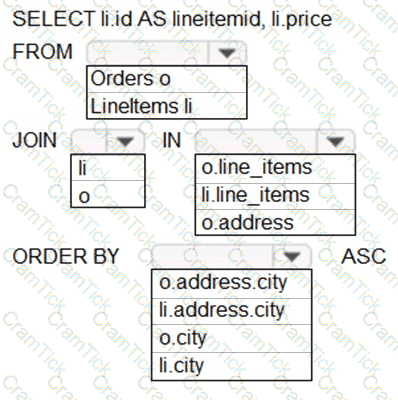

Box 1: orders o

Scenario: Order data is stored as nonrelational JSON and must be queried using SQL.

Box 2:li

Box 3: o.line_items

Box 4: o.city

The city field is in Order, not in the 2s.

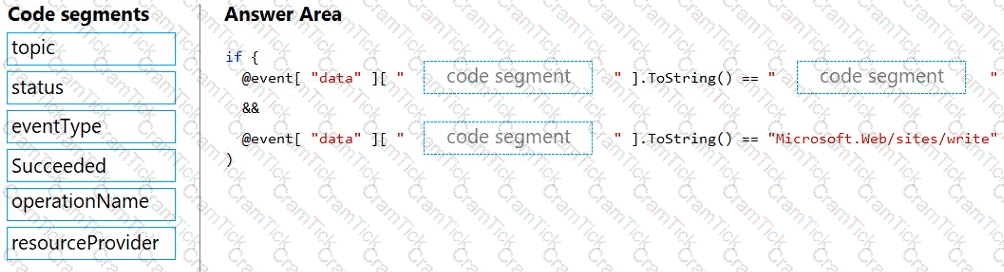

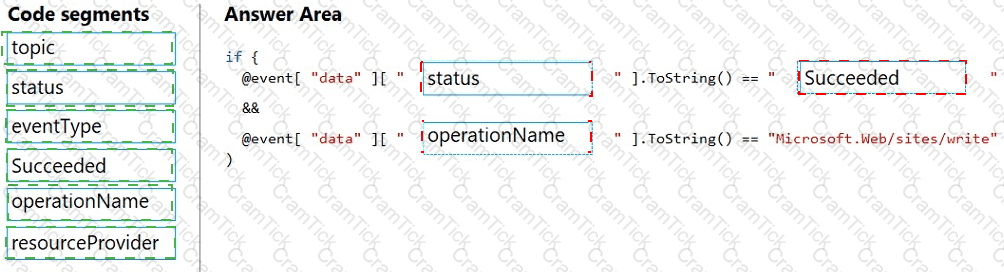

Scenario, Log policy: All Azure App Service Web Apps must write logs to Azure Blob storage.

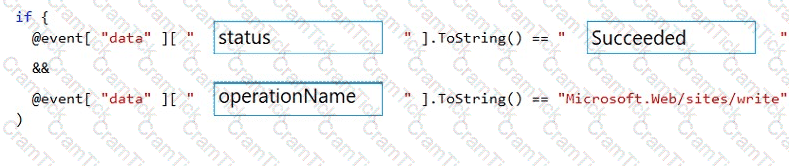

Box 1: Status

Box 2: Succeeded

Box 3: operationName

Microsoft.Web/sites/write is resource provider operation. It creates a new Web App or updates an existing one.

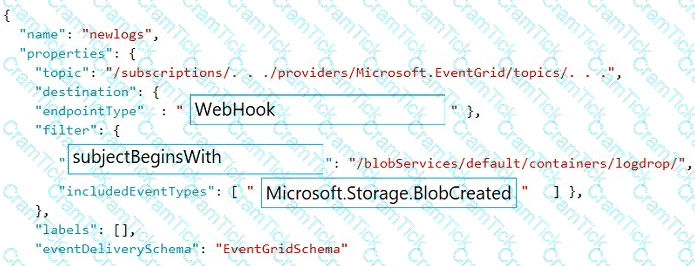

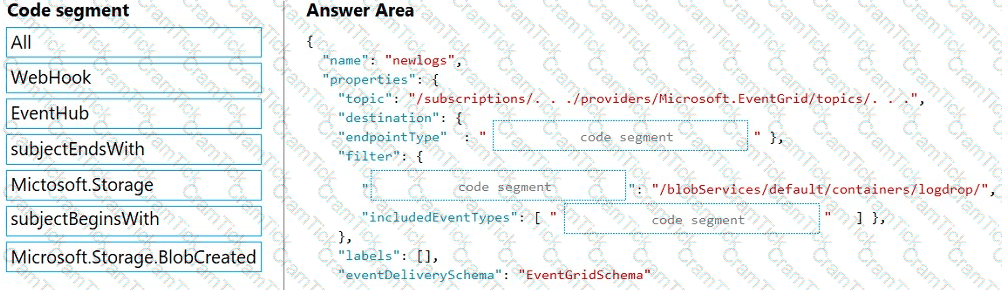

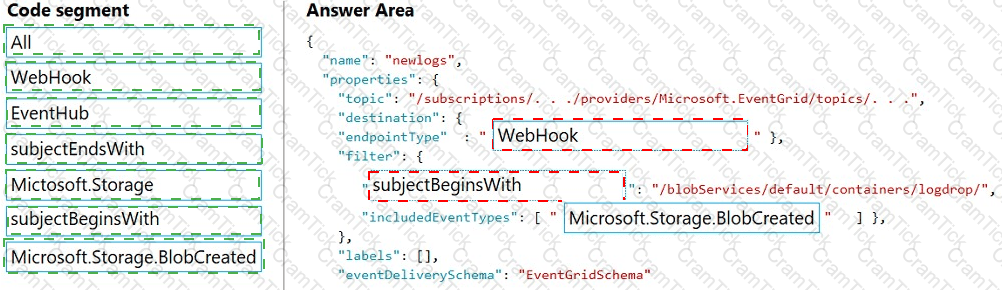

Box 1:WebHook

Scenario: If an anomaly is detected, an Azure Function that emails administrators is called by using an HTTP WebHook.

endpointType: The type of endpoint for the subscription (webhook/HTTP, Event Hub, or queue).

Box 2: SubjectBeginsWith

Box 3: Microsoft.Storage.BlobCreated

Scenario: Log Policy

All Azure App Service Web Apps must write logs to Azure Blob storage. All log files should be saved to a container named logdrop. Logs must remain in the container for 15 days.

Example subscription schema

{

"properties": {

"destination": {

"endpointType": "webhook",

"properties": {

"endpointUrl": "https://example.azurewebsites.net/api/HttpTriggerCSharp1?code=VXbGWce53l48Mt8wuotr0GPmyJ/nDT4hgdFj9DpBiRt38qqnnm5OFg== "

}

},

"filter": {

"includedEventTypes": [ "Microsoft.Storage.BlobCreated", "Microsoft.Storage.BlobDeleted" ],

"subjectBeginsWith": "blobServices/default/containers/mycontainer/log",

"subjectEndsWith": ".jpg",

"isSubjectCaseSensitive ": "true"

}

}

}

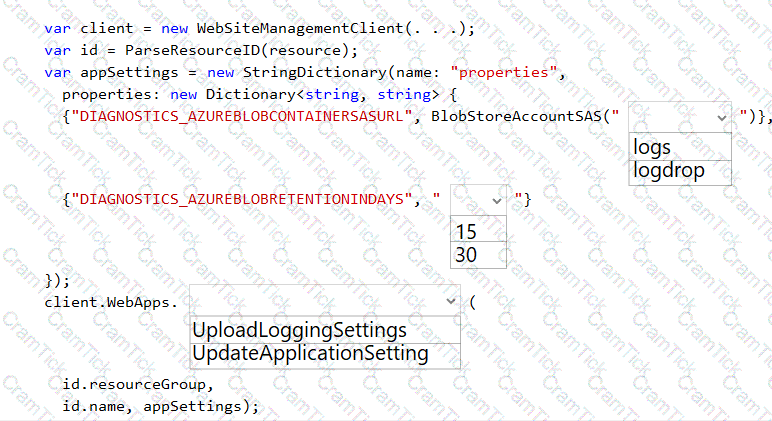

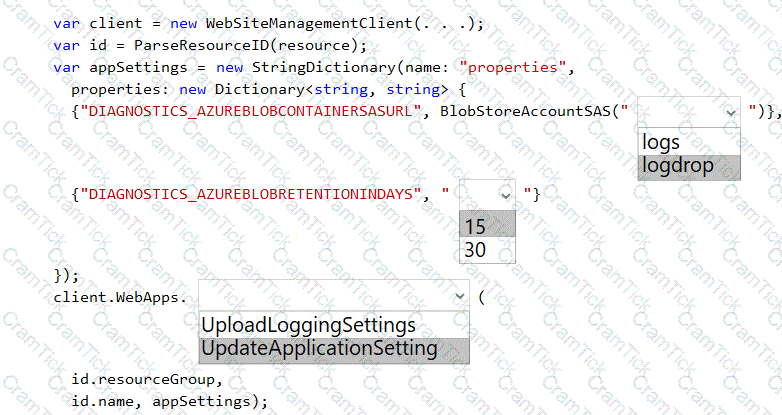

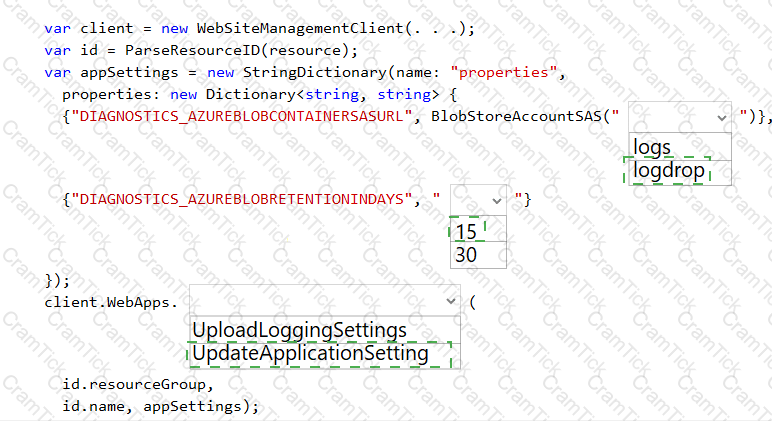

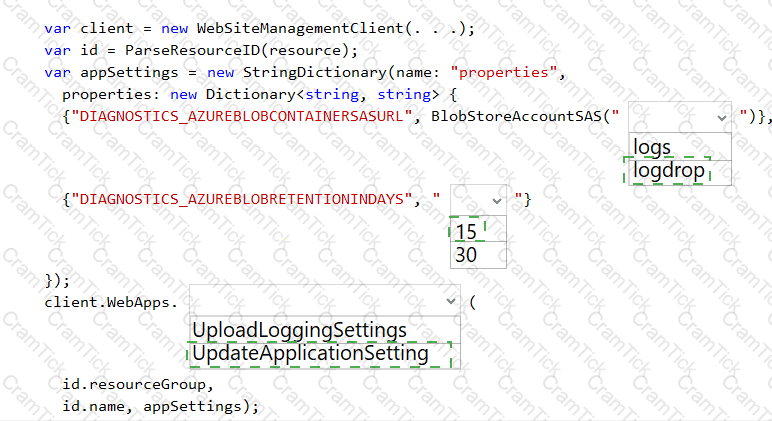

Box 1: logdrop

All log files should be saved to a container named logdrop.

Box 2: 15

Logs must remain in the container for 15 days.

Box 3: UpdateApplicationSettings

All Azure App Service Web Apps must write logs to Azure Blob storage.

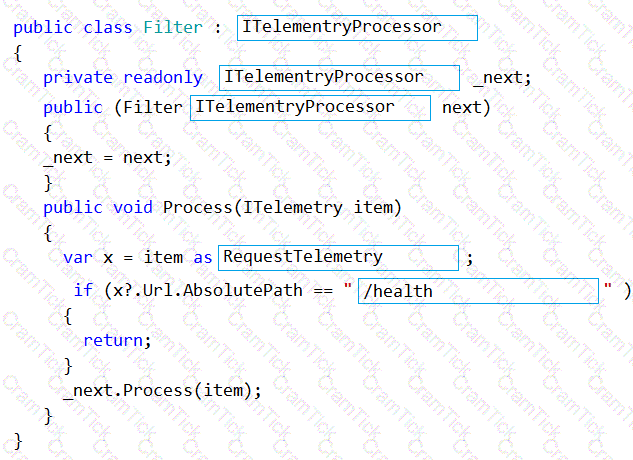

Scenario: Exclude non-user actions from Application Insights telemetry.

Box 1: ITelemetryProcessor

To create a filter, implement ITelemetryProcessor. This technique gives you more direct control over what is included or excluded from the telemetry stream.

Box 2: ITelemetryProcessor

Box 3: ITelemetryProcessor

Box 4: RequestTelemetry

Box 5: /health

To filter out an item, just terminate the chain.

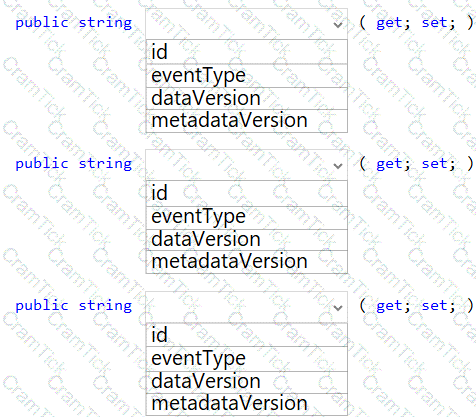

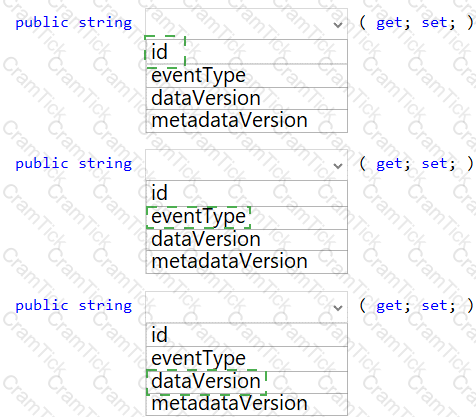

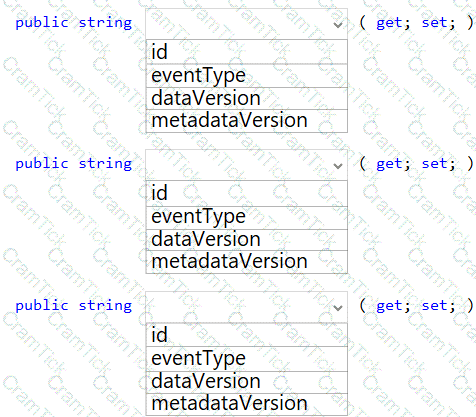

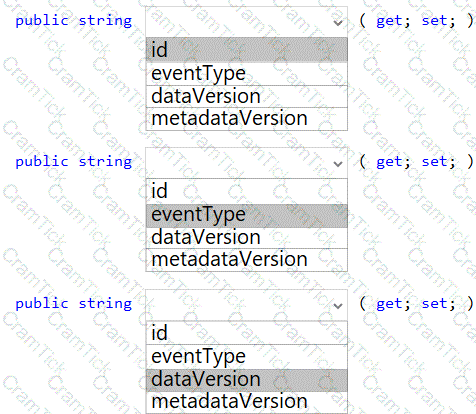

Box 1: id

id is a unique identifier for the event.

Box 2: eventType

eventType is one of the registered event types for this event source.

Box 3: dataVersion

dataVersion is the schema version of the data object. The publisher defines the schema version.

Scenario: Authentication events are used to monitor users signing in and signing out. All authentication events must be processed by Policy service. Sign outs must be processed as quickly as possible.

The following example shows the properties that are used by all event publishers:

[

{

"topic": string,

"subject": string,

"id": string,

"eventType": string,

"eventTime": string,

"data":{

object-unique-to-each-publisher

},

"dataVersion": string,

"metadataVersion": string

}

]
