D-VXR-DY-01 Dell VxRail Deploy Exam Questions and Answers

The Dell VxRail HCI System Software is a proprietary suite of integrated management, automation, and orchestration capabilities designed to simplify the operational lifecycle of hyperconverged infrastructure. Within this architectural ecosystem, VxRail Manager serves as the core software virtual appliance that contains and delivers these software capabilities.

VxRail Manager integrates directly with VMware vCenter Server to extend standard virtual environment oversight, offering an embedded control plane that manages automated hardware discovery, node additions, drive replacements, and non-disruptive software upgrades. While solutions like VMware Cloud Foundation or VMware Tanzu can be layered onto or integrated with the VxRail platform to provide cloud operating models and container orchestration, they are standalone VMware product portfolios rather than native software components of the core VxRail HCI system software suite itself. The automation and orchestration capabilities represent functional attributes delivered directly by the primary software component, which is the VxRail Manager appliance. Therefore, VxRail Manager represents the explicit internal engine driving the system software layer.

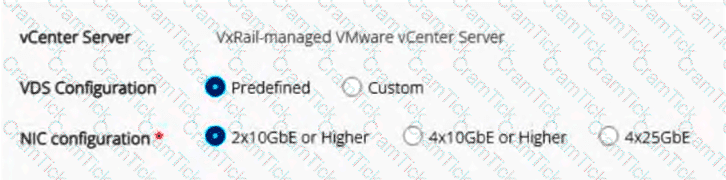

In a VxRail deployment where the "Predefined" virtual distributed switch (VDS) configuration is selected alongside a "2x10GbE or Higher" dual-NIC layout, the automated installer applies deterministic network load-balancing and failover policies. Because a 2-NIC profile aggregates all foundational infrastructure traffic—including Management, vMotion, vSAN, and Virtual Machine networks—onto a single pair of physical uplinks (Uplink 1 and Uplink 2), logical segregation is critical to prevent contention and ensure data path reliability.

To achieve this, the predefined architecture utilizes an explicit failover ordering mechanism rather than a standard active/active load-balancing state across the uplinks. For the vSAN port group, which carries high-throughput storage synchronization traffic, the network design configures Uplink 1 as Standby and Uplink 2 as Active. This configuration maps directly to a Standby/Active setup. Conversely, the Management port group operates in an inverse fashion, utilizing Uplink 1 as Active and Uplink 2 as Standby. This layout optimizes bandwidth usage across both physical connections during standard operations, while guaranteeing that full path redundancy remains maintained if an upstream switch link failover event occurs.

When implementing the Spanning Tree Protocol (STP) on Top-of-Rack (TOR) switches within a Dell VxRail environment, specific interface configurations are required to ensure uninterrupted host connectivity. Standard STP port states progress through listening and learning phases, which can introduce a propagation delay of up to 30 to 50 seconds before transitioning to a forwarding state. This delay can severely disrupt ESXi node discovery, initialization, and HA clustering during node reboots or link failover events, often causing the VxRail Deployment Wizard to fail.

To circumvent this, all switch ports directly interfacing with VxRail nodes must have their port type explicitly set to edge (Choice D). Configuring the port type as edge (the equivalent of PortFast in alternative switch operating systems) mandates that the interface bypass traditional STP convergence states and enter the forwarding state immediately upon link establishment. This prevents port-blocking cycles during critical boot sequences while preventing topology change notifications from destabilizing the local network tier. Setting ports to access mode is incorrect because VxRail mandates 802.1Q VLAN trunking to multiplex management, vSAN, and vMotion traffic over the same physical interfaces.

During the architectural phase and the subsequent execution of the VxRail Deployment Wizard, strict boundary constraints govern the node scaling of a standard VxRail cluster. The minimum and maximum number of nodes that can be selected to create a standard VxRail cluster are 3 and 64 nodes, respectively. A standard hyperconverged cluster requires a baseline minimum of three nodes during initial Day 1 deployment to establish a fully functional vSAN datastore that satisfies the default primary level of failures to tolerate (FTT=1) using a standard RAID-1 mirroring configuration.

While specialized deployment profiles like 2-node clusters exist, they require an external witness appliance and are classified as a distinct topology rather than a standard cluster path. On the upper boundary, the VxRail deployment framework scales in full alignment with VMware vSphere and vSAN core software limitations, allowing a single logical cluster to expand up to a maximum of 64 physical ESXi hosts. Adhering to these minimum and maximum boundaries ensures long-term operational stability and complete alignment with validated support matrices.

Within a standard Dell VxRail cluster topology, all physical interfaces on the Top-of-Rack (ToR) switches directly attached to the physical node interfaces must be explicitly configured in Trunk Mode. This configuration is an absolute architectural requirement because a hyperconverged VxRail deployment shares a pair of high-bandwidth uplinks across a matrix of distinct virtual networks. These networks include ESXi Host Management, vSAN Storage, vMotion Live Migration, and various customer-facing production VM networks, which must remain structurally isolated from one another at Layer 2.

To maintain this network design while consolidating traffic over shared cabling, the environment relies heavily on explicit IEEE 802.1Q VLAN tagging. Setting the switch ports to Trunk Mode allows the physical infrastructure to accept, process, and pass traffic carrying multiple separate VLAN identifiers across the same interface links simultaneously. Conversely, configuring a port to Access Mode limits its transmission capability to a single untagged broadcast network domain, which completely breaks the multi-VLAN isolation required to discover and initialize a VxRail cluster.

During the configuration phase of the VxRail Deployment Wizard, choices made within the foundational global settings dynamically govern subsequent system requirements and user interface behaviors. When an implementation engineer selects the option to deploy the cluster using a Customer-managed VMware vCenter Server, the system architecture shifts name resolution responsibilities entirely to the customer's pre-existing enterprise environment.

Because an external, customer-managed vCenter Server already relies on established enterprise datacenter infrastructure to resolve hostnames, lookup records, and management components, the internal VxRail Manager DNS service cannot be used to anchor the deployment. Consequently, choosing a Customer-managed vCenter Server forces the wizard to automatically lock and restrict the DNS Server configuration field to "External," graying out the "Internal (VxRail Manager Service)" alternative option entirely. This built-in validation guardrail ensures that the incoming VxRail nodes and management components are integrated within the exact same authoritative external DNS servers handling the external management plane, preventing name resolution mismatches or deployment initialization failures. Other deployment options, such as using a standard VxRail-managed internal vCenter, leave this choice unlocked, permitting either internal or external placement.

When deploying VMware vSAN Express Storage Architecture (ESA) within a Dell VxRail cluster environment managed by an internal, VxRail-managed vCenter Server, enforcing data security through cryptographic measures is fully supported. To enable vSAN Data-at-Rest Encryption, the platform requires an active key management infrastructure to handle keys securely. The architecture supports two primary types of key providers: the Native Key Provider (NKP) and the Standard Key Provider.

The Native Key Provider is an embedded, software-defined feature within vSphere that generates and manages keys internally, eliminating the requirement to deploy or license an external, third-party Key Management Server (KMS) system. The Standard Key Provider allows the internal vCenter Server to securely interface with external, KMIP-compliant enterprise Key Management Servers to manage key distribution. Options mentioning Trusted Platform Module (TPM) 1.2 are invalid because modern vSAN ESA implementations demand advanced cryptographic sealing mechanisms that strictly require TPM 2.0 on the host hardware if hardware-backed protection is layered over the key provider architecture; TPM 1.2 fails validation checks.

When initializing a VxRail cluster, proper network name resolution is an absolute dependency for communication between the VxRail Manager, ESXi hosts, and the vCenter Server. During the deployment wizard execution, administrators are provided with two distinct architectural pathways for handling DNS services: an external enterprise DNS or an internal DNS service. If the internal DNS option is selected, the VxRail Manager virtual appliance (Choice B) is directly responsible for running and hosting this internal service.

Under the hood, VxRail Manager provisions an embedded, lightweight DNS containerized service to dynamically manage host name resolution across the management network segment. This internal service automatically populates forward and reverse lookup records for all newly initialized ESXi nodes and the vCenter Server, ensuring that deployment and subsequent node additions complete without external infrastructure dependencies. This model is particularly beneficial in isolated environments or dark sites where an external enterprise DNS server is completely unavailable. Neither individual guest virtual machines, the vCenter Server, nor a standalone Platform Services Controller host this automated internal system component.

Within a VMware vSAN-backed VxRail environment, cryptographic features are distinctly divided into Data-at-Rest Encryption and Data-in-Transit Encryption, each leveraging entirely different key exchange architectures. vSAN Data-at-Rest Encryption is implemented to safeguard data blocks residing within cache and capacity drives against physical media theft or unauthorized offline modifications. Because of its persistent state, Data-at-Rest Encryption strictly requires an integrated Key Provider solution—either an external, KMIP-compliant Key Management Server (KMS) or a VMware Native Key Provider—to generate, distribute, and protect the root Key Encryption Keys (KEKs).

In contrast, vSAN Data-in-Transit Encryption secures the active data packets migrating across the dedicated local vSAN transport network between cluster hosts. Data-in-Transit Encryption does not require a Key Management Server or any external Key Provider infrastructure. Instead, the participating ESXi hosts within the cluster leverage internal secure tokens to dynamically generate, rotate, and pass ephemeral session keys directly between one another as peer connections form. Other answers incorrectly define the cryptographic boundaries of data traffic or specify arbitrary rules for KMS placement that contradict core vSAN storage security profiles.
