HPE6-A79 Aruba Certified Mobility Expert Written Exam Questions and Answers

Questions 4

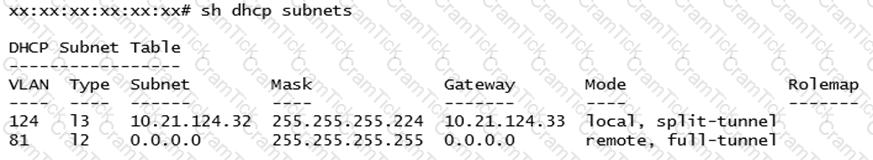

Refer to the exhibit.

A network engineer deploys two different DHCP pools in an Instant AP (IAP) cluster for WLANs that will have connectivity to a remote site using Aruba IPSec.

Based on the output shown in the exhibit, which IAP-VPN DHCP modes are being used?

Options:

distributed L3 and centralized L2

local L3 and centralized L2

local L3 and distributed L2

centralized L3 and distributed L2

Buy Now

Questions 5

An organization has several RAPs at different locations that broadcast two SSIDs. The internet-only SSID is in bridge/always mode, and the corporate SSID is in split-tunneling/standard mode. The network administrator deploys 10 more RAPs in different locations.

Users can successfully connect to the corporate SSID that is propagated by a RAP at a remote location. However, they report that it takes too long to access public internet web sites.

What is one part of the configuration that should be checked by the network administrator to verify this RAP deployment?

Options:

User roles policies

IP pool

Operating mode

Assigned VLAN

Buy Now

Questions 6

A network administrator has deployed an Airwave Management Platform (AMP) server and integrated it with a Mobility Master (MM) – Mobility Controller (MC) based WLAN. The AMP server already has all Aruba Mobility devices including Access Points (APs) in the “UP” devices list.

What are two actions the administrator can execute upon the APs under “Airwave>Devices>Monitor”? (Choose two.)

Options:

Open the WebUI of the MC where the AP terminates.

Re-provision the Access Point.

Disable and change the mode of the AP's radios.

Invoke MC's show commands for that Access Point.

Run Spectrum Analysis locally.

Buy Now

Questions 7

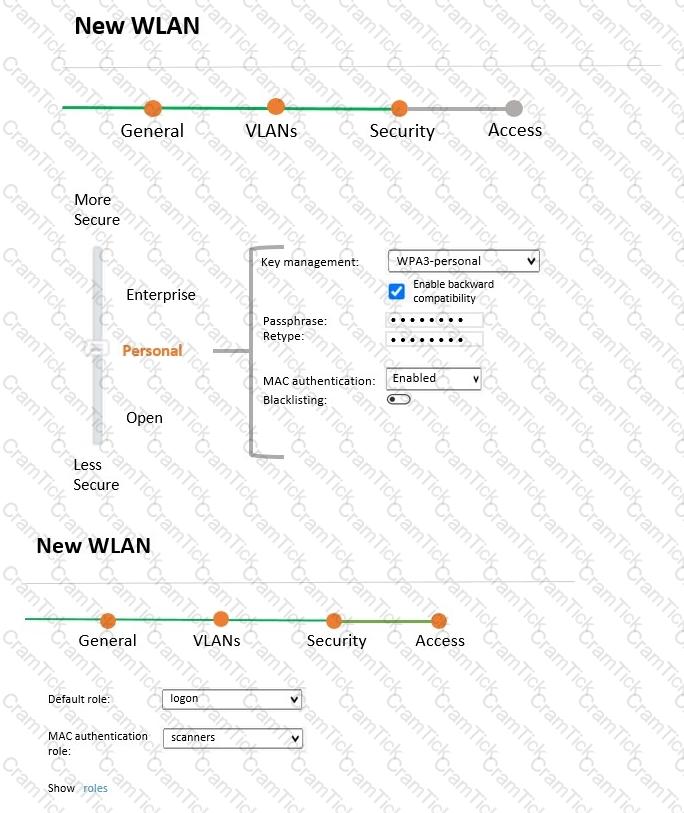

Refer to the exhibit:

A company acquires ten barcode scanners to run inventory tasks. These WiFi devices support WPA2-PSK security only. The network administrator deploys a WLAN named scanners using the configuration shown in the exhibit.

What must the network administrator do next to ensure that the scanner devices successfully connect to their SSID?

Options:

Set internal as the MAC authentication server group.

Add scanner MAC addresses in user derivation rules.

Enable L2 Authentication Fail Through.

Add scanner MAC addresses in the internal database.

Buy Now

Questions 8

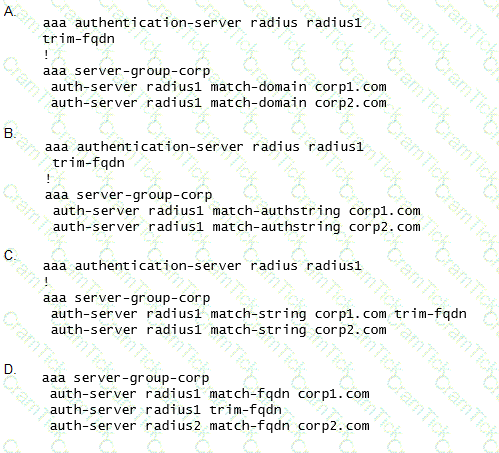

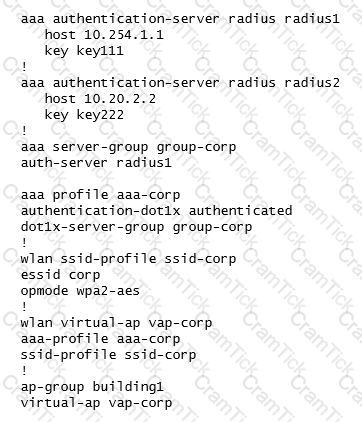

A joint venture between two companies results in a fully functional WLAN Aruba solution. The network administrator uses the following script to integrate the WLAN solution with two radius servers, radius1 and radius2.
