JN0-232 Security, Associate (JNCIA-SEC) Questions and Answers

Junos OS uses a modular software architecture. Instead of one monolithic process controlling all functions, Junos separates major functions into individual protected processes, such as routing, interface control, management, chassis control, and Packet Forwarding Engine communication. This separation improves operational stability because a failure in one process has little or no effect on other software processes. Juniper’s architecture documentation explains that Routing Engine software functions run as separate processes and that this modularity provides fault isolation. Therefore, Junos is built using independent software processes, and individual processes can be restarted with limited impact on the rest of the system. Options A and C are incorrect because they describe tightly coupled behavior, which is opposite to Junos modular design.

Static NAT creates a fixed one-to-one mapping between real and mapped addresses. Juniper documentation describes static NAT as mapping one IP subnet to another IP subnet and states that translation is limited to one-to-one mappings or address blocks of the same size. This makes option A correct. Juniper also states that no address pools are necessary for static NAT, which makes option C correct. Address pools are commonly associated with source NAT or destination NAT pool configurations, not the basic static NAT mapping model. Static NAT can support static port mapping in specific configurations, but the general static NAT behavior tested here is one-to-one address translation, not dynamic PAT. Therefore, the correct answers are A and C.

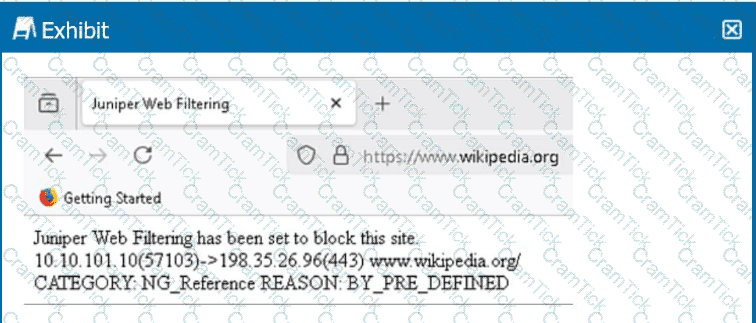

From the exhibit:

The user attempted to access https://www.wikipedia.org.

The block page indicates:

CATEGORY: NG_Reference

REASON: BY_PRE_DEFINED

The header states: “Juniper Web Filtering has been set to block this site.”

Analysis of options:

Option A: Correct. The log shows “REASON: BY_PRE_DEFINED,” which means the site was blocked because it matched a predefined category in the Web filtering database.

Option B: Correct. The category “NG_Reference” indicates that the NextGen (Enhanced/Cloud-based) Web Filtering type is being used.

Option C: Incorrect. The exhibit does not provide any information about SSL proxy configuration; it only shows that the HTTPS site was blocked.

Option D: Incorrect. The block page shown is the standard Juniper default block page, not a custom message.

Correct Statements: The URL matches a predefined Web filtering category, and the NextGen Web Filtering type is being used.

Juniper NextGen Web Filtering provides URL category and reputation-based control for HTTP and HTTPS traffic. Juniper documentation states that URL categories are available in the Juniper NGWF cloud and that NGWF supports categorization and recategorization functions. The recategorization process is performed using operational mode commands such as request security utm web-filtering recategorize url and related status commands, not by editing normal Junos configuration statements. Therefore, option B is correct. Option C is also correct because NGWF uses predefined Juniper NextGen URL categories. Option A is incorrect because recategorization is not performed as a standard configuration object change. Option D is incorrect because Juniper also supports custom URL category mechanisms for local web filtering use cases.

Multiple routing instances (such as virtual routers or VRFs) can be configured on an SRX to provide separation of routing tables. This enables:

Maintaining separation of routing information (Option B): Different departments, tenants, or customers can have their own independent routing domains for security and isolation.

SNMP monitoring (Option A) is unrelated to routing instances.

Routing protocols (Option C) can be run inside each instance, but the purpose of multiple instances is separation, not general routing protocol management.

Simplifying interface configuration (Option D) is not a function of routing instances.

Correct Purpose: To maintain separation of routing information for security purposes.

The host-inbound-traffic parameter controls traffic destined to the SRX device itself, not transit traffic passing through the firewall. This traffic is commonly called self traffic or exception traffic because it terminates on the firewall’s Routing Engine for services such as SSH, ping, BGP, OSPF, or management access. Juniper describes host-inbound-traffic as controlling the type of traffic that can reach the device from interfaces bound to a security zone. Junos security zone configuration is applied to logical interfaces, such as ge-0/0/1.0, not merely physical ports. Therefore, exception traffic and protocols on logical interfaces are the correct choices. Transit traffic is controlled by security policies, not host-inbound-traffic.

Avira Antivirus is an on-device antivirus scan engine used by Juniper Content Security on supported SRX Series Firewalls. Juniper documentation states that you must install and activate the Avira Antivirus scan engine and verify that you have an Avira antivirus license before using it. The documentation also states that after configuring Avira as the antivirus type, the device must be rebooted for the new scan engine to take effect. Therefore, a license is required and a reboot is required. Options B and D are incorrect because they contradict Juniper’s Avira Antivirus configuration requirements. After Avira is enabled, Content Security policies and antivirus profiles can be applied to security policies for protocol traffic inspection.

A feature profile in a UTM (Unified Threat Management) configuration defines how a specific UTM feature should operate. Examples include:

An antivirus feature profile that specifies the type of scanning to perform (streaming or full file-based).

A web filtering feature profile that defines filtering methods, categories, and actions.

An antispam profile that defines how spam detection and actions are performed.

Feature profiles do not directly apply to traffic or policies. Instead, they are referenced inside a UTM policy , and then that policy is applied to a security policy.

Therefore, a feature profile’s purpose is to define the operation of a specific UTM feature .

Application sets are used to group multiple predefined or custom applications under one named object. Juniper documentation states that an application or application set can be referenced by security policies as match criteria for session-initiating packets. This allows administrators to simplify policy configuration by matching one application-set object instead of listing many individual applications. It also improves operational flexibility: if several policies reference the same application set, you can change the applications in that set without directly editing every policy rule. Application sets do not organize addresses; address sets perform that role. They also do not directly open dynamic ports during a session; that behavior is associated with application-level gateways and protocol handling, not the purpose of an application set.

Exception traffic is traffic that must be sent from the Packet Forwarding Engine (PFE) to the Routing Engine (RE) for processing, such as routing protocol updates, management traffic, or other control-plane packets. Because the RE is a limited and critical resource, Junos OS implements rate limiting on exception traffic .

The purpose is to prevent denial-of-service (DoS) attacks on the Routing Engine by controlling the amount of traffic directed to it.

This ensures the RE continues to process control-plane operations reliably, even under potential attack or heavy traffic conditions.

Rate limiting does not enhance forwarding plane performance (Option A), simplify interface configuration (Option B), or manage routing protocols directly (Option D).

When both source NAT and destination NAT are involved, the security policy must match addresses according to Junos NAT processing order. Juniper documents that static NAT and destination NAT are processed before route lookup and security policy lookup, while source NAT is processed after route and security policy lookup. This means that by the time policy evaluation occurs, the destination address has already been translated by destination NAT. However, the source address has not yet been translated by source NAT. Therefore, the correct policy match conditions are the post-NAT destination address and the pre-NAT source address. Matching on the pre-NAT destination or post-NAT source would not align with Junos SRX processing order.

Content filtering on SRX Series Firewalls is part of Juniper Content Security, but Juniper documentation states that content filtering does not require a separate license. Content filtering provides basic data loss prevention by filtering traffic based on MIME type, file extension, and protocol commands. Therefore, option C is correct because no separate content filtering license is required, and option B is correct because file extension is one of the supported filtering attributes. Option A is incorrect because it directly contradicts Juniper’s content filtering documentation. Option D is not the best answer because content filtering is not described as full file-content inspection for determining file type; deeper inspection functions are associated with other Content Security services such as antivirus and AppID-based inspection.

In Junos OS, traffic is classified into three main categories:

Transit traffic:

Defined as traffic that enters one interface and exits another interface .

It is handled entirely in the forwarding plane (Packet Forwarding Engine) .

Example: User data packets moving between trust and untrust zones.

Correct → Option A .

Exception traffic:

Traffic requiring processing by the Routing Engine (control plane) , such as routing updates or management traffic.

Matches Option C/D , but that is not transit traffic.

Control traffic:

Management or routing-related, handled by the control plane.

Rate-limiting (Option B):

This applies specifically to exception traffic to protect the Routing Engine, not to transit traffic.

Correct Statement: Transit traffic is traffic that is processed solely through the forwarding plane.

To verify and demonstrate the effectiveness of content filtering on an SRX firewall, administrators use operational mode commands that display UTM statistics.

The command show security utm content-filtering statistics provides detailed counters showing how many connections were inspected, how many were blocked, and other related metrics.

This is the correct way to measure and demonstrate filtering effectiveness.

Commands in options A, B, and C provide status information for antispam, antivirus, and web filtering features, but they do not provide content filter effectiveness statistics.

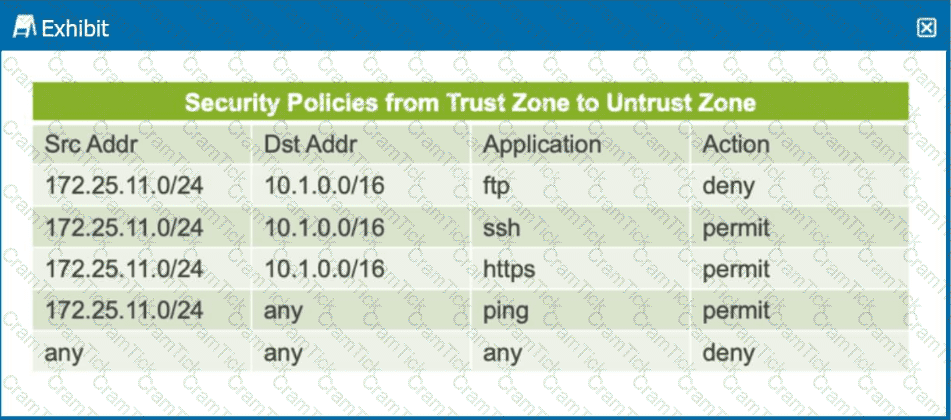

Juniper SRX evaluates security policies sequentially from top to bottom. Once a policy match is found, no further policies are evaluated. In this exhibit:

First Policy (FTP, deny):

Source: 172.25.11.0/24

Destination: 10.1.0.0/16

Application: FTP

Action: deny ⇒ Any FTP traffic from 172.25.11.0/24 to 10.1.0.0/16 is denied .

Second Policy (SSH, permit):

Same source/destination but application = SSH

Action = permit ⇒ SSH traffic from 172.25.11.0/24 to 10.1.0.0/16 is permitted .

Third Policy (HTTPS, permit): ⇒ HTTPS from the same source/destination is permitted .

Fourth Policy (Ping, permit):

Source: 172.25.11.0/24 to any destination

Application: ping

Action: permit ⇒ ICMP echo requests (ping) from 172.25.11.0/24 to any destination are permitted .

Fifth Policy (any → any, deny): ⇒ Serves as a default deny all at the end.

Now checking each option:

Option A: SSH from 172.25.11.10 → 10.1.0.10 matches the SSH permit rule (second policy). ✅ Correct.

Option B: Ping from 172.25.11.100 → 10.1.0.10 matches the ping permit rule (fourth policy). This traffic is permitted, not denied. ❌ Incorrect.

Option C: FTP from 10.1.0.10 → 172.25.11.100 is reverse traffic (untrust to trust) . The table applies only trust → untrust , so this policy does not apply. ❌ Incorrect.

Option D: FTP from 172.25.11.11 → 10.1.0.10 matches the first policy ( FTP deny rule ). ✅ Correct.

Correct Statements: A, D

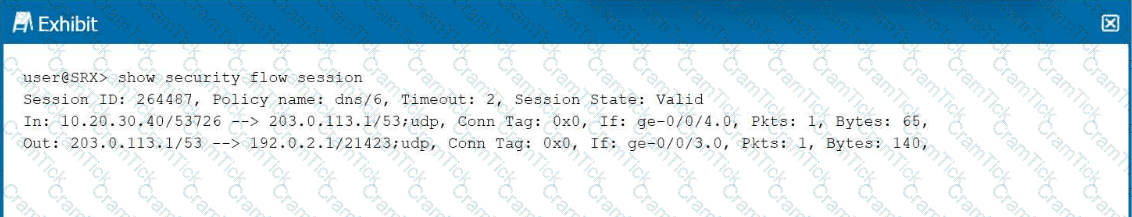

The session output shows the original flow entering with source address 10.20.30.40 and destination address 203.0.113.1. The return or translated side shows the source address represented as 192.0.2.1 while the destination address remains 203.0.113.1. This indicates source NAT behavior because the original source IP address is translated to a new source IP address. There is no destination NAT in the exhibit because the destination IP address does not change. In Junos source NAT, the firewall translates the source address, commonly to an interface address or address pool, while preserving the destination address unless another NAT type is also configured. Therefore, the correct statements are that the destination remains unchanged and the source address is translated.

Juniper security address objects are defined in address books and are used by features such as security policies and NAT. A global address object is valid because Junos supports a global address book that is available across security zones without attaching it to a specific zone. A prefix address object is also valid because Juniper allows addresses to be specified in network prefix format, such as 203.0.113.0/24. Routing address object is not a standard Junos security address-book object type. MAC address object is not the normal address object used for SRX security policy address matching, which primarily uses IPv4, IPv6, DNS, wildcard, and address-range entries.

Screen options are used to detect and prevent attacks such as floods, scans, and malformed packets. In some cases, false positives may occur, where legitimate traffic is mistakenly identified as malicious.

To address this, administrators can configure the alarm-without-drop option (Option D). This setting generates alarms/logs for suspicious traffic without actually dropping it, allowing verification before taking further action.

Enabling all screen options (Option A) may increase false positives further.

Discarding traffic immediately (Option B) risks disrupting legitimate communication.

Increasing sensitivity (Option C) worsens the problem, since false positives would increase.

Correct Action: Use alarm-without-drop to log the traffic without dropping it.

When a packet enters an SRX interface, a route lookup is performed:

It determines the egress interface (Option B) by checking the destination IP against the routing table.

Once the egress interface is known, its associated egress security zone (Option D) is also determined.

The ingress interface (Option A) is already known when the packet arrives, so the route lookup does not determine it.

DNS name (Option C): DNS is unrelated to routing lookups.

Correct Results: egress interface, egress security zone

Inbound Flow (before NAT): Source = 10.20.30.40 (internal private IP) Destination = 203.0.113.1 (public DNS server)

Outbound Flow (after NAT): Source = 192.0.2.1 (translated IP) Destination = 203.0.113.1 (unchanged)

Analysis:

The source IP (10.20.30.40) was translated to 192.0.2.1 . This indicates Source NAT was applied → Option B is correct .

The destination IP changed between the inbound and outbound view. Inbound it was 203.0.113.1 , and outbound it is still 203.0.113.1 in appearance, but notice the reversal: the session entry shows it as the outbound " source " side. This confirms Destination NAT translation has occurred for return flow consistency → Option D is correct .

Option A: Incorrect. The original source IP was indeed translated.

Option C: Incorrect. The destination IP did change in the flow processing.

Correct Statements:

The original source IP address was translated to a new source IP address.

The original destination IP address was translated to a new destination IP address.

Junos OS is the core operating system used across Juniper routing, switching, and security platforms, including SRX Series Firewalls. It is not a separate network management system; management platforms such as Security Director are used for centralized security administration. Juniper describes Junos OS as the single operating system powering a broad portfolio of physical and virtual networking and security products. Therefore, option A is correct because Junos OS is a network operating system, and option B is correct because Juniper supports it across physical platforms and virtualized deployments. Options C and D are incorrect because they narrow Junos OS to management or IoT-only use cases, which does not match Juniper’s architecture.

Destination NAT is the correct answer because it allows an external host to initiate traffic toward an internal resource by translating the destination address of inbound packets. In the exhibit, the requirement is that sessions can only be established from the external side. Static NAT is not the best choice because static NAT is bidirectional; it allows sessions to be originated from either side of the network. Source NAT is normally used for internal hosts initiating outbound access by translating their source address, which does not satisfy the requirement for external-only session establishment. Destination NAT changes the packet’s destination address before security policy evaluation, allowing the SRX to forward external requests to the internal host according to policy.

SRX Series devices provide content security features that rely on advanced identification mechanisms. File identification is not based merely on file extensions (which can be easily spoofed), but instead on deep inspection techniques :

AppID (Application Identification): AppID is part of the AppSecure suite, allowing the device to classify applications and content regardless of port or protocol. This enables the SRX to detect applications and their related content for enforcement.

Protocol-based file type identification: The SRX can recognize and identify file types embedded within HTTP, FTP, and e-mail (SMTP, IMAP, POP3) protocols . This provides accurate content inspection and filtering, independent of file naming conventions.

Why not the others?

File extensions (Option A) are not reliable for content security, so SRX does not use them.

ALGs (Option D) are used for protocol handling, such as SIP or FTP control channels, not for content identification.

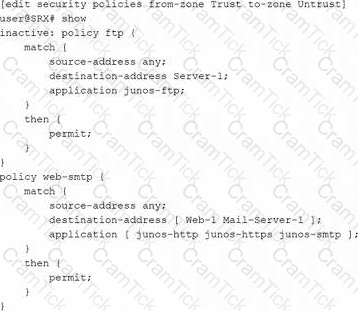

The exhibit shows that the FTP policy is marked inactive, so it remains in the configuration but does not take effect when the configuration is committed. Juniper documentation explains that inactive configuration elements are ignored and are not applied during commit. One valid fix is to activate the FTP policy and commit the configuration so that the policy becomes active again. Another valid fix is to use rollback 1 to return to the previously committed configuration, then commit that restored configuration. Simply moving the inactive FTP policy before another policy would not help because an inactive policy is still ignored. Changing the destination address to any is unnecessary because the primary problem shown is the inactive FTP policy.

The correct command is show security utm web-filtering status. This operational mode command verifies whether the web-filtering service connection is up. For NGWF, the SRX sends URL or destination IP information to the Juniper NGWF cloud, where the URL is categorized and reputation information is returned to the device. Because NGWF depends on cloud connectivity, checking web-filtering status is the appropriate troubleshooting and verification step. The anti-spam and anti-virus status commands verify different Content Security services, and content-filtering statistics show content-filter counters rather than cloud web-filtering connectivity. Juniper documentation also notes that this command can confirm whether web filtering is down because of a missing license or service condition.

The management functional zone on SRX devices is a special predefined zone with unique characteristics:

It is automatically created (Option C) and cannot be deleted.

It is used specifically for management-related traffic (Option A), such as SSH, Telnet, web management (J-Web), SNMP, and other control-plane services.

It does not contain revenue (data) interfaces (Option B is incorrect). Interfaces must be explicitly configured into user-defined zones.

The management zone can be referenced in policies if inter-zone communication involving management traffic is needed (Option D is incorrect).

Correct Statements: A and C

Controlling read-only access versus posting content requires application-level visibility beyond basic ports and protocols. Juniper AppID can identify dynamic applications and micro-applications, which represent more specific application functions. Unified security policies support dynamic application matching, including Layer 7 application identity, and are the correct policy type for this kind of granular application control. Therefore, the micro-application objects should be included in unified security policies. Application identification must also be enabled so the SRX can detect the relevant application and micro-application behavior. Traditional security policies match mainly static applications and 5-tuple-style criteria and are not the correct mechanism for this Layer 7 micro-application enforcement. Zone-level application tracking alone provides visibility but does not enforce the required read-versus-post control.

In Junos OS, security zones are the foundation of SRX firewall policy enforcement. Logical interfaces must be assigned to zones. This enables:

Separation of traffic by zone boundaries.

Enforcement of security policies for traffic traversing between zones.

Control of traffic across VLANs, subnets, or functional areas (e.g., trust, untrust, DMZ).

Other options:

Zone assignment is not used to simplify interface configuration (A).

Routing protocols and updates (B) are handled by routing instances, not zones.

SNMP monitoring (D) is enabled under system or services configuration, not zones.

NAT processing in Junos OS follows a strict sequence to ensure correct packet handling:

Static NAT – applied first because it provides a permanent one-to-one bidirectional mapping.

Destination NAT – applied second to translate inbound destination addresses, often used for servers in private networks.

Source NAT – applied last to translate outbound private source addresses to public ones.

This ensures deterministic behavior and avoids conflicts between translation types.

Options B, C, and D list incorrect sequences.

Correct Order: static NAT → destination NAT → source NAT

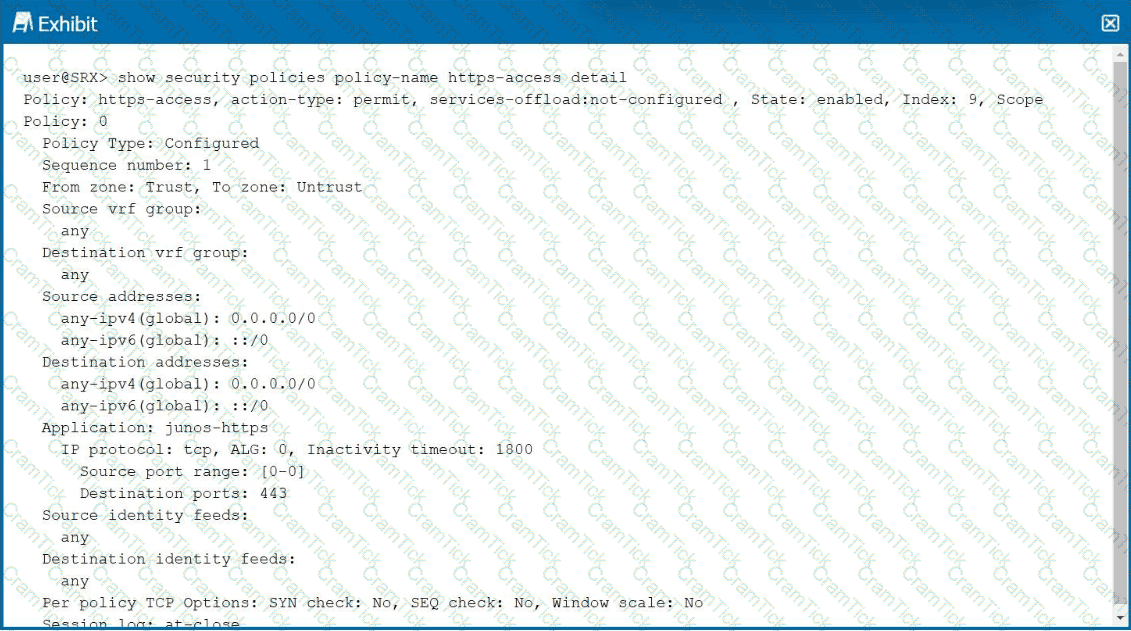

From the exhibit output:

Policy Information:

Policy: https-access, action-type: permit

From zone: Trust, To zone: Untrust

Application: junos-https

IP protocol: tcp, Destination port: 443

Inactivity timeout: 1800

Sequence number: 1

Analysis:

Option A: Correct. The default inactivity timeout for flow sessions is 60 seconds for TCP without activity . This policy shows an inactivity timeout of 1800 seconds , which is non-default.

Option B: Incorrect. The policy shows Sequence number: 1, which means it is the first policy , not the second.

Option C: Correct. The policy explicitly matches application junos-https (TCP port 443) and has an action of permit. Therefore, it allows HTTPS traffic.

Option D: Incorrect. This is clearly a zone-based policy , but the question asks for two correct statements. Between the four options, the explicitly correct ones are A and C.

Correct Statements: This security policy uses a non-default inactivity timeout, and this security policy permits HTTPS traffic.
