In Junos, a static route can be configured with multiple next hops. When you want a “primary and backup” behavior, the correct mechanism is a qualified next hop. A qualified next hop allows you to assign a different preference to each next hop for the same destination prefix. The static route with the best preference is selected as active, while the higher-preference value next hop remains available as a standby option. If the primary next hop becomes unusable, Junos can install the backup qualified next hop so forwarding continues with minimal operational change, which is a common requirement for data center edge or services routing where predictable failover is needed.

The key point in the question is “secondary next hop with a unique route preference value.” That wording maps directly to qualified next-hop behavior, because qualification is how Junos differentiates multiple next hops under the same route using distinct preference values. The retain option relates to keeping routes in the routing table under certain conditions and does not specifically create primary/backup next-hop selection based on preference. The resolve option concerns how the system resolves a next hop through another route and is not the feature that creates a preference-ranked secondary next hop. The install option is not the mechanism used to define backup next-hop preference for a static route.

Traditional data center networks are often built using a layered three-tier design with access, aggregation, and core. These designs frequently rely on Layer 2 domains and spanning tree to prevent loops. One major drawback is inefficient resource usage. Spanning tree typically blocks redundant links, which means installed bandwidth and expensive uplinks can sit idle during normal operation. To compensate, organizations overbuild capacity or use complex workarounds, raising cost and operational burden. In addition, scaling tends to be vertical, adding bigger chassis or more complex aggregation, which can concentrate risk and reduce flexibility.

Another common challenge is increased latency. In a three-tier model, traffic between servers in different access blocks often traverses multiple tiers, adding hops and delay. Even when traffic stays within the same facility, the path is not consistently short, and application performance can suffer, especially for east-west workloads such as distributed databases and microservices where frequent server-to-server communication is normal. Modern leaf spine IP fabrics reduce these issues by using a routed underlay with predictable one-spine-hop paths between leaves and by keeping all links active with multipath routing.

While traditional architectures can also experience suboptimal path behavior, the most consistently cited challenges are idle capacity due to blocked links and additional hop count that increases latency.

In a leaf spine IP fabric, spines form the high-speed transit layer and leaves provide the attachment points for servers, services, and edge connectivity. The defining physical topology rule is that every spine connects directly to every leaf. This design creates consistent one-hop transit through a spine for traffic between any two leaves, which keeps latency predictable and simplifies capacity planning. It also enables equal-cost multipath routing across all available spine links, allowing the fabric to use bandwidth efficiently and recover quickly from failures by shifting traffic to remaining paths.

Spine-to-spine connections are not required in a classic two-tier leaf spine fabric. Adding spine-to-spine links can create unnecessary complexity and does not improve the standard forwarding model, because spines are intended to provide transit between leaves, not to act as an additional meshed layer. Likewise, there is no inherent requirement that each spine must have two or more physical links to each leaf. Many fabrics start with one link per spine-leaf pair and scale capacity by adding more spines or adding additional parallel links as demand grows. The redundancy objective is achieved primarily by multiple spines and multiple available routed paths, not by mandating multiple links between every spine and every leaf from the outset.

In modern data center architectures, an overlay network is a logical or virtual network built on top of an underlay, where the underlay is the physical IP fabric that provides basic Layer 3 transport and reachability between fabric nodes. The overlay abstracts the physical topology and delivers tenant connectivity and segmentation services. This makes the statement that an overlay is a virtual network running on top of a physical network correct.

In EVPN VXLAN based data centers, overlays commonly carry both Layer 2 and Layer 3 services. Layer 2 extension is achieved by encapsulating Ethernet frames inside VXLAN so that a VLAN like segment can span multiple leaf switches across a routed underlay. Layer 3 services are delivered either through symmetric routing at the VTEPs or by advertising IP prefixes and host routes through the overlay control plane. As a result, overlays are not limited to Layer 3 traffic only, and statement D is correct.

The overlay is not defined by being public versus private. It can be built for private multi tenant segmentation inside a single data center, across multiple data centers, or to connect to external services, but public network is not a defining attribute.

Verification sources from Juniper documentation

https://www.juniper.net/documentation/us/en/software/junos/evpn-vxlan/topics/topic-map/evpn-vxlan-overview.html

https://www.juniper.net/documentation/us/en/software/junos/vxlan/topics/topic-map/vxlan-overview.html

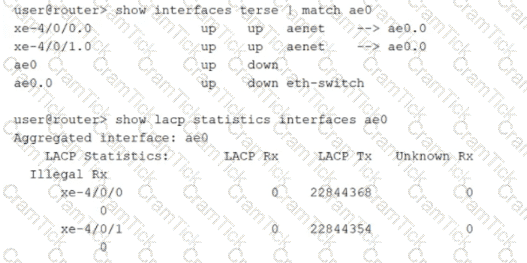

The exhibit shows the physical member interfaces xe-4/0/0 and xe-4/0/1 are up, but the aggregated Ethernet interface ae0 is down. This commonly indicates that the bundle is not successfully forming at the link aggregation control plane level, even though the physical links are operational. The key evidence is in the LACP statistics. The local device is transmitting LACP packets at a very high count on both member links, but the LACP receive counters remain at zero. That means the local system is actively sending LACP Data Units but is not receiving any LACP Data Units back from the far end.

When an LACP-based bundle is configured, the two sides must exchange LACP control packets to negotiate membership and move the links into collecting and distributing state. If the remote side is not configured for LACP, or is configured for a static aggregate without LACP, it will not send LACP packets. In that situation, the Junos device continues transmitting LACP but never receives a response, and the aggregate does not come up, leaving the logical ae interface down even though the member links are physically up.

Therefore, the cause is that the remote device does not have LACP configured. The routing protocol choices on either side are irrelevant to LACP negotiation, and the local device clearly has LACP enabled because it is transmitting LACP packets.

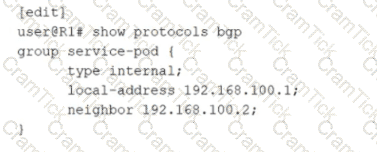

The configuration shown is under protocols bgp and defines a BGP group named service-pod with the statement type internal. In Junos, the BGP group type determines whether the sessions formed by neighbors in that group are treated as internal BGP or external BGP. When the group is set to type internal, the router establishes an iBGP session to the configured neighbor address. That means both peers are expected to be in the same autonomous system, and the session is used to exchange routes within that single AS.

The local-address statement sets the source address that the router will use when initiating the TCP connection for BGP. In data center designs, this is commonly a loopback address so the session can be resilient and independent of any single physical interface. The neighbor statement identifies the remote peer address. With type internal, the session is iBGP even if the neighbor is directly connected, because the relationship is defined by AS scope rather than topology.

OSPF and IS-IS are different routing protocols entirely and are not established through BGP configuration. EBGP would require type external and typically involves different AS numbers across the peering. Therefore, the only correct answer is IBGP.

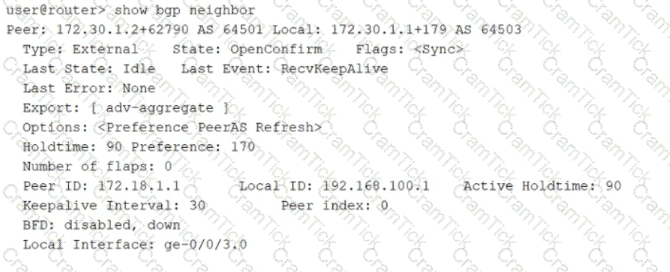

In the BGP finite state machine, OpenConfirm indicates that the TCP session is already established and the BGP OPEN message exchange has successfully completed. At this point, both peers have agreed on critical session parameters such as BGP version, autonomous system numbers, hold time, and the BGP identifier. Because the OPEN messages have been processed, BGP transitions from OpenSent to OpenConfirm and then waits for the next control message that validates the session is operational.

Specifically, in OpenConfirm the local BGP process is waiting to receive a KEEPALIVE message from the neighbor, which confirms that the neighbor accepted the OPEN and is ready to bring the session to the Established state. If instead a NOTIFICATION message is received, it indicates an error condition and the session will be torn down. This is why option D is correct.

Option A describes OpenSent, where the router is waiting to receive an OPEN after sending its own OPEN. Option B aligns more closely with Connect, where BGP is still trying to complete the transport connection. Option C relates to Idle, where BGP waits for a start event or configuration to initiate the session. In data center BGP underlays and EVPN control planes, being stuck in OpenConfirm commonly points to policy mismatch, capability negotiation issues, or keepalive handling problems, rather than basic IP reachability.

On broadcast network types in OSPF, such as Ethernet segments, forming a full mesh of adjacencies between every pair of routers would create significant control-plane overhead. Every router would need to maintain neighbor state with every other router, exchange database information redundantly, and flood link-state updates across many parallel adjacencies. This becomes inefficient as the number of routers on the segment grows.

To address this, OSPF elects a Designated Router and a Backup Designated Router. The DR acts as the central point for adjacency formation on that broadcast segment. Instead of each router forming full adjacencies with all others, routers form full adjacencies primarily with the DR and BDR. The DR is responsible for generating and flooding network LSAs that represent the broadcast segment and for coordinating reliable LSA flooding on that segment. This significantly reduces the number of adjacencies and the volume of duplicated database exchange and LSA flooding, which is why option A is correct.

The BDR is a standby control-plane role. It monitors the segment and is prepared to take over the DR function if the DR fails, improving stability and convergence. However, the primary purpose of having DR and BDR is the scaling benefit of reduced adjacency and flooding overhead on broadcast networks.

Aggregate routes and generated routes are used to create summarized routes in Junos, but they behave differently in terms of forwarding.

Step-by-Step Breakdown:

Aggregate Routes:

An aggregate route summarizes a set of more specific routes, but it does not have a direct forwarding next hop. Instead, it points to the more specific routes for actual packet forwarding.

Generated Routes:

A generated route also summarizes specific routes, but it has a forwarding next hop that is determined based on the availability of contributing routes. The generated route can be used to directly forward traffic.

Juniper Reference:

Aggregate and Generated Routes: In Junos, aggregate routes rely on more specific routes for forwarding, while generated routes can forward traffic directly based on their next-hop information.

A modern IP fabric in a leaf spine topology is built to deliver predictable latency, high bandwidth, and horizontal scale. The defining characteristic is that every leaf switch connects upstream to every spine switch. This full mesh between leaf and spine layers creates multiple equal cost paths between any two endpoints connected anywhere in the fabric. With this design, east west traffic between servers attached to different leaves can traverse the fabric using one spine hop, keeping path length consistent and enabling efficient load sharing across links.

Leaf to leaf direct connections are not used in a standard leaf spine IP fabric because they create irregular topologies, complicate troubleshooting, and undermine the uniform multi path behavior that makes fabrics scalable. Similarly, a leaf does not inherently require two or more physical connections to each spine. Many designs start with a single link per leaf spine pair and increase capacity by adding additional parallel links as needed. Redundancy is achieved by having multiple spines and multiple equal cost paths, not by mandating multiple links to every spine from day one.

Server connectivity requirements also vary. Some servers use single uplinks, others use dual homing for redundancy. That decision is independent of the fundamental requirement that each leaf should connect to every spine.

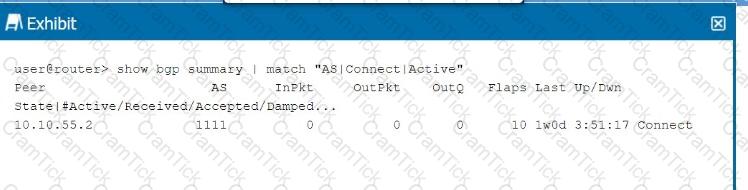

The BGP session in the exhibit shows the state as Connect, which indicates that the TCP session between the BGP peers has not been fully established.

Step-by-Step Breakdown:

BGP State "Connect":

The Connect state is the second stage in the BGP finite state machine (FSM). At this stage, BGP is trying to establish a TCP session with the peer, but the session has not yet been successfully established.

A successful TCP three-way handshake (SYN, SYN-ACK, ACK) is required before BGP can progress to the OpenSent state, where the peers exchange BGP Open messages.

Possible Causes:

A firewall blocking TCP port 179.

Incorrect IP addresses or network connectivity issues between the BGP peers.

Juniper Reference:

BGP Troubleshooting: In Junos, if a BGP session is stuck in the Connect state, the issue is likely due to a failure in establishing the underlying TCP connection.

In Junos Ethernet switching, a VLAN is a Layer 2 broadcast domain and can include any set of switch ports that you assign to it. There is no generic rule that limits a VLAN to only half of a switch’s physical ports. Practically, a single VLAN can include all physical ports on the switch if that is how the environment is designed, for example in a flat Layer 2 segment for a specific purpose or during a migration. This makes statement C correct.

For interface mode behavior, access mode is the default expectation for endpoint-facing Layer 2 ports where traffic is normally untagged. In Junos, when an interface is configured for Ethernet switching and no explicit trunk configuration is applied, the operational intent aligns with access behavior: the port is associated with a single VLAN and forwards frames as untagged on the wire. Trunk mode must be explicitly configured when the link needs to carry multiple VLANs using 802.1Q tagging, such as switch-to-switch uplinks or server connections that tag multiple VLANs. Therefore, statement D is correct and statement A is incorrect because trunk mode is not the default behavior.

This distinction is important in data center operations because misidentifying an access port as a trunk can lead to dropped traffic, VLAN mismatch, or unexpected flooding behavior.

Verification sources from Juniper documentation

https://www.juniper.net/documentation/us/en/software/junos/multicast-l2/topics/topic-map/bridging-and-vlans.html

https://www.juniper.net/documentation/us/en/software/junos/multicast-l2/topics/task/interfaces-configuring-ethernet-switching-access.html

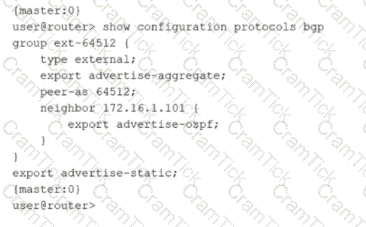

In Junos BGP configuration, export policy can be applied at multiple levels, including the BGP group level and the individual neighbor level. When an export policy is configured directly under a specific neighbor, that policy is explicitly associated with advertisements sent to that neighbor and is therefore the policy that applies to that neighbor. In the exhibit, neighbor 172.16.1.101 has an export statement configured within the neighbor stanza, and that statement references the advertise-ospf policy. This is the most specific policy attachment in the configuration because it is tied to a single peer rather than to the entire group or the whole BGP process.

Group-level export policies, such as advertise-aggregate configured under the group, apply broadly to all neighbors in that group unless a neighbor has additional neighbor-specific policy. A BGP-level export policy configured outside the group applies as a more general export policy scope. However, the question asks which export policy applies to the specific neighbor, and the correct selection is the neighbor-specific export policy that is explicitly configured for that peer.

Operationally, this allows data center engineers to advertise different route sets to different peers, for example exporting OSPF-derived infrastructure routes to one neighbor while exporting aggregates or static routes to another, all while keeping a consistent group template for shared settings such as peer AS and session type.

The configuration defines a static route for 192.168.1.0/24 with a primary next hop of 10.20.20.254 and a qualified-next-hop of 10.20.20.253 with preference 25. In Junos, qualified next hop is used to create preference-ranked redundancy for a static route, typically primary and backup forwarding. The key behavior is that the best, lowest preference path is selected as active. For static routes, the default preference for the route and its primary next hop is lower than 25 unless you explicitly raise it. Because the qualified-next-hop is configured with preference 25, it is less preferred than the primary next hop, so 10.20.20.254 remains the selected next hop during normal operation.

This is not load balancing. Junos does not automatically install both next hops for forwarding simply because more than one next hop is configured when one is qualified with a higher preference. Instead, the qualified next hop is held in reserve and is used only when the primary next hop becomes unusable, such as when it is no longer resolvable or the associated forwarding condition fails. Therefore, the route is expected to be installed and active using 10.20.20.254 under normal conditions, with 10.20.20.253 acting as a backup path.

Qualified next hop is the Junos mechanism that lets you configure more than one next hop for the same static route and control which one is preferred. This is most commonly used to build primary and backup forwarding behavior with deterministic selection. You configure a primary next hop and then add one or more qualified next hops with a different preference value. The route installs the best, lowest preference next hop as active, while keeping the alternate next hop available as standby. If the primary next hop becomes unusable, Junos can switch to the qualified next hop so traffic continues to flow.

This approach is widely used in data center edge and services routing, for example toward management networks, service appliances, or external gateways where you want a static default or summary route with predictable failover. It is not the same as resolving a non-directly-connected next hop. That scenario is handled by recursive resolution behavior, not by qualification. Qualified next hop also does not depend on any specific routing protocol, and it is not limited to link-state environments.

Finally, qualified next hop does not rely on sending pings to test reachability. Health tracking can be achieved through other mechanisms such as interface state, next hop resolution changes, or integration with failure detection features, but the qualified next hop feature itself is about preference-ranked redundancy for static routes.

In Junos, a static route normally expects its next hop to be directly reachable on a connected interface. When the configured next hop is not directly connected, the router must determine how to reach that next hop using an existing route in the routing table. The resolve feature provides this behavior by allowing Junos to recursively resolve the configured static next hop through another route, such as an IGP learned route, a directly connected route to an intermediate device, or even another static route. Once the system can resolve the next hop to a usable outgoing interface and a final forwarding next hop, the static route becomes active and can be installed in the forwarding table.

This is common in data center environments where you want to point a static route at a loopback address, a service node address, or a next hop that is reachable through the fabric underlay rather than a directly connected subnet. With resolve enabled, the static route’s validity follows the reachability of the recursive path. If the supporting route used for resolution disappears, the static route is withdrawn, helping avoid blackholing traffic toward an unreachable next hop.

The qualified next hop feature is used to define primary and backup next hops with different preferences for the same static route, not to solve indirect reachability by itself. The install and retain options influence route installation and retention behaviors but do not provide recursive resolution of a non-direct next hop.

A link aggregation group combines multiple physical Ethernet interfaces into one logical link layer interface, called an aggregated Ethernet interface on Junos. The primary purpose is to improve availability and increase usable bandwidth between two devices without changing the logical topology. If one member link fails, the aggregate can remain up and continue forwarding traffic over the remaining active members, providing redundancy at the link layer. This is especially valuable in data center designs where loss of a single optic or cable should not interrupt server connectivity, leaf to spine uplinks, or connections to service appliances.

LAG also enables load balancing. Instead of forcing all traffic over one physical link, the forwarding plane distributes flows across member links using a hashing algorithm. This allows the aggregate to use the sum of member bandwidth for multiple concurrent flows while keeping packets for a given flow in order. In leaf spine fabrics, this complements ECMP at Layer 3 by delivering parallelism both at the routed path level and within a single adjacency when multiple physical links exist.

LAG does not encrypt traffic. Encryption is provided by separate security features and protocols. It also does not increase the speed of a single physical interface; rather, it increases the total capacity of the logical bundle across multiple links. Finally, it does not assign IP addresses, which is the role of services like DHCP, not link aggregation.
