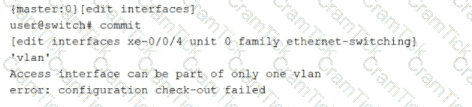

The commit error indicates that the interface is being treated as an access port while the configuration attempts to associate it with more than one VLAN. In Junos Ethernet switching, an access mode interface represents a single untagged VLAN membership. Because access ports accept and transmit frames without 802.1Q tags, the switch must map all ingress untagged traffic to exactly one VLAN. For that reason, Junos enforces the rule that an access interface can be part of only one VLAN, and it rejects configurations that try to add multiple VLAN members under access mode.

There are two valid ways to resolve this, depending on the intended design. First, if the port truly connects to a single endpoint that should live in only one broadcast domain, configure the interface as a member of only one VLAN. This aligns with access port semantics and eliminates the conflict that causes the commit to fail.

Second, if the endpoint or downstream device needs to carry multiple VLANs over the same physical link, change the interface to trunk mode. A trunk port is designed to transport multiple VLANs using 802.1Q tagging, so multiple VLAN members are valid and expected. In data center environments, trunking is common for server virtualization hosts, appliance uplinks, and switch-to-switch links.

Connecting the interface to the network does not affect configuration validation, and logical unit numbering is unrelated to VLAN membership rules for access ports.

On Junos Ethernet switching platforms, the Layer 2 forwarding decision is based on a MAC address lookup table. Juniper commonly refers to this as the Ethernet switching table, which contains learned source MAC addresses mapped to an ingress interface and a VLAN or bridge domain context. This table is built dynamically through normal Layer 2 learning, and it is what allows the switch to forward known unicast frames to the correct egress interface instead of flooding within the broadcast domain.

In Juniper terminology, the forwarding plane also maintains a forwarding database used to program hardware forwarding entries. While the term forwarding information base is most often associated with Layer 3 forwarding for IP prefixes, many training and operational contexts use FIB language when describing the programmed forwarding state in the data plane, including the entries that result from Ethernet switching learning. The key idea is that the control plane and switching processes populate forwarding state, and the forwarding plane uses that state to make fast, deterministic forwarding decisions at line rate.

Options inet.0 and RIB are Layer 3 constructs. inet.0 is the main IPv4 routing table, and the RIB is the routing information base that stores routes before they are programmed into forwarding. Neither represents the Layer 2 MAC learning table.

To confirm that your router is sending a specific route to a particular BGP neighbor, you must inspect the outbound advertisements toward that neighbor. In Junos, the command that shows routes being advertised to a peer is show route advertising-protocol bgp with the neighbor address specified. Adding 0.0.0.0 to the command filters the output to the default route, making it the most direct way to validate that the default route is actually being exported to peer 10.100.25.6. This is especially important in data center deployments where default route advertisement is often controlled by policy, conditional origination, or specific export terms, and where you want to verify the real operational result rather than just configuration intent.

The receive-protocol variant shows what you are learning from that neighbor, not what you are sending to it. The show route protocol bgp 0.0.0.0 command only confirms that the default route exists in your local routing table as a BGP-learned route, which does not prove it is being exported to the neighbor. The show route protocol static 0.0.0.0 command would confirm the presence of a static default route locally, but again it does not confirm that it is being advertised over BGP. Therefore, the outbound advertisement command is the correct verification method.
