NCS-Core Nutanix Certified Services Core Infrastructure Professional Questions and Answers

To confirm that network traffic is traversing the 10G interfaces and not the 1G interfaces in a Nutanix environment, the consultant should run the allssh manage_ovs show interfaces command. This command allows for the inspection of all interface configurations and their current operational status across the cluster, effectively confirming which interfaces are actively managing traffic.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

If the administrator observes that the snapshot intervals have changed from the initially configured 5-minute intervals to 15-minute intervals, it indicates a potential issue with the setup. Option C, "Fix a connectivity issue because the protection domain reverted to Async," addresses the likely cause—a connectivity problem that caused the system to revert to longer, asynchronous DR snapshot intervals.

NearSync typically allows for very frequent snapshots, but if there is a connectivity or configuration issue, it might fall back to less frequent asynchronous DR settings. Identifying and resolving any connectivity issues would allow the NearSync configuration to operate as initially intended.

References:The mechanics of NearSync and its behavior under connectivity issues are discussed in detail in Nutanix's documentation and troubleshooting guides, which describe how the system handles fallback scenarios and how to rectify them.

In a Nutanix cluster, when a Controller Virtual Machine (CVM) fails, the iSCSI targets for the volume groups managed by that CVM are not left inoperable. Instead, the volume group's iSCSI targets (vDisks) are automatically redirected to another operational CVM in the cluster. This failover mechanism ensures that there is no interruption in service or data availability. The redirection is seamless and does not require manual intervention, allowing for continuous access to the volume group by the SQL cluster.

References:

• Nutanix Bible: Data Protection and High Availability
• Nutanix University: Resiliency and Disaster Recovery

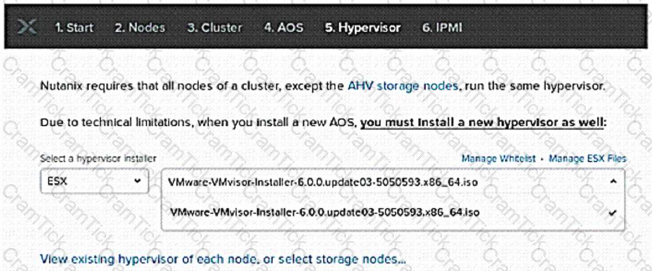

When adding a new node with a higher AOS version (5.9) into an existing cluster running an older version (5.8), the recommended method is to use Prism Element to expand the cluster and select the re-image option. This process involves re-imaging the new node to the AOS version currently running in the cluster (5.8), ensuring compatibility and stability across the cluster without requiring an overall upgrade to a newer version. This approach maintains the cluster's operational integrity while integrating the new hardware.References: Nutanix Bible, NCS-Core 6.8 official training materials, and Nutanix support documentation on cluster expansion.

When upgrading ESXi hosts on a Nutanix cluster using One-Click Upgrade, it is crucial to verify that vSphere HA (High Availability) is enabled. This setting ensures that in the event of host failure during the upgrade process, VMs will be automatically restarted on other hosts in the cluster, maintaining availability and minimizing disruption. Verifying this setting is essential to ensure the resilience of the environment during the upgrade.

References:

• VMware vSphere Upgrade Documentation
• Nutanix Upgrade Guide

Ref: https://portal.nutanix.com/page/documents/solutions/details?targetId=BP-2071-AHV-Networking:top_ahv_networking_best_practices.html

To ensure additional resiliency in a 20-node ESXi deployment capable of surviving the concurrent loss of two nodes, the consultant should configure the system with a storage reservation and HA (High Availability) admission control each set to 5%, combined with a cluster redundancy factor (RF) of 3. RF3 provides the capability to tolerate the failure of up to two nodes without data loss, thus enhancing the cluster's resilience. This configuration is optimal for maintaining cluster availability and integrity during multiple node failures.References: Nutanix Bible, Nutanix University

Ref: https://portal.nutanix.com/page/documents/solutions/details?targetId=BP-2005_Data_Protection:BP-2005_Data_Protection

Ref: https://next.nutanix.com/installation-configuration-23/physical-relocation-of-nutanix-clusters-38403

https://portal.nutanix.com/page/documents/details?targetId=Prism-Central-Guide-Prism-v510:mul-security-policy-management-pc-c.html

Ref:

rx_crc_errors are caused either by faults in layer 1 (in the past, we have seen failed twinax cables and incorrect types of fibre being used), or issues with jumbo frames on the network. In an environment with 10 Gig switches that use cut-through forwarding (Cisco Nexus, Arista, Cisco devices using IOS default to Store and Forward switching), any packets that come into the switch will get forwarded out the destination interface once the switch has read the destination MAC address. If that packet has an MTU over what is configured on the interface, it will cut off the packet at the designated MTU, causing the server to receive a malformed packet, which will throw a CRC error.

If you have a layer 1 issue, you will see rx_crc_errors, not on all but one or two nodes.

Validating software compatibility for a Nutanix cluster installation necessitates the identification of the AOS version and the type of Hypervisor in use. AOS is central to the Nutanix infrastructure, governing storage, compute, and networking functions. The hypervisor layer is critical as it supports the virtual machines running on the cluster. Compatibility between these components ensures stable operation and support for all features. References: Nutanix Certified Services - Core (NCS-Core) Learning Documents

When a customer needs to add storage to an ESXi cluster without incurring additional hypervisor licensing costs, converting the cluster to Nutanix AHV presents a viable solution. AHV allows the incorporation of storage-only nodes, which can extend the cluster's storage capacity without necessitating additional licenses for hypervisor usage.

References:

• Nutanix Solutions for ESXi to AHV Migration: Nutanix Documentation
• Nutanix AHV Licensing and Features Guide: Nutanix Licensing Information

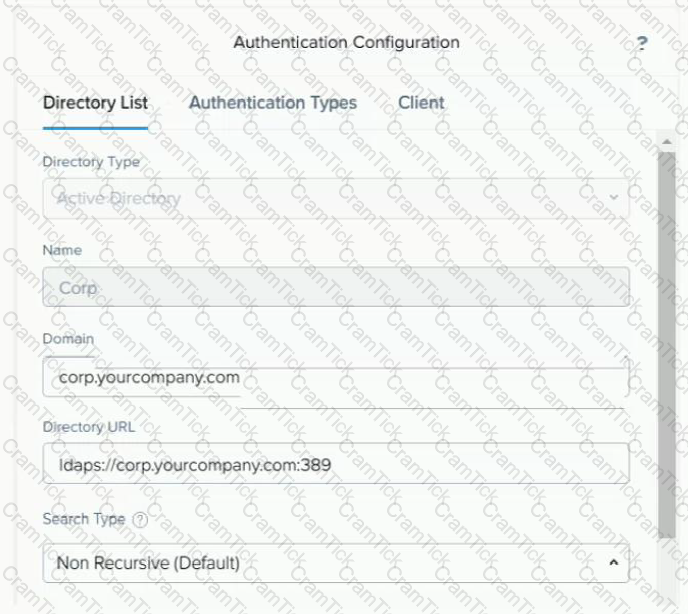

When managing multiple Nutanix AHV clusters across various locations with a centralized management through Prism Central, it is essential to secure each cluster individually. Integrating Microsoft Active Directory authentication directly on all Prism Element clusters allows each site to independently authenticate users while still being centrally managed. This method aligns with security policies that require network devices to authenticate via AD groups, ensuring that local administrative actions at each site are also secured under the same policy.

References:

• Nutanix Bible: Security and Authentication
• Nutanix University: Security Configuration

https://next.nutanix.com/how-it-works-22/vm-capacity-and-prism-capacity-are-different-33134

To validate the peak performance of a deployed Nutanix cluster, the consultant can use:

• A. Nutanix X-Ray: X-Ray is a performance testing tool specifically designed for Nutanix environments, capable of simulating a variety of workloads and scenarios to measure and report on the cluster's performance capabilities.

References:

• Nutanix Bible (https://www.nutanixbible.com), where X-Ray and its capabilities are detailed.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which covers performance testing and validation using X-Ray.

After confirming that all nodes (Hosts and CVMs) are operational and network accessible, the next step in troubleshooting a failed cluster creation process is to use one of the CVMs to manually initiate the cluster creation. This is done using the command cluster create from a CVM, which allows you to establish the cluster management and data services provided by Nutanix. This approach is recommended when the Foundation process has successfully imaged the nodes but the automatic cluster creation has failed.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Cluster Initialization chapter (https://www.nutanixbible.com/)

The document that needs to be completed with the customer to collect configuration items such as IP addresses, Gateway, DNS servers, and NTP Servers is the Technical Checklist. This checklist is designed to ensure all necessary technical information is gathered prior to the installation, enabling a smooth and efficient setup process.References: Nutanix Cluster Deployment Guide, Pre-installation Planning Documentation.

Ref: https://portal.nutanix.com/page/documents/details?targetId=Prism-Central-Gui de-Prism-v5_18:mul-storage-qos-pc-c.html

Considering the equipment setup with one Out-of-Band Management (OOBM) Ethernet switch and two 10GbE SFP+ Top of Rack (ToR) switches, the consultant should recommend six DAC (Direct Attach Cable) 10GbE cables and three Ethernet cables. The DAC 10GbE cables are suitable for connecting the nodes to the ToR switches to handle high-speed data transfers, while the Ethernet cables are necessary for connections related to management purposes, such as connecting to the OOBM switch for remote management tasks. This recommendation ensures adequate connectivity for both data and management networks.References: Nutanix Hardware and Installation Guide, Best Practices for Network Cable Management.

• Nutanix Security: As part of security improvements (complying with California statute SB-327), Nutanix changed the default IPMI password policy.
• Node-Specific Password: Each Nutanix NX hardware node now ships with a unique default IPMI password for the ADMIN user.expand_more This password is the node's serial number (using capital letters).expand_more
• Finding the Serial Number: You can locate the node's serial number either on a physical sticker or by running the ipmitool fru print command on the node.

References:

• Nutanix Support Portal - Knowledge Base Article 1091: https://portal.nutanix.com/kb/1091

Ref: https://next.nutanix.com/how-it-works-22/redundancy-factor-vs-replication-factor-37486

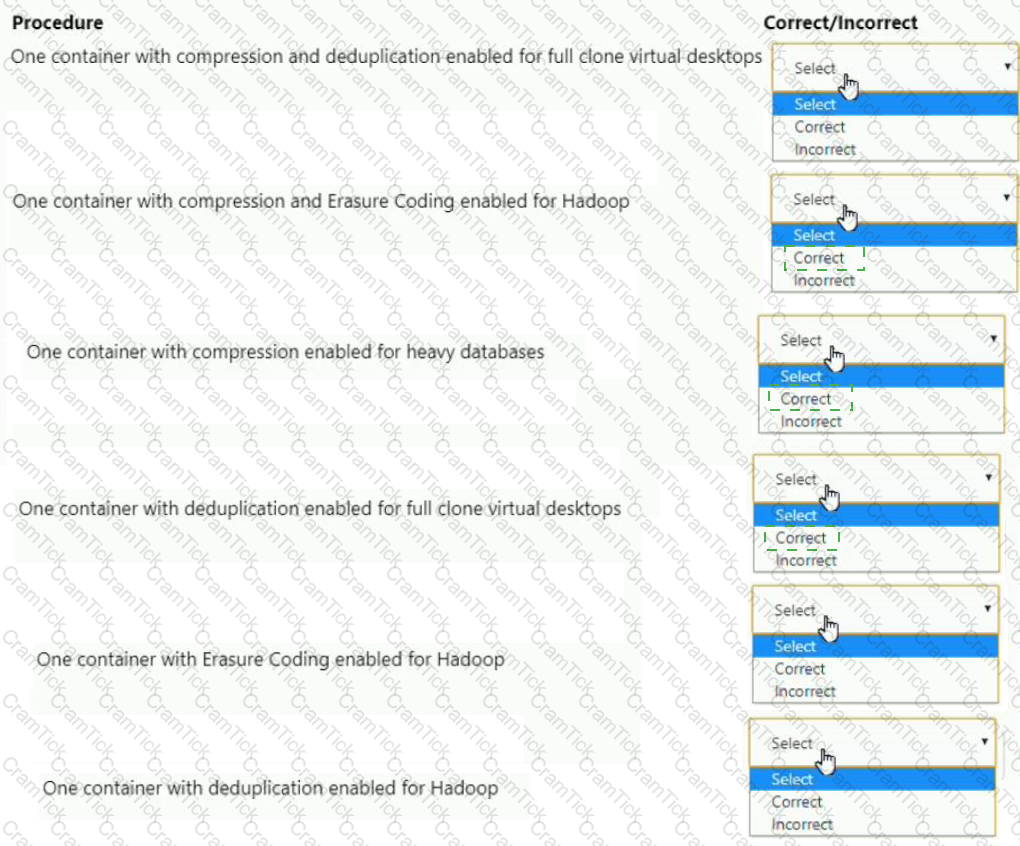

To meet the requirements of maximizing storage space savings while optimizing I/O performance for business-critical applications and general server workloads, enabling both compression and erasure coding on the storage containers is recommended. Compression reduces the data footprint on storage disks, while erasure coding provides data redundancy in an efficient manner, which not only saves space but also enhances data durability and I/O performance for read-intensive applications.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Storage Efficiency chapter (https://www.nutanixbible.com/)

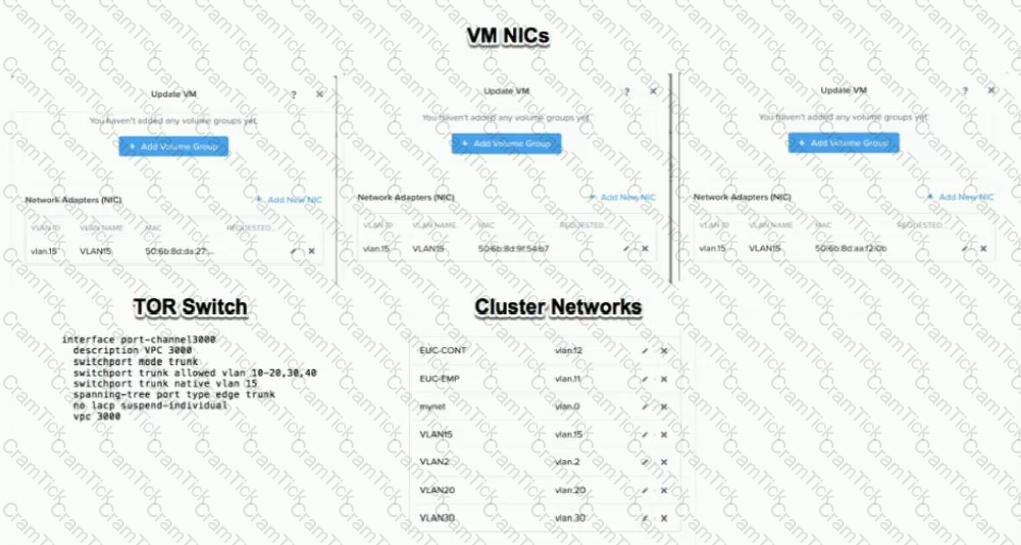

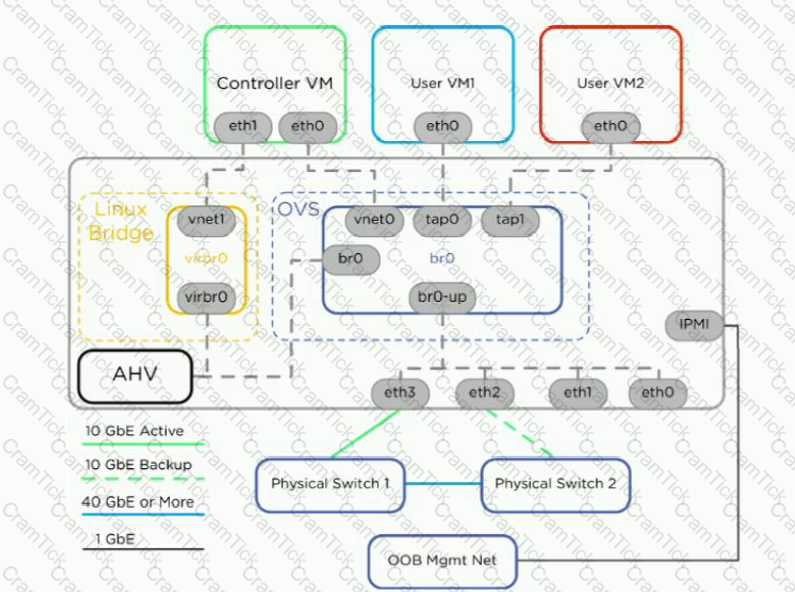

When a VM is unable to communicate on the network despite having an IP address assigned, one common issue is incorrect network configuration in terms of VLAN assignment. In the Nutanix AHV, VLANs are configured and managed within Prism Element. The consultant should verify that the virtual NIC (vNIC) of the VM is correctly configured to the intended VLAN that corresponds with the rest of the network. This ensures that the VM can communicate with other devices on the same network segment.References:

• Nutanix Bible
• Nutanix University NCS-Core Materials

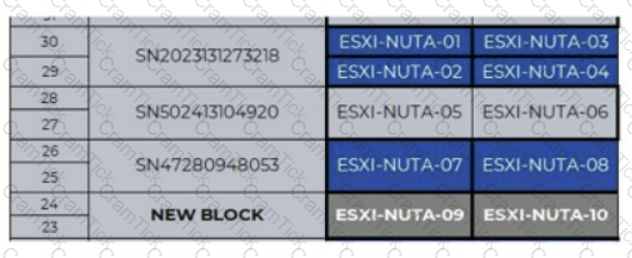

Referring to the exhibit and considering the setup of a multi-block cluster, the necessary change during the Foundation process would be to adjust the host names (Option A). The hostnames provided in the range Autofill seem to be out of order or incorrectly assigned based on the block serial numbers and node arrangement. Correctly naming the hostnames according to a logical or systematic naming convention during the setup helps in cluster management and operations post-deployment.References: Nutanix Foundation Tool Guide, Cluster Configuration Best Practices.

If a consultant is unable to ping the CVM from the hypervisor using the external interface in a network without VLAN tagging, and both are using the same subnet, the issue might be related to an incorrect default gateway configuration. The default gateway must be correctly set to ensure proper routing of packets between the CVM and the hypervisor. An incorrect gateway can prevent successful communication even if both devices are on the same subnet.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Networking chapter (https://www.nutanixbible.com/)

When installing a Nutanix cluster on hardware servers pre-loaded with an existing operating system such as DiscoverOS, the best approach is to re-image the bare metal nodes. This process involves using the Nutanix Foundation tool to install the required Nutanix software (such as AOS and Hypervisor) onto the nodes, replacing any pre-existing software. This ensures that the hardware is properly configured and optimized for the Nutanix environment.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Foundation chapter (https://www.nutanixbible.com/)

When addressing high cluster IOPS and Cluster Controller Latency where networking is suspected to be the issue, it is essential to check the network configuration settings that can directly impact data transfer and latency. The correct answer is to adjust the "Number of NICs connected" and "frame size." Increasing the number of Network Interface Cards (NICs) connected can improve the network throughput and distribute the load more evenly. Adjusting the frame size, particularly setting larger frames (Jumbo Frames), can reduce overhead and improve network efficiency by allowing more data to be transmitted with fewer packets.

References:

• Nutanix Bible: Networking Considerations
• Nutanix University: Network Performance Optimization

https://hyperhci.com/2020/07/29/nutanix-cluster-services-down-troubleshooting/

When changing VLAN configurations for hosts and Controller Virtual Machines (CVMs) in a Nutanix cluster, doing so while the cluster is running can result in temporary communication losses, leading to alerts such as a node appearing down. To avoid these disruptions and ensure a smooth reconfiguration process, it is advisable to stop the cluster services before making VLAN changes. This prevents the cluster from detecting intermittent connectivity as node failures, thereby avoiding false alerts in Prism Element.

References:

• Nutanix Bible (https://www.nutanixbible.com), particularly the sections discussing cluster operations and network reconfiguration.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which includes best practices for network configuration.

When facing issues with network communication over 10GbE links, the first command to troubleshoot is manage_ovs show_interfaces. This command allows the consultant to review the operational status and settings of each network interface, including those connected via Twinax cables to the top of rack switch. This will show whether the interfaces are correctly configured and functioning, which is essential for establishing a successful network link.

References:

• Nutanix Command Reference Guide: https://portal.nutanix.com
• Nutanix Community Network Troubleshooting Tips: Nutanix Community

Given that the customer is using a Cisco Nexus 9k switch and wants to deploy ESXi with a vSphere Distributed Switch while using LACP, the consultant should ensure that the customer configures:

• D. no lacp suspend-individual: This command ensures that LACP doesn't suspend the individual port if it does not receive LACP PDUs from the other side, which is crucial in environments where continuous connectivity is required for all member links of the port-channel to maintain uninterrupted network services.

References:

• Nutanix Bible (https://www.nutanixbible.com), where it discusses ESXi configurations and switch settings.
• Cisco Nexus configuration guides, referred through Nutanix’s training materials, which recommend settings for optimal integration with Nutanix environments.

For enabling node discovery when using the Foundation VM, the network adapter of the Foundation VM must be set to a Bridged Adapter. This configuration allows the VM to appear as a separate device on the same physical network as the host machine, making it possible for the Foundation VM to communicate directly with the nodes that are also connected to the same network. This is essential for node discovery and subsequent imaging operations performed by the Foundation tool.References: Nutanix Foundation Guide, Nutanix Networking Best Practices.

When a Nutanix cluster needs to be re-imaged and nodes are showing as 'Unavailable' during the discovery process in the Foundation tool, it is often due to a deeper issue with the nodes' existing configuration or software state. Using the Phoenix ISO to re-image the nodes is the recommended approach. The Phoenix ISO can be used to completely reinstall the software on the nodes, ensuring that any problematic configurations or software issues are wiped clean, allowing for a fresh installation with the desired version of AOS.

References:

• Nutanix Bible: Re-imaging Clusters
• Nutanix University: Troubleshooting Installation Issues

Ref: https://portal.nutanix.com/#page/kbs/ details?targetId=kA00e000000Cr7GCAS

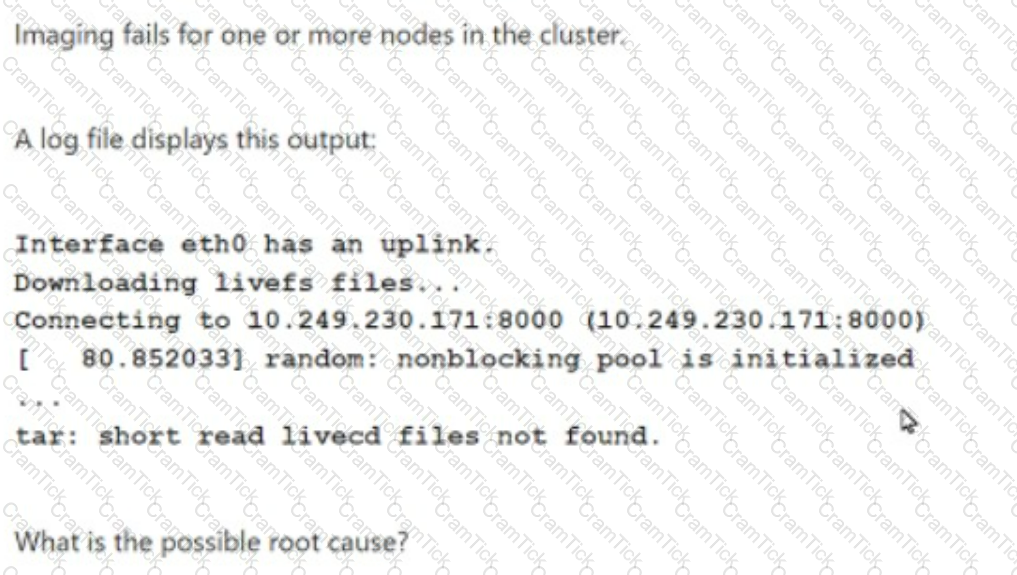

When encountering issues during the Foundation process, such as an imaging failure, consultants need to access detailed logs to diagnose the problem. Two primary locations for these logs include the direct link accessible via the Foundation Imaging Screen, which provides real-time logs during the imaging process, and the Foundation VM directory at /home/nutanix/foundation/logs. These locations offer comprehensive log data essential for troubleshooting and resolving imaging issues. References: Nutanix Foundation documentation and troubleshooting guides from the Nutanix Bible and Nutanix University training resources.

Given the reported RX errors on eth2 and the intermittent ping loss as observed from the CVM logs, the best initial troubleshooting step that avoids VM disruption is to inspect the switch port for errors. Option C, "Check the port on the switch side for any errors," is the most direct and non-invasive approach to determining if the issue lies with the network infrastructure rather than the server hardware itself or the configuration.

This action helps identify whether the problem is related to the physical connection (e.g., port issues, switch configuration errors) without altering the current active network setup on the Nutanix node. If errors are found on the switch port, adjustments or repairs can be made accordingly, potentially resolving the RX errors without impacting the running VMs.

References:This recommendation follows Nutanix's best practices for network troubleshooting, focusing first on external network components before altering host configurations.

When configuring network settings for a hypervisor or accessing local services hosted on it, the IP address must be reachable from the network configuration you are currently using. Given the generic nature of the options, the correct choice typically depends on the subnet used for management purposes, which often uses a standard private address. "192.168.5.254" is a common choice for local network configurations and is likely set up as the gateway or a primary network interface on the hypervisor.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Network Configuration chapter (https://www.nutanixbible.com/)

The requirements specify the use of LACP with multiple VLANs and without the use of a native VLAN. Trunk ports must be configured to carry multiple VLANs, which is necessary for scenarios involving LACP across multiple switches (MLAG or vPC). Setting the native VLAN to default and not using it in traffic management while trunking the ports meets these needs effectively. References: Nutanix Bible (https://www.nutanixbible.com/ ), Nutanix Official YouTube Training Series

The error encountered during the LCM inventory process, which mentions "Could not find a module for entity with reference name nutanix.ncc.update," typically indicates that the cluster has not yet been licensed. The Life Cycle Management (LCM) functionality in Nutanix systems requires a valid license to perform operations such as inventory checks and updates. Without this license, LCM cannot retrieve or update the necessary software modules, leading to the stated error. Licensing the cluster would resolve this issue and allow the LCM processes to proceed normally.References: Nutanix LCM Documentation, Nutanix Licensing Guidelines.

When completing a bare-metal imaging process, it is crucial to avoid connecting any device to the node's USB port that presents virtual media such as a CD-ROM. This is important because such devices can interfere with the imaging process, potentially leading to errors or misconfigurations by presenting alternative boot options or media.

References:

• Nutanix Bible (https://www.nutanixbible.com), where hardware setup and imaging process precautions are discussed.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which covers the best practices for physical setup and foundation imaging.

The scope of services for the deployment of a new Nutanix cluster would apply to both Foundation and Prism Central. Foundation is the initial software used for deploying Nutanix nodes and creating clusters, essential for setting up the environment. Prism Central is used for managing multiple clusters and is integral to the operational scope of the service, providing centralized management capabilities.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

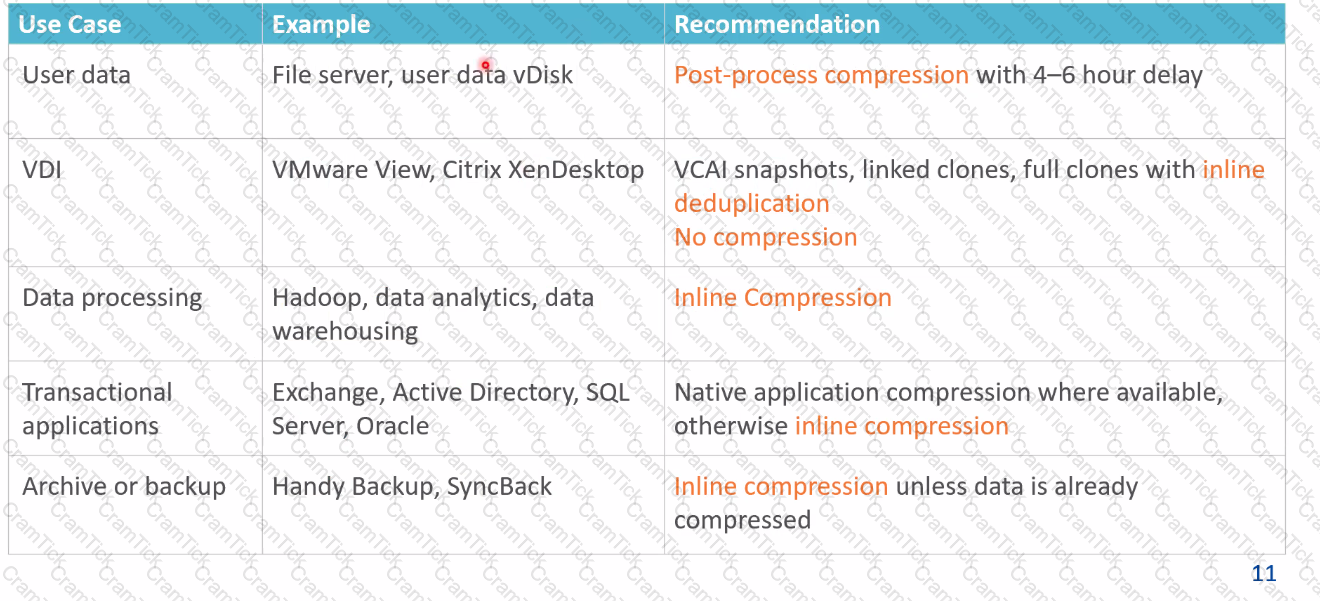

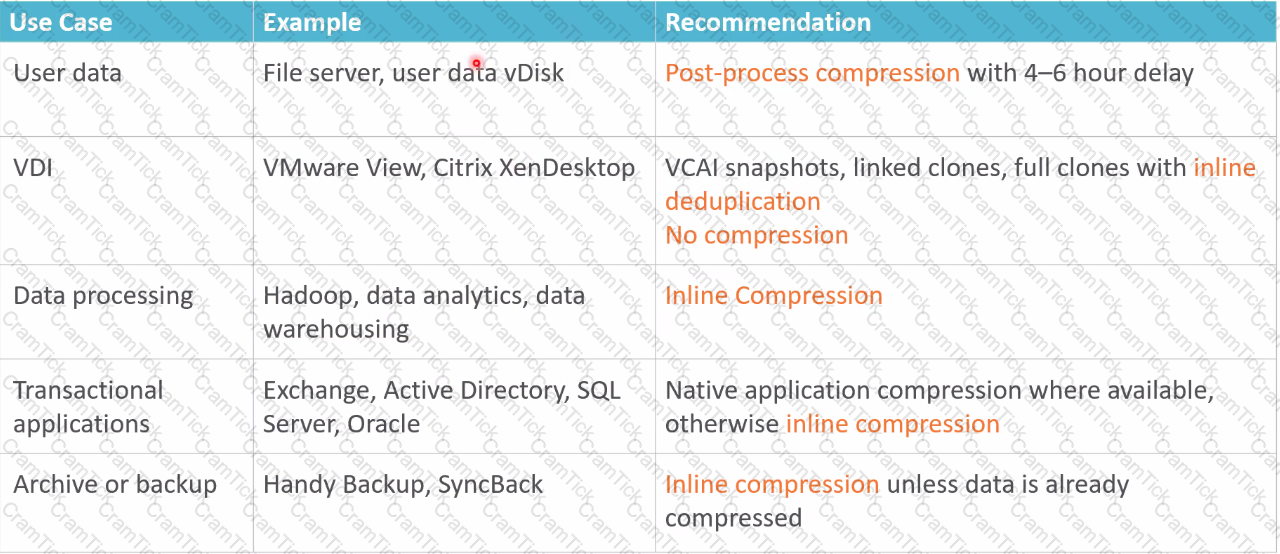

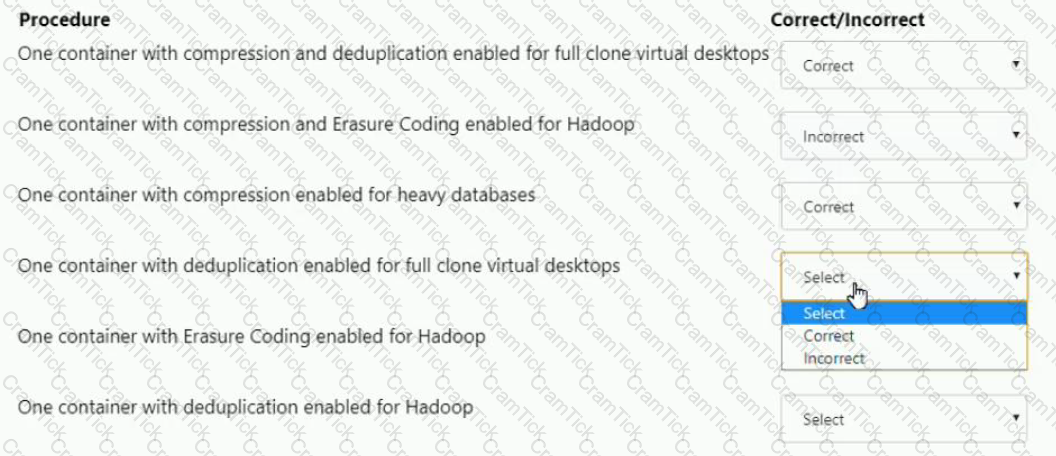

The administrator's goal is to maximize storage potential in a cluster already configured with post-process compression and capacity deduplication. Erasure Coding (EC-X) is an effective method to further increase space savings by reducing the amount of redundancy data required for fault tolerance. It splits data into multiple chunks, which are distributed across the cluster, and parity is calculated and stored. This method is more space-efficient compared to traditional RAID or mirroring techniques, especially in environments where large data volumes need efficient storage.

References:

• Nutanix Bible: Storage Efficiency
• Nutanix University: Storage Configuration and Optimization

To verify that all in-scope tasks for a new cluster deployment have been completed, the consultant should refer to the:

• Deployment Checklist: This document typically lists all tasks required for a successful deployment, making it a suitable tool for ensuring that nothing has been overlooked.

References:

• Nutanix Bible (https://www.nutanixbible.com), where the importance of deployment documentation is discussed.
• Nutanix Deployment Guide, which includes detailed checklists for ensuring thorough project completion.

The issue where users can mount all three storage containers despite the intention to restrict access to just container-1 typically stems from a Global whitelist entry. A global whitelist allows all entities to access all containers unless more specific restrictions are applied at the container level. To correct this, specific whitelist entries need to be configured for each container to define and restrict access appropriately.References: Nutanix NCS-Core 6.8 training resources, the Nutanix Bible, and Nutanix technical documentation on storage container management.

When a consultant is unable to install virtualization software on a laptop, the most suitable versions of Foundation to resolve this issue would be Foundation Portable (Option B) and Foundation Applet (Option D). Both these versions are designed to be used in environments where installing additional virtualization software might not be feasible. Foundation Portable can be run from a USB drive, and the Foundation Applet is a Java-based tool that can run directly on a host machine without the need for a full virtual machine environment.References: Nutanix Foundation Installation Guide, Nutanix Support Portal.

In environments where IPv6 is not allowed for node discovery and the use of an external flat switch by the consultant is also restricted, the viable approach is to connect to the top of rack switch and discover the nodes using IPv4. This method aligns with the customer’s networking policies and leverages the existing network infrastructure to facilitate the discovery and configuration of the nodes within the Nutanix cluster.References: Nutanix Bible, Nutanix University NCS-Core 6.8 resources, and Nutanix official guidelines on node discovery using IPv4.

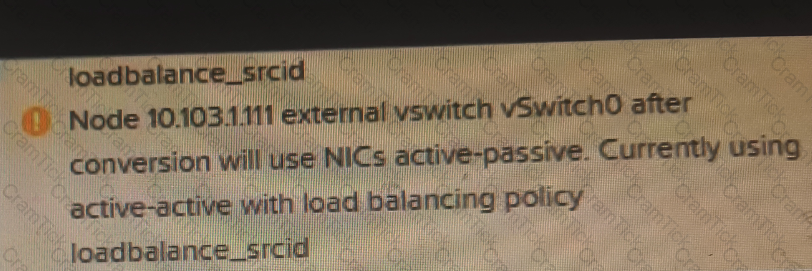

For a customer using an ESXi cluster with two 10GbE NICs on each node and a vSphere Distributed Switch, the recommended load balancing configuration, following Nutanix Best Practices for redundancy and efficiency, is "Route based on IP hash." This setting allows for optimal utilization of network bandwidth and redundancy by distributing the traffic based on the IP address pairings, ensuring a balanced load across the physical NICs.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

Ref: https://portal.nutanix.com/page/documents/kbs/details?targetId=kA 032000000bmjeCAA#Review_ntpq

When nodes are added to a Nutanix cluster and there is a discrepancy in the position or configuration as shown in the hardware diagram tab, it's essential to check the factory_config.json file on all newly added nodes. This file contains important configuration details that define how each node is identified and operates within the cluster. Incorrect or inconsistent settings in the factory_config.json can lead to display and configuration errors in the Prism interface. Correcting any discrepancies in this file will help resolve issues with node identification and display in the diagram tab.

References:

• Nutanix Bible: Cluster Expansion and Configuration
• Nutanix University: Troubleshooting Hardware Configuration Issues

Ref:

When nodes are mistakenly configured with incorrect IP addresses and are on a different network, the most effective way to address this is to re-run the Foundation process. By using Foundation, the nodes can be completely re-imaged with the correct network settings and then properly integrated into a new cluster. This ensures that all hardware and software configurations align with the intended network and cluster settings, avoiding potential conflicts and issues that might arise from manual adjustments.

References:

• Nutanix Bible: Cluster Initialization and Foundation
• Nutanix University: Using Foundation for Node Deployment

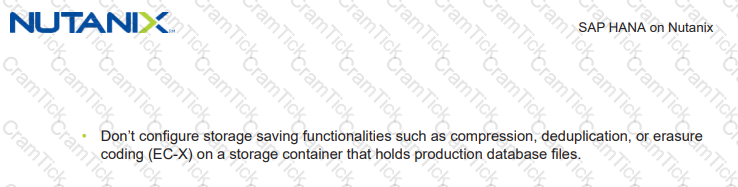

In the scenario where SQL queries are running slower post-migration, creating multiple TempDB data files is a recognized best practice for optimizing SQL Server performance, especially when dealing with high transaction rates or complex queries. This approach helps in distributing the I/O load across multiple files and drives, reducing the contention and wait times associated with TempDB, which is a common bottleneck in SQL Server environments. Enabling autogrowth ensures that these files can dynamically grow as needed, which helps in handling unexpected increases in database activity without manual intervention.References: Nutanix Best Practices for SQL Server, SQL Server performance tuning guidelines.

Ref: https://portal.nutanix.com/page/documents/details?targetId=Prism-Element-Data-Protection-Gu ide-v5_18:wc-dr-application-consistent-snapshots-wc-r.html

During the Knowledge Transfer phase, customers typically learn about Nutanix basics and their specific environment at a high level through "Technical Handoff Slides." This part of the training and handover process provides a broad overview of the installed solution, how it operates, and how it interacts with the existing infrastructure, making it essential for foundational understanding.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

The consultant should be aware that the subnet 192.168.5.0/24 is reserved for internal connectivity within a Nutanix cluster. This subnet is typically used for the internal operations of the Nutanix cluster, including CVM backplane communications. It is critical to ensure that this subnet does not overlap with any external network configurations to avoid networking conflicts that can affect cluster operations and communications.References: Nutanix Networking Best Practices, Nutanix Cluster Configuration Guide.

When receiving a field advisory from Nutanix support regarding a rare problem that could destabilize the cluster, the recommended action is to update AOS. This can be done via Prism Element by selecting "Upgrade Software." This method ensures that any patches or updates that address the identified issue are applied directly to the AOS environment, mitigating any potential risks associated with the reported problem. Since the organization uses VMware vSphere, the update specifically targets the AOS to ensure the underlying infrastructure supporting vSphere remains stable.References: Nutanix Support Portal, Nutanix Field Advisories, Prism Element Guide.

To validate the performance of a Microsoft SQL workload for a CRM application, using X-Ray with an OLTP (Online Transaction Processing) Workload is most suitable. OLTP workloads simulate typical transactional database operations which are representative of CRM application usage, providing accurate insights into expected performance on the Nutanix platform.

References:

• Nutanix Bible (https://www.nutanixbible.com), specifically the sections on performance testing tools and methodologies.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), detailing how to use X-Ray for specific application testing.

To address critical alerts about components using default passwords in the Prism Element Web Console:

• C. Check NCC results and review the associated KB: The Nutanix Cluster Check (NCC) tool can identify security vulnerabilities, including default password usage. Reviewing the results and associated knowledge base articles provides specific guidance on changing these passwords to secure the environment.

References:

• Nutanix Bible (https://www.nutanixbible.com), specifically sections on cluster health checks and security practices.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which includes instruction on using NCC for cluster validation and security enhancements.

To separate management and production traffic within a Nutanix AHV cluster, VLAN Tagging is the appropriate feature to configure. VLAN Tagging allows different types of traffic to be segregated onto different network segments over the same physical infrastructure, effectively isolating management traffic from production traffic at the network level. This setup enhances security and performance by reducing the possibility of network congestion affecting critical management operations.

References:

• Nutanix Bible (https://www.nutanixbible.com), specifically the sections on networking and VLANs.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which covers advanced network configurations including VLAN Tagging.

If the consultant logs into Prism Element and sees critical error messages related to the hypervisor and NTP, this could likely be caused by misconfigured Name Server settings. The Name Server (DNS) is essential for resolving domain names into IP addresses, which are required for NTP operations and overall cluster health checks and communications within the Nutanix environment.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

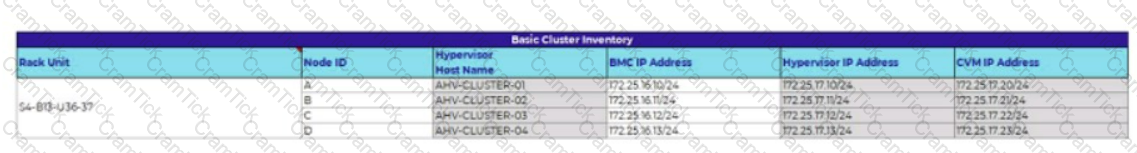

When using the Nutanix cluster As Built Document generator, the necessary configuration elements to provide when running the run_as_built.exe command include the Cluster IP (B) and the Customer Name (D). The Cluster IP is required to properly identify and communicate with the cluster to gather configuration and operational data. The Customer Name is typically used to personalize the documentation, making it specific to the client's deployment, which is useful for record-keeping and future reference purposes.References: Nutanix As Built Documentation generator usage guidelines, Nutanix Best Practices for Documentation.

In the scenario where a consultant observes ping timeouts after shutting down one of the links during a port failover test, the issue is likely due to a Native VLAN mismatch on the switchport. The configuration settings shown in the second exhibit indicate different native VLANs for the switch ports connected to the Nutanix node. This mismatch can cause connectivity issues when one of the links is down, as VLAN tagging inconsistencies prevent proper fallback and routing of traffic.References: Cisco Networking Troubleshooting Guide, Nutanix Network Configuration Best Practices.

During the Nutanix Foundation process, if imaging succeeds but cluster creation fails, the foundation.out log is the primary resource for investigating issues related to cluster creation. This log file contains detailed information about the steps undertaken by the Foundation process, including any errors or issues encountered during the cluster creation phase, making it invaluable for diagnosing problems that prevent successful cluster configuration.

References:

• Nutanix Bible (https://www.nutanixbible.com), particularly the sections on troubleshooting with logs.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), where log file analysis is discussed in the context of deployment troubleshooting.

For the Exchange VM experiencing I/O performance issues, the recommended storage optimization change is Option A, "No data reduction." Exchange, as an application, is highly sensitive to latency and typically does not benefit significantly from data reduction technologies like deduplication or compression, which can introduce additional processing overhead and potentially worsen performance issues.

By configuring the container for Exchange with no data reduction, the system maximizes I/O performance by eliminating any additional processing that could delay data access. This setup ensures that Exchange has the fastest possible access to its data, which is crucial for its performance.

References:This recommendation aligns with best practices for Exchange storage on Nutanix, as detailed in the Nutanix best practices guide for deploying Microsoft Exchange, where it advises against using data reduction features for databases requiring high I/O throughput.

For a Nutanix cluster configuration that simplifies future deployments and expansions, disabling multicast and broadcast flood optimizations (A) and using a tagged VLAN for the CVM and hypervisor hosts (C) are the best practices. Disabling these optimizations helps in reducing unnecessary network traffic and potential broadcast storms in a growing environment. Using tagged VLANs for CVM and hypervisor hosts ensures proper network segmentation and scalability, allowing for easier management and expansion without reconfiguring the native network setup for each expansion or deployment.References: Nutanix Network Configuration Best Practices, Nutanix Deployment Guide.

After deploying a Nutanix cluster with AOS and ESXi managed by a vCenter server, the consultant should ensure that both CVM eth0 and eth2 interfaces are connected to the assigned portgroups on the standard or distributed switch. This setup allows for network segmentation and proper traffic isolation, which is crucial for maintaining network security and efficiency in a virtualized environment.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

Addressing the customer’s concern regarding the potential storage performance impact after a VM migration, it’s important to note that Nutanix AHV includes intelligent scheduling mechanisms. AHV’s built-in scheduler automatically works to restore data locality after VM migrations. Data locality refers to the placement of data close to the VM consuming it, which optimizes read and write operations by reducing latency. After migration, the scheduler actively moves data to ensure it is close to its consuming VM, thereby minimizing any adverse impacts on storage performance.

References:

• Nutanix AHV Administration Guide: Nutanix Documentation
• Nutanix Data Locality Explanation and Benefits: Nutanix Portal

Based on the exhibit which shows an NX-3160 block with marked slots, the correct slot for installing a new node in the existing NX-3160 block is slot 2. This configuration is typically aligned with the chassis' design for orderly expansion and maintaining balanced power and cooling distribution among the nodes.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

The inability of CVMs and hypervisors to communicate after moving a cluster to the production network typically points to a VLAN configuration issue. The correct action is to confirm that the VLAN designated for hypervisor/CVM communication is set as the Native VLAN on the switch ports to which the nodes are connected. This setting ensures that traffic from these VLANs is properly prioritized and handled by the network, thereby restoring communication between CVMs and hypervisors and allowing the cluster to start.References: Nutanix Bible, NCS-Core 6.8 official documentation on networking configurations, and troubleshooting VLAN issues.

If there is no connectivity between the Foundation VM (FVM) and the consultant's laptop despite all devices being properly powered and correctly configured, the likely cause is the desktop firewall on the consultant’s laptop blocking ping requests. This is a common issue that can prevent communication over the network even when all other network configurations are correct. The consultant should check the firewall settings and allow the necessary permissions for network communications to establish connectivity.References: Nutanix Network Troubleshooting Guide, Nutanix Installation and Configuration Documentation.

For managing a multi-cluster environment with a total of 2550 VMs, deploying a large 3-VM Prism Central instance is advisable. This setup provides the necessary scalability, redundancy, and performance to efficiently manage such a large number of VMs across multiple clusters. A 3-VM configuration ensures high availability and fault tolerance, crucial for maintaining consistent operations and management across the clusters.

References:

• Nutanix Bible: Prism Central Deployment
• Nutanix University: Scaling and Managing Large Environments

When encountering timeout issues during Foundation using a customer-provided network switch, one common cause can be mismatched or unsupported network configurations, particularly concerning MTU sizes:

• A. Check jumbo frames support of the network switch: Ensuring that the switch supports jumbo frames (MTU of 9000) and is properly configured for it can prevent timeout issues that might arise due to packet fragmentation or dropped packets.

References:

• Nutanix Bible (https://www.nutanixbible.com), which discusses network prerequisites for successful Foundation.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), covering the technical setup and network requirements for cluster deployments.

To ensure that the Foundation Applet is up-to-date across all nodes, the best approach is to use the Foundation VM. The Foundation VM allows consultants to manage and upgrade Foundation on all nodes centrally. This method avoids the necessity of manual upgrades on each node individually, thus ensuring a more efficient and error-free process, aligning with Nutanix's best practices for scalability and management of infrastructure.References: The Nutanix Bible, the Nutanix University's NCS-Core 6.8 materials, and official Nutanix documentation on the Foundation VM.

To ensure the latest version of Foundation is used for imaging to support the latest hardware and software hypervisor configurations, the consultant should utilize the Foundation VM. This tool allows for upgrading the Foundation on all nodes simultaneously, ensuring consistency across the cluster. It streamlines the process by leveraging the existing Foundation infrastructure rather than requiring manual updates via a crash cart or the limited capabilities of the Foundation Applet for single node upgrades.

References:

• Nutanix Foundation Documentation: https://portal.nutanix.com
• Nutanix Upgrade Guide: Nutanix Foundation Upgrade Process

To satisfy the customer's requirements for maximum uptime and throughput in an AHV cluster deployment with link aggregation at the Top-of-Rack (TOR) switches, the consultant should:

• Bonded 2 x 40GbE Adapters with LACP Enabled for Storage Traffic and Guest Traffic using balance-tcp: This configuration leverages Link Aggregation Control Protocol (LACP) to combine the bandwidth of the two 40GbE adapters, enhancing both redundancy and throughput. The balance-tcp mode ensures effective load balancing of traffic based on TCP session ensuring optimal use of available bandwidth and improved fault tolerance.

References:

• Nutanix Bible (https://www.nutanixbible.com), particularly the sections discussing network configurations and LACP.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which covers advanced network settings for performance optimization.

When deploying the latest AOS along with the latest Nutanix hardware, it is essential for the consultant to review multiple sources of information to ensure a successful installation. Release Notes provide details about new features, improvements, and known issues in the latest version of AOS. Software Product Interoperability outlines compatibility between different software versions, ensuring that the AOS and any integrated applications or environments will function correctly. Field & Security Advisories inform about potential security issues and recommended practices to avoid common pitfalls or security risks.

References:

• Nutanix Bible: Documentation and Release Information
• Nutanix University: Installation and Security Best Practices

The Foundation version included with an AOS bundle can be found in the AOS Release Notes. These release notes typically provide detailed information about all components and versions included in the bundle, ensuring that users are aware of compatibility and new features.

References:

• Nutanix Bible (https://www.nutanixbible.com), where reference to locating AOS bundle details is mentioned.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), providing instructions on how to access and interpret AOS release notes.

In the scenario where the Foundation VM on a laptop is used for a cluster deployment, and an error indicating a failure to connect to the IPMIs is shown, the first troubleshooting step should be to disable the local machine's firewall to ensure it is not blocking traffic necessary for the Foundation VM to communicate with the IPMIs. Firewalls can often block essential ports or IP addresses needed for deployment operations, hindering the Foundation process.References: Nutanix Foundation Tool Troubleshooting Guide, Nutanix Deployment Common Issues.

The Nutanix Field Installation Guide primarily provides instructions for using Foundation. Foundation is the tool used for deploying, imaging, and configuring Nutanix nodes in a new installation or when expanding existing clusters. This tool is essential for setting up the Nutanix environment correctly and efficiently.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Foundation chapter (https://www.nutanixbible.com/)
