In a traditional FAS SAN configuration, ONTAP uses ALUA to distinguish optimized paths from non-optimized paths. Active/Optimized paths are serviced by the controller associated with the aggregate and LUN being accessed. These paths provide the preferred I/O route because data does not need to be forwarded through another controller. Paths through the HA partner remain available but are normally Active/Non-Optimized and are used when optimized paths become unavailable. NetApp host configuration guidance explicitly describes AFF and FAS systems as having higher-priority Active/Optimized paths serviced by the controller where the aggregate resides and lower-priority non-optimized paths served through another controller. Round-robin is a host multipathing policy and does not define ALUA path state. Relevant topics include ALUA, Active/Optimized paths, Active/Non-Optimized paths, FAS multipathing, and HA architecture.

Foreign LUN Import (FLI) is ONTAP ' s native block-level migration technology for importing SAN LUN data from an external source array into native ONTAP LUNs. FLI operates at the storage layer rather than requiring host file-copy utilities and supports controlled migration workflows across heterogeneous SAN environments. ONTAP initiator ports access the source array ' s target ports through the FC fabric, after which an import relationship is established between the source LUN and the destination ONTAP LUN. SyncMirror is used for synchronous plex mirroring within MetroCluster architecture, while SnapMirror and BlueXP replication are ONTAP replication technologies and do not provide this foreign-array LUN import workflow. The precise source-array/model combination must also be validated against NetApp interoperability requirements. Relevant topics include FLI discovery, FC zoning, foreign LUNs, import relationships, and migration validation.

Selective LUN Mapping (SLM) and portsets are ONTAP mechanisms specifically used to control the number of paths visible between hosts and mapped LUNs. SLM automatically limits LUN access to paths through the node that owns the LUN and its HA partner, reducing unnecessary paths in larger clusters. A portset provides additional restriction by defining exactly which FCP or iSCSI LIFs an igroup can use to reach its mapped LUNs. NetApp notes that portsets can be combined with SLM when further path restriction is required. ALUA identifies optimized and non-optimized paths but does not itself reduce the number of visible paths. An igroup controls which initiators can access a LUN but does not independently restrict target LIF visibility. Relevant topics include SLM, portsets, igroups, SAN multipathing, and path-count optimization.

To verify the cabling of a four-node NetApp ONTAP SAN cluster after installation, the recommended tool is Active IQ Config Advisor. This tool provides detailed checks for proper configuration, including cabling verification, and helps ensure that best practices are followed for optimal performance and reliability.

For further details, see:

NetApp Active IQ Config Advisor

The network port reachability show command is the best troubleshooting choice because it validates Layer-2 reachability for ONTAP Ethernet ports against their expected broadcast domains. NetApp documents that this command reports expected reachability, actual reachability, and conditions such as misconfigured reachability, making it directly useful when an NVMe/TCP LIF repeatedly disconnects because of an underlying network-path or VLAN/broadcast-domain problem. ipspace show only displays IPspace configuration, and vserver nvme subsystem show focuses on NVMe subsystem objects rather than Ethernet path health. cluster ping-cluster tests the cluster network and is not the correct diagnostic for a client-facing NVMe/TCP data LIF. Relevant SAN ONTAP topics are NVMe/TCP networking, Ethernet port reachability, broadcast domains, VLAN connectivity, and SAN network troubleshooting.

NetApp Windows Host Utilities are used to configure Windows hosts correctly for ONTAP SAN storage and include support for Microsoft Multipath I/O configuration. During Host Utilities installation, multipathing support can be selected when multiple paths exist between the Windows server and the storage system. The package also configures required Windows registry and storage parameters so the host correctly handles ONTAP pathing behavior. Device Mapper Multipathing is primarily associated with Linux and is therefore inappropriate for Windows Server. An iSCSI target represents the storage endpoint and does not itself configure host multipathing. ANA is the NVMe multipathing mechanism and does not apply to an iSCSI LUN. Relevant SAN ONTAP topics include Windows Host Utilities, Microsoft MPIO, iSCSI host configuration, ALUA, redundant SAN paths, and Windows Server interoperability.

To ensure that Snapshot copies of database files across multiple FCP LUNs are taken at the same point in time, the following configurations can be used:

Create a consistency group that uses FlexVol volumes: This setup ensures that snapshots of all volumes in the consistency group are taken simultaneously.

Create each LUN within the same FlexGroup volume: This configuration allows for a unified snapshot across multiple LUNs within the FlexGroup, ensuring data consistency.

For more details, see:

NetApp Documentation on Consistency Groups

NetApp FlexGroup Overview

To configure a Snapshot copy of all LUNs simultaneously as a single unit in an application with multiple LUNs spread across several volumes, the command vserver consistency-group create should be used. This command creates a consistency group that allows for coordinated snapshot creation across multiple volumes, ensuring that the snapshots are consistent with each other.

For more information, you can refer to:

NetApp ONTAP Consistency Group Documentation

NetApp Community Discussions on Consistency Groups

ONTAP manages the MTU consistently across ports belonging to the same broadcast domain. To transition the storage network from the standard 1500-byte MTU to jumbo frames, the administrator modifies the MTU of the appropriate broadcast domain. The applicable operation is network port broadcast-domain modify, represented by broadcast-domain modify in the answer choices. NetApp documents 9000 bytes as a typical jumbo-frame MTU and notes that changing a broadcast-domain MTU changes the MTU for all ports contained in that domain. The surrounding Ethernet path—including host NICs and switch interfaces—must also support the configured MTU end to end. Changing an individual LIF, subnet, or unrelated port property does not provide the correct broadcast-domain-wide MTU configuration. Therefore, option C is the correct ONTAP configuration operation.

To move SAN LIFs to new nodes that are members of a portset during maintenance of a NetApp AFF ONTAP cluster, you should take the following steps:

Remove the LIF from the portset: This ensures that the LIF is no longer associated with the current node, preparing it for the move to the new node.

Take the SAN LIF offline: This step is necessary to make configuration changes without causing disruption to the SAN hosts. Once offline, the LIF can be moved to the new node and reconfigured as needed.

These actions help maintain the integrity and performance of the SAN environment during the migration of LIFs.

For more details, see:

NetApp Documentation on Moving SAN LIFs

NetApp Community on Moving LIFs

ONTAP supports iSCSI LIF migration between nodes specifically on All-Flash SAN Array (ASA) platforms running ONTAP 9.11.1 or later. The migration is restricted to ports on the LIF’s home node or its HA partner, and the applicable CLI operation is network interface migrate. Standard AFF and FAS configurations do not provide the same cross-node iSCSI LIF migration capability described in this scenario. For those systems, an iSCSI LIF normally must be created on the required destination node rather than migrated between nodes. The ucadmin modify command changes unified adapter personality and is unrelated to LIF migration. Therefore, option D correctly combines the supported ASA platform with the appropriate ONTAP command. Relevant topics include ASA SAN networking, iSCSI LIF mobility, HA partners, LIF migration, and nondisruptive SAN operations.

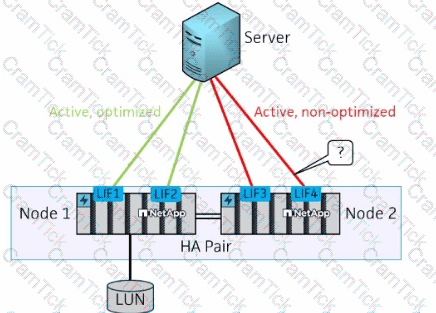

In the scenario where a storage failover is performed on Node 1 in an HA pair, the path marked in the exhibit would become Active/Nonoptimized. After the failover, the LIFs from Node 1 that were active and optimized will switch to Node 2. Paths that were previously optimized will become nonoptimized because they are now served through the partner node.

For more details, see:

NetApp Documentation on ALUA

The recommended setting for using the NetApp ONTAP LUN fractional reserve is to set the space guarantee to " volume " . This setting ensures that the required space for overwrites in the volume is reserved, preventing potential write failures when snapshot copies are created. This setup helps in maintaining the performance and reliability of the storage system by ensuring there is always enough space allocated for the LUN.

For further details, you can refer to:

NetApp Community Discussion on Fractional Reserve

NetApp Documentation on Space Management

Based on the output of the command lun igroup show -instance, which lists the protocol as fcp and the initiator as server1.netapp.com, the initiator type is WWPN (World Wide Port Name). In Fibre Channel Protocol (FCP) environments, WWPNs are used to uniquely identify Fibre Channel devices. This contrasts with IQNs used in iSCSI, and NQNs used in NVMe over Fabrics.

For more details, refer to:

NetApp Documentation on Initiators

To protect an Oracle RAC Automatic Storage Management (ASM) instance and ensure automated restores, the recommended tool is the NetApp SnapCenter plugin. SnapCenter provides comprehensive backup, restore, and clone capabilities for Oracle databases, including those using ASM. It integrates tightly with Oracle RAC environments and automates the entire data protection process, ensuring that backups are consistent and restores are efficient and reliable.

For more details, refer to:

NetApp Documentation on SnapCenter for Oracle​ ( NetApp )​.

NetApp TR-4964: Oracle Database Backup, Restore, and Clone​ ( NetApp )​.

When using Foreign LUN Import (FLI) for migrating LUNs from third-party SAN arrays to a NetApp ONTAP system, one of the requirements is to have at least one Fibre Channel (FC) port configured in target mode on the destination NetApp ONTAP cluster. This configuration is necessary to facilitate the migration process as the target mode port will accept and manage incoming data from the source SAN arrays.

For additional details, refer to:

NetApp Documentation on FLI

Fibre Channel zoning is configured and maintained within the FC switching fabric. ONTAP hosts and storage LIFs provide WWPN identities, but the switch configuration determines which initiator and target ports are permitted to communicate. NetApp’s FC zoning guidance instructs administrators to log in to the FC switch administration interface, create zones containing host initiator WWPNs and ONTAP FC LIF WWPNs, save the zones, and activate the resulting zone configuration. Cisco environments use zones and zonesets, while comparable constructs exist on Broadcom/Brocade fabrics. Neither the host HBA nor the ONTAP storage system stores the authoritative fabric zoning configuration. Therefore, the FC switches are the correct location. Relevant SAN ONTAP topics include FC fabric design, WWPN zoning, zonesets, dual-fabric configurations, and SAN connectivity.

For a two-node cluster serving iSCSI LUNs, it is recommended to create two iSCSI LIFs per node. This configuration provides redundancy and load balancing, ensuring that each node can handle failover scenarios effectively and maintain high availability for the iSCSI connections.

For more details, see:

NetApp Documentation on iSCSI LIF Configuration

For an FC-attached VMware VMFS datastore migrated through SnapMirror, maintaining the expected LUN identity is critical when presenting the replicated LUN from the destination cluster. VMware uses persistent SCSI device identifiers associated with the LUN, including its serial-based identity, when recognizing an existing VMFS device. ONTAP provides the lun modify -serial capability specifically to modify a LUN serial number. Therefore, after the SnapMirror destination is made writable, the destination LUN ' s serial number must be configured appropriately before the LUN is mapped back to the VMware initiators. Creating a FlexClone, restoring from a Snapshot copy, or changing the LUN OS type does not address device identity. Relevant SAN ONTAP topics include SnapMirror SAN migration, LUN identity, LUN serial numbers, VMware VMFS, and LUN mapping.

ONTAP provides dedicated FCP connectivity tests for validating communication between host initiators and FC LIFs. The vserver fcp ping-igroup show command performs a connectivity check between FCP initiators contained in an igroup and the FCP LIFs through which those initiators are configured to connect. The vserver fcp ping-initiator show command performs the equivalent validation for an individual FC initiator. These commands are therefore appropriate after zoning a new FCP SVM to SQL hosts. cluster ping-cluster validates ONTAP ' s internal cluster network and is unrelated to host-to-storage FC connectivity. network fcp zone show displays discovered FC zoning information but is not the specific FCP initiator connectivity test requested. Relevant SAN ONTAP topics include FC zoning validation, igroups, WWPN connectivity, FCP LIFs, and SAN troubleshooting commands.

The correct tool for designing an FC SAN solution consisting of a NetApp ONTAP system, Broadcom switches, and servers is the " NetApp Verified Architecture " (NVA). The NetApp Verified Architecture provides comprehensive blueprints and detailed implementation references. These blueprints are thoroughly tested, prescriptive in nature, and designed to minimize deployment risks and accelerate time to market. They are specifically designed to help ensure that the architecture meets the high standards required for enterprise environments.

NVA documents include design guides, best practices, and detailed configuration steps, making them invaluable for planning and deploying complex solutions like the one described.

For more information, you can refer to the official NetApp documentation on NetApp Verified Architectures:

NetApp Verified Architecture Program Summary

NetApp Verified Architecture Overview

These resources provide detailed insights into the architecture, including technology requirements, deployment procedures, and additional references for further reading.

After deleting a LUN, if the space does not show as available, performing space reclamation is necessary. Space reclamation involves identifying and reclaiming unused space on the storage system, making it available for new data. This process ensures that the deleted LUN ' s space is properly freed up and reflected in the available storage capacity.

For more details, refer to:

NetApp Documentation on Space Reclamation

NetApp Community on Free Space Reclamation

For a redundant two-node FC SAN configuration, NetApp requires two FC LIFs per node when redundancy must exist across both the node and fabric layers. Each node should have connectivity to both independent fabrics, normally through one FC LIF per fabric. With two controller nodes, this results in four SAN LIFs in total. Although ONTAP can technically support a minimum of one FC LIF per node for an SVM, that would provide only two LIFs and would not satisfy the stated requirement for redundant node-layer and fabric-layer connectivity. NetApp ' s FC SVM configuration guidance specifically states that two LIFs per node and two fabrics provide this redundancy. Relevant SAN ONTAP topics include FC SVM configuration, SAN LIF design, dual-fabric architecture, multipathing, node redundancy, and high availability.

A QFULL response indicates that the storage controller’s FC target-port command queue has reached its supported capacity and cannot accept additional SCSI commands. With 90 hosts generating I/O, excessive fan-in to the existing target ports can exhaust available queue resources. Configuring additional FC target ports allows host connections and queued commands to be distributed across more storage-side target resources, reducing pressure on each individual target port. Increasing initiator queue depth would worsen the condition because hosts could submit more outstanding commands. Similarly, increasing target-port queue depth is not the appropriate administrator-controlled remedy presented here because the physical target adapter has defined queue limits. NetApp recommends planning host fan-in carefully to avoid QFULL conditions. Relevant topics include FC queue depth, target-port fan-in, QFULL responses, SAN scalability, and FC target-port design

Implementing VLANs for NVMe/TCP configurations provides several benefits, two of which are increased resiliency and increased security:

Increased Resiliency: VLANs help segment the network traffic, reducing the risk of a single point of failure. By isolating NVMe/TCP traffic into specific VLANs, network issues can be contained within a VLAN, preventing them from affecting other parts of the network. This isolation ensures that disruptions are minimized and network resiliency is enhanced.

Increased Security: VLANs provide an added layer of security by segregating traffic. This segregation ensures that NVMe/TCP traffic is isolated from other types of traffic, reducing the risk of unauthorized access or data breaches. VLANs help in enforcing stricter access controls and monitoring, thereby increasing the overall security of the network.

For more information on the benefits of VLANs in NVMe/TCP configurations, you can refer to NetApp ' s technical resources:

Implementing and Configuring Modern SANs with NVMe-oF ​ ( NetApp )​.

SAN Configuration Best Practices​ ( NetApp Community )​.

The space-allocation option enables ONTAP support for SCSI thin-provisioning functions and allows compatible SAN hosts to manage and reclaim unused LUN space. When space allocation is enabled, ONTAP can communicate storage-space conditions to the host and support host-initiated space reclamation through mechanisms such as SCSI UNMAP. NetApp specifically states that enabling space allocation allows SAN hosts to reclaim storage that is no longer being used. space-reserve controls whether physical capacity is reserved for the LUN but does not provide host-side reclamation. resize relates to changing storage size, and alua controls asymmetric path behavior rather than capacity management. Current ONTAP releases enable space allocation by default for many newly created SAN objects. Relevant SAN ONTAP topics include LUN thin provisioning, SCSI UNMAP, space reclamation, and LUN space-allocation configuration.

Active IQ OneCollect is the appropriate discovery tool when the engineer needs an end-to-end inventory of a SAN environment. NetApp describes OneCollect as a structured data-collection utility that gathers information across storage systems, hosts, fabrics, and switches. That scope is specifically useful when existing documentation is missing and the engineer must understand initiators, HBAs, zoning or fabric details, host configuration, and storage targets before remediation or migration work. Upgrade Advisor is intended for ONTAP upgrade planning, while Unified Manager focuses on monitoring and management rather than broad discovery collection. Config Advisor validates configuration and cabling against supported practices, but it is not the primary end-to-end inventory collector described in this scenario. Relevant SAN ONTAP topics are SAN discovery, OneCollect data collection, host and fabric inventory, configuration assessment, and implementation documentation.

In a traditional AFF or FAS SAN configuration using ALUA, paths through the controller that owns the LUN are reported as Active/Optimized. Paths entering through another controller can be Active/Non-Optimized. When I/O arrives through an active, non-optimized path, ONTAP must forward that I/O internally to the node servicing the LUN. This indirect data path uses the ONTAP cluster interconnect, represented in the choices as the cluster network, and therefore introduces additional latency compared with a direct optimized path. The external FC fabric transports traffic only as far as the target LIF; the HA interconnect is associated primarily with HA-pair storage failover functions, and the peering network is used for intercluster communications and replication. Relevant SAN ONTAP topics include ALUA, optimized versus non-optimized paths, cluster interconnect forwarding, SLM, and FCP multipathing.

ONTAP igroups can be created with an fcp, iscsi, or mixed protocol type. An iSCSI igroup is therefore valid for presenting the existing LUN specifically to the new iSCSI host. A mixed igroup is also valid because it permits both Fibre Channel and iSCSI initiators and can be used when access to a LUN involves both protocol types. ONTAP permits an igroup to be mapped to multiple LUNs and a LUN to be presented through appropriate SAN igroup mappings. Creating another FC-only igroup would not accommodate the new iSCSI initiator. A subsystem belongs to the NVMe architecture and is used to map NVMe namespaces to NVMe hosts; it is not used for FCP or iSCSI LUN presentation. Thus, both iSCSI and mixed igroups are valid configurations for the requirement.
