NSE5_FWB_AD-8.0 Fortinet NSE 5 - FortiWeb 8.0 Administrator Questions and Answers

When FortiWeb is deployed behind a load balancer or upstream proxy, it may see only the load balancer IP address as the source for every request. This causes poor client identification and can lead FortiWeb to block many legitimate users as if they are one abusive client. The correct fix is to preserve the original client IP address in an HTTP header, commonly using X-Forwarded-For or a similar trusted client-IP header. FortiWeb can then be configured to read that header for accurate client identification, logging, rate limiting, and IP-based security decisions. Bot detection, signature updates, and HTTPS caching do not solve the core source-IP visibility problem.

================

The requirement is to track user behavior over time and respond when cumulative activity becomes risky. FortiWeb client management and threat scoring are built for that purpose. When enabled in the protection profile, FortiWeb can associate activity with a client, assign threat weights to suspicious behavior, and apply actions such as alerting, denying, or period blocking after a defined score threshold is exceeded. Rate limiting is useful for traffic volume, but it does not evaluate a user’s full behavior pattern. A custom signature blocks a specific pattern immediately, not cumulative behavior. Cookie security protects session cookies but does not calculate behavioral risk. The correct configuration is scoring in the protection profile to track and respond to repeated risky actions.

================

To validate HA synchronization, the administrator should compare the configuration areas that affect traffic handling and security enforcement. Network configuration, such as interface and routing alignment, is important because HA peers must process traffic consistently. Policy configuration is also critical because server policies, protection profiles, rules, and related web security settings determine how FortiWeb inspects and blocks requests. Logs are not the right synchronization target for this question; log files are used for investigation, not for proving configuration synchronization. Firmware images and upgrade history are also not the normal operational configuration areas used to verify HA policy behavior. The correct verification focus is network configuration consistency and web protection/server policy consistency across the HA cluster.

================

The problem is not that the API key is invalid; the key belongs to a real user. The issue is authorization scope: group B is allowed only to access /api/v1/reports, but the request targets /api/v1/data. The correct FortiWeb control is API gateway rule enforcement using API key verification and API user grouping. FortiWeb can restrict API access by user group, sub-URL, API key verification, and configured violation actions. Blocking the endpoint for every group is too broad, moving the user to another group grants unnecessary privilege, and allowing all API keys to access all endpoints destroys endpoint-level authorization. The correct fix is group-based access control on /api/v1/data.

================

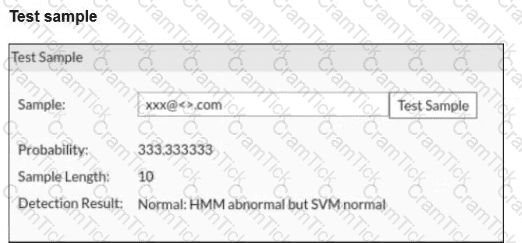

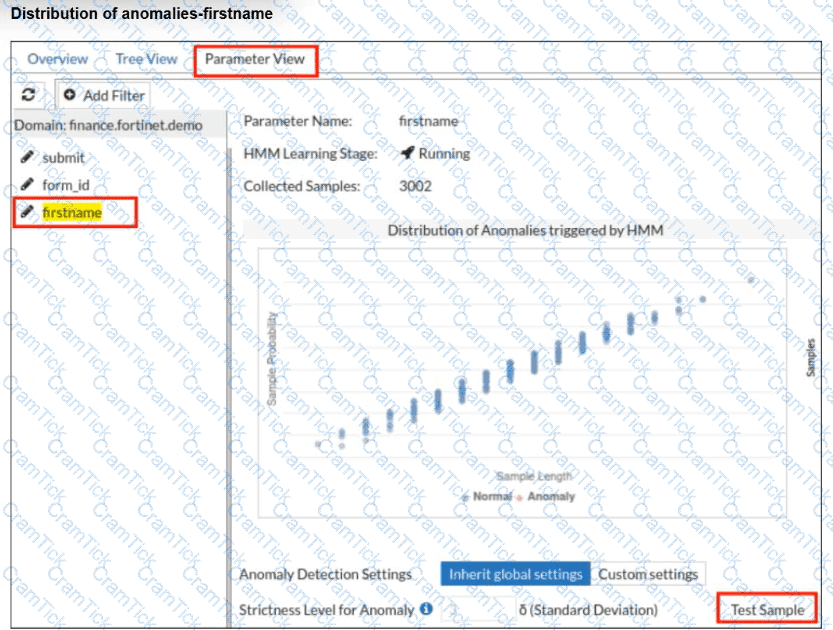

FortiWeb machine learning uses layered detection rather than treating every unusual value as malicious. The HMM layer models normal parameter behavior and can flag a value as abnormal when it falls outside the learned distribution. However, abnormal does not automatically mean hostile. FortiWeb then uses additional ML classification logic, including SVM-based evaluation, to determine whether the anomaly resembles an actual attack or simply a legitimate unusual input. In this case, HMM noticed that the value was uncommon, but SVM classified it as normal, so FortiWeb allowed the request. That is expected behavior. Raising thresholds, disabling models, or assuming FortiWeb failed would misunderstand the two-stage ML decision process.

================

SSRF is an application-layer abuse case where attacker-controlled input causes the backend application to make unintended server-side requests. FortiWeb controls such as parameter validation, file security, and ML anomaly detection reduce risk, but SSRF often succeeds when the application accepts weakly validated URLs, hostnames, redirects, metadata endpoints, internal IP ranges, or backend-only resources. Disabling ML would weaken protection. Moving SSRF protection to FortiGate is wrong because SSRF depends on HTTP/API logic, not only network-layer filtering. HTTPS inspection alone does not solve unsafe backend request behavior. The correct priority is to refine input validation and filtering logic so FortiWeb can better detect and block malicious URL, parameter, and backend-request patterns.

================

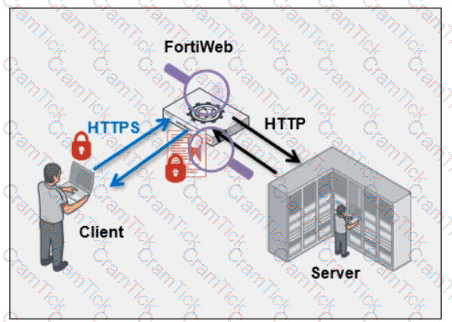

In SSL offloading, FortiWeb is the TLS endpoint for client connections. The client negotiates HTTPS with FortiWeb, not directly with the back-end web server. Therefore, FortiWeb must have the website certificate and associated private key so it can complete the TLS handshake, decrypt inbound HTTPS traffic, inspect the HTTP content, and then forward the request to the server using HTTP or a separate back-end connection. Option B is wrong because TLS termination requires the private key. Option C describes SSL inspection or direct server termination, not offloading. Option D is wrong because clients verify the certificate but do not possess or use the server’s private key. FortiWeb owns the private-key function in this design.
