NSE6_FSM_AN-7.4 Fortinet NSE 6 - FortiSIEM 7.4 Analyst Questions and Answers

FortiSIEM applies tags to FortiClient EMS-managed hosts through FortiEMS integration. The FortiSIEM 7.4 User Guide states that FortiSIEM supports discovery of FortiEMS servers using the FortiEMS Management Server API with username/password authentication. That supports option A: FortiEMS API credentials must be configured on FortiSIEM. The same guide explains that after FortiEMS discovery, “FortiSIEM can tag or untag a host, using classification tags on FortiEMS server.” It further explains the ZTNA workflow: in ZTNA, these tags are imported by Fortinet devices, especially FortiGate firewalls, and referenced in ZTNA firewall rules. That supports option C: the tag value used for ZTNA classification must be available/defined for the FortiEMS tagging workflow. Option B is not the best required configuration in the question because a remediation script is an execution method, not one of the two foundational settings being asked for. Option D reverses the API relationship; FortiSIEM connects to FortiEMS using FortiEMS credentials, not FortiSIEM API credentials stored on EMS.

The correct answer is A because CMDB objects are referenced from the Value field after selecting the appropriate event attribute and operator. The FortiSIEM Study Guide gives a structured search example that references the CMDB. In that example, the attribute is Reporting IP, the operator is IN, and the value is selected from CMDB groups such as Devices: Windows and Networks: Inside Net. The guide explains that to show events reported by Windows servers within a specific network, you set the attribute and operator first, then browse the CMDB and select the relevant CMDB group value. This confirms the workflow: the CMDB reference is chosen as the value of the condition, not as the attribute itself. Option B is incorrect because the CMDB tab is not used to launch the analytics search this way. Option C is not a valid workflow. Option D is wrong because the attribute is selected from event or CMDB attribute lists, while the CMDB object or group is selected in the value field.

The rule is triggering on successful RDP connection events because the Next operator between the two subpatterns is set to OR . The FortiSIEM Study Guide explains that multiple subpattern rules are used when patterns must occur within a specific time period or when one of several patterns proves that an incident condition exists. It lists the OR operator as: “Subpattern X OR Subpattern Y occurred within the Time Window.” The same Study Guide further explains that if multiple patterns are used, FortiSIEM requires a next operator, and in the OR example, “an event that matches either” subpattern will trigger. It also states that because the next operator is OR, the constraint between the two subpatterns is not enforced.

In the exhibit, Subpattern 1 matches RDP traffic on TCP/UDP port 3389 from FortiGate traffic-forward events, while Subpattern 2 matches logon failure events with COUNT(Matched Events) > = 3. Because the rule uses OR, FortiSIEM can trigger when only the RDP connection subpattern matches, even if the failed-logon subpattern does not match. The correct logic should require both subpatterns to match with the intended relationship constraints, not either subpattern independently.

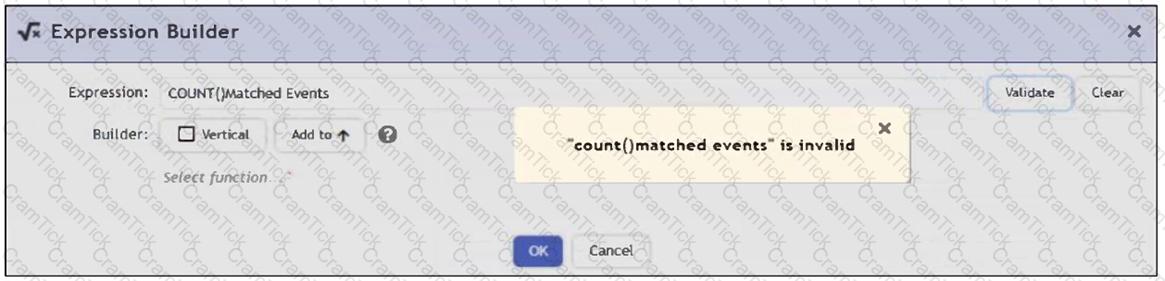

The correct syntax is COUNT(Matched Events) - with proper capitalization and spacing - to generate a total count of matched events. The error in the exhibit likely stems from a formatting issue (e.g., lowercase count() or incorrect spacing), not the logical structure of the expression.

COUNT(Matched Events) . FortiSIEM uses aggregate functions inside rule subpatterns and analytics display fields to calculate values such as the number of matched events. The Study Guide explains that rule conditions are built from subpatterns of event attribute filters and aggregation functions. It also shows that the Aggregate section is where expressions such as COUNT(Matched Events) are used to define event-count thresholds. In the exhibit, the expression is intended to generate a total count of matched events. The proper function format is the aggregate function name followed by the target field inside parentheses. Therefore, COUNT(Matched Events) is syntactically valid. Options B, C, and D are invalid because they place the function name outside the standard function-call format or attach the argument incorrectly. This matters because FortiSIEM’s Expression Builder validates expressions according to function syntax. To count matched events, the function must be written as an aggregate operation over the Matched Events field.

The correct answers are A. Process and C. Resources. FortiSIEM UEBA/EBA analytics uses endpoint and behavior-related telemetry to identify abnormal activity. The Study Guide explains that the UEBA incident dashboard shows incidents that the AI module creates based on alerts received from FortiInsight. The UEBA attribute list includes the incident name, host, application, user, tag, and activity. This aligns with process-oriented activity monitoring from endpoint agents. The performance and baseline lessons also explain that FortiSIEM collects performance and availability data from devices and applications, including resource-utilization metrics, and uses that information to build baselines and detect anomalous activity. Resource behavior includes CPU, memory, disk, I/O, and similar utilization patterns, which are valid behavioral-model inputs. Location and Network are important FortiSIEM context areas, but in this question’s EBA machine learning model choices, the valid model areas are process behavior and resource behavior. Process reflects what is running or being executed; Resources reflects system or application utilization behavior. Together, these are the two data areas used for EBA machine learning models.

The user initiates an RDP session (Subpattern 1) and then fails to log in multiple times (Subpattern 2 with COUNT(Matched Events) > = 3) - both from the same Source IP and User within 300 seconds.

The brute force attempts typically involve a successful RDP connection followed by multiple failed logins, satisfying the sequence and grouping conditions in the rule.

The correct answers are A and B because the rule uses multiple subpatterns and requires them to occur in a defined relationship within the configured time window. The FortiSIEM Study Guide states that rule conditions specify the event attributes and thresholds that trigger the rule and create an incident. It also explains that the time window is the period “within which the subpattern(s) must match for the rule condition to be satisfied,” and that when there is more than one subpattern, FortiSIEM requires logic between the subpatterns plus subpattern relationship constraints. In the exhibit, the first subpattern detects an RDP connection and the second detects failed logons. The rule condition uses a sequence relationship, so the failed logon activity must follow the RDP connection and match the relationship constraints, such as same user and source IP. A user using RDP over SSL VPN who fails repeatedly satisfies this logic. A brute-force attack against an RDP server also satisfies the repeated failed-logon requirement after an RDP connection. Failing only twice does not meet the aggregate threshold, and connecting to the wrong IP is not the failed-logon sequence being detected.

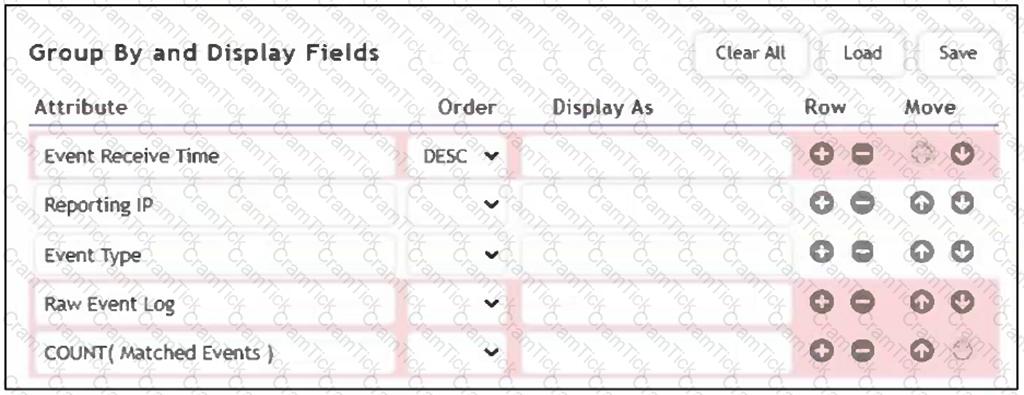

The fields are highlighted in red because unique values such as Event Receive Time and Raw Event Log cannot be used in group-by operations. Grouping requires aggregatable or consistent values across events, while these fields are unique to each event, making them incompatible for grouping.

The correct answer is A because the highlighted fields are not valid for that grouped/aggregated display configuration. The FortiSIEM 7.4 User Guide notes that some event attributes, functions, and queries are not supported in specific analytics result-filter and display contexts. It lists date fields, including examples such as Event Receive Time , and also lists Raw Event Log and Binary Raw Event Log among unsupported fields for that context. The reason is practical: grouping requires stable values that can combine multiple events into meaningful grouped rows. Attributes such as Event Receive Time and Raw Event Log are highly specific to individual events. If every event has its own receive timestamp or unique raw log content, grouping by those fields defeats aggregation and can create one row per event rather than meaningful grouped output. COUNT(Matched Events) itself is a valid aggregate expression when used correctly. Event Receive Time is available in logs, but it is not appropriate as a grouped field in the configuration shown. Therefore, the red highlighting indicates invalid grouped fields caused by unique/non-groupable values.

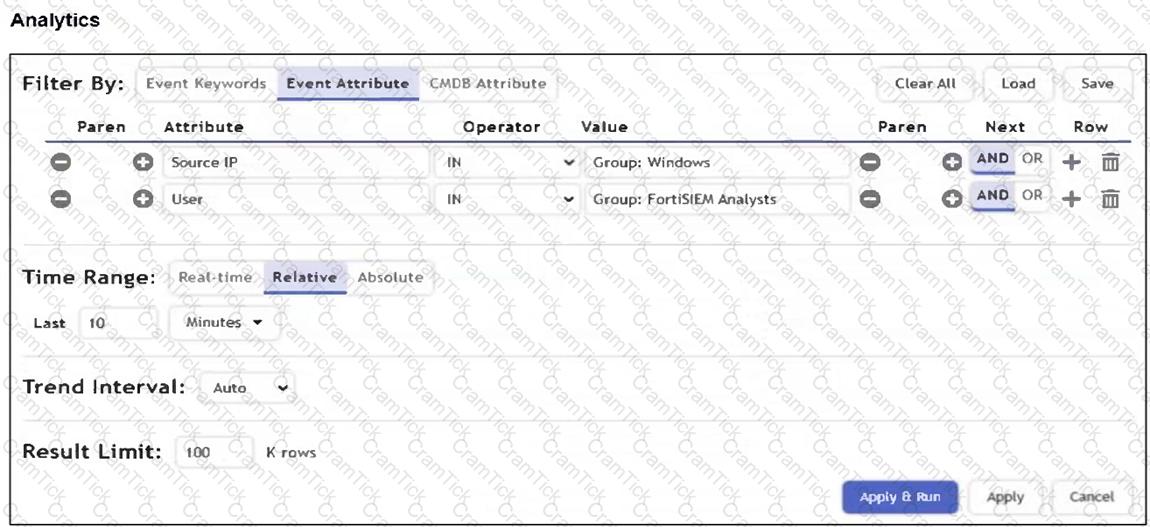

The correct answer is C. CMDB user group . In FortiSIEM, users and user groups are maintained as CMDB objects and can be referenced in analytics filters and rule logic. The FortiSIEM 7.4 User Guide table of contents explicitly includes CMDB management for users, viewing user information, adding users, editing or deleting users, performing operations on users, and working with user groups. This confirms that user groups are part of the FortiSIEM CMDB data model. The query shown in the exhibit uses the Analytics filter with the User attribute and the value Group: FortiSIEM Analysts . That syntax indicates that FortiSIEM is referencing a FortiSIEM-defined user group from CMDB, not an LDAP group directly and not an Active Directory group directly. LDAP and Active Directory can be used to discover or authenticate users, but once referenced as a FortiSIEM analytics group value, the object is a CMDB user group. FortiSIEM organization groups are tenant/organization constructs and are not the same as CMDB user groups.

The correct answer is A. FortiSIEM agent. The FortiSIEM Study Guide identifies FortiSIEM agents as the component responsible for “file, log monitoring, and UEBA.” It also explains that FortiSIEM agents can be installed on endpoints or servers to provide data collection functions that native syslog may not provide. For Windows systems specifically, the guide states that Windows servers do not natively send syslog messages and that a FortiSIEM Windows agent can be installed to perform that function. The FortiSIEM 7.4 User Guide also confirms that FortiInsight UEBA functionality runs as an integrated module within the FortiSIEM Windows Agent in newer releases. SSH and SNMP are access or monitoring protocols; they can support discovery or performance monitoring, but they are not the UEBA data-sending component. A FortiSIEM worker performs analysis and search functions inside the FortiSIEM architecture; it is not installed on endpoints to collect UEBA telemetry. Therefore, the FortiSIEM agent is the correct mechanism for sending UEBA-relevant endpoint data to FortiSIEM.

The correct answer is D. ZTNA tags. FortiSIEM 7.4 includes FortiEMS endpoint tagging integration. The FortiSIEM 7.4 User Guide states that FortiSIEM supports discovery of FortiEMS servers by using the FortiEMS Management Server API with basic username/password authentication. It also explains that after FortiEMS discovery, FortiSIEM can tag or untag a host by using classification tags on the FortiEMS server. In a ZTNA deployment, those tags are imported by member Fortinet devices, especially FortiGate firewalls, and are referenced in ZTNA firewall rules. The guide gives a common use case in which a host is tagged as suspicious or potentially compromised so firewall rules can isolate it or allow only minimal traffic. Host software versions, FortiSIEM license information, and host login credentials are not the FortiEMS API information relevant to this ZTNA tagging workflow. The API integration supports retrieving FortiEMS-managed host context and using classification/ZTNA tags for automated response and policy enforcement.

The exhibit shows a machine learning Regression configuration. In FortiSIEM regression, selected numerical fields are used as predictors, and another field is selected as the value to predict. The FortiSIEM 7.4 User Guide’s Machine Learning section lists Regression separately and describes the training workflow, including selecting fields used by the algorithm. The exhibit shows Memory Utilization, Sent Bytes, and Received Bytes selected under Fields to use for Prediction, while CPU Utilization is selected under Field to Predict. This means Memory Utilization is an input variable used by the model. If memory utilization is consistently high during training or retraining, that higher value becomes part of the learned model pattern. FortiSIEM does not automatically trigger a high-memory incident merely because a regression input value is high; an incident would require inference behavior and an anomaly action or rule configuration. Option C is also wrong because FortiSIEM does not dynamically lower a CPU trigger threshold just because memory is high. The correct behavior is model update based on the higher observed input value.
