NSE7_CDS_AR-7.6 Fortinet NSE 7 - Public Cloud Security 7.6.4 Architect Questions and Answers

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiOS 7.6 Azure Administration Guide and the Fortinet 7.4 Public Cloud Security documentation regarding Azure Virtual WAN (vWAN) architectures, the choice of connectivity depends on the required performance, security, and scale:

ExpressRoute (Option D): For a large-scale enterprise deployment involving a company headquarters and multiple branch sites, ExpressRoute is the "best" and most robust solution. It provides a private, dedicated, and high-throughput connection (up to 100 Gbps) that bypasses the public internet entirely. This ensures predictable low latency and higher reliability compared to internet-based tunnels.

Virtual WAN Integration: Azure vWAN Standard SKU explicitly supports ExpressRoute gateways as a primary connectivity method for on-premises sites. This allows the vWAN hub to act as a global transit point, seamlessly connecting the ExpressRoute-linked headquarters to other branch sites and VNET spokes.

Scalability for Headquarters: While site-to-site IPsec VPNs are common for smaller branches, the "main company site" or headquarters typically requires the high bandwidth and SLA guarantees provided by ExpressRoute.

Why other options are incorrect:

Option A & B: L2TP and SSL VPN are primarily used for remote user access (Point-to-Site) rather than permanent site-to-hub infrastructure connections. vWAN uses OpenVPN or IKEv2 for user VPNs, not L2TP.

Option C: While GRE tunnels are used in some networking scenarios, they are not a native, primary gateway connectivity option for the Azure vWAN hub compared to the standardized Site-to-Site VPN (IPsec) and ExpressRoute.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiCNP 24.x Administration Guide and the FortiOS 7.6 Security Fabric Integration documentation, integrating a FortiGate-VM with FortiCNP requires specific local configurations on the FortiGate to ensure the cloud security platform can ingest and analyze traffic data.

Configuring Logging (Option C): Before adding the FortiGate VM to FortiCNP, the administrator must Enable Send Logs on the FortiGate. This allows the FortiGate to forward the necessary security telemetry and traffic logs to the FortiCNP cloud endpoint for threat correlation and risk analysis.

Policy and Inspection Setup (Option D): The integration relies on the FortiGate's ability to identify and block threats at the network layer. Specifically, the administrator must Create a FortiGate IPS Sensor and Create a FortiGate Firewall Policy. The IPS sensor detects malicious patterns, while the firewall policy dictates which traffic is subjected to this inspection.

Deep Packet Inspection (Option E): To provide visibility into encrypted traffic—which is critical for identifying threats hidden in HTTPS flows—the administrator must Create an SSL/SSH Inspection Profile on the FortiGate. Without this profile, FortiCNP would lose significant visibility into potential attack vectors utilizing encrypted channels.

Why other options are incorrect:

Option A: While pre-shared keys are used in VPN and some Fabric setups, they are not listed as one of the specific mandatory steps for the initial FortiGate-to-FortiCNP fabric integration workflow.

Option B: While certificate exchange is part of the overall trust relationship, the primary "mandatory configuration steps on FortiGate" defined in the official setup guide focus on the logging and security profile components required to generate the data FortiCNP needs.

According to the FortiOS 7.6 Azure Administration Guide and the Fortinet 7.4 Public Cloud Security documentation regarding monitoring and troubleshooting in Microsoft Azure, administrators must utilize native diagnostic tools to gain visibility into network traffic patterns:

NSG Flow Logs (Option D): Network Security Group (NSG) flow logs are a feature of Azure Network Watcher that allows you to record information about IP traffic flowing through an NSG. These logs capture critical 5-tuple information (source/destination IP, port, and protocol) and whether the traffic was allowed or denied by specific security rules.

Traffic Pattern Analysis with Azure Monitor: To effectively analyze the "pattern" of a traffic spike, these logs are typically sent to a Log Analytics workspace within Azure Monitor. By using Traffic Analytics, the raw flow data is processed into rich visualizations and searchable datasets. This allows administrators to run Kusto Query Language (KQL) queries to identify "top talkers," visualize traffic spikes over time, and correlate the timing of these spikes with application performance degradation.

Identifying Bottlenecks: This method is preferred for identifying bottlenecks because it provides a granular view of every packet entering or leaving the subnets where the FortiGate-VM or application servers are hosted, revealing the exact nature of the inbound volume.

Why other options are incorrect:

Option A: While Azure Firewall provides logging, it is an additional security layer that may not be deployed in all environments. NSG Flow Logs are the primary and more ubiquitous method for monitoring all subnet-level traffic regardless of firewall placement.

Option B: DDoS Protection is a preventative measure; it does not provide the historical "identification and analysis" of traffic patterns required to diagnose a past performance bottleneck.

Option C: Azure Traffic Manager is a DNS-based load balancer. While it provides high-level metrics, it does not have visibility into the actual flow-level traffic data needed for a detailed pattern analysis of application bottlenecks.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiOS 7.6 Azure Administration Guide and the Public Cloud Security documentation regarding Azure Gateway Load Balancer (GWLB) integration:

Encapsulation Overhead: Azure Gateway Load Balancer uses VXLAN (Virtual eXtensible LAN) to encapsulate the traffic before sending it to the FortiGate-VM HA cluster. This encapsulation adds a header that typically consists of 50 bytes for regular IPv4 traffic (Ethernet, IP, UDP, and VXLAN headers).

MTU Mismatch (Option A): The default maximum transmission unit (MTU) in Azure is 1500 bytes. If a protected VM sends a packet at the maximum default size (1500 bytes), and the GWLB then adds the 50-byte VXLAN header, the resulting encapsulated packet becomes 1550 bytes.

Packet Drops: If the FortiGate-VM's network interfaces are left at the default MTU of 1500 bytes, they will not be able to process the 1550-byte encapsulated frames without fragmentation. Because many network paths or configurations (including Azure's fabric for certain flows) may drop packets that require fragmentation or have the Don't Fragment (DF) flag set, this results in the observed intermittent connectivity issues and dropped traffic.

Required Resolution: To resolve this issue, administrators must increase the MTU on the FortiGate-VM interfaces (specifically the one receiving GWLB traffic) to at least 1570 bytes to accommodate both IPv4 and IPv6 VXLAN overhead.

Why other options are incorrect:

Option B: While an incorrect health probe port would cause the GWLB to mark the FortiGate as down, it would typically lead to a complete loss of traffic flow through that instance rather than intermittent packet drops within an active flow.

Option C: The GWLB itself is the component adding the overhead; it is the FortiGate's inability to receive the larger resulting frame (due to its own default MTU setting) that causes the failure.

Option D: Packet fragmentation by the application is a secondary effect. The primary "intermittent" issue described in GWLB deployments is almost always related to the tunneling overhead exceeding the receiving interface's MTU.

According to the FortiOS 7.6 Azure Administration Guide and the Cloud Security 7.4 Public Cloud Study Guide, the integration of FortiGate-VMs with an Azure Gateway Load Balancer (GWLB) requires specific network configurations to ensure packet transit:

IP Forwarding Requirement (Option A): By default, Azure Network Interfaces (NICs) drop any traffic that does not originate from or is not destined for the IP address assigned to that NIC. For a FortiGate to act as a "bump-in-the-wire" or transparent inspector, it must receive traffic destined for other IPs and forward it. This requires the IP Forwarding setting to be explicitly enabled on the FortiGate's network interfaces within the Azure portal. If this is disabled, the Azure fabric will discard the traffic being steered through the FortiGate HA cluster by the GWLB.

VXLAN Encapsulation: The Azure GWLB uses VXLAN to encapsulate traffic (adding a VXLAN header with a specific VNI) before sending it to the FortiGate. The FortiGate must terminate this VXLAN tunnel. While the VXLAN configuration is crucial, the underlying infrastructure check for IP Forwarding is the most common cause of traffic being blocked at the NIC level before the FortiOS stack can process the packet.

Why other options are incorrect:

Option B: If health probes fail, the GWLB will typically stop sending traffic to that specific instance. While this affects the HA cluster's availability, the question states traffic is not being routed correctly through the firewalls (implying an active flow issue), and the primary mechanism for allowing a VM to process third-party traffic in Azure is IP Forwarding.

Option C: NSGs are typically applied to the NIC or Subnet. While incorrect NSG rules can block traffic, "IP Forwarding" is a specific requirement for the FortiGate to function as a network appliance (NVA) regardless of the NSG state.

Option D: Azure GWLB supports cross-subscription and cross-tenant chaining. The consumer (protected VMs) and the provider (FortiGate HA cluster) do not need to be in the same subscription, provided the GWLB endpoint is correctly mapped.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

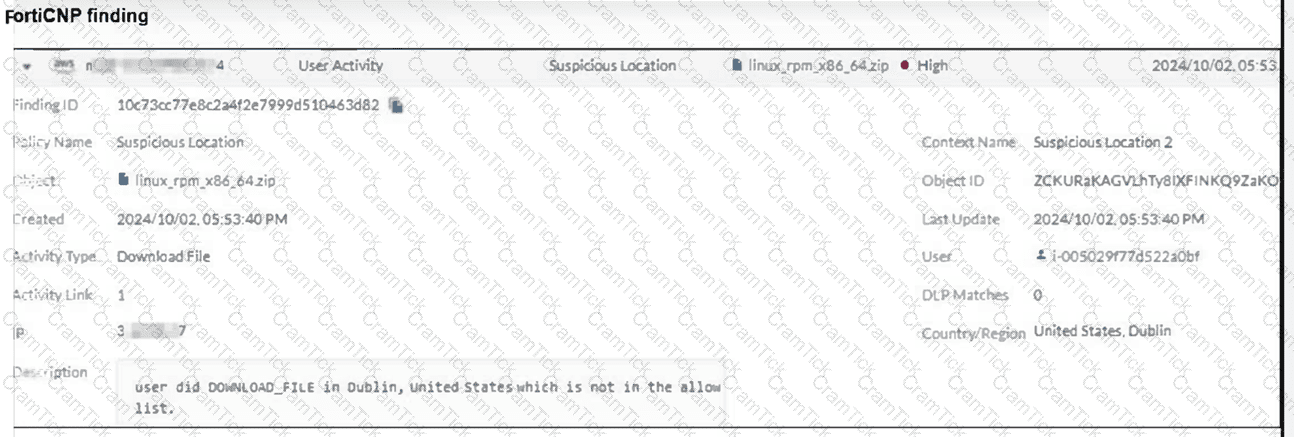

Based on the FortiCNP 22.4/24.4 Administration Guide and the Fortinet Cloud Security Study Guide, findings in FortiCNP are categorized by the specific policy type that triggered the alert.

Threat Detection Policy (Option B): This policy category is designed to monitor and alert on anomalous User Activity and Network threats. Specifically, "Suspicious Location" is a predefined threat detection rule that triggers when a user performs an action (such as a Download File as seen in the exhibit) from a geographic location or IP address that is not on the organization's allow list or deviates from established behavioral baselines. The exhibit explicitly shows the "Activity Type" as "Download File" and the "Policy Name" as "Suspicious Location," both of which fall under the Threat Detection > User Activity policy tab.

Policy Hierarchy and Finding Types:

Threat Detection: Includes User Activity (Suspicious Location, Suspicious Time, Suspicious Movement) and Network findings.

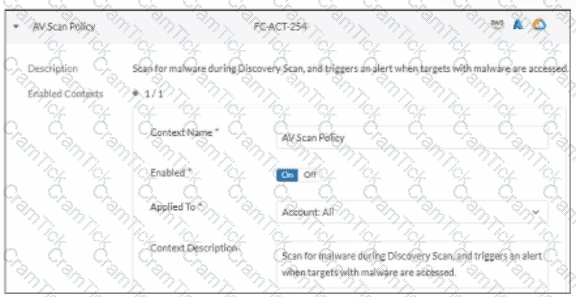

Data Scan Policy (Option A): These policies are used for content-level inspection, such as searching for Malware or Data Loss Prevention (DLP) patterns like credit card numbers within files.

Risk Management Policy (Option C): These policies focus on Cloud Security Posture Management (CSPM), alerting on misconfigurations such as unencrypted buckets or disabled logging (e.g., CloudTrail).

File Collection (Option D): While "File Collection" is a configuration object used to define a group of files for monitoring, it is not the policy type that generates a behavioral alert like "Suspicious Location".

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

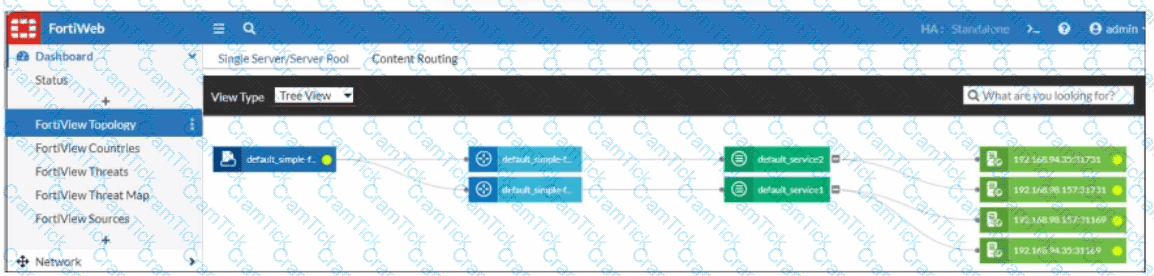

According to the FortiWeb 7.4 Administration Guide and the FortiWeb Ingress Controller Installation Guide, the status of backend servers in the FortiView Topology dashboard is a direct reflection of the health check results.

Interpreting the Status Icon (Orange): In the FortiView Topology view, a green circle indicates that the server is up and responding to health checks, while an orange circle indicates that the server is not running or is unreachable.

Connectivity and Routing (Option B): For the FortiWeb ingress controller to accurately monitor and protect a containerized application, it must have a valid network path to the Kubernetes (K8s) worker nodes. If the FortiWeb VM is missing a route to the specific subnet where the K8s nodes reside, the health check packets will fail to reach their destination. As a result, FortiWeb identifies the backend servers (192.168.0.1, 192.168.0.2, and 192.168.0.3) as "Down," leading to the orange status shown in the exhibit.

Health Check Failures: When the status is orange, it implies that the Server Health Check (configured in the server pool) is detecting that the web servers are not responsive to connections. While this could be caused by an application-level failure, in a fresh cloud deployment of an ingress controller, the most common underlying cause is a network routing misconfiguration preventing the FortiWeb appliance from reaching the node IPs.12

Why other options are incorrect:34

Option A: If the SDN connector were not authenticated correctly, FortiWeb would likely fail to discover the containerized resources entirely, rather than discovering them and repor5ting them as "Down".6

Option C: While wron7g IP addresses would cause a failure, the Ingress Controller's job is to dynamically sync these addresses from the K8s API; a manual configuration error in a manifest file regarding IP addresses is less likely in an automated ingress environment.

Option D: The load balancing algorithm (Round Robin, Least Connections, etc.) affects how traffic is distributed, but it does not influence the up/down health status of the individual backend servers.
