SD-WAN-Engineer Palo Alto Networks SD-WAN Engineer Questions and Answers

Comprehensive and Detailed Explanation

Prisma SD-WAN (formerly CloudGenix) defines three distinct Operational Modes for a branch site, which determine how the ION device processes traffic and interacts with the network.

Analytics Mode (Monitor): In this mode, the ION device is typically deployed inline or in a "promiscuous" monitor state to gain visibility into network traffic without actively enforcing path selection policies.1 It "learns" applications, bandwidth usage, and network characteristics (auditing) but does not steer traffic or block flows.2 This is often used during Proof of Concepts (POVs) or the initial "burn-in" phase of a deployment to generate reports without risking network disruption.

Control Mode: This is the full production state. In Control Mode, the ION device actively enforces Path Policies, QoS Policies, and Security Policies. It builds Secure Fabric VPN tunnels, steers traffic based on application SLAs (e.g., sending voice over MPLS and bulk data over Broadband), and handles failover events.3 This is the required mode for a fully functional SD-WAN site.

Disabled Mode: This mode effectively shuts down the site's SD-WAN functionality from the controller's perspective. It is an administrative state used when a site is being decommissioned, provisioned but not yet live, or isolated for troubleshooting. In this state, the device does not participate in the fabric.

Comprehensive and Detailed Explanation

Prisma SD-WAN utilizes a sophisticated decision engine for Application-Based Path Selection that goes beyond simple failover. When configuring a Path Policy, the administrator defines "Active" paths and a "Path Quality Profile" (SLA).

SLA Compliance (The Filter): First, the system filters the available paths based on the Path Quality Profile. In this scenario, both ISP-A and ISP-B have 40ms latency against a 150ms threshold. Both are "green" or compliant paths.

Selection Criteria (The Tie-Breaker): When multiple paths are configured as "Active" and all meet the performance SLA, the ION device aims to optimize the overall user experience and network utilization. The default behavior for load balancing across healthy, compliant active paths is to select the path with the highest available bandwidth capacity.

By steering new flows to the link with the most "headroom" (available Mbps), the system prevents the saturation of a smaller link (e.g., a 20Mbps DSL line) while a larger link (e.g., 1Gbps Fiber) sits underutilized. This maximizes the aggregate throughput for the site. While latency is the qualifier, bandwidth availability is often the selector for compliant paths. Note that if the application was defined as "Real-Time" and configured for packet duplication, behavior would differ, but for standard traffic, capacity-based distribution is the standard active/active logic.

In the Prisma SD-WAN ecosystem, ION (Instant-On Network) devices are categorized based on their performance capabilities, throughput, and their specific role within the network architecture—namely, whether they function as a Branch device or a Data Center (DC) device.2 The "Branch Gateway" designation typically refers to high-capacity hardware or virtual instances designed to handle complex routing, massive throughput, and high-density connectivity requirements found in large branch offices or regional hubs.

The devices listed in option D represent the high-performance tier of the ION family. The ION 9200 and ION 5200 are flagship hardware appliances designed for large-scale deployments, offering multi-gigabit throughput and extensive port density.3 The ION 3200 serves as a robust mid-to-high range branch solution.4 The ION 7116V is a high-capacity virtual appliance (part of the 7000 series) designed to provide flexible, software-defined gateway capabilities in virtualized environments or public clouds (like AWS, Azure, or GCP).

Specifically, these models support advanced features such as Layer 3 hardware forwarding, integrated switching (in certain sub-models), and the processing power required to run deep packet inspection (DPI) for application-based path selection at scale. While smaller units like the 1200 series are excellent for small-to-medium branches, the 9200, 3200, 5200, and 7116V are the primary workhorses for organizations requiring "Gateway" class performance to manage heavy traffic loads and maintain high availability in a Prisma SD-WAN fabric.

Comprehensive and Detailed Explanation

According to the Prisma SD-WAN Performance Policy Default Behavior documentation, the default action configured for applications (including real-time media) when a path experiences poor performance (violates the SLA thresholds for latency, jitter, or packet loss) is to Move Flows.

The Prisma SD-WAN ION device continuously monitors the health of all available paths. If the active path for a media application degrades and fails to meet the specified SLA, the default policy dictates that the traffic should be steered (moved) to an alternate, compliant path that meets the performance criteria.

While Forward Error Correction (FEC) is a powerful feature available in Prisma SD-WAN to mitigate packet loss for real-time applications, it is an optional action that must be explicitly enabled or configured within the performance policy rules. It is not the default action in the base system configuration; the primary default mechanism for handling performance issues is to leverage the multi-path fabric to switch to a better link.

In the Prisma SD-WAN architecture, security is built directly into the AppFabric using a centralized, controller-led approach to key management. Unlike traditional VPNs that rely on manual Internet Key Exchange (IKE) or static Pre-Shared Keys (PSKs) which can be administratively burdensome and security-vulnerable, Prisma SD-WAN automates the entire lifecycle of encrypted tunnels. The Prisma SD-WAN Controller acts as the central authority for identity and key distribution for all ION (Instant-On Network) devices within the tenant's fabric.

Specifically, the VPN shared secrets used to secure these tunnels are ephemeral and are valid for exactly 24 hours. This 24-hour validity period is a security best practice implemented by Palo Alto Networks to limit the "blast radius" or window of exposure in the unlikely event that a key is compromised. The controller automatically handles the generation, distribution, and rotation of these secrets. Before the 24-hour timer expires, the controller pushes new keys to the ION devices, which then perform a hitless rollover. This ensures that the data plane remains active and encrypted without requiring manual intervention from a network administrator. If an ION device loses its control plane connection to the controller, it will maintain its existing tunnels using the current keys until they expire, at which point it must re-authenticate with the controller to receive a new set of valid secrets. This automated rotation is a core component of the Prisma SD-WAN Zero-Trust security model.

In the Prisma SD-WAN (formerly CloudGenix) architecture, the security and authenticity of device-to-controller communication are paramount. When a new ION (Instant-On Network) device is powered on and connected to the internet, it initiates a secure "phone home" process to the Prisma SD-WAN Cloud Controller. To ensure that the controller is communicating with a genuine Palo Alto Networks hardware or software instance, the system utilizes a Manufacturer Installed Certificate (MIC).

The MIC is a unique digital certificate burned into the hardware's Trusted Platform Module (TPM) or secure storage during the manufacturing process. This certificate acts as the device's foundational identity. When a customer "claims" a device in the Prisma SD-WAN portal using its serial number, the controller maps that serial number to the specific MIC associated with that unit.

Once the device is claimed and attempts to connect, a mutual TLS (mTLS) handshake occurs. The ION device presents its MIC to the controller to prove its identity, and the controller validates this against its records. This method eliminates the need for manual staging, pre-configuration, or the complexity of managing a Customer Installed Certificate (CIC) or a private Public Key Infrastructure (PKI) during the initial deployment phase. By leveraging the MIC, Prisma SD-WAN achieves true Zero Touch Provisioning (ZTP), ensuring that only authorized, authentic devices can join the fabric and receive configuration policies, thereby maintaining a secure and automated onboarding workflow.

Comprehensive and Detailed Explanation

In the Prisma SD-WAN architecture, the terminology distinguishes between "Native" automation and "Legacy" interoperability.

Secure Fabric Links: These are the proprietary, automated overlay tunnels created between two Prisma SD-WAN ION devices (e.g., Branch ION to Data Center ION). The controller automatically manages the IP addressing, key rotation, and routing for these links. You do not manually configure "Phase 1" or "Phase 2" parameters for Secure Fabric links.

Standard VPNs: These are traditional, standards-based IPSec tunnels configured to connect an ION device to a Non-ION endpoint (Third-Party Peer). This is used for "Data Center to Data Center" connections where one side is a legacy firewall (e.g., Cisco ASA, Palo Alto Networks NGFW) or for connecting to cloud security services (SSE) that do not have a specific CloudBlade integration. For a Standard VPN, the administrator must manually define the IKE/IPSec profiles, pre-shared keys, and peer IP addresses to match the third-party device's configuration.

To ensure the stability and performance of the SD-WAN fabric, Prisma SD-WAN provides granular visibility into the health of each Instant-On Network (ION) appliance. While the solution is primarily application-defined, monitoring the underlying physical and system resources of the hardware or virtual instance is critical for proactive maintenance and troubleshooting.

At the individual device level, administrators can monitor system resource utilization, which includes CPU usage, memory (RAM) consumption, and disk space availability.1 High CPU or memory usage can indicate that the device is reaching its throughput limits or that a specific process (such as deep packet inspection) is overtaxing the system. Disk utilization is monitored to ensure there is sufficient space for local logs and system operations.

Beyond internal system health, interface-level metrics are essential. This includes monitoring interface bandwidth utilization to identify bottlenecks on WAN or LAN ports. Crucially, operational performance is also assessed through error and discard counters on each interface. High error rates or frequent packet discards often signal physical layer issues (like bad cabling), duplex mismatches, or upstream provider congestion. While VPN status and application flows are vital for network-wide visibility, the core health of an ION device is defined by these foundational system and interface metrics.

Monitoring these specific parameters allows network engineers to distinguish between an application performance issue caused by network latency and one caused by a local hardware resource constraint.

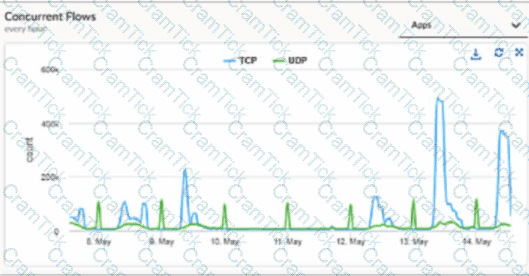

When a Prisma SD-WAN ION device triggers the DEVICESW_CONCURRENT_FLOWLIMIT_EXCEEDED incident, it indicates that the number of active sessions has reached the hardware or software-defined capacity limit of that specific appliance. In the provided graph, we can see a massive spike in concurrent TCP flows on May 13th, reaching nearly 500k, which is a clear indicator of anomalous behavior—likely a "top talker" host, a malware outbreak, or a misconfigured application generating excessive connections.

To identify the specific host responsible for this surge, administrators should navigate to Monitor → Activity → Flows. This interface, commonly known as the Flow Browser, provides the most granular visibility into real-time and historical session data within the Prisma SD-WAN fabric. Unlike "Transaction Stats," which provide high-level summaries, or "New Flows," which only show the rate of session initiation, the Flows view allows an engineer to filter and sort the active session table by metadata such as Source IP, Destination IP, Application, and Site.

By utilizing the Flow Browser, an administrator can quickly group flows by "Source IP" to pinpoint exactly which internal host is consuming the most flow table entries. This is the standard "Day 2" operational workflow for troubleshooting performance and capacity incidents. While running a tcpdump (Option A) is a valid diagnostic for packet-level analysis, it is inefficient for identifying a single host among hundreds of thousands of flows and can further tax the device's CPU during a high-load event. The Monitor → Activity → Flows tool is designed specifically for this type of scale, providing the necessary visibility to remediate the flow limit exhaustion and restore normal network operations.

Prisma SD-WAN simplifies the integration with Prisma Access through a feature known as "CloudBlades," specifically the Prisma Access for Networks CloudBlade. The "easy onboarding" workflow is designed to automate the complex task of establishing secure tunnels between Branch ION devices and the SASE security processing nodes (SPNs).

When an administrator initiates this process, the system abstracts the manual configuration of IKE and IPSec parameters. Instead of manually defining an IPSec Crypto Profile or an IKE Profile (which are automatically handled by the CloudBlade orchestration), the user must specify where the traffic is going and which physical resources will handle the connection. The Prisma Access Primary Location (Option B) is a mandatory selection because it determines the geographical region and specific compute instance within the Prisma Access cloud that will serve as the primary security gateway for that branch.

Furthermore, the IPSec Termination Node (Option D) must be selected to define the specific endpoint within the Prisma Access infrastructure where the ION device's tunnels will terminate. This selection ensures that the Controller can properly orchestrate the site-to-site VPN tunnels, ensuring that the branch traffic is correctly routed to the SASE fabric for security inspection. By selecting these two options, the CloudBlade can automatically negotiate the rest of the tunnel parameters, significantly reducing the potential for human error and accelerating the deployment of a Secure Access Service Edge (SASE) architecture across multiple branch locations.

Comprehensive and Detailed Explanation

In a Prisma SD-WAN High Availability (HA) deployment, the HA Control Interface is the critical lifeline used to synchronize state, heartbeats, and flow information between the Active and Standby ION devices.

The strict requirement for this connection is that it must be Layer 2 adjacent.

Best Practice: A direct physical cable connection between the designated HA ports of the two devices (e.g., Port 2 on Device A to Port 2 on Device B).

Alternative: Connectivity through a switch on a dedicated, isolated VLAN is supported, provided the devices are in the same broadcast domain and subnet.

Routing (Layer 3) is not supported for the HA Control link because the keepalive mechanism relies on low-latency, multicast/broadcast-level adjacency to detect failures instantly (sub-second failover). If the HA link were routed (Option A), network latency or router convergence issues could cause "Split-Brain" scenarios where both devices assume the Active role, leading to IP conflicts and traffic loops. Option C is incorrect because the Controller is too slow to manage real-time failover; the decision must be local.

Comprehensive and Detailed Explanation

Prisma SD-WAN calculates the Mean Opinion Score (MOS) to provide a standardized metric (1-5) for voice quality. To ensure the system always knows the "voice readiness" of a path—even before a call starts—it uses Active Probes (synthetic UDP packets).

While latency is measured, the MOS calculation algorithm is most heavily penalized by Packet Loss (D) and Jitter (B).

Packet Loss: Even a small amount of loss (e.g., >1%) dramatically reduces voice clarity, causing dropouts.

Jitter: High variance in packet arrival time (jitter) causes the "robotic" voice effect and buffer underruns.

The system continuously measures these specific metrics on all WAN links using synthetic probes. If the packet loss or jitter exceeds the threshold defined in the "Path Quality Profile" (e.g., Voice Profile), the path is marked as non-compliant, and the MOS score drops, triggering a policy action to move the flow. Throughput (C) is less critical for voice as calls consume very little bandwidth (e.g., 64-100 Kbps), making congestion (loss/jitter) the primary enemy, not raw speed.

Comprehensive and Detailed Explanation

Dynamic VPNs (also known as ION-to-ION or Branch-to-Branch VPNs) allow Prisma SD-WAN devices to establish direct, on-demand secure tunnels between branch sites to optimize latency for peer-to-peer traffic (e.g., VoIP calls between offices).

To enable this capability, the primary architectural requirement is the configuration of VPN Clusters.

A VPN Cluster defines a logical group of devices that are authorized to communicate with one another.

By default, or if devices are in different clusters without peering, the topology typically defaults to Hub-and-Spoke, where branches only talk to the Data Center.

When two branch ION devices are placed into the same VPN Cluster (or peered clusters), the controller shares the necessary reachability and cryptographic information between them.

Once in the same cluster, the ION devices monitor traffic. If a user at Branch A tries to contact a server at Branch B, the ION devices detect this interest. If a direct path is available (e.g., via public internet), they will dynamically negotiate a direct VPN tunnel, bypassing the Data Center hub. This offloads the hub and reduces latency. Option B is incorrect because SD-WAN eliminates manual GRE config. Option C is incorrect because dynamic VPNs are a performance feature, not just a disaster recovery feature.

Comprehensive and Detailed Explanation

The ION Device Data Plane (the software running locally on the hardware appliance at the branch) is the component responsible for the heavy lifting of traffic analysis.

Edge Processing: Prisma SD-WAN uses an "Application-Defined" architecture. The ION device performs Deep Packet Inspection (DPI) on the first few packets of a flow to identify the application (e.g., distinguishing "Skype Video" from "Skype Chat").

Metric Calculation: The ION device timestamping engine calculates the performance metrics (RTT, NTT, SRT) in real-time as packets pass through its interfaces. It aggregates this metadata.

Role of Controller (B): The Controller collects and visualizes this data (Analytics), but it does not generate it. The Controller does not sit in the data path of the user traffic. If the ION relied on the controller for App-ID, latency would be unacceptably high. Therefore, all detection and metric generation happens locally on the ION Device.

Comprehensive and Detailed Explanation

Prisma SD-WAN utilizes STUN (Session Traversal Utilities for NAT) to facilitate NAT Traversal for its Secure Fabric overlay.

Discovery: When an ION device connects to the internet behind a NAT router, it reaches out to the Prisma SD-WAN Controller. The controller acts as a STUN server, identifying the public IP address and port that the ION's traffic is originating from.

Symmetric NAT Challenge: In Symmetric NAT, the mapping changes for every destination. However, the Prisma SD-WAN architecture is designed to handle this by having the controller coordinate the connection attempt.

Hole Punching: The controller shares the discovered public mapping information between two peer ION devices. They then simultaneously initiate traffic to each other's public IP/Port (a technique called "UDP Hole Punching"). This tricks the intermediate NAT devices into allowing the inbound traffic, establishing a direct P2P IPSec tunnel without requiring manual port forwarding or static IPs at the edge.

In Palo Alto Networks PAN-OS SD-WAN environments, automation and orchestration are key components for service providers managing large-scale deployments. The PAN-OS REST API provides a modern, structured way to programmatically manage configuration objects, including those required for SD-WAN functionality.

When an application is designed to push changes directly to devices (individual firewalls) rather than through a centralized template in Panorama, it must interact with the firewall's local REST API. To successfully create a virtual SD-WAN interface, the application must target the correct resource URI. In the PAN-OS API schema, the logical SD-WAN interface—which groups physical links to enable application-based path selection—is managed via the sdwanInterfaces parameter within the REST API.

It is important to distinguish between the interface itself and the profiles that support it. Option A refers to sdwanInterfaceprofiles, which are the objects used to define the characteristics of a link (such as bandwidth, link type, and monitoring frequency), but not the interface itself. Furthermore, since the scenario specifies making changes "directly to devices," the target must be the firewall rather than Panorama. While Panorama can manage these objects via templates, a direct-to-device automation workflow necessitates using the firewall’s REST API endpoint. Utilizing the REST API over the legacy XML API is the recommended standard for modern integrations due to its ease of use with JSON payloads and alignment with contemporary DevSecOps practices. By using the sdwanInterfaces parameter on the firewall, the MSP application can programmatically bind physical Layer 3 interfaces to the SD-WAN fabric.

Comprehensive and Detailed Explanation

In the Prisma SD-WAN Flow Browser, the Flow State provides a real-time snapshot of the TCP/UDP session lifecycle.

INIT (Initialization): This state indicates that the ION device has seen the initial packet of a new session (typically a TCP SYN) originating from the client (Source), but it has not yet seen a return packet (such as a TCP SYN-ACK) from the destination server.

Diagnosis: A flow stuck in INIT is a classic indicator of a "Blackhole" or reachability issue downstream. It implies that the ION successfully routed the packet out toward the destination, but the destination did not reply. Common causes include:

The server is offline.

A firewall in the path (or on the server itself) is dropping the traffic.

Routing is broken on the return path (asymmetric routing where the return traffic bypasses the ION).

If the flow had been denied by the ION's own firewall (Option C), the state would typically show as DENY or REJECT. If the handshake completed (Option A), the state would be ESTABLISHED. Therefore, INIT points to a lack of response from the remote end.

In the Prisma SD-WAN architecture, the Controller serves as the centralized management and control plane for the entire fabric. While the Cloud Identity Engine (CIE) is the component responsible for collecting and consolidating user-to-IP mappings from various identity providers (such as Active Directory, Okta, or Azure AD), it does not directly manage the distribution of this operational data to the individual ION devices at the branch level.

Instead, the Prisma SD-WAN Controller integrates with the Cloud Identity Engine to ingest these identity mappings. Once the Controller has synchronized the User-IP and user-group information, it acts as the primary orchestrator. It is responsible for distributing these mappings down to the ION devices across all sites. This distribution ensures that when an ION device sees traffic from a specific source IP, it can accurately associate that traffic with a specific user or group based on the metadata provided by the Controller.

By centralizing this distribution through the Controller, Prisma SD-WAN ensures consistency across the network. Branch ION devices can then apply Application-Based Path Selection and security policies based on user identity rather than just IP addresses. This architectural design offloads the processing requirements of maintaining direct connections to identity providers from the branch hardware, allowing the Controller to handle the heavy lifting of orchestration and global synchronization of identity data.

In the Prisma SD-WAN ecosystem, the centralized cloud controller provides a robust multi-layered visibility framework to ensure network reliability. To effectively detect critical events like site outages or application performance issues (SLA violations), the controller aggregates several types of operational data. Incidents are the primary mechanism for high-level alerting; they are automatically generated when the system detects significant state changes, such as an ION device going offline (site outage) or a path failing to meet the required performance metrics.

While Incidents provide the "what" and "where," Alerts offer granular notifications for specific events that may not yet have escalated to a full-scale incident. To provide deep context, the controller also utilizes Statistics, which include real-time and historical telemetry regarding bandwidth, latency, jitter, and packet loss. These statistics allow administrators to visualize the specific SLA violation as it occurs. Furthermore, Audit logs are essential for tracking configuration changes or administrative actions that might have preceded an outage, helping engineers correlate human intervention with network behavior.

By combining these four elements—Incidents for major events, Alerts for specific notifications, Statistics for performance validation, and Audit logs for change tracking—a network administrator gains a 360-degree view of the fabric. This comprehensive approach moves beyond simple "up/down" monitoring, allowing for "Day 2" operational excellence where performance degradation is identified and remediated before it impacts the end-user experience.

Comprehensive and Detailed Explanation

To achieve strict regional isolation where branch sites only form VPN tunnels with Data Centers in their specific region (e.g., EU branches to EU DCs only), the correct architectural feature to utilize is VPN Clusters.

In Prisma SD-WAN (CloudGenix), a Cluster defines a logical security and topology boundary for the overlay network. By default, devices may be placed in a "Default" cluster where they attempt to form a mesh or hub-and-spoke topology with all other reachable devices in that context.

To enforce the new policy:

Logical Partitioning: The administrator should create separate VPN Clusters for each region (e.g., "Cluster-NA", "Cluster-EU", "Cluster-Asia").

Assignment: The Regional Data Center IONs and their corresponding Branch IONs must be moved into their respective clusters.

Result: The Prisma SD-WAN controller dictates that devices can only establish Secure Fabric (VPN) tunnels with other devices within the same cluster. This effectively segments the global network, ensuring that an Asian branch never attempts to build a tunnel to a North American DC, satisfying the compliance requirement without complex access lists or manual tunnel configuration.

Option B (Manual Tunnels) is administratively unscalable and negates the benefits of SD-WAN automation.

Option C (Circuit Labels) is primarily for path selection and traffic steering, not for hard topology segmentation.

Option D (VRFs) is used for local Layer 3 segmentation (routing isolation) within a device, not for controlling WAN overlay tunnel formation scope.

Prisma SD-WAN Copilot is an AI-powered operational tool designed to simplify network management through Natural Language Processing (NLP). Traditionally, identifying a bandwidth "hog" required manual navigation through multiple dashboards, such as WAN Clarity and the Flow Browser, to correlate source IP addresses with specific application flows and timestamps. Copilot transforms this workflow by allowing administrators to interact with the system using conversational queries.

When an administrator inputs a query like “Show top bandwidth source IPs at SD-WAN Branch X over last 3 hours,” Copilot leverages its underlying machine learning models and integrated data lake to aggregate telemetry across the entire fabric. It instantly identifies the specific source IPs responsible for the highest throughput and correlates that data with application visibility. Instead of providing a static report or redirecting the user to other tools, Copilot presents an interactive, summarized view directly within the interface. This view highlights the top-consuming users and breaks down their consumption by application, such as YouTube, Netflix, or business-critical SaaS tools.

This capability significantly reduces the Mean Time to Resolution (MTTR) for performance issues. By bypassing the need for manual data correlation, Copilot provides immediate "Day 2" operational insights. It effectively acts as a virtual assistant that understands the context of the network topology, site names, and time ranges, allowing the administrator to quickly determine if a branch's slow performance is due to an individual user's behavior or a broader infrastructure issue.

Comprehensive and Detailed Explanation

For a successful Zero Touch Provisioning (ZTP) experience, the ION device must be able to obtain an IP address and reach the internet immediately upon boot-up.

According to Palo Alto Networks hardware guides, the Controller Port (often labeled specifically as "CONTROLLER" on models like the ION 3000/7000/9000) is pre-configured to act as a DHCP client by default. It is the preferred interface for the initial "call home" process.

However, for smaller desktop models (like the ION 1000/2000/1200 series) or scenarios where a dedicated management network is not available, the device firmware is also configured to attempt DHCP client requests on Port 1 (often labeled as Internet 1 or simply 1).

Connecting the ISP circuit to any random port (like Port 4 or a LAN port) will not work for ZTP because those interfaces are not pre-configured as DHCP clients in the factory default state. Therefore, the installer must ensure the internet uplink is connected to either the dedicated Controller port or Port 1/Internet 1 to ensure the device can resolve the controller FQDN and download its configuration.
