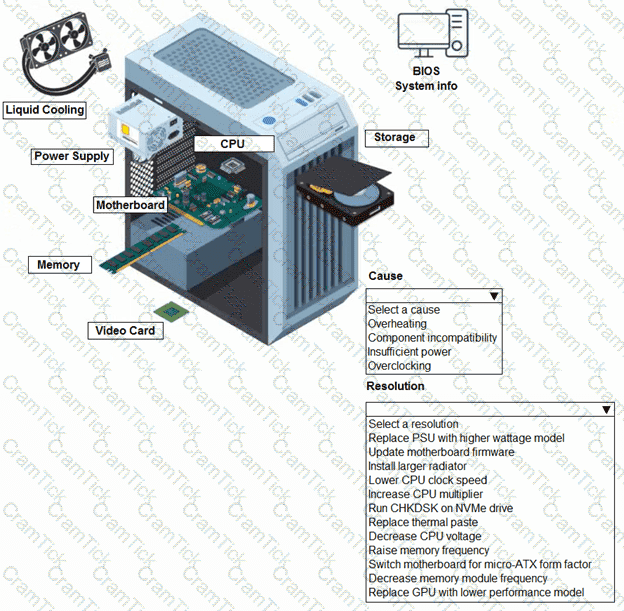

correct answer is " Overclocking " and " Reduce CPU Clock speed " CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer sothe user probably took it too far. http://blog.logicalincrements.com/2018/12/4-troubleshooting-tips-overclocking-pc/

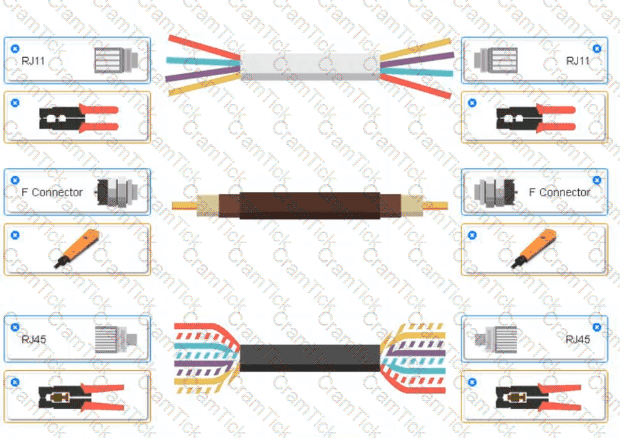

RG11 coaxial cable with quad shielding is designed to handle large volumes of internet traffic, providing excellent resistance to interference and high bandwidth capacity.

Why Not A (USB 3.1): USB 3.1 is used for connecting peripherals, not for high-volume internet traffic.

Why Not C (SATA3.0): SATA is used for internal data storage connections, not for network traffic.

Why Not D (Unshielded plenum RJ45): While RJ45 cables are commonly used, unshielded cables are prone to interference and are not ideal for high-volume traffic.

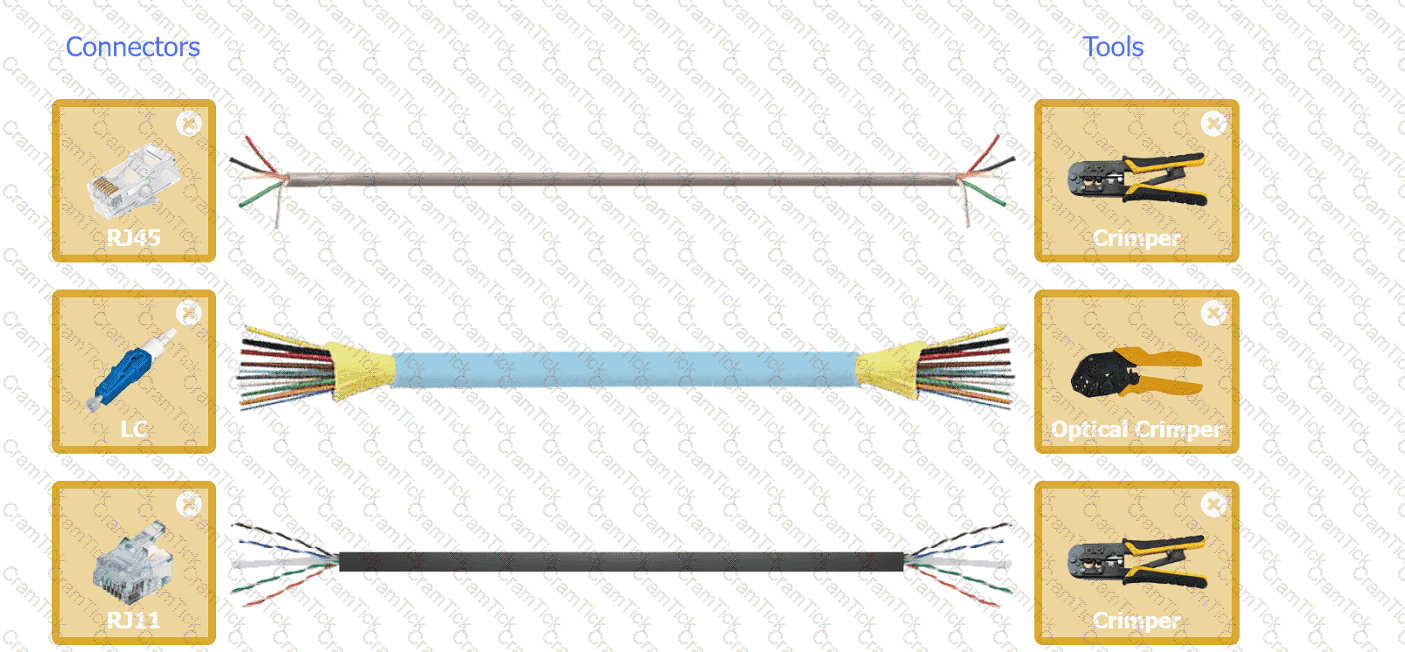

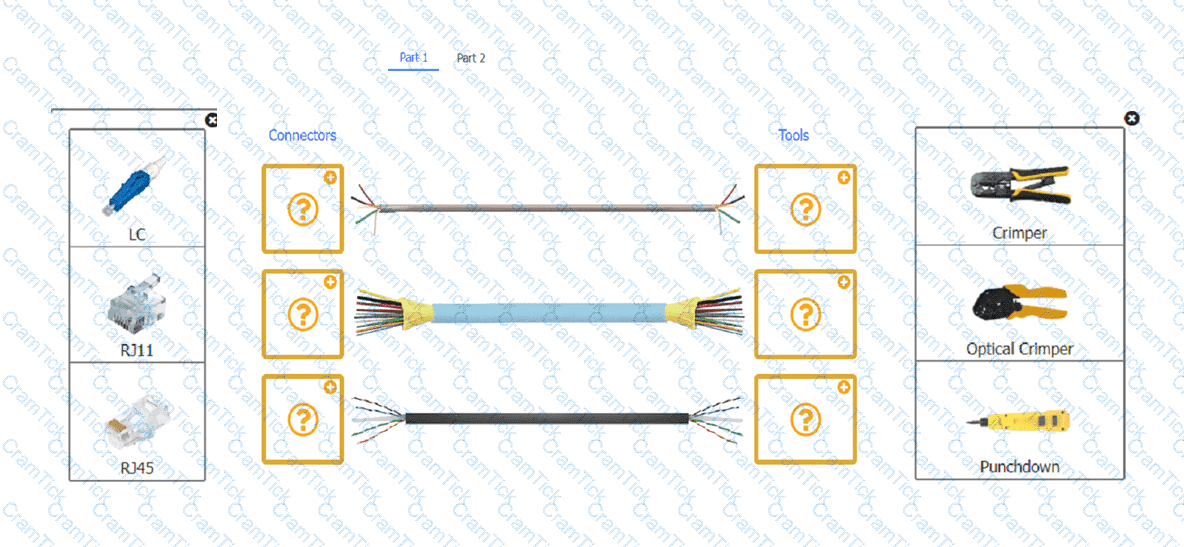

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 3.1, cable types and their characteristics​.

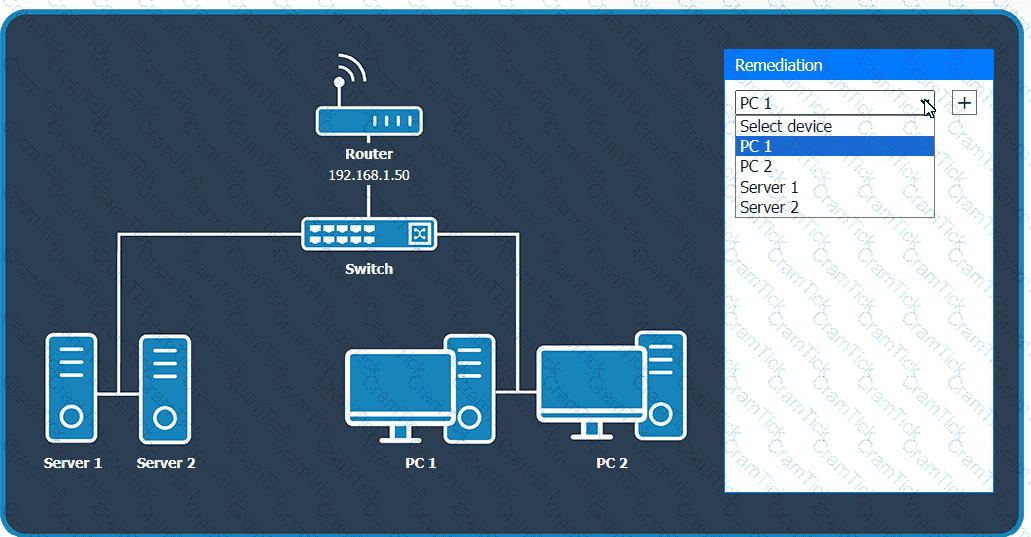

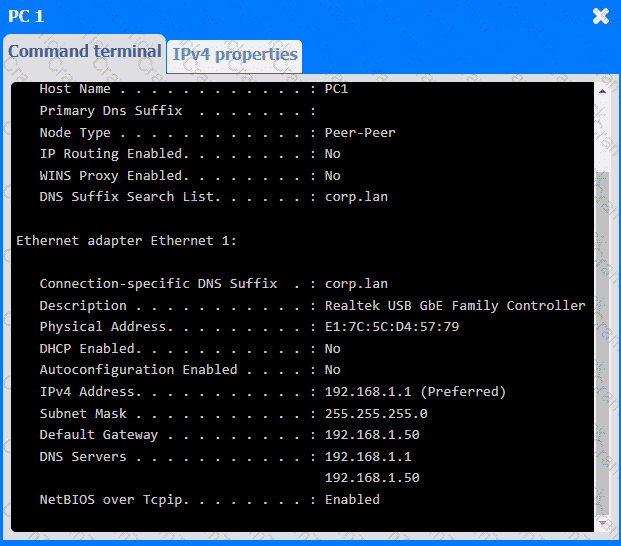

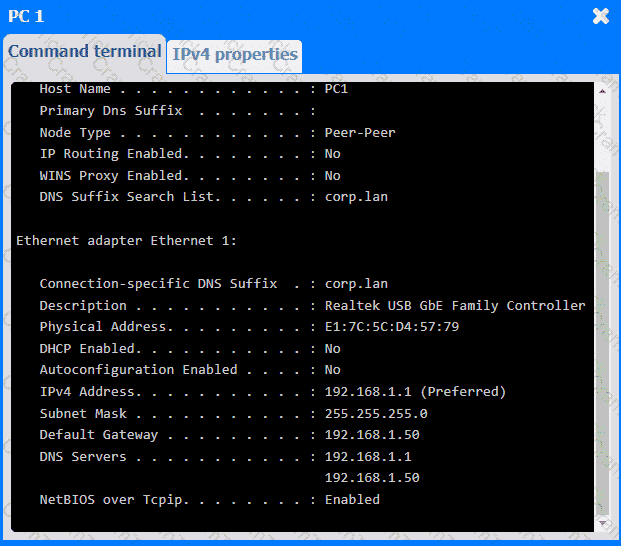

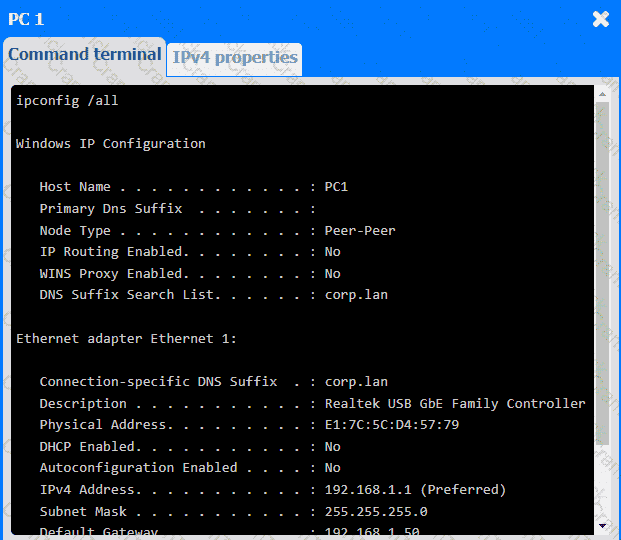

Looking at the network configurations and outputs from both PCs and servers, here are the possible issues and solutions:

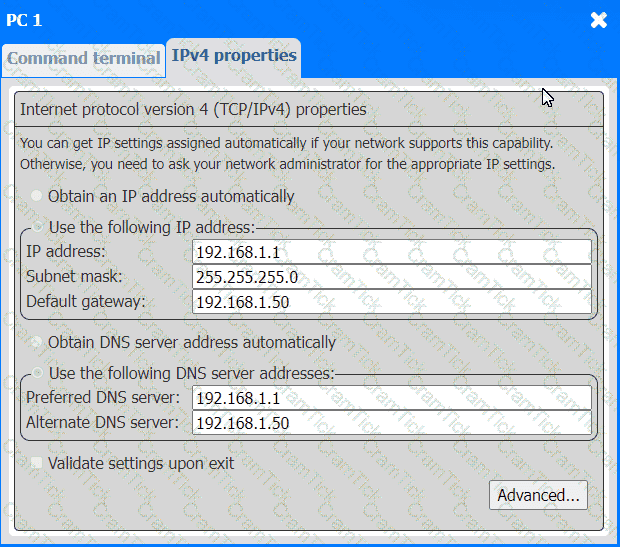

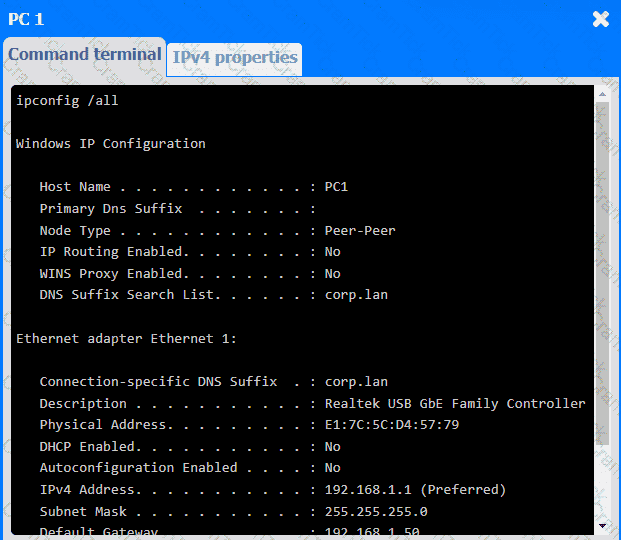

1. PC 1

Issue: The IP address for PC1 is 192.168.1.1, which conflicts with Server 1 (which also uses 192.168.1.1).

Solution: Change the IP address on PC1 to a unique one within the range, like 192.168.1.3.

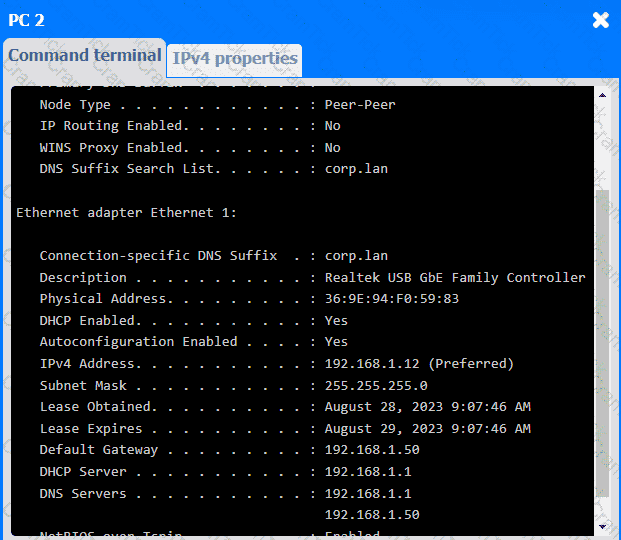

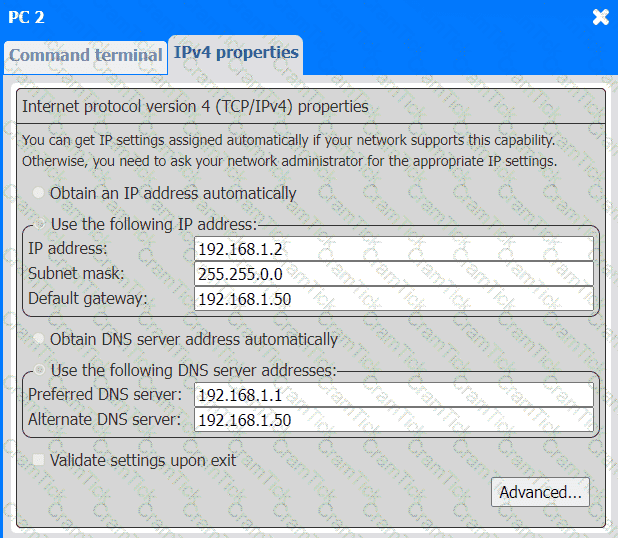

2. PC 2

Issue: PC 2 is configured with 192.168.1.2, which conflicts with Server 2 that has the same IP address.

Solution: Update the IP address on PC 2 to something unique, like 192.168.1.4.

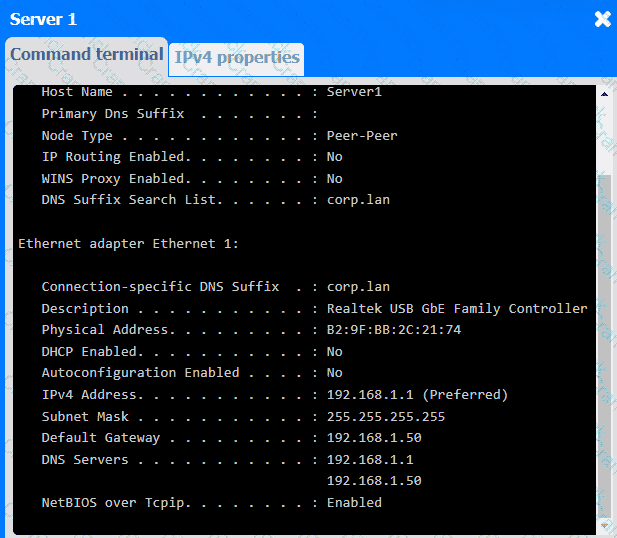

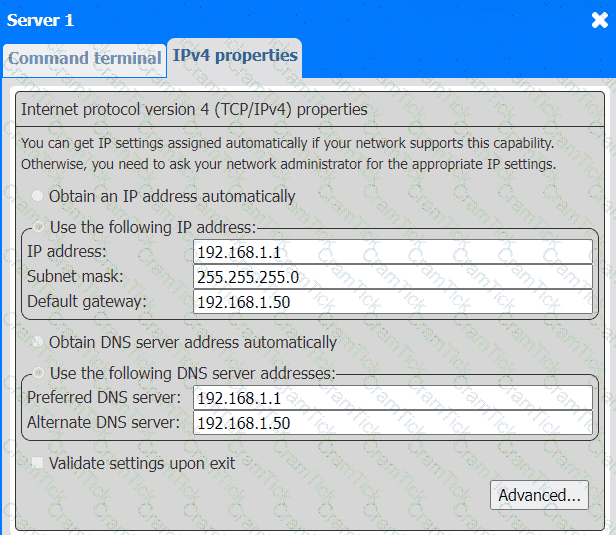

3. Server 1

Issue: The IP address for Server 1 is 192.168.1.1, which conflicts with PC1.

Solution: Since Server 1 and PC1 are using the same IP address, change one of them. For Server 1, you could change the IP address to 192.168.1.5.

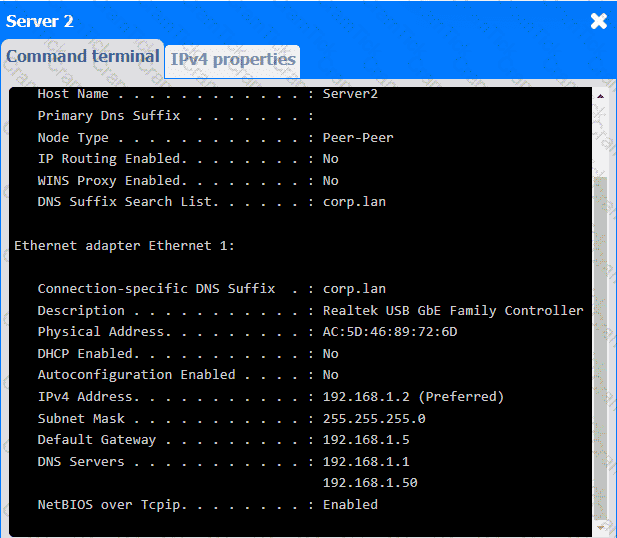

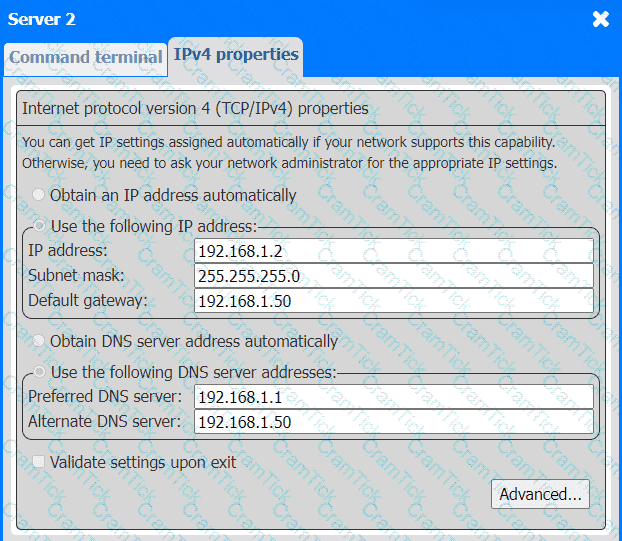

4. Server 2

Issue: Server 2 is using the IP address 192.168.1.2, which conflicts with PC2.

Solution: Update Server 2 to use a different IP address, such as 192.168.1.6.

General Remediation:

The primary problem here is overlapping IP addresses, leading to connectivity issues. Each device on the network must have a unique IP address. After making these changes, ensure that all devices can communicate properly by testing the connection between devices and verifying they can access shared resources.

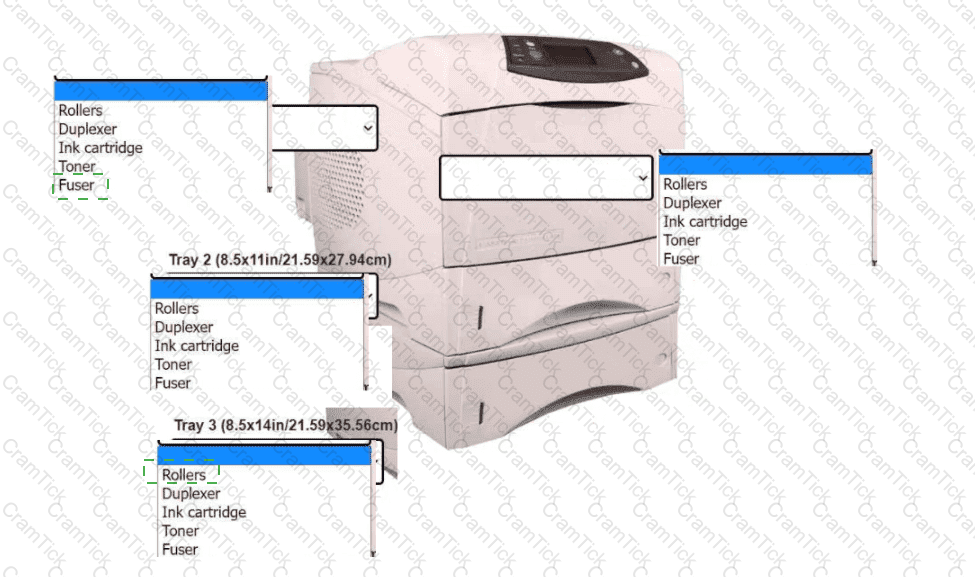

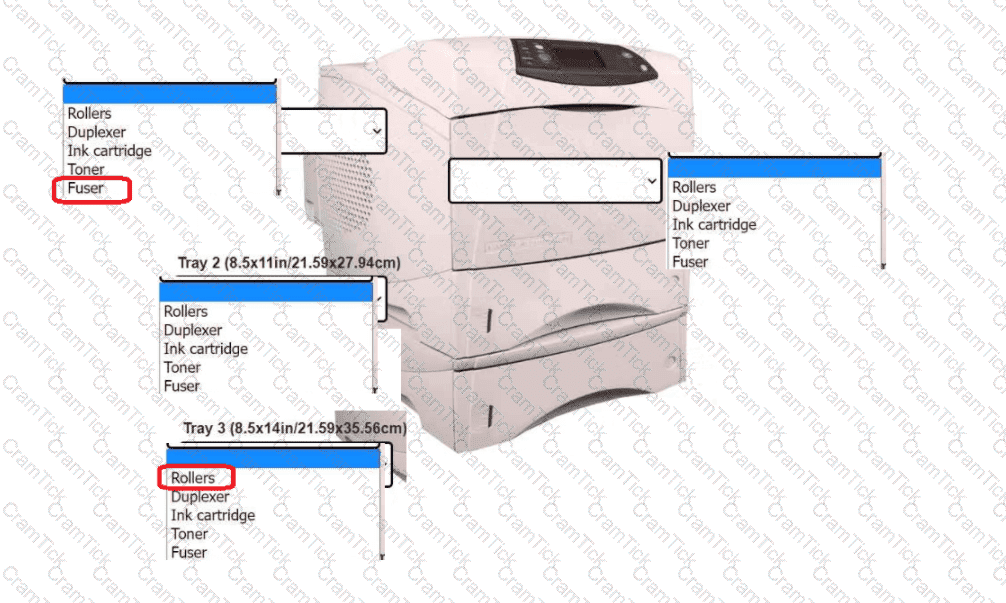

The correct answer is B. Inspect and replace the printer rollers.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

Frequent paper jams with no visible obstruction are often caused by worn or dirty feed rollers, which fail to grip and feed paper properly.

Inspecting and replacing the rollers ensures smooth paper feeding and prevents repeated jams, particularly in high-use network printers.

Why the other options are incorrect:

A. Check for firmware updates: Firmware updates address software or functionality issues, not mechanical paper feeding problems.

C. Reseat the fuser assembly: Fuser issues typically cause smudging or incomplete toner adhesion, not paper jams.

D. Clean the corona wire: The corona wire affects toner adhesion and print quality, not paper feeding.

The correct answer is C. DHCP (Dynamic Host Configuration Protocol).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

DHCP is used to automatically assign IP addresses and related network configuration (such as subnet mask, default gateway, and DNS servers) to devices on a network.

This eliminates the need for manually configuring IP addresses on each PC and helps prevent conflicts.

Why the other options are incorrect:

A. VLAN (Virtual Local Area Network): VLANs segment a network into logical subnets but do not assign IP addresses.

B. DNS (Domain Name System): DNS translates domain names to IP addresses; it does not assign IP addresses to devices.

D. TCP (Transmission Control Protocol): TCP is a transport layer protocol used for reliable communication between devices, not for IP assignment.

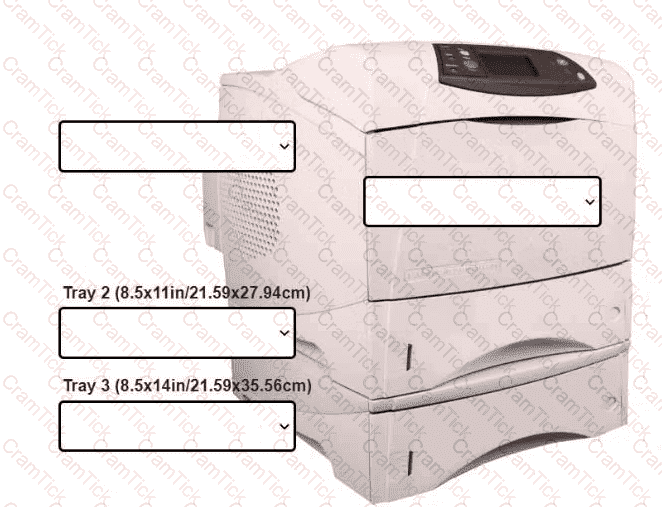

When a printout is being cut off, CompTIA A+ Core 1 (220-1201) troubleshooting emphasizes checking the simplest, most likely configuration mismatch first—the printer’s paper size/source settings. Even if the user physically loaded the correct paper, the print job can still be formatted incorrectly if the printer driver, application, or printer itself is set to use a different paper size or a different tray. If the printer thinks it is using a smaller paper size (or a tray configured for smaller paper), it may clip the printable area and truncate the image at the edges.

Changing tray settings (paper size and paper source) aligns the printer’s configuration with the actual media installed, which is a standard first-step for issues related to formatting, clipping, and page boundaries. Image quality (DPI) affects sharpness, not cropping. File type rarely causes consistent edge cutoff compared with page setup mismatches. Adjusting image size could work as a workaround, but CompTIA best practice is to correct the paper/tray and page setup settings first so all prints format properly without editing the document each time.

The correct answer is D. Data is being throttled.

Data throttling refers to the intentional slowing down of internet speeds by a mobile carrier after a user reaches a certain data usage limit or during network congestion. In this scenario, the employee can still successfully upload files, but the speed has decreased compared to before—this is a classic symptom of throttling.

Why the other options are incorrect:

A. Wireless is turned off

If wireless were turned off, the employee would not be able to upload anything at all. The question clearly states that uploads are still successful.

B. 5G is disabled

Disabling 5G could reduce speeds slightly if the device falls back to 4G/LTE, but it would not typically cause a significant or noticeable degradation unless compared under ideal conditions. It is not the most likely cause.

C. Roaming is turned on

Roaming allows connectivity outside the home network. While it may incur additional charges, it does not inherently cause significant speed reduction in most modern networks. It is less likely than throttling.

Exam Tip (Core 1 220-1201):

Slow but working connection → Think throttling or congestion

No connection → Think disabled wireless or network issues

Final Answer: D. Data is being throttled

A valid public IP address must fall outside the private IP address ranges:

10.0.0.0 to 10.255.255.255

172.16.0.0 to 172.31.255.255

192.168.0.0 to 192.168.255.255

66.157.195.20 is outside these ranges, making it a public IP address.

Why Not A, C, D: These IPs fall within private IP address ranges.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 2.6, IP addressing​.

The correct answer is B. Near-field communication (NFC).

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

NFC is commonly used for secure access control. Many organizations implement NFC-enabled ID badges or mobile devices to unlock doors, gates, or secure areas.

The mobile device communicates over a very short range (a few centimeters) with a reader to authenticate the user.

Why the other options are incorrect:

A. Hotspot: Provides internet access, not physical building access.

C. Infrared scanner: While used in some legacy devices, it is not commonly implemented for secure mobile access.

D. Geolocation: Can provide location awareness but does not grant direct access to secure physical spaces.

The correct answer is A. NFC (Near Field Communication).

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices, NFC is commonly used for short-range wireless communication between devices. In the context of mobile printing:

NFC-enabled printers allow a user to tap a mobile device (phone or tablet) to the printer to initiate a print job instantly without needing to configure Wi-Fi credentials or use cables.

This is particularly common in mobile-friendly environments like offices or public kiosks.

Why the other options are incorrect:

B. Hotspot: Provides an Internet connection, not a direct mobile-to-printer interface.

C. Infrared: Legacy technology largely replaced by NFC and Wi-Fi; rarely used in modern printers.

D. USB: Requires a wired connection, not suitable for sending a print job wirelessly from a mobile device.

The correct answers are E. NFC and F. Location services.

According to CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

NFC (Near-Field Communication): Enables the device to communicate with contactless payment terminals, which is essential for detecting nearby stores that accept contactless payments.

Location services: Allows the application to determine the user’s geographic location so it can provide notifications only when the user is near a participating store.

Why the other options are incorrect:

A. MDM (Mobile Device Management): Manages device policies but does not enable location-based notifications or contactless payments.

B. Contact syncing: Synchronizes contacts; unrelated to payment notifications.

C. Bluetooth: Can be used for some proximity services, but NFC is required for contactless payment detection.

D. Hotspot: Provides internet access; not required for proximity detection in this context.

The most effective solution to resolve this issue and prevent it from happening again is to assign the printer a static IP address. According to CompTIA Core 1 (220-1201) networking and printer configuration objectives, network printers should use static IP addresses to ensure consistent accessibility by client devices.

In this scenario, the printer was initially reachable using its assigned network address, but after several days it became unavailable. This commonly occurs when the printer is configured to receive its IP address via DHCP. When the DHCP lease expires or the printer is rebooted, the router may assign a different IP address, causing all workstations configured with the old address to lose connectivity.

By configuring a static IP address (or DHCP reservation), the printer’s IP address remains constant, ensuring that all workstations can reliably send print jobs without interruption.

A network gateway is used to route traffic between networks and does not address printer addressing issues. A USB cable would eliminate network printing entirely and is not appropriate for a SOHO network environment. APIPA addresses indicate a DHCP failure and would worsen connectivity rather than fix it.

CompTIA strongly emphasizes using static IP addressing for shared network devices such as printers to ensure stability and prevent recurring access problems.

solution as

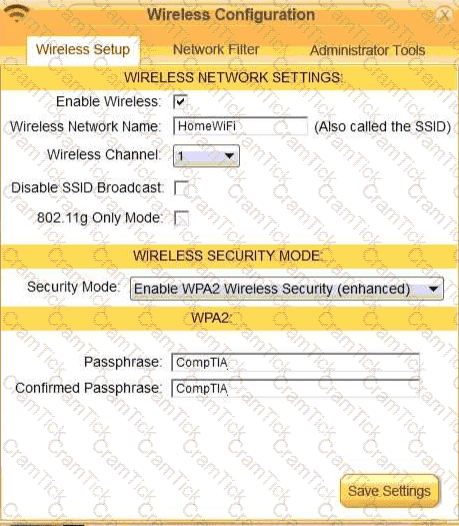

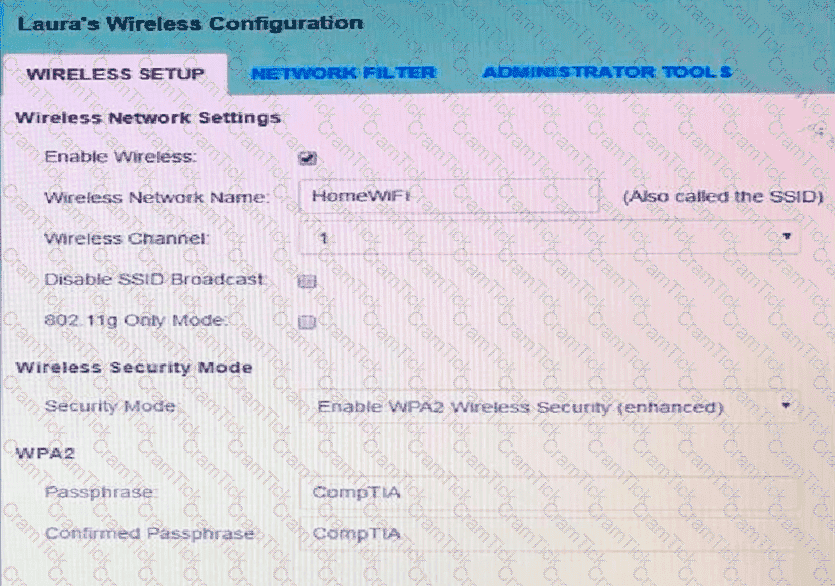

A screenshot of a network settings AI-generated content may be incorrect.

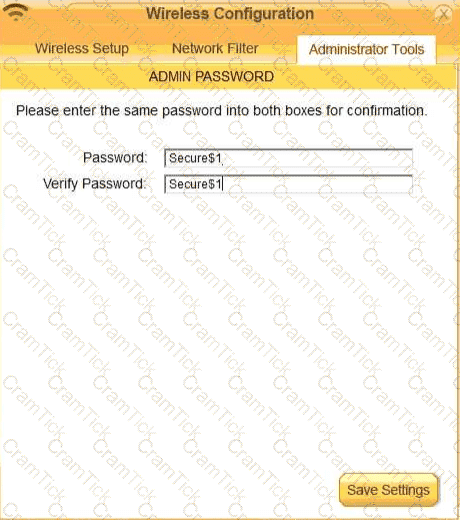

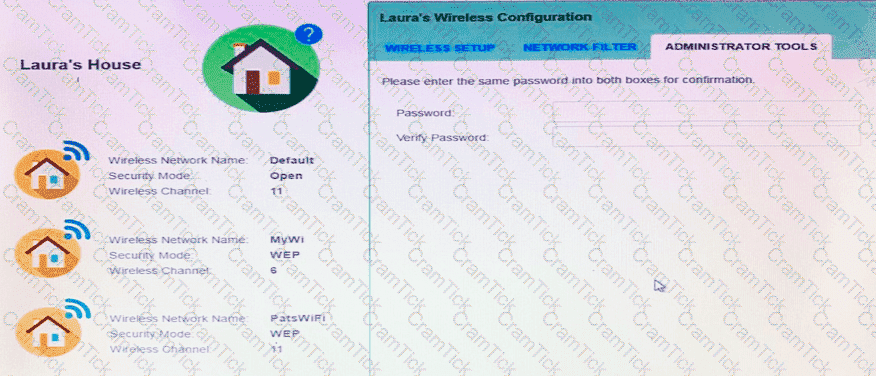

A screenshot of a computer AI-generated content may be incorrect.

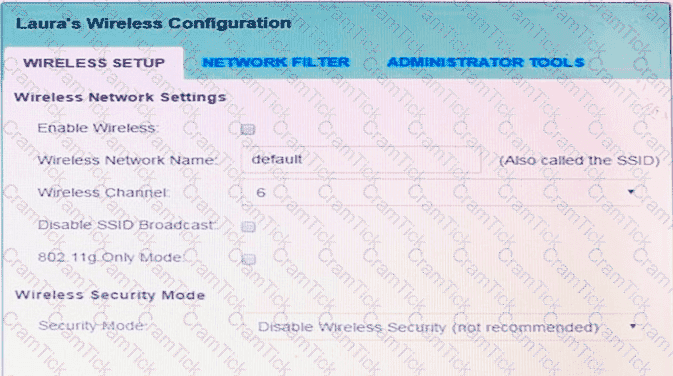

A screenshot of a computer AI-generated content may be incorrect.

The correct answer is A. 2.4GHz.

In the CompTIA A+ Core 1 220-1201 networking objectives, wireless networking technologies include frequency bands such as 2.4GHz, 5GHz, and 6GHz, along with related concepts like channels, regulations, channel selection, Bluetooth, 802.11 standards, NFC, and RFID.

The 2.4GHz band supports the most devices because it is the oldest and most widely adopted Wi-Fi frequency listed. Many legacy devices, including older laptops, printers, IoT devices, smart home devices, and wireless peripherals, still rely on 2.4GHz. It also has better range and wall penetration than higher-frequency bands, although it is usually more crowded and slower.

Why the other options are incorrect:

B. 5GHz

5GHz is newer than 2.4GHz and generally provides faster speeds with less interference, but it does not support as many older legacy devices.

C. 6GHz

6GHz is the newest Wi-Fi frequency option used with newer Wi-Fi standards, so it has the least legacy device support among the Wi-Fi frequency choices.

D. NFC

NFC is a short-range communication technology, not a Wi-Fi frequency band. It is used for close-proximity functions such as tap-to-pay, pairing, and access cards, so it is not the best answer.

Final Answer: A. 2.4GHz

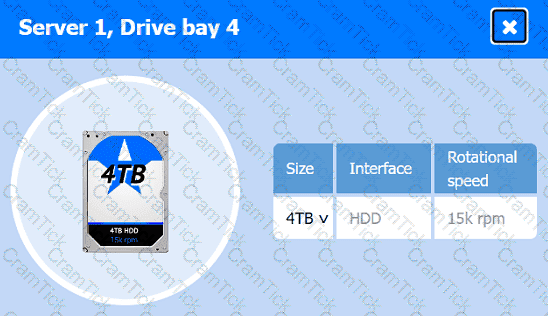

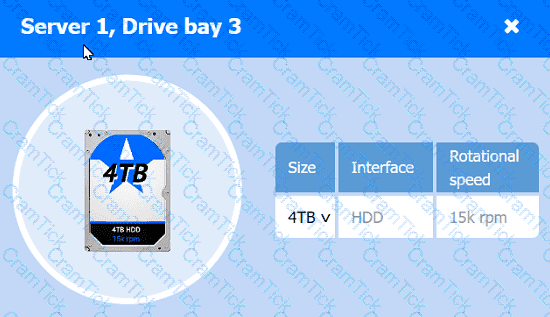

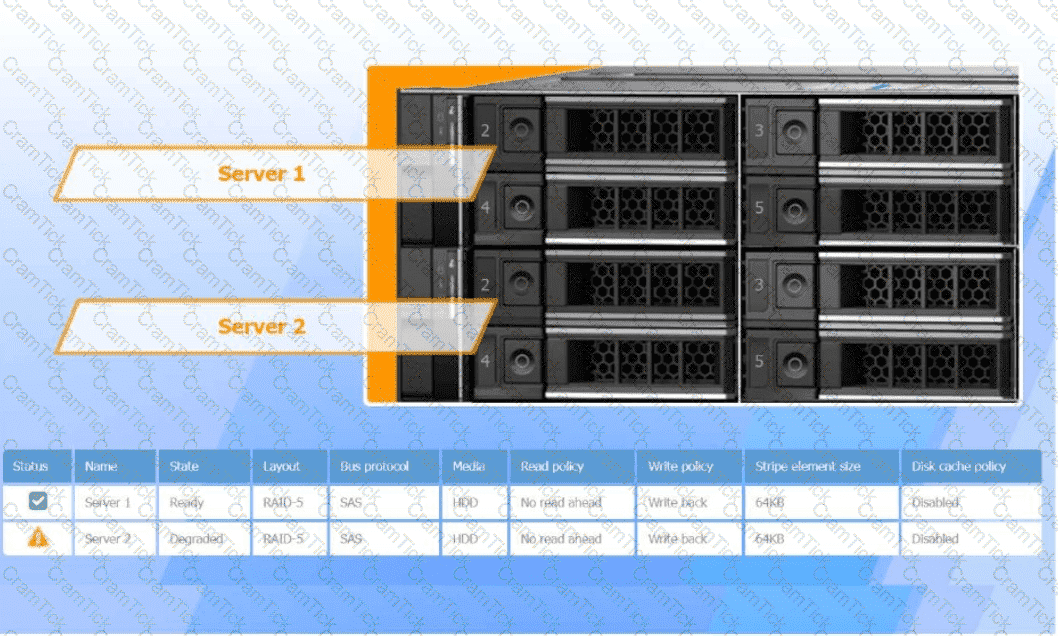

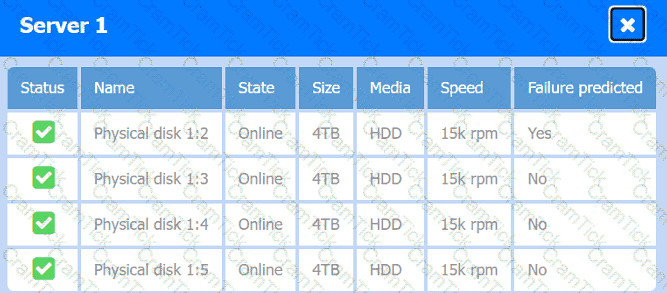

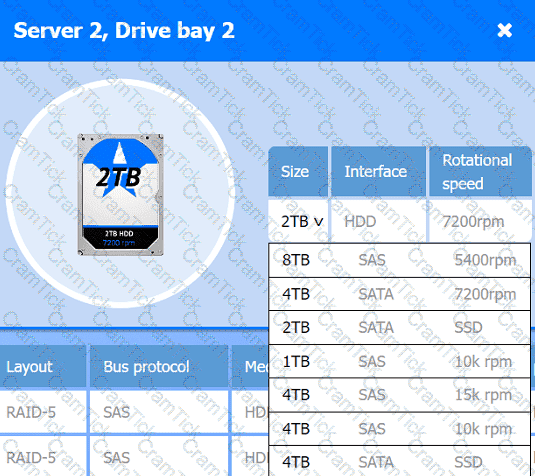

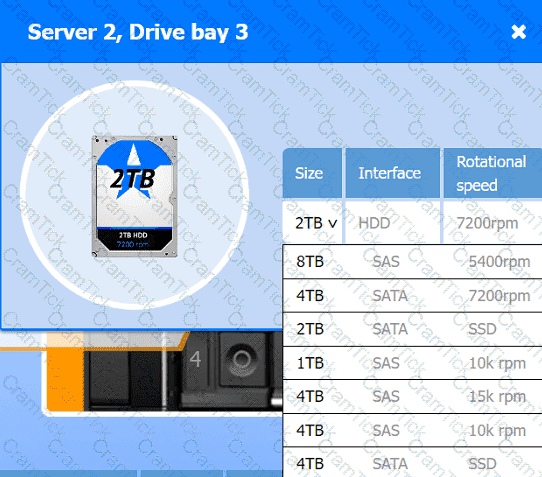

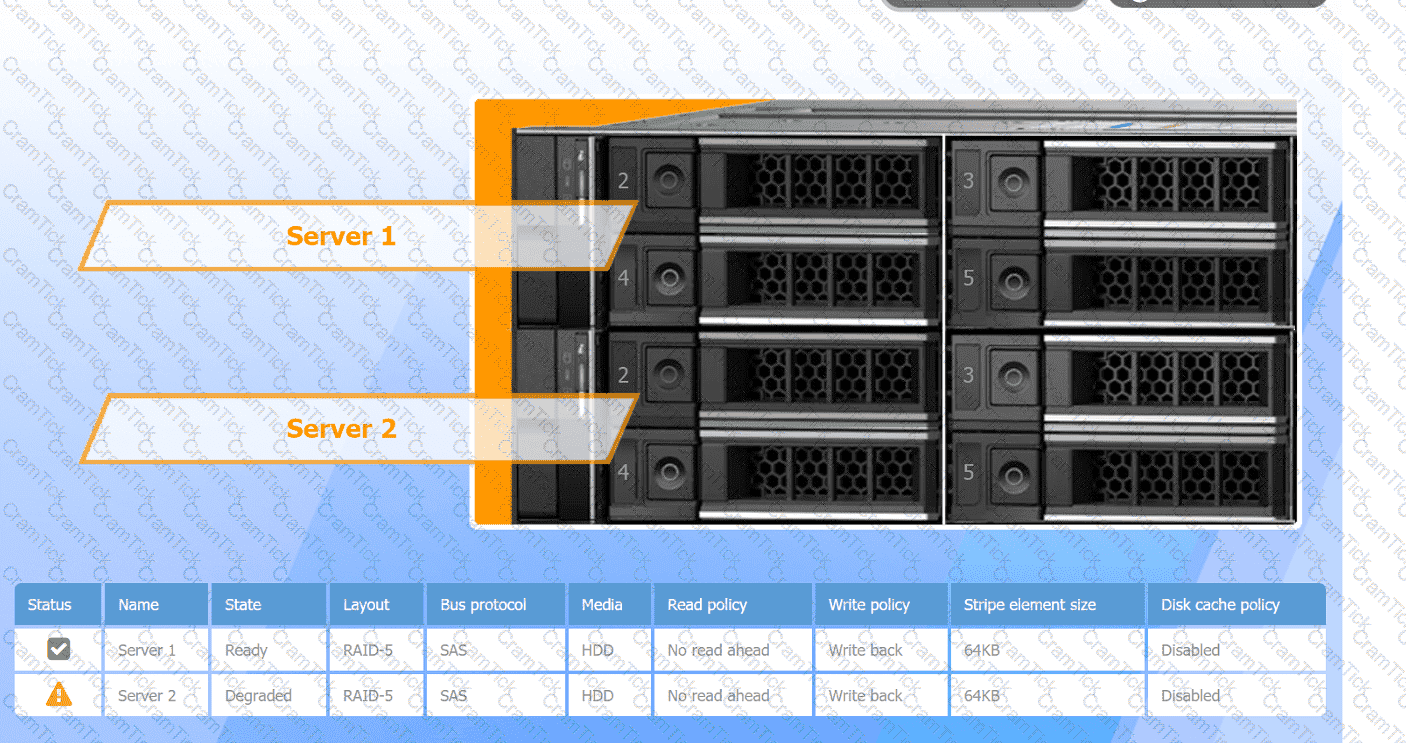

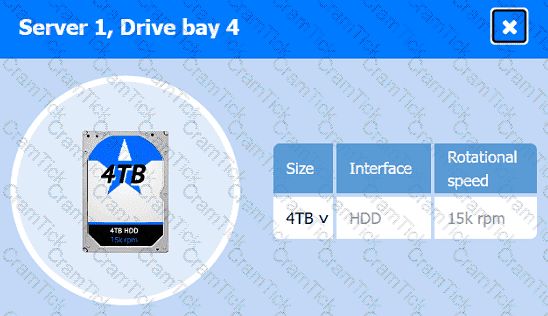

For a main database server with high read/write activity, the best RAID choice must deliver strong performance while still providing fault tolerance. Per CompTIA A+ Core 1 (220-1201) storage/RAID objectives, RAID 10 (1+0) combines disk mirroring (RAID 1) and disk striping (RAID 0). Striping improves performance by distributing read/write operations across multiple disks, which is ideal for databases that perform frequent transactions. Mirroring provides redundancy by keeping an identical copy of data on a paired drive, allowing the system to tolerate drive failures (typically one drive per mirrored pair) without data loss.

RAID 0 is fast but offers no redundancy, making it inappropriate for critical servers. RAID 5 and RAID 6 use parity, which provides redundancy but introduces a write penalty because parity must be calculated and written during updates—often a poor fit for workloads with heavy random writes like databases. RAID 6 is even more write-intensive

The correct answer is B. Header pinouts.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware:

Header pinouts on a motherboard are designated connectors for internal components such as USB ports, audio connectors, and front panel buttons/LEDs.

When adding additional internal USB ports, a technician typically connects them to the motherboard’s USB header pinouts. These headers provide the necessary data and power connections to enable USB functionality for front-panel or expansion USB ports.

Why the other options are incorrect:

A. TPM (Trusted Platform Module): Used for hardware-based security functions like encryption, not USB connectivity.

C. M.2 connector: Used primarily for SSDs and other small-form-factor expansion devices, not standard USB ports.

D. Expansion slots: Typically PCIe or PCI slots are used for expansion cards such as GPUs, network cards, or USB controller cards, but not for connecting internal USB headers directly.

The correct answer is D. Router.

According to the CompTIA A+ Core 1 (220-1201) objectives for Networking, routers are devices that operate at Layer 3 (Network layer) and are primarily used to connect multiple networks, including LANs, WANs, and the Internet. Routers use IP addressing to determine the best path for forwarding packets between networks.

Why the other options are incorrect:

A. Controller: Generally refers to a device that manages a network or hardware component but does not inherently connect different networks.

B. Bridge: Connects two segments of the same network, not different networks, and operates at Layer 2 (Data Link layer).

C. Hub: Connects devices within the same network segment, simply repeating signals, and does not perform routing between networks.

The correct answer is B. Moving to a supported system under a Type 2 hypervisor.

In the CompTIA A+ Core 1 (220-1201) objectives, virtualization is a key concept for maintaining compatibility with legacy systems. A Type 2 hypervisor (hosted hypervisor) runs on top of an existing operating system and allows users to run a virtual machine (VM) with an older OS.

This solution is ideal because:

It allows the legacy application to run in its required OS environment.

It avoids replacing the application (which could cause data loss or compatibility issues).

It is cost-effective, as it uses existing hardware.

It minimizes user disruption, since users can continue using the application within a VM.

Why the other options are incorrect:

A. Setting up a bare-metal hypervisor

A Type 1 (bare-metal) hypervisor is more complex, costly, and disruptive. It typically requires dedicating hardware and is not ideal for a single department use case.

C. Upgrading to an alternative product and importing the data

Although this may be a long-term solution, it involves higher cost, potential data loss, retraining, and disruption.

D. Uploading the database to a private cloud

This does not solve the compatibility issue of the legacy application with the new OS.

Final Answer: B. Moving to a supported system under a Type 2 hypervisor

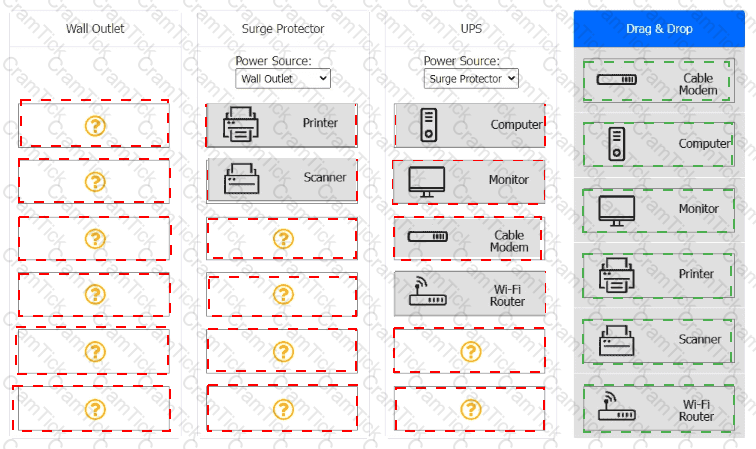

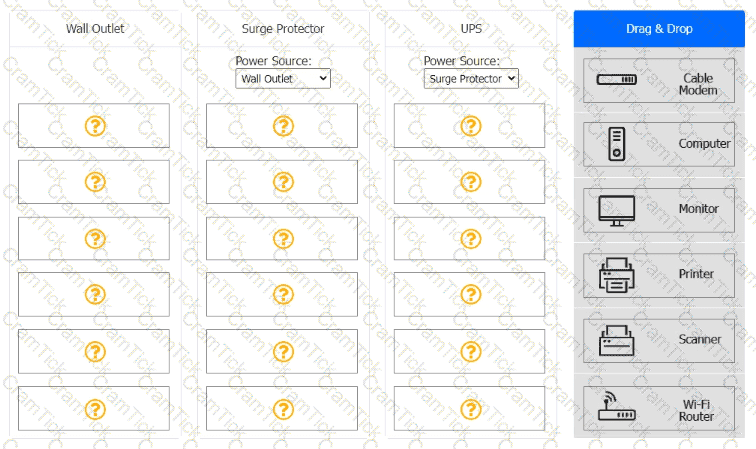

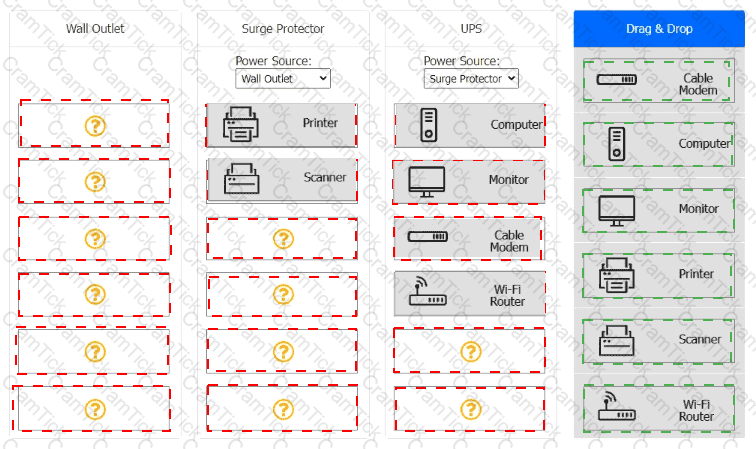

Wall Outlet

(empty — nothing goes directly to the wall)

Surge Protector (Power Source: Wall Outlet)

Printer

Scanner

UPS (Power Source: Surge Protector)

Computer

Monitor

Cable Modem

Wi-Fi Router

According to the CompTIA A+ Core 1 (220-1201) virtualization objectives, a Type 1 hypervisor is known as a bare-metal hypervisor because it installs directly onto the physical hardware of a system rather than running on top of a traditional operating system. This architecture allows the hypervisor to manage hardware resources—such as CPU, memory, storage, and networking—without the overhead of a host operating system. Because of this direct interaction with the hardware, Type 1 hypervisors typically provide higher performance, better scalability, and improved stability compared to Type 2 hypervisors.

Examples of Type 1 hypervisors include VMware ESXi, Microsoft Hyper-V (bare-metal deployment), and Citrix XenServer. These hypervisors are commonly used in enterprise data centers, cloud infrastructure, and large virtualization environments where multiple virtual machines must run efficiently on a single physical server. ???? ️

Option A (Host OS required) describes a Type 2 hypervisor, such as VMware Workstation or Oracle VirtualBox, which runs on top of an existing operating system. Option C (Lightweight OS) may describe some hypervisor environments but is not the defining characteristic. Option D (Local configuration options) is also not specific to Type 1 hypervisors.

Therefore, the key characteristic that defines a Type 1 hypervisor is that it performs a bare-metal server installation directly on the hardware

The correct answer is A. The internal antenna has been damaged.

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Networking:

Many laptop Wi-Fi antennas are embedded in the display panel and connected via small cables to the wireless card on the motherboard.

If the display panel is replaced and the Wi-Fi antenna is disconnected, damaged, or improperly routed, the laptop will experience weak or intermittent Wi-Fi connectivity.

Why the other options are incorrect:

B. Airplane mode is enabled: Would completely disable wireless radios; the question specifies difficulty staying connected, not a total lack of connectivity.

C. The inverter is not connected: The inverter powers the backlight of the display, unrelated to wireless connectivity.

D. The wireless drivers have not been updated: While outdated drivers can cause connectivity issues, a sudden problem after a display replacement strongly points to physical antenna damage.

Because the smudges are not in the original document, CompTIA A+ troubleshooting logic indicates the problem is occurring inside the print process, not in the application or file. For laser printers, smudging commonly points to an issue with the imaging components—especially the drum/photoconductor unit (and sometimes the fuser). A+ Core 1 (220-1201) printer troubleshooting emphasizes starting with the most likely, easiest-to-verify causes before replacing parts. Inspecting the drum is a diagnostic step that can reveal visible defects such as scratches, toner buildup, contamination, or worn surfaces that cause toner to transfer incorrectly, leading to streaks or smears on output.

Replacing the toner (D) is a corrective action and may be unnecessary if the drum is damaged. Changing paper type (A) can help with some issues (like poor fusing or humidity-related problems), but it’s less directly tied to consistent smudges caused by the imaging process. Firmware updates (C) are rarely the first step for print-quality defects; they’re more relevant to compatibility, bugs, or feature issues—not physical smearing. Therefore, inspecting the printer drum first best matches A+ methodology and common laser printer failure points.

The correct answer is B. Change the fuser temperature.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

A laser printer fuses toner onto paper using heat and pressure. Thicker paper often requires a higher fuser temperature to properly adhere the toner.

If the output smudges on thick paper but prints fine on standard paper, adjusting the fuser temperature is the first step before performing more invasive maintenance or replacing parts.

Why the other options are incorrect:

A. Install a maintenance kit: Typically includes rollers, belts, and other parts; this is not the first action if the issue is temperature-related.

C. Clean the transfer roller: Cleaning may improve print quality, but smudging on thick paper usually relates to insufficient fusing heat.

D. Install an OEM toner cartridge: The issue is unlikely to be caused by non-OEM toner if standard paper prints correctly.

The correct answer is D. Verify the audio output assignment.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Troubleshooting:

HDMI carries both video and audio signals. If video displays correctly but audio is not heard, it is often because the computer is still outputting sound to its internal speakers rather than the HDMI-connected device.

The user should check the audio output settings in the operating system and ensure the HDMI device (TV or projector) is selected as the audio output device.

Why the other options are incorrect:

A. Adjust the volume settings: Volumes are already at 50%, so adjusting them will not solve the problem if the audio output is assigned incorrectly.

B. Swap the HDMI cable: The video is working fine, so the cable is likely functional.

C. Reinsert the HDMI cable: Unlikely to resolve audio assignment issues if the connection is already working for video.

The correct answer is B. USB.

In the CompTIA A+ Core 1 (220-1201) objectives under mobile devices and connectivity methods, tethering refers to sharing a mobile device’s internet connection with another device such as a laptop. There are several tethering methods, including USB tethering, Bluetooth tethering, and Wi-Fi hotspot.

USB tethering is considered the most stable and reliable (tethered) connection because:

It uses a physical cable connection, eliminating wireless interference.

It provides consistent bandwidth and low latency.

It also charges the phone while connected, which is an added benefit.

It is less prone to disconnections compared to wireless methods.

Why the other options are incorrect:

A. Bluetooth

Bluetooth tethering is slower and less stable due to limited bandwidth and susceptibility to interference. It is not ideal for high-performance or stable connections.

C. Hotspot

A mobile hotspot uses Wi-Fi, which is wireless, not tethered. While convenient, it is less stable than a wired USB connection and can be affected by interference and signal range.

D. NFC

NFC (Near Field Communication) is used for very short-range communication like payments or quick pairing. It is not used for maintaining a continuous network connection.

Final Answer: B. USB

The correct answer is B. Elasticity.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud Concepts:

Elasticity refers to the cloud computing capability to automatically allocate and deallocate resources based on current demand. This ensures that applications have the necessary compute, storage, and network capacity during peak loads, and resources can be scaled down when demand decreases, optimizing efficiency and cost.

Why the other options are incorrect:

A. Hybrid deployment: Refers to using a combination of public and private clouds; it does not describe dynamic resource allocation.

C. Multitenancy: Describes the architecture where multiple users share the same infrastructure securely.

D. Metered utilization: Refers to charging based on resource consumption; it is a billing mechanism, not a dynamic allocation feature.

The correct answer is D. WLAN (Wireless Local Area Network).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

A WLAN is a wireless network that covers a limited area such as an office, building, or campus.

Using a heat map helps administrators determine optimal placement of access points, identify areas of weak signal, and plan coverage for employees’ devices.

Why the other options are incorrect:

A. SAN (Storage Area Network): Connects storage devices over a network; not used for wireless coverage.

B. PAN (Personal Area Network): Covers a very small area, such as a single person’s devices (Bluetooth, USB, etc.), not a whole office.

C. MAN (Metropolitan Area Network): Covers a city or large geographic area; too large for a floor plan.

The correct answer is A. RJ11.

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

RJ11 connectors are commonly used for telephone lines and data cables that use two pairs of wires (four wires total).

This connector is standard for analog telephone connections and DSL connections.

Why the other options are incorrect:

B. F-type: Used for coaxial cables, commonly in cable TV or broadband internet, not for two-pair data cables.

C. ST: A type of fiber optic connector, not used for copper two-pair wiring.

D. Molex: Primarily used for power connections in computer hardware, not for network or phone cabling.

In the CompTIA A+ Core 1 (220-1201) exam objectives, cloud deployment models describe how and where computing resources are hosted and who has access to them. A private cloud is defined as a cloud environment that is dedicated to a single organization and may be hosted on-premises within the company’s own data center or in a dedicated external facility. Since the question states that the directory services server is located on premises, it indicates that the organization is hosting and managing its own infrastructure internally. This aligns directly with the definition of a private cloud deployment model.

Directory services—such as Microsoft Active Directory or LDAP-based services—are commonly deployed internally to manage user authentication, authorization, group policies, and resource access within an organization. When these services run on company-owned hardware inside the organization’s network, the infrastructure remains under the organization’s full administrative control, security policies, and management.

The other options do not match this scenario. A public cloud is hosted by third-party providers and shared among multiple customers ☁. A hybrid cloud combines on-premises infrastructure with public cloud services. A community cloud is shared by multiple organizations with similar requirements. Because the system is hosted internally for a single organization, the correct classification is Private Cloud .

A computer tower with a hard drive and a hard drive AI-generated content may be incorrect.

A computer tower with a computer and a hard drive AI-generated content may be incorrect.

The correct answer is A. Clean the feed rollers.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

Frequent paper jams, particularly in high-use shared printers, are commonly caused by dirty or worn feed rollers.

Cleaning the feed rollers removes dust, paper debris, and toner residue that can prevent smooth paper feeding, especially when printing double-sided documents.

This is a standard preventive maintenance procedure that improves reliability and extends the printer’s operational life.

Why the other options are incorrect:

B. Use a different paper weight: A4 standard paper is appropriate; changing paper weight is unnecessary unless the paper is damaged or incompatible.

C. Replace the fuser unit: Fuser problems generally cause smudging or incomplete fusing, not frequent paper jams.

D. Change the toner cartridge: Toner issues affect print quality (light or streaky prints), not paper feeding or jamming.

The correct answer is A. Containers.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud/Virtualization Concepts:

Containers provide lightweight, portable environments that package applications and their dependencies, allowing them to run consistently across multiple environments.

Containers are ideal for development teams because they require minimal underlying infrastructure, can be quickly deployed or destroyed, and isolate applications from the host system, making it easier to manage multiple applications simultaneously.

Why the other options are incorrect:

B. IaaS (Infrastructure as a Service): Provides virtualized hardware over the cloud but is more general-purpose; it includes virtual machines, storage, and networking, not minimal isolated application environments.

C. SaaS (Software as a Service): Provides fully managed software to end-users; not intended for deploying custom web applications by a development team.

D. Desktop virtualization: Provides virtual desktop environments to users; it does not provide a minimal, disposable platform for web application development.

The correct answer is B. NVMe SSD.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Storage:

NVMe (Non-Volatile Memory Express) SSDs provide the fastest data access and retrieval speeds compared to other storage types, especially on laptops. NVMe SSDs use the PCIe interface, which allows significantly higher throughput and lower latency than SATA-based storage.

This improves boot times, application load times, and overall system responsiveness.

Why the other options are incorrect:

A. SATA M.2: While faster than traditional 2.5” SSDs and HDDs, SATA M.2 is limited by the SATA III interface (~600 MB/s), which is slower than NVMe SSDs (~3,000–7,000 MB/s).

C. Optical disk: Optical media (CD/DVD/Blu-ray) is extremely slow and not suitable for quick access or retrieval.

D. 7,200rpm HDD: Mechanical hard drives have the slowest access times and throughput compared to SSDs.

The correct answer is B. Secure Boot.

According to CompTIA A+ Core 1 220-1201 objectives under Security:

Secure Boot is a UEFI firmware feature that ensures a computer boots only with software that is trusted and digitally signed by the manufacturer.

This prevents malicious or unauthorized bootloaders and operating systems from loading, protecting the system from rootkits and other boot-time attacks.

Secure Boot does not require disabling USB devices; it simply checks that any bootable device contains a signed operating system.

Why the other options are incorrect:

A. BIOS password: Protects access to BIOS/UEFI settings but does not verify trusted software during boot.

C. USB settings: Can control USB access but cannot enforce boot validation for signed OS or prevent unauthorized boot devices.

D. Single sign-on: Provides authentication convenience for users, unrelated to boot security.

To ensure seamless connectivity during (and after) migrating an application server, the best DNS approach in CompTIA A+ Core 1 (220-1201) terms is to use a CNAME (Canonical Name) record, which creates an alias from one hostname to another. Instead of users connecting directly to a server’s changing hostname, they connect to a consistent service name (for example, app.company.com). That name can be configured as a CNAME pointing to the current host (such as server1.company.com). When the application is moved to a new server, the technician updates what the alias ultimately resolves to (or updates the target host’s A/AAAA record), and clients continue using the same familiar application URL/name—minimizing disruption and avoiding the need to reconfigure endpoints across devices.

The other record types are not designed for this purpose. TXT records store text-based information (often verification or policy data). SPF and DKIM are email authentication-related mechanisms (typically implemented via TXT records) used to validate authorized mail senders and message integrity—not application server migration. Because the goal is maintaining a stable name for a service while the underlying host changes, CNAME is the correct record type.

The correct answer is D. RAID 10 (also called RAID 1+0).

According to CompTIA A+ Core 1 220-1201 objectives under Storage:

RAID 10 combines the mirroring of RAID 1 with the striping of RAID 0. This provides both high data availability (because each drive has a mirror) and improved performance (because data is striped across multiple disks).

RAID 10 requires a minimum of four drives and is suitable for servers that handle high I/O workloads while maintaining redundancy.

Why the other options are incorrect:

A. RAID 1: Provides mirroring for redundancy but does not improve performance as effectively as RAID 10.

B. RAID 0: Provides striping for performance but has no redundancy; a single drive failure results in data loss.

C. RAID 5: Provides parity and can tolerate one drive failure with decent read performance, but write performance is lower than RAID 10 and rebuilds can impact system performance under heavy load.

The correct answer is D. Dual channel.

In the CompTIA A+ Core 1 (220-1201) hardware objectives, memory bandwidth refers to the amount of data that can be transferred between RAM and the CPU in a given amount of time.

Dual channel memory architecture increases bandwidth by:

Allowing the memory controller to access two memory modules simultaneously

Effectively doubling the data transfer rate compared to single-channel configurations

Improving overall system performance, especially in memory-intensive tasks

Why the other options are incorrect:

A. CAS latency

CAS latency measures the delay before data is available after a request. Lower latency improves response time, but it does not significantly increase total bandwidth.

B. ECC

ECC (Error-Correcting Code) improves reliability by detecting and correcting errors, but it does not increase data transfer bandwidth.

C. High clock speed

Higher clock speed does increase bandwidth, but not as significantly as enabling dual channel, which allows parallel data transfer paths and provides a greater overall increase.

Final Answer: D. Dual channel

The correct answer is A. Virtual LAN (VLAN).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

VLANs are used to segment a physical network into multiple logical networks. By assigning the accounting department to a separate VLAN, users on other VLANs cannot access its network traffic without routing, thereby isolating sensitive departments while using the same physical switch.

VLANs improve security, reduce broadcast traffic, and allow network administrators to enforce access controls at the layer 2 level.

Why the other options are incorrect:

B. DHCP reservations: Ensure that specific devices always receive the same IP address, but do not restrict network access.

C. Content filtering: Controls web or application traffic based on content, not segmenting network access between departments.

D. Port security: Limits which devices can connect to a port but does not provide full network segmentation for an entire department.

CompTIA A+ Core 1 (220-1201) display technology objectives emphasize that contrast ratio is strongly influenced by how well a screen can produce true black. OLED (Organic Light-Emitting Diode) panels are known for the highest contrast ratios because each pixel is self-emissive—meaning it generates its own light. When an image requires black, OLED can turn individual pixels completely off, producing near-perfect black levels and extremely high (often “infinite”) contrast in practical terms.

By comparison, LCD panels require a backlight, so black areas still allow some light leakage through the liquid crystal layer, reducing contrast. LED in this context is typically an LED-backlit LCD, not a fundamentally different pixel technology; it improves brightness and efficiency but still relies on backlighting, so contrast is limited by backlight bleed and panel design. QLED is also a type of LCD technology that uses a quantum dot layer to enhance color and brightness, but it still uses a backlight, so it cannot match OLED’s per-pixel shutoff for black levels. Therefore, OLED is the best choice for the highest contrast ratios.

Answer of both steps below.

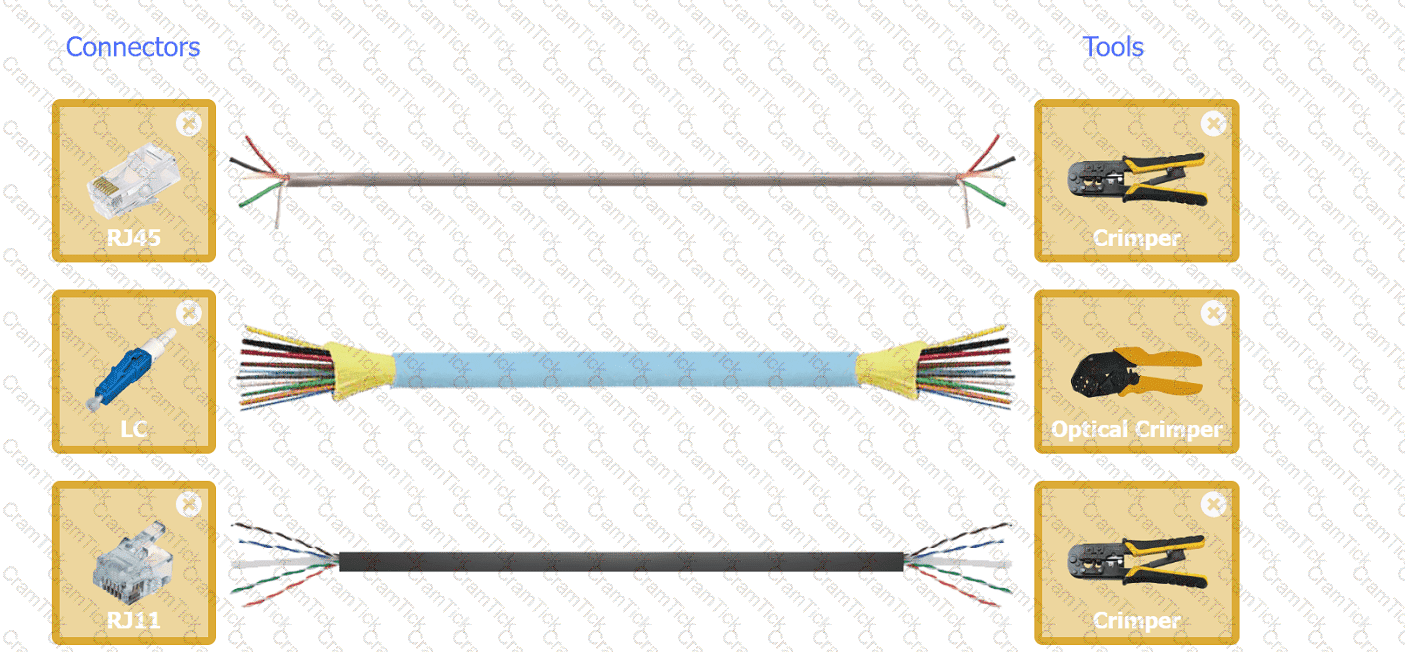

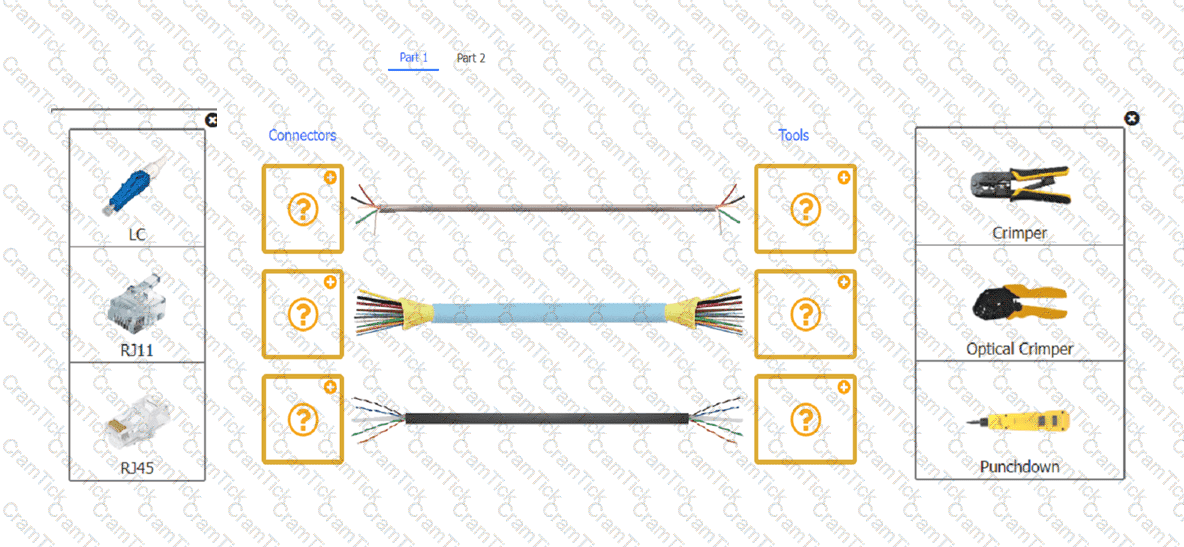

A group of wires with different colors AI-generated content may be incorrect.

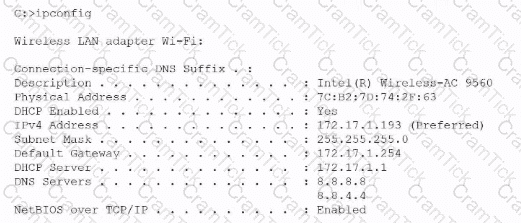

A screenshot of a computer AI-generated content may be incorrect.

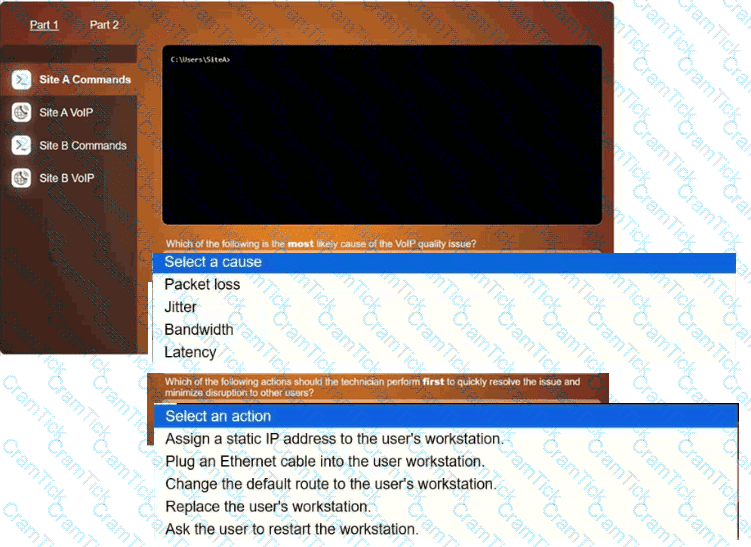

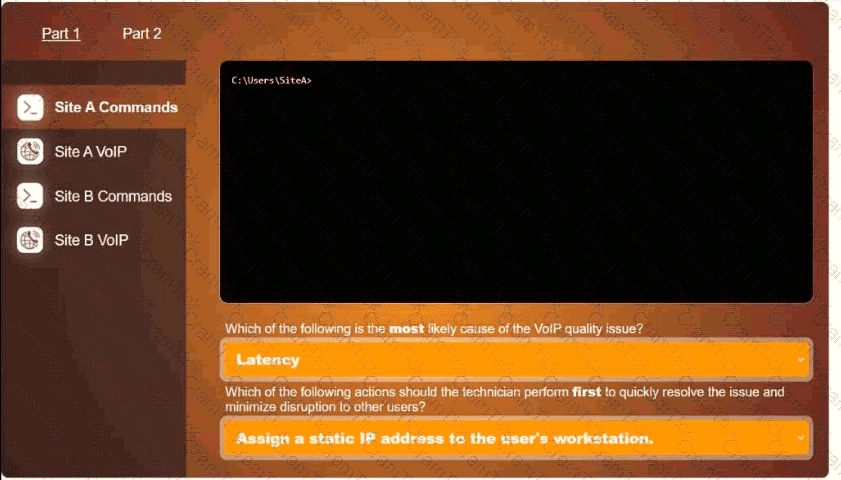

In CompTIA A+ Core 1 (220-1201) networking and troubleshooting, a common cause of “can’t reach internal resources” while docked is that the laptop is still using the wireless interface (or has a higher interface priority for Wi-Fi) instead of the docking station’s wired Ethernet connection. If the Wi-Fi network is a guest/isolated VLAN, uses different routing, or has stricter access controls, the user may be blocked from reaching department file servers even though an Ethernet cable is physically connected to the dock. Disabling Wi-Fi is a fast, low-risk step that forces the system to use the wired NIC path through the docking station, which typically provides the correct corporate network access, DHCP scope, and routing to internal servers.

Restarting the computer might help in some cases, but it’s less targeted and not the “best next step” when the likely issue is interface selection. Replacing the Ethernet cable is appropriate if link lights are off or the wired connection is clearly down, but the scenario highlights that the dock has a hardwired connection—suggesting the physical layer may be fine. Dock firmware updates are not a first-line fix for basic connectivity/access symptoms.

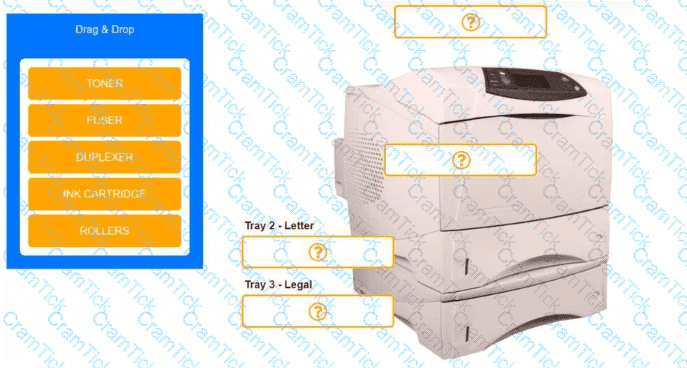

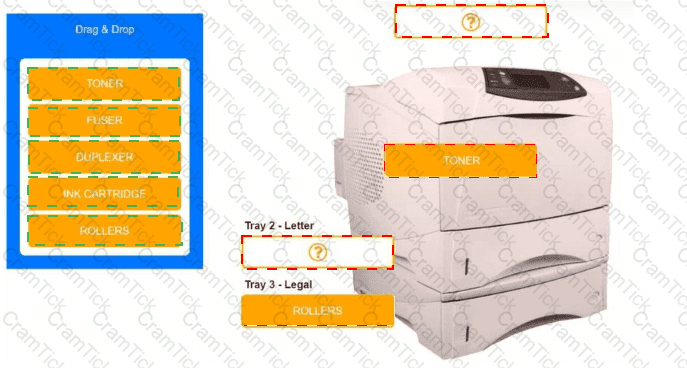

A printer with text boxes AI-generated content may be incorrect.

The correct answer is D. Decreased burn-in.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Display Technologies:

Mini-LED displays use an array of tiny LEDs as a backlight for LCD panels.

Unlike OLED displays, which are susceptible to burn-in (permanent image retention when static content is displayed for long periods), mini-LEDs reduce the risk because the pixels themselves do not emit light individually and are less prone to permanent image retention.

Why the other options are incorrect:

A. Increased contrast: OLED typically provides better contrast because it can turn off individual pixels completely.

B. No backlight: Mini-LEDs still use a backlight, whereas OLEDs do not.

C. Improved viewing angle: OLEDs generally offer wider viewing angles than mini-LED LCDs.

A Layer 3 switch is the optimal solution when multiple VLANs must intercommunicate while maintaining high performance and minimal hardware complexity. CompTIA A+ explains that Layer 3 switches combine the capabilities of switching (Layer 2) and routing (Layer 3), allowing VLAN traffic to be routed internally at wire speed, without the latency typically associated with traditional routers.

Layer 3 switches use hardware-based routing, meaning they forward inter-VLAN traffic using ASICs (Application-Specific Integrated Circuits). This allows them to achieve extremely fast throughput, ideal for environments like computer training institutes where multiple VLANs may be used for student labs, instructor networks, and administrative traffic.

A router (D) can route between VLANs but introduces more latency due to software-based routing and typically requires additional equipment. A Web application firewall (A) and DDoS appliance (B) are security devices unrelated to internal VLAN communication.

Because the institute requires minimal hardware and high-speed inter-VLAN communication, the Layer 3 switch is the only CompTIA-supported device that meets both requirements simultaneously.

Virtual Desktop Infrastructure (VDI)hosts desktop environments on centralized servers. Thisallowsrapid deployment and consistent configurationacross multiple users, minimizing manual setup and easing IT management.

Option A:VDI still uses standard authentication methods.

Option B:Licensing can actually be more expensive due to virtualization software and backend servers.

Option D:VDI centralizes the desktop environment viruses would affect the virtual session, not be " contained locally. "

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.1: Compare and contrast cloud computing concepts.

===========

The correct answer is D. Replace the failed drive.

RAID 6 is a redundant array of independent disks that can tolerate up to two drive failures while still maintaining data integrity. According to CompTIA A+ Core 1 (220-1201) objectives, a red LED on a drive in a RAID array indicates that the drive has failed or is in a critical state.

Next Step: In RAID 6, a single failed drive should be replaced immediately to prevent additional failures and maintain redundancy. The array can continue to operate in a degraded state, but performance may be slow during rebuilds. Replacing the failed drive allows the RAID controller to rebuild data onto the new drive, restoring full redundancy.

Why the other options are incorrect:

A. Reconfigure the RAID array: This would erase existing data; unnecessary if only one drive failed.

B. Run a S.M.A.R.T. test: While useful for diagnosing drive health, the red LED already indicates failure, so immediate replacement is required.

C. Reinstall the controller drivers: This does not address a physically failed drive and would not fix the degraded RAID array.

The correct answer is B. Change the resolution.

According to the CompTIA A+ Core 1 220-1201 objectives, troubleshooting display issues involves checking the display settings, including resolution, scaling, and orientation. When a projector is only showing part of a laptop screen:

The most common cause is that the laptop’s output resolution does not match the projector ' s native resolution. If the laptop is set to a resolution larger than what the projector supports, only a portion of the screen is visible.

The technician should first adjust the laptop ' s resolution to match the projector’s native resolution before attempting other options like extending or mirroring the desktop.

Why the other options are incorrect:

A. Extend the desktop: This is only used if the user wants to have two separate screens (dual monitors), not to fix partial display issues.

C. Mirror the desktop: Mirroring duplicates the laptop display but does not solve issues caused by resolution mismatch.

D. Switch the input source: Necessary only if the projector is on the wrong input, but the problem here is a partial display, not no display.

The correct answer is D. Channel width.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Wireless:

Channel width refers to the size of the frequency band used for Wi-Fi communication.

Increasing channel width (e.g., from 20 MHz to 40 MHz, 80 MHz, or 160 MHz) allows more data to be transmitted at once, effectively increasing wireless throughput speed.

Why the other options are incorrect:

A. Licensed bands: Licensed spectrum is used for certain types of communication and does not directly increase Wi-Fi throughput.

B. Maximum transmission unit (MTU): MTU defines the largest packet size transmitted over a network but is not the primary factor for increasing Wi-Fi throughput.

C. Transmit power: Adjusting transmit power affects signal range and coverage but does not significantly increase throughput; it may improve connectivity but not data rates.

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

A user reports poor performance on the

application server.

INSTRUCTIONS

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black and silver parts AI-generated content may be incorrect.A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer AI-generated content may be incorrect.A screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

The correct answer is A. Adjust the SMTP server configurations for email.

Scan-to-email functionality on a multifunction printer relies on proper configuration of an SMTP (Simple Mail Transfer Protocol) server. The printer must know how to send outgoing email, which requires settings such as:

SMTP server address

Port number (commonly 25, 465, or 587)

Authentication credentials (username/password)

Encryption method (SSL/TLS if required)

If scan-to-email is not working, the most common cause is incorrect or missing SMTP configuration. Without this setup, the printer cannot send scanned documents via email.

Why the other options are incorrect:

B. Check the printer ' s IP address configuration

This ensures network connectivity, but since the printer is already in use and the issue is specific to email functionality, IP configuration is unlikely the root cause.

C. Install the printer ' s driver software on all computers

Drivers are needed for printing from computers, but scan-to-email is handled directly by the printer and does not depend on client-side drivers.

D. Configure user authentication settings for email access

While authentication may be required in some setups, it is part of the broader SMTP configuration. The primary and most direct fix is ensuring SMTP settings are correct.

Exam Tip (Core 1 220-1201):

Scan-to-email issues → Check SMTP settings first

Multifunction printers rely on network services (email protocols), not just drivers

Final Answer: A. Adjust the SMTP server configurations for email

The correct answer is D. Check for loose connections on the display.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Display Troubleshooting:

Flickering or strange colored lines on a monitor are often caused by loose or damaged video cable connections (internal or external).

Before considering costly or time-consuming solutions like replacement, the technician should verify that the display cable, internal ribbon cables, or connectors are properly seated.

Why the other options are incorrect:

A. Suggest a secondary monitor: Provides a temporary workaround but does not resolve the underlying hardware issue.

B. Conduct a factory reset: Resets software settings but will not correct physical connection problems that cause flickering or colored lines.

C. Install a screen protector: Does not affect video signal or display functionality; irrelevant for flickering issues.

The correct answer is D. Replace the drive with a cold-swappable drive.

According to CompTIA A+ Core 1 220-1201 objectives under Storage and RAID:

RAID 5 provides both data striping and parity for fault tolerance, but if the RAID controller does not support hot swapping, replacing a failed drive while the system is running is not possible.

Cold-swappable drives are designed to be safely removed and replaced when the system is powered down, which allows maintenance without damaging the array or system.

Why the other options are incorrect:

A. Update the RAID controller firmware to support hot swapping: Firmware updates may add hot swap functionality, but this is not guaranteed and may require a system reboot.

B. Implement a software-based RAID solution: Software RAID requires a system reconfiguration and downtime; it does not immediately resolve the degraded RAID 5 array.

C. Change the drive during off-peak hours: While feasible, this is essentially the same as using a cold-swappable drive but is less precise; using cold-swappable drives ensures safe replacement without downtime considerations.

Packet loss

Plug an Ethernet cable into the workstation

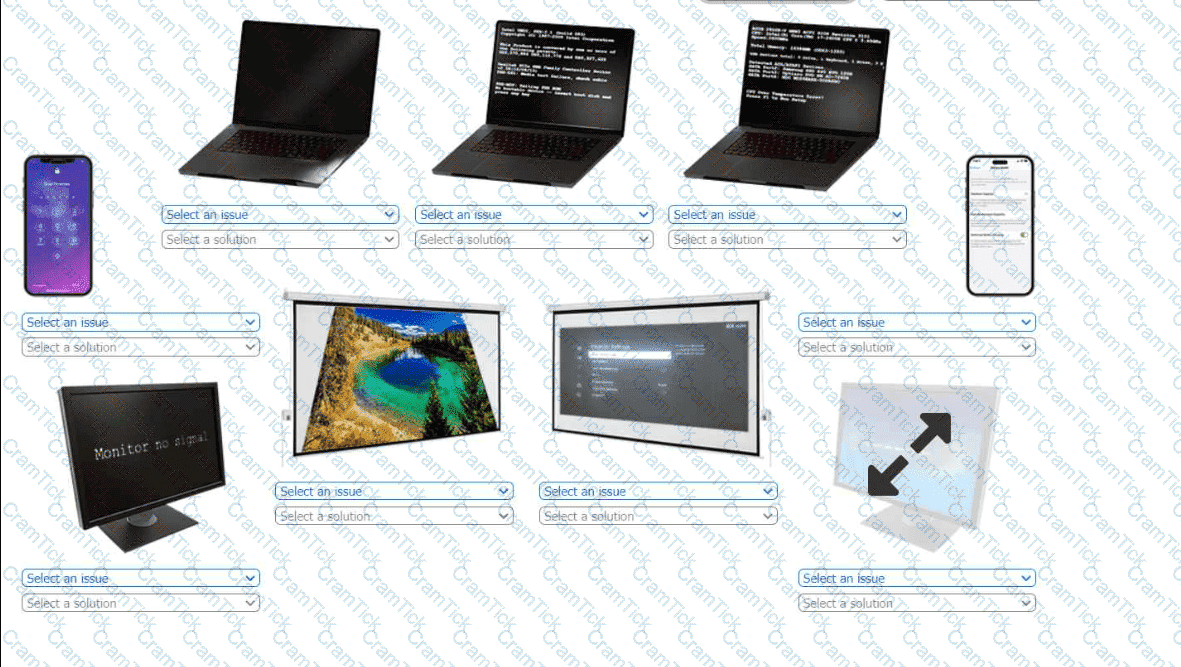

A screenshot of a computer AI-generated content may be incorrect.

The correct answer is C. Synchronized system clocks.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Server Services, NTP (Network Time Protocol) is used to synchronize the clocks of computers across a network to a common time source. This is critical for:

Ensuring accurate timestamps for logs and events.

Coordinating scheduled tasks across multiple systems.

Preventing authentication issues in environments that rely on time-based credentials (e.g., Kerberos).

Why the other options are incorrect:

A. Defined network transport protocols: NTP itself is a protocol that uses UDP, but its primary purpose is not defining transport protocols.

B. Enabled print services on the server: NTP does not relate to printing.

D. Defined server options in DHCP: NTP may be referenced by DHCP options, but the act of adding NTP to a server is focused on time synchronization, not DHCP configuration.

The correct answer is C. Virtualization.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud/Virtualization Concepts:

Virtualization allows a single physical server to host multiple virtual machines (VMs), each running its own operating system and applications.

This reduces hardware costs because fewer physical servers are required to run multiple workloads, and it improves resource utilization, scalability, and management.

Why the other options are incorrect:

A. Containerization: Optimizes application deployment by packaging applications and dependencies, but containers share the host OS kernel and are not full OS instances.

B. Cloud computing: Refers to delivering computing services over the internet; it can use virtualization but is broader and not specifically focused on reducing physical hardware.

D. Remote desktop services: Provides remote access to desktops or applications; it does not reduce hardware requirements for hosting multiple OS environments.

The correct answer is A. Duplex.

In the CompTIA A+ Core 1 (220-1201) exam objectives under printer settings and configuration, duplex printing refers to printing on both sides of the paper automatically.

Using duplex printing is the best way to reduce resource consumption because:

It cuts paper usage in half, which is the primary resource being conserved.

It is ideal for multi-page documents and multiple copies.

It reduces physical storage and handling requirements.

Why the other options are incorrect:

B. Orientation

Orientation (portrait or landscape) changes the layout of the document but does not reduce resource usage.

C. Tray settings

Tray settings determine which paper tray is used (e.g., plain paper, letterhead), but they do not impact resource consumption.

D. Quality

Print quality (draft, normal, high) may affect ink/toner usage, but it does not reduce paper consumption as effectively as duplex printing, which is the main resource concern in this scenario.

Final Answer: A. Duplex

The correct answer is A. Better compatibility.

According to CompTIA A+ Core 1 220-1201 objectives under Software Troubleshooting and Virtualization:

Application virtualization allows applications to run in an isolated environment on a client device without being installed directly on the operating system.

This improves compatibility, as applications can operate regardless of OS differences, avoiding conflicts with other installed applications or system configurations.

Why the other options are incorrect:

B. Reduced network latency: Application virtualization does not inherently reduce network latency; network performance depends on connectivity.

C. Secure telnet access: Telnet is unrelated to application virtualization.

D. Metered utilization: Metering refers to cloud service usage or billing, not a benefit of application virtualization itself.

The correct answer is D. SMTP (Simple Mail Transfer Protocol).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

SMTP is the standard protocol used to send emails from a client to a mail server or between servers.

POP3 (Post Office Protocol 3) and IMAP (Internet Message Access Protocol) are used for receiving emails, not sending them.

LDAP (Lightweight Directory Access Protocol) is used for accessing and managing directory services, such as authentication and organizational information, not for email transport.

The correct answer is D. Restart the device.

According to CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

Warning messages like this can be caused by malicious pop-ups or temporary software glitches. Restarting the device is the safest and quickest first step to clear temporary processes, refresh the system, and remove transient malware or pop-up overlays.

This approach addresses the issue without risking data loss or unnecessary downtime.

Why the other options are incorrect:

A. Force close all running applications: May help if a specific app is causing the pop-up, but restarting achieves this more reliably and fully resets background processes.

B. Replace the tablet with a newer device: Unnecessary and costly for a potentially temporary software issue.

C. Reset the device to default settings: This is a last-resort action, as it erases personal data and settings; it is not the first step.

The correct answer is D. Injector.

Power over Ethernet (PoE) allows network cables to carry electrical power to devices such as wireless access points, IP cameras, and VoIP phones, eliminating the need for separate power supplies. According to the CompTIA A+ Core 1 220-1201 objectives under Networking, PoE can be implemented in the following ways:

PoE-enabled switches: Switches that can supply power directly over the Ethernet ports.

PoE injectors: Devices that add power to an existing Ethernet connection when the switch or router does not provide PoE.

Why the other options are incorrect:

A. Modem: A modem connects a network to the Internet but does not provide PoE functionality.

B. Range extender: Extends the range of a wireless network; does not supply power over Ethernet.

C. Media converter: Converts one type of network media to another (e.g., fiber to copper) but does not implement PoE.

Therefore, when a switch does not natively provide PoE, a PoE injector is the standard solution to add power to the Ethernet line.

A router is a network device that forwards data between different networks by examining packet headers, specifically the IP address information contained in Layer 3 (Network Layer) of the OSI model. According to the CompTIA A+ Core 1 (220-1201) networking objectives, routers use routing tables and packet header analysis to determine the best path for data to travel from a source network to a destination network. When a packet arrives at a router interface, the router reads the destination IP address in the packet header, compares it against its routing table, and then forwards the packet to the appropriate next hop or network interface. This function allows routers to connect multiple networks such as LANs, WANs, and the internet.

The other options do not perform this function. A hub operates at Layer 1 (Physical Layer) and simply broadcasts incoming signals to all connected ports without inspecting any packet information. A repeater also operates at the physical layer and is used only to regenerate or amplify signals to extend network distance. An unmanaged switch operates mainly at Layer 2 (Data Link Layer) and forwards frames based on MAC addresses, not IP packet headers. Because only routers analyze packet headers and forward traffic between different networks, Router is the correct answer.

The correct answer is D. DVI (Digital Visual Interface).

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Display Technologies:

DVI is primarily a video-only interface that transmits digital or analog video signals from a source (like a computer) to a display.

Unlike HDMI or USB-C, DVI does not carry audio signals, making it strictly for video.

Why the other options are incorrect:

A. DisplayPort: Supports video and audio as well as other features such as daisy-chaining multiple monitors.

B. HDMI: Transmits both video and audio signals over a single cable.

C. USB-C: Can carry data, power, and video/audio signals depending on the device and protocol (e.g., DisplayPort Alt Mode).

In CompTIA A+ Core 1 (220-1201) cloud concepts, the key differentiator between cloud deployment models is where the service is hosted and who owns/uses the underlying infrastructure. If a company’s directory services server (for example, a domain controller providing authentication/authorization and centralized identity management) is located on premises, that points to infrastructure that is owned and operated by the organization for its own internal use. This aligns best with a private cloud model, which is defined as cloud resources dedicated to a single organization and can be implemented on-premises (internally hosted) or in a dedicated off-site environment.

It is not a public cloud because public cloud services are hosted by a third-party provider and shared across multiple customers. It is not hybrid cloud because hybrid requires a mix of on-prem resources and public cloud resources working together (the question only specifies on-prem). It is not community cloud because that involves shared infrastructure among multiple organizations with common needs.

The correct answer is B. Switches connect devices within a network; routers connect networks.

According to the CompTIA A+ Core 1 220-1201 networking objectives:

Switches operate at the Data Link layer (Layer 2) and sometimes Layer 3, connecting multiple devices within the same local area network (LAN). They manage data traffic between devices by using MAC addresses to forward frames only to the intended recipient.

Routers operate at the Network layer (Layer 3) and connect different networks together, such as connecting a LAN to the internet. They use IP addresses to determine the best path for forwarding packets between networks.

Why the other options are incorrect:

A. Routers are programmable; switches are not programmable: Both devices can have programmable configurations in enterprise environments, so this is not a defining difference.

C. Switches are programmable; routers are not programmable: Same reasoning as above; not accurate.

D. Routers connect devices within a network; switches connect networks: This reverses the actual roles and is incorrect.

Unmanaged switches require no configuration they simply need to be plugged in and start working immediately, making them ideal for simple network setups.

Managed switches provide advanced features such as VLANs, SNMP monitoring, port security, and traffic management, but require configuration.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.2 – Compare and contrast common networking hardware:

“Unmanaged switches operate out of the box with no configuration and are designed for simple connectivity. Managed switches allow for configuration, monitoring, and management of network traffic and security.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Networking Hardware

CompTIA Exam Objectives 220-1101, Domain 2.2

============

For the highest possible stability, the best power-supply choice is a redundant power supply. In CompTIA A+ Core 1 (220-1201) hardware concepts, redundant PSUs are used in systems where uptime and reliability are critical. A redundant PSU configuration typically includes two power supply units operating together (often in a hot-swappable bay). If one PSU fails, the other continues supplying power, allowing the workstation to remain operational and preventing unexpected shutdowns that could interrupt CAD work or corrupt data. This directly matches the requirement for maximum stability.

A UPS improves resilience to power loss and brownouts by providing battery backup and line conditioning, but it is not a power supply type and doesn’t protect against the PSU itself failing. A surge protector helps guard against voltage spikes, but it also does not ensure system operation if the PSU fails. A modular PSU mainly improves cable management and airflow by allowing detachable cables; it can be convenient and neat, but it does not inherently increase stability compared with redundancy. Therefore, the most stability-focused PSU option is Redundant.

Secure badging—often used with “pull printing” or “secure print release”—requires users to authenticate at the printer before documents are printed. CompTIA A+ highlights this feature as critical for protecting sensitive data in corporate environments. With badge-based printing, jobs stay in a secure print queue until the authorized user physically scans their badge.

This prevents confidential documents, like HR termination notices, from sitting unattended in the output tray. It also reduces print waste and ensures accountability for printed materials.

Duplex printing (B) simply prints double-sided pages. Printer sharing (C) allows multiple users to use a printer but does not provide security. Wireless encryption (D) protects network traffic but does not address abandoned print jobs.

Therefore, badging / secure print release is the correct protective measure.

The correct answer is WAN (Wide Area Network). According to CompTIA Core 1 (220-1201) networking fundamentals, a WAN is used to connect devices or networks over large geographic areas, typically through an Internet Service Provider (ISP). A WISP (Wireless Internet Service Provider) delivers internet connectivity wirelessly over long distances, which clearly falls under WAN technology.

In this scenario, the technician connects a WISP modem to a portable router to provide Ethernet connectivity to a laptop. The WISP modem represents the WAN link, as it connects the local device to an external network (the internet) managed by the service provider. The portable router then distributes that WAN connection locally via Ethernet.

A SAN (Storage Area Network) is used for high-speed storage communication between servers and storage devices and is unrelated to internet connectivity. A PAN (Personal Area Network) is limited to very short-range connections, such as Bluetooth between personal devices. A MAN (Metropolitan Area Network) covers a city or campus-scale area and is not applicable to a single modem-to-router setup.

CompTIA emphasizes identifying network types based on scope and provider involvement. Since a WISP connection extends beyond the local environment and connects to an ISP, it is classified as a WAN.

Identifying changes made to the system is the next step to troubleshoot why an application no longer launches, as recent changes often cause such issues.

Why Not A (Research the symptoms): Research is broader and should come after identifying changes.

Why Not C (Determine which steps need to be performed): This comes after identifying the issue.

Why Not D (Check the vendor ' s website): This is a later step if further guidance is needed.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 3.1, troubleshooting methodology​.

CompTIA A+ teaches that the default gateway is required for any device to communicate with external networks such as the internet. Without a configured default gateway, the computer can communicate only with devices on the same local subnet explaining why the file server is reachable.

DNS and IPv6 settings are not the issue; without a gateway, external routing cannot occur. Flushing DNS affects hostname resolution, not routing. NetBIOS settings have no effect on internet connectivity.

Adding or correcting the default gateway (usually the router’s LAN IP, such as 192.168.1.1) will allow the PC to route traffic beyond its local network.

This aligns precisely with CompTIA’s troubleshooting steps for missing or incorrect gateway configuration.

B. USB-C:

USB-C is a versatile connector that supports charging, high-speed data transfer, and the ability to send audio and video signals (e.g., DisplayPort over USB-C).

It is used by most modern mobile devices and laptops because of its fast transfer speeds and power delivery capabilities.

Incorrect Options:

A. Lightning: Lightning is proprietary to Apple devices and does not natively support video output.

C. MicroUSB: MicroUSB is outdated and does not support video output.

D. MiniUSB: MiniUSB is an older standard and does not support modern features like video output or fast charging.

Key Takeaway: USB-C is the most versatile connector for charging and transferring data, audio, and video.

Modern motherboards require two separate power connections from the power supply: the 24-pin ATX connector for general motherboard power and a 4-pin or 8-pin CPU (EPS) connector dedicated to powering the processor. According to CompTIA Core 1 (220-1201) power supply installation and troubleshooting guidelines, failing to connect the CPU power connector commonly results in a system that does not boot and may display a critical or CPU-related error.

In this scenario, the user connected power to the motherboard, graphics card, and storage devices, but the system fails to start. This strongly indicates that the CPU power connector was overlooked, which is a frequent mistake during PSU replacement. Without this connection, the processor cannot initialize, preventing POST.

Insufficient wattage typically causes instability, shutdowns, or reboots under load rather than immediate failure with a critical error. RAM upgrades are unrelated to PSU replacement, and redundant power supplies are used in enterprise systems, not standard gaming PCs.

CompTIA emphasizes verifying all required PSU connectors, especially the CPU power connector, as a critical troubleshooting step when a system will not power on after a PSU replacement.

Dedicated resources (sometimes called single-tenant or bare metal) guarantee that physical hardware is allocated exclusively to one customer and not shared.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.7 – Cloud deployment models:

“Dedicated resources ensure data isolation at the hardware level for compliance and security.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Cloud Deployment

CompTIA Exam Objectives 220-1101, Domain 3.7

============

SPF (Sender Policy Framework) is the mechanism used to verify whether a sending mail server’s IP address is authorized to send email on behalf of a specific domain. SPF works through a DNS record (typically a TXT record) published by the domain owner. When a receiving mail server gets an email claiming to be from a domain, it checks the SPF record for that domain and compares the source IP of the sending server against the list of permitted IP addresses or permitted sending services. If the IP is listed (or matches an allowed range/mechanism), SPF passes; if not, SPF fails. This directly matches the question requirement: “verify that an emailer is allowed and designated to send emails from a particular IP address.”

The other options do not focus on authorizing an IP to send mail. DKIM uses cryptographic signatures to verify message integrity and that the message was signed by a domain’s private key, not to authorize a sending IP. DMARC is a policy framework that tells receivers what to do when SPF and/or DKIM fail and adds alignment rules and reporting. CNAME is a DNS alias record and is not an email authorization control. Therefore, the correct answer is SPF.

UDP (User Datagram Protocol) is the preferred protocol for real-time video streaming, such as feeds from network cameras. According to CompTIA Core 1 (220-1201) networking protocols objectives, UDP prioritizes speed and low latency over guaranteed delivery, making it ideal for time-sensitive applications.

Real-time video streaming can tolerate occasional packet loss, but it cannot tolerate delays caused by retransmissions. UDP does not perform error checking or packet retransmission, which reduces overhead and ensures smooth, continuous playback. This is critical for live video feeds where delayed packets are useless.

TCP, while reliable, introduces latency due to acknowledgments and retransmissions, making it unsuitable for real-time streaming. FTP is a file transfer protocol and does not support live streaming. RDP is used for remote desktop access and is not designed for transmitting continuous real-time video streams from cameras.

CompTIA emphasizes understanding protocol selection based on application requirements, particularly distinguishing between reliability and performance needs. For live video, UDP is the optimal choice.

Paper jams and smudging in high-volume printers are often caused bydirty or worn rollers. Rollers are responsible for feeding the paper through the printer. Over time, they accumulate dust, toner residue, or wear out, resulting in misfeeds or jams. Cleaning or replacing them typically resolves this issue.

Option A (Factory reset):A full reset does not directly address mechanical issues like dirty rollers or smudging. It’s a last resort and more relevant to configuration or software-related issues.

Option C (Change toner cartridges):While toner quality can affect print quality, it won’t usually cause jams or widespread smudging unless the cartridge is leaking which is less likely across multiple users.

Option D (Replace the fuser):A damaged fuser could cause smudging, but this is typically after extensive use and is not the first thing to check. Fuser issues also usually present more persistent, uniform smudges.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.7: Given a scenario, troubleshoot common printer problems.

Physical damage from dropping a tablet may often affect ports or connectors. Before taking deeper diagnostic or replacement steps, it ' s important to visually inspect the USB-C charging port for damage or debris. If the port is damaged, charging issues can occur regardless of battery health.

CompTIA A+ emphasizes that satellite internet connections inherently suffer from extremely high latency because the data must travel from the user ' s antenna to satellites orbiting tens of thousands of miles above Earth and back. Although satellite systems offer broad geographic coverage, this long travel distance introduces noticeable delays often 500ms or more.

Fiber, cable, and DSL operate through terrestrial wiring and have far lower latency due to short signal paths. Fiber, in particular, is the fastest and lowest-latency connection type.

Satellite delay significantly impacts VoIP calls, video conferencing, online gaming, and real-time applications. The A+ exam specifically notes latency as a major performance characteristic of satellite service, distinguishing it from other broadband technologies.

SSH (Secure Shell) encrypts data communications for secure remote login and management of network devices, ensuring all console connections are encrypted.

Why Not B (LDAP): LDAP is used for directory services and does not encrypt by default.

Why Not C (FTPS): FTPS encrypts file transfers, not console communications.

Why Not D (SMTP): SMTP is used for email transmission, not for securing login sessions.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 2.7, network security protocols​.

Comprehensive and Detailed Explanation

The wireless environment is crowded, and the office is using:

WEP encryption → obsolete, insecure, and supported only by outdated hardware

Default channel → likely causes interference in a busy area

CompTIA A+ emphasizes:

WEP should be replaced with WPA2 or WPA3

Older APs that only support WEP cannot simply be updated

Newer APs also allow dual-band / multiple channels to avoid interference

Therefore, the best solution is:

✔ Replace the access point with a modern WPA2/WPA3-capable AP that supports improved channel selection.

Why the other options are incorrect

B. Disabling SSID broadcast – Does nothing for performance or security.

C. MAC filtering – Ineffective for performance and easily bypassed.

D. Updating firmware – Cannot upgrade WEP hardware to WPA2/3 if hardware limitations exist.

Final Answer: A

CompTIA A+ explains that Secure Boot is a UEFI security feature that prevents unauthorized or malicious bootloaders, rootkits, and unsigned OS loaders from starting during the boot process. Secure Boot verifies digital signatures on the OS and critical boot files before allowing startup, ensuring the system has not been tampered with.

TPM (Option A) provides encryption key storage and is used for BitLocker, but alone does not block malicious bootloaders. HSMs (Option B) are enterprise cryptographic devices, not PC boot protection features. BIOS passwords (Option D) restrict access to configuration but do not protect against malicious boot-level malware.

Windows 11 specifically requires Secure Boot, making it the correct protection mechanism for preventing startup-level malware.

Thus, Secure Boot is the proper choice.

Assigning astatic IP addressto a network printer ensures it always retains the same address, allowing users and print servers to consistently reach it even after a reboot or network refresh.

Option B (Private address):Refers to address ranges (e.g., 192.168.x.x) doesn ' t guarantee address persistence.

Option C (Wi-Fi):Is a connection method, not a method of IP assignment.

Option D (Dynamic addressing):Via DHCP, which can change over time unless reservations are made (less reliable).

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.4: Given a scenario, install and configure printers.

Since the issue only occurs during scanning and copying (not printing or faxing), the problem is isolated to the document feeder. A vertical line is typically caused by debris or damage on theglass under the ADF (Automatic Document Feeder), not on components related to printing.

The most likely cause of a laptop screen dimming consistently in the evening is an ambient light/adaptive brightness feature. Many laptops include an ambient light sensor that automatically changes screen brightness based on room lighting conditions. As natural light decreases later in the day, the sensor detects a darker environment and reduces brightness to save power and reduce eye strain. Because this behavior occurs at a predictable time (evening) and the user can temporarily correct it by manually increasing brightness, it strongly points to automatic brightness control rather than a hardware failure.

Changing the Ambient light setting (disabling adaptive brightness/auto-brightness) provides a permanent fix by preventing the system from adjusting brightness in response to lighting changes. While battery/power plans can also dim displays to conserve energy, that usually correlates with running on battery power or specific power-saving modes—not a consistent evening pattern. Graphics settings typically affect resolution, scaling, or driver features and are not the primary control for time-of-day dimming behavior. Scheduled tasks could theoretically run display-related scripts, but that is uncommon compared to built-in ambient light adaptation. Therefore, adjusting the ambient light/adaptive brightness setting is the best CompTIA A+ answer.

Syslog is used to log system events and tasks performed by applications, providing a centralized record of activity.

Why Not A (Fileshare): Fileshares store files but are not designed for event logging.

Why Not C (Database): Databases can store logs but are not a logging mechanism themselves.

Why Not D (SAN): A SAN is a storage solution, not a logging tool.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 2.6, system monitoring and logging​.

Certificate security warnings commonly occur when a system cannot properly validate the validity period of an SSL/TLS certificate. According to CompTIA Core 1 (220-1201) networking and security fundamentals, two of the most common causes of certificate errors are expired certificates and incorrect system date and time.

After a power outage, systems without internet access cannot automatically synchronize time with an NTP server. If the system clock resets or becomes inaccurate, the browser may interpret a valid certificate as expired or not yet valid, triggering an “insecure site” warning. Setting the correct system date and time in the BIOS immediately resolves this mismatch and is a primary troubleshooting step.

Additionally, renewing the SSL certificate resolves errors if the certificate has legitimately expired or was invalid at the time of access. This is especially relevant for internal network services using self-signed or internally managed certificates.

Replacing the CMOS battery can prevent future time resets but does not immediately correct the certificate error. Adjusting browser security settings is unsafe and not recommended. Firewall port configuration and network scanning are unrelated to certificate validation.

CompTIA emphasizes validating time/date accuracy and certificate status as core steps when resolving certificate-related security warnings.

When migrating large volumes of data to a cloud provider, CompTIA A+ notes that the transfer speed is dominated by the WAN (internet) connection speed. Among the given options, fiber-optic internet (C) provides the highest upload and download throughput, often delivering speeds from 1 Gbps to 10 Gbps or more, depending on the service. Fiber supports symmetrical upload speeds, which is critical because data migration requires heavy upstream bandwidth.

Coaxial (A) and DSL (B) offer much lower upstream speeds—often under 30 Mbps—making them too slow for large-scale cloud migration. A SAN (D) is a local storage network that operates within the data center; it does not provide a path to the cloud and cannot replace an internet connection.

Fiber’s extremely high capacity, low latency, and resistance to electromagnetic interference make it the best and most efficient option for cloud migration performance.

A PoE (Power over Ethernet) switch transmits both data and electrical power over Ethernet cables to devices like wireless access points or VoIP phones. This is especially useful in areas where separate power sources are not available.

A DHCP reservation binds a specific MAC address to an IP address so the device always receives the same IP from the DHCP server. This ensures network devices like printers maintain consistent connectivity and availability even when the IP pool is low.

Intermittent freezing followed by unexpected restarts after the system has been running for a while often points to a hardware stability problem that worsens with heat and time, rather than an immediate configuration or “not enough resources” issue. When diagnostics show no errors, the next CompTIA A+-style step is to look for physical signs of failing components. Swollen or leaking capacitors on the motherboard or in the power delivery area can cause unstable voltage regulation as the system warms up, leading to input lag, lockups, and spontaneous reboots even during light tasks like reading email. A visual inspection can quickly confirm this failure mode and is an appropriate next troubleshooting action when software and basic diagnostics are inconclusive.

Replacing the power supply with a higher wattage is not the best next step because the workload described is not high draw, and the symptom is not clearly tied to peak load; if a PSU is suspect, the usual step is testing with a known-good PSU of correct specs, not simply “higher wattage.” Increasing RAM is unnecessary because the system meets requirements and this would more commonly cause persistent slowness, not sudden restarts. A CMOS battery issue typically causes time resets or BIOS setting loss, not freezing and random reboots after hours.

A WWAN card provides cellular wide-area network connectivity (such as LTE or 5G) for a laptop, allowing it to access mobile data networks similar to a smartphone. To authenticate to a cellular carrier and identify the subscriber account, WWAN devices typically use a SIM (Subscriber Identity Module) or an embedded SIM. The SIM contains carrier subscription information and security credentials used during registration on the cellular network. Without a valid SIM or eSIM profile, the WWAN radio may be present, but it cannot complete carrier authentication and will not provide cellular data service.

The other options are different wireless technologies that are not the defining requirement for WWAN service. Wi-Fi is WLAN connectivity, usually provided by a separate Wi-Fi adapter. Bluetooth is a short-range personal area networking technology for peripherals and tethering. NFC is very short-range communication used mainly for tap-to-pair or payments. Therefore, the technology a built-in WWAN card supports in this context is SIM.

A DHCP reservation ensures a specific device always receives the same IP address from the DHCP server whenever it requests an address. The reservation is typically created by associating the device’s MAC address with a chosen IP address inside the DHCP scope. When that device connects and performs the DHCP process, the server recognizes the MAC address and offers the reserved IP instead of assigning the next available dynamic address. This is commonly used for devices that benefit from consistent addressing (for example, printers, servers, or network appliances) while still centrally managing addressing through DHCP rather than configuring a manual static IP on the endpoint.

An exclusion is the opposite idea: it defines a range of IP addresses within a scope that the DHCP server will not hand out (often because those addresses are used for statically assigned devices). A lease is the time period that a dynamically assigned IP address is valid before it must be renewed; it does not guarantee the same IP every time. A scope is the overall pool/range of IP addresses and DHCP options (gateway, DNS, etc.) available for a given subnet. Therefore, the component that guarantees the same IP is a reservation.

A sandbox is a secure, isolated environment used to test potentially harmful software or code. It prevents the software from affecting the main system, allowing safe malware testing. Thismethod is standard in cybersecurity best practices.

A VLAN (Virtual Local Area Network) is a network technology used to logically segment a physical network into multiple distinct broadcast domains, even if they share the same hardware.

From the CompTIA A+ 220-1101 Official Study Guide, Objective 2.2 – Compare and contrast common networking hardware:

“VLANs allow network administrators to segment a network logically, isolating broadcast traffic and improving security and management, regardless of the physical network layout.”

Other options explained:

MAC (Media Access Control) is a hardware address, not a segmentation method.

NIC (Network Interface Card) is network hardware, not for logical segmentation.

DSL (Digital Subscriber Line) is an internet connection type.

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Networking Concepts

CompTIA Exam Objectives 220-1101, Domain 2.2

The appropriate network type for this scenario is a Local Area Network (LAN), which is designed for small, localized networks, such as within a single building or room. LANs are ideal for gaming because they provide high-speed, low-latency connections.

Option A (SAN): Incorrect. A Storage Area Network is used for data storage, not for gaming or general networking.

Option B (MAN): Incorrect. A Metropolitan Area Network covers a city or campus, far exceeding the scope needed for a gaming setup in a single room.

Option D (PAN): Incorrect. A Personal Area Network is designed for a single user, such as Bluetooth devices, and would not support multiple devices connecting to a game server.

A hybrid cloud combines on-premises infrastructure with public cloud services. One significant advantage is that it allows organizations to keep sensitive data in a private environment to meet regulatory or data residency requirements, while still utilizing the scalability and cost-efficiency of the public cloud for other workloads. This ensures compliance with legal mandates about data location.

ACommunity Cloudis designed for use by several organizations with shared concerns (e.g., security, compliance, jurisdiction). It’s common in industries like healthcare or finance where multiple entities benefit from a common infrastructure with shared policies.

Option A (Public):Open to general public or large industry group less secure.

Option B (Hybrid):Mix of public and private does not imply industry collaboration.

Option D (Private):Dedicated to a single organization.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 2.1: Compare and contrast cloud computing concepts.

A shutdown during POST combined with a burning smell strongly indicates an overheating condition occurring almost immediately after power-on. In a newly built workstation, the most common cause of rapid CPU overheating is improper heatsink installation, especially failing to apply thermal paste (thermal compound) between the CPU and the heatsink. Thermal paste fills microscopic imperfections between the two metal surfaces so heat can transfer efficiently into the heatsink. Without it, the CPU can spike to unsafe temperatures within seconds. Modern systems detect this and trigger protective thermal shutdown during POST to prevent permanent CPU or motherboard damage. The burning smell can occur when components near the CPU socket heat excessively or when protective coatings/dust residues warm quickly due to poor heat dissipation.

The wrong type of RAM (B) would more likely cause no-boot/beep codes rather than a burning smell. Not properly grounding (A) relates to ESD damage risk, but that typically causes intermittent or dead hardware symptoms, not immediate thermal shutdown. A disconnected case exhaust fan (C) can contribute to higher case temperatures, but it’s less likely to cause an immediate POST shutdown compared to missing thermal paste on the CPU cooler.

If a desktopfails to power on entirely, the most probable cause is afaulty Power Supply Unit (PSU). If there are no lights, fans, or POST beeps, the PSU may have failed, cutting off all power to the motherboard and components.

Option B (GPU):Could prevent video output, but the system would still power on and beep.

Option C (RAM):Missing or faulty RAM would cause POST errors but not prevent startup entirely.

Option D (CPU):A bad CPU may cause POST failure, but the system would usually at least power on.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power.

===========

A loopback plug is specifically designed to test whether a network interface card (NIC) can successfully transmit and receive signals at the physical/data-link level. For an Ethernet NIC, the loopback plug connects the transmit (TX) pins back to the receive (RX) pins on the NIC’s port (or through an adapter), creating a closed circuit. When the NIC sends data, it should immediately “see” that data returned, confirming the NIC’s port electronics and basic send/receive functionality are working. This is a direct, controlled test that helps isolate the problem: if the NIC fails the loopback test, the issue is likely the NIC/port/driver configuration rather than the cabling or network infrastructure.

The other tools don’t validate NIC function in this way: a toner probe traces and identifies cables, a Wi-Fi analyzer evaluates wireless networks (not wired Ethernet NICs), and a punchdown tool terminates wires into patch panels or keystone jacks. Therefore, the best CompTIA A+ answer for verifying an Ethernet NIC’s functionality is a loopback plug.

A hybrid environment combines both on-premises infrastructure and cloud-based resources, allowing virtual machines to operate seamlessly between the two. CompTIA A+ describes hybrid cloud as a deployment model where organizations maintain their own private servers or virtualization hosts while also leveraging public cloud platforms such as AWS, Azure, or Google Cloud. This model supports flexibility, scalability, and gradual migration, making it ideal for businesses not ready to fully abandon local infrastructure.

In this model, workloads can move between the local environment and the cloud depending on performance requirements, cost considerations, or redundancy needs. Additionally, hybrid clouds allow resource sharing, data synchronization, and load balancing across both environments.

A public cloud hosts resources entirely in the provider’s data center, offering no on-premises integration. A private cloud exists solely within the organization’s infrastructure with no external shared resources. SaaS delivers applications, not infrastructure, meaning it cannot host or manage virtual machines.

Therefore, an environment where VMs exist both on-site and in the cloud is best described as a Hybrid cloud.

If a print spooler crashes specifically with one application and no issue occurs on other systems, the most likely root cause is a bug within that specific application. Restarting the spooler and reinstalling drivers resolves system-wide or hardware-related issues not app-specific failures. This indicates the application may be sending malformed print data.

To ensure employees only pick up their own printouts, the printer must use an authentication-based release method so jobs are not immediately printed into the output tray where anyone can take them. A User PIN enables secure or “held” printing: the job is sent to the printer but remains stored in the printer’s queue until the user walks up to the device and enters the correct PIN on the control panel. Only after successful PIN entry does the printer release and print that specific job, preventing accidental or unauthorized pickup of sensitive documents.

RFID supports badge-based authentication and is commonly used with secure print release systems in offices. Users tap an RFID badge at the printer to authenticate, and then the printer releases only the authenticated user’s queued print jobs. This is convenient and reduces the chance of users sharing PINs, while still enforcing that jobs are released only when the correct user is physically present.

PCL is a printer language, tray selection and duplex are print settings, and USB is a connection method—none of these enforce user-specific job release. Therefore, the correct answers are User PIN and RFID.

If paper gets stuck at the last stage of printing, the rollers responsible for moving the paper through the printer are likely worn out or dirty.

Why Not B (Tray assembly): The tray assembly manages paper loading, not feeding during the print process.

Why Not C (Toner): Toner is unrelated to paper jams.

Why Not D (Printhead): Printheads manage ink/toner distribution, not paper movement.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 4.6, printer troubleshooting​.

RAID 1 is known as mirroring. It duplicates all data to both drives simultaneously, providing redundancy in the event of a single drive failure. CompTIA A+ teaches that RAID 1 is ideal when reliability is the priority and only two drives are available exactly matching this scenario.

RAID 0 offers no redundancy. RAID 5 requires three or more drives. RAID 10 requires four or more drives.

Since the workstation has only two drives, RAID 1 is the only RAID configuration providing data protection and is heavily featured in CompTIA’s coverage of RAID technologies, their requirements, and their purposes in fault tolerance.

If flipping the cable helps but the problem is isolated to this device (not others of the same type), the most likely cause is a dirty or damaged charging port on the device itself. Dirt or debris inside the port can prevent a good electrical connection, causing the cable to work intermittently.

Comprehensive and Detailed Step-by-Step Explanation:

LC Connector (Lucent Connector):

LC is a type of fiber optic connector commonly used in optical networking cables. It is small, compact, and widely used for high-speed data transfer over fiber optic networks.

LC connectors are specifically designed for fiber optic cables, making them the correct answer.

Incorrect Options:

A. RJ45: RJ45 connectors are used for Ethernet cables (twisted-pair copper cabling) and are not compatible with optical networking cables.

C. USB-C: USB-C is a connector type used for general-purpose data transfer, charging, and video output, not for optical networking.

D. Lightning: Lightning connectors are proprietary to Apple devices and are not used in optical networking.

Key Takeaway:

The LC connector is specifically designed for fiber optic cables, making it the correct answer for optical networking.

A switch is the device that primarily forwards traffic based on MAC addresses and is used to connect devices within the same local network. It operates at Layer 2 (Data Link) of the OSI model. When a switch receives an Ethernet frame, it reads the source MAC address and records it in its MAC address table along with the port it arrived on. Then, when the switch needs to send a frame to a destination, it looks up the destination MAC address in that table and forwards the frame only out the correct port. This makes switching efficient and reduces unnecessary traffic compared to older hub-based networks. In CompTIA A+ Core 1, recognizing that MAC-based forwarding is a key switch function is essential.

A router forwards traffic based on IP addresses at Layer 3 and is used to connect different IP networks or VLANs. A modem converts signals for ISP connectivity (e.g., cable/DSL/fiber handoff) and does not forward frames by MAC table learning. A firewall filters traffic based on security rules and is not primarily a MAC-forwarding device. Therefore, the best answer is Switch.

Port flapping refers to a network port continuously going up and down, which can prevent the access point from fully coming online.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.4 – Wired and wireless troubleshooting:

“Repeated loss and restoration of network link is called port flapping and may result in network devices, such as access points, not coming online.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Network Troubleshooting

CompTIA Exam Objectives 220-1101, Domain 2.4

============

CompTIA A+ details that an Automatic Document Feeder (ADF) allows multi-page documents to be scanned automatically without manually placing each sheet on the flatbed. This drastically increases scanning efficiency for large documents.

Flatbed scanners require manual placement for every page. Duplexing scans both sides of a page but does not feed multiple sheets by itself. Orientation configuration only affects image alignment.

The ADF is explicitly highlighted in the A+ study guide as the primary feature used in business environments when scanning high-volume documents efficiently.

Thus, the ADF is the correct solution because it automates page feeding and dramatically reduces scanning time, especially for hundreds of pages.

Input voltage must be validated to ensure desktop PCs can operate in different regions with varying power standards (e.g., 110V in North America vs. 220V in Europe). Failure to verify input voltage compatibility can lead to hardware damage or operational issues.

Option B (BIOS language support): Incorrect. While language support may be helpful, it is not critical for hardware deployment across regions.

Option C (Supply chain security): Incorrect. This refers to ensuring secure sourcing of components but does not directly impact deployment.

Option D (Power efficiency): Incorrect. Power efficiency may be important for energy savings but is not relevant to regional compatibility.

The correct answer is B. VGA.

VGA (Video Graphics Array) is an analog video interface. It transmits video signals as continuous electrical waves, which means the signal can degrade over distance or due to interference. VGA uses a 15-pin connector and is considered legacy hardware in modern systems, but it is still important for CompTIA A+ because you may encounter it in older equipment.

Why the other options are incorrect:

A. DVI

DVI can support both digital and analog signals, but in most modern contexts and exam questions, it is primarily treated as a digital interface (especially DVI-D). Since the question asks for a clearly analog cable, VGA is the best answer.

C. USB-C

USB-C is a digital interface that can carry video signals using protocols like DisplayPort Alternate Mode. It does not transmit analog video.

D. HDMI

HDMI is a fully digital interface used for high-definition video and audio transmission. It does not support analog signals.

Exam Tip (Core 1 220-1201):

Analog video = VGA

Digital video = HDMI, DisplayPort, USB-C, most DVI types

Final Answer: B. VGA

The best answer provided is A, although it is important to note that the question is somewhat misleading because it asks about motherboard selection but provides mostly incorrect or irrelevant motherboard-related options.

For high-performance workloads such as video editing and virtual reality (VR) using an Intel Core i9 processor and multiple graphics cards (multi-GPU setup), system design considerations include high power consumption and significant heat output. In the CompTIA A+ Core 1 220-1201 objectives under hardware planning and troubleshooting, high-performance CPUs and multiple GPUs require adequate thermal management solutions, including advanced cooling systems (air or liquid cooling) to ensure system stability and prevent thermal throttling.

Why A is the best answer:

High-end CPUs like Intel Core i9 and multiple GPUs generate substantial heat.

Proper cooling is essential for maintaining performance under sustained load (video rendering, VR workloads).

While not strictly a motherboard feature, cooling is a critical system requirement for such a build.

Why the other options are incorrect:

B. Use DDR3 RAM for increased compatibility

Incorrect because modern Intel Core i9 platforms use DDR4 or DDR5, not DDR3, which is obsolete and incompatible with current high-performance motherboards.

C. Verify there are two PCIe x1 slots for additional devices

Incorrect because PCIe x1 slots are used for low-bandwidth devices (sound cards, network cards), not graphics cards.

Multiple GPUs require PCIe x16 slots, not x1.

D. Select a motherboard with integrated graphics to support video output

Incorrect because high-performance systems with discrete GPUs rely on those GPUs for rendering. Integrated graphics are unnecessary and sometimes disabled when a dedicated GPU is installed.

Exam Insight (CompTIA A+ perspective):

In real-world A+ Core 1 scenarios, the correct motherboard selection for this requirement would focus on:

Multiple PCIe x16 slots (for multi-GPU support)

Compatible socket for Intel Core i9

Support for modern RAM (DDR4/DDR5)

Adequate chipset and power delivery (VRM design)

Proper cooling solution for thermal management

However, since those correct motherboard specifications are not provided in the options, A is the only viable system-level requirement relevant to stability under high-performance load.

The requirement to separate corporate and personal data on employee smartphones is a core function of Mobile Device Management (MDM). CompTIA A+ describes MDM as an enterprise toolset used to enforce security policies, manage applications, configure email profiles, and separate work-related data from personal user data. This separation is typically achieved through features such as containerization, where corporate data is stored in a protected, encrypted workspace that is isolated from the personal side of the device.

This ensures security, prevents data leakage, and enables IT administrators to remotely wipe corporate data without affecting the user’s personal information. MDM solutions are widely used in BYOD (Bring Your Own Device) environments and corporate-issued devices.

Encryption (A) protects data but does not create separation. Network access control (B) restricts network access but does not manage mobile apps or data separation. Endpoint protection (D) refers to antivirus/antimalware, not data partitioning.

Thus, Mobile Device Management (MDM) is the correct solution.

The requirements describe an environment transitioning gradually from on-site hardware to scalable cloud services. The business wishes to continue using its existing local equipment until end of life, while also expanding computing resources beyond what the on-premises infrastructure can handle. Additionally, the cloud environment must be able to share data with the internal data center.

This aligns perfectly with a hybrid cloud model, which CompTIA A+ defines as a combination of private (on-premises) and public cloud resources operating together. Hybrid cloud enables secure data sharing, workload distribution, and scaling without eliminating existing hardware investments. It allows organizations to offload high-demand processes to the cloud while maintaining sensitive data or critical services on-site.

A private cloud (D) would not allow scaling into a public provider efficiently. A public cloud (A) replaces internal resources instead of complementing them. A community cloud (B) is shared among organizations with similar compliance requirements—not applicable here. SaaS (E) refers to hosted applications, not infrastructure scalability.

Thus, a Hybrid cloud model fulfills all stated requirements: seamless data sharing, scalable computing, and continued use of on-site equipment.

A cable modem connects to an ISP’s wall jack using a coaxial cable, and the standard connector used for coaxial connections is the F-type connector. According to CompTIA Core 1 (220-1201) networking hardware and cabling objectives, F-type connectors are specifically designed for coaxial cabling used in cable television and cable internet (DOCSIS) installations. These connectors screw onto the coaxial wall outlet and the cable modem, ensuring a secure physical connection and proper signal transmission.

An LC connector is a fiber-optic connector commonly used with single-mode or multimode fiber cables and is not associated with cable modems. An RJ45 connector is used for Ethernet networking and is typically used to connect the cable modem to a router or computer, not to the wall jack. Lightning is a proprietary Apple connector used for charging and data transfer on mobile devices and has no role in network uplinks.

CompTIA expects candidates to clearly distinguish between different cable types and connectors based on the service being installed. When the scenario involves a cable modem and ISP wall jack, the correct and standard connector is the F-type.

Comprehensive and Detailed Explanation

CompTIA A+ describes swollen or warped laptop chassis components as a classic symptom of a failing or swollen lithium-ion battery.

A swollen battery can:

Warp the keyboard

Push the bottom panel outward

Bend or distort the laptop frame

This is a safety hazard and requires immediate replacement.

Why the other answers are incorrect

B. RAM – Cannot cause physical warping.

C. Keyboard – May fail electronically, but does not physically deform itself.

D. HDD – Located away from the keyboard and cannot distort the chassis.

Final Answer: A

The system date/time is maintained by the CMOS battery when the PC is powered off. If this battery fails, time resets will occur. Additionally, since the system is connected to a UPS, ensuring the UPS is functioning correctly (i.e., the backup power source) is essential.

A Hardware Security Module (HSM) securely manages cryptographic keys, including those used to protect credit card chips.

Why Not A (TLS): TLS secures data in transit, not encryption key storage.

Why Not B (AMD): AMD refers to processors, not security modules.

Why Not D (ARM): ARM is a processor architecture, not a cryptographic security solution.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.5, cryptographic hardware​.

If a user can send email but cannot receive email, the most likely issue is with the incoming mail configuration rather than the outgoing mail configuration. SMTP is primarily used for sending mail from a client to a mail server (and between mail servers), so working outbound email strongly suggests SMTP settings are correct. To receive email, the client must connect to an incoming mail service such as IMAP (or POP3). Therefore, the first setting to verify on the laptop is the IMAP configuration, including the incoming server address, port number, encryption method (SSL/TLS), and authentication credentials. If any of these are wrong, the client may fail to synchronize the mailbox, making it appear that mail is not arriving even though messages exist on the server.

DNS can affect both sending and receiving because clients must resolve mail server hostnames, but when the symptom is specifically “send works, receive fails,” checking the dedicated incoming protocol settings is the most direct and likely fix. DMARC is an email authentication policy used at the domain level and is not a laptop-side setting the technician would check first for a single user’s inbound mail problem.

Software as a Service (SaaS) provides users access to fully managed applications hosted in the cloud. CompTIA A+ explains that SaaS is subscription-based and typically billed monthly or annually, which aligns perfectly with the phrase “recurring fee.” Business productivity applications—such as Microsoft 365, Google Workspace, Zoom, Slack, and Salesforce—are classic examples of SaaS offerings.

SaaS applications run entirely in the provider’s cloud environment, eliminating the need for installation, maintenance, or management by the customer. This makes SaaS ideal for businesses that need reliable, scalable tools without maintaining their own infrastructure.

DaaS (Desktop as a Service) provides virtual desktops.

PaaS (Platform as a Service) offers a development framework for building applications.

IaaS (Infrastructure as a Service) provides virtual servers, storage, and networking—not end-user productivity apps.

Thus, SaaS is the correct and only model that matches the description of subscription-based access to productivity applications.

A spam gateway filters unsolicited emails at the server level, significantly reducing spam before it reaches user inboxes.

Why Not A (Load balancer): Load balancers distribute traffic but don’t filter spam.

Why Not C (Mail forwarding): Forwarding doesn’t filter spam.

Why Not D (Proxy servers): Proxies control web traffic, not email filtering.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.10, email security controls​.

The most likely cause of slow charging after borrowing a charger is that the borrowed adapter is not the correct wattage or is not fully compatible with the laptop. Many laptops will still charge with an underpowered or non-matching adapter, but they often charge very slowly, may display a warning like “plugged in, not charging fast,” or may reduce performance to stay within the available power budget. In CompTIA A+ Core 1 troubleshooting, the first step is to check the simplest and most probable cause, especially when the symptom began immediately after a change. Using the proper manufacturer-recommended charger (correct voltage/amperage and connector type, or correct USB-C PD wattage profile if applicable) restores normal charging behavior in most cases.

Adjusting battery performance settings might reduce power draw but does not address the root cause of insufficient charger output. Trying a different charging port can help if a port is damaged, but the timing strongly points to the borrowed charger. Replacing the battery is the most invasive and least likely first step because the battery was presumably functioning before the charger change. Therefore, the technician should first use a different, known-good power supply with the correct specifications.

ECC (Error-Correcting Code) RAM is commonly used in servers to provide error detection and correction, improving reliability in critical systems. It is designed to detect and correct single-bit errors, ensuring data integrity in environments where stability is paramount.

Option A (SODIMM): Incorrect. SODIMM is typically used in laptops, not servers.

Option B (Rambus): Incorrect. Rambus is an outdated RAM type and not commonly used today.

Option C (DDR3): Incorrect. While DDR3 is a type of RAM, it is not specific to servers and does not provide error correction.

A switch is designed to connect multiple devices within the same local network so they can communicate efficiently. In a typical LAN, a switch provides multiple Ethernet ports and forwards traffic between connected devices by using MAC addresses. When a frame enters a switch port, the switch learns the source MAC address and associates it with that port in a MAC address table. When the destination MAC is known, the switch sends the frame only out the correct port, which reduces unnecessary traffic and improves performance compared to older hub-based networks. This is exactly what is meant by allowing multiple network devices to communicate “across a single platform” (the switching fabric).

A NIC is an adapter in an endpoint device that provides network connectivity, but it does not interconnect multiple devices by itself. A firewall focuses on filtering and controlling traffic based on security rules, not primarily on providing multi-device LAN connectivity. Routers connect different networks and forward traffic based on IP addresses (Layer 3), which is not the primary device for multi-device communication within the same network segment. Therefore, the correct answer is Switch.

Mobile Device Management (MDM) enables administrators to enforce controls on enterprise devices, such as restricting apps, ensuring compliance, and remotely managing security policies.

Why Not B (MFA): Multi-Factor Authentication secures user access but does not control device configurations.

Why Not C (VPN): VPN secures communication but does not enforce device controls.

Why Not D (SSL): SSL secures data in transit but does not provide device management.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.7, device management concepts​.

A failing CPU fan may make unusual noises (including clicking) and, if it is not cooling the CPU, the system will quickly overheat and shut down to prevent damage.

From CompTIA A+ 220-1101 Official Study Guide, Objective 4.1 – Troubleshooting hardware problems:

“Overheating due to a failed or obstructed CPU fan can cause frequent shutdowns. Loud noises are a sign the fan should be checked first.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: PC Hardware Troubleshooting

CompTIA Exam Objectives 220-1101, Domain 4.1

============

This scenario describes disk mirroring, which is RAID 1. With RAID 1, the same data is written to two drives simultaneously, creating an exact duplicate on each SSD. If one drive fails, the system can continue to operate using the remaining drive with no loss of data, which directly matches the requirement “no data loss if one drive fails.” RAID 1 is commonly used when fault tolerance and data redundancy are the priority. A key trade-off is capacity: because the data is duplicated, the usable storage is essentially the size of one of the drives (two 1TB drives in RAID 1 provide about 1TB usable). Performance can vary: read performance may improve slightly in some implementations, but write performance is generally similar to a single drive because data must be written to both drives.

RAID 0 is striping with no redundancy, so a single drive failure causes total data loss. RAID 5 requires at least three drives and uses parity. RAID 10 requires at least four drives and combines mirroring and striping. Therefore, the correct answer is RAID 1.

The correct answer is B. Reconnect the wireless antennas.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Laptop Maintenance:

Many laptop wireless antennas are routed through the display assembly to provide optimal Wi-Fi and Bluetooth signal strength.

When replacing a laptop display, it is essential to disconnect and then reconnect the wireless antennas to ensure proper connectivity.

Failing to reconnect these antennas can result in weak or no wireless signal.

Why the other options are incorrect:

A. Reattach the heat sinks: Heat sinks are part of the CPU/GPU cooling assembly and are unrelated to replacing the display.

C. Install a new CPU fan: CPU fans are part of the cooling system, not the display assembly.

D. Reset the BIOS to default settings: Not required for physically replacing the display; the BIOS retains settings independently of display hardware.

A VLAN (Virtual Local Area Network) is the correct solution because it logically separates devices into different broadcast domains on the same physical switching infrastructure. In CompTIA A+ Core 1 (220-1201), VLANs are described as a way to segment a network for security, performance, and management—for example, isolating departments like Accounting and Customer Service so their traffic is separated. Devices assigned to different VLANs cannot communicate directly at Layer 2; communication between VLANs requires a Layer 3 device (such as a router or a Layer 3 switch) using inter-VLAN routing and appropriate access control. This effectively prevents unnecessary broadcast traffic from crossing department boundaries and helps enforce separation policies.

A VPN is used to create an encrypted tunnel over an untrusted network (commonly for remote access or site-to-site connectivity), not for internal departmental segmentation. DNS resolves hostnames to IP addresses and does not isolate networks. DHCP automatically assigns IP configuration (IP address, gateway, DNS servers), but it does not provide segmentation by itself. Therefore, implementing VLANs is the best way to separate the two departments’ networks.

The correct answer is C. ECC (Error-Correcting Code).

In the CompTIA A+ Core 1 (220-1201) hardware objectives, RAM types and features include technologies designed to improve reliability and data integrity.

ECC memory is specifically designed to detect and correct data errors (faults) in memory automatically. It uses additional bits to store error-checking information, allowing the system to:

Detect single-bit and some multi-bit errors

Automatically correct errors without system interruption

Improve system stability, especially in servers and critical systems

This makes ECC the best choice for recovering from data faults.

Why the other options are incorrect:

A. Capacity

Capacity refers to how much data the RAM can hold (e.g., 8GB, 16GB). It has nothing to do with error detection or correction.

B. Speed

Speed (measured in MHz or MT/s) affects performance but does not provide any fault recovery capability.

D. DDR

DDR (Double Data Rate) refers to the generation/type of RAM (e.g., DDR3, DDR4, DDR5). It improves performance but does not handle errors.

E. Parity

Parity memory can detect errors but cannot correct them. Since the question specifically asks for recovery from faults, ECC is the correct answer because it both detects and corrects errors.

Final Answer: C. ECC

PCIe (Peripheral Component Interconnect Express) is required for high-end video cards.

NVMe (Non-Volatile Memory Express) utilizes the M.2 or PCIe interface for the fastest SSD performance.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.2 – Motherboard expansion slots and storage interfaces:

“High-end video cards require a PCIe slot, while NVMe drives use M.2 (PCIe) slots for the highest data transfer rates.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Motherboard and Storage

CompTIA Exam Objectives 220-1101, Domain 3.2

============

A Virtual Private Network (VPN) creates an encrypted, secure tunnel across a public or untrusted network. It uses authentication credentials to ensure that only authorized users can connect, keeping data safe from interception.

The workstation ' s IP configuration (192.168.1.27/24 with gateway 192.168.1.1) shows that it has a correct IP address, correct subnet mask, and expected default gateway for a typical small office network. Because the IP is in the correct private range and not an APIPA address (169.254.x.x), this also confirms that DHCP is functioning properly. Therefore, option D (DHCP) cannot be the cause.

The user then pings the default gateway at 192.168.1.1, which should be the router—the device providing routing between local devices and outside networks. The repeated " Request timed out " responses indicate the workstation cannot reach the router at all. This type of failure points directly to a router outage, a powered-off router, a failed router interface, or a physical disconnection of the router from the switch.

If DNS (C) were the issue, the user would still be able to ping the IP address of the gateway because DNS is not required for IP-to-IP connectivity. A web server (A) has no relation to local gateway communication and does not affect workstation access.

Since the workstation has a valid IP but cannot reach its default gateway, the failure point is the router.
