To run the GET call in the API using Postman and save the output to the desktop to a text file called API.txt, you need to follow these steps:

• Open Postman and create a new request tab. Select GET as the method from the drop-down menu.
• Enter the URL of the NSX-T Policy API endpoint for retrieving the BGP routing table, such as https:///policy/api/v1/infra/tier-0s/vmc/routing-table?enforcement_point_path=/infra/sites/default/enforcement-points/vmc-enforcementpoint
• Click the Authorization tab and select Basic Auth as the type from the drop-down menu. Enter your NSX-T username and password in the Username and Password fields, such as admin and VMware1!.
• Click Send to execute the request and view the response in the Body tab. You should see a JSON object with the BGP routing table information, such as routes, next hops, prefixes, etc.
• Click Save Response and select Save to a file from the drop-down menu. Enter API.txt as the file name and choose Desktop as the location. Click Save to save the output to your desktop.
• You have successfully run the GET call in the API using Postman and saved the output to your desktop to a text file called API.txt.

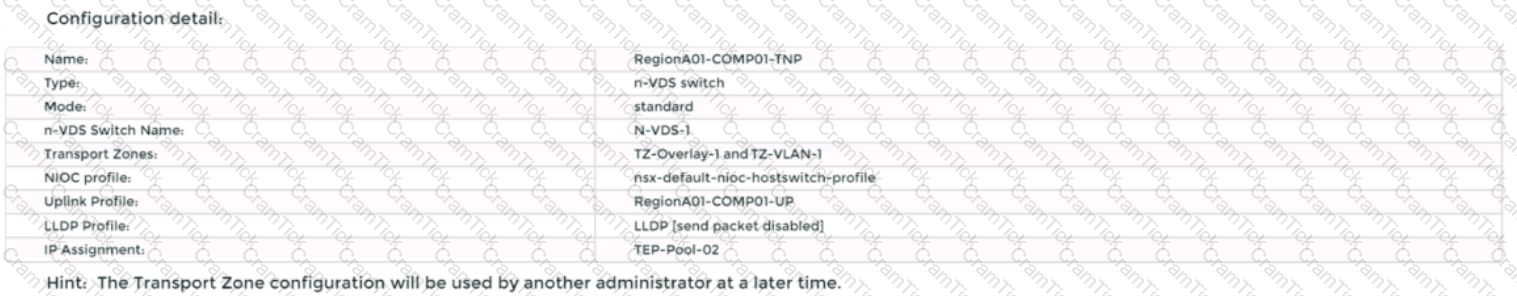

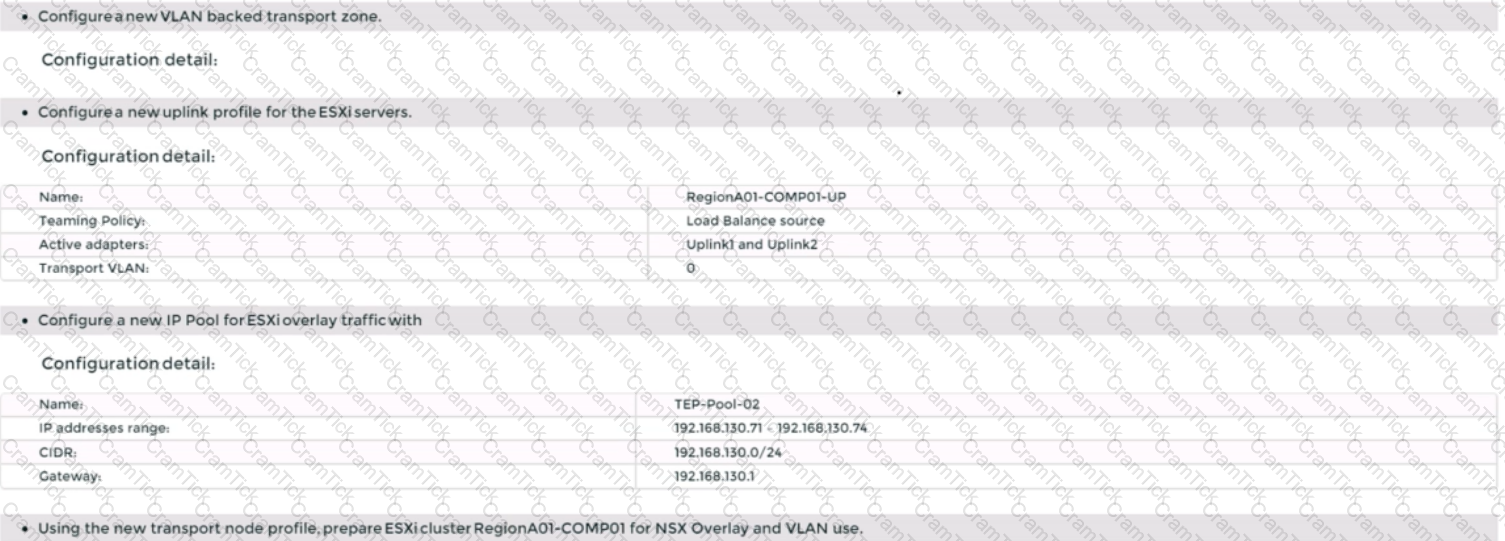

To prepare a VMware NSX-T Data Center ESXi compute cluster infrastructure, you need to follow these steps:

• Log in to the NSX Manager UI with admin credentials. The default URL is https://.
• Navigate to System > Fabric > Profiles > Transport Node Profiles and click Add Profile.
• Enter a name and an optional description for the transport node profile.
• In the Host Switches section, click Set and select N-VDS as the host switch type.
• Enter a name for the N-VDS switch and select the mode as Standard or Enhanced Datapath, depending on your requirements.
• Select the transport zones that you want to associate with the N-VDS switch. You can select one overlay transport zone and one or more VLAN transport zones.
• Select an uplink profile from the drop-down menu or create a custom one by clicking New Uplink Profile.
• In the IP Assignment section, select Use IP Pool and choose an existing IP pool from the drop-down menu or create a new one by clicking New IP Pool.
• In the Physical NICs section, map the uplinks to the physical NICs on the host. For example, map Uplink 1 to vmnic2 and Uplink 2 to vmnic3.
• Click Apply and then click Save to create the transport node profile.
• Navigate to System > Fabric > Nodes > Host Transport Nodes and click Add Host Transport Node.
• Select vCenter Server as the compute manager and select the cluster that contains the two ESXi servers that you want to prepare for NSX-T overlay and VLAN use.
• Select the transport node profile that you created in the previous steps and click Next.
• Review the configuration summary and click Finish to start the preparation process.

The preparation process may take some time to complete. You can monitor the progress and status of the host transport nodes on the Host Transport Nodes page. Once the preparation is complete, you will see two host transport nodes with a green status icon and a Connected state.You have successfully prepared a VMware NSX-T Data Center ESXi compute cluster infrastructure using a transport node profile.

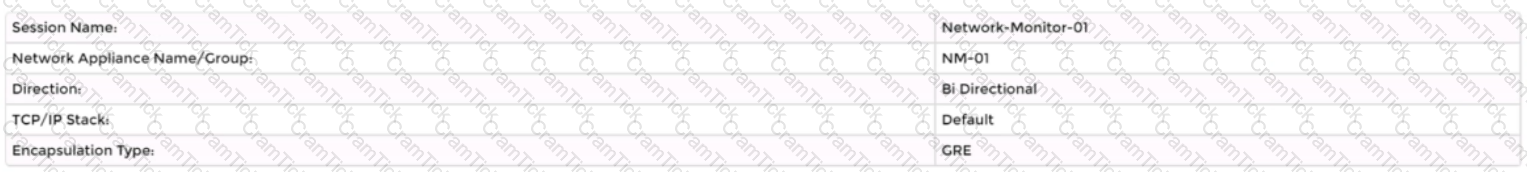

To configure traffic replication to the monitoring software for your Tampa web overlay segments with bi-directional traffic, you need to follow these steps:

• Log in to the NSX Manager UI with admin credentials. The default URL is https://.
• Navigate to Networking > Segments and select the Tampa web overlay segment that you want to replicate the traffic from. For example, select Web-01 segment that you created in Task 2.
• Click Port Mirroring > Set > Add Session and enter a name and an optional description for the port mirroring session. For example, enter Tampa-Web-Monitoring.
• In the Direction section, select Bi-directional as the direction from the drop-down menu. This will replicate both ingress and egress traffic from the source to the destination.
• In the Source section, click Set and select the VMs or logical ports that you want to use as the source of the traffic. For example, select Web-VM-01 and Web-VM-02 as the source VMs. Click Apply.
• In the Destination section, click Set and select Remote L3 SPAN as the destination type from the drop-down menu. This will allow you to replicate the traffic to a remote destination outside of the NSX-T environment.
• Enter the IP address of the destination device where you have installed the network monitoring software, such as 10.10.10.200.
• Select an existing service profile from the drop-down menu or create a new one by clicking New Service Profile. A service profile defines the encapsulation type and other parameters for the replicated traffic.
• Optionally, you can configure advanced settings such as TCP/IP stack, snap length, etc., for the port mirroring session.
• Click Save and then Close to create the port mirroring session.

You have successfully configured traffic replication to the monitoring software for your Tampa web overlay segments with bi-directional traffic using NSX-T Manager UI.
