F5CAB1 BIG-IP Administration Install, Initial Configuration, and Upgrade Questions and Answers

BIG-IP controls access to the web-based Configuration Utility (TMUI) through the/sys httpd allowlist. This parameter specifies which client IPs or subnets may initiate HTTP/HTTPS connections to the management interface.

To restrict TMUI access toonlythe 10.0.0.0/24 subnet:

The correct method is tomodify the HTTPD allow listso that it contains only this subnet.

This requires replacing the entire current list with the new subnet using:

modify /sys httpd allow replace-all-with {10.0.0.0/24}

This ensures thatonlyclients within 10.0.0.0/24 can reach the Configuration Utility.

Why the other options are incorrect:

Options A and Ccreate network ACL objects under /net acl, which apply to data-plane traffic, not management-plane TMUI access. TMUI access is not controlled by LTM ACLs but by the HTTPD allow directive.

Option Bis incorrect syntax and references /ltm httpd, which is not the proper object; the correct hierarchy is /sys httpd.

Thus, only modifying the/sys httpd allowlist achieves the required restriction.

Comprehensive and Detailed Explanation (Paraphrased from F5 BIG-IP Administration Install, Initial Configuration, and Upgrade concepts)

When performing a TMOS upgrade, F5 recommends validating the target software version to ensure that the release does not contain defects that may impact system behavior. The upgrade preparation process includes checking for known issues, validating compatibility, and reviewing advisory information for the intended version. Two primary F5 tools serve this purpose:

B. F5 iHealth

iHealth is a cloud-based diagnostic and analysis platform used to evaluate the operational state of a BIG-IP system.

Administrators upload a QKView file to iHealth to receive an automated assessment of the system. As part of upgrade planning, iHealth provides:

Version-specific issue analysis, comparing the system’s configuration and hardware against F5’s internal catalog of published issues.

Upgrade advisories, identifying potential risks such as deprecated features, module compatibility concerns, or changes in behavior between TMOS versions.

Checks against known defects, allowing administrators to determine whether the target TMOS version contains issues relevant to their deployment.

This aligns with F5’s recommended upgrade workflow, where iHealth is used before upgrading to confirm system readiness and detect software-level concerns.

D. F5 Bug Tracker

The Bug Tracker is F5’s dedicated interface for reviewing software defects across TMOS releases.

It enables administrators to:

Search forknown bugs by TMOS version, module, severity, or defect ID.

Review thestatus of defects(open, resolved, fixed in later releases).

Identify whether high-impact or security-related issues are associated with the target upgrade version.

F5 documentation emphasizes reviewing known defects prior to installation of new software images, making the Bug Tracker a critical resource for upgrade validation.

Why the other options are not correct

A. F5 End User Diagnostics (EUD)

EUD is used exclusively forhardware diagnostics(ports, memory, fans). It does not provide software-related issue verification and is not used for upgrade planning.

C. F5 University

This is atraining platform, not an operational tool. It does not provide defect listings or upgrade-specific warnings.

E. F5 Downloads

Although it provides access to software images and release notes, it isnot a tool for identifying known bugs. Release notes summarize general fixes and features, but systematic bug verification requires iHealth or the Bug Tracker.

When a TMOS ISO file is transferred to/shared/images/, the BIG-IP automatically performs a validation step:

Checksum Verification

Before the image becomes visible in the GUI, the systemverifies the internal checksumembedded inside the ISO.

This ensures:

The file was fully transferred

The image is not corrupted

It matches the official F5 release signature

Only after passing this verification does the GUI display the ISO under “Available Images.”

Why the other options are incorrect:

A. Reboot into a new partition

No reboot occurs simply from uploading an image.

C. Copying into /var/local/images/

This directory isnotused for ISO storage.

All valid images remain in/shared/images/.

Thus, the correct system action ischecksum verification.

The HTTPD allow list controls which IP addresses or subnets may access the Configuration Utility (TMUI) on the BIG-IP system. The Administrator already has two subnets allowed and needs to add asingle host IPto the existing list.

The object/sys httpd allowsupports actions such asadd,delete, andreplace-all-with.

Because the goal is toaddone more entry without removing the existing permitted subnets, the correct command is:

modify /sys httpd allow add { 172.28.32.22 }

This appends the new host to the existing list while preserving the previously configured networks.

Why the other options are incorrect:

Option A (replace-all-with)wouldoverwritethe entire allow list, removing existing permitted subnets—unacceptable.

Option B (delete)wouldremovethe existing networks and not add the required host.

Therefore, the correct administrative action is toaddthe jump host’s IP.

Provisioning settings define which modules are enabled and how system resources are allocated to them.

These provisioning declarations are stored in:

/config/bigip.conf

This file contains:

Full module provisioning statements

TMSH-equivalent provisioning configurations such as:

sys provision ltm { level nominal }

sys provision asm { level nominal }

It is theprimary system configuration filethat stores all active provisioning details.

Why the other answers are incorrect

A. /config/bigip.license

Showslicensedmodules, not provisioned modules.

B. /config/bigip_base.conf

Stores base networking (VLANs, Self-IPs, routes), not provisioning.

D. config.ucs

A backup archive, not a live configuration file.

Thus, the correct file to review active module provisioning is/config/bigip.conf.

To understand:

Which modules arelicensed

Which modules areprovisioned

Theresource requirements(CPU / RAM) of each module

The administrator uses:

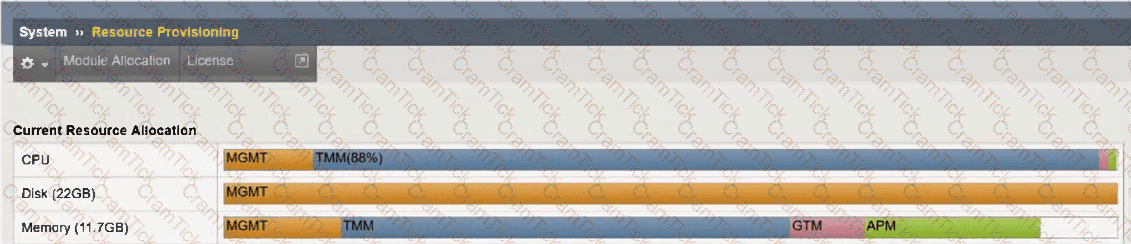

System » Resource Provisioning

This page displays:

All modules present in the license

Whether they are enabled or disabled

Required memory to activate each module

CPU and disk allocation information

Provisioning level options (None / Minimal / Nominal / Dedicated)

This is the exact location where BIG-IP administrators evaluate module capacity before enabling or purchasing licensing upgrades.

Why the other options are incorrect:

A. Configuration » OVSDB

Used for network virtualization integrations, not licenses or modules.

B. Software Management

Used for software image installation, not licensing.

C. Configuration » Device

Displays hostname, failover settings, device properties — not module resource requirements.

Thus, module licensing and memory requirement data are found underResource Provisioning.

The exhibit shows the configuration of aSelf IPwith:

Port Lockdown: Allow Custom

ACustom Listthat includes the following TCP ports:

443

22

Meaning of these ports:

TCP 443→ HTTPS (TMUI — web-based management)

TCP 22→ SSH (command-line remote access)

No other TCP, UDP, or protocol entries are listed; therefore, only these two services are allowed to reach the BIG-IP via this Self IP.

Evaluating the answer choices:

Option

Service

Port

Allowed?

FTP

TCP 21

Not listed

Not allowed

SSH

TCP 22

Listed

Allowed

Telnet

TCP 23

Not listed

Not allowed

Thus,SSHis the only traffic permitted through this Self IP configuration.

Provisioning defines how BIG-IP allocates system resources to modules. The provisioning levels include:

Dedicated– allocatesallCPU, memory, and disk resources to a single module

Nominal– standard resource allocation balanced with other modules

Minimal– lowest level, used for basic utility needs

None– module disabled

Comprehensive / Maximal– not valid TMOS provisioning levels

Why “Dedicated” is correct

When a BIG-IP device is intended to runonly ASM(Web Application Firewall), the recommended way to maximize performance is to provision the module atDedicatedlevel.

WithASM: Dedicated:

ASM receives theentire hardware capacity

No other modules can or should be provisioned

This is explicitly recommended when a device is used solely as a WAF platform

Why other options are incorrect

B. Comprehensive / C. Maximal

These arenot valid provisioning modesin BIG-IP.

TMOS supports: Nominal, Minimal, Large (module-specific), and Dedicated.

D. Nominal

Shares resources with other modules

Does not provide full system performance

Not suitable when exclusive resource allocation is required

Thus,Dedicatedis the correct provisioning choice.

BIG-IP allocates CPU and memory resources based on module provisioning levels.

To view how much CPU a module is assigned, administrators must check provisioning information from:

C. GUI — System » Resource Provisioning

This page visually displays CPU allocation via color-coded bars.

Hovering over the CPU bar shows:

CPU usage percent per module

Which modules share CPU cycles

The system’s total resource allocation

This is the primary GUI method.

D. tmsh show /sys provision

This command displays detailed module provisioning information including:

Provisioned modules

Their provisioning level

CPU and memory allocation data

It is the authoritative CLI method for resource provisioning status.

Why the other options are incorrect:

A. top

Shows real-time process usage, notprovisionedCPU allocation.

B. tmsh show /sys cpu

Displays CPU runtime utilization, not per-module provisioning.

E. Statistics Dashboard

Only shows traffic / system runtime metrics, not provisioning resource allocations.

Therefore,C and Dare correct.

Port Lockdown controls which ports and protocols aSelf IPwill respond to.

However, certain traffic types bypass Port Lockdown for BIG-IP functionality and routing integrity.

The three types that areNOT affectedby Port Lockdown are:

1. Defined Virtual Server Traffic

Traffic destined to a Self IP that matches aconfigured virtual serveris always accepted by the BIG-IP, regardless of Port Lockdown settings.

This ensures that traffic processing does not break when administrators restrict Self-IP ports.

2. ICMP (Internet Control Message Protocol)

ICMP (such as ping, traceroute responses, etc.) always passes through a Self IP even when Port Lockdown is set to:

Allow Default

Allow None

Allow Custom

F5 allows ICMP for reachability and diagnostic purposes independent of Port Lockdown rules.

3. Centralized Management Infrastructure (CMI)

CMI includes the internal HA services used for:

Device Trust

ConfigSync

Failover

Mirroring

These essential HA communications bypass Port Lockdown to prevent accidental cluster failure.

The well-known port for this traffic isTCP 4353, which is always permitted.

Why the other options are incorrect:

Option A:SSHisrestricted by Port Lockdown unless explicitly allowed.

Option B:Same issue — SSH does not bypass Port Lockdown.

OnlyDefined VS Traffic,ICMP, andCMIbypass Port Lockdown.
