Virtual Servers have a setting called VLAN and Tunnel Traffic which defines where the BIG-IP " listens " for new connections. 4849

Ingress Logic: A virtual server is an entry point. It must be enab 50 led on the VLAN where the Client resides. If a client is on the " 51 Internal " VLAN, the Virtual Server must be enabled there to receive the traffic.

Egress Logic: The BIG-IP system uses the TMM Routing Table and Self-IPs to reach pool members. It does not need the Virtual Server to be " enabled " on the destination VLAN (External) to send traffic there.

Default Behavior: By default, Virtual Servers are enabled on " All VLANs. " However, if restricted for security, the administrator must ensure the Virtual Server is active on the client-facing (ingress) VLAN.

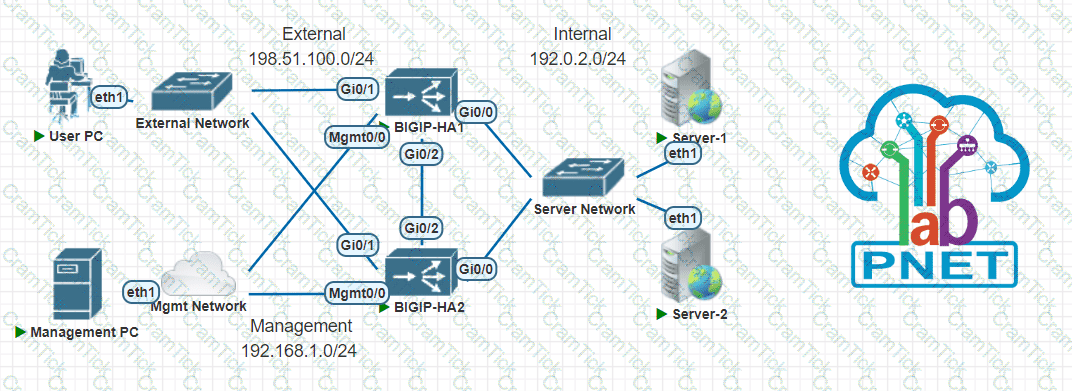

SNAT Automap is a feature that automatically selects a self-IP address to use as the source address for translated packets. The selection logic follows a strict hierarchy to ensure that traffic is routable back to the BIG-IP:

Egress VLAN Priority: The BIG-IP first looks at the VLAN through which the traffic is exiting toward the pool member (the egress VLAN).

Floating Self-IP Preference: If the egress VLAN has a floating self-IP address , the BIG-IP will always prefer it for SNAT Automap. This is critical for High Availability (HA) because, during a failover, the floating IP moves to the new active device, allowing existing connections to be maintained or correctly timed out.

Non-Floating Fallback: If no floating self-IP is available on the egress VLAN, the system will use a floating self-IP from a different VLAN. If no floating IPs exist at all, it will then fall back to the non-floating self-IP.

Key Data Plane Concept:

The management IP is never used for data plane traffic. In this scenario, since the administrator has configured a floating self-IP, that specific address becomes the source for all SNAT Automap traffic leaving that VLAN to ensure symmetric routing during HA events.

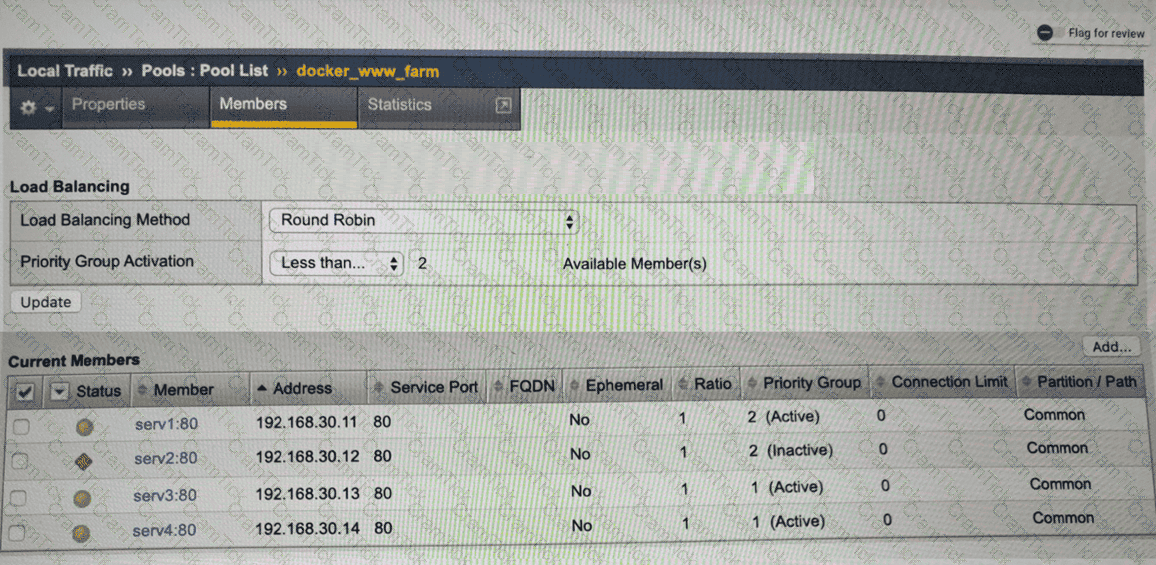

In a BIG-IP environment, load balancing and persistence work together but serve different purposes. While a load balancing method like Least Connections attempts to distribute traffic based on current connection counts, a persistence profile overrides this logic for returning clients.

Persistence Overrides Load Balancing: When a persistence profile (such as Source Address or Cookie persistence) is applied to a Virtual Server, the BIG-IP system tracks which client was sent to which backend member.

Sticky Sessions: If a client with a valid persistence record returns, the BIG-IP will send that client to the same pool member it was previously assigned to, regardless of the load balancing algorithm ' s current preference.

Uneven Distribution: If certain clients generate significantly more traffic or stay connected longer than others, the persistence table will " lock " those high-volume flows to specific members, resulting in an uneven distribution of connections across the pool.

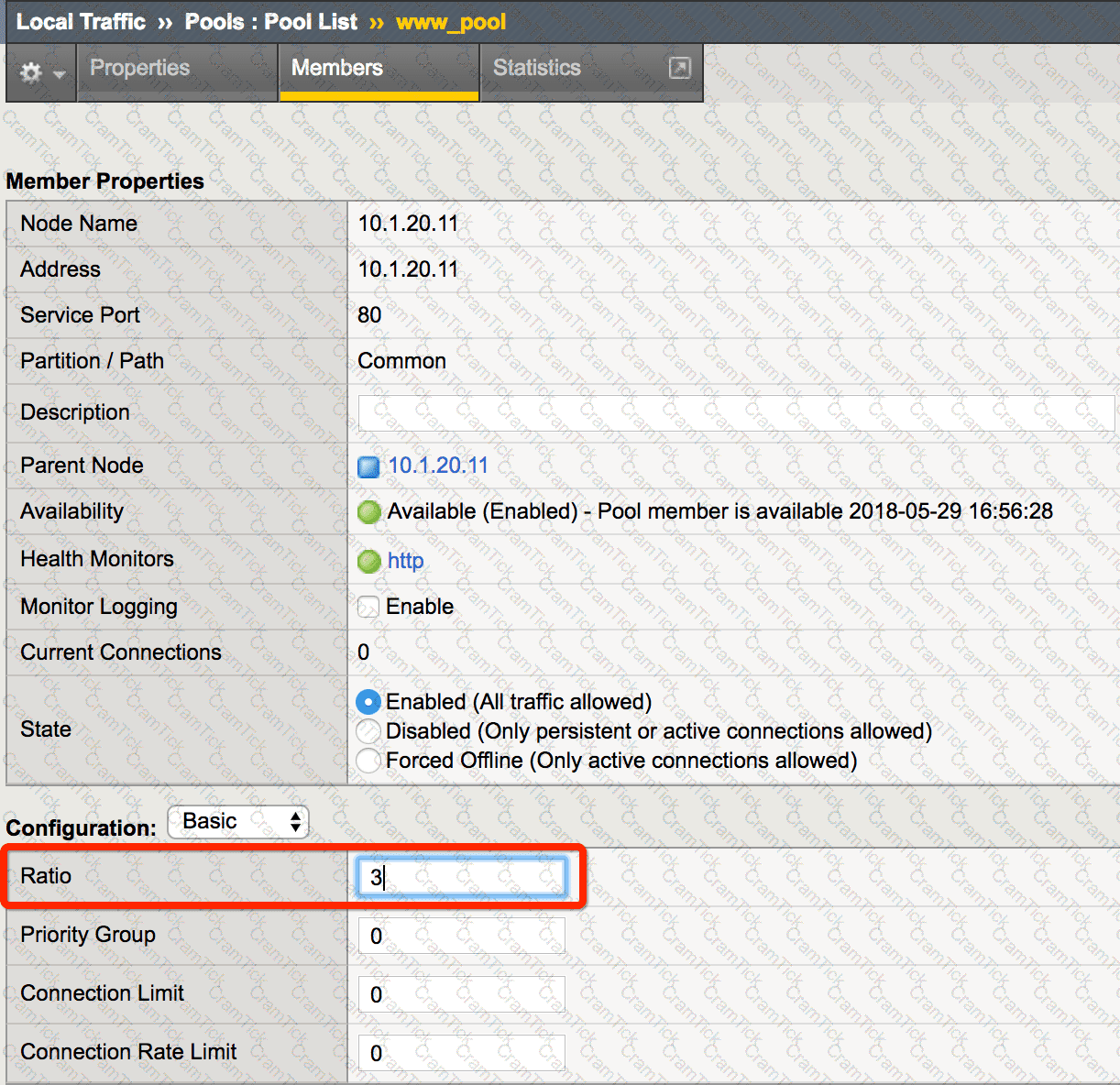

The Forced Offline state is a critical administrative tool used during maintenance to ensure a device remains in a non-functional state relative to the traffic group.

Preventing Active Status: When a device is in " Forced Offline, " it is effectively disqualified from the HA election process. Even if the other peer fails, a device in Forced Offline will not become active. This is vital during maintenance (like firmware upgrades or hardware replacement) to prevent an unstable or half-configured device from attempting to process traffic.

Traffic Termination: Placing a device in Forced Offline triggers the system to stop accepting new connections and, depending on the configuration, can facilitate the termination of existing connections so that the administrator can perform work without the data plane actively utilizing system resources.

Persistence Handling: Unlike the " Disabled " state, Forced Offline ignores persistence records, ensuring that no new traffic is steered to the device via session affinity.

12

In the BIG-IP system, pool selection must occur on the client-side of the connection, before the system attempts to connect to a pool 3 member. The events listed 4 are the primary entry points for making these decisions:

CLIENT_ACCEPTED (E): This is a Layer 4 event triggered when the BIG-IP accepts a TCP connection. It is the earliest point where a pool can be assigned based on the client ' s source IP address or the destination port.

CLIENT_DATA (A): This event is triggered when the system receives a " chunk " of data on the client-side. It is often used for non-HTTP protocols (like custom TCP protocols) to inspect the payload and select a pool based on its contents.

HTTP_REQUEST (C): This is a Layer 7 event. It occurs once the BIG-IP has fully parsed the HTTP headers. This is the most common event for pool selection, allowing the administrator to route traffic based on the URI, Host header, or cookies.

Events like SERVER_SELECTED or SERVER_CONNECTED occur after the load balancing decision has already been made, and HTTP_RESPONSE or SERVER_DATA occur after the server has already started communicating back, making them too late for initial pool selection.

Cookie Persistence is a Layer 7 persistence method that leverages an HTTP cookie to track a user session.

IP Independence: Unlike " Source Address Affinity " (which relies on the client ' s IP), Cookie persistence identifies the session base 16 d on a unique token provided by the BIG-IP system. This is crucial for environments where many users share a single gateway (NAT) or where a client ' s IP might change mid-session.

Encryption and Decryption: For the BIG-IP to insert or read a cookie, it must be able to see the HTTP header. If the traffic is encrypted end-to-end (SSL Pass-through), the BIG-IP cannot use cookie persistence. SSL must be terminated at the BIG-IP (Option B is false).

Security: By default, BIG-IP cookies are encoded, not clear text. Modern versions allow for easy encryption of these cookies to prevent information leakage (Option C is false).

Memory vs. Disk: The default behavior is " session-based " (In-memory). A cookie is only written to the client ' s file system (disk) if an Expiration is configured in the persistence profile (Option D is false).

In the BIG-IP system object hierarchy, health monitors can be applied at three levels: Node , Pool , and Pool Member .

Pool Level (Properties): Applying a monitor at the Pool > Properties level is the most common and efficient administrative practice. When applied here, the monitor is inherited by all members of that pool. If the monitor fails for a specific member, that member is marked " down " specifically for that pool.

Node Level: If a monitor is applied at the Node level ( Local Traffic > Nodes ), it checks the health of the physical IP address itself. If it fails, that node (and all pool members associated with it) is marked down globally across the entire system.

Member Level: Applying a monitor at the Pool > Members level allows for specific " per-member " monitoring, which is usually only done if different members in the same pool require different health checks.

The Specific Case: For a standard database pool like DB_Pool, the administrator should navigate to Local Traffic > Pools > DB_Pool > Properties and select the appropriate monitor (e.g., a custom TCP or Oracle monitor) from the " Health Monitors " configuration section.

When handling high-volume UDP traffic where the BIG-IP does not need to maintain any session history or relationship between packets, a Stateless virtual server is the appropriate choice.

No Connection Tracking: A stateless virtual server does not create or maintain entries in the BIG-IP connection table. This means the system processes each packet as an individual event, without " considering previous connections " or packets from the same source.

High Performance: Because the system bypasses the overhead of state management, stateless virtual servers provide the highest possible throughput for UDP and ICMP traffic.

Use Cases: This is ideal for services like DNS (stateless queries) or some types of syslog traffic where each packet is independent and doesn ' t require the persistence or protocol inspection typically provided by a full-proxy.

Why other options are incorrect:

Forwarding: While a Forwarding (IP) virtual server can handle UDP, it still maintains a state entry in the connection table to ensure return traffic is handled correctly.

Standard: This is a full-proxy virtual server. It is inherently stateful and requires a connection table entry for every flow it manages.

Reject: This is a special virtual server type that simply drops incoming traffic and, in the case of TCP, sends a reset (RST) or, for UDP, sends an ICMP unreachable message. It is not a load balancing type.

Redundant BIG-IP systems (HA pairs) must maintain constant communication to monitor the health of the peer and synchr 15 onize states. 16

Heartbeats: By default, even with a serial cable, th 17 e BIG-IP systems exchange " heartbeat " packets over the network to determine if the peer is still alive.

Network Failover: This involves the exchange of UDP packets (typically on port 1026) at regular intervals.

Device Service Clustering (DSC): Modern BIG-IP versions use the Central Management (cm) infrastructure to communicate configuration status and sync status constantly.

Clarification on others: Port lockdown does affect HA communication if misconfigured (A is false). Mirroring uses separate channels (B is false). Mirroring is never sent over the serial cable because it requires high bandwidth (D is false).

In a High Availability (HA) environment, a failover event occurs when the active BIG-IP system stops processing traffic and the standby unit takes over. This transition can cause a brief disruption in network traffic because the surrounding switches need to update their ARP tables to associate the Virtual IP (VIP) and floating Self-IPs with the MAC address of the new active unit.

MAC Masquerade Functionality: To minimize this impact, an administrator can configure MAC masquerading . This feature allows the administrator to assign a unique, " shared " MAC address to a traffic group.

Seamless Transition: When a failover occurs, the new active unit begins using this shared MAC address immediately. Since the MAC address for the traffic group remains the same regardless of which physical device is active, the upstream switches do not need to update their ARP tables or learn a new MAC-to-port mapping.

Packet Loss Reduction: By maintaining a constant MAC address, MAC masquerading significantly reduces the time it takes for traffic to resume, effectively eliminating the " gratuitous ARP " dependency and minimizing packet loss during the handover.

Why other options are incorrect:

External monitors: These are used for advanced health checking of pool members and do not directly impact the speed or smoothness of a device-level failover.

OneConnect profile: This is a performance optimization tool that aggregates multiple client-side requests into a single server-side TCP connection; it is not a failover mechanism.

Clone pool: This is used to replicate traffic for IDS or monitoring purposes and has no role in high availability or failover optimization.

In the Traffic Management Shell (TMSH), there is a distinct difference between list and show commands.

List Command : Used to view the configuration of an object (what is stored in the config file). list net route would show you the static routes you have manually configured.

Show Command : Used to view the status, statistics, and real-time state of an object.

TMM Routes : Because the routing table (RIB/FIB) is a dynamic entity that includes both static routes and learned routes (such as those from a routing protocol or connected subnets), the show net route command is required to see the active routing table as it exists in the Traffic Management Microkernel (TMM).

Key Command Breakdown :

show net route: Displays the active TMM routing table, including destination, gateway, and the status of the route.

In BIG-IP LTM, health monitors are used to determine the availability of pool members and directly influence traffic flow decisions in the data plane.

Key characteristics of the default HTTP monitor according to BIG-IP Administration Data Plane Concepts:

Sends an HTTP request (typically GET /)

Expects an HTTP response code of 200 OK

Any response other than 200 is treated as a monitor failure

A failed monitor causes the pool member to be marked offline (down)

In this scenario:

Two pool members return 404 Not Found

A 404 response indicates that the requested object was not found

This does not meet the success criteria of the default HTTP monitor

These two members are therefore marked offline

One pool member returns 200 OK

This matches the expected response

The member is marked online

Resulting Pool Member Availability:

2 members: Offline

1 member: Online

Why the Other Options Are Incorrect:

B – 404 responses are not considered healthy by the default HTTP monitor

C – At least one member responds with the expected 200 OK

D – Members returning 404 responses fail the monitor and cannot be marked online

Key Data Plane Concept Reinforced:

BIG-IP health monitors make binary availability decisions based strictly on configured success criteria. For HTTP monitors, response codes matter— 404 is a failure , even if the service is technically reachable.

===========

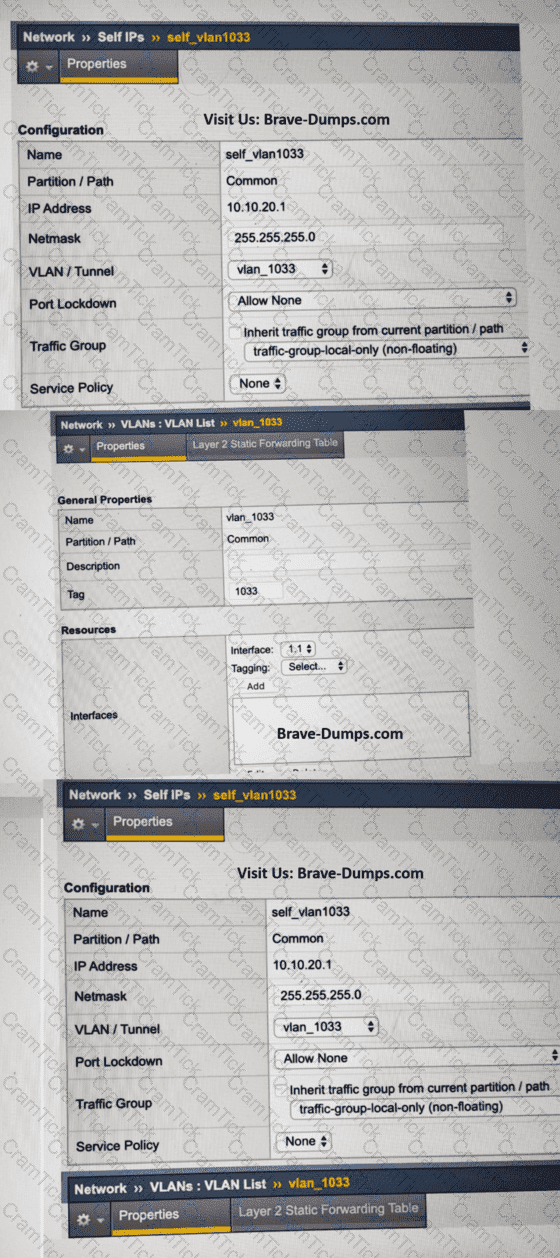

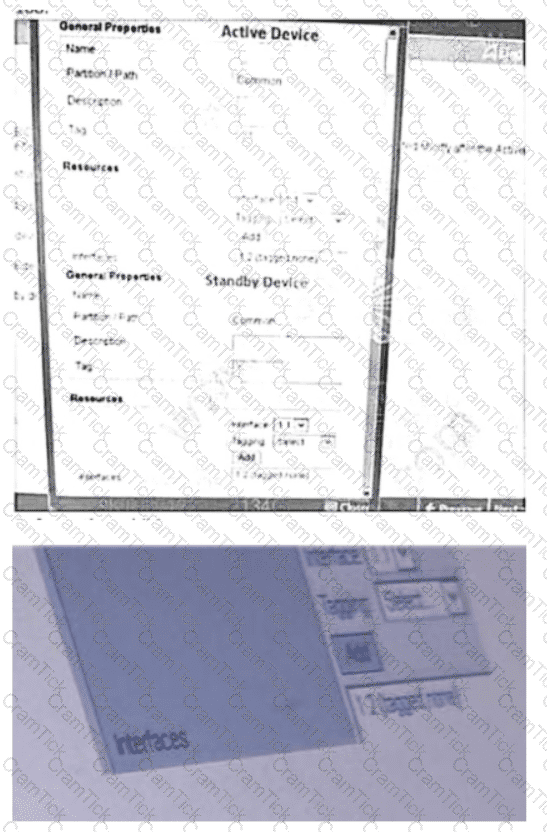

In an Active/Standby BIG-IP design, application availability during failover depends on both units having equivalent data-plane connectivity for the networks that carry application traffic. Specifically:

VLANs are bound to specific interfaces (and optionally VLAN tags).

Floating self IPs / traffic groups move to the new Active device during failover.

For traffic to continue flowing after failover, the new Active device must have the same VLANs available on the correct interfaces that connect to the upstream/downstream networks.

What the symptom tells you:

Traffic works when Device A is Active

Traffic fails when Device B becomes Active

Failback immediately restores traffic

This pattern strongly indicates the Standby unit does not have the VLAN connected the same way (wrong physical interface assignment), so when it becomes Active, it owns the floating addresses but cannot actually pass traffic on the correct network segment.

Why Interface mismatch is the best match:

If the Active unit is already working, its interface mapping is correct.

The fix is to make the Standby unit’s VLAN/interface assignment match the Active unit.

That corresponds to changing the Standby device interface to 1.1 .

Why the Tag options are less likely here (given the choices and the exhibit intent):

Tag issues can also break failover traffic, but the question/options are clearly driving toward the classic HA requirement: consistent VLAN-to-interface mapping on both devices so the data plane remains functional after the traffic group moves.

Conclusion: To avoid an outage on the next failover, the BIG-IP Administrator must ensure the Standby device uses the same interface (1.1) for the relevant VLAN(s) that carry the application traffic, so when it becomes Active it can forward/receive traffic normally.

In a BIG-IP device service cluster , configuration objects such as virtual servers, pools, profiles, and iRules are maintained through configuration synchronization (config-sync) .

Key BIG-IP concepts involved:

Device Service Cluster (DSC) A cluster is a group of BIG-IP devices that share configuration data. One device is typically used to make changes, which are then synchronized to the rest of the group.

Config-Sync Direction Matters

Changes are made on a local device

Those changes must be pushed to the group

The correct operation is “Sync Device to Group”

Why C is correct:

The virtual server was created only on device 1

Other devices in the cluster do not yet have this object

To propagate the new virtual server to all cluster members, the administrator must synchronize device 1 to the group

Why the other options are incorrect:

A. Synchronize the settings of the group to device 1 This would overwrite device 1’s configuration with the group’s existing configuration and may remove the newly created virtual server .

B. Create a new cluster on device 1 The cluster already exists. Creating a new cluster is unnecessary and disruptive.

D. Create a new virtual server on device 2 This defeats the purpose of centralized configuration management and risks configuration drift.

Conclusion:

After creating a new virtual server on a BIG-IP device that is part of a cluster, the administrator must synchronize the configuration from that device to the group so all devices share the same ADC application objects.

In the BIG-IP system, VLANs are the logical entities that group physical interfaces or trunks together. To modify how a VLAN interacts with an interface, the administrator must navigate to the specific VLAN configuration object.

VLAN List: This section displays all existing VLANs configured on the system.

Interface Association: Within the properties of a specific VLAN (in this case, " external " ), there is an Interfaces section. This is where physical ports or trunks are assigned to the VLAN.

Tagging Status: For each associated interface, the administrator can choose between Tagged (802.1Q) or Untagged .

Untagged: The interface will treat incoming traffic without a VLAN header as part of this VLAN, and outgoing traffic will not have a VLAN tag added. An interface can only be " Untagged " for one VLAN.

Tagged: Allows an interface to carry traffic for multiple VLANs simultaneously by using 802.1Q headers.

The configuration shown matches a Performance Layer 4 virtual server because it is explicitly using a FastL4 profile:

The screenshot shows Protocol: TCP and Protocol Profile (Client): fastL4 . In BIG-IP data plane terms, FastL4 is the hallmark of a Performance (Layer 4) virtual server, designed to process connections at Layer 4 with minimal overhead (high throughput/low latency) compared to full proxy L7 processing.

The screenshot also shows HTTP Profile (Client): None (and HTTP server profile effectively not in use). A Standard virtual server commonly uses full-proxy features and frequently includes L7 profiles (like HTTP) when doing HTTP-aware load balancing, header manipulation, cookie persistence, etc. In contrast, a Performance L4 virtual server typically does not use an HTTP profile because it is not doing HTTP-aware (Layer 7) processing.

It is not a Forwarding IP virtual server: A Forwarding (IP) virtual server is used to route/forward packets (often without load balancing to pool members in the same way as Standard/Performance VS) and is selected by choosing a forwarding type. The presence of a TCP protocol with a FastL4 client profile aligns with a Layer 4 load-balancing style virtual server, not a packet-forwarding virtual server type.

Conclusion: Because the configuration is TCP-based and explicitly uses fastL4 with no HTTP profile, the expected BIG-IP virtual server type is Performance Layer 4 (Option C) .

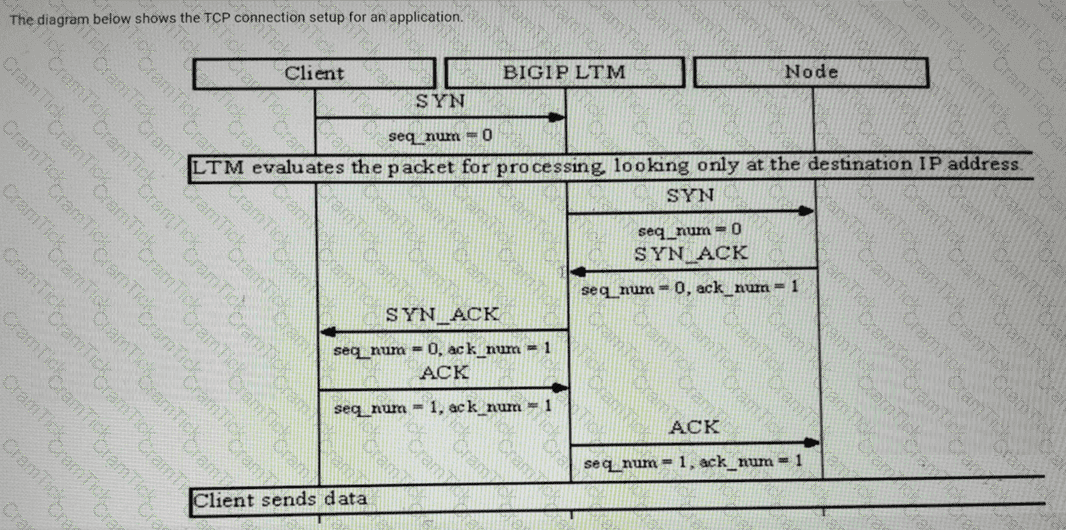

A Forwarding (IP) virtual server is unique because it does not perform load balancing in the traditional sense.

No Pool Members: Unlike a Standard virtual server, which requires a pool to direct traffic, a Forwarding (IP) virtual server typically has no pool assigned .

Destination-Based Routing: The BIG-IP system looks at the destination IP address in the original packet header sent by the client. It then consults the BIG-IP system ' s local routing table to determine where to send the packet.

Transparency: It acts as a high-performance router/gateway, often used to forward traffic from internal servers to the internet or across different subnets while still allowing the BIG-IP to apply features like SNAT or bandwidth controllers.

Stateful Tracking: While it forwards traffic based on the routing table, it still creates an entry in the connection table to track the flow (unless it is a Stateless virtual server).

The BIG-IP system supports various remote authentication methods like LDAP, Active Directory, and RADIUS.

Fallback to Local: This is a specific security and availability feature within the System > Users > Authentication configuration.

Redundancy: When " Fallback to Local " is enabled, the BIG-IP will first attempt to authenticate a user against the configured remote server. If that remote server is unreachable or fails to respond, the system will then check its internal Local User database for credentials.

Administrative Access: This is standard practice for the " admin " or emergency accounts to ensure the system remains accessible even if the corporate directory service (e.g., AD) is offline.
