HPE0-S59 HPE Compute Solutions Questions and Answers

The integration of NVIDIA AI Enterprise (NVAIE) into the HPE Private Cloud AI stack is designed to remove the operational complexity of managing high-performance GPU hardware in a containerized environment.

Automation via GPU Operator: One of the most significant features of NVAIE is the NVIDIA GPU Operator . In a standard Kubernetes environment, administrators would typically need to manually install GPU drivers, container runtimes, and monitoring tools on every node. The GPU Operator automates this entire lifecycle. It detects the presence of NVIDIA GPUs and automatically deploys the necessary drivers, the NVIDIA Container Toolkit , and the Kubernetes Device Plugin .

Infrastructure Readiness: By including NVAIE, HPE ensures that the " Infrastructure Layer " is fully optimized for AI workloads. This means that as soon as an AI worker node (like an HPE ProLiant DL380a) is provisioned, the software stack is ready to pass GPU instructions from a containerized application directly to the hardware without manual intervention.

Consistency and Support: NVAIE provides a validated and supported path for these drivers and operators. This ensures that the versions of the drivers are compatible with the AI frameworks (like PyTorch or TensorFlow) and the specific version of Kubernetes running on the HPE Private Cloud AI, reducing " version hell " and ensuring enterprise-grade stability.

Why other options are incorrect:

Option A: While resource scheduling and orchestration (via tools like NVIDIA Run:ai, now part of NVAIE) can manage workload placement, the " cleanup of idle workloads " is typically a function of the Kubernetes scheduler or specific policy engines (like Kyverno), not the primary defining benefit of NVAIE itself.

Option C: NVIDIA AI Enterprise is a software platform . It does not provide access to " unreleased " or " non-public " hardware models; rather, it provides the software stack to run on commercially available NVIDIA GPUs like the H100, L40S, or B200.

Option D: Secure communication between workloads is usually handled by the Service Mesh (such as Istio , which is part of the HPE AI Essentials software layer) or networking operators, rather than NVAIE ' s primary role of GPU enablement.

In HPE Synergy, a management ring can indeed contain mixed frame link module (FLM) configurations. This means you can have a mix of 2-port and 4-port FLM modules within the same management ring without needing to replace the existing 2-port modules. This flexibility allows for gradual upgrades and scalability within the management ring.

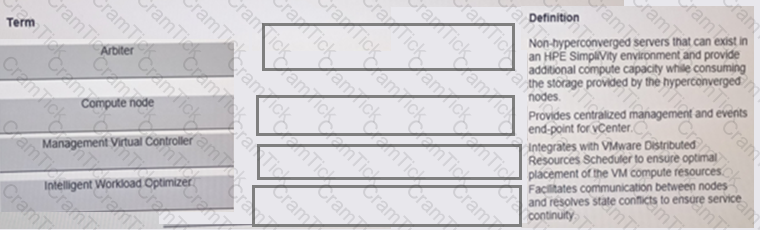

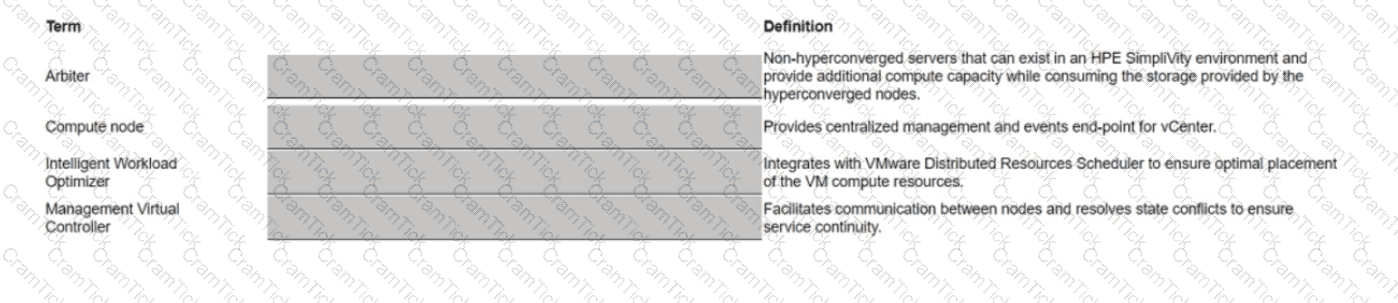

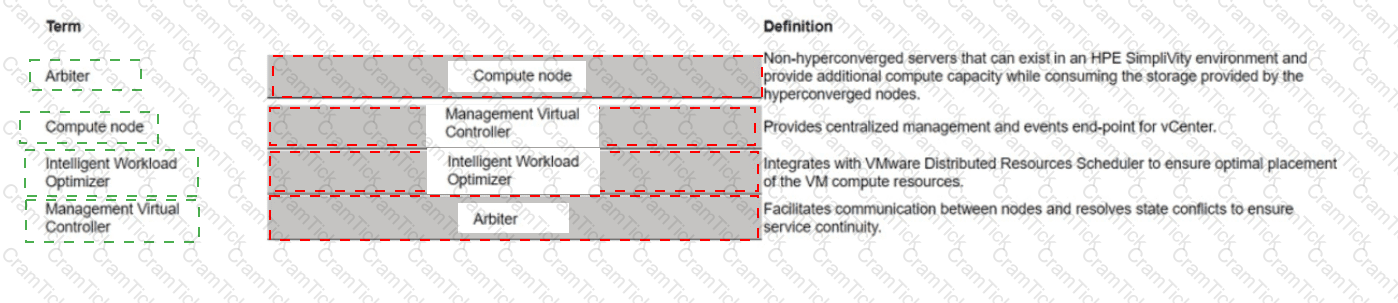

Here are the correct matches for each HPE SimpliVity term with their respective definitions:

Arbiter Definition: Facilitates communication between nodes and resolves state conflicts to ensure service continuity.

Compute node Definition: Non-hyperconverged servers that can exist in an HPE SimpliVity environment and provide additional compute capacity while consuming the storage provided by the hyperconverged nodes.

Intelligent Workload Optimizer Definition: Integrates with VMware Distributed Resources Scheduler to ensure optimal placement of the VM compute resources.

Management Virtual Controller Definition: Provides centralized management and events end-point for vCenter.

Arbiter: The Arbiter in an HPE SimpliVity environment is responsible for ensuring communication between nodes and resolving any state conflicts, which is crucial for maintaining service continuity.

Compute node: In an HPE SimpliVity environment, a compute node refers to non-hyperconverged servers that provide additional compute capacity while utilizing the storage from hyperconverged nodes.

Intelligent Workload Optimizer: This component integrates with VMware ' s Distributed Resources Scheduler (DRS) to optimize the placement of virtual machine (VM) compute resources, ensuring they are efficiently distributed across the environment.

Management Virtual Controller: This controller provides centralized management and serves as the events end-point for vCenter, allowing for streamlined management and monitoring of the SimpliVity environment.

D. FC upgrade licenses for HPE Virtual Connect SE 100 GbF32 Module must be added: To enable Fibre Channel functionality on the HPE Virtual Connect SE 100Gb F32 Modules, it is necessary to add FC upgrade licenses. These licenses unlock the FC capabilities required for the proposed setup.

E. Remove 4 HPE Composer 2 modules from the design, as they are not required: The proposed design includes 6 HPE Composer 2 modules, but typically, only a pair of HPE Composer 2 modules is required to manage up to 21 frames. Therefore, the remaining 4 Composer 2 modules are not necessary and can be removed from the design.

This scenario tests your knowledge of HPE Synergy Master/Satellite architecture and Management Ring requirements. Based on the requirements provided, the design has two primary issues that must be addressed:

Management Redundancy (HPE Composer 2):

The requirement states that all frames must formulate a single management entity. In a Synergy environment, this is achieved by linking the Frame Link Modules (FLM) of the three frames together to form a management ring.

Within a single management ring (one Logical Enclosure), only two (2) HPE Synergy Composer 2 modules are required to provide a highly available, redundant management cluster.

The architect ' s proposal included 6 Composers (2 per frame). This is incorrect for a single management entity design; therefore, 4 Composers are unnecessary and should be removed (Option C).

Fibre Channel Connectivity Licensing:

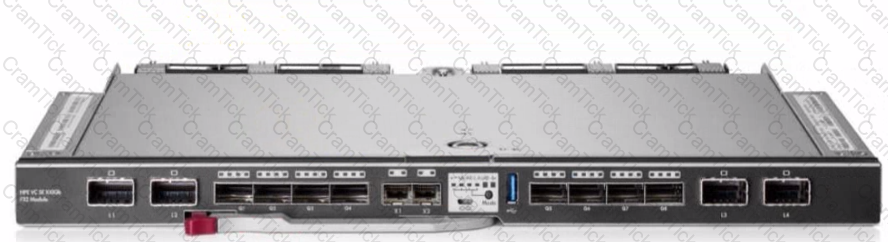

The HPE Virtual Connect SE 100Gb F32 Module is a converged interconnect. While it physically supports Fibre Channel (FC) and FCoE, the Fibre Channel uplink functionality is not enabled by default.

According to HPE QuickSpecs, a specific FC Upgrade License must be purchased and applied via HPE OneView to enable the use of the QSFP28 ports as native Fibre Channel uplinks to a SAN. Without these licenses, the customer cannot meet the requirement for connectivity to an FC array (Option A).

Analysis of other options:

Option B is incorrect: In a 3-frame setup, you only need one pair of " Master " modules (the F32s). The other frames are correctly equipped with Interconnect Link Modules (ILMs) which act as satellites to extend the Master ' s fabric.

Option D is incorrect: Virtual Connect technology is explicitly designed to provide MAC and WWN virtualization (often called " Server-Side Networking " ), allowing identities to be assigned to server profiles rather than being hardcoded to hardware.

Option E is incorrect: A 3-frame Synergy setup provides a total of 36 half-height slots (12 per frame). Since the HPE Synergy 480 Gen10 Plus is a half-height module, the physical infrastructure can support up to 36 modules, easily meeting the " at least 30 " requirement. There is no architectural limitation in this specific F32/ILM combination that restricts it to only 18 modules.

The HPE OneView Update Readiness Checker (URC) is a specialized utility designed to ensure a smooth transition during the appliance update process. Its primary and specific function is as follows:

Pre-Update Health Validation: The tool is designed to evaluate the internal health of the HPE OneView appliance (whether it is a VM or a Synergy Composer) for a set of known conditions that could potentially cause an update to fail. This includes checking database integrity, filesystem space, and internal service states.

Appliance-Centric Analysis: According to official HPE documentation, the checker evaluates conditions only on the appliance itself and not the managed environment (such as individual compute node firmware or interconnect modules). This makes it a " safety net " for the management layer specifically.

Deployment: It runs on a client system (Windows or Linux) outside the appliance and connects via the API to perform these health checks. It is recommended to run this tool immediately before any major or minor appliance update.

Why other options are incorrect:

Option A: Compatibility between Synergy Service Packs (SSPs) and OneView versions is typically checked via the HPE Synergy Software Releases documentation or the Synergy Management Combination matrix, not the URC utility.

Option C: Firmware compliance of compute nodes is handled by the HPE OneView Firmware Compliance reports and Server Profiles within the main OneView UI, not by the external Update Readiness Checker.

Option D: While milestone releases are critical for the update path, the URC checks for health and readiness rather than just identifying the current version number or milestone status, which is easily visible on the " About " page of the appliance.

To configure a RoCE (RDMA over Converged Ethernet) network for HPE J2000 Flash Enclosure support, you need interconnects that support high-bandwidth, low-latency Ethernet connections. The HPE Virtual Connect SE 40Gb F8 Module and the HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy are suitable choices, as they provide the necessary capabilities for RoCE and lossless networking.

In the lifecycle of HPE OneView software updates, a Milestone Release is a specific version of the appliance firmware that acts as a mandatory " stepping stone " or checkpoint in the upgrade path.

Prerequisite for Updates: Because HPE OneView undergoes significant architectural changes over time (such as database schema migrations, changes to the underlying operating system, or shifts in the container orchestration layer), you cannot always jump from a very old version directly to the latest version. A milestone release contains the necessary logic to transform the existing data and environment into a format that the subsequent versions require.

Update Path Enforcement: The HPE OneView update logic is designed to prevent administrators from skipping these critical versions. If an appliance is at a version significantly older than the target version, the update will fail or be blocked until the required milestone release is installed first.

Examples of Milestones: Historically, versions like HPE OneView 4.2, 5.2, 6.6, and 8.0 have served as milestones. For instance, an administrator on version 5.0 might be required to update to 5.2 (the milestone) before they are permitted to move to version 6.0 or higher.

Update Readiness Checker: HPE highly recommends using the Update Readiness Checker specifically when approaching a milestone release to ensure the appliance ' s internal health is sufficient to handle the intensive data migrations that typically occur during these transitions.

Why other options are incorrect:

Option A: This describes a " Beta " or " Early Access " program, not a milestone release.

Option B: While specific OneView versions are required for specific Service Packs for Synergy (SSP) , the term " milestone " refers specifically to the appliance ' s internal update architecture and pathing, not its external hardware compatibility matrices.

Option C: While new hardware support is often included in major or minor releases, the primary definition of a milestone is its role as a prerequisite in the software update sequence.

For HPE Virtual Connect Fibre Channel (VC FC) modules, utilization sampling is always enabled by default and cannot be disabled. This feature ensures continuous monitoring of the module ' s performance and utilization, providing valuable insights for managing the Fibre Channel network.

The transition from the first-generation HPE Synergy Composer (based on Gen9 technology) to the HPE Synergy Composer 2 (based on Gen10 technology) introduced a critical hardware advancement for system administrators and troubleshooting scenarios.

Integrated iLO 5 ASIC: Unlike the original Composer, which did not provide a user-accessible iLO interface for the appliance itself, the HPE Synergy Composer 2 is built with an integrated HPE iLO 5 management processor.

Remote Appliance Management: This allows administrators to connect directly to the iLO of the Composer 2 module via its own IP address. From this interface, you can perform tasks that were impossible on the first-generation hardware, such as:

Remote Console Access: View the startup sequence or the maintenance console of the management appliance even if the OneView software is not responding.

Power Management: Remotely reset or power cycle the management module without having to physically visit the data center to " reseat " the module.

Virtual Media: Mount an ISO to recover or re-image the appliance remotely.

Silicon Root of Trust: Being based on Gen10 architecture, the Composer 2 also brings the Silicon Root of Trust security feature to the management layer, providing hardware-level validation of the appliance firmware to protect against rootkits and compromised code.

Why other options are incorrect:

Option A: Both the original Composer and Composer 2 support a maximum of 21 frames in a single management ring (a single Logical Enclosure).

Option B: While the original Composer hardware is less powerful than Composer 2, HPE OneView 5.2 did not officially reduce the supported frame count to 12; the 21-frame limit remained standard for both, though performance is significantly better on Composer 2.

Option C: Both generations of Composers support the management of satellite frames (sometimes referred to in architectures as remote frames within the same rack/complex). " Remote frames " in the context of geographically distant frames is a function of the Global Dashboard, not a limitation of the local Composer hardware.

When compute nodes cannot access the D3940 Storage Module in an HPE Synergy environment, the first thing to check is whether a logical interconnect has been created based on the 12Gb SAS switches. Logical interconnects are essential for defining the connection and communication pathways between the compute nodes and the storage module. Without a proper logical interconnect configuration, the compute nodes will not be able to access the storage module.

The HPE Superdome Flex (the 4-socket to 32-socket scale-up system) has specific architectural requirements that distinguish it from the smaller Superdome Flex 280:

Memory Configuration (Option A): The HPE Superdome Flex is designed for massive in-memory workloads. Each 4-socket chassis contains 48 DIMM slots (12 per processor). To maintain the required performance and RAS (Reliability, Availability, and Serviceability) features, the platform has a minimum memory requirement. According to the HPE QuickSpecs, the shared memory capacity starts at 768GB , which is achieved by populating all 48 slots with the minimum supported 16GB DIMMs ($48 \times 16\text{GB} = 768\text{GB}$).

Scalability (Option B): This statement is incorrect for the standard Superdome Flex. The Superdome Flex 280 scales in 2-socket increments from 2 to 8 sockets. The original Superdome Flex scales in 4-socket increments (one full chassis at a time) up to a maximum of 32 sockets (8 chassis).

Hard Partitioning (Option C): Using an external Rack Management Controller (RMC) , the Superdome Flex can support significantly more than two partitions. It can support up to 16 nPars (hard partitions), allowing for massive workload consolidation with electrical isolation between partitions.

Management (Option D): This is incorrect. While the Superdome Flex initially focused on CLI management via the RMC, HPE OneView (versions 5.0 and later) fully supports the Superdome Flex for monitoring, inventory, and health management. More recent updates have introduced " Manage Mode " for template-based BIOS and firmware orchestration.

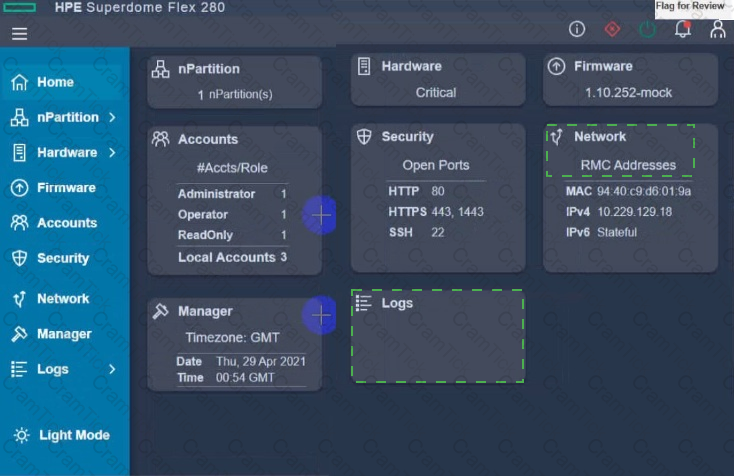

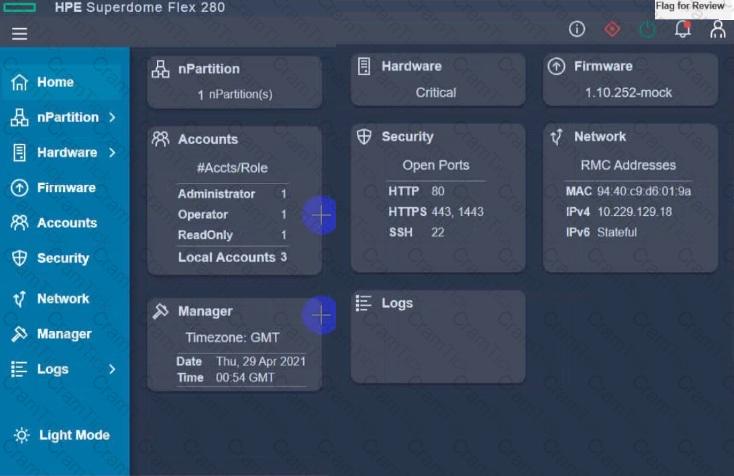

To check the Core Analysis Engine (CAE) Log on the HPE Superdome Flex 280, navigate to the Logs section in the management interface. This section provides access to various logs, including system, security, and diagnostic logs, which encompass the CAE logs necessary for detailed analysis and troubleshooting.

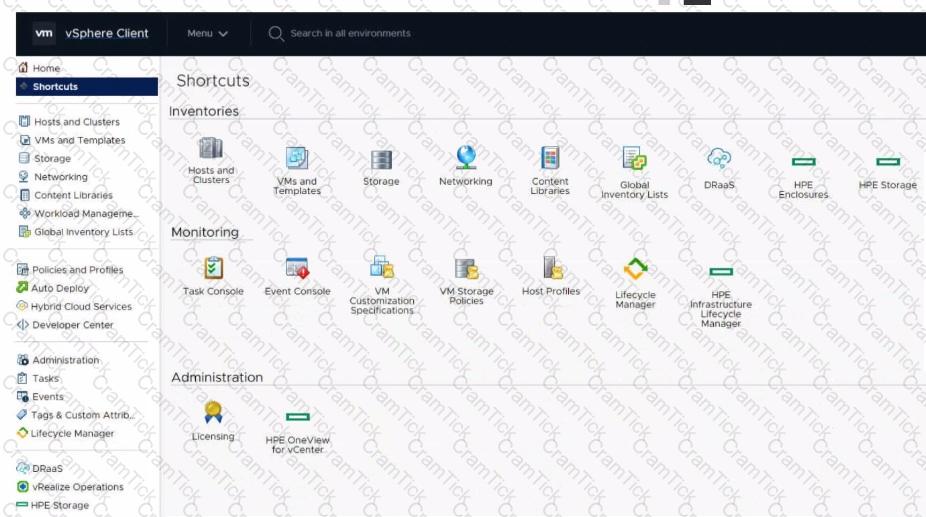

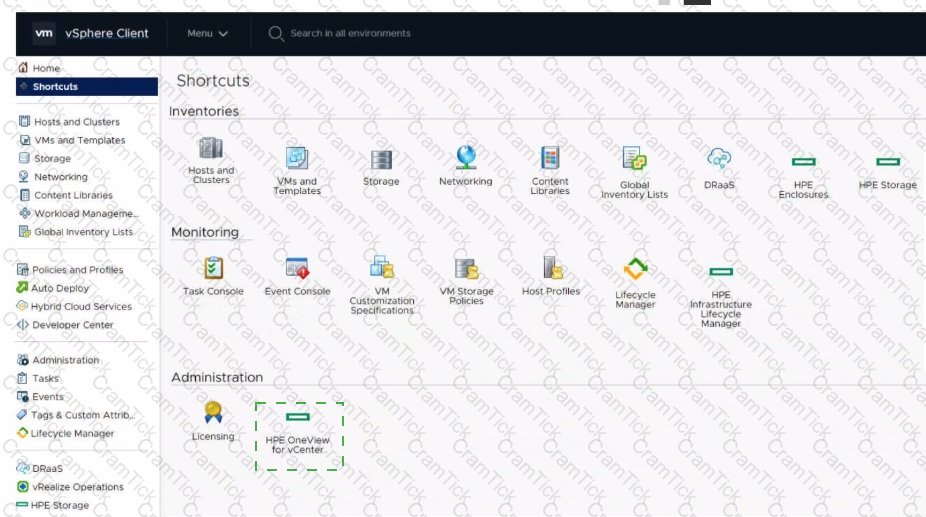

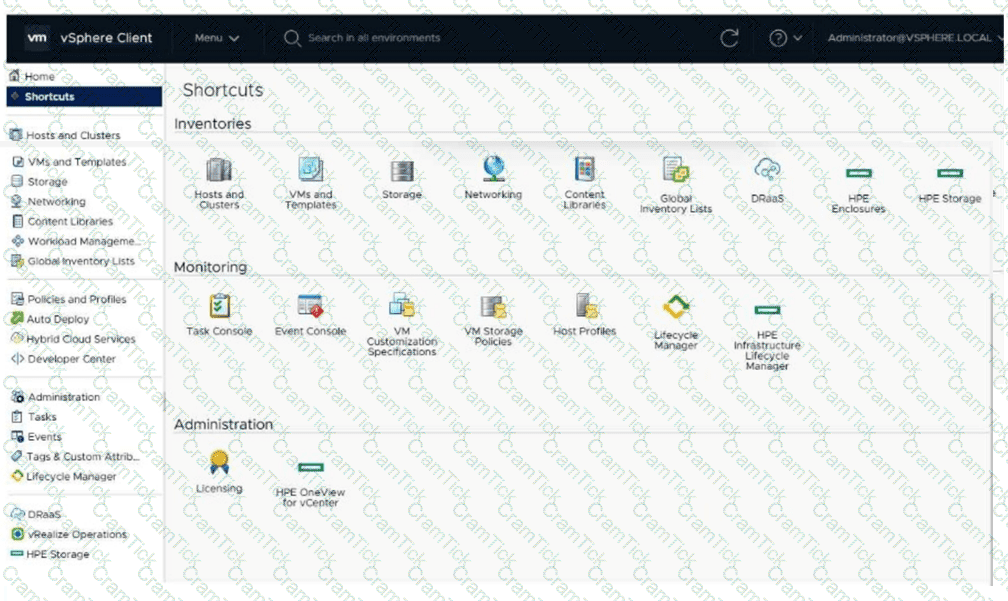

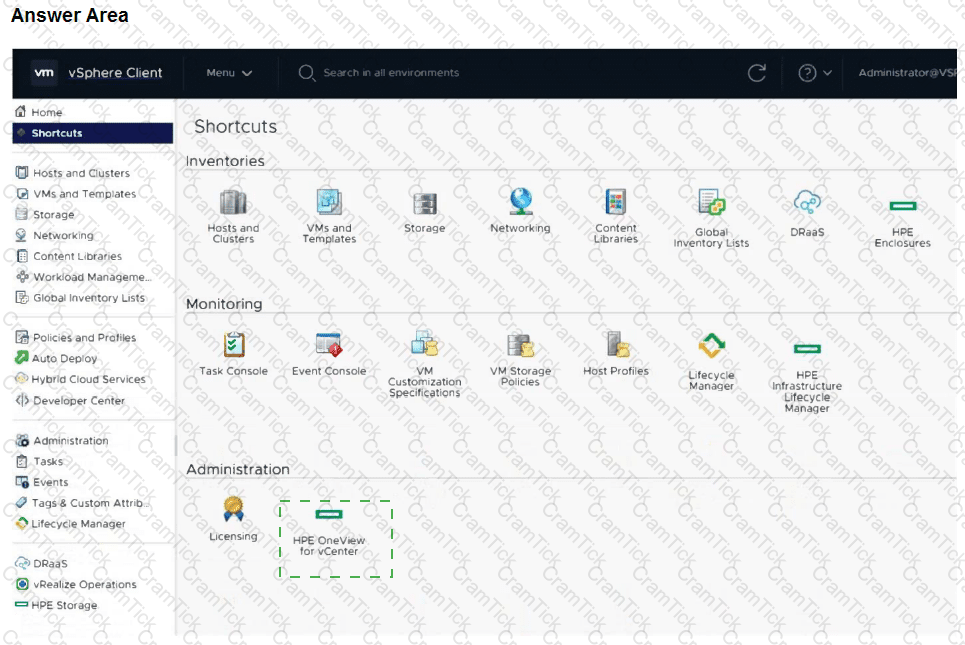

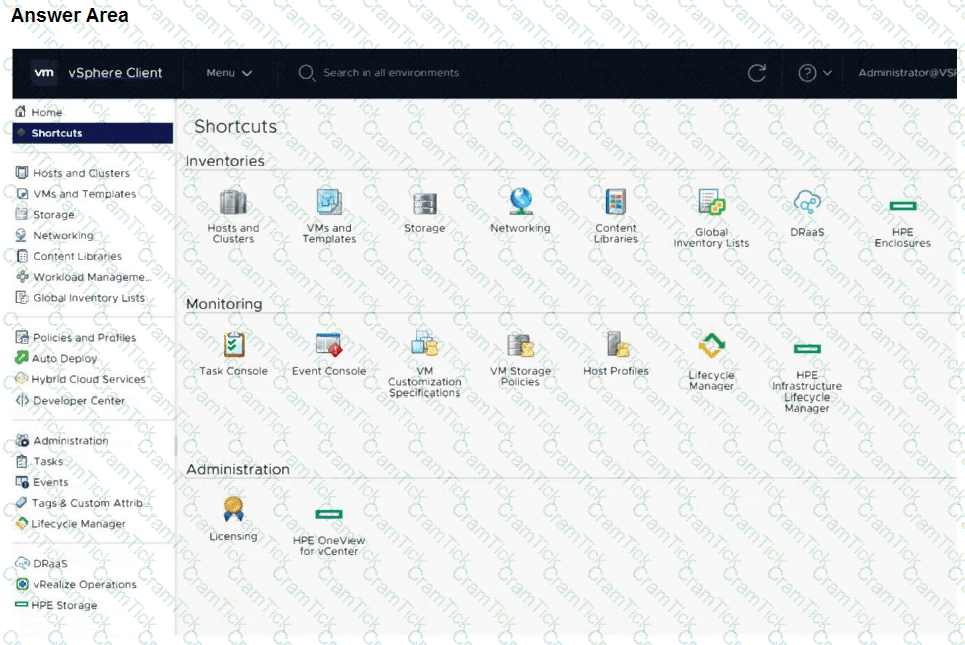

Click the " HPE OneView for vCenter " icon under the Administration section

HPE OneView for vCenter (under Administration): This icon provides access to the plugin ' s administrative console and configuration settings. Within this interface, there is a Deployment tab (or sub-page) specifically designed for managing OS Build Plans (or OS Deployment Plans). From the Deployment page, administrators can view, create, edit, and delete build plans, as well as upload or remove ESXi ISO images used within those plans.

HPE Infrastructure Lifecycle Manager (under Monitoring): This icon is primarily used for infrastructure health monitoring and firmware remediation (managing Service Packs for ProLiant - SPP), rather than operating system deployment plans.

HPE Enclosures and HPE Storage (under Inventories): These icons provide inventory views of the physical enclosure and storage resources managed by the plugin.

Therefore, to change the ESXi image used in an OS Deployment Plan, you must navigate to the administrative settings of the plugin by clicking the HPE OneView for vCenter icon in the Administration section of the Shortcuts menu.

HPE GreenLake for File Storage is a key component of the HPE Private Cloud AI architecture, designed to provide the high-throughput, low-latency performance required for AI workloads.

Hardware Foundation: The infrastructure underlying this service is based on the HPE Alletra Storage MP platform. These modular " MP " (Multi-Protocol) nodes are built using standard HPE ProLiant Gen11 hardware components. By leveraging the proven ProLiant ecosystem, HPE ensures the solution is both cost-effective (due to global supply chain efficiencies) and highly resilient (utilizing enterprise-grade power supplies, fans, and management via iLO).

NVMe Performance: To handle the massive data requirements of AI model training and inference, the infrastructure utilizes all-NVMe drives. This provides the parallelism and speed necessary to feed hungry GPUs without the bottlenecks associated with traditional SAS or SATA storage.

Disaggregated Architecture: Unlike legacy systems, this infrastructure separates performance (compute nodes) from capacity (JBOFs/Storage shelves), allowing the environment to scale efficiently as data grows.

Why other options are incorrect:

Option B: While Alletra MP Block storage offers a 100% availability guarantee, the File persona is designed for extreme durability and high availability but is typically marketed with 99.9999% (six nines) availability rather than the absolute 100% block storage claim.

Option C: HPE Private Cloud AI uses shared storage (Alletra MP) rather than local drives on the worker nodes. This ensures data persistence and allows multiple GPU nodes to access the same datasets simultaneously.

Option D: HPE GreenLake for File Storage is powered by the VAST Data software stack, not Lustre. While Lustre is common in classic HPC, the VAST-based HPE solution is preferred for modern enterprise AI due to its ease of management and superior data reduction capabilities.

HPE Composer 2 offers enhanced scalability compared to HPE Composer 1. While HPE Composer 1 and HPE OneView support up to 21 frames, HPE Composer 2 extends this limit, allowing for greater scalability and more efficient management of larger HPE Synergy environments. This makes HPE Composer 2 a suitable recommendation for customers needing to manage more than 21 frames.

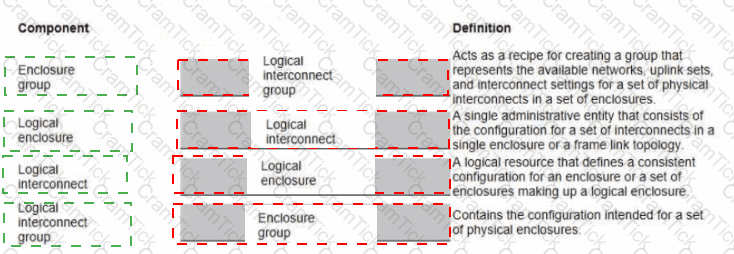

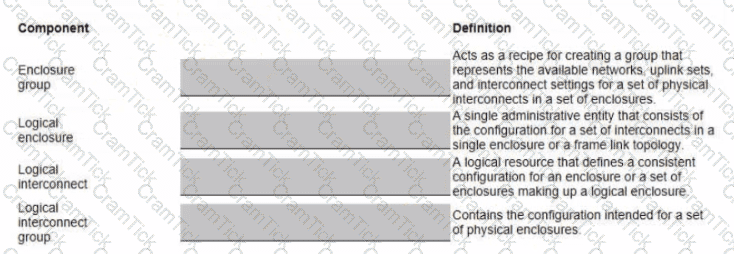

Here are the correct matches for each HPE Synergy logical component with their respective definitions:

Enclosure group Definition: Contains the configuration intended for a set of physical enclosures.

Logical enclosure Definition: A logical resource that defines a consistent configuration for an enclosure or a set of enclosures making up a logical enclosure.

Logical interconnect Definition: A single administrative entity that consists of the configuration for a set of interconnects in a single enclosure or a frame link topology.

Logical interconnect group Definition: Acts as a recipe for creating a group that represents the available networks, uplink sets, and interconnect settings for a set of physical interconnects in a set of enclosures.

Enclosure group: An enclosure group in HPE Synergy defines the configuration settings, including logical interconnect groups and firmware baselines, for a set of physical enclosures.

Logical enclosure: A logical enclosure in HPE Synergy is a resource that includes one or more physical enclosures and their associated logical interconnects, providing a consistent configuration for those enclosures.

Logical interconnect: A logical interconnect represents a set of interconnects within an enclosure, managed as a single entity. It includes the configuration of the interconnects and their connections.

Logical interconnect group: A logical interconnect group (LIG) defines the network configuration, including available networks, uplink sets, and interconnect settings, that can be applied to multiple enclosures.

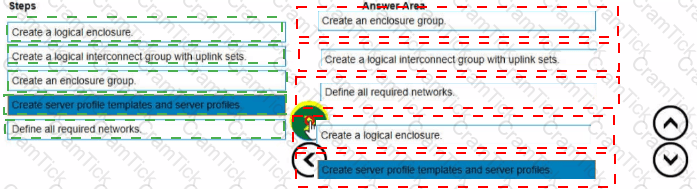

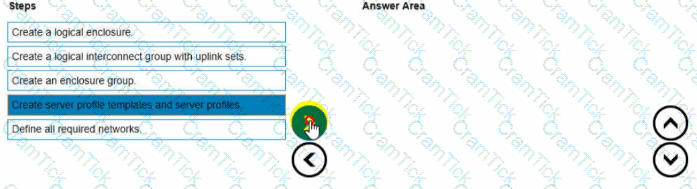

To set up HPE Synergy frames after the hardware components are discovered within HPE OneView, the following steps should be followed in the correct order:

Create an enclosure group.

Create a logical interconnect group with uplink sets.

Define all required networks.

Create a logical enclosure.

Create server profile templates and server profiles.

Create an enclosure group: This step involves defining the enclosure group, which includes the configurations for the enclosure such as firmware baselines and logical interconnect groups.

Create a logical interconnect group with uplink sets: Next, set up the logical interconnect group, which includes the uplink sets that define the connectivity from the enclosures to the data center networks.

Define all required networks: After setting up the logical interconnect group, define all the necessary networks that will be used within the HPE Synergy environment.

Create a logical enclosure: Create a logical enclosure by combining the physical enclosures with the defined enclosure group, effectively binding the hardware configuration with the logical settings.

Create server profile templates and server profiles: Finally, create server profile templates and individual server profiles to apply the required configuration settings to the compute modules.

A logical interconnect group in HPE Synergy is used to define a consistent network configuration across multiple frames. The HPE Virtual Connect SE 100 Gb F32 Module for Synergy allows for logical interconnect groups to span across multiple frames. This is because the 100 Gb module supports high-speed connectivity and the necessary infrastructure to maintain consistent network configurations over multiple frames, which is essential for scalable and flexible Synergy environments.

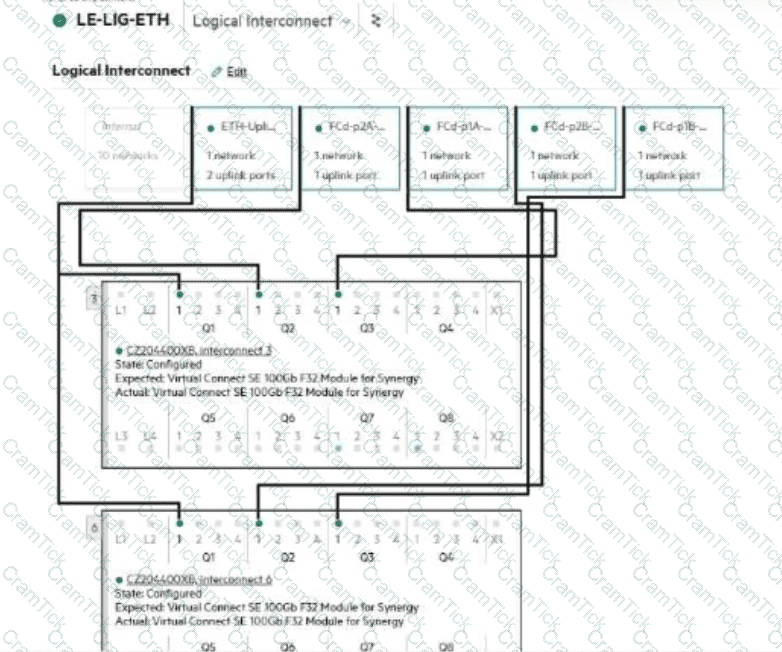

In the HPE Synergy architecture, Logical Interconnect Groups (LIGs) define the connectivity patterns for the frames. The ability of an LIG to span multiple frames depends entirely on the interconnect technology being used:

Ethernet Virtual Connect (Options A & D): The HPE Virtual Connect SE 40 Gb F8 and 100 Gb F32 modules are designed for Multi-Frame Link Aggregation . Using a Master/Satellite architecture, these LIGs can span up to five Synergy frames, allowing a single logical management point for the entire fabric.

Fibre Channel Switches (Option B): The Brocade 32GB Fibre Channel Switch Module is a traditional " managed switch " persona. Unlike Virtual Connect, which acts as a fabric extender/aggregator, the Brocade module operates as a standalone switch within the frame ' s backplane. In HPE OneView, an LIG containing traditional Fibre Channel switches is strictly limited to a single frame . You cannot " stack " or span a Brocade switch LIG across multiple frames in the same way you do with Ethernet VC modules.

Virtual Connect FC (Option C): While Virtual Connect Fibre Channel modules also generally operate within a frame context for their uplinks, the question specifically targets the " Switch Module " (Brocade) which, as a standard industry switch, does not participate in the proprietary Synergy multi-frame horizontal stacking architecture.

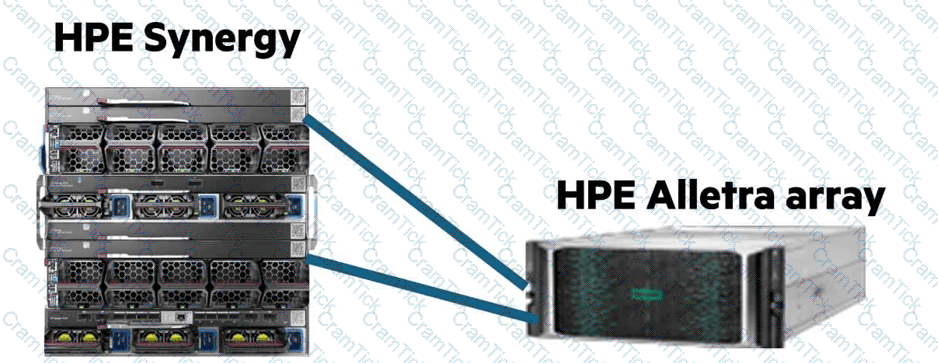

HPE OneView is designed to provide a unified and consistent management experience across its entire software-defined storage portfolio. When a customer transitions from HPE 3PAR StoreServ to HPE Primera (or even newer Alletra 9000 systems), the core management workflows within HPE OneView remain essentially identical:

Storage Systems and Pools: In both cases, the storage system is added to the HPE OneView appliance. Once connected, HPE OneView discovers the available storage pools, which are referred to as Common Provisioning Groups (CPGs) on both 3PAR and Primera.

Volume Management: The process of creating, provisioning, and managing volumes is the same. Administrators use the same templates and server profiles to attach storage, regardless of the underlying hardware generation.

Automation and Templates: Because HPE OneView uses a software-defined approach, the " Logical " definitions of the infrastructure are decoupled from the physical hardware. This allows for a frictionless transition where existing automation scripts and REST API calls typically do not need to be modified when swapping a 3PAR array for a Primera array.

Licensing: Management of storage in HPE OneView does not require a different " type " of license when moving from 3PAR to Primera; the integration is built into the standard storage management capabilities of the appliance.

Why other options are incorrect:

Option B: While HPE Primera has many advanced internal features (like AI-driven optimizations via HPE InfoSight), these are handled at the array level. Within HPE OneView, CPG management and other basic provisioning features are functionally identical to those provided for 3PAR.

Option C: HPE OneView provides full support for HPE Primera. Far from being " limited, " Primera is a core platform for HPE’s " Intelligent Storage " strategy.

Option D: There is no " dedicated " license required specifically for Primera management that differs from the existing 3PAR management model in OneView.

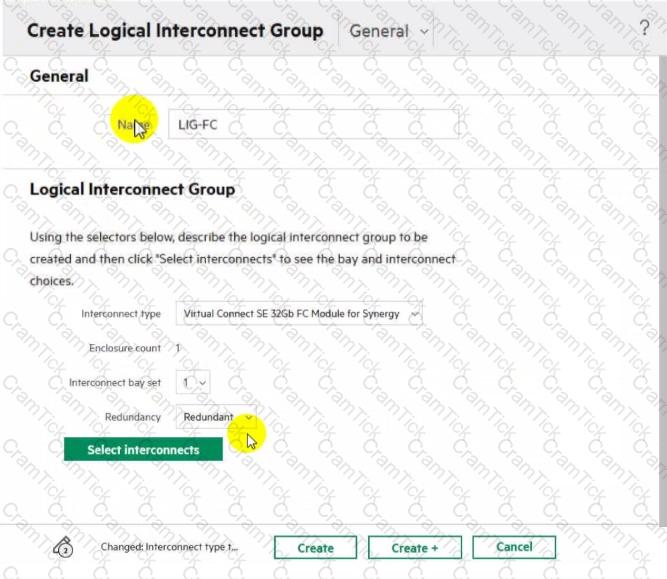

Click the drop-down menu next to " Interconnect bay set " .

To define the location of the master modules within the logical interconnect group, you need to select the appropriate interconnect bay set. The drop-down menu next to " Interconnect bay set " allows you to specify which bays the interconnect modules will be placed in, thereby determining the location of the master modules.

When troubleshooting a server profile in HPE OneView that is in a critical state due to a Link Aggregation Group (LAG), it is important to check if both FlexNICs are configured with the same speed. Inconsistent speeds can cause issues with link aggregation, leading to network instability and performance degradation.

The HPE Superdome Flex system is the only HPE compute system that supports up to 16 CPU sockets, making it suitable for customers who require a hardware platform with such high scalability. The Superdome Flex is designed for mission-critical workloads and provides exceptional scalability and performance.

The issue of seeing multiple instances of an FC boot volume in Disk Management, with one online and three offline, is typically caused by the lack of Multi-Path I/O (MPIO) configuration. Installing and configuring MPIO on the Windows system will enable the operating system to recognize multiple paths to the same storage volume and manage them correctly, presenting only one online instance of the volume.

When updating HPE OneView to version 6.1, it is necessary to first update to version 6.0, which is a milestone edition. Milestone editions include significant architectural changes and updates that are prerequisites for subsequent versions. This step ensures that the system is properly prepared and compatible with the new features and improvements introduced in version 6.1.

Manual orchestration during a firmware update allows administrators to control the update process more precisely. Specifically, it enables the selection and update of one side of the interconnect topology at a time. This capability is particularly useful in maintaining network availability and minimizing downtime during the update process, as one side can be updated and verified before proceeding to the other side.

The Performance section within the iLO management interface provides access to the Workload Advisor. This feature offers insights and analytics regarding the server ' s performance, helping to optimize workloads and manage resources efficiently.
