The LACP state event Actor state: ALFNCD, Partner state: ASFNCD indicates that the LACP negotiation between the local (actor) and peer (partner) is successful with all flags matching and no errors.

ALFNCD and ASFNCD are standard LACP states indicating Active, Long timeout, Aggregation capable, Not synchronized, Collecting, and Distributing flags set as expected.

Also, the log shows the LACP rate is set to slow, which is the default.

Thus, the output shows the LAG 253 has a matching LACP configuration with its peer.

To enable Layer 3 multicast functionality on an AOS-CX switch, it is essential to understand the roles of different protocols and where they are applied in the hierarchy of the switch configuration.

L3 vs. L2 Multicast:

IGMP (Internet Group Management Protocol): This is a Layer 3 protocol used by hosts to report their multicast group memberships to adjacent routers. It is configured on a Layer 3 interface , such as an SVI (Switch Virtual Interface) or a routed port.

IGMP Snooping: This is a Layer 2 optimization feature. It allows a switch to " listen in " on IGMP conversations between hosts and routers to constrain multicast traffic to only those ports that have requested it, preventing the traffic from flooding the entire VLAN.

Enabling L3 Multicast Locally: When the " core switch " acts as the default gateway for multicast receivers, it must be able to process membership reports from those receivers. By enabling IGMP on the SVI (e.g., interface vlan 100), the switch begins listening for IGMP Join/Leave messages from clients on that subnet. This is a prerequisite for the switch to populate its multicast routing table and, when combined with a routing protocol like PIM (Protocol Independent Multicast) , forward traffic from a source to those local receivers.

Analysis of Options:

Option A (Correct): IGMP must be enabled on the SVI so the switch can function as a multicast-aware gateway for that specific subnet.

Option B: In AOS-CX syntax, you do not configure " IGMP " under the L2 vlan [ID] context; it is an L3 function.

Option C: Enabling IGMP-snooping on a VLAN only manages the L2 delivery of traffic; it does not enable L3 routing or the processing of multicast packets across different subnets.

Option D: While IGMP-snooping is often used in conjunction with L3 multicast, it is technically a VLAN-level configuration, not a property of the SVI itself.

Key CLI Commands:

To fully enable this, a professional would typically use:

Bash

router multicast

routing

!

interface vlan 100

ip igmp

ip pim-sm

The Aruba CX switches REST API supports the JSON (JavaScript Object Notation) data format for both requests and responses. JSON is widely adopted for REST APIs due to its lightweight and readable format.

XML and YAML are not supported for REST API on CX switches.

SOAP is a different protocol not used by Aruba CX REST API.

Therefore, JSON is the correct and supported data format.

To prevent the campus core from seeing the data center core as the root bridge in a spanning tree topology (which can cause suboptimal paths or loops), Root Guard should be applied on the campus-to-data center core link. Root Guard enforces root bridge placement by blocking any superior BPDU from a downstream switch, maintaining the intended root bridge location.

BPDU filter blocks BPDUs entirely, which can cause problems.

Admin edge and BPDU guard are related to edge port protection, not root placement control.

The command erase all zeroize performs a secure erase on the switch, which deletes all customer data including startup-config and stored credentials. This process can take up to an hour depending on the hardware and storage media.

It does not retain running config (Option A).

It does not restore the factory AOS-CX image (Option B).

Admin credentials are deleted as part of the secure erase (Option C is incorrect).

Therefore, this command securely wipes all data and resets the device.

This scenario highlights a common conflict between Port Access Control and WLAN architectures in AOS10.

Tunnel Mode vs. Bridge Mode: * In Tunnel Mode , client traffic is encapsulated (GRE/IPsec) from the AP to the Gateway. The switch port only sees the MAC address of the AP itself. Once the AP authenticates via 802.1X, all tunneled client traffic passes through the authenticated " tunnel " unnoticed by the switch ' s port security.

In Bridge Mode , the AP bridges wireless client traffic directly onto the local VLAN. The switch port now sees the MAC addresses of the wireless clients.

The Conflict: By default, an 802.1X port expects only one authenticated device. When the AP authenticates, the port is " open " for the AP ' s MAC. However, when a wireless client’s bridged MAC appears on the same port, the switch treats it as an unauthenticated intruder and drops its DHCP requests.

The Solution (Device Mode): You must configure the User Role assigned to the AP (after it authenticates) with device-mode (often referred to as dev-conf-mode or device auth-mode in exam contexts). This tells the switch: " The device that just authenticated is a trusted infrastructure device (an AP). Please allow all subsequent MAC addresses seen on this port to pass without requiring individual authentication. "

Backing up the switch configuration to a remote Linux SFTP server requires using the copy command with the correct protocol (SFTP in this case), username, server IP, filename, and optionally the VRF to route management traffic.

Option A uses SCP and vrf default but the question mentions SFTP server, so SFTP protocol should be used.

Option B is a server-side command (not the switch).

Option C correctly uses copy startup-config sftp://user@192.168.1.100/switch_config.cfg vrf mgmt which backs up the startup-config via SFTP using the management VRF.

Option D is also a server-side command.

Using vrf mgmt is required because the management IP is in a separate VRF on CX switches.

To isolate wired ports on the same VLAN on a large scale (such as hotel rooms) but allow communication within the same VLAN for common areas, Private VLANs (PVLANs) are recommended. PVLANs allow segmentation within a single VLAN by dividing it into primary and secondary VLANs, controlling communication between ports.

VPN and VXLAN are overlay technologies for different purposes.

UBT (User-Based Tunneling) is related to wireless user segmentation, not wired port isolation.

Therefore, PVLANs provide the simplest and most effective solution to isolate room ports within a single VLAN.

When managing a network through HPE Aruba Networking Central , administrators have access to specialized reporting tools designed for lifecycle management and expansion planning.

Purpose of the Switch Capacity Planning Report: This specific report is engineered to give a clear overview of physical and electrical headroom within the switching infrastructure. When preparing to add new Access Points (APs), two variables are critical:

Port Density: The report identifies the number of available (unused) ports across various speeds (1GbE, 2.5GbE, 5GbE, etc.).

PoE Budgeting: High-performance APs (such as Wi-Fi 6E or Wi-Fi 7 models) require significant Power over Ethernet (PoE) wattage (PoE+ or UPoE). The report calculates the Total PoE Budget vs. the Currently Allocated PoE , allowing you to see if the switch power supplies can handle the additional load.

Evaluating Other Options:

Option A (Infra Inventory): This report focuses on asset management. it provides details like serial numbers, MAC addresses, hardware models, and firmware versions. It does not provide real-time or historical port usage or PoE consumption data.

Option C (Network): This is a broader summary report that typically focuses on connectivity, client counts, and overall network health rather than specific hardware resource limits.

Option D (Resource Utilization): While this report is useful, it generally focuses on System Resources such as CPU usage, Memory (RAM) consumption, and temperature sensors rather than physical port availability or PoE power budgets.

Best Practice: In an Aruba Central environment, running the Switch Capacity Planning report before a hardware refresh or expansion is a mandatory step to avoid " PoE starvation " or physical port shortages during the installation phase.

For a 1 Gbps link between two Aruba CX switches, the appropriate SFP port type is an SFP (Small Form-factor Pluggable). SFP+ and SFP28 are used for higher speeds such as 10 Gbps and 25 Gbps, respectively. QSFP+ is for even higher speeds (40 Gbps).

SFP supports 1 Gbps (1000BASE-X)

SFP+ supports 10 Gbps

SFP28 supports 25 Gbps and above

QSFP+ supports 40 Gbps and above

Therefore, the correct port type for a 1 Gbps link is SFP.

During a VSX firmware upgrade, the vsx-syned process stops synchronization while the switches have mismatched software versions. Synchronization resumes once both switches run the same software.

VSX synchronization cannot continue while versions mismatch (contrary to options B and D).

Compatibility mode is not required before rebooting secondary switch (Option D incorrect).

This behavior ensures consistency and avoids split-brain during upgrades.

In complex network designs involving different administrative domains (like a Campus and a Data Center), it is often desirable to prevent Spanning Tree Protocol (STP) from merging the two environments into a single, massive logical tree.

The Goal of Isolation: " Isolated spanning tree topology " means that the Campus and the Data Center should each have their own independent Root Bridge and calculate their own loop-free paths without being influenced by one another.

BPDU Filter (The Solution): When you apply BPDU Filter to an interface, the switch stops sending BPDUs out of that port and, more importantly, ignores any incoming BPDUs. Because the Campus switch no longer " sees " the BPDUs coming from the Data Center core, it will stop recognizing the DC as the Root Bridge and will instead elect a local Root Bridge (or remain as the Root itself). This effectively breaks the STP connection between the two domains while still allowing Layer 2 data traffic to flow.

Evaluating Other Options:

Option A (Root Guard): This is used to prevent a specific port from becoming a Root Port. If a superior BPDU is received, the port is placed into a " root-inconsistent " state (blocked). While this protects the local Root role, it does not " isolate " the topology; the switches still participate in the same overall STP domain.

Option C (BPDU Guard): This is intended for edge ports (connected to PCs/Printers). If it receives a BPDU, it shuts down the port entirely (rxtx-disable). Applying this to a core-to-core link would cause a total loss of connectivity as soon as the DC core sends a BPDU.

Option D (Admin Edge): This simply tells the switch to skip the Listening/Learning states and go straight to Forwarding. It does not provide topology isolation.

In an end-to-end Quality of Service (QoS) design, the goal is to maintain the priority of traffic as it transitions from the wireless medium (WMM) to the wired infrastructure (Ethernet).

WMM to DSCP Mapping: Aruba APs map Wireless MultiMedia (WMM) Access Categories (like Voice or Video) to specific DSCP (Differentiated Services Code Point) values in the IP header before forwarding the frames onto the wired network.

The Concept of " Trust " : By default, many switches operate in a " trusted " or " untrusted " mode. If a port is untrusted, the switch will strip or ignore any DSCP markings on incoming packets and remark them to 0 (Best Effort). To prevent this, the AOS-CX switch must be configured to trust the incoming DSCP markings.

Applying Trust via Interface (Option B): On the physical ports where APs are connected, you must apply the command qos trust dscp. This ensures that as the AP sends traffic into the switch, the switch honors the DSCP values assigned by the AP.

Applying Trust via User-Role (Option A): In modern Aruba " Colorless Port " architectures, switches often use User-Based Tunneling (UBT) or local roles assigned via ClearPass. If the AP itself is assigned a " User-Role " upon connection, that role can include a QoS policy that specifies DSCP trust. This is the preferred method for dynamic environments because the security and QoS policies follow the device regardless of which physical port it uses.

Why other options are incorrect:

Option C: LLDP-MED is used to negotiate parameters (like Voice VLAN), but it doesn ' t provide the granular " trust " mechanism required for WMM-to-DSCP mapping.

Option D: Colorless ports are a deployment method for roles, but " Colorless ports " is not a configuration command that handles QoS prioritization itself.

Option E: AOS-CX does not typically utilize a " global " trust command; trust is applied at the ingress point (interface or role) to maintain security and control.

To interpret AOS-CX event logs correctly for the ACP-S exam, you must understand the syntax used by the VSX Daemon (hpe-vsxd) when reporting the status of Multi-Chassis Link Aggregation Groups (MC-LAGs).

Anatomy of the Log Message:

hpe-vsxd: This indicates the message is generated by the VSX synchronization process.

VSX 2: This refers specifically to Virtual Port Channel (or VSX LAG) ID 2 . It does not refer to the switch member ID, but the logical LAG ID.

State local down: This means the physical member ports assigned to LAG 2 on the switch you are currently logged into (the " local " switch) are operationally down.

remote up: This indicates that via the Inter-Switch Link (ISL), the switch has learned that its VSX peer (the " remote " switch) still has its physical member ports for LAG 2 in an " up " state.

Operational Impact: In a healthy VSX environment, an MC-LAG should ideally show " local up, remote up. " When a log shows " local down, remote up, " it signifies a partial failure of the multi-chassis aggregation. Traffic destined for the device connected to LAG 2 will now only flow through the peer switch.

Why other options are incorrect:

Option A: If the secondary switch were down entirely, the " remote " status would typically be reported as " down " or " unknown " because the ISL/Keepalive synchronization would be lost.

Option B: If it were down on both, the log would read " local down, remote down. "

Option D: Keepalive failures are reported with different Event IDs (typically involving the " keepalive " keyword) and affect the overall VSX role state (Split-Brain recovery), not a specific LAG ID.

Key Practice Tip: Always look for the keywords local and remote in VSX logs. They provide an immediate health snapshot of the synchronized state between the two core switches.

In the AOS-CX architecture, a Local User Role (LUR) is a logical container that defines the network privileges and connectivity settings for a client once they have been successfully authenticated. Unlike " Downloadable User Roles " (DUR), which are stored on ClearPass, LURs are defined directly in the switch configuration.

VLAN Assignment (Option A): One of the primary functions of a user role is to dynamically assign a client to a specific VLAN. This allows the physical port to remain " colorless " —the port ' s VLAN membership is determined by the identity of the user rather than a static configuration on the interface.

ACL (Access Control List) (Option E): To enforce " Least Privilege " security, LURs allow you to attach an IPv4 or IPv6 ACL directly to the role. This ensures that even if two users are in the same VLAN, their traffic can be filtered differently based on the role they were assigned (e.g., a " Contractor " role might have an ACL blocking access to internal servers, while an " Employee " role does not).

Why other options are incorrect:

Option B: The ClearPass server is part of the global AAA (RADIUS) configuration. It is the destination for authentication requests, not a parameter defined within a specific user role.

Option C: While many CLI commands allow for a description, it is a metadata field for administrative clarity and is not considered a functional " parameter " of network enforcement in the context of the ACP-S exam.

Option D: Authentication methods (like 802.1X or MAC-auth) are the triggers that result in a role being applied. They are configured at the interface or global level, not inside the role itself.

Interface configuration: loop-protect

Global configuration: loop-protect action tx-rx-disable

Global configuration: loop-protect re-enable-timer 30

Global configuration: loop-protect transmit-interval 10

In the AOS-CX operating system, configuration for Loop Protection follows a " Global Parameter, Local Execution " model. This distinguishes it from STP, which often has more per-interface tunable parameters.

Enabling the Feature (Interface configuration): The command loop-protect is entered within the interface context (e.g., interface 1/1/1). This command acts as a " trigger " or toggle that tells the switch to start sending and listening for loop-protection probe packets on that specific physical port or LAG.

Defining the Behavior (Global configuration): The specific way the loop protection " engine " behaves is defined once for the entire switch in the global configuration context .

loop-protect action tx-rx-disable: This sets the universal response if a loop is detected. The switch can be told to simply log the event, or physically disable the port (either just the transmitter, or both transmitter and receiver).

loop-protect re-enable-timer 30: If a port is disabled due to a loop, this global timer defines how many seconds the switch waits before automatically attempting to bring the port back online to see if the loop has been physically removed.

loop-protect transmit-interval 10: This defines how frequently the switch generates the proprietary loop protection packets.

Why this structure exists: This model simplifies administration. You can change the sensitivity (interval) or the severity (action) for the entire switch in one place, while still having the granular control to only enable the feature on " risky " ports where unmanaged switches or hubs might be connected.

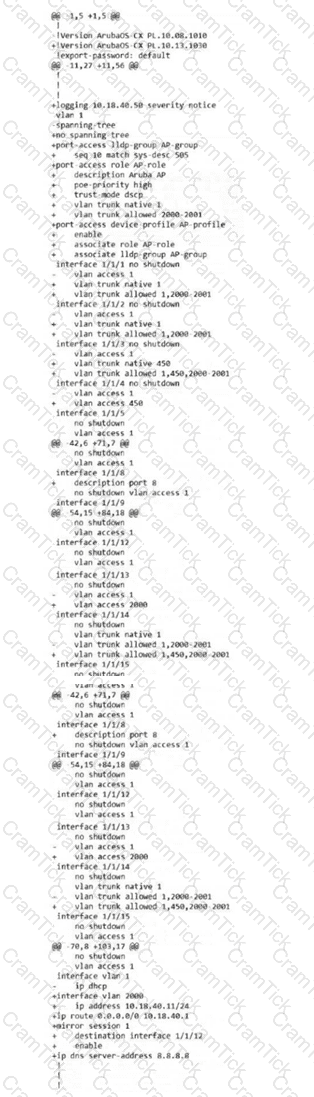

The output shown in the exhibit is a unified diff (indicated by the + and - signs and the @@ headers), which is the standard format AOS-CX uses to display differences between two configuration states.

AOS-CX Checkpoints: ArubaOS-CX switches use " checkpoints " to save snapshots of the configuration. These can be created manually by a user or automatically by the system (e.g., when a configuration change is pushed from Central or NetEdit).

The checkpoint diff Command: The command checkpoint diff < NAME1 > < NAME2 > is used to perform a line-by-line comparison. One of these names can be the running-config .

Lines with a -: These are present in the first configuration (the older checkpoint) but missing in the second (the newer config).

Lines with a +: These are present in the second configuration but were not in the first.

Analyzing the Exhibit: The output shows a comparison between a switch running version 10.08.1010 (the - line) and version 10.13.1030 (the + line), along with several configuration changes like adding an lldp-group, a port-access role, and IP addressing on vlan 2000.

Differentiating Command Syntax: * In the AOS-CX CLI, checkpoint diff is an " action " command used specifically for this analytical comparison.

While many diagnostic commands start with show, the diff utility is executed directly as checkpoint diff.

Terms like " saved-config revisions " are not standard AOS-CX terminology; the system uses " checkpoints " exclusively for this purpose.

The troubleshooting methodology exemplified by comparing outputs or configurations to find discrepancies is called Spot the difference. It involves checking variations between working and non-working states or devices.

Follow the path: tracing packet flow step-by-step.

Top-down/Bottom-up: analyzing layers systematically.

Replace configuration: swapping configurations to isolate issues.

Here, comparing command outputs aligns with spot-the-difference.

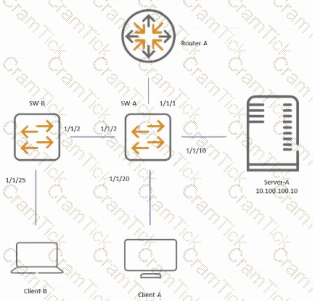

To prevent rogue DHCP servers in a VLAN, DHCP snooping authorized-server commands are used to specify trusted DHCP servers allowed to respond.

Option A (dhcpv4-snooping trust 10.100.100.10) configures a trusted port, but it is not VLAN specific and not precise enough for this purpose.

Enabling DHCP snooping globally and on VLAN or interface (Options C and D) are prerequisites but do not prevent rogue servers unless authorized servers are defined.

Option B correctly enables an authorized DHCP server IP on VLAN 30, blocking unauthorized DHCP responses.

When line card LEDs do not light up, and the cards are newly installed, the best troubleshooting methodology is Divide and conquer by swapping the line cards. This method isolates the problem by testing hardware in different slots or known working units.

Spot the difference involves comparing configurations, which does not directly isolate hardware failure.

Follow the path is more suited for connectivity issues.

Replace configuration relates to software or config problems.

Hardware issues are best isolated by physically swapping components.

To receive a monthly report tracking available licenses and their expiration dates in Aruba Central, the Infra Inventory report should be scheduled. It provides detailed information about device inventories, including licenses and expiration.

Switch Capacity Planning focuses on resource utilization.

Resource Utilization monitors system performance.

Network report focuses on topology and health.

This is a classic troubleshooting scenario in AOS-CX multicast environments. IGMP Snooping is designed to be " quiet " and efficient, but it has a specific dependency.

The Need for a Querier: IGMP Snooping works by listening for IGMP Join messages. However, for hosts to keep sending Join messages, there must be an IGMP Querier on the network that periodically asks, " Is anyone still listening to this multicast group? "

The Problem: If you enable IGMP Snooping on a VLAN but there is no L3 device acting as a Querier, the initial Join messages will eventually time out. The switch will then stop forwarding the multicast traffic to those ports because it assumes no one is listening anymore.

The Solution: By enabling IGMP on the Layer 3 interface (SVI) for that VLAN, the switch becomes the IGMP Querier for that subnet. It will send out periodic queries, the hosts will respond with " Reports, " and the IGMP Snooping table will remain populated, allowing the multicast application to continue functioning.

Why other options are incorrect:

Option A: IGMP Snooping is a Layer 2 function and is not configured " on " the L3 interface (SVI).

Options C and D: While PIM (Protocol Independent Multicast) is used for routing multicast between subnets, the immediate failure described (local applications not working on a VLAN after snooping is turned on) is almost always a lack of an IGMP Querier on that local segment.

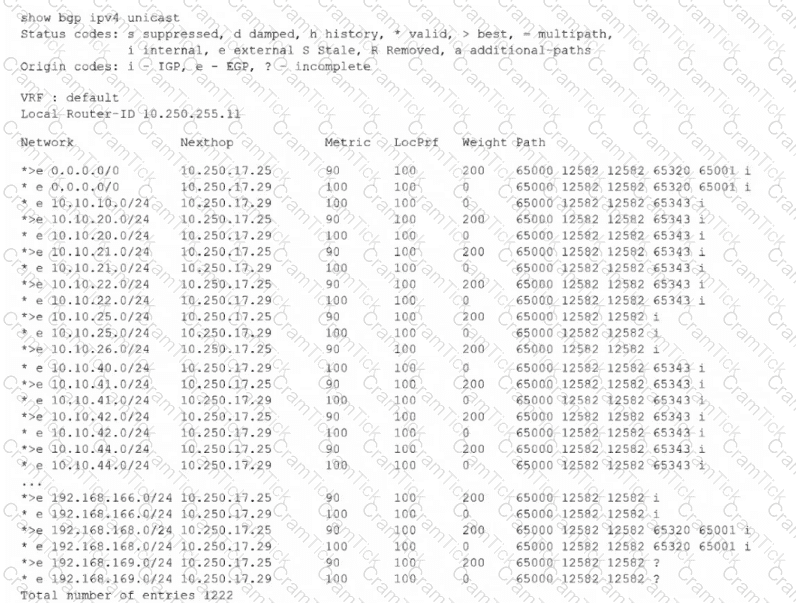

To influence BGP path selection, you must understand the BGP Best Path Selection Algorithm used by AOS-CX. When multiple paths to the same prefix exist, the switch evaluates attributes in a specific order.

The Decision Order:

Highest Weight (Proprietary/Local to the switch).

Highest Local Preference (Standard, used within an AS).

Locally originated.

Shortest AS Path .

Lowest MED (Metric) .

Local Preference (LP): Although Local Preference is an attribute that is typically passed between iBGP peers, it is the most common tool used on an ingress (import) policy from an eBGP peer to tell the local switch (and the rest of the AS) " this is our preferred exit/entry point. "

The default Local Preference is 100 .

By creating a route-map that sets the Local Preference to 200 and applying it to Peer A on import , the switch will see Peer A ' s route as having a higher LP than Peer B ' s route (which remains at 100).

Local Preference vs. Metric (MED): Local Preference is evaluated before the Metric (MED) in the decision process.

Option C works because LP 200 is higher than 100.

Option B is incorrect because setting a higher Metric (200) actually makes a route less preferred (lower metric wins).

Option D would technically make Peer A preferred (because Peer B would have a higher/worse metric), but because Local Preference is higher in the decision-making hierarchy, Option C is the more robust and standard BGP engineering choice in Aruba architectures.

Example CLI Logic:

Bash

route-map PREFER_A permit seq 10

set local-preference 200

!

router bgp 65001

neighbor < Peer_A_IP > route-map PREFER_A in

In the HPE Aruba Networking Central monitoring framework, the platform maintains a persistent management connection (via WebSockets) to every managed AOS-CX switch.

The Connectivity Heartbeat: Central continuously monitors the status of this connection. If a switch loses power, its management processor stops functioning immediately. After a short timeout period where the heartbeat is not received, Central marks the device as " Down " and triggers the Switch Disconnected alert.

VSX Architecture in Central: It is important to note that even though two switches are in a VSX (Virtual Switching Extension) pair, Aruba Central treats them as individual managed entities for connectivity purposes. If the Primary switch goes offline, Central sees that specific device ' s management tunnel drop.

Evaluating Other Options:

Option A (Switch Reboot): A reboot alert is typically generated when a switch gracefully restarts or when it checks back into Central after an unexpected power cycle. If the switch remains powered off, it is simply " Disconnected. "

Option B (Switch Stack Conductor Change): This is a specific alert for VSF (Virtual Switching Framework) stacks (like the 6200 or 6300 series). In VSF, a failure of the master results in a role change. In VSX, there is no " Conductor " role; there is a Primary and Secondary, and they are not managed as a single " stack " object in the same way VSF is.

Option D (Switch STP Root Change): While a VSX Primary failure might trigger an STP re-election if that switch was the Root Bridge, the direct management alert from Central regarding the hardware state is " Switch Disconnected. "

To implement Dynamic User Roles (DUR) with Aruba ClearPass, an HTTPS certificate must be configured. This certificate enables secure communication between ClearPass and the Aruba CX switches for role downloading and authentication.

RadSec service enables secure RADIUS but is unrelated to DUR certificates.

Admin user roles and RADIUS dictionary attributes are necessary but secondary to certificate requirements.

When a VSX primary switch is powered off, it loses connectivity with management systems such as HPE Aruba Central. This causes the management system to trigger a " Switch Disconnected " alert because the switch is no longer reachable.

" Switch Reboot " alerts would indicate a restart, not power off.

" Switch Stack Conductor Change " refers to stack leadership changes, not VSX primary down.

" Switch STP Root Change " relates to Spanning Tree Protocol root bridge changes.

Hence, powering off the VSX primary causes a " Switch Disconnected " alert.

To find which changes were made on an HPE Aruba CX switch from the GUI, the correct command is:

show checkpoint diff — this compares the running configuration with stored saved-config revisions.

Using " saved-config revisions " as the comparison base allows the GUI to show what has changed since the last saved configuration.

Other options mix checkpoint and saved-config terminology incorrectly.

The exhibit shows a configuration for a standard Stub Area (area 1 stub). To meet the customer requirement of having only a default route, we must understand how OSPF area types filter Link State Advertisements (LSAs).

Stub Area (Current Config): Blocks Type 5 (External) LSAs. The Area Border Router (ABR) injects a Type 3 LSA default route. However, Type 3 LSAs (Inter-Area routes from other parts of the OSPF network) are still allowed in. This explains why the user still sees other OSPF routes in the table.

Totally Stubby Area (The Solution): This area type is a Cisco/Aruba enhancement to the OSPF standard. It blocks both Type 5 (External) and Type 3 (Inter-Area) LSAs. The ABR replaces all of these with a single Type 3 default route . This is the most efficient configuration for a small branch switch with limited memory and a single exit point.

AOS-CX Configuration: To convert the current " Stub " to a " Totally Stubby " area, you would add the no-summary keyword on the ABR:

Bash

router ospf 1

area 1 stub no-summary

Why other options are incorrect:

Option A and D: NSSA (Not-So-Stubby Areas) are used when you need to redistribute external routes from the branch into the rest of the OSPF network. The prompt doesn ' t mention a local external source.

Option B: This is what is currently configured and is explicitly described as not meeting the requirement.

The concept of Colorless Ports is central to Aruba ' s Dynamic Segmentation strategy. A colorless port is one where the configuration is not static but is instead determined dynamically based on the identity of the device that connects to it.

The Role of Authentication: To achieve a colorless port, the switch must first identify the connecting device. This is done through Port Access Control mechanisms.

MAC Authentication (MAC Auth): While 802.1X is the preferred method for devices with a supplicant (like laptops), MAC Authentication is used for " headless " devices (like printers, cameras, or IoT sensors) that cannot perform 802.1X. By configuring MAC Auth, the switch sends the device ' s MAC address to a RADIUS server (like ClearPass), which then instructs the switch on which User Role to apply to that port.

Why other options are incorrect:

Option A and C: Port-security and Sticky MAC are static security features. They lock a port to a specific MAC address but do not dynamically assign VLANs, ACLs, or QoS based on identity, which is the definition of a colorless port.

Option D: Virtual MAC is a component of Active Gateway or VRRP, used for default gateway redundancy in a VSX or high-availability environment. It has no role in edge port " colorless " provisioning.

The Audit Trail in HPE Aruba Networking Central serves as the primary ledger for compliance and accountability across the entire managed estate.

Accountability (The " Who " ): The fundamental purpose of an audit trail is to provide a record of " who, what, and when. " When a configuration is modified—whether it’s a VLAN change, a port shutdown, or a global routing update—the Audit Trail logs the Username of the administrator or the API key identity that initiated the task.

Validating Changes: In the Global view, the Audit Trail allows a Lead Engineer to verify that changes were authorized. If a network outage occurs, the trail is used to correlate the timing of the outage with the specific user who pushed the last set of changes.

Evaluating Other Options:

Option A: Central typically retains Audit Trail data for up to 90 days (standard) or longer with specific data retention subscriptions, but 7 years is not the standard architectural default for these logs.

Option B: While you can see that a " Config Push " occurred, the detailed Configuration Difference (the " Diff " ) is usually viewed in the Configuration Status or Audit Event Details page, rather than being the primary defining attribute of the basic Audit Trail list.

Option C: The Audit Trail identifies the action (e.g., " Update Switch Configuration " ), but it doesn ' t always distinguish the specific UI workflow (like Multi-edit vs. Standard GUI) used within the Central platform.

Key Exam Tip: Whenever you see " Audit Trail " in an Aruba exam, think Accountability . It is the tool used to track administrator actions.

In OSPF, when an Autonomous System Boundary Router (ASBR) redistributes routes into the OSPF domain, it assigns them a " Type. " Understanding the difference between Type 1 (E1) and Type 2 (E2) is fundamental for controlling traffic flow out of the network.

Type 2 (E2) Routes (Default): The cost of an E2 route is only the external cost (seed metric) assigned by the ASBR. OSPF does not add the internal path cost to reach the ASBR when comparing two E2 routes.

Tie-Breaking: If two ASBRs advertise the same prefix with the same E2 metric , OSPF then uses the internal cost to the ASBR as a tie-breaker. It will choose the path to the ASBR that is mathematically " closest " in terms of OSPF cost.

Closest Exit Point Strategy (Option D): This is a very common design in Aruba campus networks with multiple Internet or Data Center exits. By configuring all ASBRs to use the same E2 seed metric (the " appropriate " metric), you ensure that every switch in the network will automatically choose its own closest exit point based on the local topology.

Type 1 (E1) Routes: These routes calculate the total cost as External Cost + Internal Path Cost . Use E1 when you want the internal network ' s performance/hops to always influence the path choice, even if external costs differ.

Why other options are incorrect:

Option B: This is the definition of an E1 route, not E2.

Option C: While E2 with the same metric can result in ECMP (Equal Cost Multi-Path), this only happens if the internal costs to both ASBRs are also identical. The more fundamental architectural goal for E2 is favoring the closest exit.

Option A: You can achieve primary/backup with either E1 or E2; it is not a requirement to use E1.

To monitor BGP neighbor state changes and automatically create a helpdesk ticket, the NAE (Network Analytics Engine) action to use is a REST API call. This allows integration with external ticketing or automation systems, enabling automated ticket creation when a monitored event occurs.

Executing shell commands, sending emails, or generating logs are limited to internal actions and do not integrate as seamlessly with helpdesk systems.

REST API calls allow custom integration and automation.

To keep the BGP routing table size manageable and below a specified threshold, the customer should consider enforcing routing policies with aggregation. Route aggregation reduces the number of individual routes advertised and stored by combining multiple routes into a summarized one.

Setting route metrics equal or advertising only a primary path does not reduce the number of routes as effectively.

Importing only the default route (0.0.0.0/0) is impractical for normal operations.

Thus, route aggregation is the best practice for controlling routing table size in merged BGP environments.

In the context of the HPE Aruba Networking troubleshooting framework, selecting a methodology depends heavily on the trigger event.

The Trigger: A physical change occurred (relocating an AP). In networking, physical changes are synonymous with Layer 1 (Physical Layer) of the OSI model.

Bottom-Up Approach: The " Bottom-up " methodology starts at the Physical Layer and works upward through the Data Link, Network, and Transport layers. Since a technician recently touched the cabling and moved the hardware, starting with the physical layer is the most efficient path. You would first verify the cable integrity, PoE power delivery from the switch, and the physical environment (RF interference in the new location).

Top-Down Approach: Alternatively, starting at the application layer (the video call software) is also a valid " starting point " when the user reports an application-specific failure. Together, the Top-down/Bottom-up model provides a structured way to isolate whether the issue is the physical move or a software configuration that coincided with it.

Why others are less suitable here:

Option B (Divide and conquer): This usually starts at Layer 3 (IP connectivity) to see if you can ping. While useful, it might skip the most likely culprit in a physical relocation: a bad cable or poor signal.

Option C: This is a remediation step, not a diagnostic methodology.

Option D (Follow the path): This is better for complex routing issues where packets are getting lost across multiple hops; it is overkill for a local boardroom connectivity issue.

Device Profiles on AOS-CX switches are a " Lite " version of Dynamic Segmentation, allowing the switch to automatically configure a port when a specific device is detected via LLDP or CDP, without needing a RADIUS server.

Associate an LLDP group (Option C): To " catch " a device, you first define a Device Group (often an lldp-group) that contains match criteria such as the System Name or OUI of an Aruba AP. This group tells the switch which devices should trigger the profile.

Associate a role (Option A): Once a device matches the group, the switch needs to know what to do with it. The Role is the container that holds all the port attributes (VLAN, PoE priority, STP settings, etc.). The Device Profile ' s job is to " bridge " the group and the role together using the associate role and associate lldp-group commands.

Why other options are incorrect:

Options B, D, and E: These are all settings that are configured inside the Role . You do not associate a VLAN or an ACL directly to the Profile; you associate them to the Role, and then associate the Role to the Profile.

In a network management environment like Aruba Central , alerts are used to provide proactive notification of infrastructure degradation. When dealing specifically with physical cabling issues (Layer 1), we look for symptoms of signal degradation or negotiation failures.

Switch Port Input Errors (Option A): This is the most direct indicator of a cabling problem. Physical issues—such as a bad crimp, a cable exceeded its maximum length, electromagnetic interference (EMI), or a damaged pin—typically manifest as CRC errors , runts , or giants . Monitoring for input errors allows Central to flag a port as unhealthy due to physical data corruption.

Switch Port Duplex Mode (Option E): While most modern devices use Auto-Negotiation, physical layer issues or faulty older hardware can lead to a Duplex Mismatch (e.g., one side is Half-Duplex, the other is Full-Duplex). This results in late collisions and extreme performance degradation. An alert for Duplex Mode changes or mismatches is a standard part of physical layer troubleshooting.

Why other options are incorrect:

Option B: Rx Rate monitors the volume of traffic. High or low traffic doesn ' t inherently mean the cable is bad; it just means the link is busy or idle.

Option C: Hardware failure refers to the internal components of the switch (ASICs, Fans, Power Supplies), not the external cabling.

Option D: Uplink Port Usage is a capacity planning metric (Layer 2/3) rather than a physical integrity metric.

To avoid split-brain scenarios in VSF stacks, the VSL split-detect mgrep command is used to enable multicast group detection over the Virtual Switching Link (VSL). This helps detect when the stack links are down or partitioned, triggering appropriate failover or shutdown mechanisms.

Options like vsf start-auto-stacking, vsf secondary-member 2, or vsf conductor-member 2 are related to stack initialization and member roles but do not address split-brain detection directly.

Hence, enabling split-detect with mgrep is the best practice for VSF stack stability.
