HP HPE7-A08 Dumps Questions Answers

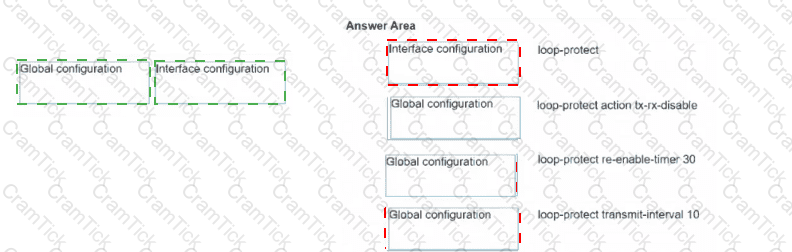

Interface configuration: loop-protect

Global configuration: loop-protect action tx-rx-disable

Global configuration: loop-protect re-enable-timer 30

Global configuration: loop-protect transmit-interval 10

In the AOS-CX operating system, configuration for Loop Protection follows a " Global Parameter, Local Execution " model. This distinguishes it from STP, which often has more per-interface tunable parameters.

Enabling the Feature (Interface configuration): The command loop-protect is entered within the interface context (e.g., interface 1/1/1). This command acts as a " trigger " or toggle that tells the switch to start sending and listening for loop-protection probe packets on that specific physical port or LAG.

Defining the Behavior (Global configuration): The specific way the loop protection " engine " behaves is defined once for the entire switch in the global configuration context .

loop-protect action tx-rx-disable: This sets the universal response if a loop is detected. The switch can be told to simply log the event, or physically disable the port (either just the transmitter, or both transmitter and receiver).

loop-protect re-enable-timer 30: If a port is disabled due to a loop, this global timer defines how many seconds the switch waits before automatically attempting to bring the port back online to see if the loop has been physically removed.

loop-protect transmit-interval 10: This defines how frequently the switch generates the proprietary loop protection packets.

Why this structure exists: This model simplifies administration. You can change the sensitivity (interval) or the severity (action) for the entire switch in one place, while still having the granular control to only enable the feature on " risky " ports where unmanaged switches or hubs might be connected.

To interpret AOS-CX event logs correctly for the ACP-S exam, you must understand the syntax used by the VSX Daemon (hpe-vsxd) when reporting the status of Multi-Chassis Link Aggregation Groups (MC-LAGs).

Anatomy of the Log Message:

hpe-vsxd: This indicates the message is generated by the VSX synchronization process.

VSX 2: This refers specifically to Virtual Port Channel (or VSX LAG) ID 2 . It does not refer to the switch member ID, but the logical LAG ID.

State local down: This means the physical member ports assigned to LAG 2 on the switch you are currently logged into (the " local " switch) are operationally down.

remote up: This indicates that via the Inter-Switch Link (ISL), the switch has learned that its VSX peer (the " remote " switch) still has its physical member ports for LAG 2 in an " up " state.

Operational Impact: In a healthy VSX environment, an MC-LAG should ideally show " local up, remote up. " When a log shows " local down, remote up, " it signifies a partial failure of the multi-chassis aggregation. Traffic destined for the device connected to LAG 2 will now only flow through the peer switch.

Why other options are incorrect:

Option A: If the secondary switch were down entirely, the " remote " status would typically be reported as " down " or " unknown " because the ISL/Keepalive synchronization would be lost.

Option B: If it were down on both, the log would read " local down, remote down. "

Option D: Keepalive failures are reported with different Event IDs (typically involving the " keepalive " keyword) and affect the overall VSX role state (Split-Brain recovery), not a specific LAG ID.

Key Practice Tip: Always look for the keywords local and remote in VSX logs. They provide an immediate health snapshot of the synchronized state between the two core switches.

In the AOS-CX architecture, a Local User Role (LUR) is a logical container that defines the network privileges and connectivity settings for a client once they have been successfully authenticated. Unlike " Downloadable User Roles " (DUR), which are stored on ClearPass, LURs are defined directly in the switch configuration.

VLAN Assignment (Option A): One of the primary functions of a user role is to dynamically assign a client to a specific VLAN. This allows the physical port to remain " colorless " —the port ' s VLAN membership is determined by the identity of the user rather than a static configuration on the interface.

ACL (Access Control List) (Option E): To enforce " Least Privilege " security, LURs allow you to attach an IPv4 or IPv6 ACL directly to the role. This ensures that even if two users are in the same VLAN, their traffic can be filtered differently based on the role they were assigned (e.g., a " Contractor " role might have an ACL blocking access to internal servers, while an " Employee " role does not).

Why other options are incorrect:

Option B: The ClearPass server is part of the global AAA (RADIUS) configuration. It is the destination for authentication requests, not a parameter defined within a specific user role.

Option C: While many CLI commands allow for a description, it is a metadata field for administrative clarity and is not considered a functional " parameter " of network enforcement in the context of the ACP-S exam.

Option D: Authentication methods (like 802.1X or MAC-auth) are the triggers that result in a role being applied. They are configured at the interface or global level, not inside the role itself.
