NS0-194 NetApp Certified Support Engineer (NCSE) Questions and Answers

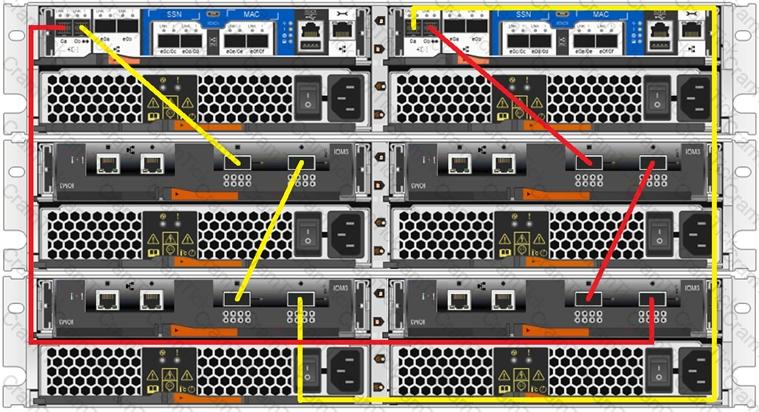

A disk/shelf count mismatch AutoSupport message indicates that nodes in the cluster do not agree about visible disks or shelves, so the first areas to inspect are drive paths and SAS cabling. Drive paths reveal whether each controller can see the expected disks through the expected redundant routes. SAS cabling is a common physical cause because a missing, crossed, loose, or failed cable can make one path or shelf segment disappear from one controller's view. IOM firmware and drive firmware can matter in broader shelf troubleshooting, but a count mismatch is primarily about visibility and pathing, not code level on a disk or module. The support engineer should validate multipath HA, shelf stack cabling, port connections, and path status before replacing hardware. Correct path redundancy is essential because ONTAP expects consistent shelf and disk inventory across the HA pair or cluster. References/topics: AutoSupport disk/shelf count mismatch, SAS cabling, drive path validation, multipath HA, and shelf visibility troubleshooting.

ONTAP System Manager and Performance Archive are the appropriate data sources for explaining a wafl.cp.toolong event. A long consistency point indicates that WAFL took longer than expected to complete a CP, so the engineer needs both system event context and historical performance evidence. System Manager provides an operational view of cluster health, aggregate state, and performance indicators. Performance Archive provides the deeper time-series performance data needed to correlate the event with workload, disk, CPU, NVRAM, or aggregate behavior around the timestamp. Active IQ Unified Manager may be useful in broader monitoring, but the question asks for the data sources used to explain this specific EMS message. mgwd.log is a management daemon log and is not the primary source for WAFL CP performance analysis. The support approach is to correlate the EMS event with performance archive counters and visible system health. References/topics: wafl.cp.toolong EMS events, WAFL consistency points, Performance Archive, System Manager performance review, and ONTAP CP troubleshooting.

Cloud Volumes ONTAP running ONTAP 9.5 supports one data-serving SVM. This is a cloud platform limitation that differs from many on-premises ONTAP clusters, where multiple data SVMs are common for multi-tenancy and protocol separation. The large values 128 and 1024 reflect broader ONTAP scaling concepts and are not applicable to Cloud Volumes ONTAP 9.5. Ten is also not the supported limit for the specified release. In support work, CVO limits must be checked against the specific ONTAP version and cloud deployment model because cloud instances have constraints based on licensing, architecture, and supported configurations. The question's wording is precise: it asks for data-serving SVMs, not management SVMs or cluster-level objects. Therefore, for ONTAP 9.5 on Cloud Volumes ONTAP, the correct limit is one. References/topics: Cloud Volumes ONTAP 9.5 limitations, data-serving SVM support, cloud deployment constraints, and CVO architecture.

Different IPspaces are required when tenants must use separate network environments for data service and SnapMirror protection. An IPspace creates an independent network routing domain in ONTAP, allowing overlapping or isolated network configurations for different tenants. VLANs can segment traffic inside a network design, but they do not provide the same independent routing-domain separation that multi-tenancy requires in this scenario. A shared network infrastructure is not required when ONTAP is configured for tenant isolation. The idea that each node can communicate with only one tenant is incorrect because ONTAP nodes can host LIFs in multiple IPspaces, subject to proper design. The support engineer should choose IPspaces whenever the requirement is true tenant network separation, independent routing, or duplicate address support. That separation is especially important when tenants require independent routing tables, separate LIF placement, or overlapping address plans. References/topics: ONTAP IPspaces, multi-tenancy, SVM network isolation, SnapMirror tenant separation, and routing-domain design.

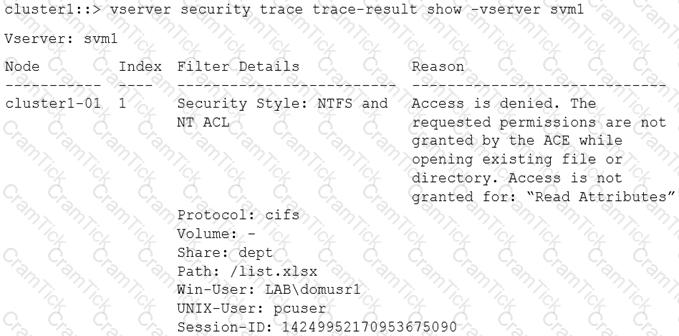

The user must be granted Read Attributes access to the path. The security trace result states that access is denied because the requested permissions are not granted by the ACE while opening the existing file or directory, and it specifically identifies Read Attributes as the missing permission. Adding the user to BUILTIN groups would be a broad and imprecise change that may not match the file's intended NTFS ACL model. Granting Execute access does not solve the reported missing permission unless the access mask also includes the required attribute-read right, and the trace does not identify Execute as the failed permission. ONTAP security trace is designed to point directly to the permission, user mapping, security style, and access decision involved in a failed NAS request. The support engineer should remediate the exact ACL deficiency shown by the trace rather than guess at group membership. References/topics: ONTAP security trace results, NTFS ACE evaluation, Read Attributes permission, CIFS access denial troubleshooting, and NAS ACL remediation.

SnapMirror is the NetApp replication technology that performs block-level data replication between NetApp storage systems, including replication workflows involving Element software and Cloud Volumes ONTAP. SyncMirror is used for synchronous mirroring inside MetroCluster architectures and does not provide Element-to-CVO replication. Cloud Sync is a file/object data movement service and is not the block-based replication engine used for ONTAP data protection relationships. MetroCluster is a high-availability and disaster recovery architecture rather than a general replication tool from Element to Cloud Volumes ONTAP. In NetApp terminology, SnapMirror is the central data protection mechanism for creating replication relationships, maintaining source and destination consistency, and enabling disaster recovery or migration between NetApp platforms. The question emphasizes block-based replication, which directly eliminates Cloud Sync and points to SnapMirror. A support engineer should also confirm that both endpoints, licenses, and network reachability support the selected replication relationship before implementation. References/topics: SnapMirror replication, Cloud Volumes ONTAP data protection, Element software interoperability, and NetApp replication architecture.

NDMP is the correct technology when a customer must create physical hard copies of transaction data for off-site regulatory storage. NDMP enables ONTAP data to be backed up directly to tape through a supported backup application, and tape is the typical medium for physical removable copies. SnapVault is disk-to-disk backup and retention; it is excellent for secondary ONTAP protection but does not inherently create physical hard copies. SVM DR replicates an SVM for disaster recovery and is not a physical-copy mechanism. FlexCache accelerates access to remote data and is not a regulatory backup technology. The phrase 'physical hard copies off site' is the key discriminator. A support engineer should map this to tape backup workflows, NDMP configuration, qualified tape devices, and backup software integration. For regulatory retention that requires removable media, NDMP is the NetApp-supported data transfer framework. References/topics: ONTAP NDMP, tape backup, off-site physical media retention, backup application integration, and regulatory data protection.

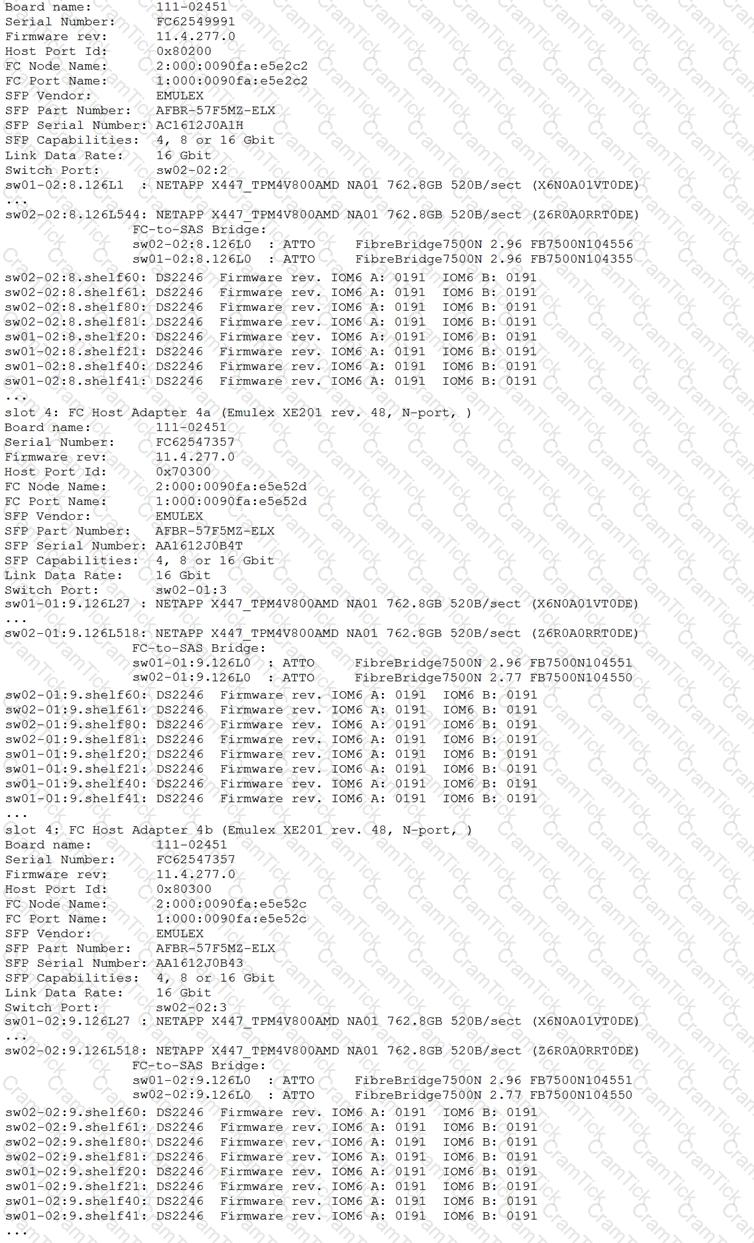

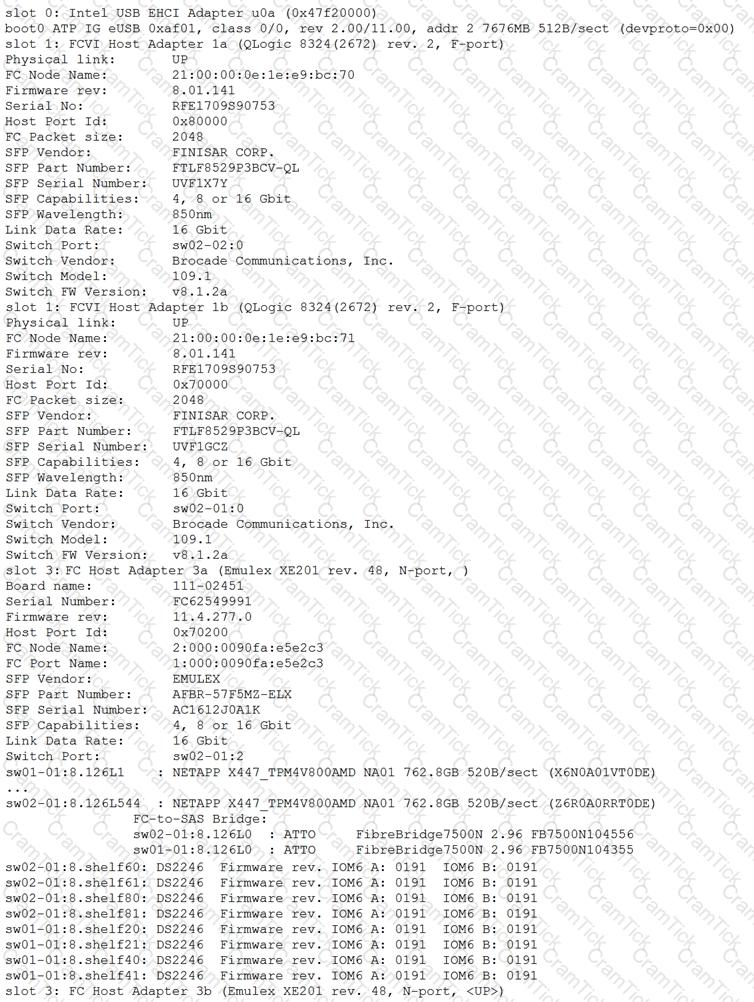

The exhibit shows a fabric-attached MetroCluster design rather than an IP or stretch design. The output includes FC-VI host adapters, Brocade switch information, FibreBridge devices, and disk shelves connected through FC-to-SAS bridges. Those components are characteristic of a fabric MetroCluster where Fibre Channel switches provide the intersite storage fabric and bridges connect SAS shelves into the FC environment. A two-node stretch MetroCluster would not show the same four-node fabric topology, and MetroCluster IP would use Ethernet-based back-end connectivity rather than FC switches and FC-to-SAS bridges. A four-node stretch MetroCluster would also not use the fabric-switch/bridge arrangement shown in the exhibit. The support engineer must identify topology from the hardware path indicators, not from the node count alone. The presence of FC switches, FC-VI, and ATTO FibreBridge devices makes the topology a four-node fabric-attached MetroCluster. References/topics: MetroCluster fabric architecture, FC-VI adapters, FC-to-SAS bridges, Brocade switch paths, and MetroCluster hardware topology identification.

Cloud Manager is the supported tool for upgrading the ONTAP version of a Cloud Volumes ONTAP instance. Cloud Volumes ONTAP is managed through the NetApp cloud management plane, so lifecycle operations such as software upgrades are performed from Cloud Manager/BlueXP rather than directly through traditional on-premises tools. Cloud Insights is an observability and monitoring service, not the upgrade mechanism. Active IQ Unified Manager manages and monitors ONTAP environments but is not the supported CVO upgrade tool in this scenario. ONTAP System Manager is used for ONTAP cluster administration, but Cloud Volumes ONTAP version upgrades are controlled through the cloud working environment in Cloud Manager. The support engineer must distinguish on-premises ONTAP administration from CVO lifecycle management. When the question says supported method for upgrading a CVO instance, the answer is Cloud Manager. References/topics: Cloud Volumes ONTAP lifecycle management, Cloud Manager/BlueXP, CVO software upgrade workflow, and NetApp cloud data services.

SVM disaster recovery is the appropriate NetApp technology because the requirement includes replicating selected volumes and the SVM network configuration to another data center. SnapMirror Synchronous protects individual volumes synchronously but does not replicate the broader SVM configuration as the scenario requires. MetroCluster provides site-level high availability and disaster recovery but is not the selected technology for replicating a subset of volumes plus SVM configuration to another site. SVM peering is only a prerequisite relationship that allows replication; it is not the replication and recovery solution by itself. SVM DR uses SnapMirror to replicate SVM configuration and data so that the destination SVM can be activated during a disaster. Support engineers should recognize phrases such as network configuration, SVM identity, and multiple volumes as indicators of SVM DR rather than single-volume SnapMirror. References/topics: SVM disaster recovery, SnapMirror SVM replication, network configuration replication, DR activation, and multi-volume data protection.

Upgrade Advisor in Active IQ is the supported planning tool for creating an ONTAP upgrade action plan after a security bulletin. A security bulletin normally identifies exposure and recommended remediation versions, but a production upgrade plan must also consider the exact cluster configuration, upgrade path, installed features, platform model, HA state, and known risk checks. The Interoperability Matrix Tool is valuable for host, protocol, and component compatibility, but it does not generate a personalized ONTAP upgrade workflow. Reviewing a product page is too generic, and simply downloading a target image plus running a pre-check is not a complete customer action plan. Active IQ Upgrade Advisor uses AutoSupport telemetry to recommend the appropriate target release and produces a step-based plan with warnings and required preparation. For NCSE work, this is the clean support answer: use the tool that turns the customer's actual system inventory into an upgrade workflow. References/topics: Active IQ Upgrade Advisor, AutoSupport-based upgrade planning, ONTAP release remediation, and nondisruptive upgrade readiness.

The correct conclusion is that the CIFS SVM is not using DNS. A hardened Windows group policy commonly reduces insecure name resolution and authentication fallback behavior. SMB access to a CIFS server should use proper DNS name resolution so that clients can locate the server, validate identity, and use Kerberos or the intended domain authentication path. If users previously connected through weak or non-DNS mechanisms, a new security policy can break access even though the SVM itself is still online. SMBv1/SMBv2 configuration is not the best answer because the scenario points to a domain security policy change rather than protocol version negotiation alone. NFSv3 is irrelevant to Windows CIFS access, and a wrong domain would not normally appear suddenly after a group policy push if access worked the day before. References/topics: ONTAP SMB access, DNS dependency, Kerberos authentication, Windows security policy effects, and CIFS client troubleshooting.

The output shows Storage Virtual Machine DR relationships because the source and destination paths are SVM names followed by a colon, not SVM:volume paths. In ONTAP SnapMirror syntax, a volume relationship uses a path such as svm1:vol1, while an SVM relationship uses the SVM name followed by a trailing colon, such as svm1:. The relationship type XDP is compatible with modern SnapMirror policy-based replication, including SVM DR. A single-volume asynchronous SnapMirror relationship would identify individual volumes. SnapMirror Synchronous would use synchronous relationship behavior, and SnapVault is a vaulting policy relationship rather than an SVM configuration replication relationship. The support engineer must read the path syntax rather than only the relationship type. Because each listed source and destination path represents an SVM object, the relationship is SVM DR. References/topics: SnapMirror show output, SVM DR syntax, source-path and destination-path trailing colon, XDP relationships, and SVM configuration replication.

HTTPS is preferred for AutoSupport delivery to Active IQ because it is encrypted and supports AutoSupport OnDemand. Encryption protects the support payload while it is transmitted to NetApp, which is important because AutoSupport contains configuration, telemetry, and diagnostic information. AutoSupport OnDemand allows NetApp support workflows and Active IQ services to request additional AutoSupport data when needed, and HTTPS is the transport that supports that capability. Compression is not exclusive to HTTPS, so that statement is not the deciding reason. HTTPS does use a standard port, TCP 443, so saying it does not use a standard port is incorrect. For support engineers, configuring AutoSupport transport correctly affects case automation, health analytics, risk detection, and NetApp's ability to provide proactive guidance. The selected reasons align with security and functionality. References/topics: AutoSupport delivery, Active IQ telemetry, HTTPS transport, AutoSupport OnDemand, and support data security.

The event log show command displays entries from ems.log. ONTAP Event Management System messages record significant occurrences in the cluster, such as hardware events, protocol issues, availability messages, and errors that support engineers use for diagnosis. messages.log is a broader system log concept, but event log show queries the event log/EMS content. bcomd.log and mgwd.log are daemon-specific logs and are not the direct source for event log show output. Knowing which command maps to which log matters because support investigations often require collecting the right file rather than searching every diagnostic bundle blindly. If the engineer needs administrative command activity, audit.log is used; if the engineer needs cluster events, EMS/event log is used. The correct mapping for this question is event log show to ems.log. References/topics: ONTAP EMS, event log show, ems.log, cluster event troubleshooting, and log-source selection.
