In FortiOS 7.6, SD-WAN steering decisions are recorded in traffic logs only when traffic matches an explicit SD-WAN rule (SD-WAN service rule). When no configured SD-WAN rule matches a session, FortiGate uses the implicit (default) SD-WAN rule/behavior to select a member (often resulting in load-balancing or default selection based on the configured SD-WAN algorithm).

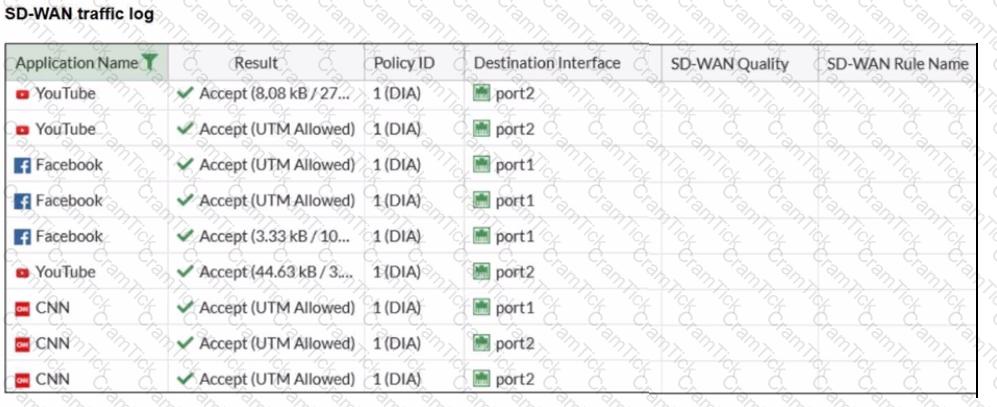

In the exhibit, traffic is permitted by firewall policy ID 1, and the Destination Interface alternates between port1 and port2, but SD-WAN Rule Name remains empty. This is consistent with the sessions being forwarded by the implicit SD-WAN rule, which does not populate a named rule in the log columns.

Why the other options are not correct:

A: SD-WAN rule name logging is not a “delayed display” behavior requiring refresh; it is populated per-session when an explicit rule matches.

B: Application Control is not required for SD-WAN rule name to appear. Rule name logging depends on SD-WAN rule match, not on whether Application Control is enabled.

C: Feature visibility affects GUI display options, but the exhibit already shows the SD-WAN columns enabled; the issue is that no explicit SD-WAN rule is being hit.

In FortiOS 7.6, HA cluster heartbeat IP addresses are automatically managed by FortiGate and play a critical role in cluster communication and synchronization.

Correct statements

A. Heartbeat IP addresses are used to distinguish between cluster members.

Correct

FortiGate assigns unique heartbeat IP addresses (link-local addresses in the 169.254.0.0/16 range) to each HA member.

These addresses are used for:

Cluster member identification

Health checks

Synchronization traffic

This allows FortiGate units to uniquely identify and communicate with each other inside the HA cluster.

C. A change in the heartbeat IP address happens when a FortiGate device joins or leaves the cluster.

Correct

Heartbeat IPs are dynamically assigned.

When:

A new FortiGate joins the cluster, or

A member leaves or fails,

FortiGate may reassign heartbeat IP addresses to maintain unique identification among members.

This behavior is documented in the FortiOS HA operation and troubleshooting guides.

Why the other options are incorrect

B. The heartbeat interface of the primary device is always assigned IP address 169.254.0.1.

Incorrect

There is no fixed or guaranteed heartbeat IP (such as 169.254.0.1) for the primary unit.

Heartbeat IP assignment is dynamic, not role-based.

D. Heartbeat interfaces have virtual IP addresses that are manually assigned.

Incorrect

Heartbeat IP addresses are:

Automatically assigned

Link-local

Administrators do not manually configure heartbeat IP addresses.
