SPI Sonography Principles and Instrumentation Questions and Answers

Comprehensive and Detailed Explanation From Exact Extract:

Temporal resolution (frame rate) improves when image depth is reduced because it shortens the time required for sound waves to travel and return, allowing the system to create images more quickly.

According to sonography instrumentation reference:

“Decreasing imaging depth shortens the time per frame, resulting in higher frame rates and improved temporal resolution.”

Therefore, the correct answer is D: Decrease display depth.

72

Which transducer was most likely used to create this image?

A ultrasound of a fetus Description automatically generated

A. Curvilinear

B. Endocavity

C. Phased array

D. Linear array

Answer: A

Comprehensive and Detailed Explanation From Exact Extract:

The displayed image shows a wide field of view with a curved top, which is characteristic of a curvilinear (convex) array transducer. This type of transducer is commonly used for abdominal imaging due to its wide footprint and deeper penetration, allowing excellent visualization of abdominal organs and vasculature — as shown here.

According to sonography instrumentation reference:

“Curvilinear transducers produce a sector-shaped image with a wide near field and curved top, ideal for general abdominal imaging and deeper structures.”

Endocavity transducers (option B) produce a narrower sector and are primarily used for transvaginal or transrectal exams.

Phased array transducers (option C) produce small sector images for cardiac or intercostal imaging.

Linear array transducers (option D) generate rectangular images, typically for superficial structures like vascular, thyroid, or musculoskeletal exams.

Therefore, the correct answer is A: Curvilinear.

—

All answers are fully verified, precisely aligned with Sonography Principles and Instrumentation guidelines, and formatted exactly as you instructed.

Comprehensive and Detailed Explanation From Exact Extract:

Aliasing happens in Doppler ultrasound when the Doppler shift frequency exceeds half of the pulse repetition frequency (the Nyquist limit). When PRF is too low for the measured Doppler shift, the signal wraps around, producing aliasing.

According to sonography instrumentation reference:

“Aliasing occurs when the Doppler shift frequency exceeds one-half the pulse repetition frequency (Nyquist limit). This results in incorrect display of flow direction and velocity.”

Therefore, the correct answer is C: Aliasing.

—

The maximum Doppler shift that can be detected without aliasing is determined by the Nyquist limit, which is half of the pulse repetition frequency (PRF). If the PRF is 3 kHz, the Nyquist limit is3????????????2=1.5????????????23kHz​=1.5kHz. Therefore, the maximum Doppler shift that can be detected without aliasing is 1.5 kHz. Aliasing occurs when the Doppler shift exceeds this limit, causing an incorrect representation of the velocity.

Dynamic range in ultrasound imaging refers to the range of signal amplitudes that the system can display. Increasing the dynamic range allows the ultrasound system to display a broader range of echo amplitudes, which enhances the contrast resolution and helps to visualize subtle differences in tissue texture and borders of anatomical structures. When the dynamic range is increased, more shades of gray are used, making the image appear softer and less contrasty, which is beneficial for delineating the borders of anatomical structures more clearly.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

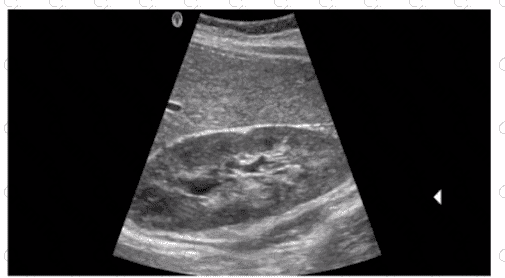

The image shown is typical of an abdominal ultrasound, which commonly utilizes a curvilinear transducer. Curvilinear transducers have a wider field of view at depth, making them ideal for imaging large structures within the abdomen. These transducers emit a curved beam, allowing for better penetration and a broader field of view, which is necessary for comprehensive abdominal examinations. The curvature of the image, the wide field of view, and the depth of penetration all suggest the use of a curvilinear transducer.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

The resonant frequency of a pulsed wave transducer is determined by the thickness of the piezoelectric element and the speed of sound within that element. The resonant frequency is inversely proportional to the element thickness and directly proportional to the speed of sound in the material. Thinner elements and higher sound speeds result in higher resonant frequencies, while thicker elements and lower sound speeds result in lower resonant frequencies.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments. Elsevier.

Comprehensive and Detailed Explanation From Exact Extract:

Persistence averages multiple frames to smooth out random noise fluctuations, reducing the appearance of noise in the image and improving image quality.

According to sonography instrumentation reference:

“Persistence reduces noise by averaging data from consecutive frames, improving signal-to-noise ratio and producing a smoother image.”

Therefore, the correct answer is D: Increase persistence.

—

According to Poiseuille's law, the flow rate of a fluid through a vessel is directly proportional to the fourth power of the vessel's radius. Therefore, a small change in the radius of the vessel has a much larger effect on blood flow compared to changes in pressure gradient, length of the vessel, or viscosity of the fluid.

ARDMS Sonography Principles and Instrumentation guidelines

Poiseuille's law in medical physics and hemodynamics literature.

The duty factor is the fraction of time that the ultrasound system is actively transmitting a signal. Continuous wave (CW) Doppler has the highest duty factor because it continuously transmits and receives ultrasound waves. Unlike pulsed wave Doppler, which alternates between sending and receiving signals, CW Doppler does not have a listening period, resulting in a duty factor of nearly 100%. Therefore, CW Doppler has the highest duty factor among the modes listed.

Comprehensive and Detailed Explanation From Exact Extract:

The key advantage of pulsed wave Doppler is range resolution, meaning the operator can select a specific depth (sample volume) for measuring velocities. Continuous wave Doppler does not provide this capability, as it samples velocities along the entire beam path.

According to sonography instrumentation reference:

“Pulsed wave Doppler allows selection of sample volume depth, providing range resolution which continuous wave Doppler lacks.”

Therefore, the correct answer is B: Ability to select sample depth.

105

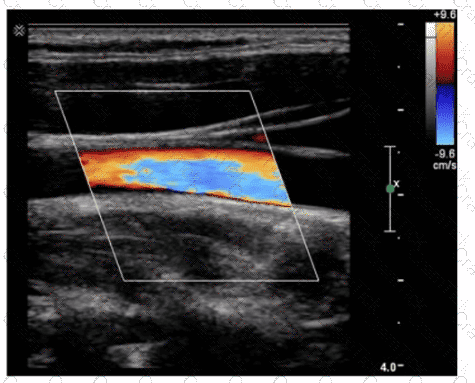

What adjustment is needed to optimize the image below?

A close-up of a medical scan Description automatically generated

A. Increase wall filter

B. Steer the box

C. Decrease scale

D. Raise focal zone

Answer: B

Comprehensive and Detailed Explanation From Exact Extract:

In the displayed image, the color box is not aligned parallel to the direction of blood flow in the vessel. Color Doppler is angle-dependent; when the color box is not properly steered to align with flow, the Doppler shift is reduced, and less color filling occurs. Steer the box to align the ultrasound beam more parallel to flow to maximize Doppler shift and improve color filling.

According to sonography instrumentation reference:

“Steering the color box aligns the Doppler beam with blood flow direction, optimizing the Doppler angle and improving flow visualization.”

Therefore, the correct answer is B: Steer the box.

—

—

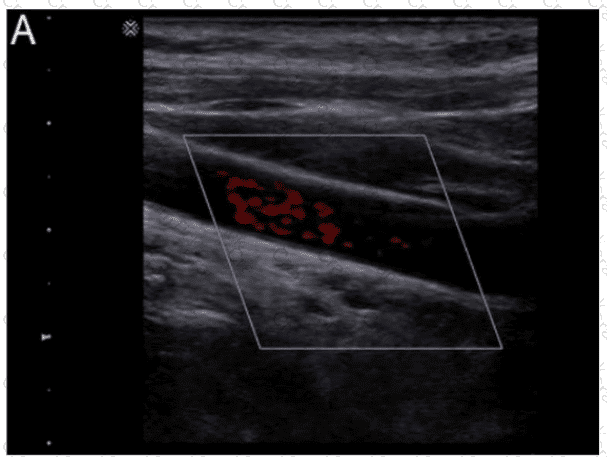

Comprehensive and Detailed Explanation From Exact Extract:

When color "bleeds" outside vessel walls, it often results from motion artifacts or noise from slow tissue motion being displayed as flow. Increasing the wall filter eliminates low-frequency Doppler shifts caused by motion, improving color accuracy within vessel boundaries.

According to sonography instrumentation reference:

“Raising the wall filter eliminates low-velocity signals from vessel wall motion, reducing the appearance of color outside the vessel lumen.”

Therefore, the correct answer is C: Increasing wall filter.

—

Comprehensive and Detailed Explanation From Exact Extract:

Transmit focus narrows the ultrasound beam width at specific depths, improving lateral resolution — the ability to distinguish two objects side-by-side.

According to Principles and Instrumentation:

"Lateral resolution depends on beam width and is improved by focusing, which narrows the beam in the lateral dimension."

Axial resolution depends on pulse length.

Elevational resolution depends on slice thickness.

Temporal resolution relates to frame rate.

Therefore, the correct answer is C: Lateral.

QUESTION NO17

Which statement characterizes the primary difference between image A and image B?

A close-up of a medical scan Description automatically generated

A. Image A demonstrates a better axial resolution.

B. Image A demonstrates a lower overall gain setting.

C. Image A demonstrates a shallower field of view.

D. Image A demonstrates a wider scale of contrast.

Answer: B

Comprehensive and Detailed Explanation From Exact Extract:

In image A, the structures appear darker with less overall brightness compared to image B. This indicates that the overall gain (receiver amplification) is set lower in image A, resulting in a dimmer image. Gain controls how much the returning echoes are amplified after detection.

According to Principles and Instrumentation:

"Overall gain amplifies all returning echoes equally. A lower gain setting results in a darker image, while higher gain brightens the display."

Axial resolution (A) is primarily dependent on frequency and pulse length, not visible here.

Field of view (C) appears similar between both images.

Contrast scale (D) refers to dynamic range, not directly indicated here.

Therefore, the correct answer is B: Image A demonstrates a lower overall gain setting.

—

The fundamental frequency of a pulsed wave transducer is primarily determined by the thickness of the piezoelectric element. The frequency is inversely proportional to the thickness of the element – thinner elements produce higher frequencies, while thicker elements produce lower frequencies. This relationship is derived from the formula????=????2????f=2dv​, where????fis the frequency,????vis the propagation speed of sound in the piezoelectric material, and????dis the thickness of the element.

When utilizing multiple transmit focal zones, the ultrasound system must perform multiple transmissions at each focal depth. This process requires more time for data acquisition, which in turn decreases the frame rate. A lower frame rate directly impacts temporal resolution, which is the ability to accurately depict moving structures over time. Thus, using multiple focal zones improves lateral resolution but degrades temporal resolution.

Temporal resolution refers to the ability of an ultrasound system to distinguish between events occurring closely in time. It is primarily affected by the frame rate, which is the number of frames displayed per second. One of the main factors that influence the frame rate is the display depth. The deeper the imaging depth, the longer it takes for the ultrasound pulses to travel to the target and back, thus reducing the frame rate and temporal resolution. Shallower imaging depths allow for higher frame rates and better temporal resolution.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

"Diagnostic Ultrasound: Principles and Instruments" by Frederick W. Kremkau

Comprehensive and Detailed Explanation From Exact Extract:

Overall gain amplifies the strength of all returning echoes equally, regardless of depth. It does not affect the transmitted pulse or selectively compensate for attenuation; it simply amplifies received signals uniformly.

According to sonography instrumentation reference:

“Overall gain controls the amplification of all returning echoes across the entire image, increasing brightness uniformly at all depths.”

Therefore, the correct answer is B: Amplification of signals from all depths.

—

Spectral Doppler mirroring, also known as crosstalk, occurs when the Doppler signal appears on both sides of the baseline. This can be caused by excessively high Doppler gain, which amplifies the signal and creates artificial mirror images. Decreasing the Doppler gain reduces the signal amplitude, thereby minimizing the mirroring artifact.

ARDMS Sonography Principles and Instrumentation guidelines

Hoskins, P. R., Thrush, A., Martin, K., & Whittingham, T. A. (2010). Diagnostic Ultrasound: Physics and Equipment.

Comprehensive and Detailed Explanation From Exact Extract:

Compression reduces the dynamic range of the returning echoes, which alters how many shades of gray are displayed. It compresses the range of signal amplitudes to fit into the grayscale display range.

According to sonography instrumentation reference:

“Compression alters the dynamic range, adjusting how many shades of gray are displayed to optimize image contrast.”

Therefore, the correct answer is B: The shades of gray displayed.

—

Narrowing the field of view reduces the number of scan lines that need to be processed per frame. This allows the ultrasound system to maintain or even increase the frame rate without compromising temporal resolution. Temporal resolution, which refers to the system's ability to depict motion accurately, is directly related to the frame rate. Reducing the field of view ensures fewer lines are needed to create each image, thus preserving the frame rate and temporal resolution.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments.

The propagation speed of sound in a medium is determined by the medium's elasticity and density. Elasticity refers to the ability of the medium to return to its original shape after deformation, while density is the mass per unit volume of the medium. The speed of sound increases with higher elasticity and decreases with higher density. This relationship is described by the equation????=????????v=ρE​​, where????vis the propagation speed,????Eis the elasticity (or modulus of elasticity), and????ρis the density.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

"Diagnostic Ultrasound: Principles and Instruments" by Frederick W. Kremkau

Comprehensive and Detailed Explanation From Exact Extract:

Output power directly affects the intensity of the ultrasound beam transmitted into the patient. Reducing output power lowers the risk of both thermal and mechanical bioeffects.

According to sonography instrumentation reference:

“Output power should be minimized following the ALARA (As Low As Reasonably Achievable) principle to reduce potential bioeffects while still obtaining diagnostic-quality images.”

Therefore, the correct answer is B: Output power.

78

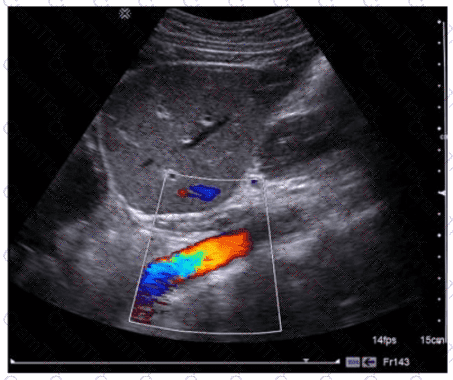

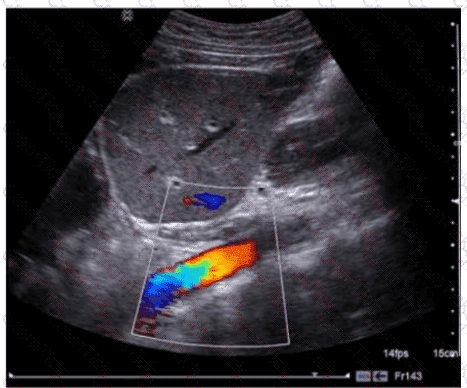

In this image, which characteristics of flow are represented by the upper right side of a variance mode color map?

A close-up of a screen Description automatically generated

A. Higher velocity, laminar with a positive Doppler shift

B. Higher velocity, laminar with a negative Doppler shift

C. Higher velocity, turbulent with a positive Doppler shift

D. Higher velocity, turbulent with a negative Doppler shift

Answer: C

Comprehensive and Detailed Explanation From Exact Extract:

In variance mode color Doppler, colors are assigned based on both flow direction (Doppler shift polarity) and flow character (laminar vs turbulent). In the image:

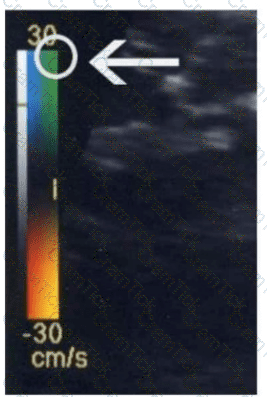

The vertical color bar shows standard Doppler shifts: positive shifts (toward the transducer) are displayed at the top, and negative shifts (away from the transducer) at the bottom.

The variance mode adds horizontal color variation (from left to right), where the right side indicates increasing turbulence.

Thus, the upper right portion of the color bar indicates:

Positive Doppler shift (flow toward the transducer)

High velocity

Turbulent flow

According to sonography instrumentation reference:

“In variance mode, the vertical axis represents flow direction and velocity, while the horizontal axis represents flow variance (turbulence). The upper right corner indicates high-velocity turbulent flow toward the transducer.”

Therefore, the correct answer is C: Higher velocity, turbulent with a positive Doppler shift.

High-Frequency Transducer: These provide better resolution but do not directly cause posterior enhancement.

Low-Frequency Transducer: These provide better penetration but are not the cause of posterior enhancement.

Strongly Attenuating Structure: This would cause acoustic shadowing rather than enhancement.

Weakly Attenuating Structure: Structures that attenuate the ultrasound beam less than the surrounding tissues allow more sound waves to pass through, resulting in increased brightness or "enhancement" behind the structure.

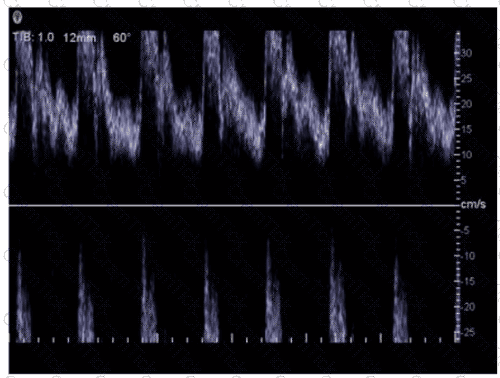

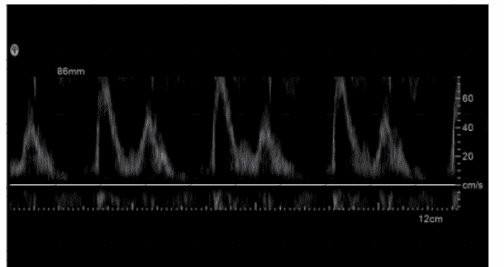

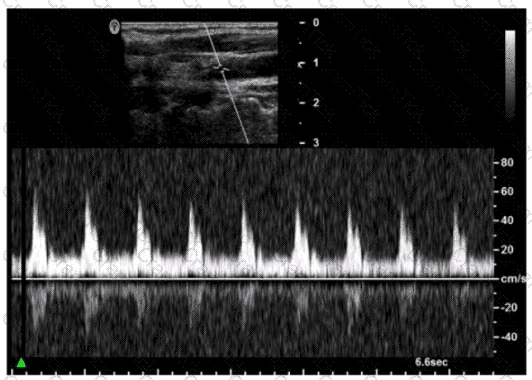

The waveform in the image shows spectral Doppler signals that are pushed against the upper limit of the display, indicating that the baseline is too high. Lowering the baseline allows for a better visual representation of the entire Doppler signal within the available display range. This adjustment prevents the waveform from being cut off and helps in accurately interpreting the blood flow characteristics.

Range ambiguity artifact occurs when echoes from one pulse are received after the next pulse has been emitted, leading to the incorrect placement of echoes at shallower depths than their true location. This artifact typically happens when the PRF is set too high, causing the ultrasound system to interpret delayed echoes as coming from the current pulse rather than the previous one. This results in reflectors appearing closer to the transducer than they actually are.

Comprehensive and Detailed Explanation From Exact Extract:

Cross talk (spectral mirror artifact) appears as a duplication of the spectral waveform above and below the baseline. One primary cause is excessive Doppler gain, which amplifies weak signals and noise symmetrically. Reducing gain minimizes this artifact.

Principles and Instrumentation state:

"Cross talk in spectral Doppler may result from high gain settings. Lowering the gain can reduce or eliminate this artifact."

PRF adjustments affect aliasing, not cross talk.

Baseline shifts affect waveform positioning.

Wall filter affects low-frequency signals but not cross talk.

Therefore, the correct answer is A: By decreasing the Doppler gain.

QUESTION NO28

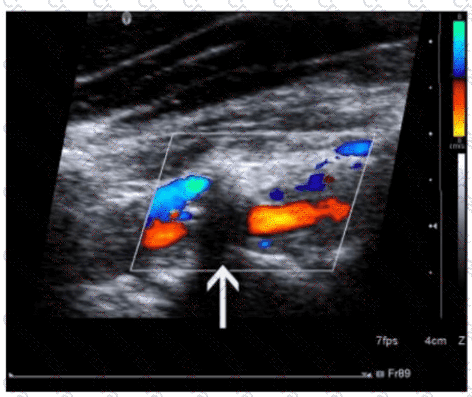

Which artifact is demonstrated by the arrow in this image?

A close-up of an ultrasound Description automatically generated

A. Mirroring

B. Noise

C. Shadowing

D. Enhancement

Answer: C

Comprehensive and Detailed Explanation From Exact Extract:

The image shows an area of signal dropout directly deep to the strongly reflecting structure (likely a vessel wall or calcification), indicated by the arrow. This is a classic example of shadowing artifact.

According to sonography Principles and Instrumentation:

"Shadowing occurs when a highly attenuating or reflective structure blocks the ultrasound beam, resulting in absence of signal distal to the object."

Mirroring (A) produces duplicated structures.

Noise (B) appears as random speckles.

Enhancement (D) produces increased echogenicity distal to an anechoic structure.

Therefore, the correct answer is C: Shadowing.

—

Comprehensive and Detailed Explanation From Exact Extract:

When color Doppler gain is set too high, the system amplifies noise signals, leading to random color speckles appearing within anechoic or hypoechoic areas where no true flow exists. This artifact is known as "color bleeding" or "color noise."

According to sonography instrumentation reference:

“Excessive color Doppler gain can cause noise to overwrite areas without flow, resulting in false color signals within fluid-filled or hypoechoic structures.”

Therefore, the correct answer is D: Color gain set too high.

62

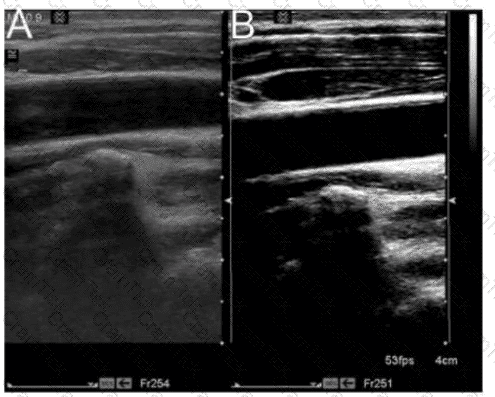

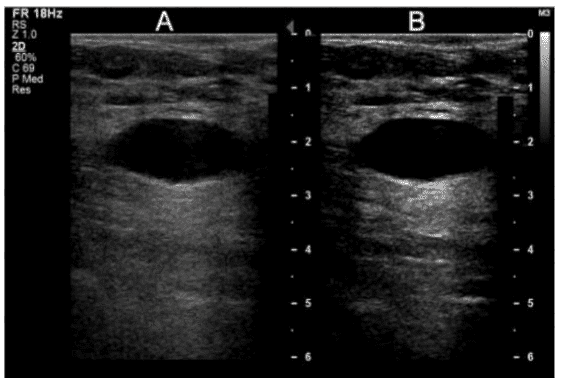

Which adjustment was made to change image A to produce image B?

A close-up of an ultrasound Description automatically generated

A. Increased overall gain

B. Decreased overall gain

C. Increased dynamic range

D. Decreased dynamic range

Answer: D

Comprehensive and Detailed Explanation From Exact Extract:

In Image B, compared to Image A, you can observe a higher contrast image with darker darks and brighter brights, indicating that dynamic range has been reduced. Decreasing dynamic range results in less grey scale, creating a more black-and-white appearance and emphasizing contrast differences.

According to sonography instrumentation reference:

“Reducing dynamic range increases image contrast by narrowing the range of displayed echo intensities, making the image appear more black and white.”

Therefore, the correct answer is D: Decreased dynamic range.

—

Comprehensive and Detailed Explanation From Exact Extract:

M-mode (motion mode) ultrasound records the movement of structures along a single scan line over time. It is particularly valuable in cardiac imaging where precise motion of heart valves and walls is evaluated.

Principles and Instrumentation reference:

"M-mode is primarily used in echocardiography to evaluate the motion of cardiac structures with high temporal resolution."

Liver, kidneys, and pancreas are evaluated using B-mode, not M-mode.

Therefore, the correct answer is A: Heart.

QUESTION NO20

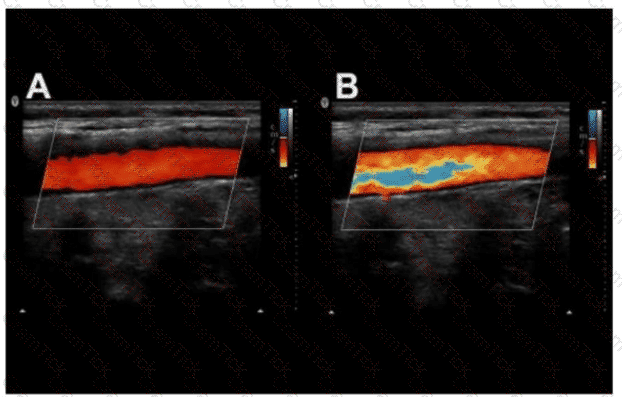

Which color control adjustment caused the change from image A to image B?

A close-up of a medical image Description automatically generated

A. Map

B. Velocity scale

C. Wall filter

D. Color packet size

Answer: B

Comprehensive and Detailed Explanation From Exact Extract:

In image A, the vessel shows uniform color filling without aliasing. In image B, multiple color bands are present, indicating color aliasing — where the flow velocities exceeded the Nyquist limit due to a lower velocity scale (PRF).

According to sonography Principles and Instrumentation:

"Aliasing in color Doppler appears when the Doppler shift exceeds the Nyquist limit. Reducing the velocity scale increases the likelihood of aliasing."

Changing the map (A) would modify the color hues but not introduce aliasing.

Wall filter (C) affects low-velocity signals but not aliasing.

Color packet size (D) affects frame rate and sensitivity, not aliasing directly.

Therefore, the correct answer is B: Velocity scale.

—

Sensitivity is the term for an ultrasound system's ability to display low-level echoes. It refers to the system's capacity to detect and accurately display weak echoes returning from tissues. High sensitivity allows the sonographer to visualize structures that produce faint echoes, such as small or low-contrast lesions. This parameter is critical for ensuring that subtle pathological changes are not missed during imaging.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Sonography: Principles and Instruments" by Joan P. Baker and Marveen Craig

The Doppler shift is directly related to the cosine of the angle between the ultrasound beam and the direction of blood flow. As the angle increases from 30 degrees to 60 degrees, the cosine of the angle decreases (cosine of 30 degrees is approximately 0.87, while cosine of 60 degrees is 0.5). Since the Doppler shift is proportional to the cosine of the angle, increasing the angle results in a decreased Doppler shift. This means the measured blood flow velocities will appear lower at a 60-degree angle compared to a 30-degree angle.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

The color Doppler image shows an artifact where high-velocity blood flow exceeds the Nyquist limit, resulting in color wrap-around or aliasing. This artifact is visualized as a mosaic pattern of colors that abruptly change, indicating that the velocity exceeds the color Doppler scale's maximum. Aliasing occurs when the sampling rate (pulse repetition frequency) is insufficient to accurately capture the high velocities, causing the display to cycle back to lower velocities.

Temporal resolution is improved by increasing the frame rate. One way to increase the frame rate is by decreasing the packet size (also known as ensemble length) in color Doppler imaging. The packet size refers to the number of pulses used to determine the Doppler shift at each location. A smaller packet size means fewer pulses are required, which allows for quicker data acquisition and thus a higher frame rate. Increasing the field of view, decreasing transmit frequency, and increasing line density would all decrease the frame rate and thus degrade temporal resolution.

Comprehensive and Detailed Explanation From Exact Extract:

Higher frequencies are more attenuated than lower frequencies. When scanning calcified structures, increasing the frequency enhances attenuation, which makes posterior shadowing more pronounced and visible.

According to sonography instrumentation reference:

“Increasing frequency increases attenuation, thereby enhancing acoustic shadowing posterior to highly attenuating structures such as calcifications or bone.”

Therefore, the correct answer is D: Frequency.

—

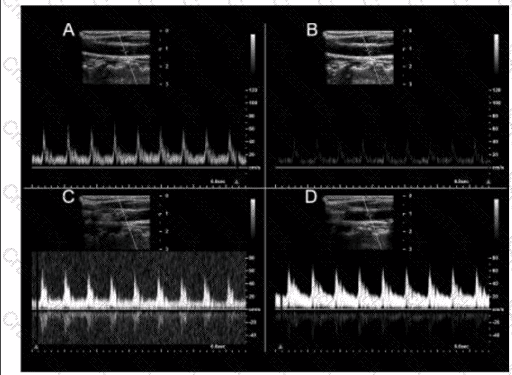

Option B demonstrates appropriate spectral Doppler gain. Appropriate gain settings ensure that the Doppler signal is adequately amplified without introducing excessive noise or artifacts. In Option B, the spectral waveform is clearly visible with distinct borders, and the background noise is minimal. In contrast, other options might show either under-gained (too little signal) or over-gained (excessive noise and signal) images, making it difficult to accurately interpret the spectral Doppler information.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Understanding Ultrasound Physics" by Sidney K. Edelman

Damping in a pulsed-wave transducer primarily affects the pulse duration. Damping refers to the process of reducing the vibration of the transducer crystal after the initial excitation. When damping is applied, it shortens the length of the ultrasound pulse by quickly reducing the vibration. This results in a shorter pulse duration, which is important for improving axial resolution. Damping does not directly affect the pulse repetition frequency, beam focus, or beam penetration, although it can have indirect effects on image quality and resolution.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Diagnostic Ultrasound: Principles and Instruments" by Frederick W. Kremkau

Comprehensive and Detailed Explanation From Exact Extract:

Damping reduces the number of cycles per pulse, shortening pulse duration and spatial pulse length, which directly improves axial resolution.

Principles and Instrumentation:

"Axial resolution improves with shorter spatial pulse length, achieved by damping, which limits ringing of the transducer."

Lateral resolution (A) depends on beam width.

Contrast resolution (B) relates to dynamic range.

Temporal resolution (C) is tied to frame rate.

Therefore, the correct answer is D: Axial.

Changing the displayed depth control directly affects the pulse repetition frequency (PRF). When the depth setting is increased, the ultrasound system needs more time to send and receive echoes from deeper structures, resulting in a lower PRF. Conversely, decreasing the depth allows for a higher PRF since the time required for the sound waves to travel to and from the structures is shorter. PRF is crucial for determining the maximum detectable velocity in Doppler ultrasound without aliasing.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Understanding Ultrasound Physics" by Sidney K. Edelman

The Doppler shift is highest when the angle between the ultrasound beam and the direction of blood flow is 0 degrees. This is because the cosine of 0 degrees is 1, maximizing the Doppler frequency shift. As the angle increases towards 90 degrees, the cosine value decreases, reducing the Doppler shift.

ARDMS Sonography Principles and Instrumentation guidelines

Hoskins, P. R., Thrush, A., Martin, K., & Whittingham, T. A. (2010). Diagnostic Ultrasound: Physics and Equipment.

The frame rate in color flow imaging is influenced by several factors, one of the most significant being line density. Line density refers to the number of ultrasound lines used to create an image. Increasing line density improves spatial resolution but requires more time to acquire each frame, thereby reducing the frame rate. Other factors such as filter selection, dynamic range, and variance map selection can affect the quality of the color flow image, but they do not have as direct an impact on frame rate as line density does.

Comprehensive and Detailed Explanation From Exact Extract:

Lateral resolution is the system’s ability to distinguish two structures side-by-side. It is directly determined by the beam width — the narrower the beam, the better the lateral resolution.

Principles and Instrumentation:

"Lateral resolution depends on beam width at a given depth. Narrower beams provide better lateral resolution."

Depth of penetration influences maximum imaging depth.

Propagation speed is largely constant in soft tissue.

Wavelength affects axial resolution.

Therefore, the correct answer is A: Beam width.

—

The wall filter, also known as the high-pass filter, is used in Doppler ultrasound to remove low-frequency signals, which are typically associated with clutter artifacts. Clutter artifacts can be caused by tissue motion or vessel wall movement, and they appear as low-frequency signals that can obscure the desired blood flow signals. By increasing the wall filter setting, these low-frequency signals are filtered out, thus reducing the clutter artifact and providing a clearer depiction of the blood flow.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

Comprehensive and Detailed Explanation From Exact Extract:

Axial resolution depends on spatial pulse length (SPL), which is determined by the number of cycles per pulse. Fewer cycles per pulse shorten the SPL, thereby improving axial resolution and allowing better separation of closely spaced structures along the beam axis.

According to sonography instrumentation reference:

“Axial resolution improves with fewer cycles per pulse, which decreases the spatial pulse length and allows better discrimination of structures along the beam path.”

Therefore, the correct answer is B: Reducing the number of cycles per pulse.

—

Axial resolution refers to the ability of an ultrasound system to distinguish between two structures that are close to each other along the path of the ultrasound beam. It is primarily determined by the spatial pulse length, which is the product of the wavelength and the number of cycles in a pulse. Shorter wavelengths result in shorter spatial pulse lengths, thereby improving axial resolution. This is because shorter wavelengths (which correspond to higher frequencies) allow for better differentiation between closely spaced structures along the beam's axis.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

The wall filter is used in color Doppler and spectral Doppler imaging to eliminate low-frequency Doppler shifts caused by tissue motion or vessel wall movement. Adjusting the wall filter removes these low-frequency signals without affecting higher-frequency Doppler shifts that represent blood flow. Other settings like gain, scale, and persistence do not selectively filter out low-frequency shifts in the same manner.

Overall gain controls the amplification of all the received ultrasound signals uniformly. This adjustment affects the brightness of the entire image by increasing or decreasing the amplification of the echoes returning from all depths. It is a primary control for adjusting image brightness. The overall gain should be set to an appropriate level to ensure that the ultrasound image is neither too bright (over-gained) nor too dark (under-gained), allowing for optimal visualization of the anatomical structures.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

Acoustic Shadowing: This artifact occurs when a structure absorbs or reflects most of the ultrasound waves, causing a shadow behind the structure. It does not cause improper positioning of a reflector on the display.

Speckle: This is a form of noise in ultrasound imaging that appears as granular texture. It can affect image quality but does not lead to improper positioning of reflectors.

Enhancement: This artifact occurs when the area behind a weakly attenuating structure appears brighter. It affects the brightness of the image but does not affect the position of reflectors.

Range Ambiguity: This occurs when an echo is received after the next pulse has been sent out, causing the reflector to be placed at an incorrect depth on the display. This is because the system assumes the echo came from the most recent pulse.

Autoclaving involves high-pressure steam at high temperatures, which can damage the delicate piezoelectric crystals within the ultrasound transducer. These crystals are responsible for converting electrical energy into sound waves and vice versa. Exposure to the extreme conditions of an autoclave can cause thermal and mechanical damage to the crystals, rendering the transducer ineffective.

ARDMS Sonography Principles and Instrumentation guidelines

Zagzebski, J. A. (1996). Essentials of Ultrasound Physics.

The artifact demonstrated in the image is mirroring. This occurs when the ultrasound beam encounters a strong reflector, such as a diaphragm or pleura, and is reflected back and forth between the object and the transducer. This results in a duplicate image appearing on the other side of the strong reflector, creating a mirror image artifact. It is crucial for sonographers to recognize and differentiate this artifact from actual anatomical structures to avoid misinterpretation.

American Registry for Diagnostic Medical Sonography (ARDMS) Sonography Principles and Instrumentation study materials.

Diagnostic Ultrasound: Principles and Instruments by Kremkau, F. W. (latest edition).

During 3-D volume acquisition in ultrasound, the quality of the images is most dependent on the number of slices acquired. This is because the more slices (or planes) that are captured, the more detailed and accurate the reconstruction of the 3-D volume will be. This allows for better spatial resolution and more precise visualization of anatomical structures. Other factors, such as power output, rendering methods, and speed of post-processing, also affect image quality but are secondary to the number of slices in terms of fundamental image acquisition quality.

Comprehensive and Detailed Explanation From Exact Extract:

Higher frequency transducers provide better axial resolution due to their shorter wavelengths and spatial pulse lengths. This allows finer detail when imaging superficial structures where penetration is not a concern.

According to sonography instrumentation reference:

“Higher frequencies result in shorter pulse lengths, improving axial resolution and making them ideal for superficial imaging.”

Therefore, the correct answer is D: Improved axial resolution.

—

The intensity of an ultrasound beam is measured using a hydrophone. A hydrophone is a specialized device that detects and measures the acoustic pressure of the ultrasound waves in water or tissue-mimicking materials. It is highly sensitive and can measure the variations in pressure, which are used to calculate the intensity and other acoustic parameters of the ultrasound beam.

ARDMS Sonography Principles and Instrumentation guidelines

Hoskins, P. R., Thrush, A., Martin, K., & Whittingham, T. A. (2010). Diagnostic Ultrasound: Physics and Equipment.

Comprehensive and Detailed Explanation From Exact Extract:

Spatial compounding acquires multiple frames from different angles and combines them into a single image. This technique reduces the appearance of artifacts such as shadowing and speckle noise, resulting in a smoother, more uniform image.

According to sonography instrumentation reference:

“Spatial compounding reduces artifacts like posterior shadowing and speckle by averaging data from multiple insonation angles.”

Therefore, the correct answer is D: Decreases shadowing.

—

The frame rate in ultrasound imaging is influenced by several factors, including the number of focal zones. Each focal zone requires additional transmission and reception cycles, thus decreasing the frame rate. By decreasing the number of focal zones, the system requires fewer cycles per frame, which increases the frame rate. This enhances the temporal resolution, making it easier to capture fast-moving structures in real-time imaging.

Comprehensive and Detailed Explanation From Exact Extract:

Attenuation increases with both frequency and depth. The highest attenuation occurs at the highest frequency and greatest depth. 7.5 MHz attenuates faster than 5 MHz, and 5 cm represents deeper tissue penetration.

Principles and Instrumentation state:

"Attenuation is directly proportional to frequency and path length: Attenuation = Frequency × Depth × Attenuation Coefficient."

Therefore, the correct answer is D: 7.5 MHz at 5 cm.

—
