1Y0-205 Citrix Virtual Apps and Desktops 7 Administration (CCA-V) Questions and Answers

B. Citrix Print Manager Service: Monitors session events like logon, logoffs, and session termination to manage printing tasks within the session.

C. Security Descriptor: Sets the default security descriptor for auto-created printers, enhancing the security of client printers in a session.

E. Impersonation: The Citrix Print Manager Service processes print requests by impersonating the session user, ensuring that the user’s permissions are applied to the printing process.

The Control layer contains the Site database in a Citrix Virtual Apps and Desktops Architecture model. The Site database stores the running site configuration, plus the current session state and connection information. The Access layer contains the components that users need to connect to their apps and desktops, such as StoreFront and Citrix Gateway. The User layer contains the user profiles, policies, and data. The Resource layer contains the machines that host the apps and desktops, such as VDAs and hypervisors

 MAC-based forwarding (MBF) can be used to avoid multiple route/ARP lookups and to avoid asymmetrical packet flows. MBF caches the MAC address of the upstream router that forwarded the client request to the appliance. When a reply is received, it is passed through to the same router that sent the client request without going through any route lookup

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration guide, the Operator permission level allows administrators to view and modify the configuration of the site, enable and disable services and servers, and perform power management operations. The Read-Only permission level does not allow modifying the configuration or enabling and disabling services and servers. The Network and Sysadmin permission levels have more privileges than required1

The identity disk is a small disk attached to each virtual machine that stores the unique information for that machine, such as computer name, IP address, and Active Directory account. This disk is created when using Machine Creation Services with the Desktop Experience set to ‘Random’.1

1: Identity disks

Citrix Studio provides a feature called Limit Visibility, which allows administrators to hide specific published resources (apps or desktops) from chosen users or groups. This is the correct method to selectively exclude users from seeing or launching certain apps without removing them from the Delivery Group.

Correct Approach:

To prevent HR10 from seeing or accessing APP_A, the administrator should configure Limit Visibility so that only HR1–HR9 are allowed visibility for APP_A.

This ensures:

The entire HR group still receives all published apps

Only HR10 is restricted from APP_A

The Delivery Group configuration remains intact

Why the other options are incorrect:

A. Remove HR10 from the Delivery Group:This would remove HR10’s access to all Delivery Group applications, not just APP_A.

C. Remove APP_A from the Delivery Group:This removes the app for everyone, not just HR10.

D. Limit visibility on APP_A to HR10:This would assign visibility only to HR10, the opposite of what is needed.

Documentation References

Citrix Virtual Apps and Desktops → Application Publishing and Visibility

Citrix Studio → App Properties → “Limit Visibility” Feature

Citrix App Assignment Best Practices

Citrix Cloud is the hosting platform that minimizes management and maintenance for administrators while maintaining control of the VDA machines1.

Citrix Director can capture utilization statistics for CPU, IOPS, and memory for each machine in a selected delivery group1. The resource utilization tab in the trends page displays the historical data for these metrics, along with the peak concurrent sessions graph2. The machine statistics page also shows the CPU and memory usage of the selected machine over time, as well as the processes contributing to high resource consumption3. Citrix Director does not capture utilization statistics for disk space or network, but it does provide other information related to these components, such as disk latency4 and network analysis5.

1: Monitor historical trends across a site | Director 2: How to use Director to monitor storage performance - Citrix 3: Machine Statistics | Citrix Analytics for Performance 4: Citrix Director Provides Disk Usage Information 5: [Network analysis | Director]

According to the Citrix Cloud documentation, when migrating existing VDAs to Citrix Cloud, the administrator must update the VDA software on the master image to communicate with the Cloud Connectors. This ensures that the VDAs can register with the Delivery Controllers in Citrix Cloud. If the VDA software is not updated, the VDAs will not be able to register with Citrix Cloud. Therefore, option A is the correct answer. The other options are not relevant to the registration issue.

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course, Citrix Provisioning can reduce the total number of writes on the storage by using a single shared image that is streamed to multiple target devices. This eliminates the need to store multiple copies of the same image on the storage. The course also states that Citrix Provisioning can reduce the storage requirements by up to 90% compared to traditional methods1

1: CWS-215: Citrix Virtual Apps and Desktops 7 Deployment and Administration, Module 9: Implementing Citrix Provisioning, Lesson: Introduction to Citrix Provisioning, Slide 6.

 The Secure Ticket Authority (STA) server locations must be configured on the Citrix Gateway and StoreFront to facilitate secure external access. The Citrix Gateway uses STA to validate session requests and the StoreFront communicates with the STA to manage user sessions securely.

The Citrix Virtual Apps and Desktops documentation specifies that the Local Host Cache feature allows connection brokering operations in a site to continue when the connection between a Delivery Controller and the site database fails1. This implies that the Delivery Controller, which is part of the FlexCast Management Architecture (FMA) services, uses the Local System account to access the Citrix Virtual Apps and Desktops SQL databases in scenarios where the primary database connection is unavailable.

 According to the Citrix documentation1, persistence time-out is the parameter that determines how long the service continues to serve requests from the client after it is disabled manually. The service accepts new requests or connections only to honor persistence. After the persistence time-out expires, no new requests or connections are directed to the service and all of the existing connections are closed. This parameter is available only when the service is disabled gracefully. The default value is 2 minutes. The other options are not related to the scenario described in the question.

Citrix Gateway can be hosted in Citrix Cloud or in a customer-controlled resource location. It provides secure remote access to Citrix Virtual Apps and Desktops service deployments.

 The command set dns parameter -setAABit YES sets the authoritative answer (AA) bit in the DNS response header. This indicates that the Citrix ADC is the authoritative server for the domain name in the query. This can be useful when the Citrix ADC is configured as a DNS proxy server1

1: 2 - DNS Parameters

Workspace Control allows users to reconnect to their disconnected sessions automatically when they roam between devices or reconnect after a network disruption. It is designed to provide a seamless user experience by maintaining the user’s session state, allowing them to pick up where they left off without starting a new session. This feature can be managed within the Citrix Virtual Apps and Desktops management consoles and is essential for scenarios where users need to maintain continuity in their work, such as in the given scenario where users leave work and expect to reconnect to their sessions later.

Citrix AutoScale provides automated power management and resource optimization for Virtual Apps and Desktops workloads. Citrix documentation describes two primary AutoScale mechanisms that determine when machines should power on or off:

✔ Schedule-Based AutoScale

Admins can define time-based schedules so machines automatically:

Power on during business hours

Power off during off-peak times

Adjust capacity based on predictable usage patterns

This method is ideal for environments with predictable workloads.

✔ Load-Based AutoScale

AutoScale monitors real-time session demand and machine usage metrics such as:

Session count

Load index

Resource utilization

Machines power on automatically when demand increases and power down during light usage.

Why the other options are incorrect:

Desktop-Based: Not an AutoScale category; desktops are simply resources managed by AutoScale.

Host-Based: Not a Citrix AutoScale mode.

Server-Based: Irrelevant to AutoScale logic; refers to server workloads, not AutoScale mechanisms.

Documentation References

Citrix Virtual Apps and Desktops AutoScale Guide → AutoScale Methods

Citrix Cloud / Studio AutoScale Settings → Schedule-Based and Load-Based Controls

According to the Default policy settings document for Citrix Virtual Apps and Desktops 7 2308, the default compression policies are stored in the site database and are applied to the VDAs when they register with the broker or when a user connects to them. To use the default compression policies, a Citrix administrator needs to bind them to the virtual server that handles the ICA traffic. This can be done using the Web Studio console or the Local Group Policy Editor. The other options are not related to the default compression policies.

 The Citrix documentation states that if a machine catalog is not available when adding machines to a Delivery Group, a possible cause is that the machines in the unavailable machine catalog are of different OS types2.

 According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course, the Generate Support File option on the Citrix ADC appliance allows the administrator to collect logs and configuration information for troubleshooting purposes. The support file can be downloaded and sent to the Citrix Support Engineer for analysis. The other options are not relevant for this scenario.

Enabling NTUSER.DAT backup allows Profile Management to maintain a last known good backup of the NTUSER.DAT file and use it to recover the profile if corruption is detected. This can help prevent data loss from users’ profiles. According to the Registry policy settings document, “If you do not configure this policy here or in the.ini file, Profile Management does not back up NTUSER.DAT.” The other options are not relevant to preventing profile corruption or data loss.

The Citrix Universal Generic Printer is a special type of auto-created printer that uses the Citrix Universal Print Driver and does not require any printer drivers to be installed on the server. It can reduce the number of native drivers being used within the Site infrastructure. To use this feature, the administrator must enable the Auto-create generic universal printer policy setting

 Session Reliability allows connection brokering operations in a site to continue when the connection between a Delivery Controller and the site database fails. It also allows users to continue working on their applications or desktops, even if the network is interrupted1.

1: Manage | Citrix Virtual Apps and Desktops 7 2308

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course, the Citrix ADC maintains a revision history of the configuration files, which can be used to restore a previous configuration in case of accidental changes or deletions. Restarting the Citrix ADC, running HA file synchronization, or running Save v/s Running configuration will not undo the changes made by the administrator. Therefore, the correct answer is A. Restore from revision history1

1: Manage | Citrix Virtual Apps and Desktops 7 2308

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration guide1, the HDX Printer properties retention policy has four possible settings:

Held in profile only if NOT saved on client: This is the default setting. The printer properties are held in the user profile only if they have not been saved on the user device.

Do NOT retain printer properties: The printer properties are not retained at all. The user must configure them for each session.

Saved on the client device only: The printer properties are saved on the user device only. The user profile does not store them.

Retained in user profile only: The printer properties are retained in the user profile only. The user device does not store them.

In this scenario, the administrator wants the users to maintain the different printer property settings for their HDX sessions. Since the users are using mandatory profiles, which are read-only and do not save any changes, the administrator should use the Retained in user profile only setting. This way, the printer properties are stored in the user profile and applied to the HDX sessions. The user device does not need to save them. This setting is suitable for environments where mandatory profiles are being used.

StoreFront system requirements in the Citrix 2402 LTSR documentation specify that StoreFront can only be installed on supported modern Windows Server operating systems. As of the 2402 LTSR release, the minimum supported OS for StoreFront is Windows Server 2019.

Windows Server 2016 and Windows Server 2012 R2 are no longer supported for StoreFront in the 2402 LTSR lifecycle.

Windows Server 2022 is supported, but it is not the minimum requirement — Server 2019 is.

Documentation References:

Citrix StoreFront 2402 LTSR System Requirements

Citrix Virtual Apps and Desktops 2402 LTSR Product Documentation → StoreFront Requirements

The Machine Utilization report in the Machine Details page shows the CPU, memory, disk, and network usage of the selected machine over time1. This can help the Citrix Administrator identify any resource bottlenecks or spikes that may affect the performance of the applications launched from the published desktop session. The other reports do not provide information about the machine’s resource utilization, but rather about the user’s connection, session, and application launch failures2.

1: Machine utilization | Director - Citrix Product Documentation 2: Troubleshoot user issues | Director - Citrix Product Documentation

The Get-BrokerSite PowerShell command retrieves information about the site, including the name of the deployment, the local host cache configuration, and the license level. This command is part of the Citrix Virtual Apps and Desktops 7 Administration toolkit and is used to manage various aspects of the site configuration.

The Citrix Application Delivery Management appliance, when used with Citrix Director, allows administrators to monitor various aspects of the infrastructure. It provides detailed insights into latency and bandwidth effects for specific user sessions ©, average ICA round trip time for specific user sessions (D), and peak concurrent total sessions for specific applications and desktops (E), enhancing the ability to manage and optimize the Citrix environment.

According to the Citrix documentation1, the weight option assigns a numerical weight to a service. The higher the weight, the more requests the service can handle. By default, the weight is 1, which means equal distribution of requests. To make the new servers receive twice the connections of the old servers, the administrator needs to assign a weight of 2 to the services attached to the new servers.

The absence of a power-manage option during the creation of a new machine catalog in Citrix Virtual Apps and Desktops is typically due to the lack of a defined resource connection in Citrix Studio2.

Option A is correct because if the VDA machine is not registered with the Site where the Citrix policy was configured, it will not receive the policy settings from the Site database. The VDA machine must register with a Delivery Controller in the Site to apply the Citrix policies1

Option B is correct because the Unfiltered policy is applied to all objects in the Site by default, and it has the lowest priority. If the Unfiltered policy contains settings that conflict with the Citrix policy configured by the administrator, the Unfiltered policy settings will override the administrator’s policy settings. The administrator can either disable the Unfiltered policy or change its priority to avoid this issue2

Option D is correct because if the VDA machine is not able to communicate with the Site database, it will not be able to retrieve the latest Citrix policy settings from the database. The VDA machine relies on the Delivery Controller to communicate with the Site database and apply the Citrix policies3

Inline CSS is a FEO action that replaces external CSS files with inline CSS code in the HTML document. This reduces the number of HTTP requests and improves the page load time. The screenshots show that the HTML code in the second snippet has no external CSS file linked, unlike the first snippet. Therefore, the correct answer is B. Inline CSS12.

Some additional information:

FEO stands for Front-End Optimization, which is a feature of Citrix Application Delivery Management (ADM) that optimizes web pages for faster delivery and better user experience3.

FEO actions are rules that modify the HTML, CSS, JavaScript, and images of a web page to improve its performance. FEO actions can be applied globally or to specific web pages based on policies4.

Other FEO actions include Truncate CSS, which removes unused CSS selectors and properties; Move CSS to head, which moves the CSS code to the head section of the HTML document; and Rearrange CSS, which reorders the CSS code to avoid rendering delays4.

Citrix power management requires:

A hypervisor connection (Citrix Hypervisor, Hyper-V, VMware, Nutanix AHV)

Machines created or managed by Citrix Studio

The ability for Delivery Controllers to send power commands through the hypervisor API

Citrix documentation clearly states:

✔ Only virtual machines registered in a hosting connection support power actions such as:

Power on

Power off

Restart

Suspend / resume (depending on hypervisor)

✔ Virtual Desktop OS VDAs (typically Windows 10/11 or Windows 365-style desktops) support full power management because they run as virtual machines on the hypervisor.

Why the other options are incorrect:

Remote PC Access machines (A):Are physical desktops; power actions cannot be controlled via hypervisor APIs.

Virtual Server OS machines (B):Although virtual, they are normally used as multi-session hosts; Citrix power management is not intended for them in standard deployments.

Physical Server OS machines (D):Physical hardware is not managed through hosting connections, so no power control is possible.

Thus, Virtual Desktop OS machines are the correct answer.

Documentation References

Citrix Virtual Apps and Desktops → Power Management Requirements

Citrix Delivery Controller Services → Host Service Power Actions

MCS and Hosting Connection Specifications for VM Power Control

The “Limit Visibility” option allows a Citrix Administrator to hide a published application on Citrix Workspace app for specified users or groups within a delivery group. This option can be configured in the application properties in Citrix Studio123 or using PowerShell commands4. This option does not affect the other choices.

The Delivery Controller runs the Secure Ticket Authority (STA) and the Citrix XML Service, which are responsible for issuing session tickets in response to connection requests for published applications and desktops on Citrix Virtual Apps and Desktops12. The Citrix Gateway can be configured to use the STA to validate the tickets and allow secure access to the resources3.

1: Access Citrix Virtual Apps and Desktops resources with the … - NetScaler 2: FAQ: Citrix Secure Gateway/ NetScaler Gateway Secure Ticket Authority 3: Configuring the Secure Ticket Authority on NetScaler Gateway

 The Citrix Universal Print Server provides universal printing support for network printers. The Universal Print Server uses the Universal print driver, a single driver on the Multi-session OS machine that allows local or network printing from any device, including thin clients and tablets. This feature can help reduce the number of Windows drivers on the VDA machines by using a single driver for all network printers

 The minimum built-in delegated administration role required to create an Application Group is the Delivery Group Administrator. This role has the necessary permissions to manage application groups within a delivery group1.

According to the policy priority and filtering, the Accounting users will match the policy “Accounting”, which has ‘Client Network Drives’ enabled and ‘Client Fixed Drives’ not configured. The policy “Baseline” will not apply because it has a lower priority. Therefore, the Accounting users will be able to access only the client network drives, and not the client fixed drives. This is confirmed by the Citrix documentation on policy filtering and precedence.

This expression matches the host name ‘www.example.com’ in all HTTP requests by using the EQ operator, which performs a case-sensitive string comparison. The other options are incorrect because they either use the wrong message type (HTTP.RES instead of HTTP.REQ), the wrong method (HOSTNAME instead of HOSTNAME.EQ), or the wrong operator (CONTAINS instead of EQ). For more information, see HTTP expressions and Operators in the Citrix documentation.

According to the Citrix Virtual Apps and Desktops 7 2308 documentation1, the default printing behavior when no printing policy is configured is to auto-create all client printers. This means that the system automatically creates printers in the user session that correspond to the printers defined on the user device. This option provides users with access to the same printers in a session as they have on their user devices.

1: Printing policies and preferences | Citrix Virtual Apps and Desktops 7 2308

Citrix Workspace app includes an Auto-Update feature that automatically checks for and installs new versions. However, Citrix documentation states:

Auto-update only functions correctly when the Workspace app is installed with administrative privileges.

Deployments through enterprise software distribution tools (such as SCCM) ensure the app is installed in the correct system context to enable auto-updates.

Methods where the user installs the Workspace app manually or through StoreFront may install it in user context, which disables auto-updates.

Therefore, to guarantee:

✔ Full feature support

✔ Automatic updates

✔ No GPO configuration

✔ No user interaction

The Workspace app should be deployed using System Center Configuration Manager (SCCM), which installs the application at the machine level.

Why the other options are incorrect:

A. Workspace for Web:Browser-only access does not support full-feature Workspace capabilities.

B. Download via StoreFront:This results in a user-context installation, which disables auto-updates.

D. Network file share installation:Again, this leads to user-context installation and prevents auto-updates.

Documentation References

Citrix Workspace App Administration Guide → Auto-Update Requirements

Enterprise Deployment Guide for Citrix Workspace App

SCCM Deployment Practices for Machine-Level Installation

According to the Citrix documentation1, the Citrix ADC SDX appliance allows administrators to upgrade the Citrix ADC instances on an individual basis, without affecting the other instances or the SDX appliance. This allows the instances to run different firmware versions and provides flexibility and convenience for the administrator.

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course description12, one of the objectives is to “Configure Citrix ADC to monitor and report on the health of your environment”. The course also covers how to use Citrix Application Delivery Management to monitor and manage multiple Citrix ADC instances. According to the Citrix documentation3, Network Reporting on Citrix Application Delivery Management allows you to generate reports based on various metrics and events collected from the Citrix ADC instances. You can also configure thresholds and alerts for the reports, and specify the email addresses to receive the notifications. Therefore, the correct answer is D.

When using an HDX Session printers policy, print jobs sent to a printer managed by the print server are routed directly to the network print server and then to the specified printer3.

Application Prelaunch is a feature that allows users to launch applications faster by creating a session when the user logs on to Citrix Workspace app, before the user requests an application. This feature is enabled by Delivery Group and can be configured for all users or a subset of users1.

Session Sharing is a feature that allows users to launch multiple applications using the same session, reducing the load on the server and improving the user experience. This feature is enabled by default and can be configured using Citrix policies2.

1: Prelaunch and linger 2: Session Sharing Explained with Troubleshooting Steps

When deploying a Citrix Virtual Apps and Desktops Site with SQL database mirroring, Citrix requires that the collation setting used by the Site database must be explicitly set and must match the required Citrix standard. Citrix documentation states that the database collation must be case-insensitive and consistent between the principal and mirror SQL servers.

This collation is not automatically assigned by SQL Server when you create an empty database for mirroring. Therefore, administrators must manually configure the correct collation during initial creation. If the collation does not match Citrix requirements, the Site creation or Controller functionality may fail.

Other listed options (SQL version, database type, mirroring version) do not require manual configuration at database-creation time for Citrix Sites.

Documentation References:

Citrix Virtual Apps and Desktops Database Requirements → SQL Collation Requirements

Citrix Delivery Controller Installation Requirements → Database Mirroring Configuration

 According to the Citrix documentation2, the SDX platform is a multi-tenant appliance that supports multiple Citrix ADC instances. Each instance is fully isolated and has its own dedicated resources. The SDX platform allows administrators to create, manage, and monitor multiple instances from a single management interface.

Citrix Director provides a feature under the Trends section where administrators can configure and review application faults. This allows them to monitor and analyze applications that have crashed, helping to identify patterns or recurring issues.

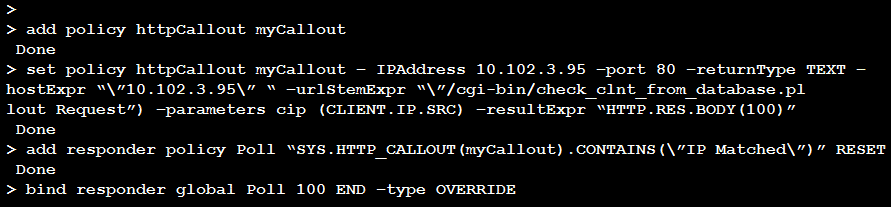

 The administrator should negate the expression of the Responder policy to avoid the HTTP callout recursion issue. According to the Citrix documentation, “If you configure an HTTP callout policy that is bound globally, you must ensure that the policy expression does not match the callout request. Otherwise, the callout request will trigger the policy, resulting in a callout recursion.” The expression in option B ensures that the policy does not match the callout request by adding the NOT operator at the end.

https://docs.citrix.com/en-us/citrix-adc/13/appexpert/http-callout/http-callout-policy.html

 According to the Citrix documentation1, HA monitoring should be enabled only on interfaces that are UP on both nodes. If HA monitoring is enabled on a disabled interface of the primary node, the secondary node will not be able to receive heartbeats from the primary node and will not initiate a failover.

According to the Citrix documentation1, burst capacity allows an instance to use more bandwidth than its dedicated bandwidth when there is spare bandwidth available on the SDX appliance. The priority parameter determines which instance gets the spare bandwidth first. A higher priority value indicates a higher priority. Therefore, the administrator can configure burst capacity of 1GB with priority 10 on the instance that requires more bandwidth, to meet traffic requirements.

1: Citrix Virtual Apps and Desktops 7 Deployment and Administration - Configure burst capacity

 According to the Citrix documentation, the Citrix Cloud Connector is a Citrix component that serves as a channel for communication between Citrix Cloud and the resource locations, enabling cloud management without requiring any complex networking or infrastructure configuration. This removes all the hassle of managing delivery infrastructure. The Cloud Connector also provides services for the Citrix Cloud Delivery Controllers to configure the resource location where Citrix Provisioning runs. Therefore, the administrator needs to install Citrix Cloud Connectors on the Citrix Provisioning servers to migrate the Citrix Provisioning environment to Citrix Cloud1

 Profile streaming ensures that only the files and folders that a user needs are downloaded to the VDA during logon and logoff. This reduces logon and logoff times and allows users to access their profiles in the event of network interruptions or VDA failures1

1: https://docs.citrix.com/en-us/profile-management/current-release/configure/profile-streaming.html

LACP allows multiple network interfaces to be bundled together to form a single logical channel. This can increase the bandwidth and availability of the Citrix ADC1

1: Configure LACP

Machine Creation Services (MCS) is suitable for deploying a large number of virtual desktops with low impact on network infrastructure. MCS allows for user-installed applications and persistency by using differencing disks and personal vDisks.

According to the Citrix Secure Web Gateway 12.1 documentation1, Citrix Secure Web Gateway (SWG) is a cloud-delivered service that provides secure access to web and SaaS applications, globally. It provides a complete stack of security capabilities, such as Secure Web Gateway, Cloud Access Security Broker, Malware Protection with Sandboxing, Intrusion Prevention and Detection Systems, and Data Loss Prevention. Citrix SWG can intercept and inspect all the traffic, including SSL/TLS, coming in and going out of the enterprise network. It can also block access to URLs identified as serving harmful or insecure content, and identify users who are accessing malicious websites. Citrix SWG can be deployed as a proxy on a Citrix ADC appliance at the edge of the network. The other options are not relevant for this scenario, as they do not provide the same level of security and visibility as Citrix SWG.

According to the Citrix Virtual Apps and Desktops 7 Administration On-Premises and in Citrix Cloud course, the Responder policy expression determines which requests are redirected by the Responder action. The expression http.REQ.URL.EQ(“/”) matches only the requests for the root page, and not any other pages. This prevents the redirection loop that occurs when the Responder action expression is also the root page. The other options are incorrect because they either match all requests or none.

According to the Citrix documentation, the command bind cs vserver MYVPN_http -lbvserver Vserver-CS-1 binds a load balancing virtual server to a content switching virtual server. This means that the content switching virtual server will forward the requests that match its policies to the load balancing virtual server. In this case, the content switching virtual server MYVPN_http has a policy that matches requests for http://server.citrix.lab, so it will forward those requests to the load balancing virtual server Vserver-CS-1. Therefore, the users trying to access http://server.citrix.lab will be connected to the Vserver MYVPN_http, which will then connect them to Vserver-CS-1.
