CompTIA 220-1202 Dumps Questions Answers

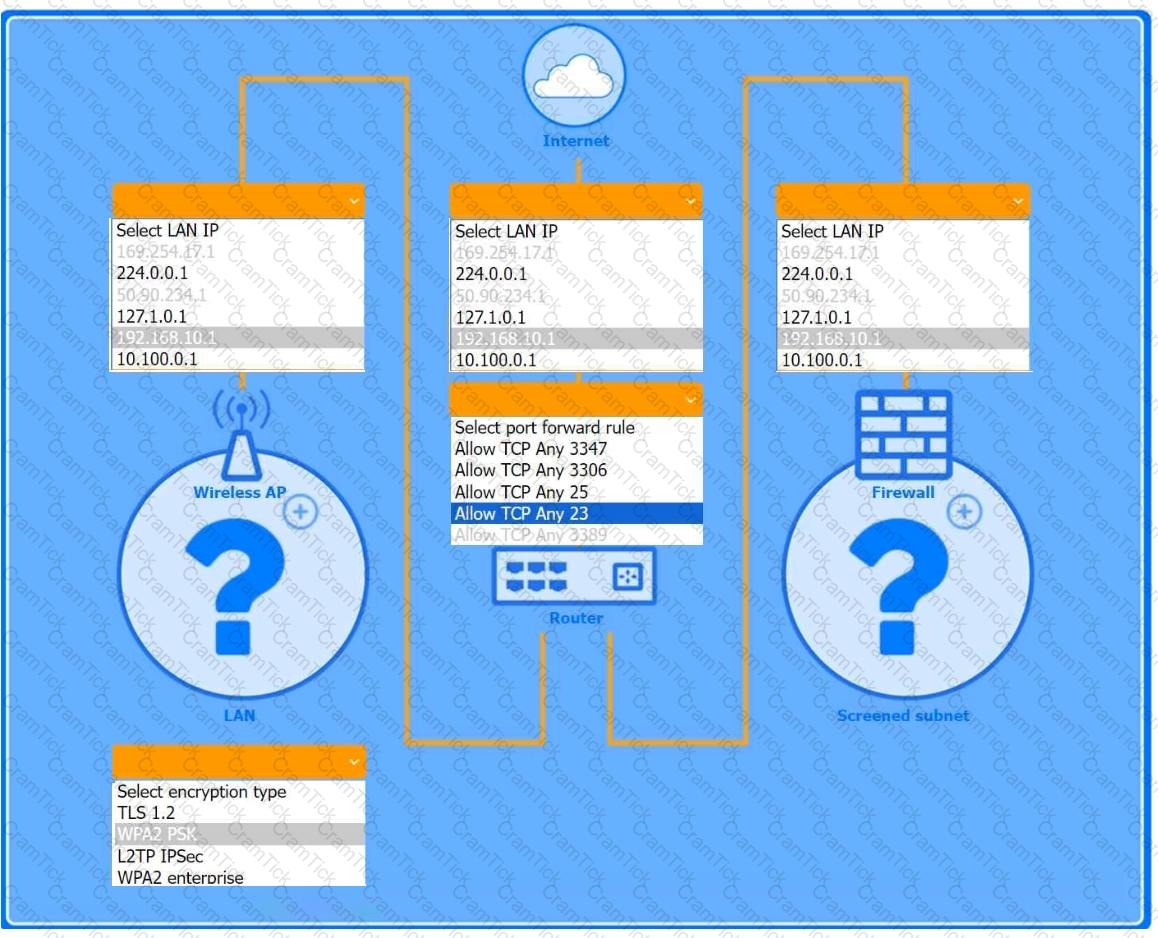

The completed configuration:

1. Wireless AP (LAN side)

1. LAN IP: 192.168.10.1

2. Encryption: WPA2 PSK

2. Router (port-forward rule)

1. Allow TCP Any 3389

This forwards inbound RDP traffic (TCP/3389) from the Internet to the Windows PC, enabling Remote Desktop access.

3. Firewall (screened subnet side)

1. LAN IP: 10.100.0.1

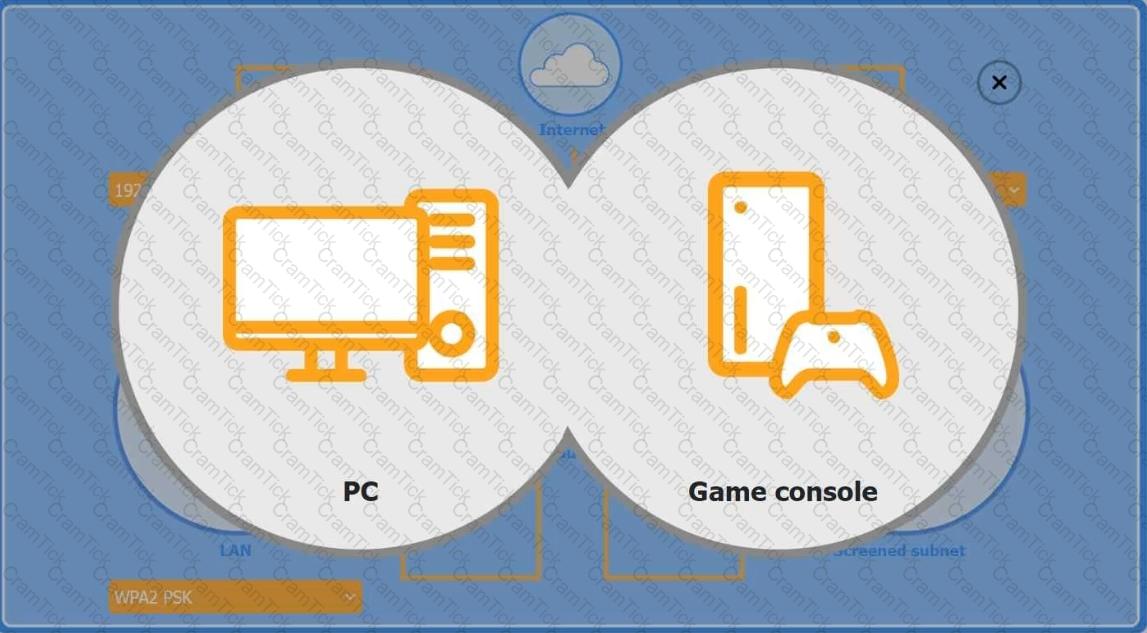

4. Device placement

1. PC: place behind the router (where the port-forward rule points).

2. Game console: place on the Wireless AP (so it can use chat and extra services over WPA2 PSK).

3. Firewall: place in front of the screened subnet (with its 10.100.0.1 IP facing that subnet).

The Windows PC is placed in the screened subnet (behind the firewall) for enhanced security. Remote access to this PC requires port forwarding of TCP port 3389 (RDP), which is correctly configured through the router.

The Game Console is placed on the Wireless AP LAN, using WPA2 PSK for a secure wireless connection. Game consoles typically use peer-to-peer chat and online services that require open access without firewall restrictions, which is why the console is not placed behind the firewall.

CompTIA A+ 220-1102 Reference Points:

Objective 3.4: Given a scenario, implement best practices associated with data and device security.

Objective 2.4: Given a scenario, use appropriate tools to support and configure network settings.

Study Guide Reference: CompTIA A+ Core 2 guides recommend using screened subnets (a type of DMZ) for systems needing controlled external access, such as remote desktops, while placing gaming and media devices on less restricted networks for full functionality.

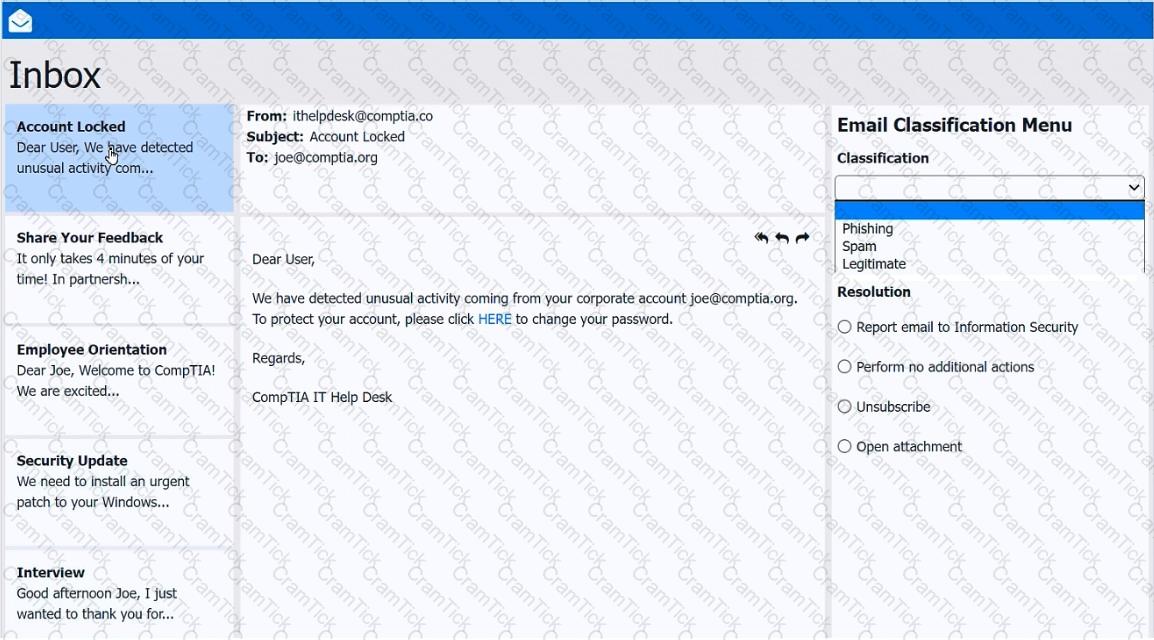

Inbox mail 1 -Account Locked- Phishing - Report email to Information Security

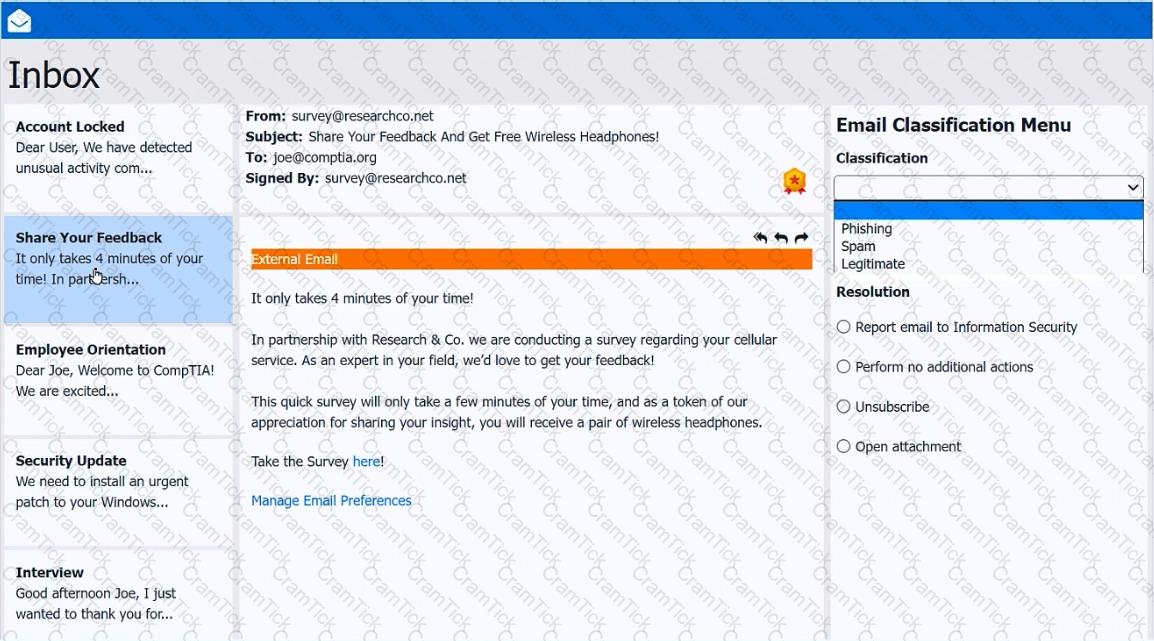

Inbox mail 2 -Share your feedback - Legitimate - Perform no additional actions

Inbox mail 3 –Employee orientation - Legitimate - Perform no additional actions

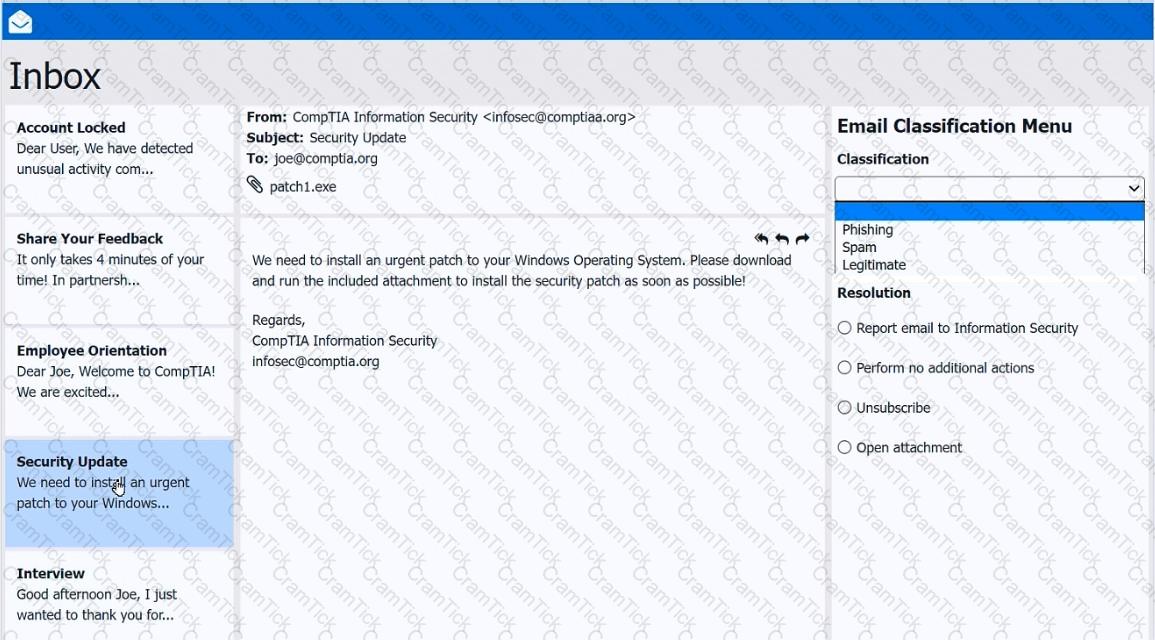

Inbox mail 4 –Security Update – Spam - Report email to Information Security

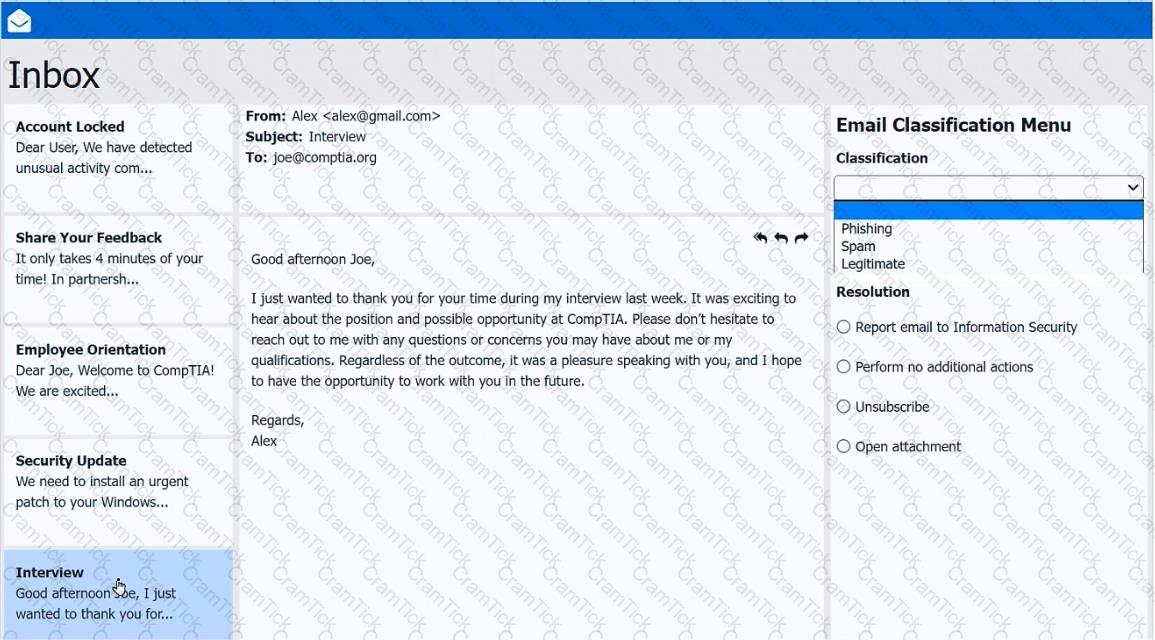

Inbox mail 5 –Interview - Legitimate - Perform no additional actions

—

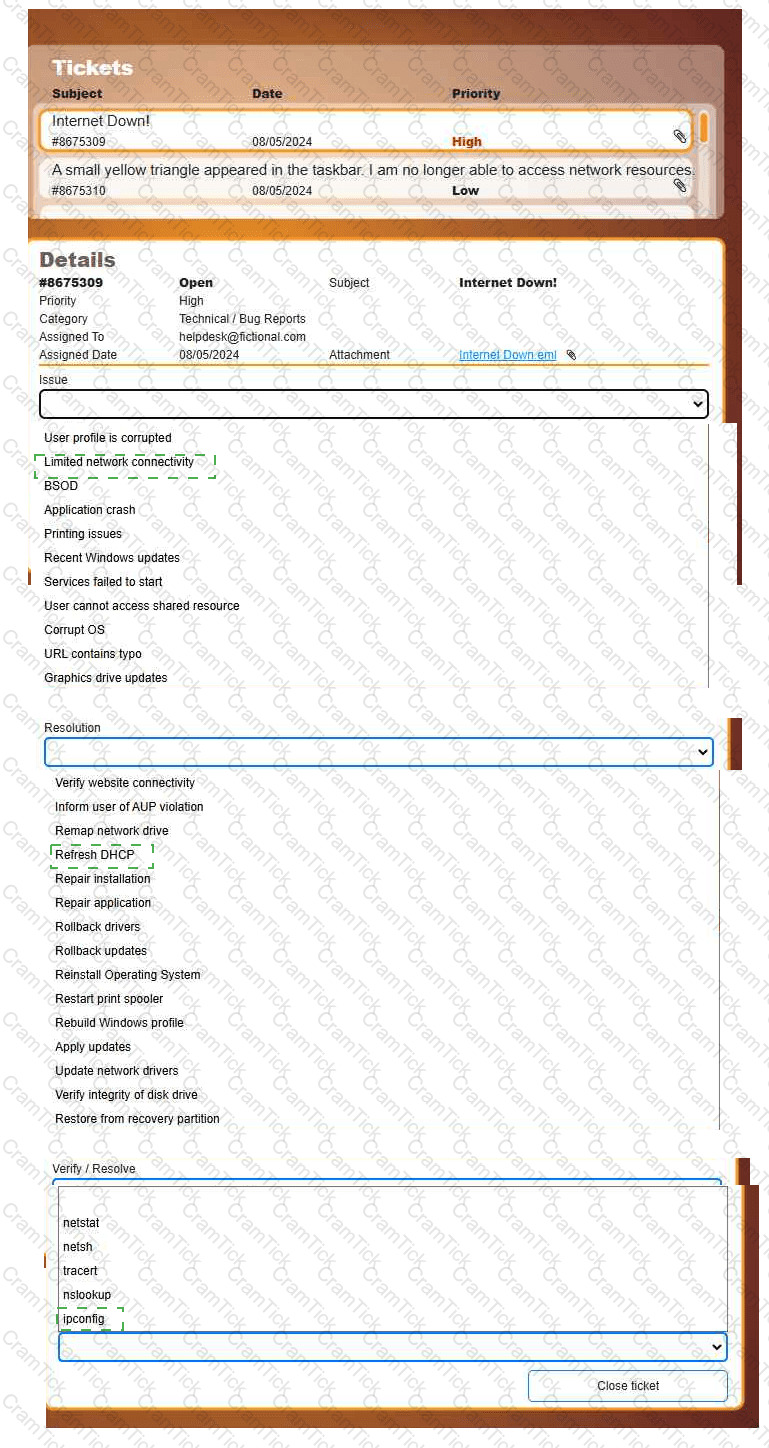

Issue: Limited network connectivity

Resolution: Refresh DHCP

Verify/Resolve: ipconfig

Issue (drop-down)

Limited network connectivity

Why this matches:

“Internet Down” most commonly indicates the workstation has lost valid Layer 3 connectivity (bad/expired DHCP lease, APIPA address, wrong gateway, etc.). In CompTIA A+ terms, this aligns best with limited connectivity symptoms (can’t reach internet resources).

Resolution (drop-down)

Refresh DHCP

Why this is the most efficient fix:

If the client has:

an expired lease

an APIPA address (169.254.x.x) because DHCP failed

an incorrect IP/gateway from a bad lease

…then the fastest first remediation is to renew DHCP to obtain a correct IP address, default gateway, and DNS servers. This is a standard CompTIA A+ troubleshooting action (quick, low-risk, high-success).

Verify/Resolve (drop-down)

ipconfig

Why this is the correct verification tool:

ipconfig is the primary Windows CLI tool to:

check current IP settings (ipconfig /all)

release/renew DHCP (ipconfig /release and ipconfig /renew)

confirm you received a valid IP + gateway + DNS, which is required for internet access.

What you would do (mapped to those choices)

Using ipconfig to complete “Refresh DHCP” and confirm the fix:

Check current addressing

ipconfig /all

Look for:

Valid IPv4 (not 169.254.x.x)

Valid Default Gateway

DNS servers present

Refresh the DHCP lease

ipconfig /release

ipconfig /renew

Verify outcome

Run ipconfig again to confirm:

You now have a correct IP for the network

Default gateway is populated

If the gateway/DNS populate correctly, internet access typically returns.
