R1 and R2 are configured as eBGP neighbor , R1 is in AS100 and R2 is in AS200. R2 is advertising these networks to R1:
The network administrator on R1 must improve convergence by blocking all subnets of 172-16.0.0/16 major network with a mask lower than 23 from coming in, Which set of configurations accomplishes the task on R1?
Refer to the exhibit.
A customer reports that user traffic of bank XYZ to the AAA server is not using the primary path via the R3-R2 link. The network team observes:
No fiber is cut on links R2 and R3.
As101 and AS 201 routers established BGP peering.
Which configuration resolves the issue?
A)
B)
C)
D)
Refer to the exhibit After a misconfiguration by a junior engineer, the console access to router A is not working Which configuration allows access to router A?
A)
B)
C)
D)
Refer to Exhibit.
The network administrator configured the branch router for IPv6 on the E0/0 interface. The neighboring router is fully configured to meet requirements, but the neighbor relationship is not coming up. Which action fixes the problem on the branch router to bring the IPv6 neighbors up?
Refer to the exhibit.
After a security audit, the administrator implemented an ACL in the route reflector. The RR became unreachable from any router in the network. Which two actions resolve the issue? (Choose two.)
Exhibits:
Refer to the exhibit The administrator configured the network devices for end-to-end reachability, but the ASBRs are not propagating routes to each other Which set of configurations resolves this issue?
Refer to the exhibit.

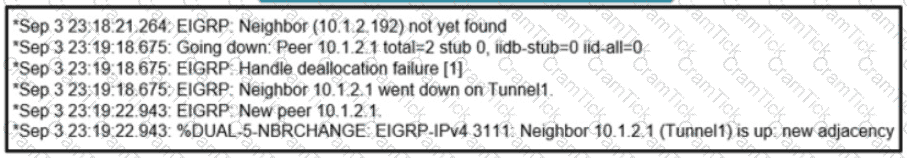

An administrator is configuring a GRE tunnel to establish an EIGRP neighbor to a remote router. The
other tunnel endpoint is already configured. After applying the configuration as shown, the tunnel
started flapping. Which action resolves the issue?
Refer to the exhibit.
The AP status from Cisco DNA Center Assurance Dashboard shows some physical connectivity issues from access switch interface G1/0/14. Which command generates the diagnostic data to resolve the physical connectivity issues?
Refer to the exhibit.
While troubleshooting a BGP route reflector configuration, an engineer notices that reflected routes are missing from neighboring routers. Which two BGP configurations are needed to resolve the issue? (Choose two)

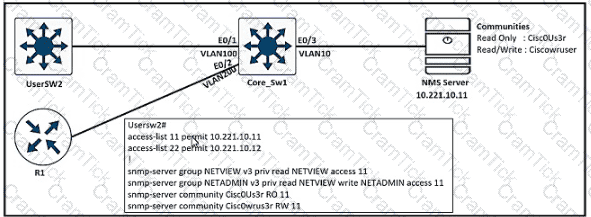

Refer to the exhibit.
Network operations cannot read or write any configuration on the device with this configuration from the operations subnet. Which two configurations fix the issue? (Choose two.)
Refer to the exhibit. An organization is installing a new L3 MPLS link to establish DM VPN Phase 2 tunnels between the hub and two spoke routers Which additional configuration should the engineer implement on each device to achieve optimal routing between the spokes?
A)
B)
C)
D)
Refer to the exhibit.
An engineer is trying to add an encrypted user password that should not be visible in the router configuration. Which two configuration commands resolve the issue? (Choose two)
Refer to the exhibit. R1 should have BGP routes marked with an " i " (IGP origin code). Which configuration resolves the issue?
Exhibit.
Refer to the exhibit. A network is configured for EIGRP equal-cost load balancing, but the traffic destined to the servers is not load balanced. Link metrics from router R2 to R3 and R4 are the same. Which delay value must be configured to resolve the issue?

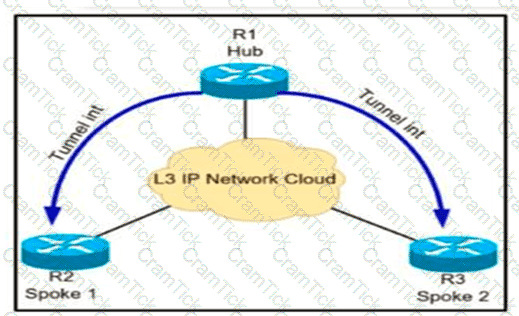

Refer to me exhibit. The hub and spoke are connected via two DMVPN tunnel interfaces The NHRP is configured and the tunnels are detected on the hub and the spoke Which configuration command adds an IPsec profile on both tunnel interfaces to encrypt traffic?

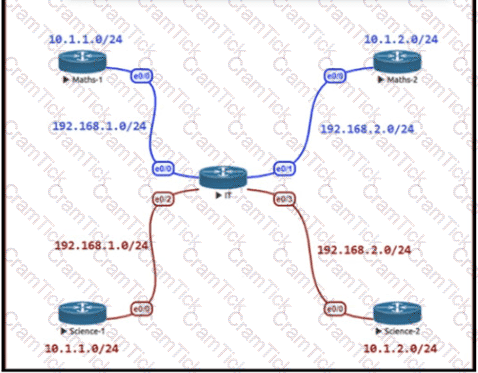

Refer to the exhibit.
A network engineer must establish communication between three different customer sites with these requirements:
Site-A: must be restricted to access to any users at Site-B or Site-C.
Site-B and Site-C must be able to communicate between sites and share routes using OSPF.
Which configuration meets the requirements?
Refer to the exhibit.
Which action makes 10.1.3.2 the feasible successor to reach 10. 200. 1 0/24 for location S42T447E33F95?
Refer to the exhibit The route to 192 168 200 0 is flapping between R1 and R2 Which set of configuration changes resolves the flapping route?

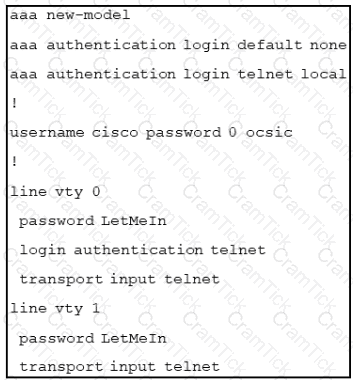

A network administrator opens a telnet connection to the router and gets the message:
R1#telnet 10.1.1.2
Trying 10 1.1 2 Open
(Connection to 10.1.1.2 closed by foreign host)
Router R2 is configured with enable secret and password commands. Which action resolves the issue?
Refer to the exhibit Which action ensures that 10 10 10 0/24 reaches 10 10 20 0/24 through the direct link between R1 and R2?
Refer to the exhibit.
An engineer must filter incoming EIGRP updates to allow only a set of specific prefixes. The distribute list is tested, and it filters out all routes except network 10.10.10.0/24. How should the engineer temporarily allow all prefixes to be learned by the routers again without adjusting the existing access list?

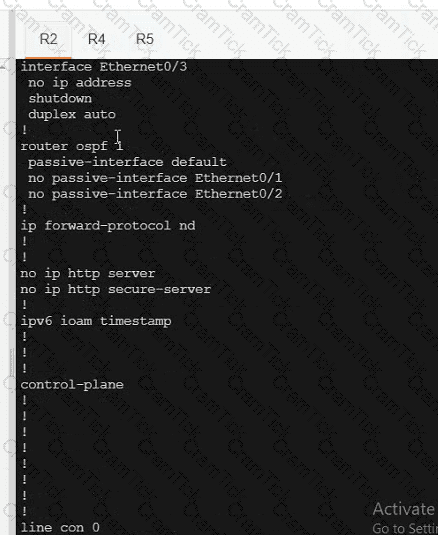

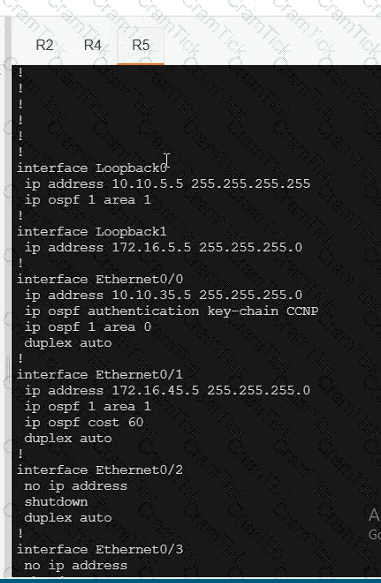

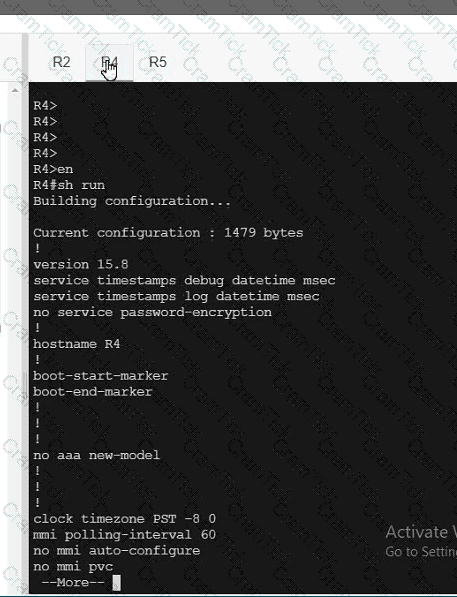

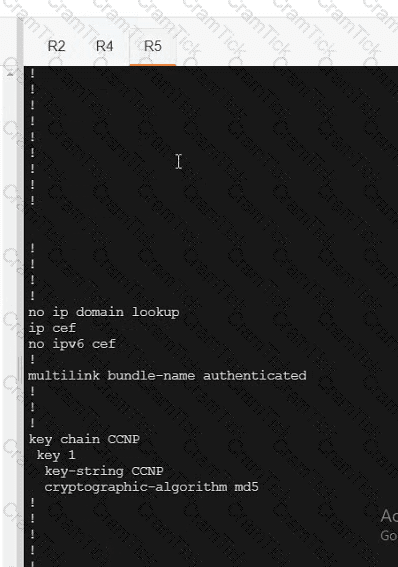

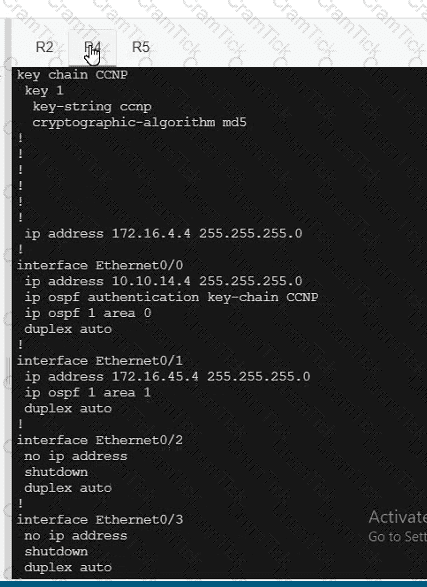

Refer to the exhibit. An engineer received a complaint that R1 and R5 cannot establish a Telnet connection on R2. TACACS server application 10.1.1.10/24 Is not receiving authentication requests from R2,OSPF and EIGRP are functional. Telnet credentials configured are username: Admin, and password: Cisco$123. Which action must be taken to enable the authentication on R2?
Refer to the exhibit. Which configuration resolves the route filtering issue on R1 to redistribute all the routes except 172.16.2.48/28?
A)
B)
C)
D)
Refer to the exhibit. In Cuco DNA Center, a network engineer identifies that BGP-learned networks are repeatedly withdrawn from peers. Which configuration must the engineer apply to resolve the Issue?
A)
B)
C)
D)
Refer to lhe exhibit. APC is configured to obtain an IP address automatically, but it receives an IP address only from the 169.254.0.0 subnet The DHCP server logs contained no DHCPDISCOVER message from the MAC address of the PC. Which action resolves the issue?

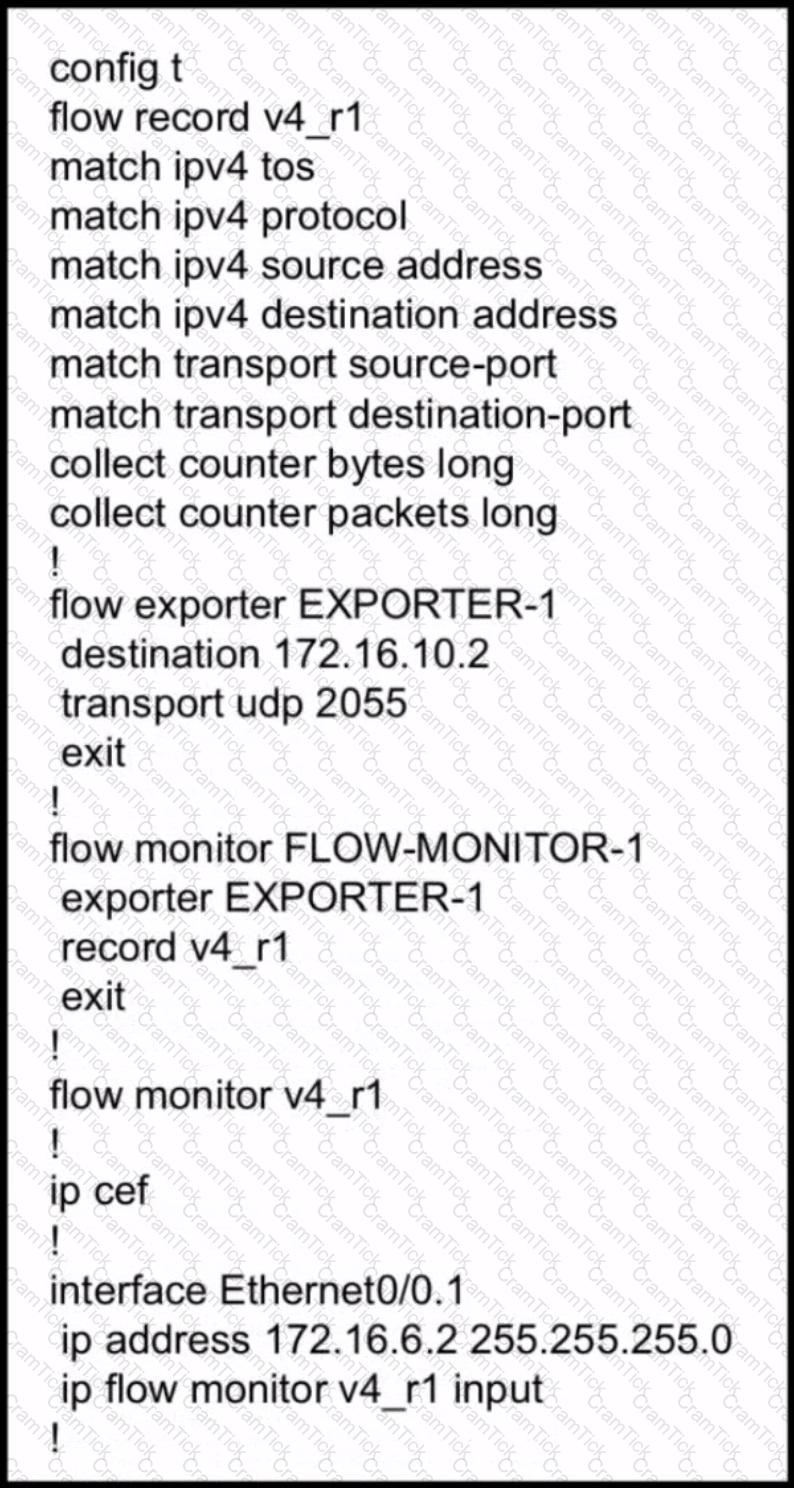

Refer to the exhibit An engineer configured NetFlow but cannot receive the flows from R1 Which two configurations resolve the issue? (Choose two )
A)
B)
C)
D)
E)
Refer to the exhibit. An administrator must upload the packages conf Me to an FTP server. However, the FTP server rejected anonymous service and required users to authenticate What are the two ways to resolve the issue? (Choose two.)
Refer to the exhibit.
A network engineer applied a filter for LSA traffic on OSPFv3 interarea routes on the area 5 ABR to protect advertising the internal routes of area 5 to the business partner network. All other areas should receive the area 5 internal routes. After the respective route filtering configuration is applied on the ABR, area 5 routes are not visible on any of the areas. How must the filter list be applied on the ABR to resolve this issue?
Refer to the exhibit.

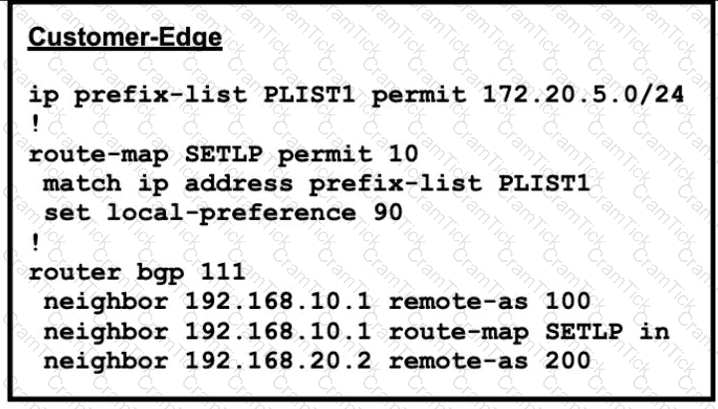

The Customer Edge router (AS 65500) wants to use ASC100 as the preferred ISP for all external routes.
This configuration failed to send routes to AS 100 as the preferred path. Which set of configuration resolves the issue?

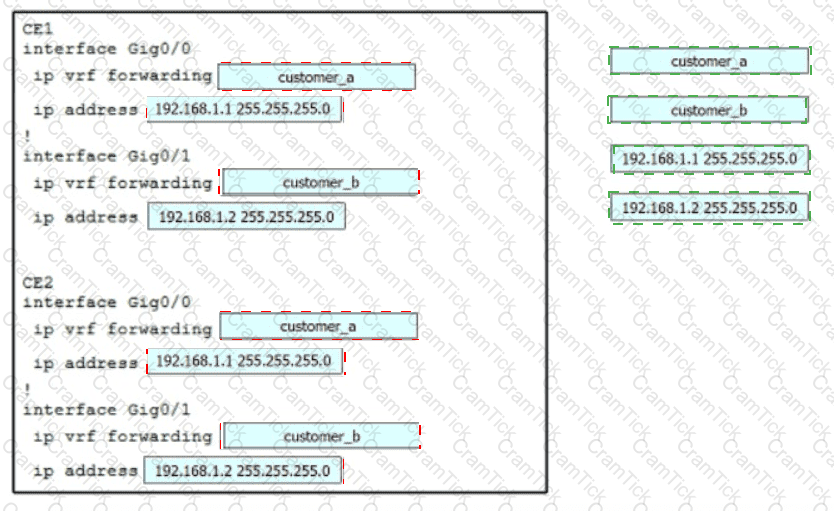

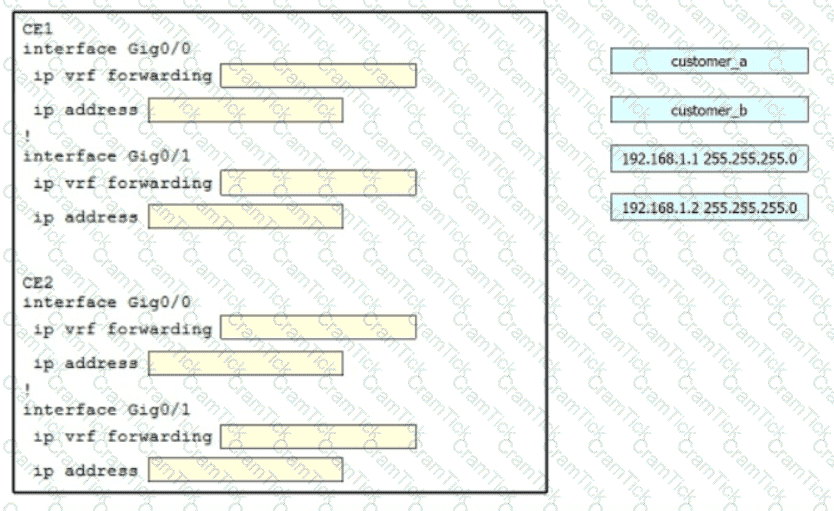

An engineer must establish a connection between two CE routers for two customers with overlapping IP addresses Customer_a is connected to interfaces Gig0/0, and Customer_b is connected to interfaces Gig0/1. Routers CE1 and CE2 are configured as follows:
Drag and drop the code snippets from the right onto the boxes in the configuration to establish the needed connection. Snippets may be used more than once.

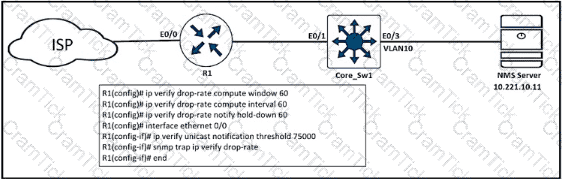

Refer to the exhibit. An engineer implements uRPF to increase security and stop incoming spoofed IP packets. Some asymmetrically routed packets are also blocked after the configuration. Which command resolves the issue?
Refer to the exhibit.
After applying IPsec, the engineer observed that the DMVPN tunnel went down, and both
spoke-to-spoke and hub were not establishing. Which two actions resolve the issue? (Choose two.)

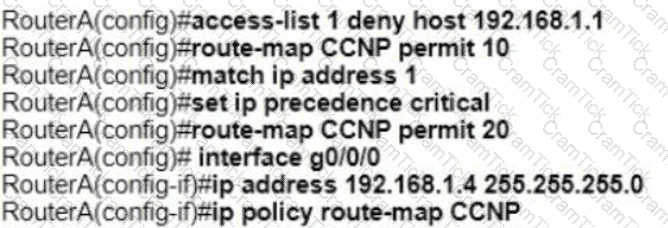

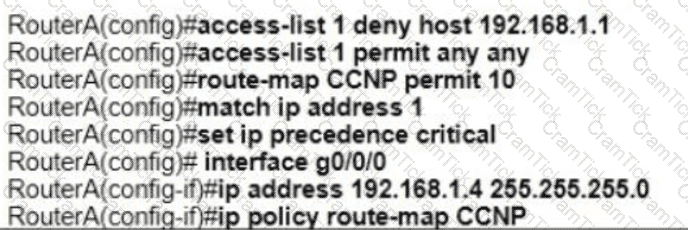

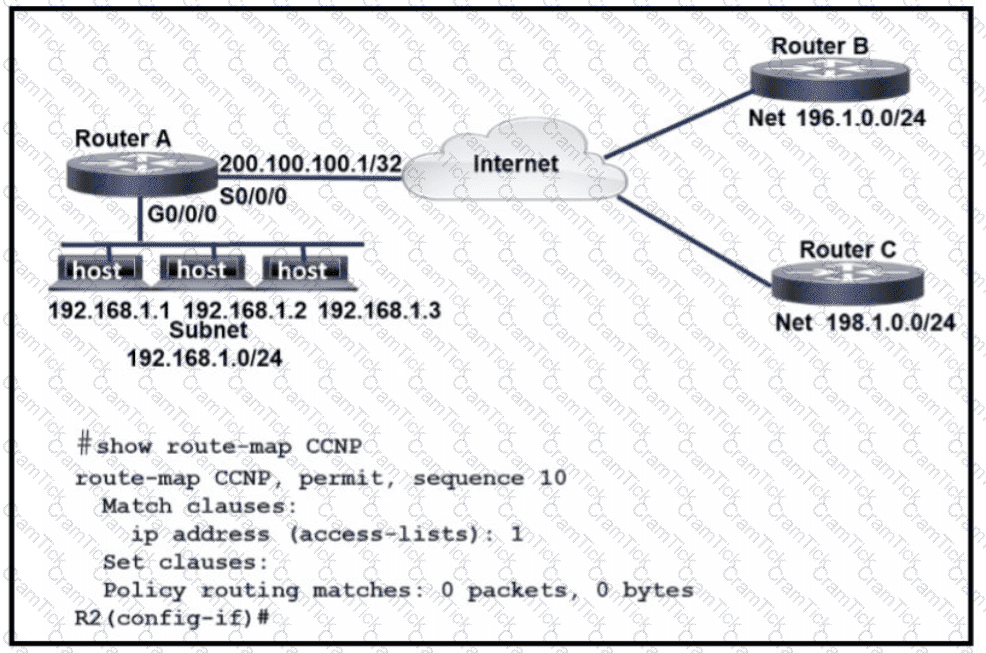

Refer to the exhibit. An engineer configures router A to mark all inside to outside traffic from network 192 168 1 0, except from host 192 168 1 1. with critical IP precedence. The policy did not work as expected Which configuration resolves the issue?
A)
B)
C)
D)
The network administrator configured the router for Control Plane Policrg so that inbound SSH traffic is policed to 500 kbps This policy must apply to traffic coming in from 101010 0 < 24 and 192 168 10.0/24 networks
The Control Rane Policing is not applied to SSH traffic and SSH is open to use any bandwidth available. Which configuration resolves this issue?
A)
B)
C)
D)
Refer to the exhibit. Bangkok Is using ECMP to reach the 172.20.2.0/24 network. The network administrator must configure. It in such a way that traffic from 172.16.2 0/24 network uses the Singapore router as the preferred route. Which set of configurations accomplishes this task?
A)
B)
C)
D)
:577
Refer to the exhibit. R3 is dual-homed to two service providers for traffic redundancy. R3 prefers its outbound traffic via R2. Which set of configurations achieves this goal?
Refer to the exhibit.
R2 is a route reflector, and R1 and R3 are route reflector clients. The route reflector learns the route to 172.16.25.0/24 from R1, but it does not advertise to R3. What is the reason the route is not advertised?

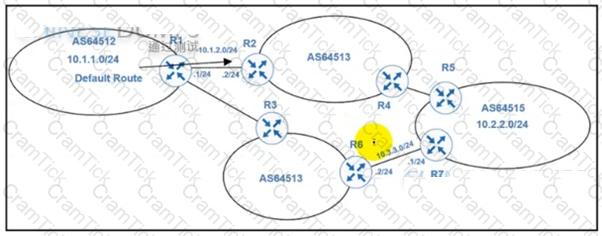

Refer to the exhibit.
A network engineer for AS64512 must remove the inbound and outbound traffic from link A during maintenance without closing the BGP session so that there ............ a backup link over link A toward the ASN. Which BGP configuration on R1 accomplishes this goal?
A)
B)
C)
D)

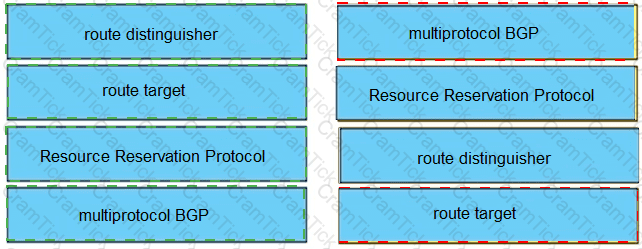

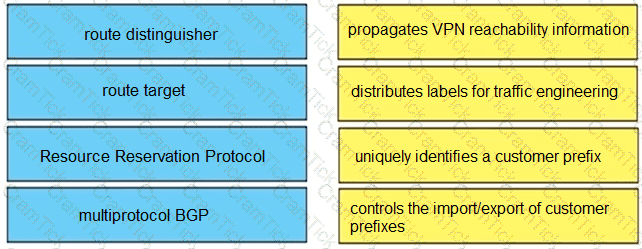

Drag and drop the MPLS VPN concepts from the left onto the correct descriptions on the right.

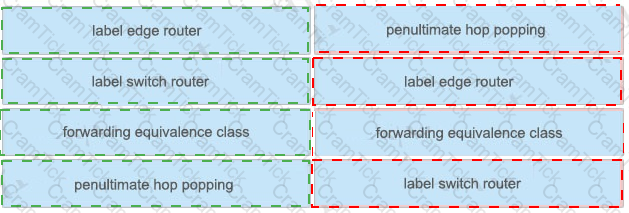

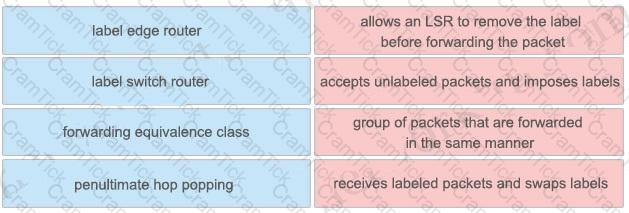

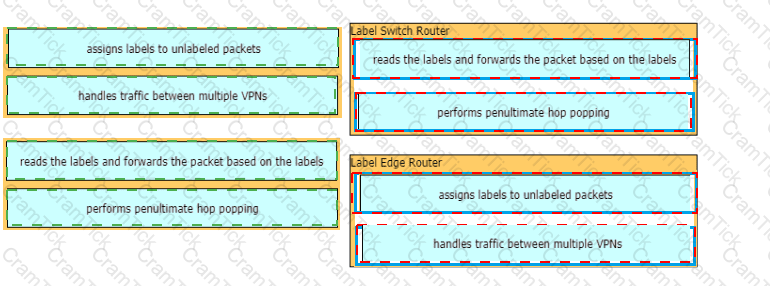

Drag and drop the MPLS terms from the left onto the correct definitions on the right.

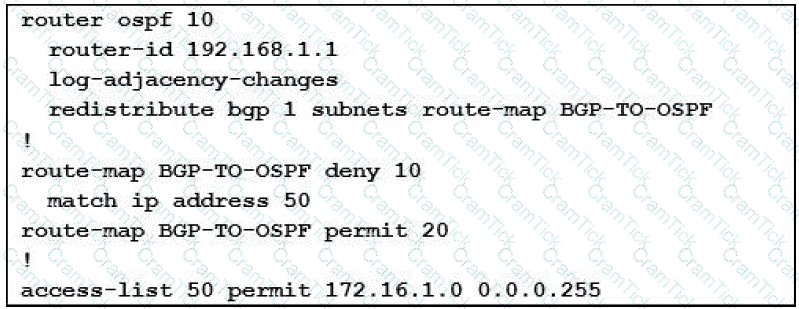

Refer to Exhibit.
Which statement about redistribution from BGP into OSPF process 10 is true?

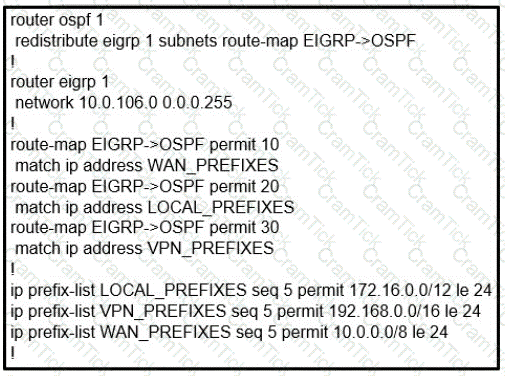

Refer to the exhibit.
Which subnet is redistributed from EIGRP to OSPF routing protocols?
Users were moved from the local DHCP server to the remote corporate DHCP server. After the move,
none of the users were able to use the network.
Which two issues will prevent this setup from working properly? (Choose two)
Refer to the exhibit.
A network is under a cyberattack. A network engineer connected to R1 by SSH and enabled the terminal monitor via SSH session to find the source and destination of the attack. The session was flooded with messages, which made it impossible for the engineer to troubleshoot the issue. Which command resolves this issue on R1?
Refer to the exhibit.
Which control plane policy limits BGP traffic that is destined to the CPU to 1 Mbps and
ignores BGP traffic that is sent at higher rate?
When provisioning a device in Cisco DNA Center, the engineer sees the error message “Cannot select the device. Not compatible with template”.
What is the reason for the error?
Which configuration adds an IPv4 interface to an OSPFv3 process in OSPFv3 address family configuration?
Which command allows traffic to load-balance in an MPLS Layer 3 VPN configuration?
Refer to the exhibit.
Which configuration configures a policy on R1 to forward any traffic that is sourced from
the 192.168.130.0/24 network to R2?
During the maintenance window an administrator accidentally deleted the Telnet-related
configuration that permits a Telnet connection from the inside network (Eth0/0) to the outside of the networking between Friday – Sunday night hours only. Which configuration resolves the issue?
A)
B)
C)
D)
Refer to the following output:
Router#show ip nhrp detail
10.1.1.2/8 via 10.2.1.2, Tunnel1 created 00:00:12, expire 01:59:47
TypE. dynamic, Flags: authoritative unique nat registered used
NBMA address: 10.12.1.2
What does the authoritative flag mean in regards to the NHRP information?
Which command is used to check IP SLA when an interface is suspected to receive lots of traffic with options?
Refer to the exhibit.
An engineer is troubleshooting BGP on a device but discovers that the clock on the device does not correspond to the time stamp of the log entries. Which action ensures consistency between the two times?

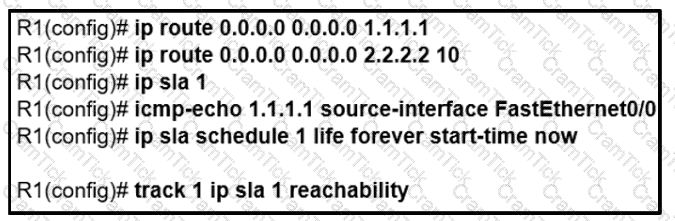

Refer to the exhibit.
An IP SLA is configured to use the backup default route when the primary is down, but it is not working as desired. Which command fixes the issue?
Which two statements about redistributing EIGRP into OSPF are true? (Choose two)
Refer to the exhibit.
Which configuration denies Telnet traffic to router 2 from 198A:0:200C::1/64?
A)
B)
C)
D)
Which two methods use IPsec to provide secure connectivity from the branch office to the headquarters office? (Choose two.)

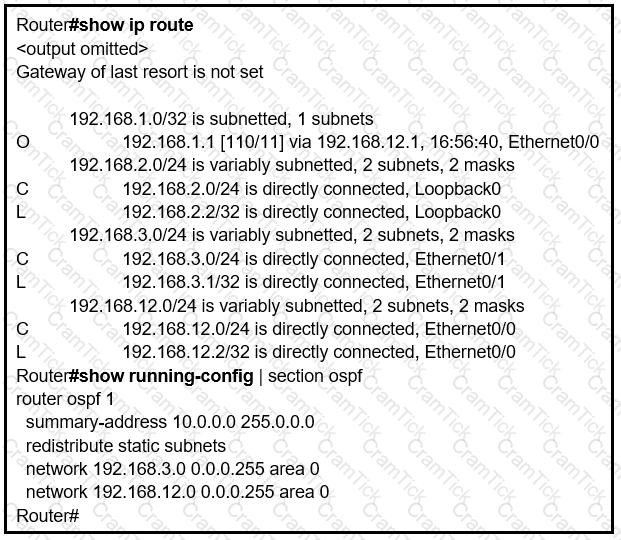

Refer to the exhibit.
An engineer is trying to generate a summary route in OSPF for network 10.0.0.0/8, but the
summary route does not show up in the routing table. Why is the summary route missing?
Drag and drop the operations from the left onto the locations where the operations are performed on the right.
Which protocol is used in a DMVPN network to map physical IP addresses to logical IP addresses?
Refer to the exhibit.
Why is the remote NetFlow server failing to receive the NetFlow data?

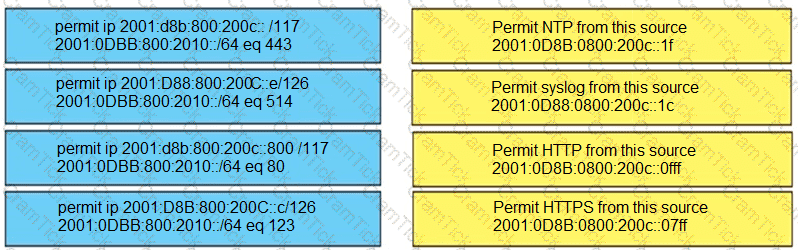

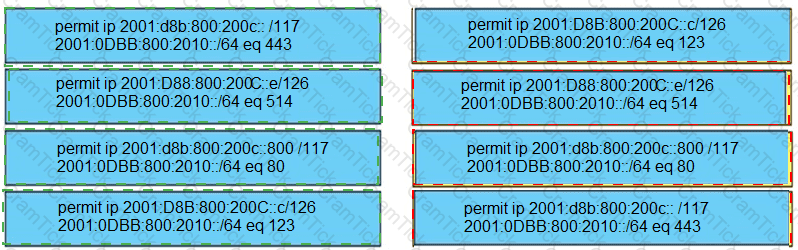

Drag and drop the addresses from the left onto the correct IPv6 filter purposes on the right.
Refer to the exhibit.
A junior engineer updated a branch router configuration. Immediately after the change, the engineer receives calls from the help desk that branch personnel cannot reach any network destinations. Which configuration restores service and continues to block 10.1.1.100/32?

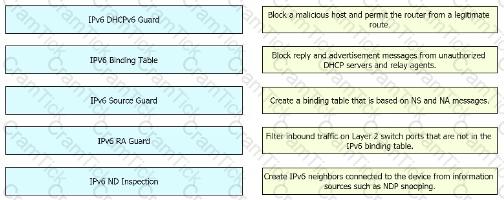

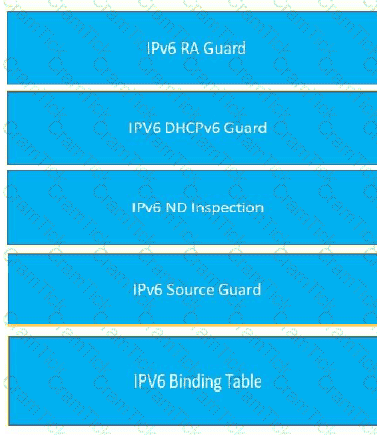

Drag and Drop the IPv6 First-Hop Security features from the left onto the definitions on the right.
Refer to the exhibit.
The server for the finance department is not reachable consistently on the 200.30.40.0/24 network and after every second month it gets a new IP address. Which two actions must be taken to resolve this Issue? (Choose two.)

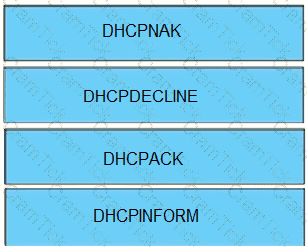

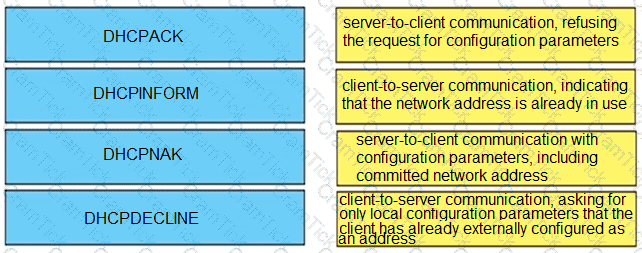

Drag and drop the DHCP messages from the left onto the correct uses on the right.
After some changes in the routing policy, it is noticed that the router in AS 45123 is being used as a transit AS router for several service provides. Which configuration ensures that the branch router in AS 45123 advertises only the local networks to all SP neighbors?
A)
B)
C)
D)

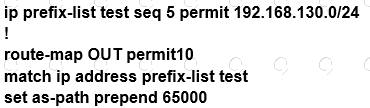

R2 has a locally originated prefix 192.168.130.0/24 and has these configurations:
What is the result when the route-map OUT command is applied toward an eBGP neighbor R1 (1.1.1.1) by using the neighbor 1.1.1.1 route-map OUT out command?
Refer to the exhibit.
The ACL is placed on the inbound Gigabit 0/1 interface of the router. Host
192.168.10.10cannot SSH to host 192.168.100.10 even though the flow is permitted. Which action
resolves the issue without opening full access to this router?
An engineer configured the wrong default gateway for the Cisco DNA Center enterprise interface during the install. Which command must the engineer run to correct the configuration?

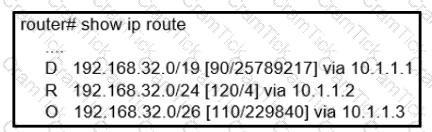

Refer to the exhibit. an engineer is trying to get 192.168.32.100 forwarded through 10.1.1.1, but it was forwarded through 10.1.1.2. What action forwards the packets through 10.1.1.1?

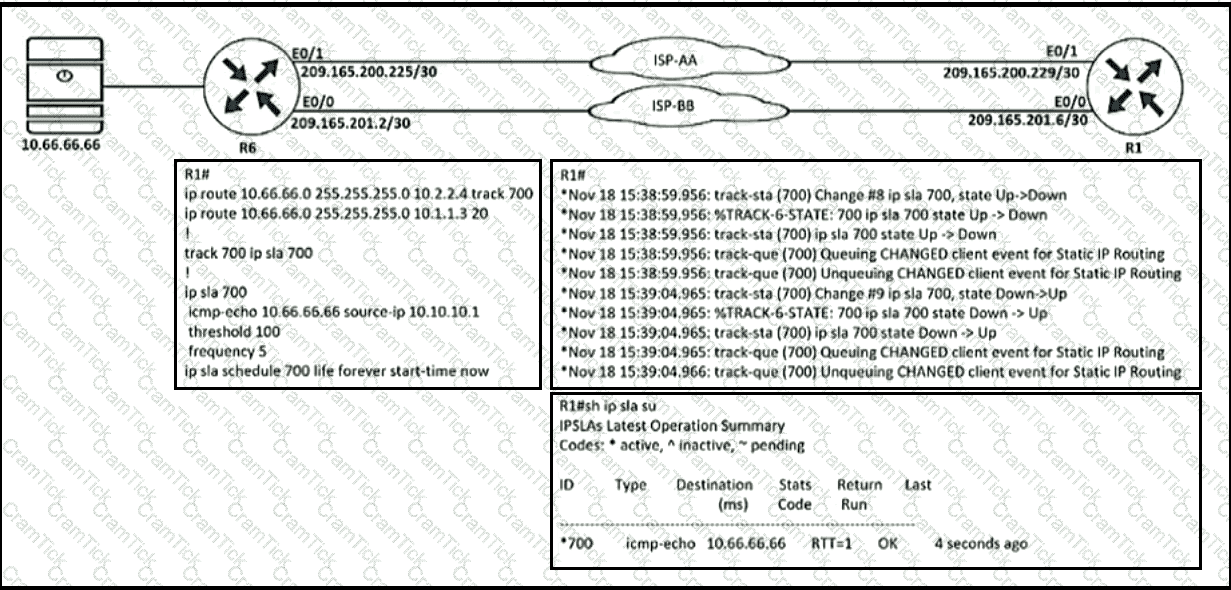

Refer to the exhibit.
ISP 1 and ISP 2 directly connect to the Internet. A customer is tracking both ISP links to
achieve redundancy and cannot see the Cisco IOS IP SLA tracking output on the router console. Which command is missing from the IP SLA configuration?
Which protocol is used to determine the NBMA address on the other end of a tunnel when mGRE is used?
Which component of MPLS VPNs is used to extend the IP address so that an engineer is able to
identify to which VPN it belongs?

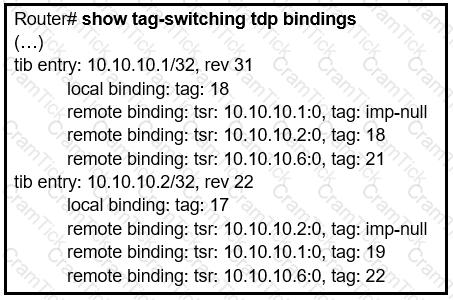

Refer to the exhibit.
What does the imp-null tag represent in the MPLS VPN cloud?

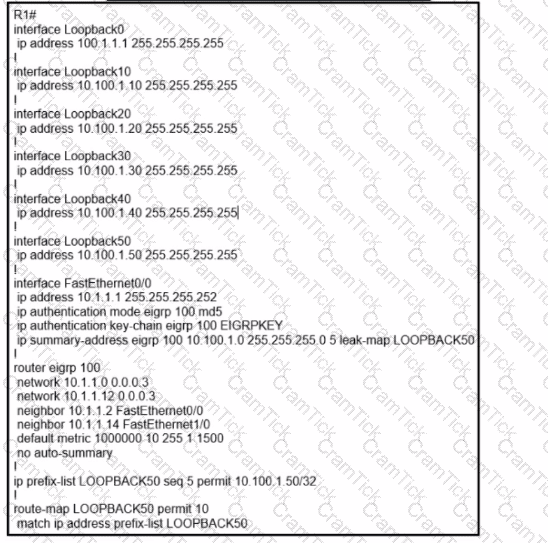

An engineer configured a leak-map command to summarize EIGRP routes and advertise specifically loopback 0 with an IP of 10.1.1.1.255.255.255.252 along with the summary route. After finishing configuration, the customer complained not receiving summary route with specific loopback address. Which two configurations will fix it? (Choose two.)
Drag and drop the packet types from the left onto the correct descriptions on the right.

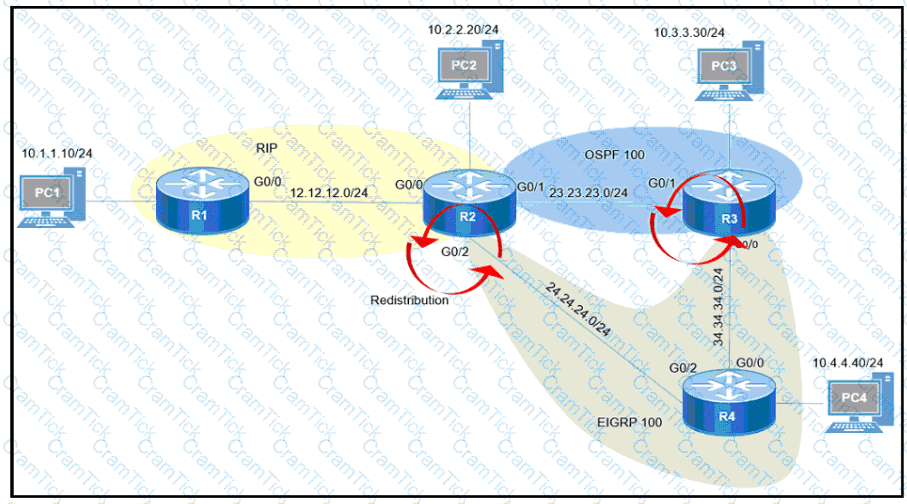

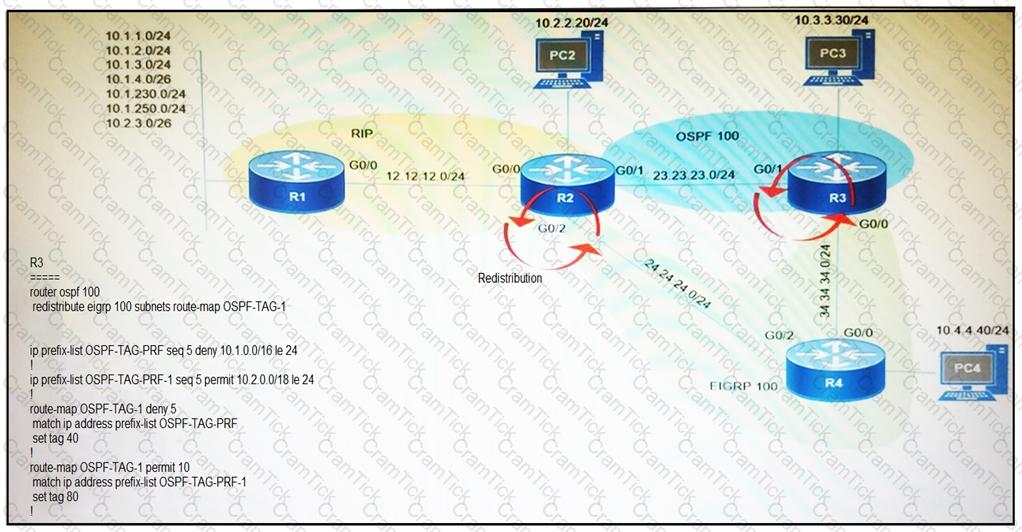

Refer to the exhibit.
Redistribution is enabled between the routing protocols, and nowPC2 PC3, and PC4 cannot reach PC1. What are the two solutions to fix the problem? (Choose two.)
Refer to the exhibit.
A user has set up an IP SLA probe to test if a non-SLA host web server on IP address 10.1.1.1 accepts HTTP sessions prior to deployment. The probe is failing. Which action should the network administrator recommend for the probe to succeed?
What is the minimum time gap required by the local system before putting a BFD control packet on the wire?
Refer to the exhibit.

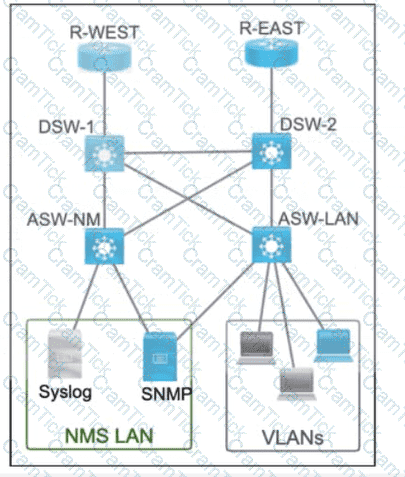

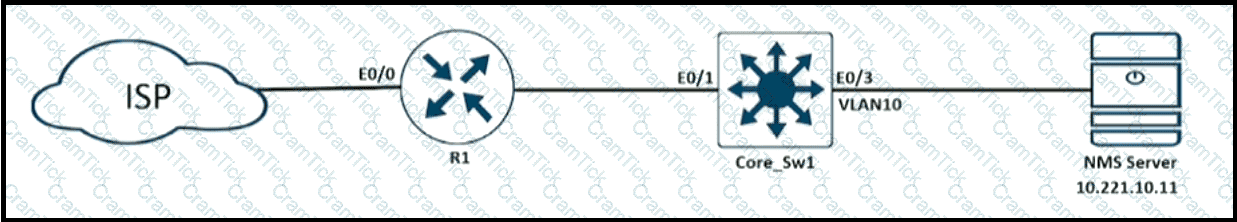

A company is evaluating multiple network management system tools. Trending graphs generated by SNMP data are returned by the NMS and appear to have multiple gaps. While troubleshooting the issue, an engineer noticed the relevant output. What solves the gaps in the graphs?

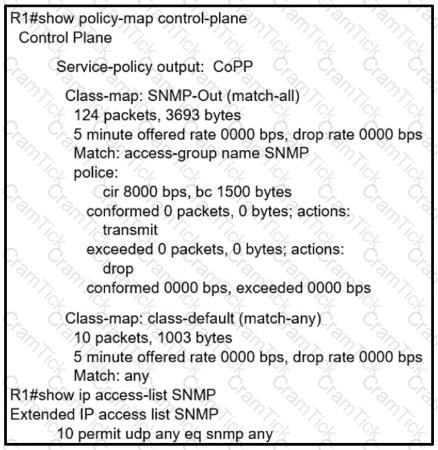

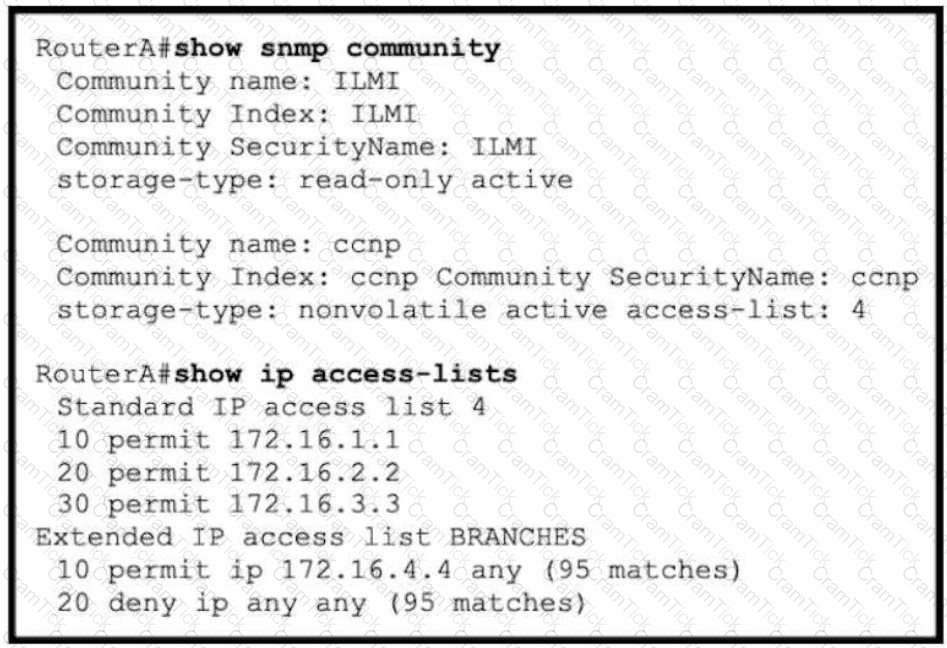

Refer the exhibit.
Which action resolves intermittent connectivity observed with the SNMP trap
packets?
A network engineer needs to verify IP SLA operations on an interface that shows on indication of
excessive traffic.
Which command should the engineer use to complete this action?
While working with software images, an engineer observes that Cisco DNA Center cannot upload its software image directly from the device. Why is the image not uploading?

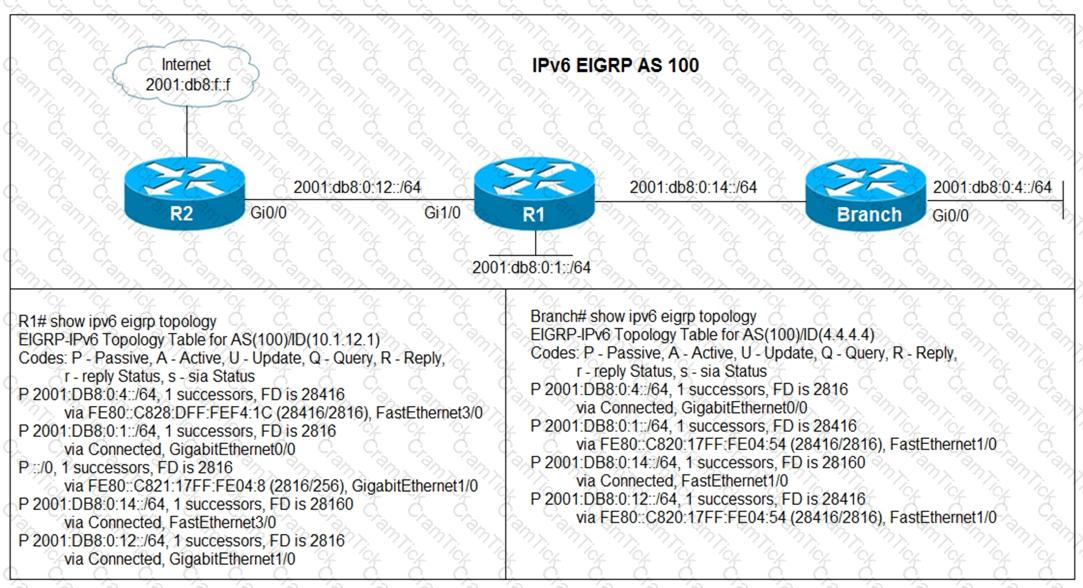

Refer to the exhibit.
Users in the branch network of 2001:db8:0:4::/64 report that they cannot access the Internet. Which command is issued in IPv6 router EIGRP 100 configuration mode to solve this issue?
Refer to the exhibit.

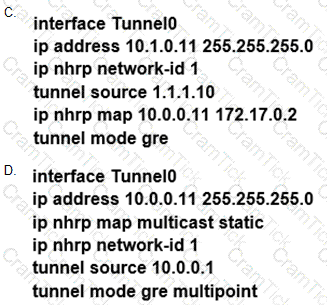

Which interface configuration must be configured on the spoke A router to enable a dynamic DMVPN tunnel with the spoke B router?
Refer to the exhibit.
A network administrator is discovering a Cisco Catalyst 9300 and a Cisco WLC 3504 in Cisco DNA Center. The Catalyst 9300 is added successfully However the WLC is showing [ error " uncontactable " when the administrator tries to add it in Cisco DNA Center. Which action discovers WLC in Cisco DNA Center successfully?

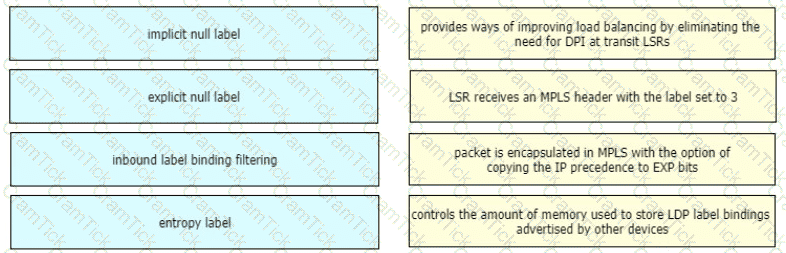

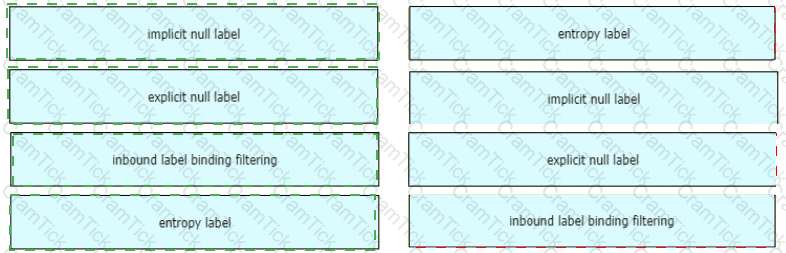

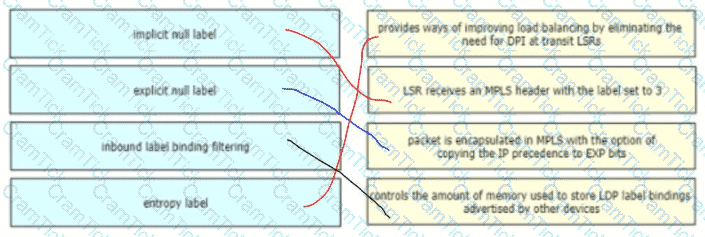

Drag and drop the LDP features from the left onto the descriptions on the right

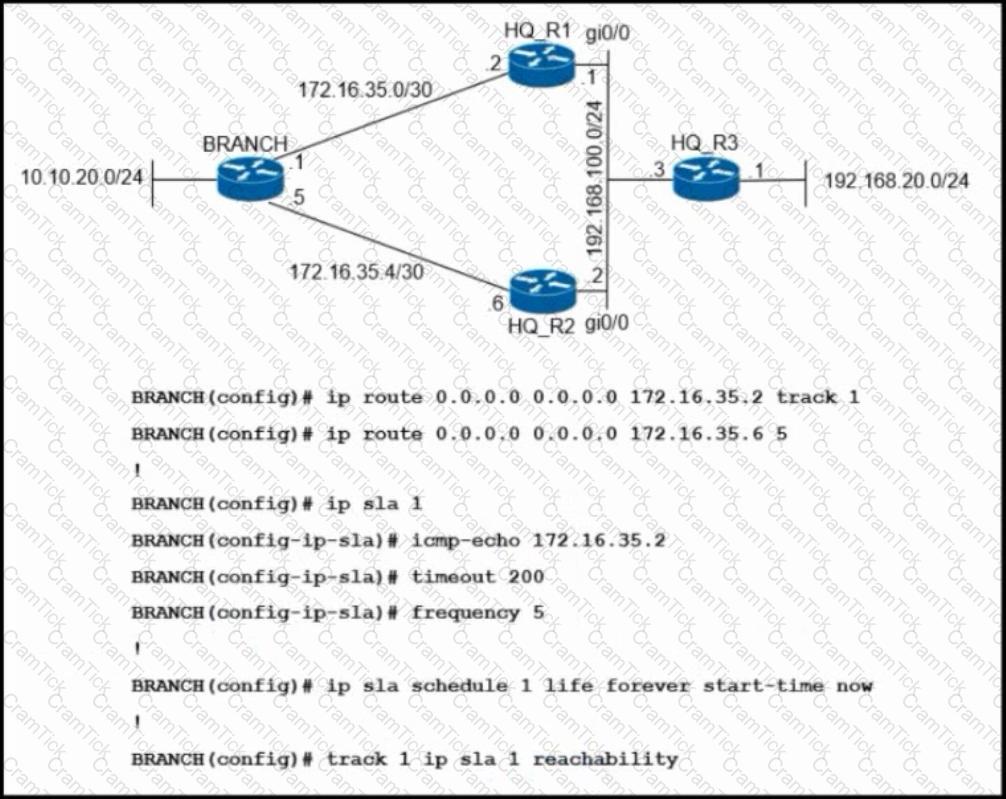

Refer to Exhibit.
Traffic from the branch network should route through HQ R1 unless the path is unavailable. An engineer tests this functionality by shutting down interface on the BRANCH router toward HQ_R1 router but 192.168.20.0/24 is no longer reachable from the branch router. Which set of configurations resolves the issue?

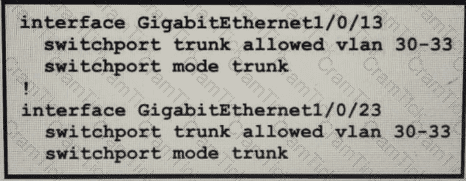

Refer to the exhibit.
An engineer identifier a Layer 2 loop using DNAC. Which command fixes the problem in the SF-D9300-1 switch?

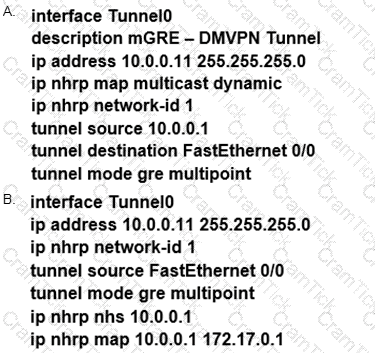

Refer to the exhibit.
Which interface configuration must be configured on the HUB router to enable MVPN with mGRE mode?
Refer to the exhibit.

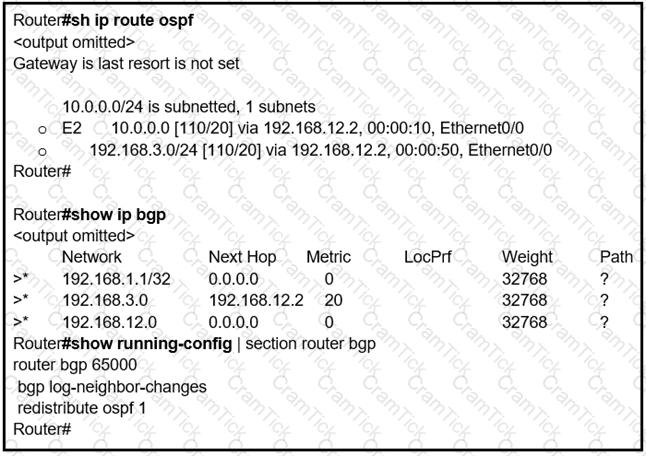

The OSPF routing protocol is redistributed into the BGP routing protocol, but not all the OSPF routes are distributed into BGP Which action resolves the issue?
Refer to the exhibit.
An IPv6 network was newly deployed in the environment and the help desk reports that R3 cannot SSH to the R2s Loopback interface. Which action resolves the issue?
Refer to the exhibit. The remote server is failing to receive the NetFlow data Which action resolves the issue?
Refer to the exhibit.
The network administrator configured redistribution on an ASBR to reach to all WAN networks but failed Which action resolves the issue?
An engineer configured a DHCP server for Cisco IP phones to download its configuration from a TFTP server, but the IP phones failed to toad the configuration What must be configured to resolve the issue?

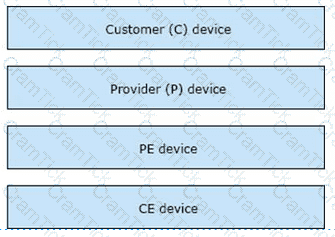

Drag and drop the MPLS VPN device types from the left onto the definitions on the right.
An engineer configured two routers connected to two different service providers using BGP with default attributes. One of the links is presenting high delay, which causes slowness in the network. Which BGP attribute must the engineer configure to avoid using the high-delay ISP link if the second ISP link is up?
Refer to the exhibit.
An engineer configured BGP between routers R1 and R3 The BOP peers cannot establish neighbor adjacency to be able to exchange routes. Which configuration resolves this issue?
When configuring Control Plane Policing on a router to protect it from malicious traffic, an engineer observes that the configured routing protocols start flapping on
that device. Which action in the Control Plane Policy prevents this problem in a production environment while achieving the security objective?

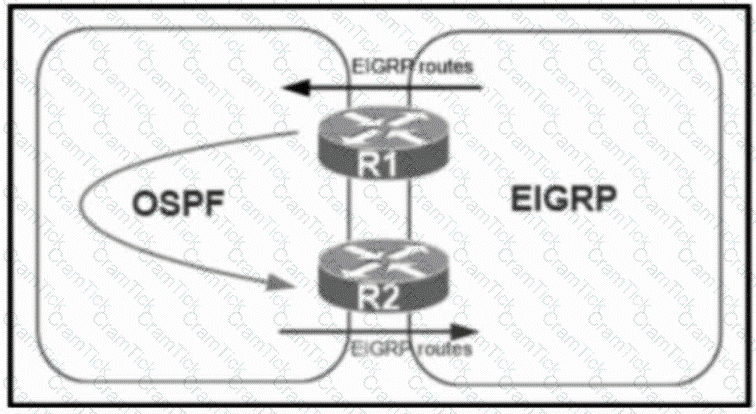

Refer to the exhibit. A network administrator configured mutual redistribution on R1 and R2 routers, which caused instability in the network. Which action resolves the issue?

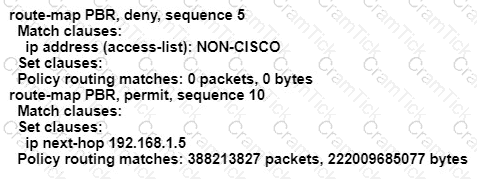

An engineer configured access list NON-CISCO in a policy to influence routes
What are the two effects of this route map configuration? (Choose two.)
Refer to the exhibit.
Troubleshoot and ensure that branch B only ever uses the MPLS B network to reach HQ. Which action achieves this requirement?

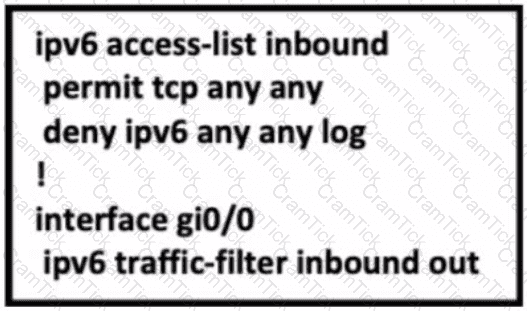

Refer to the exhibit. A network administrator configured an IPv6 access list to allow TCP return traffic only, but it is not working as expected. Which changes resolve this issue?
Refer to the exhibit.
While troubleshooting an EIGRP neighbor adjacency problem, the network engineer notices that the interface connected to the neighboring router is not participating in the EIGRP process. Which action resolves the issues?

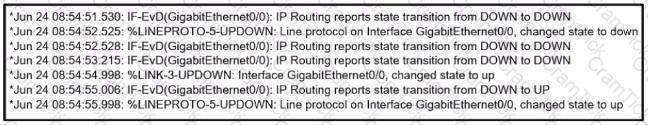

Refer to the exhibit.
R1 is connected with R2 via GigabitEthernet0/0, and R2 cannot ping R1. What action will fix the issue?
Refer to the exhibit.

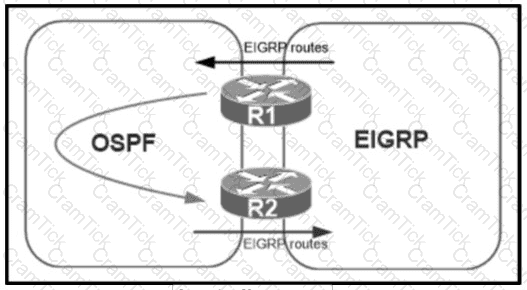

A network administrator configured mutual redistribution on R1 and R2 routers, which caused instability in the network. Which action resolves the issue?

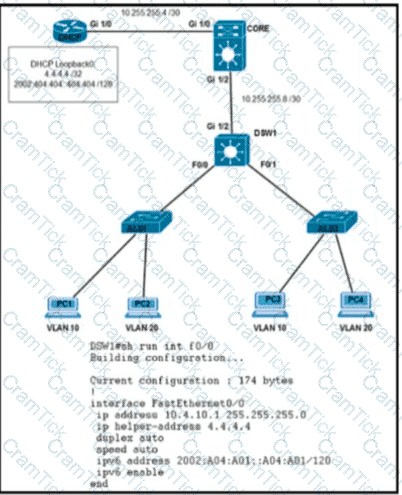

Clients on ALS2 receive IPv4 and IPv6 addresses but clients on ALS1 receive only IPv4 addresses and not IPv6 addresses. Which action on DSW1 allows clients on ALS1 to receive IPv6 addresses?
Refer to the exhibit. The network administrator configured the branch router for IPv6 on the E 0/0 interface The neighboring router is fully configured to meet requirements, but the neighbor relationship is not coming up. Which action fixes the problem on the branch router to bring the IPv6 neighbors up?
In which two ways does the IPv6 First-Hop Security Binding Table operate? (Choose two.)

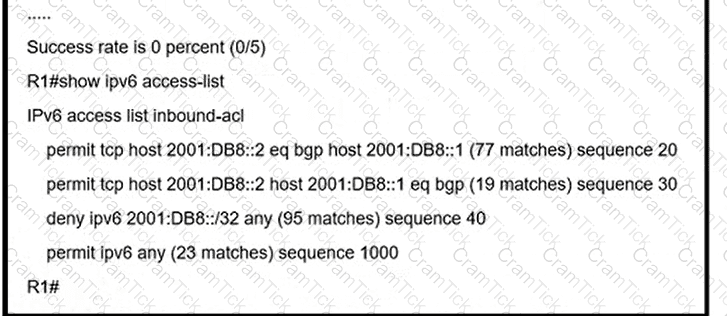

Refer to the exhibit.
A network administrator configured an IPv6 access list to allow TCP return frame only, but it is not working as expected. Which changes resolve this issue?
Refer to the exhibit.
The R1 and R2 configurations are:
The neighbor is not coming up. Which two sets of configurations bring the neighbors up? (Choose two.)
Refer to the exhibit.
SanFrancisco and Boston routers are choosing slower links to reach each other despite the direct links being up Which configuration fixes the issue?
An engineer configured SNMP notifications sent to the management server using authentication and encrypting data with DES. An error in the response PDU is received as " UNKNOWNUSERNAME. WRONGDIGEST " . Which action resolves the issue?
Refer to the exhibit.
Which two actions restrict access to router R1 by SSH? (Choose two.)
Refer to the exhibit.
An IT staff member comes into the office during normal office hours and cannot access devices through SSH Which action should be taken to resolve this issue?
Drag and drop the MPLS concepts from the left onto the descriptions on the right.
Refer to the exhibit. The network administrator has configured the Customer Edge router (AS 64511) to send only summarized routes toward ISP-1 (AS 100) and ISP-2 (AS 200).
router bgp 64511
network 172.16.20.0 mask 255.255.255.0
network 172.16.21.0 mask 255.255.255.0
network 172.16.22.0 mask 255.255.255.0
network 172.16.23.0 mask 255.255.255.0
aggregate-address 172.16.20.0 255.255.252.0
After this configuration. ISP-1 and ISP-2 continue to receive the specific routes and the summary route. Which configuration resolves the issue?
Which two components are needed for a service provider to utilize the LVPN MPLS application? (Choose two.)

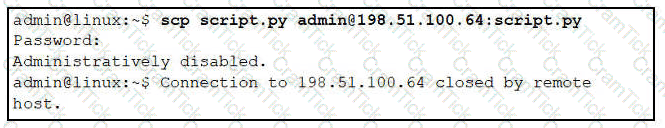

Refer to the exhibit.
A network administrator has developed a Python script on the local Linux machine and is trying to transfer it to the router. However, the transfer fails. Which action resolves this issue?
An engineer configured Reverse Path Forwarding on an interface and noticed that the routes are dropped when a route lookup fails on that interface for a prefix that is available in the routing table Which interface configuration resolves the issue?
Refer to the exhibit.
An engineer is trying to configure local authentication on the console line, but the device is trying to authenticate using TACACS+. Which action produces the desired configuration?
Which Ipv6 first-hop security feature helps to minimize denial of service attacks?
An engineer is troubleshooting on the console session of a router and turns on multiple debug commands. The console screen is filled with scrolling debug messages that none of the commands can be verified if entered correctly or display any output. Which action allows the engineer to see entered console commands while still continuing the analysis of the debug messages?
Refer to the exhibit.
An engineer wanted to set a tag of 30 to route 10 1.80.65/32 but it failed How is the issue fixed?
Refer to the exhibits.
When DMVPN is configured, which configuration allows spoke-to-spoke communication using loopback as a tunnel source?
Exhibit:
NTP is configured across the network infrastructure and Cisco DNA Center. An NTP issue was reported on the Cisco DNA Center at 17:15. Which action resolves the issue?
Refer to the exhibit.
To provide reachability to network 10.1.1.0 /24 from R5, the network administrator redistributes EIGRP into OSPF on R3 but notices that R4 is now taking a ........... path through R5 to reach 10.1.1.0/24 network. Which action fixes the issue while keeping the reachability from R5 to 10.1.1.0/24 network?

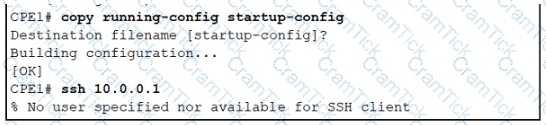

Refer to the exhibit.
A user cannot SSH to the router. What action must be taken to resolve this issue?
Refer to the exhibit.
PC-2 failed to establish a Telnet connection to the terminal server. Which configuration resolves the issue?

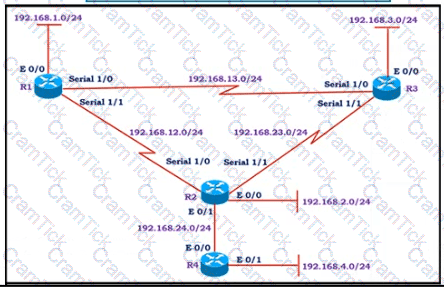

Refer to the exhibit. R2 has two paths to reach 192.168.13.0/24. but traffic is sent only through R3. Which action allows traffic to use both paths?
Refer to the exhibit.
A company with autonomous system number AS65401 has obtained IP address block 209.165.200.224/27 fro, ARIN. The company needed more IP addresses and was assigned block209.165.202.128/27 from ISP2. An engineer is ISP1 reports they are receiving ISP2 routes from AS65401. Which configuration onR1 resolves the issue?
A)
B)
C)
D)
Refer to the exhibit.
Which two actions should be taken to access the server? (Choose two.)
A network administrator is tasked to permit http and https traffic only toward the internet from the User1 laptop to adhere to company’s security policy. The administrator can still ping to www.cisco.com Which interface should the access list 101 be applied to resolve this issue?
Which feature drops packets if the source address is not found in the snooping table?
Refer to Exhibit.
Which two configurations allow clients to get dynamic ip addresses assigned?
Refer to the exhibit.
A network administrator logs into the router using TACACS+ username and password credentials, but the administrator cannot run any privileged commands Which action resolves the issue?
Refer to the exhibit. An engineer uses NetFlow to troubleshoot a voice quality issue from the branch office and notices that the traffic is not arriving in the correct format to the collector. Which configuration resolves the issue?
Refer to the exhibit.

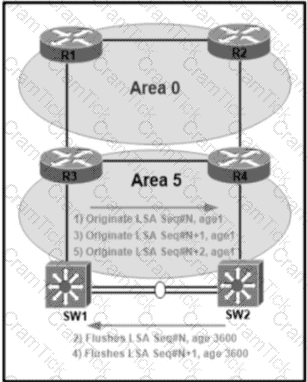

An error message " an OSPF-4-FLOOD_WAR” is received on SW2 from SW1. SW2 is repeatedly receiving its own link-state advertisement and flushes it from the network. Which action resolves the issue?
Refer to the exhibit.
Which two commands provide the administrator with the information needed to resolve the issue? (Choose two.)
Which Layer 3 VPN attribute allows different customers to connect to the same MPLS network wrth overlapping IP ranges?
Refer to the exhibit.
A network administrator is troubleshooting OSPF adjacency issue by going through the console logs in the router, but due to an overwhelming log message stream it is impossible to capture the problem Which two commands reduce console log messages to relevant OSPF neighbor problem details so that the issue can be resolved? (Choose two)
How are CE advertised routes segmented from other CE routers on an MPLS PE router?
Which router translates the customer routing information into VPNv4 routes to exchange VPNv4 routes with other devices through MP-BGP?
Refer to the exhibit. A network engineer lost remote access to the router due to a network problem. The engineer used the console to access the router and noticed continuous logs on the console terminal. Which configuration limits the number of log messages on the console to critical and higher seventy level messages?

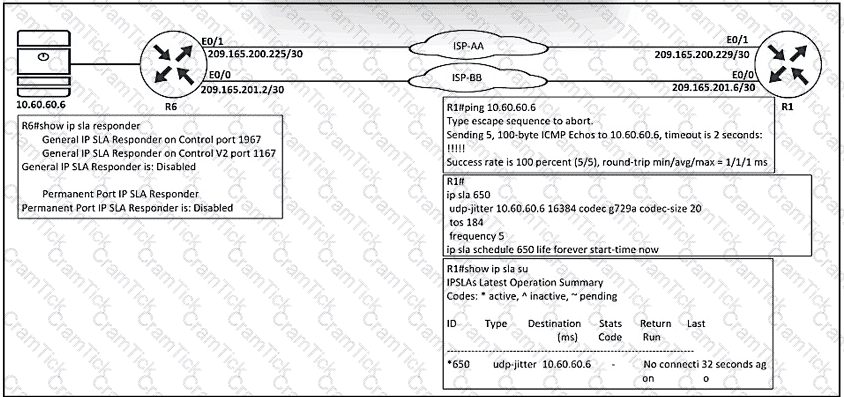

Refer to the exhibit.
An engineer configured IP SLA on R1 to avoid the ISP link flapping problem. but it is not working as designed IP SLA should wait 30 seconds before switching traffic to a secondary connection and then revert to the primary link after waning 20 seconds, when the primary link is available and stabilized. Which configuration resolves the issue?
:590
Refer to the exhibit The R2 OSPF route 10 2 2 0/24 shows in the R1 EIGRP routing table without route redistribution performed between OSPF and EIGRP routing protocols Which configuration is required on router R2 to resolve the issue?
Refer to the exhibit. A network engineer is troubleshooting a failed link between R2 and R3 No traffic loss is reported from router R5 to HQ Which command fixes the separated backbone?
A network administrator is troubleshooting a failed AAA login issue on a Cisco Catalyst c3560 switch. When the network administrator tries to log in with SSH using TACACS+ username and password credentials, the switch is no longer authenticating and is failing back to the local account. Which action resolves this issue?
Refer to the exhibit. Which configuration is required for R2 to get the IP address from the DHCP server?
Which IPv6 feature enables a device to reject traffic when it is originated from an address that is not stored in the device binding table?

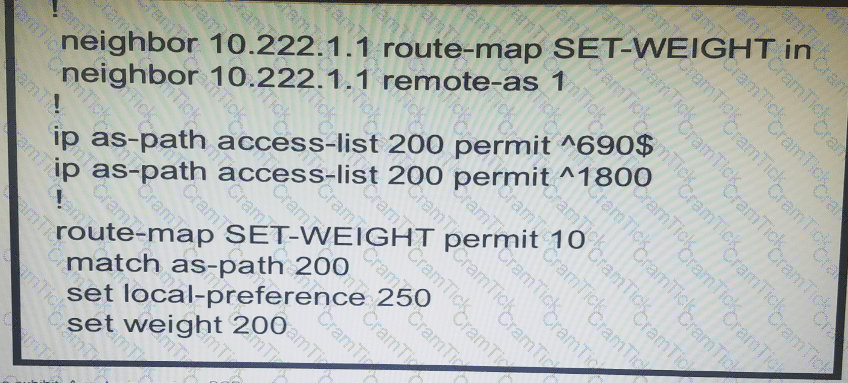

Refer to the exhibit. An engineer configured BGP and wants to select the path from 10.77.255.57 as the best path instead of current best path. Which action resolves the issue?

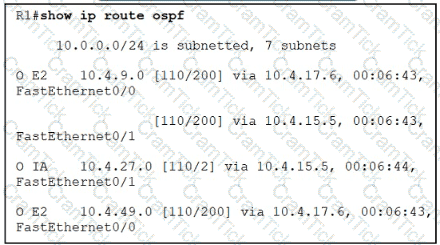

Refer to the exhibit.
Although summarization is configured for R1 to receive 10.0.0.0/8. more specific routes are received by R1. How should the 10.0.0.0/8 summary route be received from the neighbor, attached to R1 via Fast Ethernet0/0 interface?
The network administrator configured CoPP so that all routing protocol traffic toward the router CPU is
limited to 1 mbps. All traffic that exceeds
this limit must be dropped. The router is running BGP and OSPF Management traffic for Telnet and SSH
must be limited to 500kbps.
access-list 100 permit tcp any any eq 179
access-list 100 permit tcp any any range 22 23
access-list 100 permit ospf any any
!
class-map CM-ROUTING
match access-group 100
class-map CM-MGMT
match access-group 100
!
policy-map PM-COPP
class CM-ROUTING
police 1000000 conform-action transmit
class CM-MGMT
police 500000 conform-action transmit
!
control-plane
service-policy output PM-COPP
No traffic is filtering through CoPP,which is resulting in high CPU utilization,which configuration resolves
the issue ?

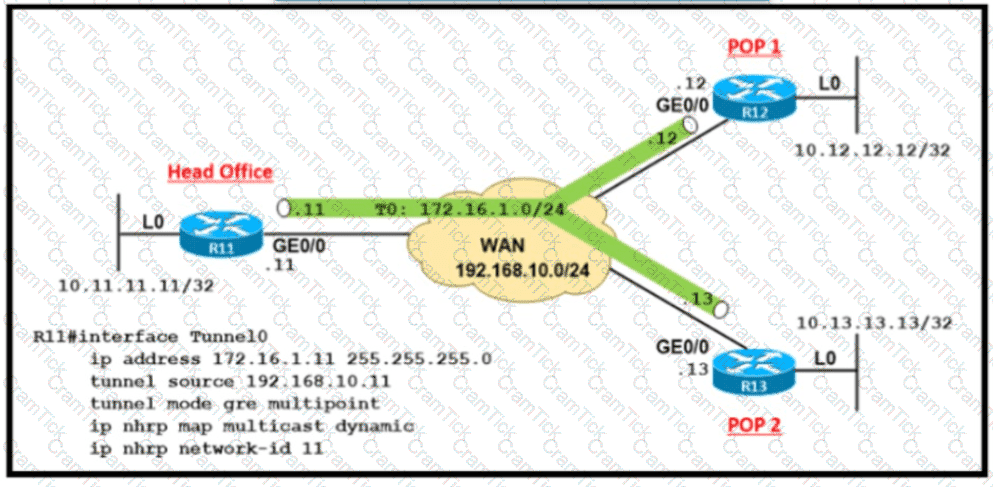

A company Is redesigning WAN infrastructure so that all branch sites must communicate via the head office and the head office can directly communicate with each site independently. The network engineer must configure the head office router by considering zero-touch technology when adding new sites in the same WAN infrastructure. Which configuration must be applied to the head office router to meet this requirement?
Refer to the exhibit.
An engineer configured NetFlow on R1, but the NMS server cannot see the flow from ethernet 0/0 of R1. Which configuration resolves the issue?
Refer to the exhibit.
An engineer configures DMVPN on devices Hub West and Hub East. Which two additional configurations must be on devices Hub West and Hub East as part of the template to configure hierarchical DMVPN? (Choose two.)
Refer to the exhibit. Which action restores the routes from neighbors while still filtering 1.1.1.0/24?
Refer to Exhibit.
A network administrator added one router in the Cisco DNA Center and checked its discovery and health from the Network Health Dashboard. The network administrator observed that the router is still showing up as unmonitored. What must be configured on the router to mount it in the Cisco DNA Center?
Refer to the exhibit.
The Math and Science departments connect through the corporate. IT router but users in the Math department must not be able to reach the Science department and vice versa Which configuration accomplishes this task?
An engineer sets up a DMVPN connection to connect branch 1 and branch 2 to HQ branch 1 and branch 2 cannot communicate with each other. Which change must be made to resolve this issue?
CCNP Enterprise | 300-410 Written Exam | 300-410 Questions Answers | 300-410 Test Prep | 300-410 CCNP Enterprise Actual Questions | Implementing Cisco Enterprise Advanced Routing and Services (ENARSI) Exam Questions PDF | CCNP Enterprise Free Questions | 300-410 Online Exam | 300-410 Practice Test | 300-410 PDF | 300-410 CCNP Enterprise Dumps | 300-410 Test Questions | 300-410 Study Material | 300-410 Exam Preparation | 300-410 Valid Dumps | 300-410 Real Questions | 300-410 CCNP Enterprise Practice Test | CCNP Enterprise 300-410 Dumps | Implementing Cisco Enterprise Advanced Routing and Services (ENARSI) Exam Questions
TESTED 22 May 2026
Text, table Description automatically generated
Graphical user interface, chart Description automatically generated
Diagram Description automatically generated
Graphical user interface, application Description automatically generated
