300-430 Implementing Cisco Enterprise Wireless Networks (300-430 ENWLSI) Questions and Answers

The FlexConnect AP Upgrade feature allows for a selective upgrade process within a FlexConnect group. By not setting any master APs, the WLC will automatically select one AP of each model with the lowest MAC address to receive the upgrade directly from the controller. This ensures that the upgrade is distributed efficiently across different AP models in the group without manual intervention.

References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

 To adjust the precedence and override the QoS profile on the WLAN for WebEx, an Application Visibility and Control (AVC) profile needs to be created for WebEx. AVC profiles allow for the identification and prioritization of specific applications over the wireless network, ensuring that critical applications like WebEx receive the necessary bandwidth and QoS treatment. References := CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

In Cisco ISE version 2.1 for BYOD with a Single SSID setup, 802.1x must be configured to provide the necessary layer of security and to facilitate the device registration process. 802.1x authentication allows for the use of EAP (Extensible Authentication Protocol) to authenticate users before they can access the network. This ensures that only authorized devices can join the BYOD network, providing a secure method for device onboarding and access control. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The issue described indicates a problem with the 802.1X authentication policy on the authenticator, which is typically the wireless controller or access point. Even though the CA certificate is correctly installed on the laptop, if the authenticator’s policy is incorrectly configured or does not match the required settings for the corporate network, the user’s authentication attempts will fail. It is essential to review and correct the 802.1X policy settings on the authenticator to resolve this issue. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Wireless Multicast Forwarding (WMF) is the feature that allows the delivery of multicast content, such as a promotional video, to only interested hosts over a wireless network. It optimizes the use of network resources by ensuring that only the hosts that have expressed interest in the multicast group receive the data.

The OfficeExtend Access Point (OEAP) split tunnel feature allows the separation of corporate and local traffic. By implementing a split tunnel, remote workers can maintain wireless connectivity to the corporate network while simultaneously accessing local network resources such as printers. This solution ensures that local traffic does not have to traverse the corporate network, which can cause connectivity issues like the ones reported by the users. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

To offer indoor directions to patient rooms using the existing wireless infrastructure, the hospital would need to install Cisco MSE (B) and Cisco CMX Visitor Connect ©. Cisco Mobility Services Engine (MSE) provides advanced location services, including tracking for Wi-Fi clients, which is essential for indoor navigation. Cisco CMX Visitor Connect, part of the Cisco Connected Mobile Experiences (CMX) solutions, allows for the customization of visitor experiences, such as indoor navigation. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

To ensure that all Android devices are placed into a separate VLAN on their wireless network without deploying ISE, the feature that must be implemented on the Cisco WLC is “WLAN local policy”. This feature allows the network administrator to create policies that can classify and segregate devices based on their operating system, in this case, Android devices, into a designated VLAN. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

The primary change to the network when adding APs for location-based services, such as VolMLAN, would be the AP footprint. This refers to the physical coverage area of the access points. Increasing the AP footprint enhances the ability to perform location-based services by improving the accuracy of triangulation and location tracking of devices. This is because a denser AP footprint allows for more precise determination of a device’s location within the network. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, specifically the sections discussing location-based services and AP deployment strategies for optimal coverage and location tracking.

Split tunneling on a Cisco Aironet 600 Series OfficeExtend AP allows for traffic to be divided between two different networks. In this case, it enables the user to access the corporate network for work-related tasks while simultaneously allowing them to print to a printer on their home network. This is achieved by routing the traffic meant for the corporate network to the WLC, while local traffic such as the connection to a home printer is kept on the local network. References := CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

In a FlexConnect group with local switching but central DHCP, clients can use features like multicast and static IP without any issues. However, fast roaming, which allows clients to move seamlessly between access points with minimal delay, requires the access points to handle client information locally. If the configuration is changed to allow local DHCP, then the access points can cache client credentials, enabling fast roaming.

References :=

CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Cisco documentation on FlexConnect configurations

 The correct configuration for limiting Internet bandwidth for each guest client on a Cisco Catalyst 9800 WLC is through a policy map. A policy map allows the creation of policies that can manage traffic within a network. By setting a bandwidth limit within the policy map, the WLC can enforce the required QoS for guest clients. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

 IGMP snooping is a feature that allows a network switch to listen to the Internet Group Management Protocol (IGMP) network traffic. This feature enables the switch to identify the multicast streams to which hosts are interested and to forward multicast traffic intelligently. By enabling IGMP snooping on the Wireless LAN Controller (WLC), it ensures that multicast streams are only forwarded to the access points (APs) where clients are subscribed to them. Setting the AP multicast mode to a specific multicast address, such as 238.255.255.255, allows the WLC to send multicast traffic to APs using this address, which helps in efficient distribution of the multicast stream.

In Cisco Prime Infrastructure, the maximum number of APs that can be used to contain an identified rogue access point in the WLC is four (4). This containment process involves using nearby APs to disrupt the rogue AP’s signals, thereby preventing it from effectively communicating with client devices. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, which includes information on rogue AP detection and containment strategies within the WLC and Cisco Prime Infrastructure.

To segregate all iPads on the guest WLAN to a separate VLAN without using Cisco ISE, the engineer can create a local policy on the WLC (option A). This local policy can be configured to identify iPad devices and assign them to a specific VLAN based on their device profile or other identifying characteristics. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, especially the sections that cover local policies and device profiling on the WLC.

To meet the requirement of allowing employees to easily onboard their personal devices and visitors to connect without reception desk intervention, configuring a self-registration guest portal on Cisco ISE is the appropriate solution. This feature enables guests to create their own accounts and gain network access, streamlining the process for both employees’ personal devices and visitors. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The wireless client cannot reach the RUN state because it is not receiving an IP address. This is a crucial step in the connection process, as a valid IP address is necessary for the client to communicate on the network. Without it, the client cannot achieve the RUN state, which indicates full authentication and association.

 Application Visibility and Control (AVC) profiles in AireOS controllers allow the identification and management of bandwidth consumption by different applications. By using AVC, administrators can set policies to prioritize or restrict bandwidth for specific applications, thus ensuring that critical services like voice and video are not adversely affected by bandwidth-heavy programs. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

To create an account for CLI access to an access point for troubleshooting, the WLC must be configured to allow user access with the capability to make changes. The ReadWrite User Access Mode enables an engineer to have full read and write access to the AP’s configuration via the CLI, which is necessary for performing troubleshooting tasks. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

The image provided shows a packet capture with multiple entries displaying UDP traffic between two IP addresses using different ports (notably port number ‘16666’ which is commonly used for NMSP). Network Mobility Services Protocol (NMSP) is used by wireless controllers like WLCs to communicate with management software such as Cisco’s Mobility Services Engine or CMX. This protocol helps in managing various mobility services across wireless networks. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 For a large company requiring support for 32 VLANs for different departments, the most efficient solution is to configure one single SSID and use Cisco ISE for dynamic VLAN assignment based on user roles. Cisco ISE can classify users into different groups and assign them to the appropriate VLANs. This approach reduces the complexity of managing multiple SSIDs and simplifies the user experience while maintaining a high level of security and network segmentation. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

For RADIUS to restrict administrative control effectively, the engineer needs to define a Network Access Server (NAS) entry that corresponds to the WLC’s management IP address and the AP subnet. The correct entry would be the NAS IP of the virtual interface (typically used for RADIUS communications) and the specific network range of the AP subnet, which is 192.168.2.0 with a subnet mask of 255.255.255.0. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

To ensure that only admins have access to network device management while allowing guest users to reach the web portal, access to Cisco ISE must be permitted on the pre-authentication ACL. This configuration allows guests to interact with the portal without granting them broader network access.

To separate different types of client authentication on a Cisco ISE deployment, policy sets and policy groups can be used. Policy sets allow the creation of policies based on conditions such as device type, while policy groups categorize clients for the application of specific policies. References: Cisco ISE documentation on policy sets and policy groups will have detailed information.

To ensure reliable streaming of video content on the wireless network between Cisco FlexConnect APs, Multicast Direct must be enabled. This feature allows for efficient multicast traffic delivery by converting multicast streams into unicast streams for each client, which guarantees delivery even in environments where reliable multicast is not feasible. References := CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

In Cisco Wireless LAN Controller (WLC) environments, the feature that allows for different usernames and passwords for administrative support on specific APs is the local management users. This feature enables the configuration of unique credentials on individual APs, separate from the global credentials used for the rest of the network. By enabling local management users, the APs in the CEO’s office can have distinct administrative access controls, ensuring a higher level of security and customization. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

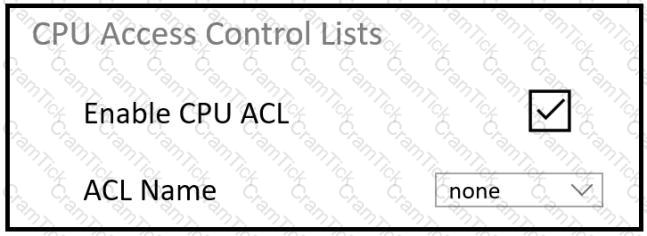

If the Cisco 5520 Series Wireless LAN Controller is no longer manageable via the network after implementing a CPU ACL, permit statements must be added to the top of the ACL in both directions (A). These statements should specify the network from which management is allowed and the virtual interface of the controller to ensure proper management access. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

TACACS+ (Terminal Access Controller Access-Control System Plus) is recommended for managing device access as it provides a more granular level of control over user authentication and authorization than RADIUS. It allows for different levels of access based on user identity by interfacing with external repositories such as Active Directory or LDAP. This protocol helps in distinguishing between different users and assigning appropriate access rights based on their roles within an organization. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The feature that must be enabled to ignore non-802.11 interference is “Avoid Persistent Non-WiFi Interference.” This setting allows the Radio Resource Management (RRM) to not react to non-802.11 noise and interference, which can be crucial in environments where such interference is common but does not significantly impact wireless performance. By enabling this feature, RRM will not change the channel in response to non-IEEE 802.11 interferers, thus maintaining a stable channel plan. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

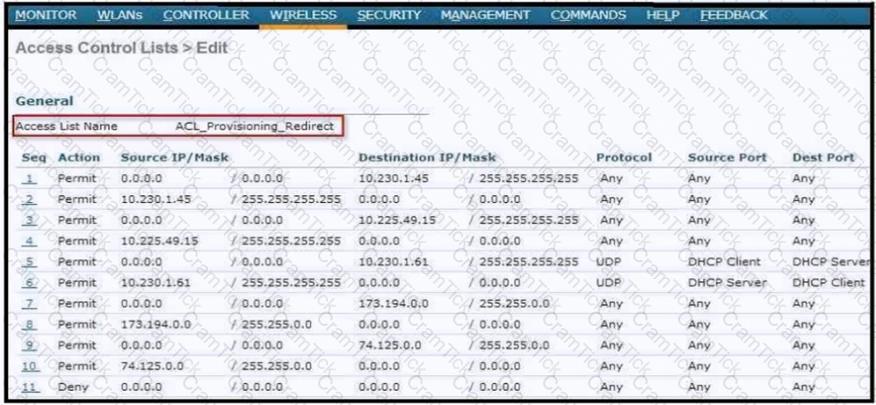

An ACL configured for BYOD clients to redirect to a guest portal must allow access to the RADIUS server and Cisco ISE. The RADIUS server is crucial for authentication services, a core component of network access control for BYOD. Cisco ISE integrates with the network infrastructure to provide comprehensive security, including guest access management, thus its accessibility is essential for the redirection process to function correctly. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

The correct command set for configuring a Cisco Catalyst 9800 Series Wireless Controller so that the client traffic enters the network at the AP switch port is Option C:

config terminal

wireless profile policy [policy name]

no central switching

end

This configuration disables central switching, which means that client traffic will be locally switched at the access point level rather than being sent through the controller. This is useful in scenarios where local switching is preferred due to reasons such as reducing latency or conserving bandwidth on WAN links. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

 When a network engineer receives an alert about a rogue AP and determines it is a security threat inside the campus, the fastest way to disable it is by updating its status in Cisco Prime Infrastructure to ‘contained’. This action instructs the system to prevent the rogue device from communicating with other devices on the network, effectively isolating it without having to physically locate or manually disable it. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

When configuring access control on a WLC using a TACACS+ server for centralized authentication on network devices, the role value that must be configured under the shell profile on the TACACS+ server for a user with read-only permissions is “MONITOR”. This role restricts the user to monitoring functions without the ability to make changes to the configuration. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

The AAA override feature on a WLAN allows for individualized security policies to be applied to users after they are authenticated by the AAA server, which in this case is Cisco ISE (Identity Services Engine). The company policy requires that all users be denied access to any resources until they pass validation. By using AAA override, the network can enforce access control policies based on user credentials and group membership, ensuring that users cannot access network resources until they have been validated by Cisco ISE. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

To segregate iOS devices to the guest SSID on VLAN 101 and distribute the rest of the clients on VLAN 102, creating a service template and enabling device classification are required. The service template specifies the VLAN assignment, while device classification identifies the type of device connecting to the network. References: Cisco Catalyst 9800-80 WLC documentation on local policies and device classification.

The Cisco Aironet 600 Series OfficeExtend APs support various Layer 2 security options, including WPA+WPA2 and 802.1X. WPA and WPA2 provide secure encryption for wireless data, while 802.1X offers a robust authentication framework. These security options ensure that the wireless network is protected against unauthorized access and data breaches, which is crucial for remote workers connecting to the corporate network. References := CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

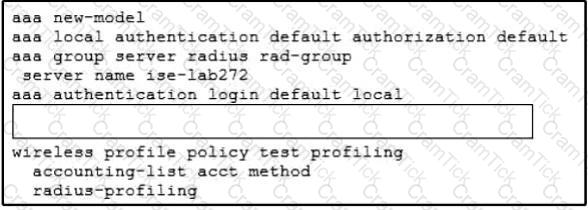

 In the context of Cisco Catalyst 9800 Series Wireless Controllers, RADIUS profiling requires the correct AAA (Authentication, Authorization, and Accounting) configuration to collect and forward details about clients to a RADIUS server such as Cisco ISE (Identity Services Engine). The correct command in this scenario is “aaa accounting network acct_method start-stop group rad-group” which enables accounting of network services. This command starts gathering accounting information for all network-related service requests and sends start and stop records to the RADIUS server specified in the ‘rad-group’. This allows the controller to forward information about clients’ activities on the wireless network to Cisco ISE for profiling.

References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

To segregate iOS-connected devices onto a guest SSID on VLAN 101 and the rest of the clients on VLAN 102, specific configurations are needed on the Cisco Catalyst 9800 Wireless LAN Controller (WLC). The correct configurations required are:

Add local profiling policy under global security policy settings (Option B): This allows the WLC to profile devices based on their operating system. By identifying iOS devices, a local profiling policy can then direct these devices to the appropriate VLAN.

Enable device classification on global wireless settings (Option E): Device classification is necessary for the WLC to differentiate between device types. Once enabled, it can apply different policies based on whether a device is recognized as an iOS device or not.

References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

 For a BYOD setup using a dual SSID approach, the first SSID is typically used for device registration and the second for network access. Setting the NAC State to Radius NAC enables the network access control (NAC) to use RADIUS for authentication, authorization, and accounting. Allowing AAA Override enables the RADIUS server to dynamically change the VLAN and ACLs assigned to the endpoint, which is crucial for BYOD where devices need to be placed into the correct VLAN based on user role and device type. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, particularly the chapters on BYOD and advanced WLAN configuration.

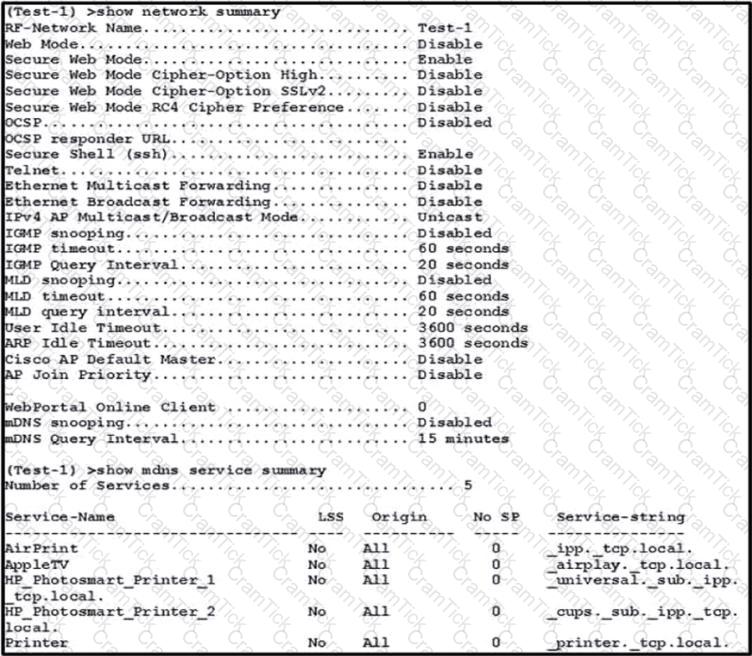

For printing services using Bonjour in a WLAN environment where mDNS services are utilized, especially with WLC firmware version 8.x, it’s essential that:

Enable mDNS and IGMP snooping (Option A): Multicast DNS or mDNS needs to be enabled for Bonjour services to function correctly as they rely on this protocol for service discovery within local networks. IGMP snooping improves network efficiency by ensuring multicast traffic is only forwarded to nodes that have explicitly requested it.

References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

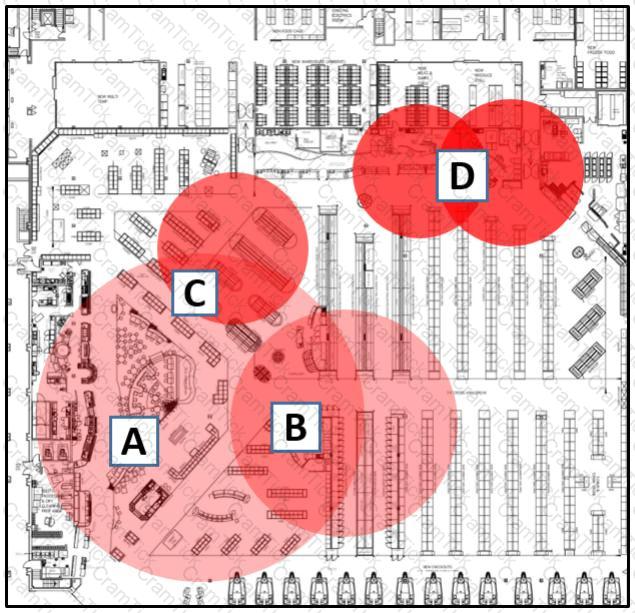

 The exhibit provided appears to be a floor map overlay with Cisco CleanAir Zone of Impact for interferers, which shows different areas affected by interference on a wireless network. The area labeled ‘A’ indicates the greatest impact on the wireless network due to its larger size compared with other zones, suggesting more significant interference or a stronger source of interference within this zone. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

The bronze QoS level is typically recommended for guest services in a wireless network environment. This level prioritizes basic internet access, which is suitable for guest services that do not require high bandwidth or low latency. It ensures that more critical services are not impacted by guest traffic, which is often less sensitive to performance fluctuations. References := CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The issue with duplicate client entries from iOS clients with the private MAC address feature enabled can be resolved by breaking the high availability using the cmxha config disable command and upgrading the primary and secondary individually. This approach allows for each appliance to be upgraded without affecting the high availability pair’s synchronization and operation. References: The solution is supported by best practices for upgrading Cisco appliances in a high availability configuration, as outlined in the CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

 A successful RF jamming attack primarily disrupts WLAN services by overwhelming the network with noise or unwanted signals, making it impossible for legitimate devices to communicate effectively. While physical damage to AP hardware is not a direct outcome of RF jamming, the persistent interference can lead to hardware malfunction due to overheating or overcompensation for the poor signal environment. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

The angle of arrival (AoA) method for client tracking determines the location of a wireless device using triangulation. This technique involves measuring the angle at which the signal arrives at different receivers (access points) and using this information to pinpoint the device’s location within the network. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

In Cisco Prime Infrastructure, the report that must be created to present a list of all rogue APs with a high severity score to senior management is the “Rogue APs” report. This report provides detailed information about rogue access points detected in the network, including their severity score, which helps in assessing the potential risk they pose to the network security. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

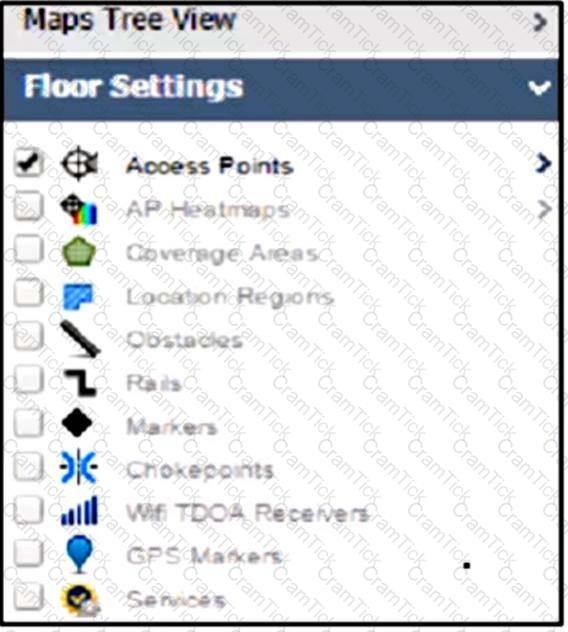

The absence of rogue AP options in the navigation menu under Maps in Cisco Prime Infrastructure (PI) version 3.0 indicates that there is an issue with integrating location services, which are provided by Mobility Services Engine (MSE). Without adding MSE to PI, location-based services such as tracking rogue access points cannot be utilized or displayed within PI’s interface. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

When configuring multicast for two WLCs in different physical locations, each handling around 500 wireless clients, it is important to assign a unique multicast group address to each WLC. This ensures that multicast traffic is properly segregated and managed within each controller’s network.

References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

To load balance the data coming through NMSP from the WLCs and spread the load between multiple CMX servers, the configuration cmxctl config feature flags nmsplb.cmx-ap-grouping true should be used. This enables the load balancing feature and helps optimize the data flow for APs in a large network environment. References: The configuration for load balancing in CMX is explained in the certification guide, which outlines the commands and flags necessary to manage data flow efficiently.

 A single SSID method satisfies the requirements for a BYOD policy that includes onboarding unknown machines, scalability, and low overhead on the wireless network. It simplifies network access for users and reduces overhead by minimizing broadcast traffic associated with multiple SSIDs.

The issue with duplicate client entries from iOS clients with the private MAC address feature enabled can be resolved by breaking the high availability using the cmxha config disable command and upgrading the primary and secondary individually. This approach allows for each appliance to be upgraded without affecting the high availability pair’s synchronization and operation. References: The solution is supported by best practices for upgrading Cisco appliances in a high availability configuration, as outlined in the CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

 For an enterprise wireless network with distributed offices globally and APs configured in FlexConnect mode, enabling FlexConnect local authentication is essential to support 802.11r and CCKM. This configuration allows for fast roaming and maintains a secure connection by locally authenticating the clients without having to go back to the central site, thus providing a seamless and efficient roaming experience for the users.

Cisco CMX Visitor Connect supports various social connectors for guest network login. The configurable social connectors include LinkedIn, Google+, and Facebook, but not Pinterest, Medium, or Myspace. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

To rename access points and add them to the correct AP groups on a wireless controller, the minimum custom attributes required using Cisco ISE TACACS is role1=WIRELESS. This role provides the necessary permissions for read/write access to wireless-related configurations. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

When performing a Cisco Hyperlocation accuracy test, the relevant parameters include the X, Y real location and the client MAC address. The X, Y coordinates provide the actual location data needed for the test, while the client MAC address identifies the specific device being located.

For a network with 3000 APs and 7000 IPS licenses, scaling to a high-end server is appropriate. This will provide the necessary resources and capabilities to support the large number of APs and the extensive licensing requirements for the Intrusion Prevention System.

The output observed in Prime Infrastructure suggests that there is at least one strong interferer impacting connectivity at this site. This conclusion is drawn from observing areas marked with intense red coloring indicating high levels of RF interference which could degrade wireless performance significantly if not addressed.

AutoQoS simplifies the deployment of QoS by automating the process. On the Cisco Catalyst 9800 Series Wireless Controller, AutoQoS takes into account the characteristics of wireless traffic and helps in implementing a consistent QoS policy across both wired and wireless parts of the network. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

To meet the requirement of allowing employees to easily onboard their personal devices and visitors to connect without reception desk intervention, configuring a self-registration guest portal on Cisco ISE is the appropriate solution. This feature enables guests to create their own accounts and gain network access, streamlining the process for both employees’ personal devices and visitors. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The Platinum QoS marking is typically used for the highest-priority traffic, such as voice and video. Given the requirement for a high average bitrate for the video application, Platinum would be the appropriate QoS marking to ensure the necessary bandwidth and priority on the WLAN. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

 In a distributed deployment of Cisco ISE, profiling services are configured on Policy Services Nodes (PSNs). These nodes handle all context-based access control, including profiling services.

The correct command to add a VLAN with a specific ID to a FlexConnect group in a Cisco Wireless LAN Controller (WLC) is ‘config flexconnect group BranchA-FCG vlan 30 add’. This command specifies the FlexConnect group name ‘BranchA-FCG’ and the VLAN ID ‘30’, followed by the action ‘add’, which is consistent with Cisco’s CLI syntax for WLC configuration. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

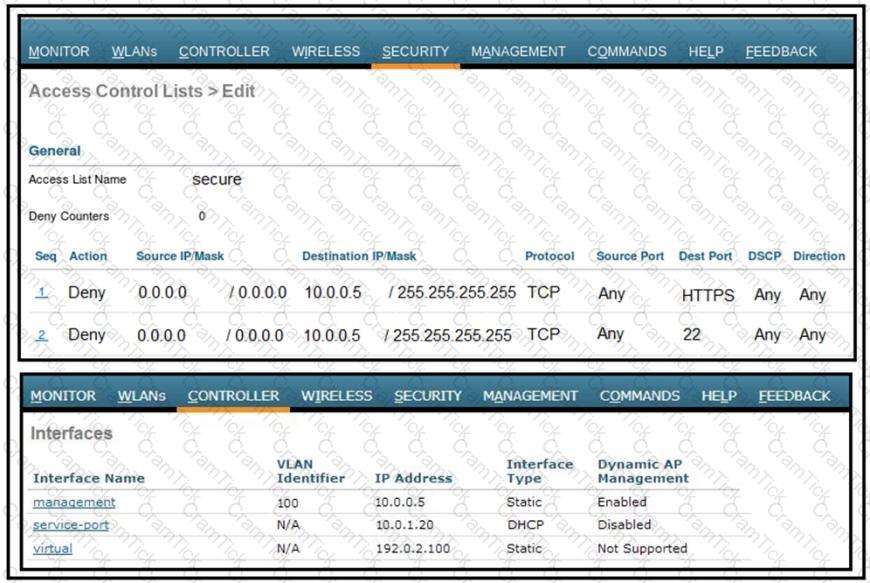

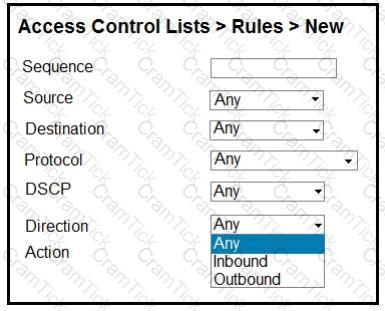

When configuring an Access Control List (ACL) to restrict traffic to the Wireless LAN Controller (WLC) CPU, the direction of the traffic is crucial. Since the ACL is meant to control traffic that is destined for the WLC CPU, it should be set as “Inbound”. This means that any rules applied within this ACL will affect incoming traffic towards the WLC, which is necessary when aiming to restrict certain types of traffic from reaching and potentially overwhelming the controller’s processing capabilities. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

When using FlexConnect Smart AP Image Upgrade without a configured FlexConnect Master AP, the WLC will transfer the image to one indoor AP and one outdoor AP separately. Each AP model needs a different firmware image due to hardware differences. Therefore, there will be two image transfers from the WLC: one for the 2702i APs and another for the 1532i APs.

References :=

CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Cisco documentation on FlexConnect Smart AP Image Upgrade

The Cisco OfficeExtend Access Point (OEAP) feature is enabled on a Cisco Catalyst 9800 Series Wireless Controller through the Flex Profile. The Flex Profile allows for the configuration of various settings specific to FlexConnect deployments, including OEAP settings, which enable remote workers to connect to the corporate network securely.

References :=

CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Cisco documentation on Catalyst 9800 Series Wireless Controllers

The Simple Certificate Enrollment Protocol (SCEP) is used to securely issue certificates to network devices in a scalable manner. When provisioning certificates on a Cisco Catalyst 9800 Series Wireless Controller using a third-party CA server, SCEP is the protocol that facilitates this process. It allows the controller to request and install certificates automatically, which is essential for establishing secure communications within the network. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

The issue described indicates a problem with the 802.1X authentication policy on the authenticator, which is typically the wireless controller or access point. Even though the CA certificate is correctly installed on the laptop, if the authenticator’s policy is incorrectly configured or does not match the required settings for the corporate network, the user’s authentication attempts will fail. It is essential to review and correct the 802.1X policy settings on the authenticator to resolve this issue. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

 Cisco Context Aware Services provide real-time tracking of mobile assets and users by gathering contextual information from networked devices. This service is not limited to wireless devices; it can track both wired and wireless devices within the network. The technology utilizes elements like Received Signal Strength Indicator (RSSI) and Time Difference of Arrival (TDoA) for location tracking and telemetry. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, and Cisco Context Aware Software FAQ.

With the implementation of a BYOD policy, the security director should be concerned about malware and lost and stolen devices. Malware can compromise the corporate network if infected devices connect to it. Lost and stolen devices pose a risk of unauthorized access to corporate data and resources, potentially leading to data breaches. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

In a distributed wireless deployment model, the traffic can either be switched locally or sent back to the controller. For the corporate WLAN “Corp-401266017”, it is essential that the traffic goes through the controllers in the data center to access the file servers securely. Therefore, local switching should be disabled for this WLAN. Conversely, for the guest WLAN “Guest-19283746”, the requirement is to use the local Internet line. Enabling local switching for this WLAN allows the traffic to bypass the controller and use the local internet, reducing latency and potentially providing a better user experience for guests. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide, specifically the sections discussing WLAN traffic forwarding and local switching options.

Trusting DSCP is essential for maintaining the QoS markings across the wired and wireless network in a FlexConnect deployment. By trusting DSCP, the WLC and APs will preserve the QoS markings set by applications and devices, ensuring consistent QoS treatment throughout the network. References := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

The OfficeExtend Access Point (OEAP) split tunnel feature allows the separation of corporate and local traffic. By implementing a split tunnel, remote workers can maintain wireless connectivity to the corporate network while simultaneously accessing local network resources such as printers. This solution ensures that local traffic does not have to traverse the corporate network, which can cause connectivity issues like the ones reported by the users. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

A Public-Signed SAN (Subject Alternative Name) certificate allows multiple domain names to be protected with a single certificate. This is useful in a distributed environment like a guest portal on Cisco ISE, where there may be multiple nodes with different Common Names (CNs). Using a SAN certificate can prevent CN mismatch errors during SSL/TLS handshakes. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The Media Stream feature on a Cisco WLC allows for the prioritization of streaming media. To guarantee at least 2 Mbps stream per user, the ‘coarse’ Resource Reservation Control (RRC) template should be used, as it provides the necessary bandwidth allocation for each user’s media stream. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide
