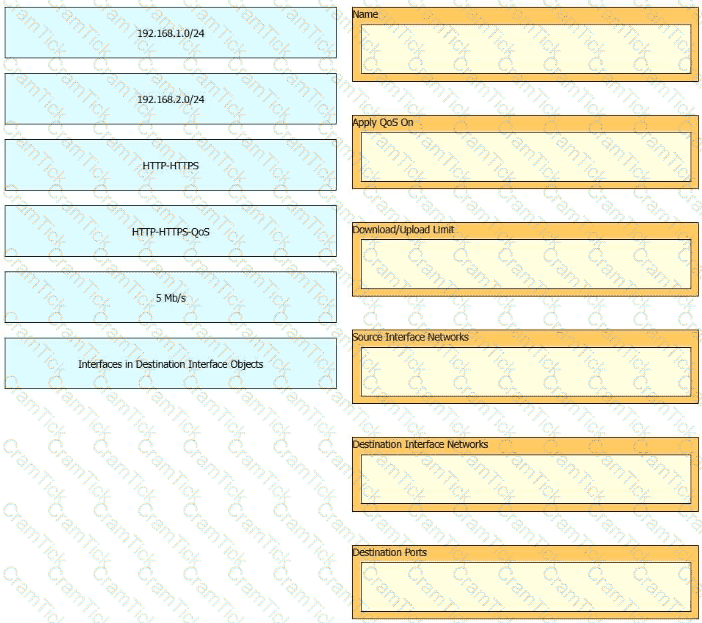

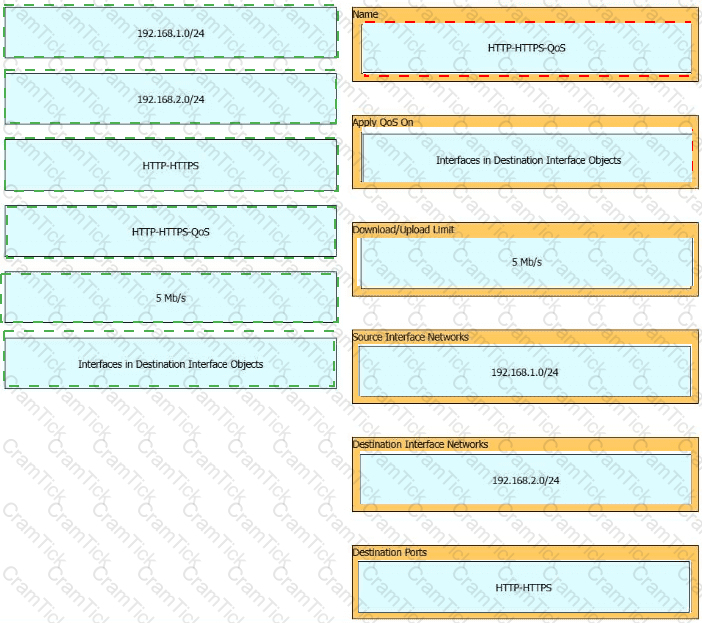

Name → HTTP-HTTPS-QoS

Apply QoS On → Interfaces in Destination Interface Objects

Download/Upload Limit → 5 Mb/s

Source Interface Networks → 192.168.1.0/24

Destination Interface Networks → 192.168.2.0/24

Destination Ports → HTTP-HTTPS

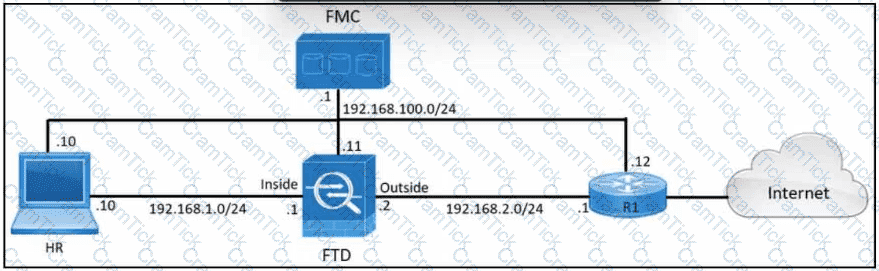

The HR workstation resides on the inside 192.168.1.0/24 network, making that subnet the source-interface network. Internet-bound traffic exits through the 192.168.2.0/24 network, which must be configured as the destination-interface network. Because rate limiting must occur as traffic leaves toward the internet, QoS is applied to interfaces in the destination interface objects. The HTTP-HTTPS object identifies the destination ports for web traffic, while HTTP-HTTPS-QoS provides a descriptive rule name. Both download and upload limits are configured as 5 Mb/s. Cisco Secure Firewall applies a QoS limit independently on each selected interface and determines upload and download direction based on the connection initiator. The Apply QoS On selection must correspond to a populated source or destination interface condition. Cisco Secure Firewall QoS configuration
