3V0-25.25 Advanced VMware Cloud Foundation 9.0 Networking Questions and Answers

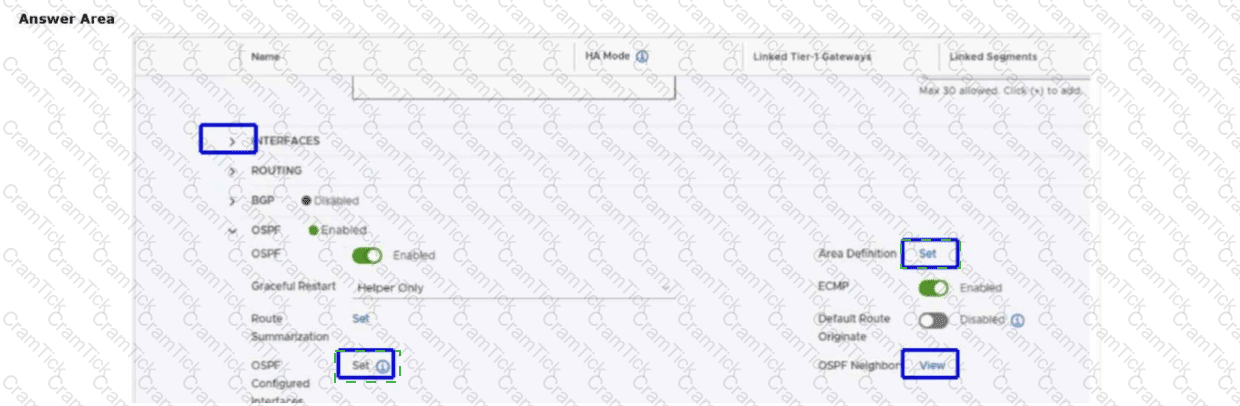

To enable OSPF on a Tier-0 Gateway within a VMware Cloud Foundation (VCF) or NSX environment, an administrator must define the areas where the gateway will participate and the specific interfaces it will use for peering.

Based on the NSX Manager configuration interface, the two required items to be configured are:

Area Definition: This is necessary to define the OSPF area (e.g., Area 0) the Tier-0 gateway will participate in.

OSPF Configured Interfaces: OSPF must be explicitly configured on the relevant uplink interfaces to establish neighbor relationships and exchange routing information with physical routers.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In aVMware Cloud Foundation (VCF)environment, the NSX Management Cluster consists of three nodes to ensure high availability and quorum. When a single node fails and is subsequently replaced—either through a manual deployment or an orchestrated recovery viaSDDC Manager—the internal database (Corfu) and the cluster manager must be updated to reflect the current members of the cluster.

When a node is lost or manually deleted from vCenter without being properly decommissioned through the NSX API or CLI, the remaining "Leader" node retains the metadata and theUUIDof that missing member. Even after a new node joins the cluster and synchronizes data, the cluster state often remains in a"Degraded"status because the control plane still expects a response from the original, failed UUID.

According to NSX troubleshooting and recovery guides, the specific command to purge a stale or defunct member from the cluster configuration isdetach node <UUID>. This command must be executed from the CLI of the current Cluster Leader. By running detach node , the administrator instructs the cluster manager to permanently remove the record of the failed node from the management plane's membership list.

Option B and C are incorrect because "delete node" is not the primary CLI command used for cluster membership cleanup; "detach" is the specific primitive required to break the logical association. Option A would remove the healthy new node, worsening the situation. Once the stale UUID is detached, the cluster status should transition from "Degraded" to "Stable" as it no longer tries to communicate with the non-existent entity. This process is essential in VCF operations to maintain a healthy "green" status in both the NSX Manager and the SDDC Manager dashboard.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In aVMware Cloud Foundation (VCF)architecture, theTier-0 Gatewayis the primary point of integration between the virtualized network and the physical world. When dealing with multiple upstream routers (multi-homing), administrators must influence the BGP path selection process to ensure traffic follows the desired path and avoids suboptimal routing or asymmetric flows.

AS-Path Prependis a common technique used to influenceinbound traffic(traffic coming from the physical network into the NSX environment). By repeating its own Autonomous System (AS) number multiple times in the BGP advertisement, the Tier-0 Gateway makes a specific path look "longer" and therefore less desirable to the upstream physical routers. Since BGP prefers the shortest AS-Path, the routers will favor the alternate link that does not have the prepended AS numbers. This is a critical tool in VCF designs to ensure that a primary link is utilized unless a failure occurs.

MED (Multi-Exit Discriminator)is an attribute that suggests to an adjacent external AS which path to take among multiple entry points to the same AS. Like AS-Path Prepend, it influences inbound traffic. A lower MED value is preferred over a higher one. In a VCF environment with multiple Edge Nodes or multiple Tier-0 uplinks, setting different MED values allows the administrator to prioritize specific entry points for traffic entering the SDDC.

BFD (Bidirectional Forwarding Detection)is not a BGP attribute; it is a detection protocol used to provide fast failure detection of the link between BGP neighbors. While it triggers faster convergence, it does not influence path selection based on attributes.Costis an OSPF attribute, not a native BGP attribute. Therefore, in the context of NSX Tier-0 BGP configuration, AS-Path Prepend and MED are the verified methods for path manipulation.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

With the introduction of theVirtual Private Cloud (VPC)consumption model inVCF 9.0and late 5.x releases, Role-Based Access Control (RBAC) has become more granular to support true multi-tenancy. A VPC is designed to be a self-contained "container" for a department's or user's networking resources.

To meet the specific requirement where a user can configure aspects of an individual VPC but is restricted from creating new subnets (which involves modifying the underlying network CIDR blocks and IPAM), a combination of specific roles is required.

VPC Admin:This is the primary role for the user within their assigned VPC. It allows the user to manage the overall VPC environment, including high-level settings and monitoring. However, the VPC Admin's power is often limited by the specific quotas and policies set by the Enterprise Admin.

Security Operator:This role allows the user to view security configurations and policies without having the permission to modify the network fabric or create new infrastructure components like subnets. It provides the "read-only" visibility into the security posture of the VPC.

Network Operator:Similar to the Security Operator, the Network Operator role provides visibility into the networking state—such as routing tables, segment status, and connectivity—without granting the "Write" permissions required to provision new subnets or alter the network topology.

AssigningNetwork Admin(Option B) orSecurity Admin(Option A) would grant too much privilege, as these roles typically include the ability to create, delete, and modify subnets and firewall policies at a structural level. By combining theVPC Adminrole withOperator-level roles, the administrator ensures the user has the necessary context to manage their assigned resources while strictly adhering to the restriction against creating new network subnets.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

InVMware Cloud Foundation (VCF), theSDDC Managerautomates the deployment and expansion ofNSX Edge Clusters. As part of the automated workflow, particularly in VCF 4.x, 5.x, and 9.0, a "Verify BGP Route Distribution" task is executed. This task is a validation check designed to ensure that the newly deployed or expanded Edge nodes are successfully peering with the physical Top-of-Rack (ToR) switches and, more importantly, are actually receiving routes.

According to VMware/Broadcom technical documentation (specificallyKB 388351), the workflow expects to see at least one route (often the default route or specific physical prefixes) learned via BGP from the northbound peer. If the Edge nodes establish a BGP session but the physical switches are not advertising any routes (or are only advertising routes that the Edge ignores due to filters), the SDDC Manager validation fails with the error "Failed to validate the BGP Route Distribution".

The verified troubleshooting step is tolog into the CLI of the Edge nodeidentified in the failure. Using the command get route bgp from within the Tier-0 Service Router (SR) VRF context allows the administrator to see the current Routing Information Base (RIB). If the table is empty or only contains internal "ISR" (Inter-SR) routes, it confirms that the physical network is not providing the expected advertisements. This allows the administrator to correct the BGP advertisement settings on the physical ToR switches—such as enabling default-originate—and then simply "Resume" the task in SDDC Manager without needing to redeploy the entire cluster.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In the architecture ofVMware Cloud Foundation (VCF)and its networking component, NSX, theTier-0 Gatewayserves as the critical demarcation point between the virtualized overlay network and the physical infrastructure. To facilitate this communication, BGP is the industry-standard protocol utilized.

BGP is fundamentally designed as anExterior Gateway Protocol (EGP). While it can be used internally (iBGP), its primary role in a VCF deployment is to exchange routing information between the SDDC and the physical Top-of-Rack (ToR) switches or core routers (eBGP). This allows the physical network to learn about the virtual subnets (overlay segments) and allows the virtual environment to receive a default route or specific external prefixes. This confirms that BGP is utilized as an EGP in these designs.

Furthermore, as global IP networking has evolved, the traditional 2-byte Autonomous System (AS) numbers (ranging from 1 to 65,535) were found to be insufficient for the number of organizations requiring them. Modern NSX versions integrated into VCF 5.x and 9.0 fully support4-byte Autonomous System numbers(ranging from 1 to 4,294,967,295). This support is essential for service providers and large enterprises that have been assigned 4-byte ASNs by regional internet registries.

Option A is incorrect because EIGRP is a proprietary Cisco protocol and is not used by NSX. Option C describes OSPF (Open Shortest Path First), which uses "Areas," whereas BGP uses "Autonomous Systems." Therefore, the ability to act as an EGP and support for 4-byte ASNs are the verified characteristics of BGP within the VCF networking stack.

===========

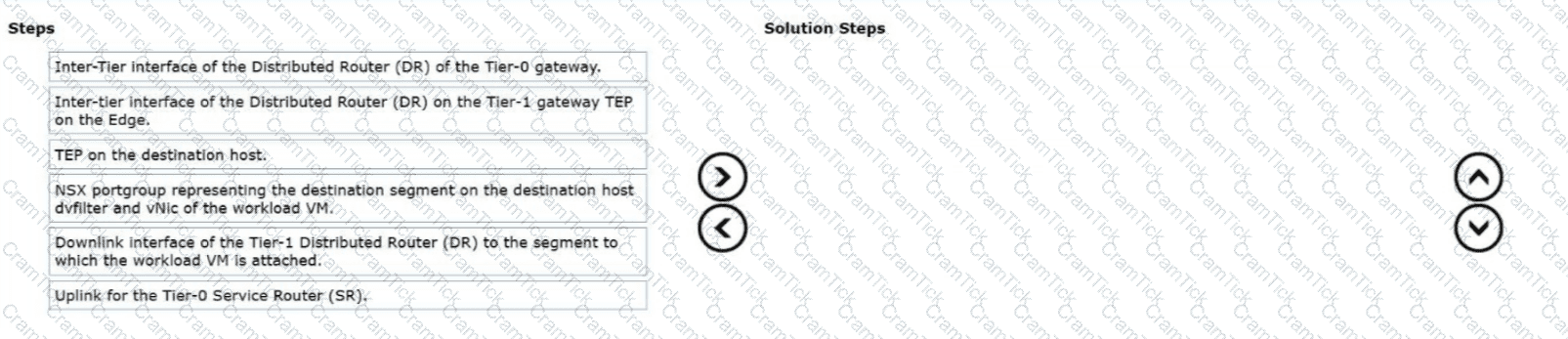

To identify why there is no data ingress into a workload domain, an administrator must understand the specific path external traffic takes. For a workload domain configured with a Tier-0 gateway and a Tier-1 gateway (Distributed Routing only), the ingress traffic flow follows a hierarchical path from the physical network through the NSX logical components to the virtual machine.

Ingress Traffic Flow Sequence

The correct sequence of steps for external network traffic to ingress the workload domain and reach the virtual machine is as follows:

Uplink for the Tier-0 Service Router (SR): Traffic enters the NSX environment from the physical network through the physical-to-logical interface on the Edge node.

Inter-Tier interface of the Distributed Router (DR) of the Tier-0 gateway: After being received by the Service Router, the packet is routed internally within the Tier-0 gateway to its distributed component.

Inter-tier interface of the Distributed Router (DR) on the Tier-1 gateway TEP on the Edge: The Tier-0 gateway routes the packet to the Tier-1 gateway. In this specific scenario, since the Tier-1 is "Distributed Routing only," this logical transition occurs on the Edge node participating in the transport zone.

TEP on the destination host: The Edge node encapsulates the packet (typically via Geneve) and tunnels it across the physical fabric to the specific ESXi host where the target virtual machine is currently residing.

Downlink interface of the Tier-1 Distributed Router (DR) to the segment to which the workload VM is attached: On the destination host, the packet is de-encapsulated. The local Tier-1 DR instance identifies the correct logical segment (VNI) for the destination IP.

NSX portgroup representing the destination segment on the destination host dvfilter and vNic of the workload VM: The packet is delivered to the virtual switch port, passes through any applied Distributed Firewall (dvfilter) rules, and finally reaches the virtual machine's network interface card (vNIC).

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

Nested virtualization—where a hypervisor like ESXi is run as a virtual machine—imposes unique challenges on the virtual networking layer. In a standard VCF environment, an NSX segment port expects to see exactly one MAC address: the MAC address assigned to the VM's vNIC.

When you run anested hypervisor, that single vNIC now acts as an "uplink" for multiple "inner" virtual machines. Consequently, traffic originating from that single nested ESXi VM will contain many different source MAC addresses (one for each nested VM). By default, the NSX/VDS security and switching logic will drop this traffic because it appears asMAC Spoofing—packets are arriving from a port with source MACs that do not match the port’s registered ID.

To support this, aMAC Discovery Segment Profilemust be configured and applied to the segment. Within this profile, the administrator must enableMAC Learning. MAC Learning allows the NSX virtual switch to "learn" and permit multiple MAC addresses on a single logical port. Without this, only the primary MAC of the nested ESXi host would be allowed, and all nested VMs would lose connectivity to the rest of the network.

In VCF 5.x and 9.0 documentation, this is a standard requirement for "Lab-on-a-Lab" designs or development environments. WhileIP Discovery(Option A) andSpoof Guard(Option D) are important for maintaining the IP-to-MAC binding and preventing IP theft, they do not address the fundamental Layer 2 requirement of allowing multiple MAC identities on a single port. Therefore,MAC Discoverywith MAC learning enabled is the verified profile choice for nested hypervisor support.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

Designing for "five nines" (99.999%) availability in aVMware Cloud Foundation (VCF)environment requires a network architecture that minimizes convergence time and eliminates single points of failure. For a critical application sensitive to network changes, the connection between the virtualized SDDC and the physical network must be highly resilient and capable of near-instantaneous failover.

TheTier-0 Gatewayis the primary interface for North-South traffic. To meet high availability requirements, the Tier-0 should be configured witheBGP (External Border Gateway Protocol)to peer with physical Top-of-Rack (ToR) switches. By enablingECMP (Equal Cost Multi-Pathing), the architect allows the Tier-0 to utilize multiple active paths to the physical world simultaneously. This not only increases available bandwidth but also ensures that if one physical link or router fails, traffic is immediately redistributed across the remaining active paths without a protocol timeout.

To complement ECMP,BFD (Bidirectional Forwarding Detection)is essential. While BGP's default keepalive and hold timers are often measured in seconds (typically 60 and 180 seconds, respectively), BFD provides sub-second failure detection. In a VCF environment, BFD operates as a lightweight "heartbeat" between the Tier-0 Edge nodes and the physical ToR routers. If a path fails, BFD detects it within milliseconds and notifies BGP to pull the failed path from the routing table. This combination ofeBGP/ECMPfor path redundancy andBFDfor rapid detection is the verified standard for VCF designs requiring extreme uptime and sensitivity to network disruptions.

Static routes (Option A) are unsuitable for high-availability designs as they lack dynamic failure detection. While 100Gbps NICs (Option E) provide bandwidth, they do not inherently provide the protocol-level resilience needed to meet a 99.999% SLA.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In the context ofVMware Cloud Foundation (VCF)networking, understanding how an ESXi host (acting as a Transport Node) handles East-West traffic is fundamental. East-West traffic refers to communication between workloads within the same data center, often on the same logical segment.

When a Virtual Machine sends a frame to another VM on the same logical segment, the ESXi host's virtual switch must determine the "location" of the destination MAC address to performframe forwarding. TheMAC Table(also known as the Forwarding Table or L2 Table) is the primary structure used for this decision. For each logical segment, the host maintains a MAC table that maps the MAC addresses of virtual machines to their specific "locations."

If the destination VM is residing on thesame host, the MAC table points the frame toward a specific internal port (vUUID) associated with that VM's vNIC. If the destination VM is on adifferent host(in an overlay environment), the MAC table entry for that remote MAC address will point to theTunnel End Point (TEP)IP of the remote ESXi host. While the TEP table (Option C) contains the list of known Tunnel Endpoints and the ARP table (Option A) maps IP addresses to MAC addresses, neither is the primary table used for the finalframe forwardingdecision.

TheMAC Tableis the authoritative source for Layer 2 forwarding. In an NSX-managed VCF environment, these tables are dynamically populated and synchronized via theLocal Control Plane (LCP), which receives updates from the Central Control Plane. This ensures that even as VMs move via vMotion, the MAC table remains updated across all transport nodes, allowing for seamless East-West connectivity without the need for traditional MAC learning (flooding) in the physical fabric.

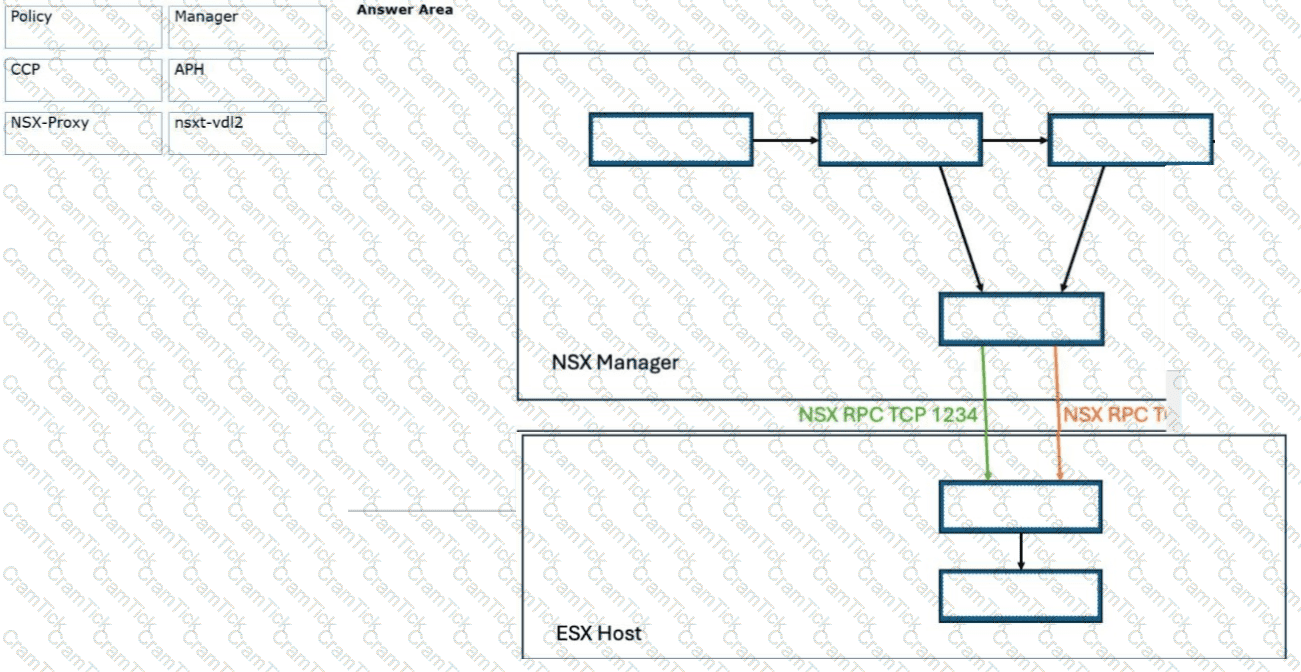

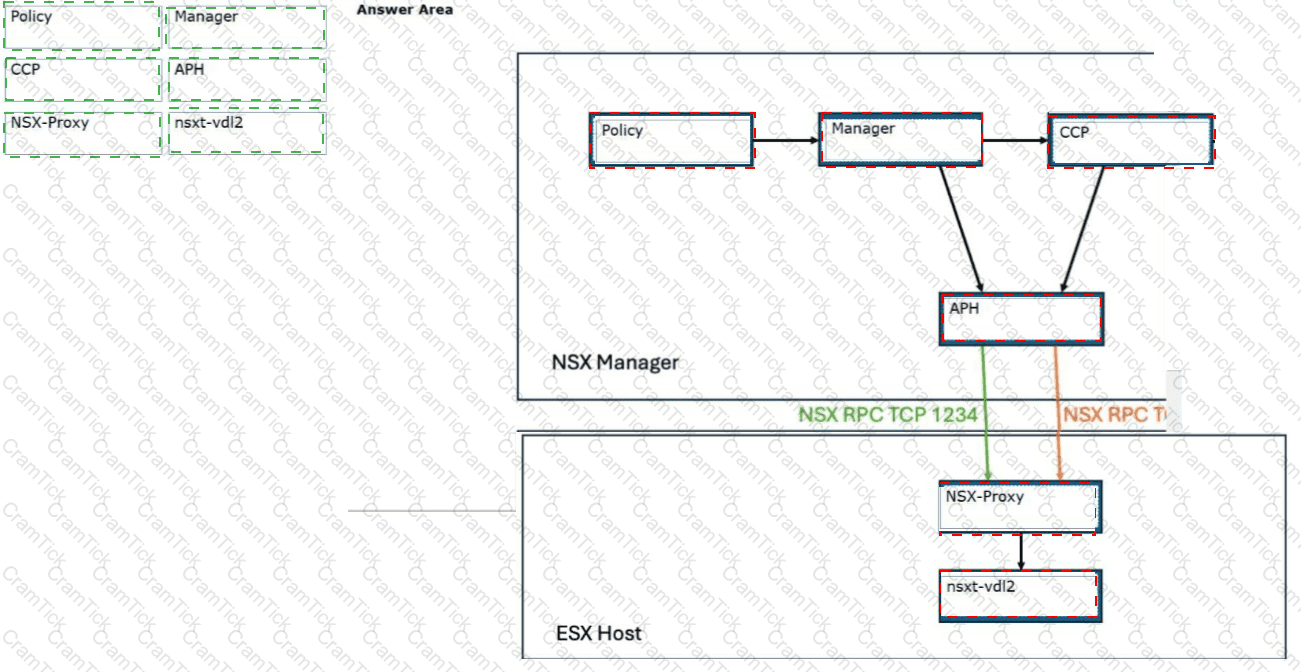

Answer Area Placement:

NSX Manager Top-Left Box:Policy

NSX Manager Top-Middle Box:Manager

NSX Manager Top-Right Box:CCP (Central Control Plane)

NSX Manager Bottom Box:APH (Asynchronous Proxy Handler)

ESXi Host Top Box:NSX-Proxy

ESXi Host Bottom Box:nsxt-vdl2

InVMware Cloud Foundation (VCF)and NSX architectures, the realization of a logical object (like a segment) involves a multi-step communication flow across different management and control plane layers.

The Management Plane (NSX Manager)

Policy:The entry point where the "Desired State" is defined by the user or automation.

Manager:Receives the policy, validates it, and stores it in the management database.

CCP (Central Control Plane):Processes the logical configuration and computes the actual instructions needed for the data plane.

APH (Asynchronous Proxy Handler):Acts as a broker on the NSX Manager, responsible for pushing these instructions down to the transport nodes viaNSX RPC TCP 1234(Management) andNSX RPC TCP 1235(Control).

The Local Control Plane (ESXi Host)

NSX-Proxy:A local agent on the ESXi host that maintains a persistent connection to the APH. It receives the instructions and ensures the "Local Control Plane" state matches the "Central Control Plane" intent.

nsxt-vdl2:The final component in the chain. It interacts directly with the ESXi kernel modules to program the Virtual Distributed Switch (VDS) and realize the segment on the host. Once this step is finished, the segment moves to the"Completed State"and is ready for use.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In aVMware Cloud Foundation (VCF)stretched cluster or Multi-Availability Zone (Multi-AZ) architecture, the networking design must account for the fact that AZ1 and AZ2 typically reside in different Layer 3 subnets. While the NSX Overlay provides Layer 2 adjacency for virtual machines across sites, the underlyingTunnel Endpoints (TEPs)must be able to communicate over the physical Layer 3 network.

According to the VCF Design Guide for Multi-AZ deployments, when stretching a workload domain, each availability zone should have its own dedicatedTEP IP Pool. This is because TEP traffic is encapsulated (Geneve) and routed via the physical underlay. If the Edge nodes in AZ2 were to use the same IP pool as AZ1 (Option C), the physical routers would likely encounter routing conflicts or reachability issues, as the subnet for AZ1 would not be natively routable or "local" to the AZ2 Top-of-Rack (ToR) switches.

The failure during the SDDC Manager workflow occurs because the automated "Liveness Check" or "Pre-validation" step attempts to verify that the newly assigned TEP IPs in AZ2 can reach the existing TEPs in the environment. To resolve this and ensure a successful deployment, the administrator must define a uniqueAZ2-specific IP Poolin NSX. Furthermore, this pool must be associated with anUplink Profile(or a Sub-Transport Node Profile in VCF 5.x/9.0) that uses the specific VLAN tagged for TEP traffic in the second data center. This ensures that the Edge Nodes in AZ2 are assigned IPs that are valid and routable within the AZ2 underlay, allowing Geneve tunnels to establish correctly to the ESXi hosts in both sites without requiring a stretched Layer 2 physical network for the TEP infrastructure.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

InVMware Cloud Foundation (VCF), theNSX Manageruses the SFTP protocol to securely transfer configuration backups to an external repository. SFTP is built on top of the SSH protocol, which relies on a "Trust on First Use" (TOFU) model for verifying the identity of the remote host.

When an NSX Manager first connects to an SFTP server, it retrieves the server'sSSH Public Key Fingerprintand stores it in its local known_hosts equivalent database. This fingerprint ensures that future connections are made to the same, verified server, preventing man-in-the-middle attacks.

The error"Host KEY Verification Failed"occurs when the administrator changes the SFTP server (or if the SFTP server's OS was reinstalled/keys regenerated). Even if the IP address remains the same, the new server presents a different SSH fingerprint than the one currently cached in the NSX Manager configuration. Because the signatures do not match, the NSX Manager aborts the connection for security reasons.

To resolve this issue, the administrator mustUpdate the SSH fingerprint(Option B) within the NSX Manager backup settings. This involves:

Retrieving the new fingerprint from the SFTP server (e.g., via ssh-keyscan).

Navigating to System > Lifecycle > Backup & Restore in the NSX Manager.

Editing the File Server configuration and pasting the new fingerprint into the appropriate field.

Option A is incorrect as it does not address the SSH protocol handshake failure. Option C is incorrect because SFTP/SSH uses fingerprints, not SSL/TLS certificates. Option D is irrelevant as it changes the source/destination of the connection but does not fix the underlying trust mismatch. Therefore, updating the fingerprint is the verified operational step to restore the automated backup workflow in VCF.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In a modern VMware Cloud Foundation (VCF) architecture, particularly when addressing the needs of a multinational corporation with geographically dispersed data centers, the solution must prioritize multi-tenancy, security, and consistent delivery. The integration ofNSXwithin VCF provides these core pillars.

First, theNSX Edgeis a foundational requirement for any multi-site or modern cloud environment. It serves as the bridge between the virtual overlay network and the physical world. In a multi-region deployment, NSX Edges facilitate North-South traffic and are essential for supporting features like Global Server Load Balancing (GSLB) or site-to-site connectivity. Without the Edge, the software-defined data center (SDDC) cannot communicate with external networks or peer via BGP with physical routers.

Second,vDefend(formerly known as NSX Security) provides the advanced security framework required for a "secure and scalable" environment. This includes Distributed Firewalling (DFW), Distributed IDS/IPS, and Malware Prevention. For a corporation with different departments, vDefend allows for micro-segmentation, ensuring that a security breach in one department's segment cannot move laterally to another. This is critical for meeting compliance and isolation requirements across global regions.

Third, theVirtual Private Cloud (VPC)model is the cornerstone of the latest VCF 9.0 and 5.x architectures. It enables the "scalable solution" for different departments by providing a self-service consumption model. Each department can manage its own isolated network space, including subnets and security policies, without needing deep networking expertise or constant tickets for the central IT team. This abstraction simplifies management across multiple data centers and allows for consistent application of policies regardless of the physical location.

While AVI Load Balancer and Centralized Network Connectivity are valuable, they are often considered add-ons or outcomes rather than the core architectural features that define the multi-tenant, secure, and geographically distributed nature of a modern VCF private cloud modernization project.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In aVMware Cloud Foundation (VCF)environment, particularly with the high-performance requirements of North-South routing,BGPandBFD (Bidirectional Forwarding Detection)are used in tandem to ensure rapid failure detection. A common but subtle issue in fresh or modified environments is anMTU (Maximum Transmission Unit) mismatchon the physical or virtual uplinks.

When BGP establishes a neighborship, it initially exchanges small keepalive packets. These small packets easily pass through interfaces even if there is an MTU mismatch (e.g., the Edge is set to 9000 bytes but a physical switch in the path is limited to 1500 bytes). However, once the BGP state reaches "Established," the routers begin exchanging full routing tables. TheseBGP Updatepackets are often large and will be fragmented or dropped if they exceed the MTU of any hop in the path.

The symptom described—where the session is stable for a few minutes (during the initial handshake) and then flaps—is the hallmark of an MTU issue. The "Detect Time Expired" diagnostic in BFD occurs because the BGP hold timer expires when it fails to receive the large update packets, or the BFD packets themselves are delayed/lost due to the congestion caused by retrying large, failed transmissions. According to VMware NSX troubleshooting documentation, if pings (small packets) succeed but the BGP session fails specifically when traffic load or route counts increase, the MTU should be the first setting verified.

VCF 9.0 and 5.x designs mandate consistent MTU settings (typically9000 MTUfor the overlay and at least1500+for the uplinks) across the entire path, including the virtual switch (VDS), the Edge VM vNICs, and the physical ToR switches. A mismatch here prevents the completion of the BGP state machine's full synchronization, leading to the cyclic "flapping" observed by the administrator.

===========
