AZ-802 Administering Windows Server Questions and Answers

Fabrikam ' s plan is to use Azure Policy to enforce configuration management policies across both its Azure and on-premises servers. Azure Policy ' s guest configuration capability, which evaluates and can remediate in-guest settings, only works against a server that is registered as an Azure resource. For an on-premises or non-Azure server, that registration is achieved by deploying the Azure Connected Machine agent, which onboards the machine as an Azure Arc-enabled server, gives it an Azure resource ID, and makes it a valid target for Azure Policy assignments, including guest configuration policies, in exactly the same way an Azure VM would be. Hybrid joining servers to Microsoft Entra ID affects identity and device management (such as Conditional Access) but does not make a server a valid Azure Policy target. A hybrid runbook worker lets Azure Automation runbooks execute on-premises but is unrelated to Azure Policy enforcement. The Azure Monitor agent collects telemetry into Log Analytics and Azure Monitor but does not register the server as an Arc resource or enable policy assignment on its own; it is typically deployed after Arc onboarding, not instead of it. Deploying the Azure Connected Machine agent is therefore the correct first step.

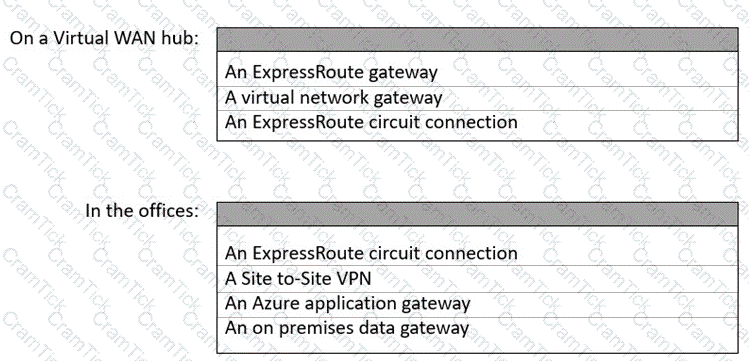

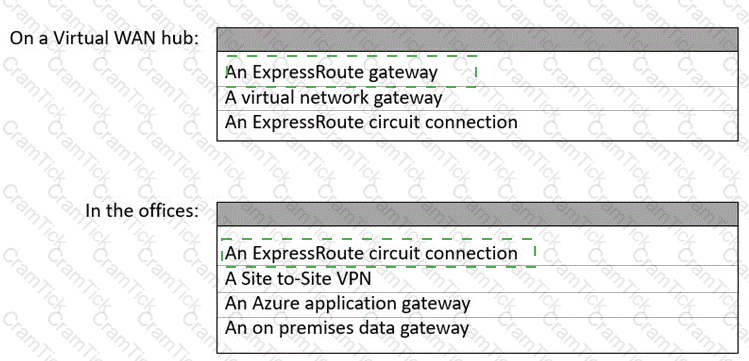

On a Virtual WAN hub: An ExpressRoute gateway. In the offices: An ExpressRoute circuit connection.

Fabrikam ' s plan is to replace the existing WAN links between the New York and Seattle offices with Azure Virtual WAN and ExpressRoute, connecting both offices to Vnet1 through the Virtual WAN hub. Azure Virtual WAN uses its own hub-native ExpressRoute gateway object (distinct from the standalone virtual network gateway used when ExpressRoute is connected directly to a single VNet); this ExpressRoute gateway is deployed inside the Virtual WAN hub and is required before any ExpressRoute circuit can terminate into that hub. A standard virtual network gateway is used for VNet-to-VNet or VPN scenarios, not for Virtual WAN hub ExpressRoute termination, and an ExpressRoute circuit connection itself is the logical link resource, not something you deploy on the hub. At each office, connectivity into Microsoft ' s network is established through an ExpressRoute circuit connection provisioned with a connectivity provider, which then links, via Microsoft ' s backbone, into the ExpressRoute gateway in the Virtual WAN hub. A Site-to-Site VPN, an Azure application gateway (a web traffic load balancer), and an on-premises data gateway (used for Power Platform/Logic Apps connectors) are all unrelated to this ExpressRoute-based design.

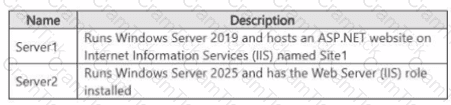

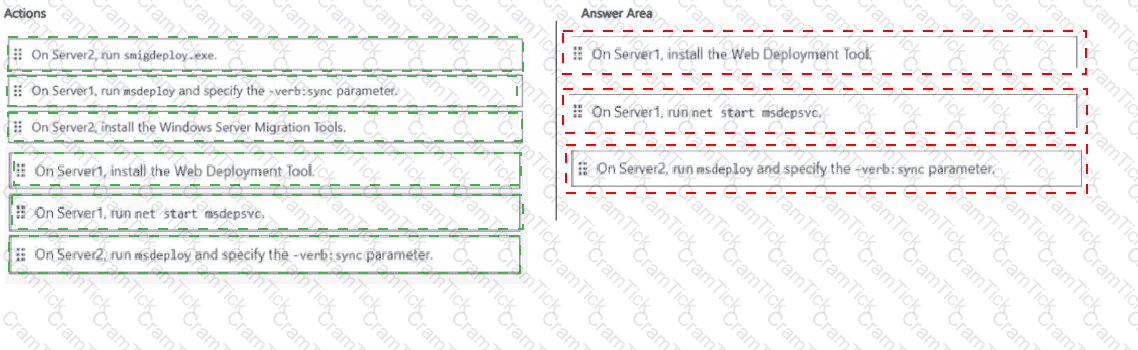

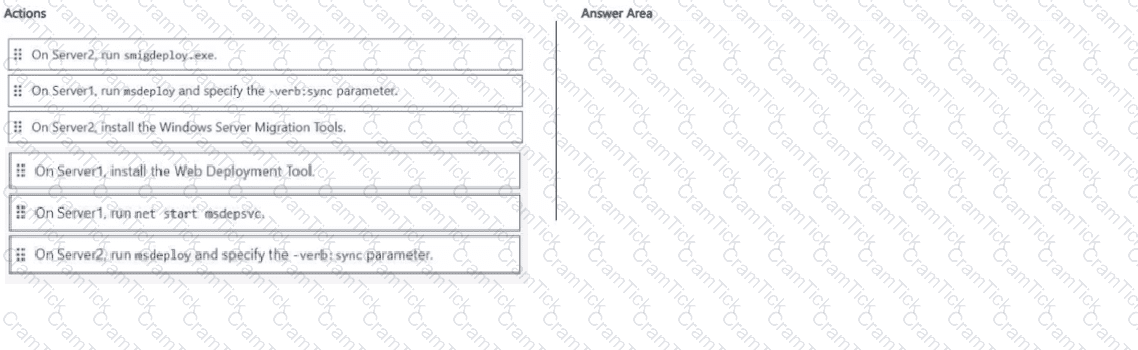

Migrating an IIS site with Web Deploy in the shortest time and with the least administrative effort is done by installing the Web Deployment Tool on the source server (Server1) and starting its remote agent service, msdepsvc, so the source can act as a remote sync endpoint. The actual synchronization is then triggered from the destination server (Server2) by running msdeploy.exe with the -verb:sync parameter, pulling Site1 ' s content and configuration directly from Server1 over the remote agent connection in a single pass, rather than exporting and importing packages manually. This is the standard remote-to-remote Web Deploy migration pattern for moving an IIS site between servers, and it avoids the intermediate package files and manual import steps that a packaged export/import approach would otherwise require, which is why it minimizes both migration time and administrative effort compared with alternatives such as the Windows Server Migration Tools feature. Running smigdeploy.exe on Server2 instead would only prepare that server for the unrelated general-purpose Windows Server Migration Tools workflow, which packages and transfers role/feature settings rather than syncing a live IIS site ' s content directly.

Microsoft Defender for Identity is the Microsoft Sentinel data connector purpose-built to monitor on-premises Active Directory domain controllers and surface exactly the insecure-protocol activity described in the requirement, including authentication attempts and sign-ins that rely on legacy or unsigned protocols such as NTLMv1, SMBv1, and unsigned LDAP binds. It does this by analyzing domain controller network traffic and Windows Events directly on the DCs, which is exactly where this insecure-protocol usage originates. The Threat Intelligence - TAXII connector ingests external threat-intelligence indicator feeds (IP addresses, file hashes, domains) from TAXII-compliant sources and has nothing to do with monitoring authentication protocol usage on domain controllers. The Azure Active Directory (Microsoft Entra ID) connector reports on cloud sign-in and audit log events for the Entra tenant, not on legacy protocol usage against on-premises AD DS domain controllers. Microsoft Defender for Cloud focuses on cloud resource security posture management and workload protection rather than detecting legacy authentication protocol usage against on-premises domain controllers. Therefore, connecting Microsoft Defender for Identity to Microsoft Sentinel is the correct connector to identify connections to the domain controllers that use insecure protocols.

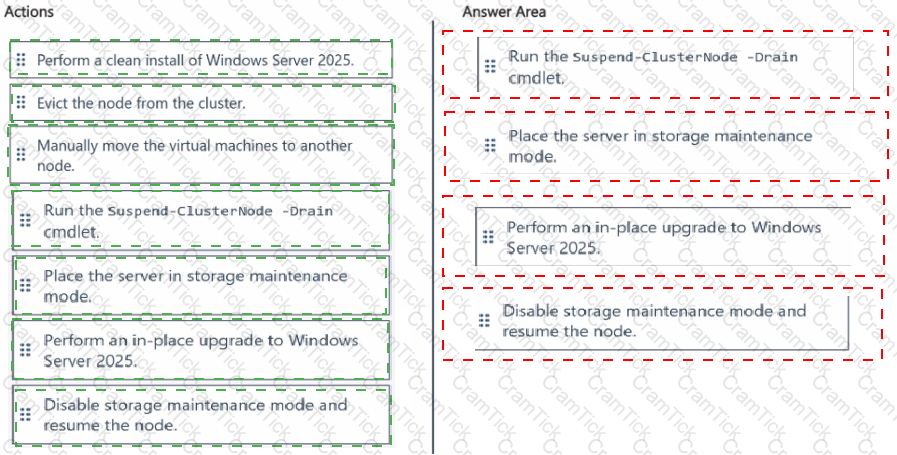

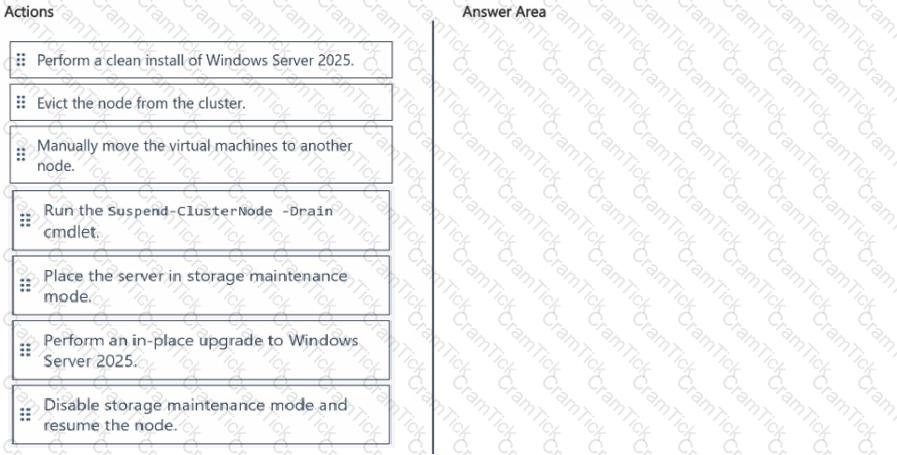

For a hyper-converged Storage Spaces Direct cluster, Microsoft ' s documented per-node in-place upgrade path begins by draining the node of its clustered roles with Suspend-ClusterNode -Drain, which live-migrates the running virtual machines off that node onto the remaining nodes before it pauses, keeping every VM online throughout the step. The node ' s drives are then placed into storage maintenance mode so the clustered storage subsystem stops routing I/O to them, which lets the disks be safely taken offline from the pool ' s perspective while the rest of the cluster continues serving storage requests. With the VMs relocated and the drives quiesced, an in-place upgrade to Windows Server 2025 is performed on the node directly, preserving its existing roles, cluster membership, and configuration rather than requiring a clean install or manual re-provisioning, which is what keeps administrative effort to a minimum compared with evicting and rejoining the node. Finally, storage maintenance mode is disabled and the node is resumed, allowing Storage Spaces Direct to bring its drives back into active service and repair mirror or parity copies before the same four-step sequence is repeated on the next node, one at a time, until the whole cluster is running Windows Server 2025.

Azure Migrate ' s physical server migration support matrix documents a maximum data disk size of 32 TB per disk, and Server1 ' s data disk, at 3 TB, is already comfortably within that limit, so there is no size-related requirement here that would justify or benefit from shrinking it, and doing so has no effect whatsoever on any actual unsupported configuration item present on this server. Reviewing the rest of Server1 ' s configuration, the 600 GB operating system disk is likewise well within the documented OS disk size limits, and the Windows Firewall and Microsoft Defender Antivirus states are not flagged as unsupported conditions by the support matrix at all. The one configuration item the support matrix does identify as unsupported for a physical server migration source is NIC teaming, which remains enabled on Server1 both before and after shrinking the data disk, since the two settings are entirely unrelated to each other. Because shrinking an already-compliant data disk does nothing to remove the actual blocking configuration, this solution does not meet the stated goal of ensuring Server1 can be migrated using Azure Migrate.

Site, subnet, and site-link objects are stored in the Configuration partition, which replicates to every domain controller in the forest but is administratively owned by the forest root domain. By default, only members of Enterprise Admins and members of the Domain Admins group of the forest root domain (contoso.com in this forest) have permissions to modify objects in the Configuration container, including editing a site link ' s replication schedule. Admin1 is a member of Contoso\Enterprise Admins and therefore has forest-wide rights over the Configuration partition. Admin2 is a member of Contoso\Domain Admins; because contoso.com is the forest root domain, this group also carries default rights over the Configuration and Schema partitions. Admin3, however, is a member of Canada\Domain Admins, the Domain Admins group of the canada.contoso.com child domain, which has no inherent rights over the Configuration partition. Consequently, to change the replication schedule on all site links to 30 minutes, only Admin1 and Admin2 currently have the necessary permissions, making option C the correct answer.

Windows Local Administrator Password Solution (Windows LAPS) is purpose-built to automatically randomize and rotate the password of a managed local account, such as the built-in local Administrator account, on a configurable schedule that includes a 30-day rotation interval, all with essentially no ongoing administrative effort once policy is applied. Because the 100 servers are already Azure Arc-enabled, Windows LAPS can be configured and enforced through Azure Policy against the Arc-enabled machine resources in addition to the traditional Group Policy path used for domain-joined, non-Arc computers, letting a single policy definition cover the whole hybrid estate with minimal ongoing effort. A Password Settings Object only governs domain user account password policy, such as complexity and expiration for AD DS user accounts, and has no effect whatsoever on local accounts on member servers. An Azure policy alone, without Windows LAPS, does not perform the actual password rotation; it can only audit or enforce that LAPS itself is deployed and configured correctly. Group managed service accounts are an entirely different mechanism designed to provide automatically managed passwords for services and scheduled tasks running under a shared identity, not for a computer ' s built-in local administrator account, so they cannot satisfy this requirement.

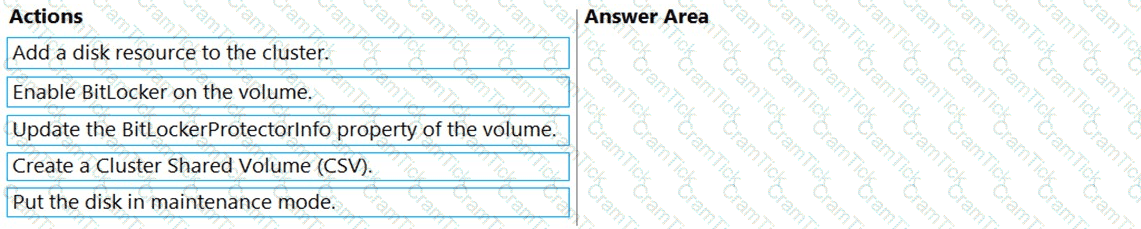

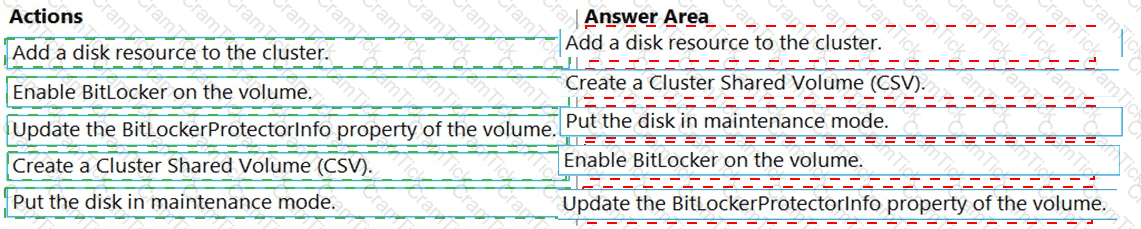

1. Add a disk resource to the cluster. 2. Create a Cluster Shared Volume (CSV). 3. Put the disk in maintenance mode. 4. Enable BitLocker on the volume. 5. Update the BitLockerProtectorInfo property of the volume.

BitLocker can only be enabled on a Cluster Shared Volume disk while that disk is taken offline to cluster I/O, so the CSV must exist and be placed into maintenance mode before encryption can be applied. The supported sequence begins by adding the disk resource to the cluster and converting it into a Cluster Shared Volume, since BitLocker-on-CSV support requires the disk to already be a CSV rather than a plain cluster disk. The disk is then put into maintenance mode, which takes it offline to the other cluster nodes so it can be safely encrypted without a node attempting to access it mid-operation. With the CSV disk offline in maintenance mode, BitLocker is enabled on the volume. Finally, the volume ' s BitLockerProtectorInfo property is updated so that Failover Clustering registers the unlock protector, allowing the volume to automatically unlock on every cluster node once maintenance mode ends and the CSV is brought back online. Performing these steps out of order either fails outright -- BitLocker cannot be enabled on a CSV disk that is still online and actively used by the cluster -- or leaves the other cluster nodes unable to bring the encrypted volume back online afterward, since they would lack the registered unlock protector. Therefore, the correct order is: add the disk resource, create the CSV, put the disk in maintenance mode, enable BitLocker, and update BitLockerProtectorInfo.

A Windows Server failover cluster requires a distinct IP address for each individual cluster node ' s network adapter, plus one additional IP address for the cluster ' s own network name resource -- the cluster access point that clients and management tools use to address the cluster as a single logical entity rather than any one specific node. Cluster3 will contain two physical nodes, Node1 and Node2, so at minimum one IP address is required for Node1 ' s network adapter and one for Node2 ' s network adapter. Beyond those two node-level addresses, the cluster core resource itself (the cluster name object and its associated IP address resource) requires one more address so that the cluster can be addressed and managed as a whole and so that any highly available roles hosted on the cluster (such as the file share role planned for Cluster3) can obtain the network identity they need to fail over between nodes. Adding these together -- one for Node1, one for Node2, and one for the cluster ' s own network name -- yields a minimum of three IP addresses required for Cluster3 ' s node and cluster roles. Fewer than three would leave either a node or the cluster itself without a usable network identity, and while additional IP addresses may be consumed by highly available roles later added to the cluster, three is the baseline minimum for the node and cluster roles themselves.

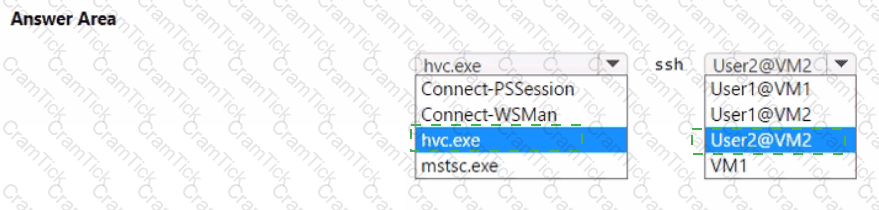

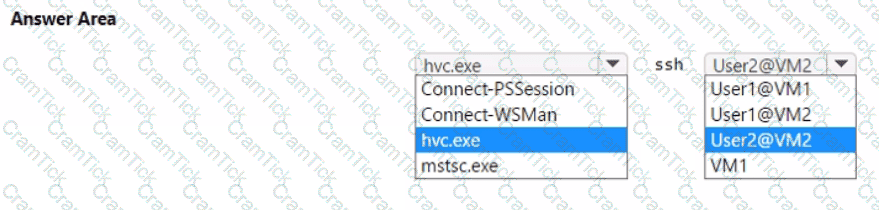

hvc.exe, ssh User2@VM2

The requirement is to use a direct SSH session to manage all the supported virtual machines on HyperV1, without relying on a network path to the guest. Hyper-V provides hvc.exe, a helper used as an SSH ProxyCommand, that opens an SSH session to a virtual machine over the VMBus (the internal Hyper-V socket/console channel) rather than over the network, which works even when the guest has no reachable IP configuration and only default management tools installed, matching the stated environment. Direct SSH management this way requires the guest to run an SSH server; of the three VMs, only VM2 runs Red Hat Enterprise Linux, which includes OpenSSH server support out of the box, so it is the only VM realistically " supported " for this direct SSH scenario as described, and the account to use is User2, the local account that exists on VM2. VM1 and VM3 both run Windows Server, so " direct SSH, " as intended by this requirement, targets the Linux guest. Connect-PSSession and Connect-WSMan are PowerShell remoting tools, not SSH, and mstsc.exe launches a graphical Remote Desktop session rather than a console-mode SSH session, so none of those alternatives fit. The correct combination is hvc.exe used as the SSH proxy, connecting as User2@VM2.

GPO4 is already linked to the VirtualDesktops OU, which contains the Azure Virtual Desktop session host computer accounts, so it is correctly targeted at the right computers. The requirement is that the idle lockout behavior configured in GPO4 must apply to whichever user is signed in to a session host, and that the user must still be able to adjust the lockout time manually from their own client, which means the relevant setting is a per-user configuration item rather than a strict, non-negotiable computer policy. By default, user-configuration settings inside a GPO apply based on the OU containing the user account, not the computer the user signs in to; Fabrikam ' s users are located in the AllUsers OU, which is governed by GPO1, not GPO4. Group Policy Loopback Processing, enabled in GPO4 and set to Merge (to allow the client-side adjustment) or Replace, forces the user-configuration portion of GPO4 to apply to any user who logs on to a computer in the VirtualDesktops OU, regardless of where that user ' s own account resides. Security filtering and the Enforced property both affect who a GPO applies to or its precedence in conflicts, but neither one makes a GPO ' s user-side settings follow the computer instead of the user, so loopback processing in GPO4 is correct.

DC3 is explicitly described as a domain controller named dc3.corp.fabrikam.com that will exist inside Vnet1, meaning it must be a genuine, writable domain controller for Fabrikam ' s existing corp.fabrikam.com AD DS forest, replicating with DC1 and DC2. The only way to run an actual domain controller for an existing on-premises forest inside Azure is to deploy a regular Azure virtual machine, place it on Vnet1, install the AD DS role on it, and promote it as an additional domain controller for corp.fabrikam.com. Microsoft Entra Domain Services is a fundamentally different, fully managed service: it creates its own separate, standalone managed domain and does not add a domain controller to, or replicate directly with, an existing on-premises forest, so it cannot be used to deploy " DC3 " as described. Microsoft Entra Application Proxy publishes on-premises web applications to external users and has nothing to do with domain controller placement. A Microsoft Entra administrative unit is a container used to scope administrative permissions over Microsoft Entra objects and is unrelated to deploying infrastructure. Therefore, an Azure virtual machine, promoted to a domain controller, is the correct implementation for DC3.

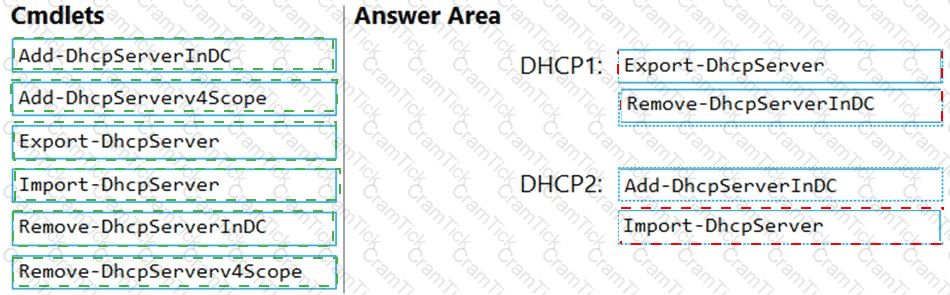

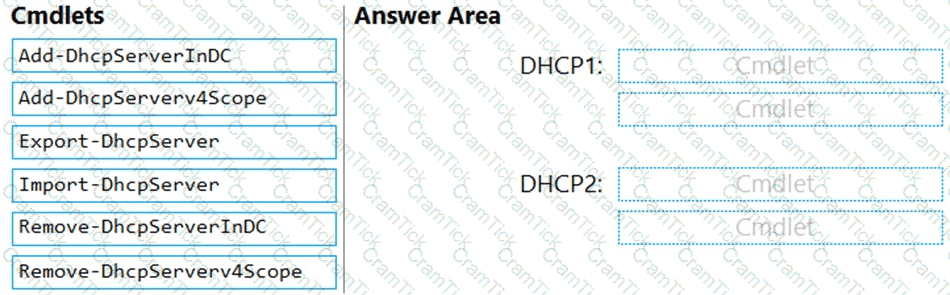

DHCP1: Export-DhcpServer, Remove-DhcpServerInDC. DHCP2: Add-DhcpServerInDC, Import-DhcpServer.

Migrating a DHCP server ' s configuration together with its existing leases and reservations by PowerShell follows an export/unauthorize-then-authorize/import pattern across the two servers. On the source server, DHCP1, Export-DhcpServer captures the existing scopes, options, leases, and reservations into a migration file, which is what allows the existing leases and reservations to actually carry over to the replacement server. Remove-DhcpServerInDC is then run on DHCP1 to unauthorize it in Active Directory, which is what prevents DHCP1 from continuing to service client requests once DHCP2 is brought online, satisfying that specific migration requirement. On the target server, DHCP2, Add-DhcpServerInDC authorizes the new server in AD DS so it is permitted to lease addresses on the network, and Import-DhcpServer then applies the configuration file exported from DHCP1, causing DHCP2 to hand out the same address ranges as DHCP1 along with the existing leases and reservations that were captured during export. Add-DhcpServerv4Scope and Remove-DhcpServerv4Scope only create or delete an individual scope ' s address range and do not export, import, or preserve any existing lease or reservation data, so neither is part of this migration sequence. Therefore, DHCP1 requires Export-DhcpServer and Remove-DhcpServerInDC, while DHCP2 requires Add-DhcpServerInDC and Import-DhcpServer.

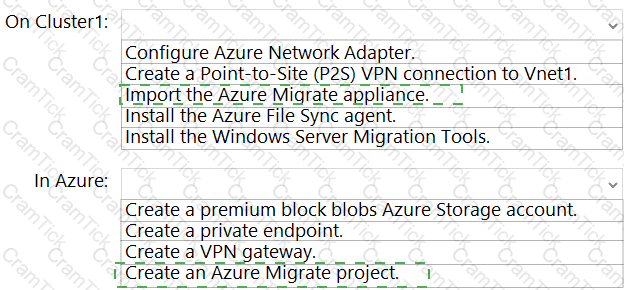

On Cluster1: Import the Azure Migrate appliance. In Azure: Create an Azure Migrate project.

APP3 and APP4 run as virtual machines on the on-premises Cluster1 Hyper-V failover cluster, so migrating them to Azure uses the Azure Migrate: Server Migration workflow for Hyper-V. That workflow requires an Azure Migrate project to first be created in Azure, since the project is the container that organizes the migration effort, tracks discovered and assessed machines, and holds the configuration for the subsequent discovery and replication work. On the Cluster1 side, the Azure Migrate appliance -- a purpose-built VM or OVA image supplied by Azure Migrate specifically for Hyper-V environments -- must be imported (deployed) onto the Hyper-V host or cluster, where it discovers the VMs running there and orchestrates their replication into Azure. Configuring an Azure Network Adapter, creating a Point-to-Site VPN connection to Vnet1, installing the Azure File Sync agent, and installing the Windows Server Migration Tools are all unrelated actions that do not perform Hyper-V VM discovery or replication for an Azure Migrate project. Similarly, creating a premium block blob storage account, a private endpoint, or a VPN gateway in Azure are not the resource that Azure Migrate itself requires to begin a migration project -- an Azure Migrate project is. Therefore, importing the Azure Migrate appliance onto Cluster1 and creating an Azure Migrate project in Azure are the two required preparatory actions.

Server administrators can be prevented from configuring Windows Defender Firewall rules by defining firewall policy centrally in a Group Policy Object and linking it to the servers ' organizational unit(s); domain-based GPO firewall policy overrides any local, administrator-configured Windows Defender Firewall rules on the domain-joined servers, since Group Policy-delivered firewall settings take precedence over local policy. Adaptive network hardening in Microsoft Defender for Cloud only generates recommendations to tighten network security group (NSG) rules protecting Azure resources -- it has no visibility into or control over host-based Windows Defender Firewall configuration on on-premises servers. A network security group (NSG) in Sub1 filters traffic at the Azure virtual network boundary and has no bearing on the on-premises Chicago office servers described in the scenario. An Azure Firewall policy governs the centrally managed Azure Firewall network virtual appliance, not the host-based Windows Defender Firewall running locally on each on-premises server. Because the servers in question are on-premises and domain-joined, only a Group Policy Object can centrally enforce and lock down their local Windows Defender Firewall configuration, preventing server administrators from modifying the rules directly on each machine. Therefore, configuring a GPO is the correct way to reduce this security risk.

Storage Migration Service is purpose-built to inventory the data, security descriptors, and both share-level and NTFS-level permissions on a source file server such as Fileserver1, transfer that data to a destination server such as Fileserver2, and then perform a cutover that reassigns the source server ' s network identity -- its computer name and IP address -- to the destination server. That cutover step is precisely what allows the existing \\Fileserver1\Data UNC path, already relied upon by the Chicago office application, to continue working unchanged after the migration, since client requests to that path transparently resolve to Fileserver2 once it has taken on Fileserver1 ' s identity. The Microsoft File Server Migration Toolkit and Windows Server Migration Tools are older, largely superseded utilities that can move some file server settings but do not provide this automated inventory-transfer-and-cutover workflow, and neither preserves the source server ' s identity on the destination the way Storage Migration Service does, meaning the UNC path would need to be manually updated or redirected. File Server Resource Manager (FSRM) is a quota, file-screening, and storage-reporting feature entirely unrelated to migrating data between servers. Therefore, Storage Migration Service is the correct tool to perform this migration while preserving the existing UNC path.

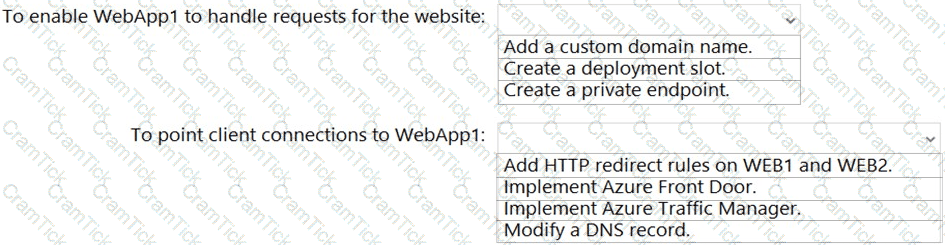

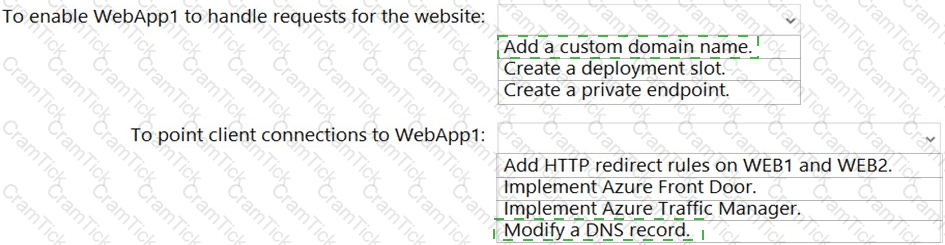

To enable WebApp1 to handle requests for the website: Add a custom domain name. To point client connections to WebApp1: Modify a DNS record.

For an Azure App Service web app to accept and correctly serve requests addressed to https://www.fabrikam.com rather than only its default *.azurewebsites.net hostname, the custom domain www.fabrikam.com must be added and bound to WebApp1 -- this is the specific configuration step that makes the app recognize and handle that custom hostname at all. Creating a deployment slot supports staged rollout and swap scenarios and does nothing to bind a custom domain, and creating a private endpoint provides private, VNet-restricted connectivity rather than public custom-domain handling, so neither accomplishes the stated goal. Once WEB1 and WEB2 are decommissioned per the migration plan, client traffic that currently resolves to those on-premises-facing web servers must instead be directed to WebApp1; since DNS is what resolves the www.fabrikam.com name to a specific endpoint, the DNS record for that hostname must be modified (typically to a CNAME record pointing at WebApp1 ' s default hostname, together with the domain-verification TXT record Azure requires before it will accept the custom domain binding). Azure Front Door and Azure Traffic Manager are global routing and load-balancing services meant for multi-region or multi-endpoint failover scenarios and are unnecessary complexity for redirecting a single custom domain to a single web app, and adding HTTP redirect rules on WEB1/WEB2 is not a viable option once those servers have been decommissioned. Therefore, adding a custom domain name to WebApp1 and then modifying the DNS record are the two required actions.

Azure Automanage currently does not support virtual machines that use the Trusted launch security type; this is an explicit, documented limitation of the service, independent of which Windows Server version or edition the VM is running. Looking at the four virtual machines ' security types, Server1 (Windows Server 2022 Datacenter: Azure Edition) and Server4 (Windows Server 2019 Datacenter) are both configured with Trusted launch, which makes both of them ineligible for Automanage onboarding regardless of their OS version. Server2 (Windows Server 2022 Datacenter: Azure Edition) and Server3 (Windows Server 2022 Datacenter) both use the Standard security type and run OS versions on Automanage ' s supported list, so both qualify and Automanage should be enabled on them to satisfy the requirement that it be used on " all supported " virtual machines, which by definition excludes the ones the service cannot onboard. It is a common misreading of this scenario to assume the Azure Edition label is the deciding factor, since Server1 and Server2 share that edition; the actual determining attribute the requirement hinges on is the VM ' s security type, not its Windows Server edition. Therefore Server2 and Server3 are the correct machines on which to enable Automanage.

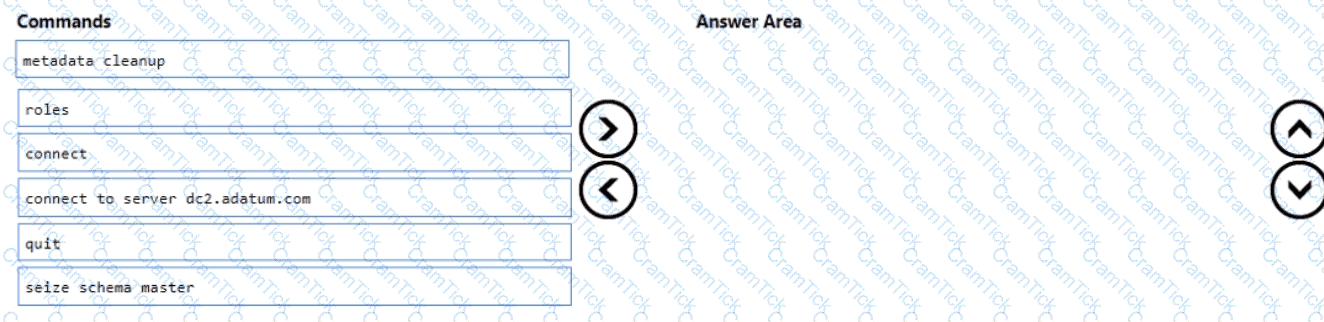

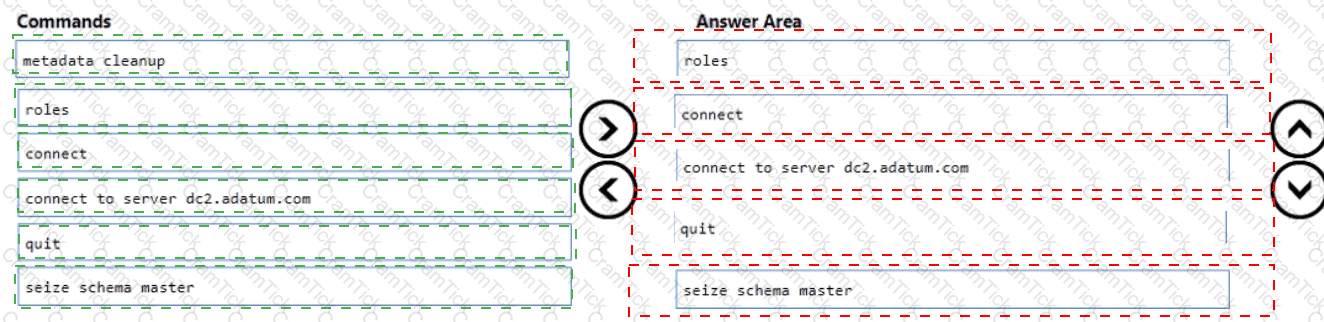

1. roles 2. connections 3. connect to server dc2.adatum.com 4. quit 5. seize schema master

Because DC1 has failed and cannot gracefully transfer the schema master role, DC2 must forcibly seize it using ntdsutil.exe. From the initial ntdsutil prompt, the first command is roles, which enters the Role Management submenu where FSMO role transfers and seizures are performed. From within that submenu, the command connections opens the Connections submenu, which is required before you can bind ntdsutil to a specific target domain controller. Inside the Connections submenu, connect to server dc2.adatum.com establishes the bind to DC2, the domain controller that will actually take over the schema master role. The quit command then exits the Connections submenu and returns to the Role Management submenu while keeping the established connection to DC2 active. Finally, seize schema master, executed from the Role Management submenu while bound to DC2, forces DC2 to take ownership of the schema master role even though DC1 (the previous holder) is offline and cannot be contacted to confirm the transfer. The unused command in the list, metadata cleanup, is a separate, later step used to remove the failed DC1 ' s leftover directory metadata once its roles have been reassigned; it is not part of seizing the schema master role itself, so it is correctly left out of this five-step sequence.

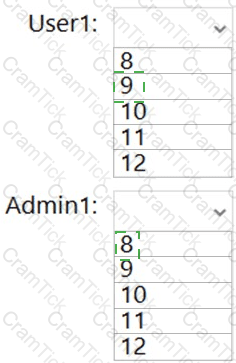

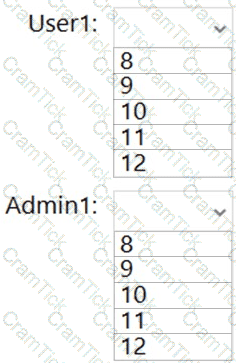

User1: 9. Admin1: 8.

Fine-grained password policies delivered through Password Settings Objects (PSOs) take precedence over the domain-wide Default Domain Policy for any user they apply to. When more than one PSO would apply to the same user only through different group memberships (as opposed to one being linked directly to the user), the PSO with the lowest numeric precedence value wins. User1 is a member of both Group2 (targeted directly by PSO1, precedence 10, minimum password length 9) and Group4 (targeted directly by PSO2, precedence 20, minimum password length 11); since PSO1 ' s precedence value of 10 is lower than PSO2 ' s 20, PSO1 governs, giving User1 an effective minimum password length of 9. Admin1 is a member only of Domain Admins, which is not targeted by either PSO, so no fine-grained password policy applies. Admin1 is also in OU1, which has GPO1 linked to it with a minimum password length of 10, but Account Policy settings such as password policy configured in an OU-linked GPO never affect the effective password policy of domain user accounts -- only a GPO linked at the domain root can supply a fallback domain-wide default, and PSOs otherwise take precedence over that default. With no applicable PSO, Admin1 ' s effective policy falls back to the Default Domain Policy, whose minimum password length in this environment is 8.

Enabling Microsoft Entra ID sign-in on an Azure VM running Windows is implemented through a VM extension named AADLoginForWindows, published by Microsoft.Azure.ActiveDirectory. This extension installs the components needed for the VM to accept Microsoft Entra credentials for RDP sign-in and, when combined with Azure RBAC roles such as Virtual Machine Administrator Login, controls who is authorized to sign in. VM extensions in Azure are deployed and managed with the Set-AzVMExtension cmdlet, which is how this specific extension gets installed onto Server1. Set-AzVM modifies general virtual machine properties, such as size or OS profile settings, but has no mechanism for installing extensions. Add-ADComputerServiceAccount and New-ADComputer are on-premises Active Directory cmdlets used to manage computer objects and service accounts in AD DS; they have no relevance to an Azure VM ' s sign-in method and would not apply here since Server1 ' s sign-in requirement is being satisfied by Microsoft Entra ID, not by joining a domain. Set-AzVMExtension is therefore the correct cmdlet.

The requirement is that VMs must be configured to enable per-folder quotas. VM3 already has the File and Storage Services role installed, but native NTFS quotas only apply per volume and per user; they cannot restrict the amount of data stored inside an individual folder. File Server Resource Manager (FSRM) is the Windows Server feature that adds true folder-level quota management, letting an administrator define hard or soft quota limits (and quota templates) scoped to specific folders rather than entire volumes, which is exactly the granularity the requirement calls for. Enhanced Storage is an unrelated feature that supports certain storage devices with enhanced storage access (IEEE 1667), Windows Standards-Based Storage Management provides SMI-S/WMI-based management of storage arrays and has nothing to do with folder-level quotas, and the iSNS Server service is used for discovery of iSCSI targets and initiators on a network, also unrelated to quota enforcement. None of those three alternatives provide any per-folder capacity restriction capability, so installing FSRM is the necessary first step before per-folder quotas can be configured on VM3.

Private1 is deployed with its inbound endpoint in VNet1, and an Azure DNS Private Resolver inbound endpoint can resolve only private DNS zones that are virtual-network-linked to the same virtual network where the resolver itself sits; it cannot resolve a zone just because it exists in the same subscription, or because that zone happens to be linked to a different, unrelated virtual network. Per the private DNS zone table, Zone1.com is linked to VNet1, Zone2.com is linked to VNet2, and Zone3.com has no virtual network link at all. Because Private1 ' s inbound endpoint lives in VNet1, only Zone1.com, the zone actually linked to VNet1, can be resolved through it. Zone2.com cannot be resolved by Private1 because it is linked only to VNet2, a separate virtual network with no stated peering or additional resolver configuration connecting it to VNet1; and Zone3.com cannot be resolved by any resolver in any virtual network because it has no virtual network link whatsoever, meaning no virtual network can consult it through the normal Azure-provided DNS resolution path. Extending resolution to Zone2.com would require either a separate resolver deployed in VNet2, or peering combined with a forwarding ruleset and outbound endpoint, neither of which is described as being configured here. Therefore only Zone1.com can currently be resolved.

Task1 is an Azure Automation runbook, and Azure Automation supports a specific, limited set of runbook types: PowerShell (and PowerShell Workflow), Python, and Graphical runbooks (which are authored visually rather than in a scripting language). Of the listed options, PowerShell and Python are the two genuine scripting languages Azure Automation lets you author a runbook in directly, making them the two correct answers. Java and JavaScript are not supported runbook languages in Azure Automation; JavaScript is used elsewhere in Azure (for example, in Azure Functions or Logic Apps custom code), but not for Automation runbooks. Bicep is a domain-specific language for declaratively defining Azure infrastructure as code (compiling down to ARM templates) and has no role as an executable runbook language; you would not write a Task1 runbook in Bicep, since runbooks execute imperative logic rather than declare resource deployments. Therefore, Python and PowerShell are the two languages available for Task1.

The Marketing OU users exist in fabrikam.com, a completely separate on-premises AD DS forest belonging to a different company than A. Datum, whose own Microsoft Entra tenant only syncs the adatum.com forest today. To give those Fabrikam users access to storage1 in A. Datum ' s tenant, their identities must also be represented in that tenant. Microsoft Entra Connect cloud sync uses lightweight, cloud-managed provisioning agents that are specifically designed to support complex or multi-forest topologies, including syncing from a partner organization ' s forest, with a much smaller on-premises footprint and configuration burden than the full Microsoft Entra Connect Sync engine, and without requiring a trust relationship between the two companies ' forests. The traditional Microsoft Entra Connect Sync engine (whether in active or staging mode) is built around a single organization ' s identity infrastructure and is a heavier deployment to extend safely across an independent partner company ' s forest; staging mode specifically only prepares a secondary sync server to take over, and does not by itself address the cross-company sync problem. AD FS provides federation and SSO but does not create Microsoft Entra ID objects for Fabrikam ' s users. Microsoft Entra Connect cloud sync is therefore the correct, purpose-built option.

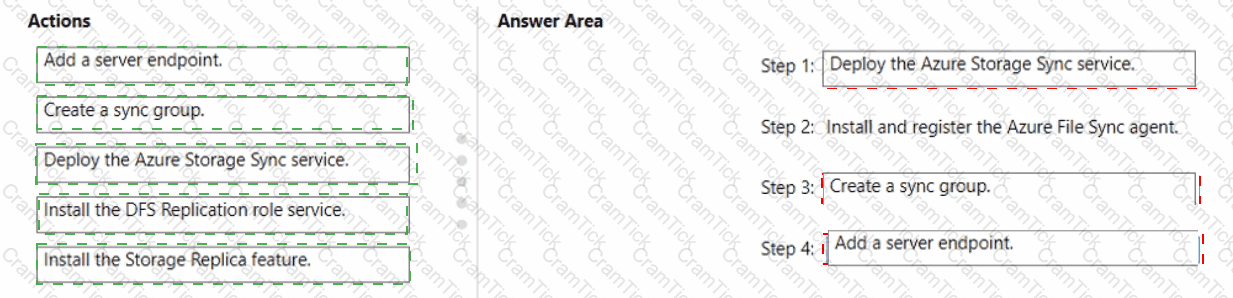

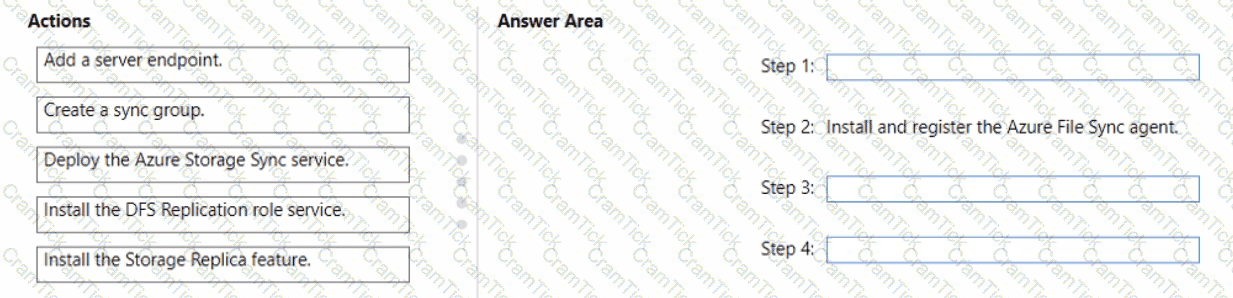

1. Deploy the Azure Storage Sync service. 2. Install and register the Azure File Sync agent. 3. Create a sync group. 4. Add a server endpoint.

Data1 is a file share on VM1 that must be synced to the Azure Files share1 using Azure File Sync. The documented deployment order starts in Azure: you must first deploy a Storage Sync Service resource, because the on-premises agent registration process needs an existing Storage Sync Service to register against. With that resource in place, the next step, already fixed in the sequence, is to install the Azure File Sync agent on VM1 and register the server with the Storage Sync Service, which establishes the server ' s identity and trust relationship with Azure. After registration, you create a sync group, the container that pairs one Azure file share (the cloud endpoint) with one or more on-premises folders (server endpoints); the sync group must exist before endpoints can be attached to it. Finally, you add a server endpoint pointing at the Data1 path on VM1, which starts the actual namespace and content synchronization with share1. Installing the DFS Replication role service and installing the Storage Replica feature are unrelated technologies, DFS-R replicates between on-premises servers and Storage Replica performs block-level volume replication, neither of which is part of an Azure File Sync deployment, so both are correctly excluded from the sequence.

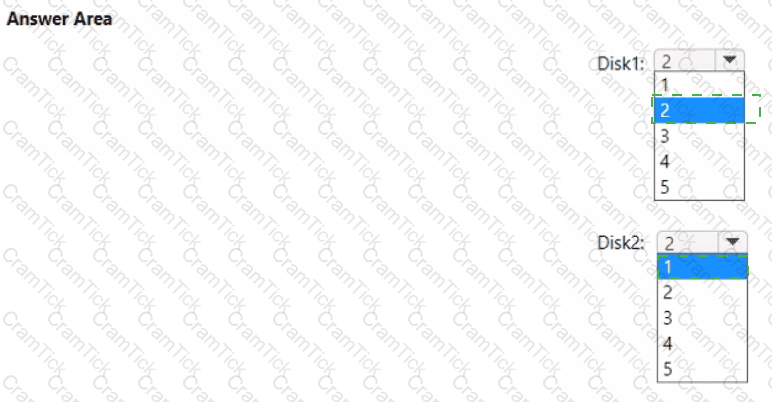

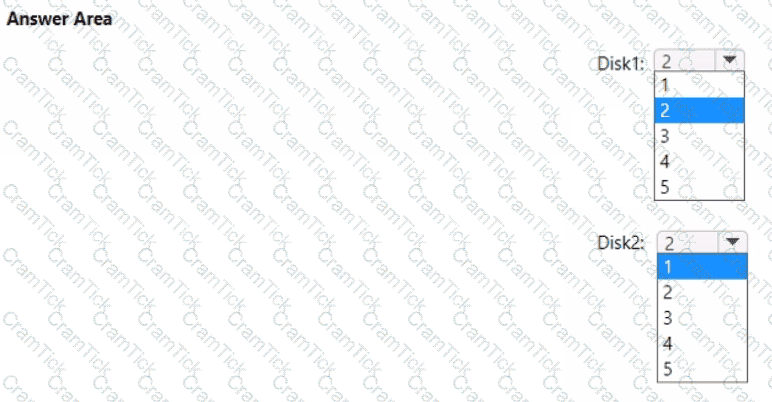

Disk1: 2. Disk2: 1.

The requirement is that data on SSPace1 must remain available at all times, meaning the storage pool ' s virtual disks must be able to tolerate physical disk failures without becoming unavailable or losing data. A three-way mirror keeps three copies of every block of data spread across different physical disks, so it remains available and readable even if any two of those disks fail simultaneously; the resiliency is fixed at tolerating two failures regardless of how many total disks (8, in Disk1 ' s case) make up the pool, as long as there are enough disks to support three-way mirroring, which eight comfortably provides. Disk2 uses parity resiliency, which stores a single parity block that can reconstruct data after one physical disk failure; unless dual parity is explicitly configured (which requires being set at virtual disk creation time and is not indicated here), a standard parity virtual disk tolerates only one physical disk failure before data becomes unavailable, regardless of the pool having twelve physical disks. Administrators sometimes assume more disks in a parity pool automatically means more fault tolerance, but the number of disks a parity space can lose is determined by the resiliency configuration (single vs. dual parity), not by the total disk count. Therefore Disk1 tolerates two disk failures and Disk2 tolerates one.

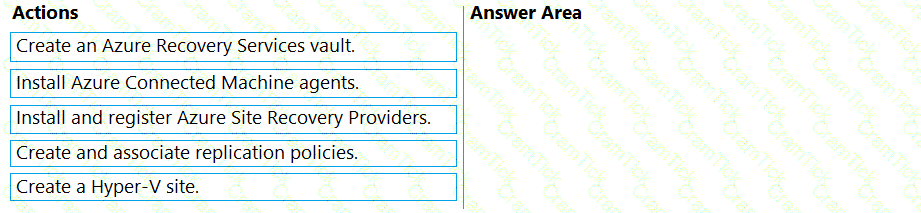

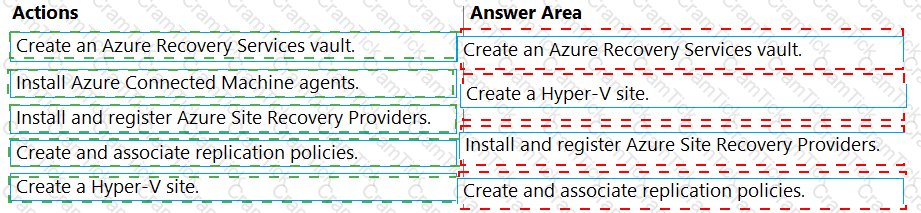

1. Create an Azure Recovery Services vault. 2. Create a Hyper-V site. 3. Install and register Azure Site Recovery Providers. 4. Create and associate replication policies.

Setting up Azure Site Recovery for a Hyper-V cluster that is not managed by Virtual Machine Manager follows a fixed infrastructure-preparation order. An Azure Recovery Services vault must exist first, since it is the container that every later step registers against. A Hyper-V site is then created in that vault to represent the on-premises Hyper-V environment, because a Hyper-V host or cluster must belong to a site before its hosts can be registered against Azure Site Recovery. The Azure Site Recovery Provider is then installed on the Hyper-V hosts (Cluster2 ' s nodes) and registered to that site/vault, which is what actually connects the cluster nodes to Azure Site Recovery. Only once the hosts are registered can a replication policy be created and associated with the Hyper-V site, since a policy has nothing to attach to until the site and its registered hosts already exist. Installing Azure Connected Machine agents is unrelated to Hyper-V VM replication -- that agent is used for onboarding servers to Azure Arc -- and is not part of this workflow. Therefore, the correct order is: create the vault, create the Hyper-V site, install and register the Providers, and create and associate the replication policy.

The Azure Site Recovery Provider must be installed and registered on every Hyper-V host that is a node of the cluster being protected, because each node is a location the protected virtual machines could reside on after a live migration, and each node must independently be able to track and replicate the VMs it is currently hosting. Cluster2 has four nodes according to the Hyper-V failover clusters table (Cluster1 has six nodes and eighteen virtual machines, Cluster2 has four nodes and twelve virtual machines, and Cluster3 has two nodes and six virtual machines), so a minimum of four Provider installations -- one per node -- is required; installing the Provider on only one, two, or three of the nodes would leave replication unable to follow a protected VM if it live-migrated to whichever node lacks the Provider, breaking continuous replication for that VM the moment it moved. Therefore, four is the minimum number of Azure Site Recovery Provider installations required to fully protect all of Cluster2 ' s virtual machines regardless of which node currently hosts them.

Storage Migration Service is designed to migrate a file share such as Share1 to a new server (Server2) while carrying over both the share-level and NTFS folder/file permissions, and it can also perform a cutover of the source server ' s name and IP address if a fully transparent migration is later required. This directly satisfies the requirement to migrate Share1 to Server2 including all the share and folder permissions. File Server Resource Manager (FSRM) only provides quota, file-screening, and storage-reporting capabilities and has no mechanism to migrate data, shares, or permissions between servers. Server Manager is a general-purpose administration console with no dedicated share-migration workflow -- it can be used to create shares manually but cannot transfer existing permissions programmatically. Storage Replica performs block-level volume replication intended for disaster recovery and stretch-cluster scenarios rather than a one-time, permission-preserving share migration to a specific destination server. Therefore, Storage Migration Service is the correct tool to migrate Share1 to Server2 while preserving its share and folder permissions.

Promoting a new domain controller that runs a newer operating system version than any existing domain controller in the forest -- here, DC4 running Windows Server 2022 into a forest whose functional level is still Windows Server 2012 R2 -- requires the Active Directory schema to first be extended to support that OS version ' s schema additions (the adprep /forestprep and /domainprep operations, which modern promotion tools such as Install-ADDSDomainController run automatically when needed). Extending the schema requires connectivity to the domain controller holding the Schema Master FSMO role, since schema changes can only be made by contacting that specific role holder; if the Schema Master is offline, the schema extension step fails and the promotion cannot proceed. According to the domain controllers table, DC1 holds both the RID master and the schema master roles. DC2 holds the PDC emulator and infrastructure master roles, and DC3 holds the domain naming master role -- neither of those role sets is relevant to a schema extension. Therefore, DC1, as the Schema Master, must be online for DC4 ' s promotion (and its associated schema extension) to succeed.

Backing up a standalone Windows Server ' s files, folders, and system state directly to an Azure Recovery Services vault -- exactly what the requirement calls for on Server4 -- is done using the Microsoft Azure Recovery Services (MARS) agent, so installing that agent on Server4 is the necessary first step. Microsoft Azure Backup Server (MABS) is used for application-aware and Hyper-V virtual machine backups rather than direct file/system-state backup of a single standalone server, and while it can also protect servers, it is not the lightweight, direct-to-vault mechanism appropriate for a single standalone server like Server4 and represents unnecessary additional infrastructure. Native Windows Server Backup does not target an Azure Recovery Services vault on its own without additional agent installation, and Storage Replica provides block-level volume replication between servers rather than the point-in-time backup and long-term retention the requirement calls for. Therefore, installing the MARS agent on Server4 is the correct first step to meet this technical requirement.

Using Hyper-V Replica within a clustered Hyper-V environment such as Cluster3 requires deploying the Hyper-V Replica Broker, which itself runs as a clustered role on the failover cluster; without the Broker, replication cannot follow a protected virtual machine if it live-migrates between Cluster3 ' s nodes, since there would be no single, cluster-aware endpoint tracking which node currently owns each VM ' s replication state. Adding a failover cluster role is exactly how the Hyper-V Replica Broker is deployed onto Cluster3, satisfying the requirement to use Hyper-V Replica to protect Cluster3 ' s virtual machines. Enabling integration services on the virtual machines addresses guest-OS-to-host integration (time synchronization, heartbeat, and similar) rather than providing any replication capability. Adding a generic Windows Server server role does not, by itself, install or configure the Hyper-V Replica Broker -- the Broker must specifically be added as a clustered role through Failover Cluster Manager. Configuring a fault domain for the cluster is not a real Windows Server failover clustering concept and does not provide Hyper-V Replica capability. Therefore, adding a failover cluster role (the Hyper-V Replica Broker) is the correct solution for Cluster3.

The requirement states that server administrators must request approval before establishing a Remote Desktop connection to an Azure virtual machine, and that once approved, the connection must be established within a defined two-hour window. This request-approve-then-time-limited-access pattern for a specific management port on an Azure VM is precisely what just-in-time (JIT) VM access, a Microsoft Defender for Cloud capability, provides: it keeps the RDP/SSH management ports closed by default in the network security group, requires an explicit access request, and, once approved, opens the port only for a specified time window and only from the requester ' s source IP. Microsoft Entra Privileged Identity Management provides time-bound, approval-based elevation for Microsoft Entra and Azure RBAC roles, not for opening network ports to a VM, so it does not by itself control Remote Desktop network access. The Remote Desktop extension for Azure Cloud Services is a legacy classic-deployment feature unrelated to this scenario. Azure Bastion provides browser-based RDP/SSH without exposing public IPs but does not implement an approval workflow with a bounded connection window. JIT VM access is therefore the correct, purpose-built solution.

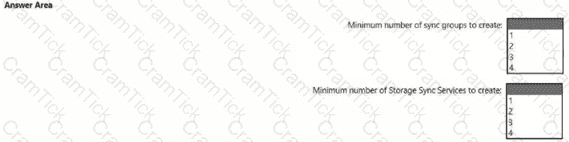

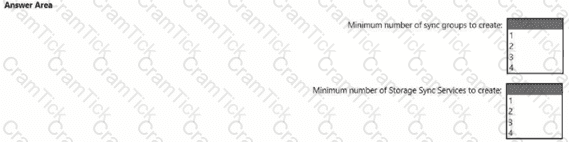

Sync groups: 3. Storage Sync Services: 1.

In Azure File Sync, a sync group defines a single sync topology and can contain exactly one cloud endpoint (one Azure file share) but can contain multiple server endpoints (on-premises server locations) that all sync to that same file share. Fabrikam needs newyorkfiles to sync only to FS1, seattlefiles to sync only to FS2, and companyfiles to sync to both FS1 and FS2. Because each Azure file share can only belong to one sync group, newyorkfiles requires its own sync group with a single server endpoint on FS1, seattlefiles requires its own sync group with a single server endpoint on FS2, and companyfiles requires a third sync group whose one cloud endpoint (companyfiles) has two server endpoints, one on FS1 and one on FS2, which Azure File Sync fully supports within a single sync group. That gives a minimum of three sync groups. A Storage Sync Service is the top-level Azure resource that contains and manages sync groups, and there is no requirement here that forces the shares into separate Storage Sync Service instances (such as differing regions or subscriptions); a single Storage Sync Service can hold all three sync groups. Therefore only one Storage Sync Service is required.

DHCP1 (New York, Scope1) and DHCP2 (Seattle, Scope2) currently serve only their own local office. To make DHCP highly available across both offices, the modern, supported approach is DHCP Failover, configured per scope (option E), which replicates lease information between DHCP1 and DHCP2 in either load-balance or hot-standby mode so that either server can service either scope ' s clients if its partner becomes unavailable. However, DHCP Failover alone only helps if a client ' s DHCP broadcast can actually reach the surviving partner server across the WAN; broadcasts do not cross routed office boundaries on their own. Configuring a DHCP relay agent on the router (or another relay-capable device) in each office (option B) forwards DHCPDISCOVER broadcasts from local clients to the remote partner server whenever the local DHCP server is down, allowing failover to actually take effect for clients in either office. The legacy split-scope technique of manually carving off a percentage of the other scope ' s addresses (options A and C) is the older, pre-failover workaround and is unnecessary once DHCP Failover is used; there is also no DHCP cluster role delivered through Windows Failover Clustering (option D), since DHCP achieves high availability through Failover mode, not a clustered role.

The requirement is narrow: User1 must be able to manage the membership of all the groups located in Contoso\OU3, and nothing more. The Delegation of Control Wizard, run against OU3 specifically, lets an administrator grant User1 exactly the built-in task " Modify the membership of a group, " which grants write access to the member attribute on group objects contained in that OU only. This satisfies the requirement while granting no rights outside OU3, which is the definition of least privilege. Creating the same delegation at the domain root (contoso.com) would technically work but grants far broader scope than needed, since it would apply to every container in the domain, not just OU3, violating least privilege. Adding User1 to Account Operators grants domain-wide rights to create, delete, and modify most user, group, and computer accounts throughout the domain (with some protections for built-in admin accounts), which is excessive for a task limited to group membership in one OU. Server Operators is unrelated to Active Directory object management altogether; it governs local administrative rights on domain controllers themselves. Therefore, delegating control on OU3 is the correct, minimally scoped solution.

DC3 is a domain controller for the existing corp.fabrikam.com AD DS forest, deployed into Vnet1 in Azure. Domain controllers rely on AD-integrated DNS for locating other domain controllers, SRV records, and replication, so DC3 needs to host that zone itself, which requires installing the DNS Server role on DC3 and letting it host an AD-integrated copy of the corp.fabrikam.com zone. Azure ' s default virtual-network-provided DNS resolver has no awareness of AD DS records and cannot host or serve an AD-integrated zone, so every resource in Vnet1 that needs to locate the domain (including Azure VMs and DC3 ' s own replication partners) must be pointed at real DNS servers instead. That is accomplished by configuring the custom DNS Servers setting on Vnet1 to reference DC3 (and, once available, DC1 and DC2), which makes all Azure VMs in the virtual network resolve names through the AD-integrated DNS infrastructure rather than the platform resolver. An Azure DNS zone (public) or an Azure private DNS zone are separate, unrelated Azure-native DNS services that cannot host an AD-integrated zone and are not used for this scenario. Installing the DNS Server role on DC3 and pointing Vnet1 at it together satisfy the requirement.

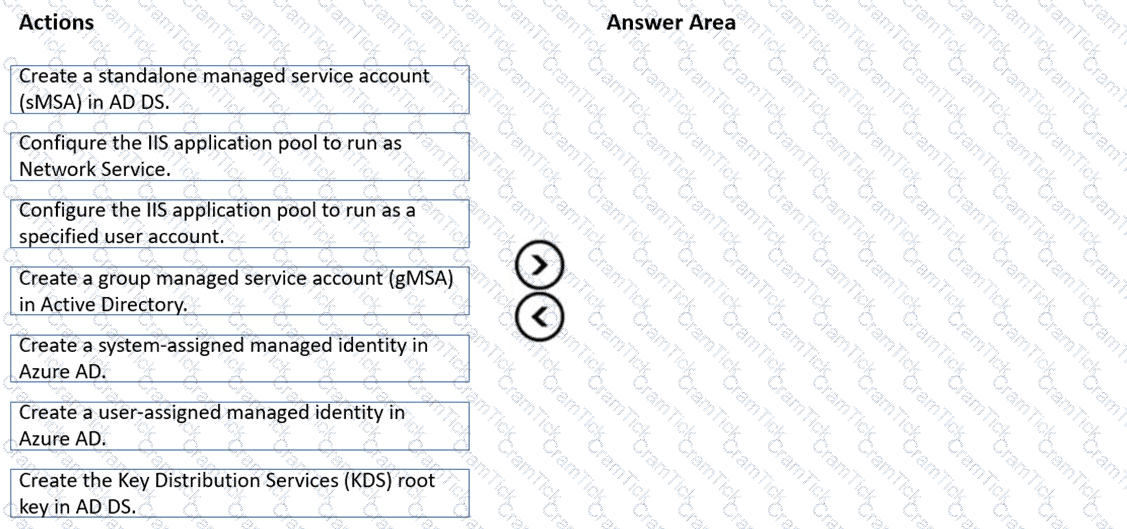

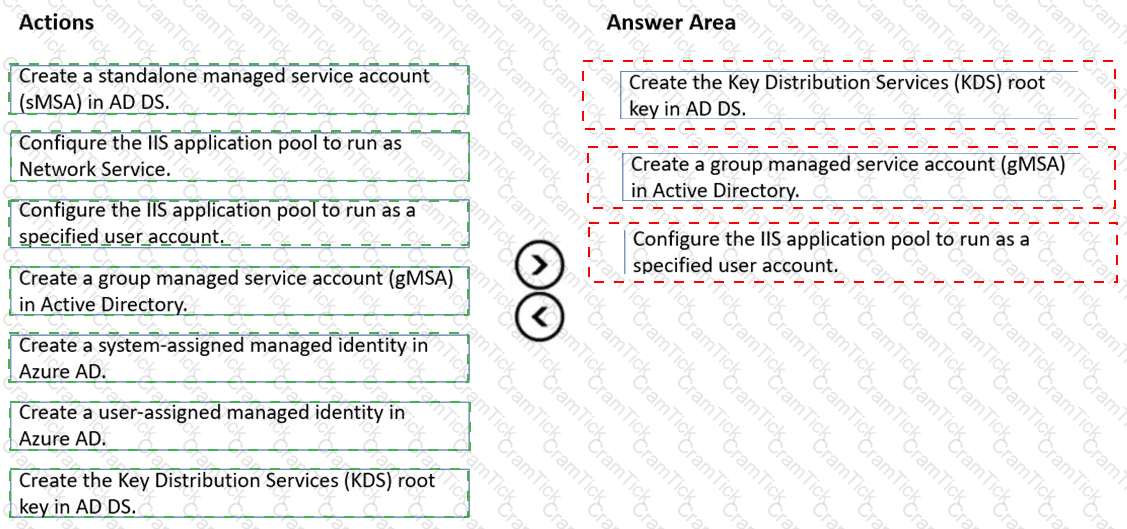

1. Create the KDS root key in AD DS. 2. Create a group managed service account (gMSA) in Active Directory. 3. Configure the IIS application pool (on WEB1 and WEB2) to run as the gMSA via a specified user account.

The requirement is that every instance of Webapp1 (running on both WEB1 and WEB2) uses the same identity, and that identity ' s password rotates automatically every 30 days, without any administrator manually resetting it. A standalone managed service account (sMSA) is tied to a single computer and cannot be shared across WEB1 and WEB2, so it does not meet the requirement. A group managed service account (gMSA) is designed exactly for this scenario: one AD-managed identity that multiple servers can use simultaneously, with the Key Distribution Service automatically rotating its password (by default every 30 days) without needing manual intervention or downtime. Before any gMSA can be created in the forest, a one-time prerequisite must exist: the KDS root key, which the Key Distribution Service uses to generate and later recompute the gMSA ' s password material. So the correct order is to first create the KDS root key, then create the gMSA object in Active Directory, and finally configure the IIS application pool on each web server to run as that gMSA using the " specified user account " identity option (entered as domain\gMSA$ with no password required, since the password is centrally managed). Creating a system- or user-assigned managed identity in Microsoft Entra ID does not apply here, since Webapp1 runs on IIS on domain-joined VMs, not as an Azure PaaS resource.

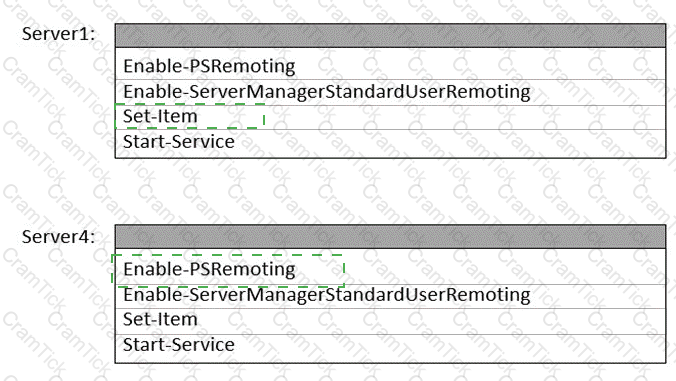

Server1: Set-Item. Server4: Enable-PSRemoting.

The requirement is to manage Server4 from Server1 by using PowerShell remoting. Server4 is a workgroup computer, not a member of either AD DS domain, so the WinRM authentication that PowerShell remoting relies on cannot use Kerberos between Server1 and Server4; it must fall back to NTLM, which WinRM only permits toward hosts explicitly listed in the client ' s TrustedHosts list. On Server1, the correct action is therefore Set-Item, used as Set-Item WSMan:\localhost\Client\TrustedHosts -Value " Server4 " (with -Concatenate as needed), which adds Server4 to Server1 ' s trusted hosts so an NTLM-based remoting session is permitted. On Server4, the target must first be configured to accept remote commands at all, which is done with Enable-PSRemoting; this cmdlet starts and configures the WinRM service, creates a listener, and enables the Windows Remote Management firewall rule for the current network profile, matching Server4 ' s private firewall profile. Enable-ServerManagerStandardUserRemoting only grants a non-administrator limited Server Manager access and does not establish remoting, and Start-Service alone does not create or configure a WinRM listener or firewall exception. Configuring Set-Item on Server1 and Enable-PSRemoting on Server4 together satisfies the requirement.

The stated problem is that when an administrator connects to VM2 ' s console through Virtual Machine Connection and disconnects without signing out, a second administrator who opens the console can silently inherit that still-signed-in session without ever supplying credentials. By default, VMConnect attaches directly to the raw console of the guest, which behaves like walking up to a physical, unlocked machine. Enhanced Session Mode changes this behavior by routing the VMConnect session over the Remote Desktop Protocol into the guest, which means every connection is treated as a new interactive Remote Desktop logon and therefore always prompts for credentials, eliminating the ability to passively inherit someone else ' s open session. Enabling Enhanced Session Mode requires both host-side and guest-side support (the guest operating system must support RDP and have the setting enabled) but is the direct, purpose-built fix for this exact console-sharing problem. The Guest Services integration component only enables basic file-copy functionality between host and guest and has no effect on console/session behavior. Credential Guard protects locally stored credentials from theft using virtualization-based security, and shielded VMs protect a VM ' s disk, state, and console from a compromised or malicious fabric administrator; neither addresses console session takeover between two legitimate administrators. Enhanced Session Mode is therefore the correct solution.

Installing and authorizing a DHCP server in an Active Directory-integrated environment requires two distinct sets of rights: local Administrators group membership on Server3 to install the DHCP Server role itself, and Enterprise Admins group membership to authorize that server in AD DS, because DHCP server authorization is stored as a forest-wide object under CN=NetServices,CN=Services,CN=Configuration and only Enterprise Admins can create or modify objects there by default. Admin1 is a member of Contoso\Enterprise Admins, which grants exactly this forest-wide right and also carries local administrative rights on every domain-joined computer in the forest, including Server3, so Admin1 can both install the role and authorize the server, fully satisfying the requirement on his own. Admin2, a member of only Contoso\Domain Admins, has full administrative rights over contoso.com and its member computers, but Domain Admins does not carry the right to authorize a DHCP server in the forest-wide NetServices container, so Admin2 cannot complete authorization even though he can install the role. Admin3, a member of Canada\Domain Admins, has administrative rights limited to the canada.contoso.com domain and likewise lacks the Enterprise Admins-only authorization right needed here, since Server3 and the DHCP authorization object both fall outside that domain ' s scope of control. Because only Admin1 holds both the local administrative rights needed to install the DHCP Server role on Server3 and the Enterprise Admins membership needed to authorize it in AD DS, Admin1 only is correct.

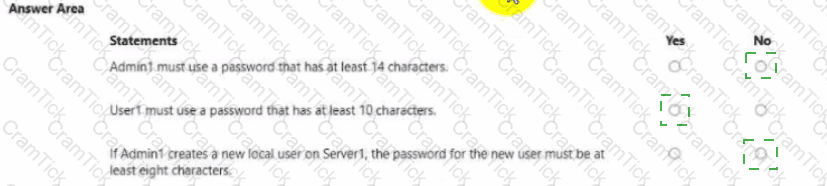

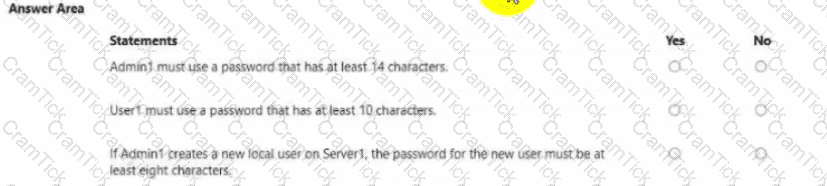

Statement 1: No. Statement 2: Yes. Statement 3: No.

Password-policy (Account Policy) settings inside a GPO behave differently depending on where the GPO is linked. For domain user accounts, only Account Policy settings defined in a GPO linked at the domain level (or in a fine-grained Password Settings Object) take effect; Account Policy settings in a GPO linked to an OU are ignored for domain accounts and instead apply only to the local SAM password policy of computer objects located in that OU. GPO1 (minimum length 14) is linked to OU1, where Admin1 ' s user object resides, but because it is linked to an OU rather than the domain, it has no effect on Admin1 ' s domain account password requirement. Admin1 ' s domain password is governed only by the Default Domain Policy (minimum length 10), so statement 1 is false. User1 is likewise a domain account subject only to the Default Domain Policy ' s minimum length of 10, so statement 2 is true. GPO2 (minimum length 8) is linked to the Member Servers OU, which contains Server1 as a computer object; this makes GPO2 the effective local password policy for local accounts created on Server1 (overriding the Default Domain Policy locally), not the domain policy ' s 10-character minimum. Therefore a new local account on Server1 needs only eight characters, not ten, making statement 3 false.

Set-VMProcessor -VMName VM1 -ExposeVirtualizationExtensions $true

The requirement is to run virtual machines on VM1 itself, which means enabling nested virtualization so that VM1 (a guest VM hosted on Server2) can install Hyper-V and host its own virtual machines. Nested virtualization on Hyper-V requires the parent VM ' s virtual processor to expose the host ' s hardware virtualization extensions (Intel VT-x or AMD-V) through to the guest. This is done with the Set-VMProcessor cmdlet using the -ExposeVirtualizationExtensions parameter set to $true, run against VM1 from the Hyper-V host (Server2): Set-VMProcessor -VMName VM1 -ExposeVirtualizationExtensions $true. VM1 must be turned off before this setting can be applied, and after it is applied, VM1 needs the Hyper-V role installed inside the guest before it can run its own VMs. Set-VM, Set-VMBios, Set-VMHost, and Set-VMFirmware do not control virtualization extension exposure: Set-VM manages general VM configuration such as memory and name, Set-VMHost configures host-wide settings, and Set-VMFirmware/Set-VMBios control boot and firmware settings for generation 2 and generation 1 VMs respectively. Only Set-VMProcessor with -ExposeVirtualizationExtensions satisfies the stated requirement, making it the correct first step.

Promoting a member server to a domain controller in a specific domain requires membership in either the Enterprise Admins group (forest-wide rights) or the Domain Admins group of that target domain. Server1 is a member server in canada.contoso.com, and the requirement is to promote it to a domain controller in that same domain. Admin1 belongs to Contoso\Enterprise Admins, which has full administrative rights across every domain in the forest, including the right to install AD DS and promote a server anywhere in the forest, so Admin1 qualifies. Admin3 belongs to Canada\Domain Admins, the Domain Admins group of canada.contoso.com itself, which grants full administrative control, including domain controller promotion, within that domain, so Admin3 also qualifies. Admin2, by contrast, is a member of Contoso\Domain Admins, the Domain Admins group of the contoso.com domain; Domain Admins rights are scoped to their own domain and do not extend into a child domain such as canada.contoso.com, so Admin2 cannot promote Server1. User1 has only standard Domain Users membership and holds no administrative rights anywhere. Therefore, only Admin1 and Admin3 currently have sufficient rights, making option C correct.

Data Deduplication is a Windows Server file-and-storage feature that can only be enabled on NTFS-formatted data volumes; it cannot be enabled on the operating system (boot/system) volume, and it does not support ReFS or FAT/exFAT volumes at all. VM3 ' s volumes are C (NTFS, the operating system volume), D (NTFS, a data volume), E (ReFS), and F (exFAT). Volume C is excluded because Deduplication is never supported on the volume that hosts the operating system, even though its file system is NTFS. Volume E is excluded because Data Deduplication has no ReFS support in general-purpose deployments; ReFS uses its own separate storage-efficiency mechanisms such as block cloning, not the Deduplication feature. Volume F is excluded because exFAT is a lightweight file system with no support for Windows Server roles or features such as Deduplication, which depends on NTFS-specific metadata structures. That leaves volume D as the only NTFS data volume that is neither the boot volume nor formatted with an unsupported file system, so it is the only volume on which Data Deduplication can currently be enabled, making option C correct.

AD DS site awareness works by mapping each client ' s IP subnet to an AD site object through subnet-to-site association objects in Active Directory Sites and Services, and once a domain controller is physically moved into a given site, DC Locator (via the Netlogon service and SRV records specific to that site) will direct clients whose subnet maps to that site toward domain controllers registered in it. Site2 ' s subnet, 10.41.0.0/16, is already defined as an object in AD DS but is described only as being contained by Site2, so simply moving DC2 ' s server object to Site2 is not, by itself, enough if the subnet-to-site association is not already correctly linking 10.41.0.0/16 to Site2; assigning the 10.41.0.0/16 subnet to Site2 ensures that association is explicit and correct, so client computers in that subnet resolve to DC2 (now the DC serving Site2) through normal site-aware DC location, without requiring any manual replication connection object, which the KCC will still generate automatically once DC2 is present in Site2. Assigning 10.40.0.0/16 to Site2 would incorrectly reassign Site1 ' s own client subnet, directly violating the requirement not to affect clients on 10.40.0.0/16. Manually creating replication connection objects addresses DC-to-DC replication, not client-to-DC site awareness, and reassigning 10.41.0.0/16 to Site1 would defeat the purpose of moving DC2 into Site2 in the first place.

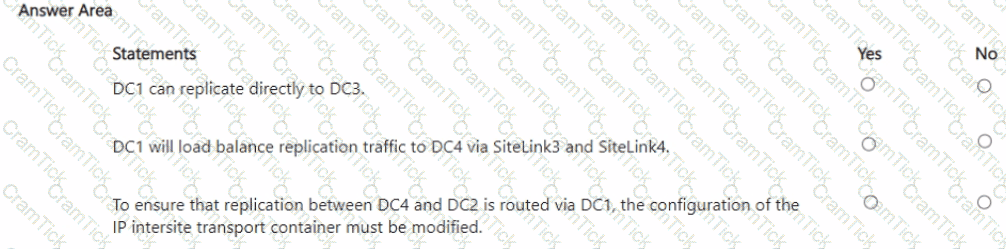

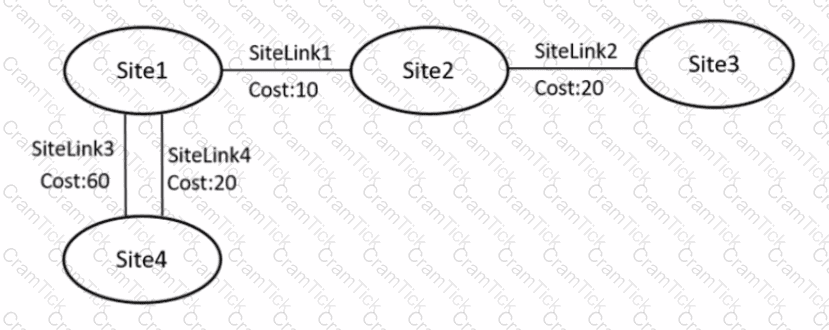

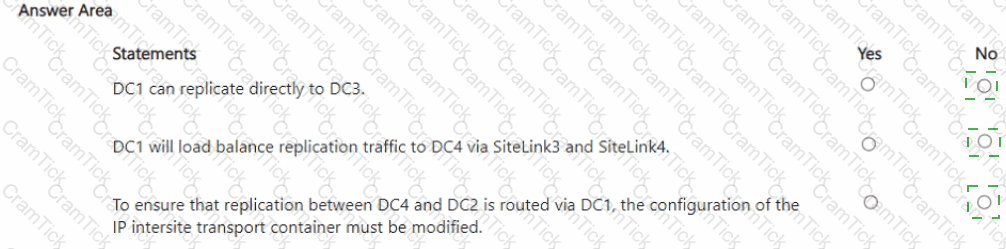

DC1 can replicate directly to DC3: No. DC1 will load balance replication traffic to DC4 via SiteLink3 and SiteLink4: No. To ensure that replication between DC4 and DC2 is routed via DC1, the configuration of the IP intersite transport container must be modified: No.

Site1 and Site3 have no direct site link connecting them; they are only connected transitively through Site2 (Site1-Site2 via SiteLink1, Site2-Site3 via SiteLink2). Even with site link bridging enabled (the default), the KCC computes least-cost transitive paths for scheduling purposes, but actual replication connections are still built between adjacent, directly linked sites ' bridgeheads -- meaning replication between Site1 and Site3 flows through Site2 ' s bridgehead (DC1-to-DC2, then DC2-to-DC3), not as a single direct DC1-to-DC3 connection, since no direct site link exists between Site1 and Site3. Where two site links exist between the same pair of sites at different costs (SiteLink3 at cost 60 and SiteLink4 at cost 20, both between Site1 and Site4), the KCC ' s spanning-tree replication topology algorithm selects the lowest-cost link (SiteLink4) as the active path and does not simultaneously load-balance traffic across both links; the higher-cost SiteLink3 instead serves only as a failover path if SiteLink4 becomes unavailable. Finally, because Site4 is connected only to Site1 in this topology (with no direct or alternate path to Site2 or Site3 at all), any replication between Site4 and Site2 must already, unavoidably, transit through Site1 -- this is simply the only physically possible path given the topology, and it occurs automatically under the default site-link-bridging behavior with no need to modify the IP intersite transport container ' s configuration.
