FCP_FMG_AD-7.6 Fortinet NSE 5 - FortiManager 7.6 Administrator Questions and Answers

The correct answer is B . The FortiManager 7.6 Administrator Study Guide gives the exact extract: “Performing a revert operation followed by an installation only reverts device-level changes and does not revert policy packages. To achieve full synchronization, you must run the Import Configuration tool on FortiManager to synchronize the policy package.”

The guide also states: “After every retrieve, auto-update, or revert operation, you must use Import Configuration to ensure the policy information is synchronized.”

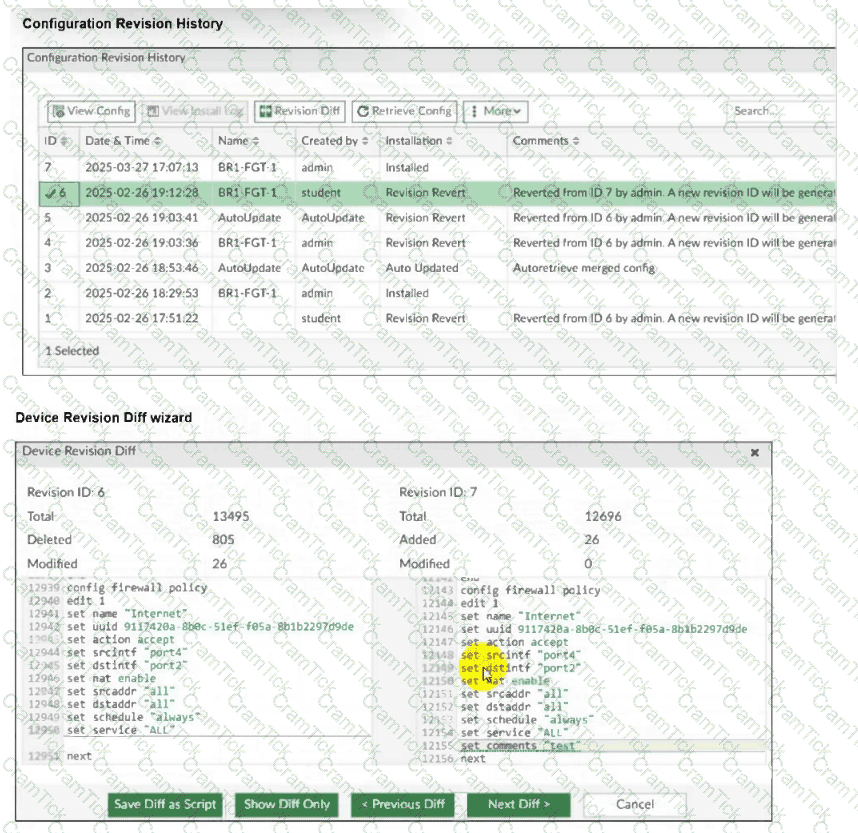

In the exhibit, the missing unset comment for policy ID 1 is a policy package issue, not just a device-level revert issue. Reinstalling the existing policy package does not automatically rebuild it from the reverted revision. The administrator must import the firewall policies again so the policy package reflects the reverted policy state. That is why the comment was not removed.

=========

The correct answer is C . The uploaded FortiManager 7.6 Administrator Lab Guide gives the exact extract: “FortiManager will update the universally unique identifiers (UUID) without deleting other configurations” and “UUIDs on both FortiGate and FortiManager are critical for ensuring the unique identification, consistency, and correct management of firewall policies across multiple devices and configurations. They provide a reliable and immutable reference for policies.”

The same source also shows administrators enabling UUIDs in Traffic Log on FortiGate log settings, which supports the logging and policy-correlation use case with FortiAnalyzer/FortiManager.

So the attribute that improves policy identification and logging correlation is the Universally Unique Identifier , not Policy ID, Log ID, or Sequence ID.

=========

The import report shows that a new policy package named Remote-FortiGate_root will be created in the FortiManager ADOM database, but some firewall addresses and policies failed to import due to interface binding conflicts.

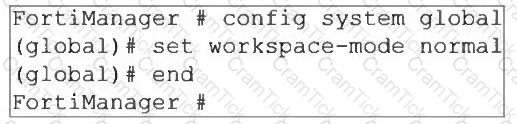

The command set workspace-mode normal enables Workspace (ALL ADOMs) . In this mode, FortiManager uses ADOM locking to prevent configuration conflicts. The study guide explains that workspace mode is used to prevent concurrent ADOM access , and once an ADOM is locked, only the administrator who locked it has read-write access while all others have read-only access. That makes D correct.

B is also correct because locking is applied per ADOM, so different administrators can work at the same time on different ADOMs without conflicting with each other. This is consistent with the design goal of workspace mode and ADOM locking.

C describes workflow mode , not workspace normal. Approval before installation is required only with set workspace-mode workflow.

=========

The correct answer is B because FortiManager supports ADOM-level metadata variables in scripts and templates . The study guide explicitly states that meta fields cannot be used as variables in scripts or provisioning templates ; instead, you must use ADOM-level metadata variables . It further says these variables can be used in templates , and their values can be mapped depending on the device where the template is applied.

That makes metadata variables the proper method for handling per-device differences such as whether a FortiGate should use a LAN or WAN source interface for FortiAnalyzer communication. A is wrong because per-device dynamic objects apply to objects like addresses and VIPs, not template interface selection. D is wrong because meta fields are comments/attributes, not template variables. C could work operationally, but it is not the FortiManager feature intended for this use case.

=========

The correct answer is B . The FortiManager 7.6 Administrator Study Guide explicitly states: “CLI scripts use the FGFM tunnel and the FGFM tunnel is authenticated using the FortiManager and FortiGate serial numbers.” It also states: “Tcl scripts do not run through the FGFM tunnel like CLI scripts do. Tcl scripts use SSH to tunnel through FGFM and they require SSH authentication to do so.”

This is the exact reason CLI scripts can run without prompting for SSH authentication every time: they use the existing secure FGFM management tunnel , not a separate interactive SSH login. The FGFM section of the study guide also confirms that this is a secure communication tunnel established between FortiManager and managed FortiGate devices.

So the enabler is not legacy login, script location, or the “Remote FortiGate Directly” option by itself. It is the FGFM secure management tunnel .

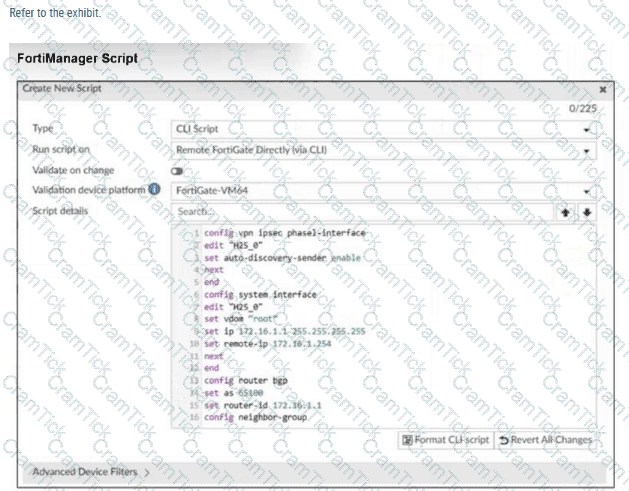

The correct answers are B and C . The FortiManager 7.6 Administrator Study Guide explicitly states: “Scripts that you run directly on remote devices also cause automatic updates and create a revision history.” This exact extract proves both results: FortiManager creates a new revision history and the device status becomes Auto-Updated , meaning the FortiGate change is automatically reflected in the FortiManager device-level database.

The lab guide also distinguishes this from database-targeted scripts by stating: “You must perform an installation if you run a script on a device database, policy package, or ADOM database.” That wording excludes Remote FortiGate Directly via CLI , so D is incorrect.

A is also incorrect because direct remote execution does not use the install preview workflow; preview and validation are tied to Install Wizard operations, not direct CLI execution.

=========

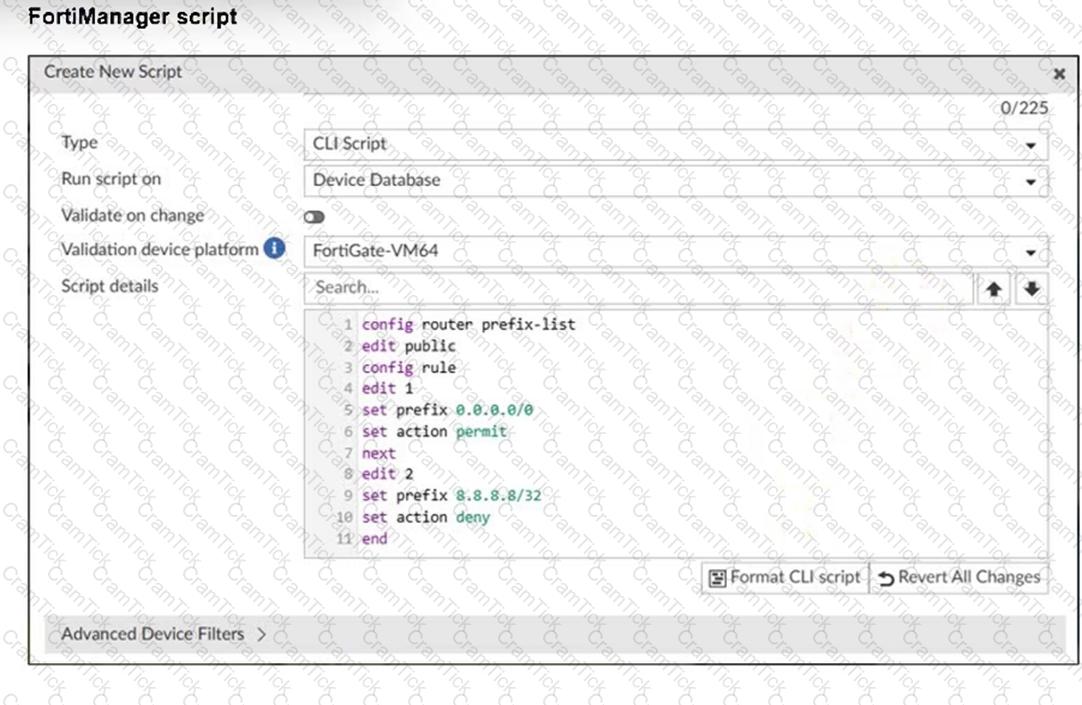

Running a script on the Device Database marks the configuration as modified but does not immediately apply changes to the device.

The administrator must use the Install Wizard to push and install these changes from the Device Database onto the managed device.

If a BGP template is assigned to the FortiGate device on FortiManager, device-level BGP configurations made directly in the device-level database are overridden by the template settings, so the changes do not get pushed to the device.

The correct answer is D . The FortiManager 7.6 Administrator Study Guide states: “You can revert to a previous configuration revision” and “Reverts only the device database to the previous revision” . It also states “Does not revert policies and objects—you must import them” and “You must install reverted changes on FortiGate.”

This exactly means a revert operation changes the device-level database on FortiManager, not the policy layer database. The guide further clarifies: “Performing a revert operation followed by an installation only reverts device-level changes and does not revert policy packages.”

So C is incorrect because both layers are not reverted together. A and B are also incorrect because the documented and verified effect is specifically a modification of the device database , followed by install and, if needed, policy re-import for synchronization.

=========

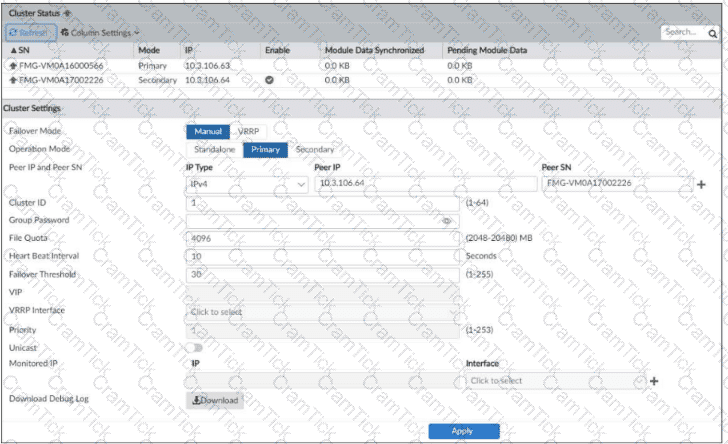

The exhibit shows a FortiManager HA cluster with one primary and one secondary member. The FortiManager 7.6 Administrator Study Guide clearly states that if FortiAnalyzer features are enabled, you cannot configure FortiManager HA , so in an HA environment like the one shown, FortiAnalyzer features are not enabled . That makes D the correct answer.

A is incorrect because the study guide explicitly says you do not need to reboot a device when promoting it from secondary to primary.

C is incorrect because the failover mode shown is Manual , not VRRP automatic failover , so failover does not occur automatically based on heartbeat loss.

B is not the best answer here because FortiGuard packages are downloaded separately rather than synchronized as HA data, but the exhibit’s key provable conclusion is the HA restriction on FortiAnalyzer features.

=========

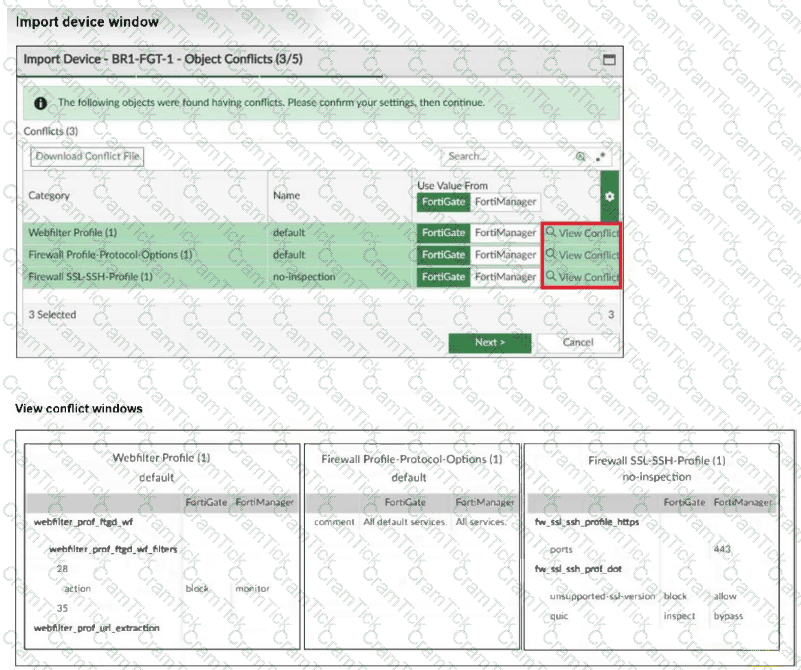

The exhibits are directly supported by the lab guide’s troubleshooting section. It states: “The only profile that can be replaced is the Firewall Profile-Protocol-Options profile, because the only difference is a change in the comment field.” It then explains that for the other two profiles, “Whether you accept the value from BR1-FGT-1 or FortiManager, it will cause changes on different devices.”

That exactly matches C . The conflict window is not primarily showing a firmware mismatch, and the guide does not say BR1-FGT-1 lacks HTTPS 443 support. It also does not describe this as a FortiGuard database mismatch for QUIC. Instead, the key point is that only the default Firewall Profile-Protocol-Options conflict is minor enough to safely take from FortiManager because the difference is only in the comment field . The web filter and SSL/SSH profiles would cause real configuration differences if replaced.

The command set workspace-mode normal enables Workspace (ALL ADOMs) . The study guide states that in this mode “All ADOMs can be locked” and workspace mode lets administrators lock ADOMs, devices, policy packages, and objects. The lab guide then gives the exact behavior for ungraceful session closure: “If a session is not closed gracefully … FortiManager does not close the administrator session until it times out or the session is deleted. Until this time, the ADOM remains in a locked state.” That directly proves A .

C is also verified by the lab guide statement: “If an administrator locked one or more ADOMs, and then logs out of FortiManager, all of those ADOMs are unlocked.” The phrase “one or more ADOMs” confirms the same administrator can lock multiple ADOMs at once.

D is a workflow mode approval concept, not workspace normal.

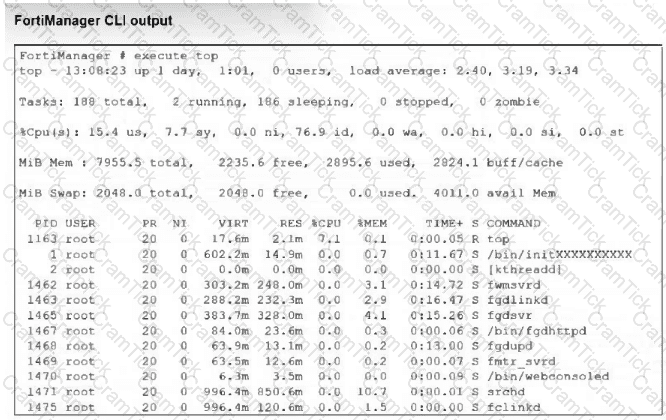

The correct answer is D . The FortiManager 7.6 Administrator Study Guide gives the exact extract under Web Filter and Email Filter : “fgdlinkd — Responsible for downloading web filter and email filter databases” . The same study guide section explains that the execute top command displays real-time CPU and RAM usage, and the %MEM column shows the memory percentage used by each process.

In the exhibit, the line for fgdlinkd shows %MEM 2.9 . Therefore, the process responsible for downloading the web and email filter databases is using 2.9% of RAM. That matches option D exactly. The other values belong to different processes, such as fgdsvr and other FortiGuard-related daemons, but not the downloader process identified in the study guide.

=========

The correct answer is C . The FortiManager 7.6 Administrator Study Guide gives the exact extract: “If you need to move a device from one ADOM to another, run the Import Configuration wizard to import the policy package into the new ADOM.” It also states: “When you move devices from one ADOM to another ADOM, shared policy packages and objects do not move to the new ADOM. You will need to import policy packages from managed devices.”

That is exactly why the administrator cannot see the policy and object configuration after the move: the device itself moved, but its shared policy package and objects did not automatically move with it. The required corrective action is to manually import the policy package into the new ADOM using Import Configuration . Options A , B , and D are not the documented remedy in the uploaded FortiManager sources.

=========

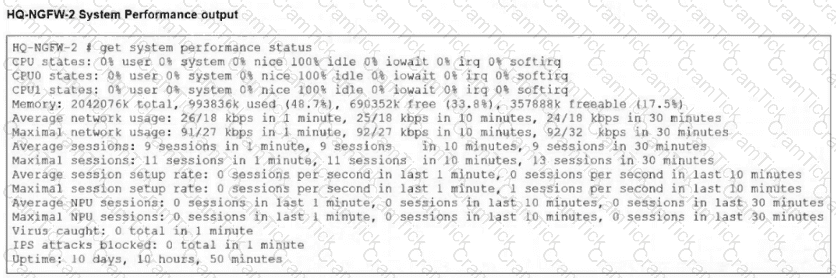

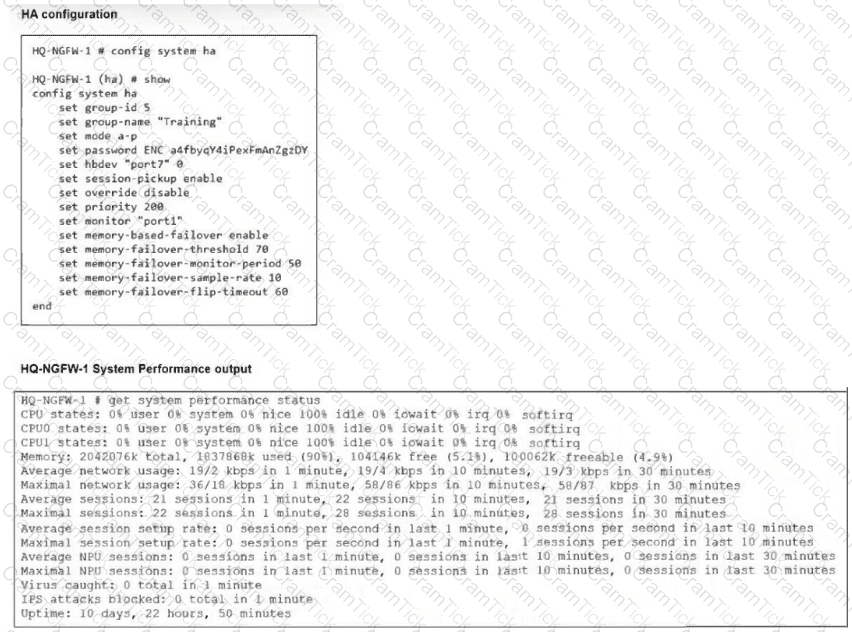

The correct answer is A . This conclusion comes from the HA settings shown in the exhibit plus Fortinet’s HA behavior. In the exhibit, HQ-NGFW-1 has memory-based-failover enabled , memory-failover-threshold 70 , memory-failover-monitor-period 50 , and its memory usage is about 90% , while HQ-NGFW-2 is about 48.7% . Fortinet’s official documentation states that memory-failover-threshold is the memory percentage that triggers failover, and memory-failover-monitor-period is the duration high memory must persist before failover occurs. It also states that if utilization stays above the threshold for the entire monitor period, a failover is triggered , and the peer becomes primary. ( Fortinet Document Library )

Because the condition was observed for 55 seconds , which is longer than the configured 50-second monitor period , the cluster would fail over from HQ-NGFW-1 to HQ-NGFW-2 due to the memory-failover-threshold condition. The priority setting does not explain this result here, because override is disabled , and flip-timeout governs subsequent memory-based failovers, not the initial trigger. ( Fortinet Document Library )

=========
