H12-521_V1.0 HCIP-Intelligent Vision V1.0 Questions and Answers

The correct answer is D. 71W . PoE++ is associated with the IEEE 802.3bt standard, which extends earlier PoE and PoE+ power delivery capabilities to support higher-power devices. In engineering practice, IEEE 802.3bt Type 4 PSE output power is generally recognized as being around 71 W at the source side, which is why 71 W is the best answer here. This aligns with the training material’s device-side description that the PowerCube service board includes ports where “two of the ports can be used to transmit P & E++ signals” while other ports transmit lower-level P & E signals

From a deployment perspective, this higher power class is important because intelligent vision sites may need to power cameras, illuminators, communication modules, and related edge equipment over Ethernet-linked interfaces. The lower values in the options correspond to earlier or lower-power classes: 15.4 W is associated with standard PoE, 30 W with PoE+, and 50 W is below the typical maximum associated with full 802.3bt Type 4 sourcing. Therefore, 71 W is the correct ceiling among the provided choices.

The correct answer is A because Backlight Compensation (BLC) is the feature specifically intended to improve foreground object exposure when strong light is coming from behind the subject. In a backlight scene, the background is much brighter than the target, so the camera’s default exposure logic may darken the object and make it difficult to identify. BLC corrects this by increasing exposure priority on the foreground region so the object can be seen more clearly.

This aligns with the exposure-focused design philosophy in the material, where Huawei emphasizes advanced exposure optimization. The document notes that “T-Shot, Huawei’s patented exposure technology, enables optimal imaging of targets and vehicles at the same time” and explains that traditional exposure methods cannot correctly expose different objects within the same image under challenging conditions . In ordinary camera feature terminology, the standard function used for a backlit foreground target is BLC. By contrast, white balance adjusts color temperature, HLC suppresses excessively bright highlights such as headlights, and high resolution only increases detail, not exposure correction. Therefore, the correct feature for backlight object exposure is BLC .

The Huawei Intelligent Video Surveillance (IVS) platform is designed with a high degree of openness and compatibility, allowing it to manage a vast array of front-end devices from various third-party vendors. To facilitate this interoperability, the platform utilizes a specialized driver or plug-in architecture. While standard protocols like ONVIF, GB/T 28181, and SDKs provide a baseline for communication, many proprietary features and vendor-specific protocols require a dedicated access plug-in to be installed on the platform side.

These plug-ins act as a translation layer that maps the third-party camera's private commands and data structures to the IVS platform's unified internal management language. This is particularly important for synchronization functions and interconnection collection, which are often handled by the VDS (Video Data Service) component. By installing the correct vendor-specific plug-in, the platform can access advanced camera features such as PTZ control, alarm reporting, and parameter configuration that might not be fully supported by generic standards. This modular approach allows Huawei's intelligent vision system to remain flexible and future-proof, enabling rapid integration of new camera models and vendors without requiring a full system-wide firmware upgrade.

The correct answer is B because high-altitude observation requires long-distance scene coverage, flexible viewing angles, and the ability to zoom, track, and inspect targets over a wide area. Among the listed options, a 4K HD PTZ dome camera is the most suitable for this role. The material repeatedly associates PTZ cameras with dynamic scene observation and motion-based analysis. For example, it explains optical-flow continuity using “a PTZ dome camera, in its course of rotation” , which reflects the PTZ camera’s ability to scan large spaces and continuously adjust its observation direction . In addition, the site installation material explicitly supports installation of “one PTZ dome camera” on the pole solution, indicating its intended use in broader-area outdoor observation scenarios

From a technical standpoint, fixed dome and bullet cameras are more appropriate for fixed-angle monitoring, entrance observation, or lane-style capture. A box camera can be used in specialized setups, but it does not inherently provide the integrated pan-tilt-zoom flexibility needed for elevated monitoring. A 4K PTZ dome combines high resolution with zoom and directional control, making it the strongest option for long-range and high-position observation tasks.

The incorrect statement is D . The domain interconnection capability is described in a one-way supervisory model in which the upper-level domain can consume resources and services provided by the lower-level domain . The material explicitly states that “Users in the upper-level domain can view the alarms reported by the lower-level domain” , “Users in the upper-level domain can set recording plans for cameras in the lower-level domain” , and “Users in the upper-level domain can view live video and recordings … from all cameras in the lower-level domain. In addition, the users can perform PTZ controls over all cameras in the lower-level domain” . These statements directly validate A, B, and C .

The backup direction also confirms why D is wrong. The material states that “Users in the upper-level domain can use the live video and recording backup function to back up recordings of a lower-level domain to MPUs of the local domain, domains of the same level, and upper-level domain” . That means the supported backup flow is from the lower-level domain upward or laterally, not from the upper-level domain down to a lower-level domain. Therefore, D is the incorrect statement.

The correct answer is D because the statement itself is inconsistent with the standard IVS3800 plane naming logic. In IVS deployment, network design is performed per network plane , and the material distinguishes service and management connectivity, for example by referencing service TOR and management TOR , and by using terms such as external service IP address and external management floating IP address for upper-layer connection planning . This clearly supports standard plane naming such as Outer_Service , Inner_Service , and Outer_OM .

The option D uses “InnerJDM” , which does not match the naming pattern established by the rest of the network design terminology. In professional IVS planning, this is most likely a typographical corruption of Inner_OM . Since the question asks which statement is false, the incorrect plane name makes D the false statement as written. The other options are structurally consistent with IVS network-plane design principles, where core predefined service and OM address ranges are typically kept unchanged to avoid deployment and expansion issues. Therefore, D is the false statement.

The correct answer is A. TRUE . In intelligent vision and site planning, a protection line is a boundary-type monitoring rule used to determine whether a target enters or exits a defined space. This is consistent with the motion-analysis logic in the material, where behavior judgment is based on trajectories rather than isolated frames. The document explains that “A movement trajectory consists of positions of the centroid of a moving object in individual frames” and further states that “Tripwire crossing detection mainly involves the extraction of dynamic features of an object” such as trajectory, speed, and direction .

From an engineering viewpoint, a protection line is essentially a virtual line used to determine crossing behavior at the edge of a monitored zone. Once the moving object’s trajectory intersects that defined line, the system can judge whether the target is entering or leaving the designated area. This makes the protection line useful for event rules such as entry detection, exit detection, and boundary protection. Because the statement accurately reflects how a protection line records in-and-out movement locations using monitoring analysis, it is true.

The correct answers are A, B, C, and D because a proper solar PV module check must cover both the module condition and the mechanical support condition . A damaged panel can reduce charging efficiency or create safety risks. Dirt, oil stains, dust, or snow on the panel surface can block sunlight and reduce power-generation performance. At the same time, the support structure must be checked for corrosion, rust, and stability , because outdoor PV assemblies are continuously exposed to weather, vibration, and environmental aging.

This conclusion is also consistent with the overall site-power design described in the training material, where Huawei’s integrated site solution includes “PV modules: two PV modules” and uses “SolarMax, and GridMax technologies to maximize energy efficiency of solar energy and mains and provide secure and reliable power supply” . Since PV modules are part of the site power system, both energy-conversion efficiency and structural reliability must be maintained. In actual maintenance practice, a clean, intact, and firmly supported PV module is necessary for stable long-term operation. Therefore, all four listed checks are valid and should be included.

The correct answer is C because the described method exactly matches the definition of horizontal projection used in license plate character area extraction. In license plate recognition, projection methods are commonly used to separate valid character regions from noise and borders. The material states that “Horizontal projection: The binary license plate image is horizontally projected along the Y axis to obtain the longest successive projection segment as the character area. Filter out horizontally successive black lines around the license plate.” This wording is essentially identical to the question, so the method can be identified directly.

From an image-processing perspective, horizontal projection analyzes the pixel distribution across rows to locate the effective vertical range of the character band. This helps remove irrelevant black border lines above and below the plate characters. By contrast, vertical projection is mainly used later to segment individual characters because spaces naturally exist between them. Binary processing is a preprocessing step, not the named segmentation method here, and direction division is not the correct technical term in this context. Therefore, the only correct choice is C. Horizontal projection .

The correct answer is A. TRUE . The idea of an observation circle in video site planning is to form a perimeter-style observation system around a protected area so that targets can be detected, tracked, and controlled at key boundary points. This matches the planning logic used in intelligent vision deployments, where site selection focuses on strategically important locations. The material identifies priority planning positions such as “Road intersections and entrances and exits” and “Key areas in cities” . These are exactly the kinds of points used to form an observation circle.

From a professional planning perspective, the observation circle concept is not just about placing cameras randomly; it is about creating an enclosed prevention-and-control framework by covering the external boundary and critical transition points of an area. Inter-city boundaries and city entrances or exits are typical examples because they are natural choke points for observation, vehicle monitoring, and event response. By surrounding the target area through layered site deployment, the system improves awareness, traceability, and early warning capability. Therefore, the statement correctly describes the purpose and example of an observation circle.

The correct answer is C . In manual zoom lens terminology, N--F stands for Near to Far , which is the focus adjustment range, while W--T stands for Wide to Tele , which is the focal length or zoom adjustment range. This is standard optical-camera labeling and is consistent with the training material’s broader treatment of camera angle and image adjustment, where physical image tuning is performed through controlled mechanical or optical adjustment rather than through resolution changes alone. The material also shows that image framing and observation behavior depend on controlled camera adjustment, for example through tilt, horizontal, and vertical tuning during installation.

From an optical engineering standpoint, focus adjustment changes the sharpness plane of the subject, while focal length adjustment changes the field of view and magnification. Therefore, a technician first uses the W--T ring to set the desired scene scale and then uses the N--F ring to make the image sharp at the chosen distance. Since the question asks which function each labeled knob performs, N--F = adjust the focus position and W--T = adjust the focal length , making C the only correct option.

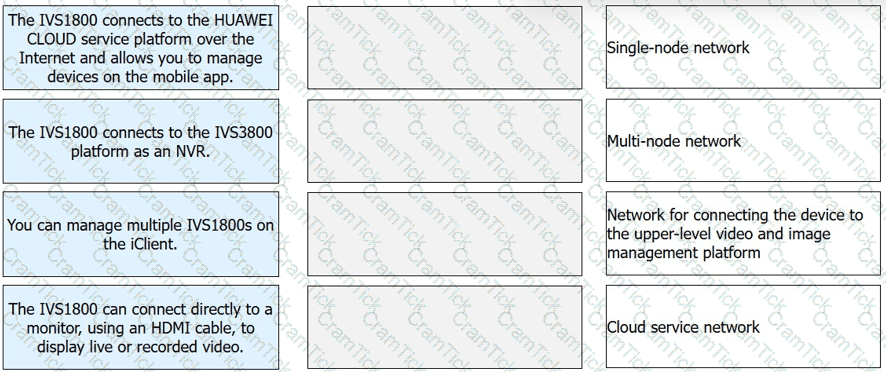

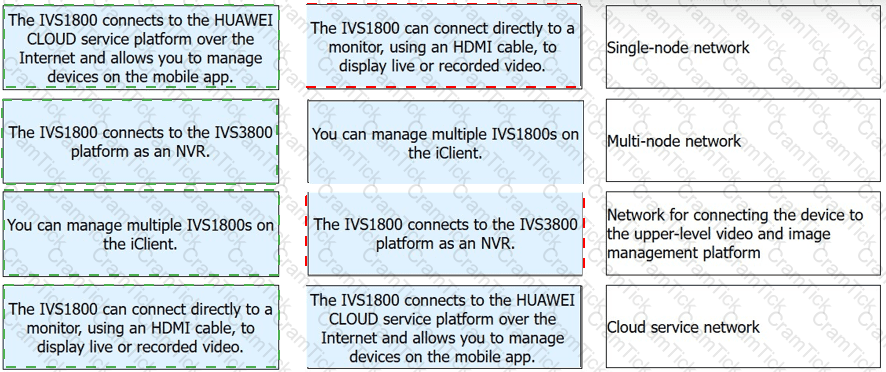

Cloud service network → The IVS1800 connects to the HUAWEI CLOUD service platform over the Internet and allows you to manage devices on the mobile app.

Network for connecting the device to the upper-level video and image management platform → The IVS1800 connects to the IVS3800 platform as an NVR.

Multi-node network → You can manage multiple IVS1800s on the iClient.

Single-node network → The IVS1800 can connect directly to a monitor, using an HDMI cable, to display live or recorded video.

The matching is based on the deployment role of each IVS1800 network type. The cloud service network is the mode used when the IVS1800 connects outward through the Internet to Huawei cloud services for remote device management, so it matches the feature about connection to the HUAWEI CLOUD service platform and mobile-app management. The network for connecting the device to the upper-level video and image management platform is the upstream integration path used when the IVS1800 works under a larger platform such as the IVS3800 , so that feature matches the statement about connecting to the IVS3800 platform as an NVR .

The multi-node network is intended for centralized management of multiple IVS1800 devices, which is why it matches the feature stating that multiple IVS1800s can be managed on the iClient . The single-node network is the standalone deployment model, so it matches the feature where the IVS1800 connects directly to a monitor through HDMI for local live or playback display. This mapping follows the standard Huawei deployment logic of standalone, clustered, upstream-integrated, and cloud-managed operation.

Video structuring is the essential process of converting unstructured video content into searchable, organized data. This capability is integrated across the Huawei Intelligent Vision architecture, existing at both the front-end (cameras) and the back-end (platforms). Huawei's Software-Defined Cameras (SDC) are equipped with professional AI chips, such as the Ascend 310 or Hi3559A, which provide the high-performance processing required to perform this task locally. These AI chips can even replace backend servers to structure full video features, maximizing network-wide intelligent analysis efficiency. By performing structuring at the edge, the system reduces the bandwidth required to transmit full video streams to the central cloud while maintaining real-time awareness.

Simultaneously, Huawei’s intelligent video cloud and big data platforms provide robust back-end structuring capabilities for historical or live video analysis. These platforms utilize advanced algorithms to automatically generate structured data from massive video feeds. As noted in the documentation, video search intelligently analyzes unstructured original video data and automatically generates structured data based on the proper algorithms. This dual-layer approach allows for flexible deployment depending on whether real-time edge processing or high-volume centralized analysis is required for a specific security scenario.

The correct answer is B because the 1 + N function is designed to extend intelligent analysis capability to existing non-intelligent cameras without replacing them. This is one of Huawei’s practical upgrade approaches for legacy surveillance systems. The material states that “With the proprietary 1 + N technology, a single intelligent camera can connect to N generic cameras on a live network, request streams from these cameras, and perform intelligent analysis on the streams”

This directly matches option B .

From a solution-design standpoint, this function is highly valuable in reconstruction projects where the existing camera network is still usable but lacks intelligent features such as target capture or vehicle recognition. Instead of replacing all cameras, one intelligent camera can act as the analysis point for several generic cameras, reducing upgrade cost and deployment complexity. Option A is wrong because the function is not for storage expansion. Option C incorrectly changes the relationship into intelligent-camera-to-PTZ cooperation. Option D is also wrong because the whole purpose of 1 + N is to analyze additional external streams, not just the local one. Therefore, B is the correct answer.

The correct answer is B because switching the secondary stream type is a stream configuration task, not an image-adjustment operation in the PTZ dome camera web interface. During image adjustment, the operator typically works with live-view and framing tools, such as directional control, local inspection, and capture assistance. That is why operations such as using a virtual joystick to move the PTZ direction, taking snapshots , and performing ePTZ for local image inspection fit naturally into image adjustment behavior.

The broader training content confirms that PTZ control belongs to live-view operation, stating that users can “perform PTZ controls … for example, control the PTZ direction, set PTZ preset positions, and set the home position” . That supports directional adjustment as a valid operation. A snapshot is also a live-view support function, while ePTZ is commonly used for image observation and local enlargement. However, secondary stream type belongs to video stream configuration, such as choosing or modifying stream properties, and is not part of direct image-adjustment handling. Therefore, the option that cannot be performed in image adjustment is B .
