To provide automated orchestration and business continuity for VMware virtual machines in a disaster recovery scenario, the industry-standard solution integrated with HPE storage is VMware Live Site Recovery (formerly known as VMware Site Recovery Manager or SRM).

When a customer utilizes Asynchronous Remote Copy on HPE Alletra 9000 arrays, the storage layer handles the data replication between the production and recovery sites. However, the storage array alone cannot automate the re-registration of virtual machines, the mapping of network port groups, or the specific power-on sequencing required for complex applications at the secondary site. VMware Live Site Recovery serves as the orchestration engine that bridges this gap. It works in conjunction with a Storage Replication Adapter (SRA) provided by HPE. The HPE SRA allows the VMware software to communicate directly with the Alletra 9000 arrays to initiate tasks such as promoting recovery volumes to a read-write state, taking temporary snapshots for DR testing, and automating the "failover" and "failback" workflows.

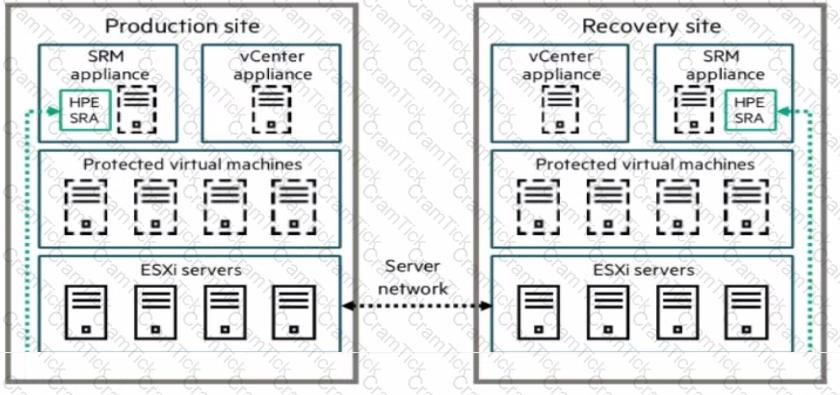

As shown in the exhibit (image_6601ef.jpg), a complete solution requires an SRM appliance and a vCenter appliance at both the production and recovery sites. This architecture ensures that even if the primary site is completely lost, the recovery site has all the necessary metadata and orchestration instructions to bring the business-critical VMs online with minimal manual intervention. Option A (Lifecycle Management) is for patching and updates, Option D (Storage DRS) is for load balancing within a cluster, and Option C refers to operational monitoring rather than disaster recovery orchestration. For a customer already invested in Alletra 9000 Remote Copy, VMware Live Site Recovery is the "Better Together" choice for achieving low Recovery Time Objectives (RTO).

In Brocade B-series Fibre Channel fabrics, ISL (Inter-Switch Link) Trunking is an optional licensed feature that allows multiple physical links between two switches to be aggregated into a single logical high-bandwidth pipe. While two switches can connect via a standard ISL without a specific license, the "Trunking" capability—which enables frame-level load balancing across those links—requires the ISL Trunking license to be installed and active on both participating switches.

According to the Brocade Fabric OS Administration Guide, if the license is missing or expired, the ports will function as individual ISLs rather than a unified trunk. This leads to the "failure to initialize" as a trunk, where the ports might stay in a "Master" or "Active" state individually but never form a "Trunk port" relationship. A common troubleshooting step after installing the license is to portdisable and then portenable the affected ports to force the fabric to re-negotiate the trunking capability.

Options B and D are technically incorrect because trunking specifically requires E_ports (Expansion Ports) used for switch-to-switch connectivity; converting them to F_ports (Fabric ports) would make them intended for end-device (host/storage) connectivity, which does not support ISL trunking. Furthermore, for a trunk to form, the ports must be within the same physical port group on the ASIC (e.g., ports 0-7 or 8-15 on many fixed-port switches), making Option D the opposite of what is required for success. By ensuring the Trunking license is present, the administrator enables the hardware and software to utilize the Exchange-Based Routing (EBR) or frame-based trunking protocols necessary for the solution.

When sizing a migration from a highly efficient array like the HPE Alletra 9000 (or Primera) to the next-generation HPE Alletra MP B10000, storage architects must account for the difference between the "Written Capacity" (what the host thinks it has stored) and the "Consumed Capacity" (the physical space used after data reduction).

The standard best practice for an HPE Master ASE when performing these migrations is to Size to consumption multiplied by 1.25. This "1.25 factor" (representing a 25% overhead) is the recommended safety margin used in sizing tools like HPE NinjaStars and the HPE Cloud Physics assessment reports.

This 25% buffer is designed to cover several critical architectural requirements:

System Metadata and Overhead: Both the Alletra 9000 and Alletra MP require physical capacity to store internal metadata, map tables, and the structures required for their respective data reduction engines.

Snapshot Reserve: While snapshots are thin and pointer-based, they still consume physical space as data changes over time. The 1.25 multiplier ensures there is enough "headroom" for typical snapshot retention policies.

Data Reduction Parity: Data reduction ratios (deduplication and compression) can fluctuate based on the specific workload. Sizing exactly to current consumption without a buffer risks an out-of-space condition if the new array's reduction engine handles a specific block pattern slightly differently during the initial ingest.

Operational Performance: SSD-based arrays perform best when they are not "packed" to 100% capacity, as the garbage collection and wear-leveling processes require free blocks to operate efficiently.

Sizing to "original capacity" (Option D) would lead to a massive over-provisioning and wasted cost, as it ignores the benefits of modern data reduction. Option C (1.5) is generally considered overly conservative for modern flash environments, while 1.25 provides the optimal balance of cost-efficiency and technical risk mitigation.
