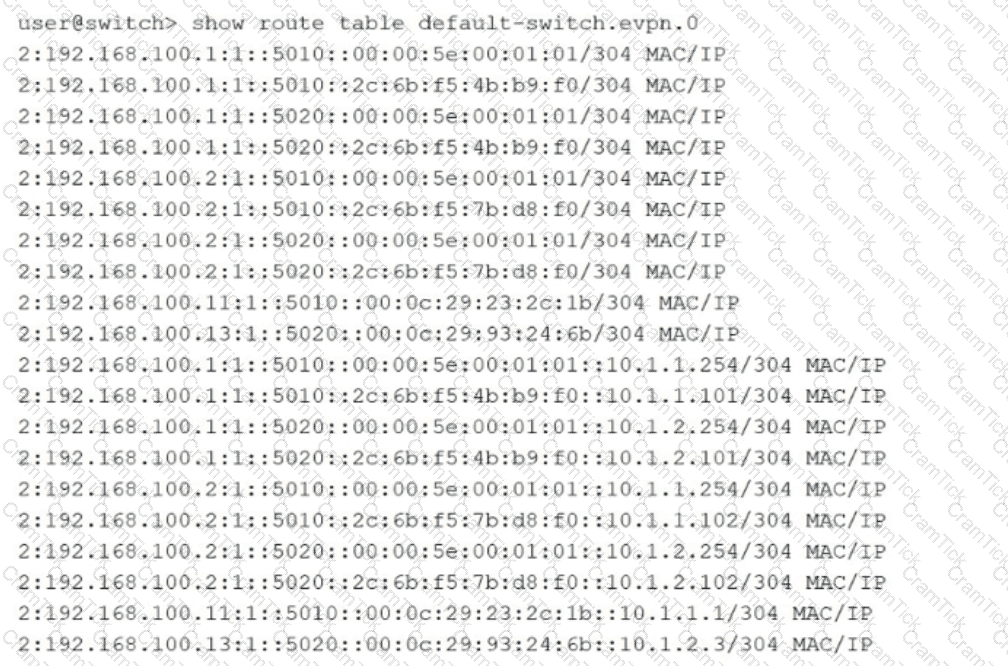

In a three-stage EVPN-VXLAN fabric (Spine-Leaf architecture) where leaf devices perform the gateway services (Edge-Routed Bridging or ERB):

VTEP Functionality (Option B): Leaf devices act as VXLAN Tunnel End Points (VTEPs). They are responsible for encapsulating Ethernet frames from locally connected hosts into VXLAN packets for transport across the IP fabric and de-encapsulating incoming VXLAN packets.

Fabric Support (Option C): In a standard Juniper IP fabric design, both the leaf and spine devices are typically expected to support VXLAN and EVPN capabilities. While spines in an ERB design might only perform IP forwarding in the underlay, they often participate in the BGP control plane (as Route Reflectors) or provide the ability to transition to Centrally-Routed Bridging (CRB) where spines would act as gateways.

Incorrect Options: Option A is incorrect because the entire fabric infrastructure must be "VXLAN aware" in terms of MTU settings and routing capability to support the overlay. Option D is incorrect because in an ERB design, the spine devices are high-speed transit nodes and do not terminate VXLAN tunnels; only the edge (leaf) devices act as VTEPs.

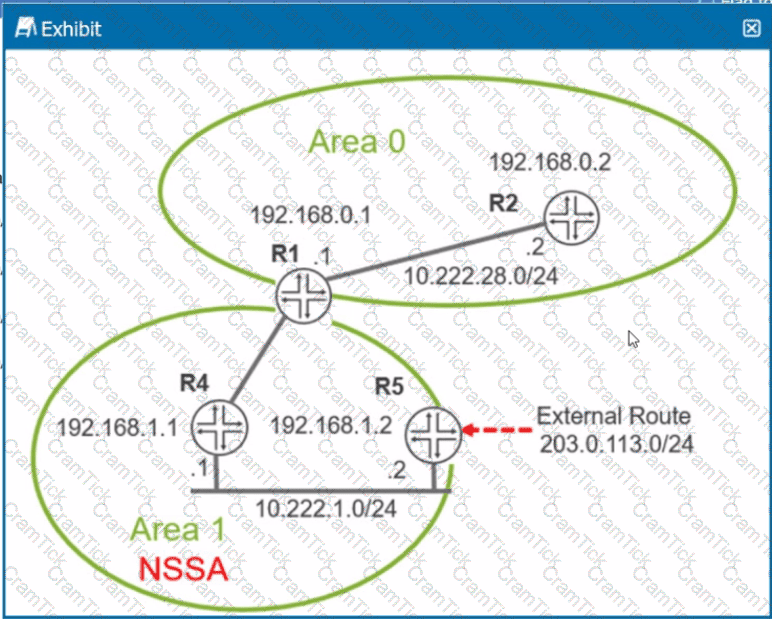

The exhibit shows an OSPF network where Area 1 is configured as a Not-So-Stubby Area (NSSA). R5 is an Autonomous System Boundary Router (ASBR) injecting an External Route (203.0.113.0/24) into this area.

NSSA ASBR Behavior (Option D): Within an OSPF NSSA, external routes cannot be advertised as standard Type 5 LSAs because stubby areas do not support them. Instead, the ASBR (R5) advertises the external prefix using a Type 7 LSA (NSSA External LSA). This LSA is flooded throughout Area 1.

ABR Translation Behavior (Option C): When the Type 7 LSA reaches the Area Border Router (R1), the ABR is responsible for translating it into a Type 5 LSA (AS External LSA). This allows the external route to be propagated into the backbone (Area 0) and subsequently to the rest of the OSPF domain.

Incorrect Statements (A & B): Option A is incorrect because Type 7 LSAs are local to the NSSA and are never advertised into Area 0. Option B is incorrect because Type 5 LSAs are strictly prohibited within an NSSA.

EVPN Route Type 5 (IP Prefix Route) is used to advertise IP prefixes (subnets) between broadcast domains or between VRFs in an EVPN fabric.

IP-VRF-to-IP-VRF (Statement C): In an EVPN-VXLAN architecture, Type 5 routes are primarily used for Layer 3 connectivity. They allow different IP-VRFs on different VTEPs to exchange prefix information directly. This model is widely referred to as IP-VRF-to-IP-VRF routing because it enables inter-subnet routing at the leaf layer without requiring Layer 2 MAC learning for those specific prefixes.

Overlay Next Hop (Statement B): For a PE router to reach a prefix advertised via a Type 5 route, it must resolve the overlay next hop. This next hop is typically the loopback IP address of the originating VTEP, which the receiving router uses to build the VXLAN tunnel.

Why others are incorrect: Statement A is incorrect because Type 7 routes are used for IGMP/MLD join synchronization. Statement D is incorrect because Type 5 routes advertise IP prefixes, not MAC addresses; MAC extended communities are associated with Type 2 routes.
