AI-102 Designing and Implementing a Microsoft Azure AI Solution Questions and Answers

Video Indexer supports multiple Person models per account. Once a model is created, you can use it by providing the model ID of a specific Person model when uploading/indexing or reindexing a video. Training a new face for a video updates the specific custom model that the video was associated with.

Note: Video Indexer supports face detection and celebrity recognition for video content. The celebrity recognition feature covers about one million faces based on commonly requested data source such as IMDB, Wikipedia, and top LinkedIn influencers. Faces that aren't recognized by the celebrity recognition feature are detected but left unnamed. Once you label a face with a name, the face and name get added to your account's Person model. Video Indexer will then recognize this face in your future videos and past videos.

"When an AI application relies on personal data, such as a facial recognition system that takes images of people to recognize them; you should make it clear to the user how their data is used and retained, and who has access to it." from:https://docs.microsoft.com/en-us/learn/paths/prepare-for-ai-engineering/

Text Description automatically generated

Text Description automatically generated

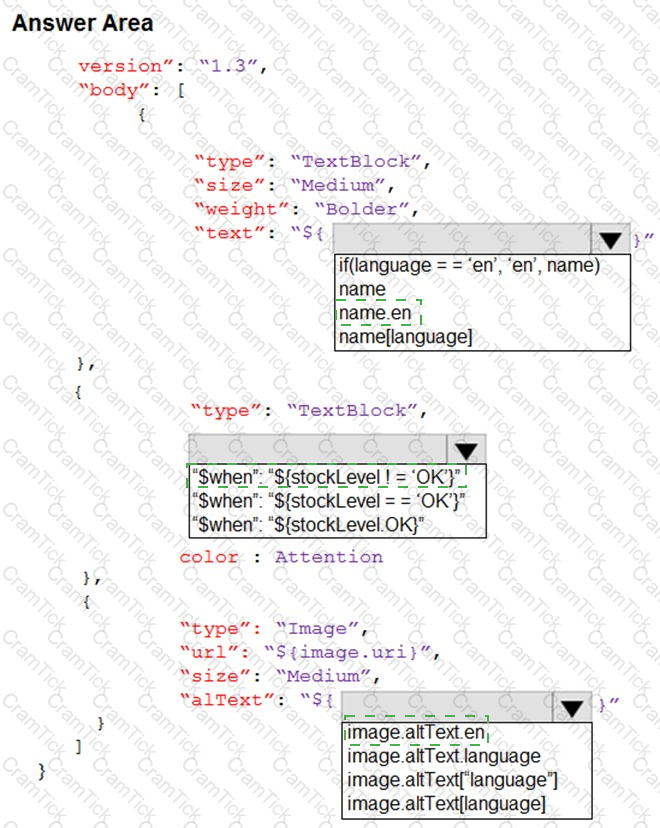

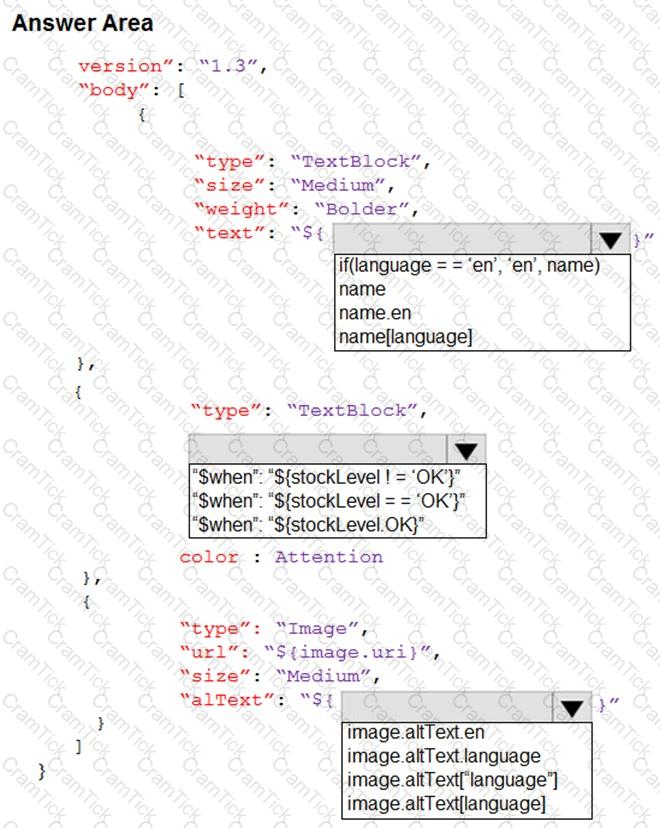

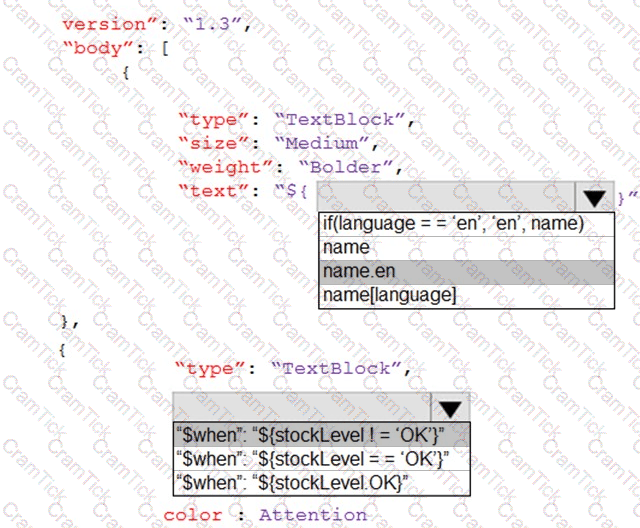

Box 1: name.en

Box 2: "$when": "${stockLevel != 'OK'}"

Product displays must include images and warnings when stock levels are low or out of stock.

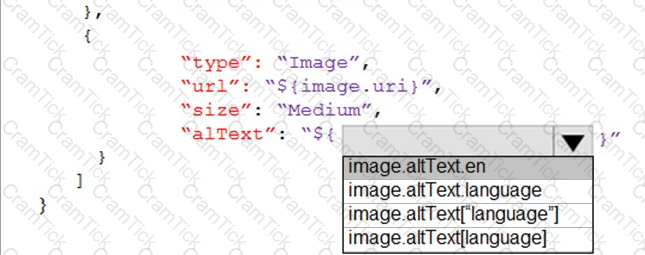

Box 3:image.altText.en

Graphical user interface, text, application, email Description automatically generated

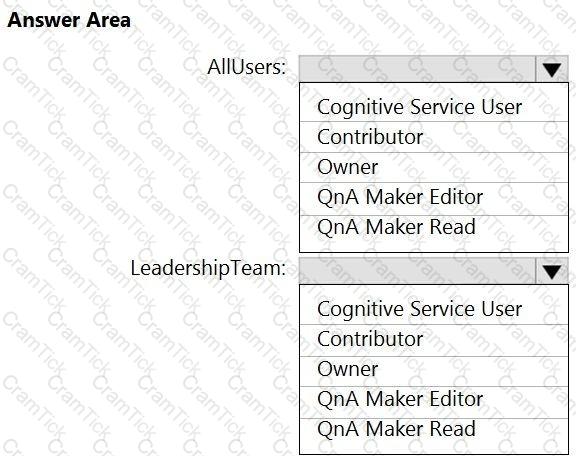

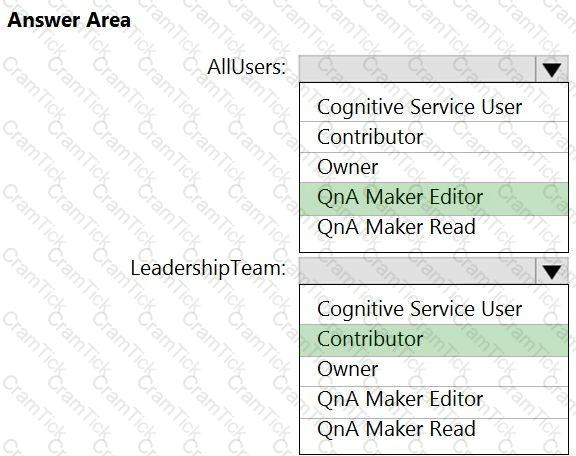

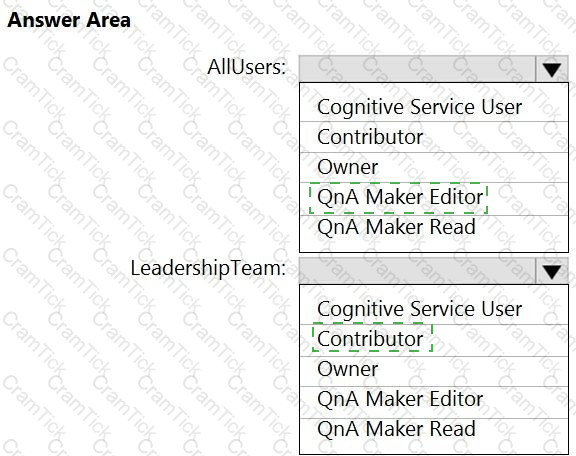

Box 1: QnA Maker Editor

Scenario: Provide all employees with the ability to edit Q&As.

The QnA Maker Editor (read/write) has the following permissions:

Create KB API

Update KB API

Replace KB API

Replace Alterations

"Train API" [in

new service model v5]

Box 2: Contributor

Scenario: Only senior managers must be able to publish updates.

Contributor permission: All except ability to add new members to roles

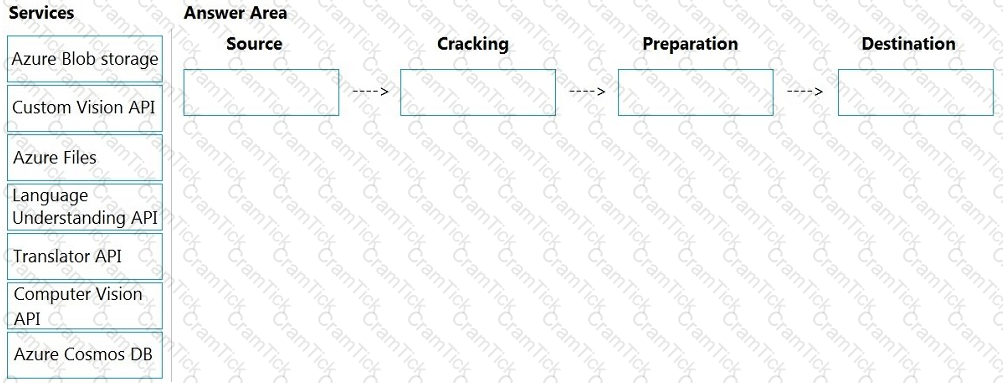

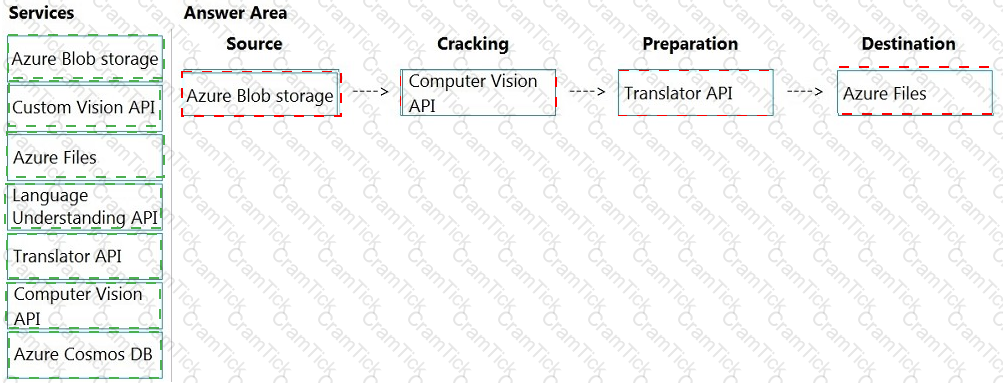

Box 1: Azure Blob storage

At the start of the pipeline, you have unstructured text or non-text content (such as images, scanned documents, or JPEG files). Data must exist in an Azure data storage service that can be accessed by an indexer.

Box 2: Computer Vision API

Scenario: Provide users with the ability to search insight gained from the images, manuals, and videos associated with the products.

The Computer Vision Read API is Azure's latest OCR technology (learn what's new) that extracts printed text (in several languages), handwritten text (English only), digits, and currency symbols from images and multi-page PDF documents.

Box 3: Translator API

Scenario: Product descriptions, transcripts, and all text must be available in English, Spanish, and Portuguese.

Box 4: Azure Files

Scenario: Store all raw insight data that was generated, so the data can be processed later.

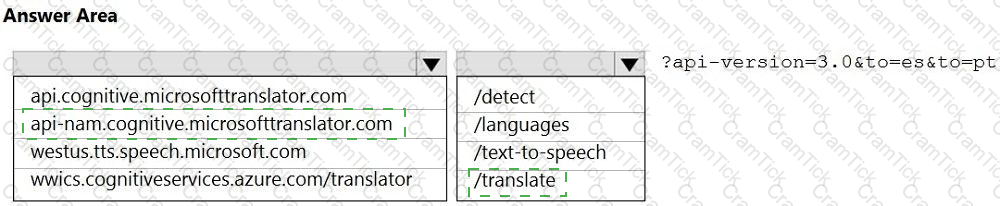

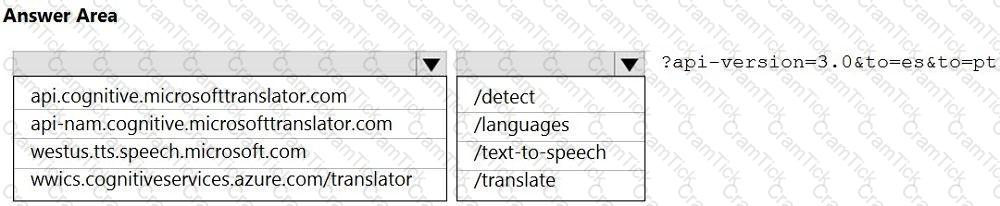

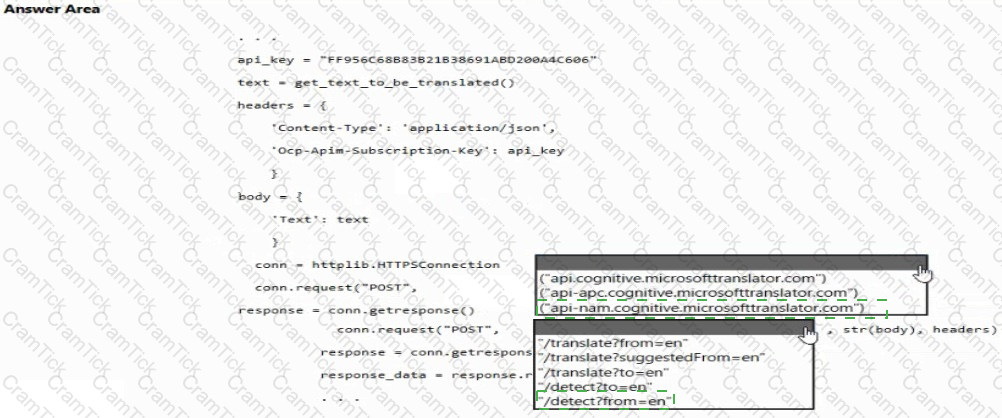

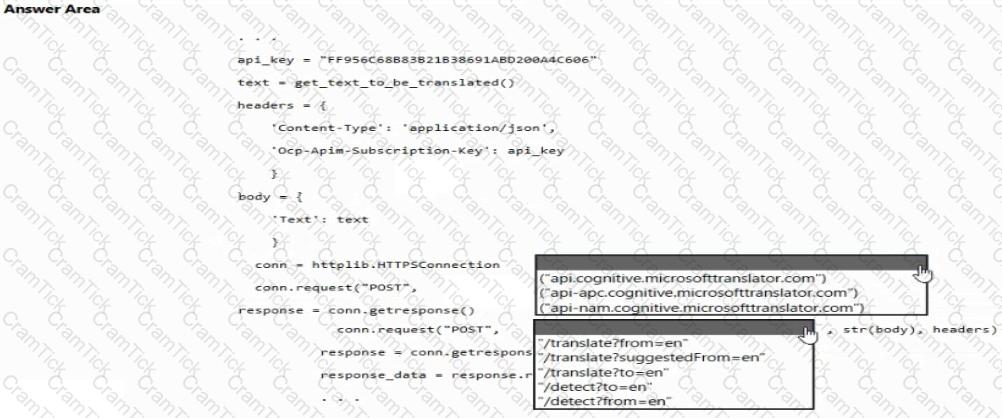

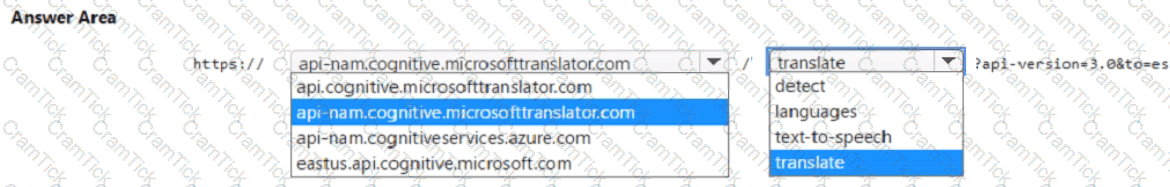

Box 1:api-nam.cognitive.microsofttranslator.com

https://docs.microsoft.com/en-us/azure/cognitive-services/translator/reference/v3-0-reference

Box 2: /translate

Scenario: All videos must have transcripts that are associated to the video and included in product descriptions.

Product descriptions, transcripts, and all text must be available in English, Spanish, and Portuguese.

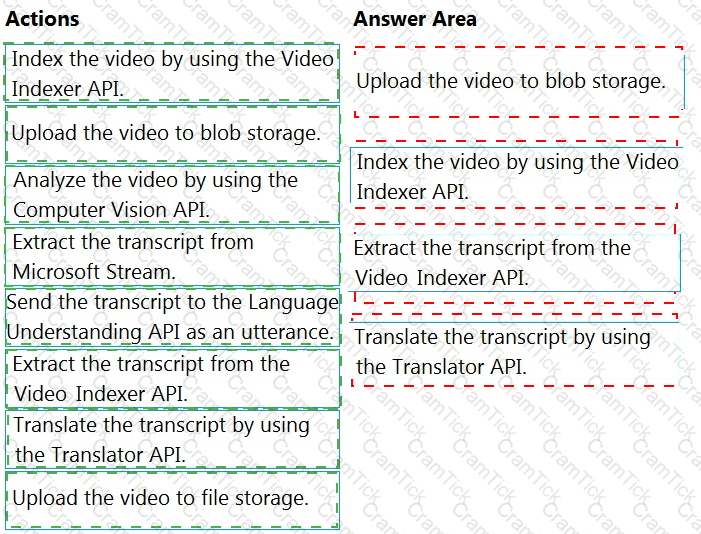

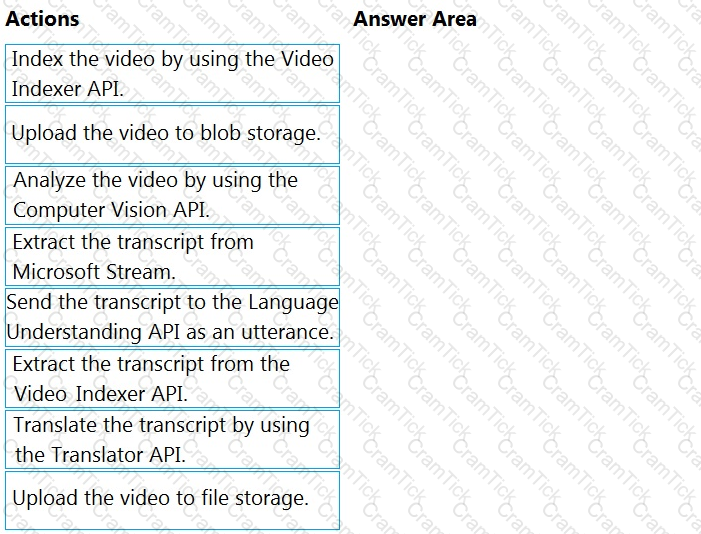

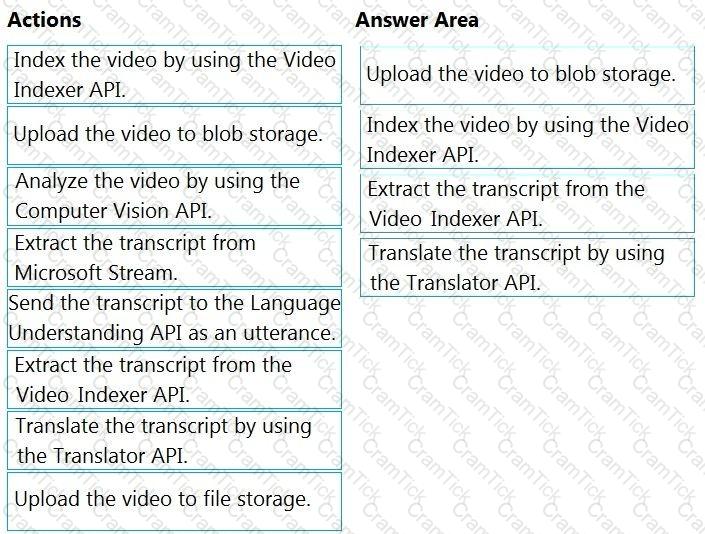

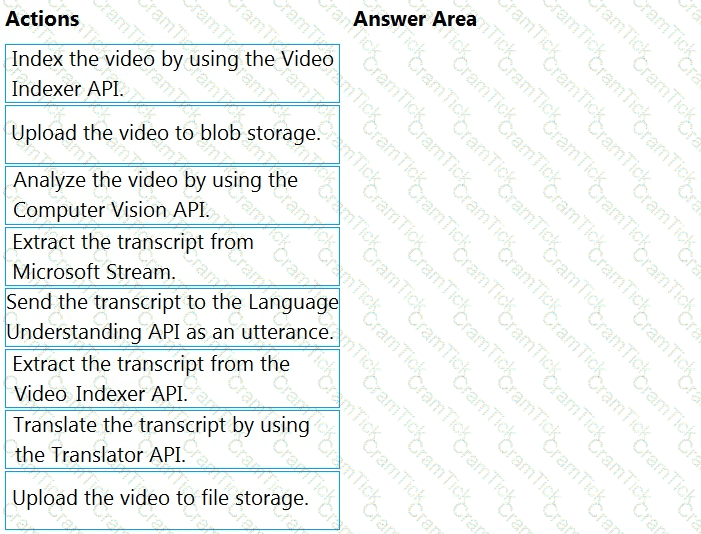

Step 1: Upload the video to blob storage

Given a video or audio file, the file is first dropped into a Blob Storage. T

Step 2: Index the video by using the Video Indexer API.

When a video is indexed, Video Indexer produces the JSON content that contains details of the specified video insights. The insights include: transcripts, OCRs, faces, topics, blocks, etc.

Step 3: Extract the transcript from the Video Indexer API.

Step 4: Translate the transcript by using the Translator API.

Graphical user interface, text, application, email Description automatically generated

Scenario: Support autocompletion and autosuggestion based on all product name variants.

A: Call a suggester-enabled query, in the form of a Suggestion request or Autocomplete request, using an API. API usage is illustrated in the following call to the Autocomplete REST API.

POST /indexes/myxboxgames/docs/autocomplete?search&api-version=2020-06-30

{

"search": "minecraf",

"suggesterName": "sg"

}

B: In Azure Cognitive Search, typeahead or "search-as-you-type" is enabled through a suggester. A suggester provides a list of fields that undergo additional tokenization, generating prefix sequences to support matches on partial terms. For example, a suggester that includes a City field with a value for "Seattle" will have prefix combinations of "sea", "seat", "seatt", and "seattl" to support typeahead.

F. Use the default standard Lucene analyzer ("analyzer": null) or a language analyzer (for example, "analyzer": "en.Microsoft") on the field.

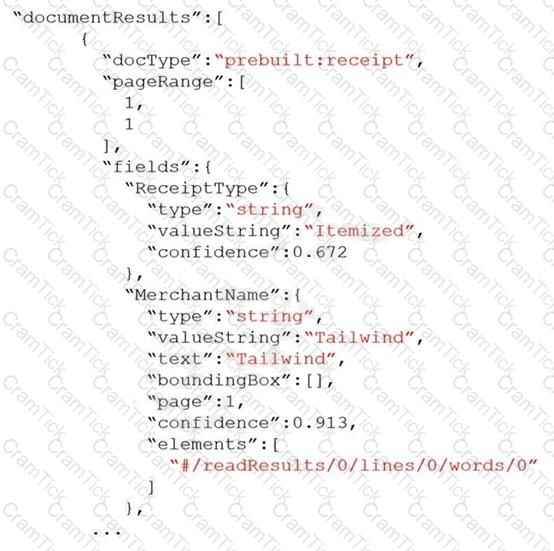

C: Analyze Receipt - Get Analyze Receipt Result.

Query the status and retrieve the result of an Analyze Receipt operation.

Request URL:https://{endpoint}/formrecognizer/v2.0-preview/prebuilt/receipt/analyzeResults/{resultId}

E: POST {Endpoint}/vision/v3.2/read/analyze

Use this interface to get the result of a Read operation, employing the state-of-the-art Optical Character Recognition (OCR) algorithms optimized for text-heavy documents.

Scenario: Contoso plans to develop a document processing workflow to extract information automatically from PDFs and images of financial documents

• The document processing solution must be able to process standardized financial documents that have the following characteristics:

- Contain fewer than 20 pages.

- Be formatted as PDF or JPEG files.

- Have a distinct standard for each office.

• *The document processing solution must be able to extract tables and text from the financial documents.
• The document processing solution must be able to extract information from receipt images.

The wiki contains text in English, French and Portuguese.

Scenario: All planned projects must support English, French, and Portuguese.

The Document Extraction skill extracts content from a file within the enrichment pipeline. This allows you to take advantage of the document extraction step that normally happens before the skillset execution with files that may be generated by other skills.

Note: The Translator Text API will be used to determine the from language. The Language detection skill is not required.

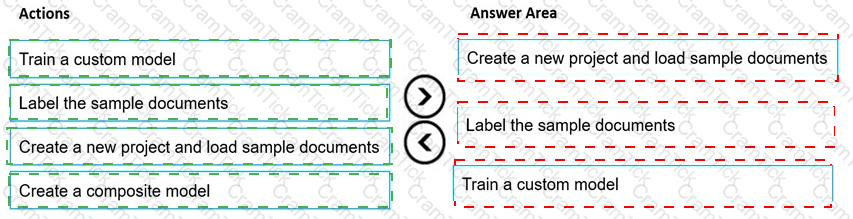

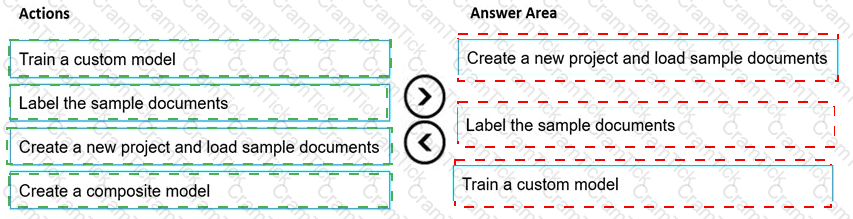

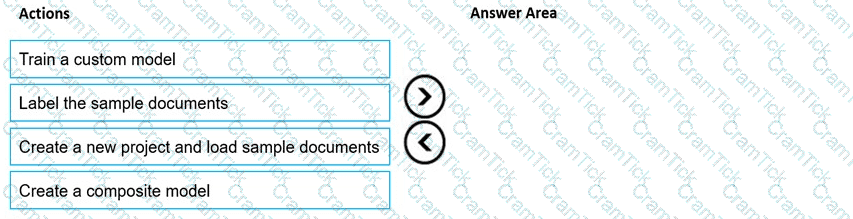

Step 1: Create a new project and load sample documents

Create a new project. Projects store your configurations and settings.

Step 2: Label the sample documents

When you create or open a project, the main tag editor window opens.

Step 3: Train a custom model.

Finally, train a custom model.

Scenario: When the response confidence score is low, ensure that the chatbot can provide other response options to the customers.

When no good match is found by the ranker, the confidence score of 0.0 or "None" is returned and the default response is "No good match found in the KB". You can override this default response in the bot or application code calling the endpoint. Alternately, you can also set the override response in Azure and this changes the default for all knowledge bases deployed in a particular QnA Maker service.

Choosing Ranker type: By default, QnA Maker searches through questions and answers. If you want to search through questions only, to generate an answer, use the RankerType=QuestionOnly in the POST body of the GenerateAnswer request.

Need to specify the field name, and then use < 0.7 to handle trigger if confidence score is less than 70%.

Scenario: All planned projects must support English, French, and Portuguese.

If a bot uses multiple LUIS models and QnA Maker knowledge bases (knowledge bases), you can use the Dispatch tool to determine which LUIS model or QnA Maker knowledge base best matches the user input. The dispatch tool does this by creating a single LUIS app to route user input to the correct model.

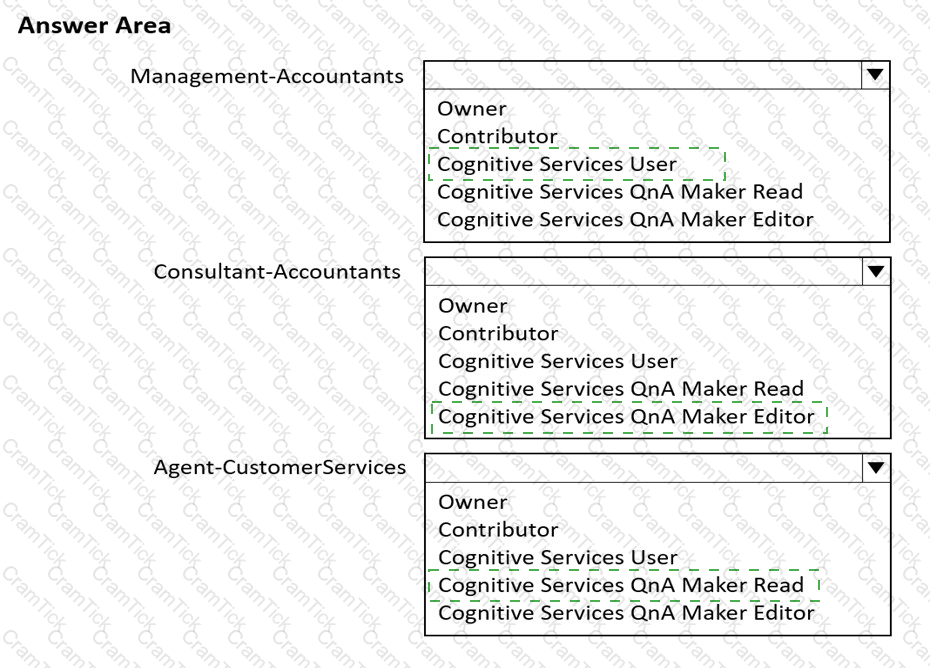

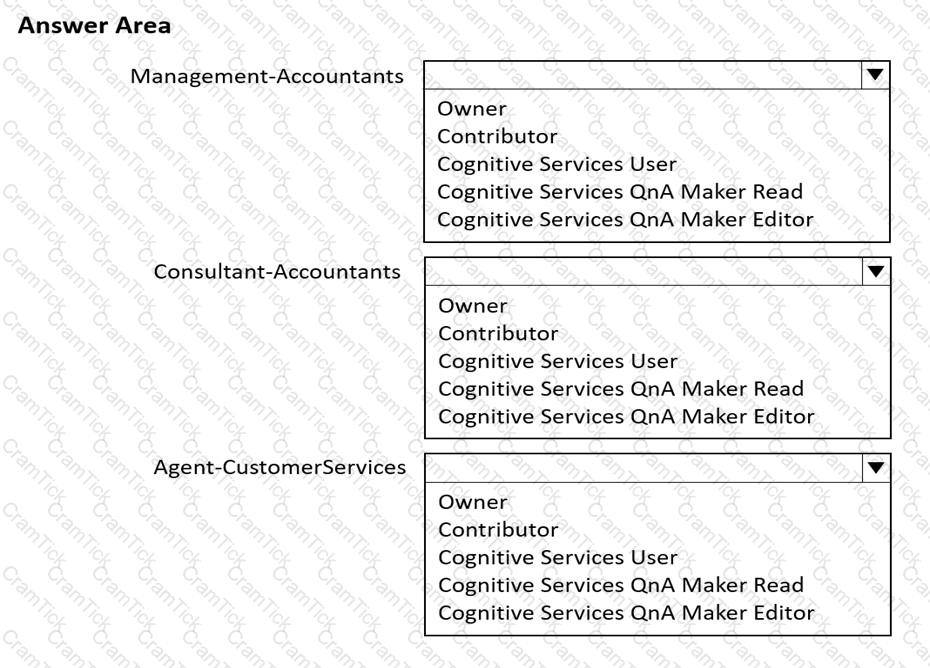

Box 1: Cognitive Service User

Ensure that the members of a group named Management-Accountants can approve the FAQs.

Approve=publish.

Cognitive Service User (read/write/publish): API permissions: All access to Cognitive Services resource except for ability to:

1. Add new members to roles.

2. Create new resources.

Box 2: Cognitive Services QnA Maker Editor

Ensure that the members of a group named Consultant-Accountants can create and amend the FAQs.

QnA Maker Editor: API permissions:

1. Create KB API

2. Update KB API

3. Replace KB API

4. Replace Alterations

5. "Train API" [in new service model v5]

Box 3: Cognitive Services QnA Maker Read

Ensure that the members of a group named the Agent-CustomerServices can browse the FAQs.

QnA Maker Read: API Permissions:

1. Download KB API

2. List KBs for user API

3. Get Knowledge base details

4. Download Alterations

Generate Answer

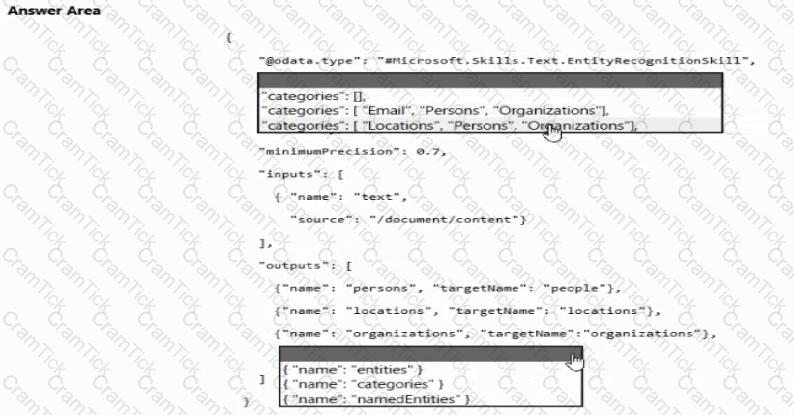

Box 1: "categories": ["Locations", "Persons", "Organizations"],

Locations, Persons, Organizations are in the outputs.

Scenario: Contoso plans to develop a searchable knowledgebase of all the intellectual property

Note: The categories parameter is an array of categories that should be extracted. Possible category types: "Person", "Location", "Organization", "Quantity", "Datetime", "URL", "Email". If no category is provided, all types are returned.

Box 2: {"name": " entities"}

The include wikis, so should include entities in the outputs.

Note: entities is an array of complex types that contains rich information about the entities extracted from text, with the following fields

name (the actual entity name. This represents a "normalized" form)

wikipediaId

wikipediaLanguage

wikipediaUrl (a link to Wikipedia page for the entity)

etc.

Within a search service, synonym maps are a global resource that associate equivalent terms, expanding the scope of a query without the user having to actually provide the term. For example, assuming "dog", "canine", and "puppy" are mapped synonyms, a query on "canine" will match on a document containing "dog".

Create synonyms: A synonym map is an asset that can be created once and used by many indexes.

Can search content in different formats, including video

Audio and video insights (multi-channels). When indexing by one channel, partial result for those models will be available.

Keywords extraction: Extracts keywords from speech and visual text.

Named entities extraction: Extracts brands, locations, and people from speech and visual text via natural language processing (NLP).

Topic inference: Makes inference of main topics from transcripts. The 2nd-level IPTC taxonomy is included.

Artifacts: Extracts rich set of "next level of details" artifacts for each of the models.

Sentiment analysis: Identifies positive, negative, and neutral sentiments from speech and visual text.

Graphical user interface, application Description automatically generated

Step 1: For the knowledge base, select Show active learning suggestions.

In order to see the suggested questions, on the Edit knowledge base page, select View Options, then select Show active learning suggestions.

Step 2: Approve and reject suggestions.

Each QnA pair suggests the new question alternatives with a check mark,✔, to accept the question or an x to reject the suggestions. Select the check mark to add the question.

Step 3: Save and train the knowledge base.

Select Save and Train to save the changes to the knowledge base.

Step 4: Publish the knowledge base.

Select Publish to allow the changes to be available from the GenerateAnswer API.

When 5 or more similar queries are clustered, every 30 minutes, QnA Maker suggests the alternate questions for you to accept or reject.
