HPE7-V01 Advanced HPE Edge-to-Cloud Solutions Questions and Answers

The correct answer is A because HPE Synergy can use a master/satellite interconnect design in which a smaller number of Virtual Connect modules provide the primary network intelligence, while satellite interconnect link modules extend connectivity across additional frames. This reduces the number of full Virtual Connect modules required in a multi-frame configuration, lowering hardware cost while still supporting scalable connectivity for the compute estate. In this proposal, the presence of two Virtual Connect SE 100Gb F32 modules and multiple 50Gb interconnect link modules reflects that design model. Option B describes scalability in general terms, but it does not directly identify the business and financial benefit. Option C is not the primary value proposition and does not explain the economics of the proposed topology. Option D is the opposite of the intended Synergy value: the architecture is designed to reduce, not increase, the number of expensive fabric modules in larger configurations. The course expects candidates to connect technical architecture choices to business outcomes, especially when presenting the financial impact of replacing legacy BladeSystem infrastructure with composable HPE Synergy infrastructure.

The correct answer is D because the requirement is not simply additional raw capacity; it is a write-performance target of 500K IOP/s. For HPE Alletra Storage MP B10000 designs, controller-node model selection, node count, shelf count, drive population, and media layout collectively determine whether the configuration can satisfy the performance envelope. Merely increasing the number of drives, as suggested in option C, does not guarantee that the front-end controller resources, CPU, cache, and back-end connectivity can sustain the required write workload. Options A and B use lower or inappropriate node selections for this stated requirement. The B10230 model, combined with additional shelf and drive resources, is the configuration change that aligns the controller and media resources with the required write I/O target. HPE’s course outline places HPE Alletra Storage MP B10000 in both general enterprise solution design and database workload solution design, which is exactly the kind of workload-sensitive sizing exercise represented here. The proposal must be validated against the customer’s required I/O profile, not only against usable capacity.

The correct answer is B. In HPE Synergy, network connectivity for compute modules is defined through HPE OneView server profiles. When RoCE is required, the server profile must explicitly include RoCE connections mapped to the appropriate RoCE network. HPE OneView guidance for adding a RoCE network states that server profiles should be created or edited with at least two RoCE connections mapped to the network. That directly supports the customer’s requirement for resilient, lossless RDMA connectivity between Synergy frames and the Aruba data-center fabric. Option A is incorrect because RoCEv1 is Layer 2 only and is not appropriate for a design traversing multiple switches and VLAN/routed boundaries. Option C is incomplete because operating-system queue creation alone does not establish Synergy Virtual Connect fabric policy or redundant RoCE connectivity. Option D is technically wrong because RoCE traffic should be consistently classified and lossless behavior must be enforced end to end, not split across two different priority values. Reference/topics: HPE Synergy networking, HPE OneView server profiles, RoCE networks, DCB/lossless Ethernet, Aruba CX data-center fabric.

The correct answer is A. The switch output clearly identifies the VTEP origin as “static,” and the VNI is mapped to VLAN 150 with routing disabled. In ArubaOS-CX static VXLAN, the administrator manually configures the VXLAN interface, source IP address, VNI, and peer VTEP. Aruba documentation for static VXLAN states that the peer VTEP IP address is explicitly defined with the vtep-peer command. Option B describes EVPN-VXLAN behavior, where BGP EVPN is used as the control plane to advertise MAC/IP and VTEP reachability dynamically. That is not what the output shows; the displayed origin is static. Option C is unsupported by the exhibit because no license state or scale limit is shown. Option D is incorrect because VXLAN interoperability depends on protocol support, configuration, MTU, underlay reachability, and feature compatibility, not on both sites using the exact same CX switch model. Reference/topics: ArubaOS-CX VXLAN, static VTEP configuration, VNI-to-VLAN mapping, underlay/overlay validation.

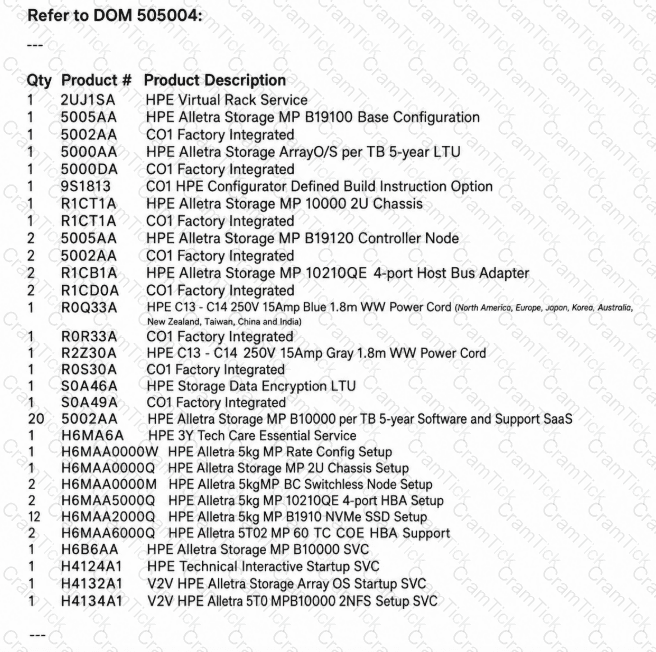

The correct answer is C. The customer requirement is explicit: four SFP28 iSCSI ports per controller node. An HPE Alletra Storage MP B10000 controller pair has two nodes, so the design requires eight usable SFP28 optical connections in total when all four 25GbE ports on each node are to be populated. The BOM already includes the Ethernet host bus adapters required for the iSCSI personality; the gap is the number of optical transceivers. HPE Alletra Storage MP B10000 supports host-port configuration by node, and HPE QuickSpecs list host port limits by controller model. HPE also identifies the 10/25GbE 4-port Host Bus Adapter as the correct Ethernet HBA class for Alletra Storage MP connectivity, while the Q2P64B item is the 25Gb SFP28 short-wave extended-temperature optical transceiver. Option A incorrectly removes the HBAs. Option B adds unnecessary HBAs instead of completing the optics population. Option D replaces adapters unnecessarily when the correct Ethernet HBA capacity is already present. The required correction is to add the missing four SFP28 transceivers so that all eight 25GbE ports can be used for iSCSI. Reference/topics: B10000 host-port sizing, iSCSI connectivity, SFP28 transceiver validation, BOM review.

The correct answer is B because HPE Alletra Storage MP B10000 supports VMware-oriented high-availability designs using Peer Persistence / Active Peer Persistence patterns. HPE documentation provides VMware ESXi host connectivity guidance for Alletra Storage MP B10000 and also describes VMware Metro Storage Cluster configurations with Active Peer Persistence. That is the correct platform positioning for protecting VMware workloads that require storage-level availability across sites. Option A is incorrect because Alletra 6000 Peer Persistence is based on NimbleOS synchronous replication behavior and is not positioned as an “Active Peer Persistence wizard with one-to-many topology.” Option C is also incorrect because Active Peer Persistence is a high-availability replication design, not a one-to-many replication topology. One-to-many replication is a different replication pattern and should not be conflated with Peer Persistence. Option D is incorrect because “Active Peer Persistence” is associated with Alletra Storage MP B10000 / Primera / Alletra 9000-class architecture rather than Alletra 6000’s classic Peer Persistence model. Reference/topics: HPE Alletra Storage MP B10000, VMware ESXi integration, Active Peer Persistence, storage HA design.

The correct answer is A because VXLAN/EVPN data-center fabrics are normally built on a routed Layer 3 underlay. In this design, each top-of-rack switch forms independent routed links toward the core or spine layer, and equal-cost multipath routing is used to provide scale-out bandwidth and resilience. The VXLAN/EVPN overlay then provides Layer 2 and Layer 3 tenant connectivity above that routed underlay. Option B is incorrect because LAG member Layer 2 ports represent a traditional Layer 2 aggregation design, not the preferred underlay model for EVPN/VXLAN. Option C is also incorrect because standalone Layer 2 links would create an underlay that lacks the routed ECMP characteristics expected in this fabric architecture. Option D is not the best answer because LAG is not required between TOR and core switches in an EVPN routed fabric; independent routed links provide better fabric behavior and failure isolation. The course includes Aruba networking and advanced virtualization/data-center design topics, and this question tests the candidate’s ability to select the correct port model for an HPE Aruba EVPN/VXLAN solution.

The correct answer is D. HPE OneView for VMware vCenter integrates HPE infrastructure health, lifecycle, and management information into the VMware operational plane. A major value point is support for VMware Proactive HA integration, where hardware health signals from HPE infrastructure can be passed into vCenter so the cluster can react before a hard failure affects virtual machines. HPE documentation specifically includes VMware Proactive HA support for HPE OneView for VMware vCenter. Option A is incorrect because the VMware integration is not limited only to HPE Synergy managed by Composer2; it is also relevant to supported HPE ProLiant and other HPE-managed infrastructure. Option B is wrong because the VMware integration tools are not licensed in the simplified per-component way stated. Option C is also too restrictive because VVol and storage integration behavior depends on the array, vSphere support matrix, and storage provider capability, not a blanket rule requiring Enterprise Plus for the integration itself. The correct design focus is operational availability: Proactive HA improves workload placement and response when HPE hardware health degrades. Reference/topics: HPE OneView for VMware vCenter, Proactive HA, VMware integration, HPE infrastructure monitoring.

The correct answer is A because Scality RING is positioned by HPE as a scale-out object and file storage solution built on qualified HPE server platforms, including HPE Alletra Storage Server models. For a customer planning approximately 750 TB of usable software-defined storage, the design focus is the validated HPE server configuration, drive type, usable-capacity target, and Scality license sizing. HPE documentation describes the Scality RING solution as consisting of HPE server systems, Scality license and maintenance, and installation services, with licensing based on unique usable data capacity. The minimum RING configuration is not 1000 TB; HPE references a lower starting usable-capacity threshold, so option B is incorrect. Option D is also incorrect because Scality solutions and licenses are explicitly available through HPE solution packaging. Option C is not the best design statement for this customer use case because the key technical validation is platform support and capacity alignment, not a generic claim about lower-cost licensing. This maps directly to the course topic covering scale-out unstructured data platforms, including Scality, Qumulo, Cohesity, and related HPE storage-server designs.

The correct answer is D. The business value of the proposed HPE Synergy design is the more flexible, scalable composable-fabric architecture compared with traditional blade designs. HPE Synergy uses a primary/satellite networking architecture with Virtual Connect and Interconnect Link Modules, allowing network connectivity to scale across multiple frames while reducing upstream cabling, top-of-rack dependency, and aggregation-port consumption. HPE describes the Virtual Connect SE 100Gb F32 design as using a disaggregated, rack-scale primary/satellite architecture to consolidate data center network connections, reduce hardware, and scale network bandwidth across multiple HPE Synergy frames. That is the financial point: the customer gains higher fabric flexibility and expansion capability without replicating a full set of expensive intelligent fabric modules in every frame. Option A is not the relevant benefit and overstates the GPU expansion concept. Option B is technically true about FC capability, but it does not describe the primary business and financial value of the proposed multi-frame architecture. Option C is a narrower compute-module feature and is not the strongest financial argument. Reference/topics: HPE Synergy business value, Virtual Connect primary/satellite fabric, network consolidation, financial-impact presentation.

The correct answer is C. The exhibit shows an HPE Alletra Storage MP B10000 configuration based on QLC flash, with raw capacity below the customer’s 450 TB target. The correct capacity adjustment is to increase the number of QLC drives in the system while selecting the sparing policy that maximizes available usable capacity for the intended design. Replacing QLC with TLC is not the right direction for a high-capacity all-flash requirement because QLC media is positioned for dense, cost-efficient capacity expansion. Adding host bus adapters does not increase raw storage capacity, so option A is unrelated to the requirement. Replacing controller nodes is also unnecessary because the problem is media capacity, not controller performance. HPE Alletra Storage MP B10000 QuickSpecs identify scale-out capacity characteristics, including maximum raw capacity per shelf, confirming that the platform is intended to scale capacity through shelves and drive population rather than by changing host-connectivity cards. The correct plan is to add QLC capacity to reach the raw-capacity target and adjust sparing appropriately. Reference/topics: B10000 capacity planning, QLC all-flash sizing, sparing policy, GreenLake proposal validation.

The correct answer is C. RPO 0 is the decisive requirement. A zero recovery point objective means the customer cannot lose acknowledged writes if a site fails. That requirement cannot be satisfied by asynchronous replication because asynchronous copy always introduces replication lag. The storage volumes backing the VMware datastores must be synchronously replicated between the two sites so that committed data exists at both locations before the write is considered protected. HPE Alletra Storage MP B10000 is designed for mission-critical block workloads and supports high-availability replication models, including synchronous Remote Copy / Peer Persistence designs for VMware environments. HPE documentation for Active Peer Persistence describes synchronous Remote Copy as the mechanism used for high-availability protection across arrays. Option A is incorrect because stretching or joining HPE Synergy frames across sites is not the mechanism that provides RPO 0. Option B can help with VMware policy-driven placement, but SPBM alone does not replicate data. Option D fails the RPO requirement. Reference/topics: DR architecture, RPO 0, synchronous replication, B10000 Remote Copy, VMware datastore protection.
