JN0-106 Junos - Associate (JNCIA-Junos) Junos OS 21.2 Questions and Answers

The Junos Command Line Interface (CLI) is designed with an intuitive, context-sensitive help system that assists users in navigating the command hierarchy. When an administrator enters a question mark (?) at the prompt, the CLI provides immediate feedback based on the current location within the hierarchy. First, it lists all available commands and options that are valid at that specific point. This allows the user to see the breadth of possible next steps without needing to refer to external documentation.

Second, the ? character triggers the display of summary information for each of those commands and options. This brief descriptive text provides a clinical overview of what each command achieves, helping the user select the appropriate tool for their task. This " help-on-demand " feature is functional in both operational and configuration modes. It is important to distinguish this from the help command; while help (such as help topic or help reference) provides more exhaustive documentation and usage examples, the ? prompt is primarily a quick-reference tool for command completion and syntax discovery. This mechanism ensures that even complex configurations can be built accurately by exploring the available options and their summarized purposes directly within the terminal environment. Reference: User Interfaces, CLI Help Facilities, Command Discovery.

==========

Prefix lists in Junos OS are named collections of IP addresses or network prefixes defined under the [edit policy-options] hierarchy. One of their most powerful features is their versatility and reusability. Because they are defined as independent objects, a single prefix list can be referenced in multiple different routing policies across the device. This modularity ensures consistency; for instance, if a set of " internal " prefixes changes, an administrator only needs to update the list in one location for those changes to propagate to every policy that utilizes it.

Furthermore, prefix lists are designed to be used across different functional areas of the Junos architecture. They are equally valid for use in routing policies (to control the import or export of routes between protocols like BGP or OSPF) and in firewall filters (to match source or destination addresses for transit or management traffic). When used in a routing policy, the prefix list typically performs an exact match on the prefix length unless modified by a match type like orlonger. In a firewall filter, it acts as a high-speed lookup table for the Packet Forwarding Engine. This dual-purpose capability makes prefix lists a foundational tool for architects seeking to implement scalable, automated security and routing logic within a unified configuration framework.

Comprehensive and Detailed 150 to 250 words of Explanation From: In a routed environment like the one shown in the exhibit, traffic forwarding involves a constant interaction between Layer 3 (Network) and Layer 2 (Data Link) addressing. When User A generates a packet destined for User B, the source and destination IP addresses remain static throughout the entire journey across the network (assuming no Network Address Translation is performed). However, the Layer 2 Ethernet headers must be rewritten at every hop because MAC addresses have only local significance on a physical segment.

As Router R1 receives the packet from User A, it performs a lookup in its Forwarding Information Base (FIB) and identifies that the path to User B requires forwarding the packet to Router R2. R1 decapsulates the incoming frame, stripping away the original Ethernet header that contained User A ' s source MAC and R1 ' s own destination MAC. To forward the packet to the next hop, R1 creates a new Ethernet header. The source MAC address becomes the MAC address of R1’s egress interface, and the destination MAC address is replaced with the MAC address of Router R2 . R1 cannot use User B ' s MAC address at this point because User B is not on a directly connected segment. This hop-by-hop MAC address replacement is essential for the Packet Forwarding Engine to successfully deliver the frame to the next Layer 3 device in the path. Reference: Networking Fundamentals, Packet Forwarding, Layer 2 and Layer 3 Addressing.

The Junos OS operates using a candidate configuration model, where changes are made in a temporary buffer before being applied to the running system. To ensure accuracy and prevent unintended network disruptions, it is a critical best practice to review the differences between the candidate buffer and the currently active configuration. The command show | compare executed from the [edit] hierarchy level is the primary tool for this task.

When this command is issued, the CLI performs a line-by-line comparison. The output uses a " diff " format: lines prefixed with a plus sign (+) represent new statements added to the candidate configuration, while lines prefixed with a minus sign (-) indicate statements that have been removed. This visualization allows the architect to verify exactly what will change upon execution of the commit command. Unlike operational mode commands that only show the final state, show | compare highlights the delta, making it indispensable for auditing complex policy changes or interface reconfigurations. This step acts as a final manual validation gate, reducing the risk of syntax errors or logical misconfigurations entering the production environment. Using this command is a fundamental skill for passing the JNCIA-Junos exam and for professional day-to-day operations.

In the Junos OS environment, precise IP addressing and subnet calculation are foundational for interface configuration. A /29 subnet mask (255.255.255.248) provides a total of 8 IP addresses. To identify the usable host range, we must first identify the network and broadcast addresses. For the subnet 172.16.40.128/29, the network address is 172.16.40.128. The broadcast address is the last address in the block, which is 172.16.40.135.

Following standard IPv4 conventions, the first and last addresses in a block are reserved for the network identity and the directed broadcast, respectively. This leaves 6 usable host addresses: 172.16.40.129 through 172.16.40.134. Counting sequentially from the beginning of the usable range: the first usable host is .129, the second is .130, the third is .131, and the fourth usable host is 172.16.40.132. Assigning this specific address ensures that the Packet Forwarding Engine can correctly route traffic within the intended segment. As a Senior Architect, it is critical to verify these boundaries when using the set interfaces unit 0 family inet address command to prevent address overlapping or the accidental assignment of reserved network/broadcast IDs.

The Junos Command Line Interface (CLI) is structured into two primary hierarchical modes: operational mode and configuration mode. Operational mode is the default entry point when a user logs into the device, signified by the > prompt. This mode is designed for monitoring the health of the device, troubleshooting network issues, and executing system-level maintenance tasks. Specifically, an administrator uses operational mode to verify the version of Junos OS currently active on the device using the show version command.

Additionally, system-level administrative actions that do not involve modifying the device ' s persistent configuration logic are performed within the operational mode. This includes requesting the system to reboot or halt via the request system hierarchy of commands. In contrast, tasks that involve manipulating the configuration database—such as committing proposed changes or rolling back to a previous configuration version—require the user to transition into configuration mode, indicated by the # prompt. Understanding this distinction is vital for efficient navigation of the Junos CLI; while operational mode provides the tools to observe the system and manage its physical state, configuration mode is reserved for altering the logical parameters and routing policies that govern device behavior. Reference: User Interfaces, CLI Modes, Operational Mode Commands.

==========

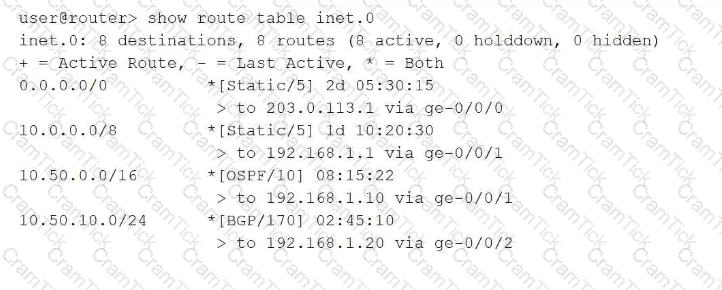

Route preference is the quantitative value Junos OS uses to rank the trustworthiness of different routing sources when multiple protocols provide a path to the same destination. A critical architectural distinction in Junos is that both direct and local routes share the same default preference value of 0. Direct routes represent subnets physically connected to an interface, while local routes represent the specific IP address assigned to the device interface itself. Because a value of 0 is the lowest possible numerical value, these routes are always preferred over any learned via dynamic protocols or static configuration.

Additionally, Junos OS treats External BGP (EBGP) and Internal BGP (IBGP) differently than other vendors by assigning both an identical default preference of 170. This means that if the same prefix is learned via both EBGP and IBGP, the preference value alone will not determine the active route; the system must instead proceed to the standard BGP path selection algorithm (evaluating attributes like Local Preference, AS Path, and Origin) to break the tie. In contrast, OSPF distinguishes between its route types, assigning a preference of 10 to internal routes and 150 to AS external routes. Understanding these default values—specifically the parity between direct/local and the unified preference for BGP variants—is foundational for predicting how the Routing Engine populates the forwarding table. Reference: Routing Fundamentals, Default Route Preference Values.

==========

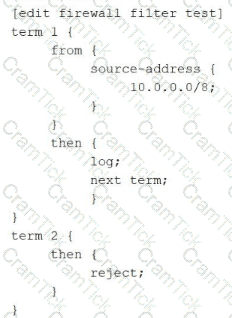

In Junos OS, standard firewall filters operate as a primary security and traffic management tool within the forwarding plane. These filters are fundamentally stateless, meaning they evaluate each packet individually and in isolation without maintaining a session table or tracking the state of network connections. This stateless nature allows the Packet Forwarding Engine (PFE) to process filters at hardware speeds, ensuring minimal latency for transit traffic. This distinguishes them from the stateful security policies found on Junos security devices like the SRX Series, which track the entire lifecycle of a flow.

Furthermore, firewall filters are designed to inspect and match header information up to Layer 4 of the OSI model. This capability allows administrators to define terms based on parameters such as source and destination IP addresses (Layer 3) as well as TCP or UDP port numbers and protocol types (Layer 4). While they provide granular control over packet flow, they do not natively inspect Layer 7 application payloads, which is typically reserved for advanced services like Intrusion Detection and Prevention (IDP). By combining stateless execution with Layer 4 matching, Junos firewall filters provide an efficient method for implementing transit protection, rate limiting through policing, and protecting the local Routing Engine through loopback interface filtering. Reference: Routing Policy and Firewall Filters, Firewall Filter Framework.

==========

To determine which prefixes contain 192.168.3.29 , calculate the address range represented by each subnet mask.

A /22 prefix uses subnet mask 255.255.252.0 , producing blocks of four in the third octet. Therefore, 192.168.0.0/22 covers 192.168.0.0 through 192.168.3.255 . The address 192.168.3.29 falls within this range, making A correct .

A /28 uses mask 255.255.255.240 , creating blocks of 16 addresses. 192.168.3.0/28 covers 192.168.3.0 through 192.168.3.15 . Since 192.168.3.29 is outside this interval, B is incorrect .

A /23 uses mask 255.255.254.0 , creating blocks of two in the third octet. 192.168.2.0/23 covers 192.168.2.0 through 192.168.3.255 , so 192.168.3.29 is included , making C correct .

Finally, a /21 uses eight-value blocks in the third octet. The prefix represented by 192.168.252.0/21 belongs to the 192.168.248.0–192.168.255.255 range and therefore cannot contain 192.168.3.29.

Study Guide Reference Topics: Networking Fundamentals — IPv4 addressing, subnet masks, CIDR notation, subnet boundaries, and prefix-range calculations.

Traceoptions represent an essential diagnostic facility within Junos OS, primarily used by network engineers for deep-level troubleshooting and protocol analysis. The fundamental purpose of configuring traceoption log files is to enable detailed debugging of specific protocols—such as BGP, OSPF, or IS-IS—or specific system processes like the Routing Protocol Process (rpd). When enabled, the system captures detailed information about the internal operations of the protocol, including the exchange of packets, state machine transitions, and error conditions, writing this data to a dedicated file in the /var/log directory.

Unlike standard system logging (syslog), which captures high-level events and warnings, traceoptions provide a granular, " behind-the-scenes " view of how a protocol is interacting with its neighbors. This is particularly useful for identifying the root cause of complex adjacency issues or route instability that standard show commands may not reveal. However, because tracing can be resource-intensive, it is typically configured with specific flags to limit the output to relevant events and is disabled once the troubleshooting task is complete. Traceoptions do not serve to optimize routing automatically , nor are they intended for permanent compliance storage or simple bandwidth monitoring. Instead, they remain the premier tool for clinical debugging and protocol verification within the Junos environment. Reference: Operational Monitoring and Maintenance, Troubleshooting Tools and Traceoptions.

==========

When you need to visualize the hop-by-hop journey of a packet across a multi-vendor or Junos-based network, traceroute is the definitive operational tool. Unlike ping , which merely confirms end-to-end reachability by eliciting an Echo Reply, traceroute provides a clinical breakdown of every Layer 3 device (router or switch) in the path.

The mechanics of this tool are quite clever: it sends out a sequence of packets (usually UDP or ICMP) with an increasing Time-to-Live (TTL) value, starting at 1. When the first router receives the packet, it decrements the TTL to 0, discards the packet, and sends an ICMP " Time Exceeded " message back to the source. This informs your Junos device of the first hop ' s identity. This process repeats, incrementing the TTL each time, until the packet reaches the final destination. This path discovery is vital for identifying where traffic might be diverted by a misconfigured routing policy or where latency is being introduced in the network fabric. While monitor interface traffic gives you real-time throughput on a local port and SNMP provides historical telemetry to a management station, neither can map the external topological path like traceroute. In the Junos CLI, you can even specify the source address or bypass the routing table to test specific egress paths.

When a network architect needs to completely sanitize a Junos device for redeployment or decommissioning, the request system zeroize command is the most thorough tool available. Unlike simply loading the factory default configuration, which only resets the configuration database, the zeroize command performs a deep wipe of the system.

Specifically, this command removes all user-created data, including all configuration files (active and rollback), log files, license keys, and any locally stored files in the /var/tmp or /home directories. It essentially restores the device to its " pristine " out-of-box state. Once the command is initiated, the device reboots and goes through a sanitization process. This is a critical security measure to ensure that sensitive information—such as encrypted passwords, proprietary routing policies, or SNMP community strings—does not leave the organization when hardware is transferred.

In contrast, the request system storage cleanup command is a maintenance utility used to delete temporary files and old log entries to free up disk space, but it does not affect the running configuration or user accounts. Therefore, for a total system reset that includes configuration deletion, zeroize is the mandatory operational command.

The Packet Forwarding Engine (PFE) represents the data plane of a Junos device, responsible for the high-speed processing and movement of packets through the system. Its primary role is to forward transit traffic—data that enters one interface and exits another—at wire speed using specialized hardware such as Application-Specific Integrated Circuits (ASICs). To accomplish this, the PFE utilizes a local copy of the Forwarding Information Base (FIB) provided by the Routing Engine, ensuring that forwarding decisions are made locally without requiring the main CPU ' s intervention for every packet.

In addition to pure forwarding, the PFE is the functional component that implements and executes firewall filters and policing. Because firewall filters must be applied to transit traffic at line rate to prevent bottlenecks, the PFE evaluates incoming and outgoing packets against configured filter terms in hardware. This ensures that security policies and traffic shaping are applied with minimal latency. It is critical to note that the PFE does not maintain the master routing table (RIB) or perform route selection; those " intelligent " control plane functions are strictly the domain of the Routing Engine. By offloading the repetitive tasks of packet inspection and hardware forwarding to the PFE, Junos OS maintains consistent performance even under heavy traffic loads or complex security configurations. Reference: Junos OS Fundamentals, Packet Forwarding Engine Architecture.

==========

When a Junos device is initialized for the first time or after a factory reset, it operates with a " factory-default " configuration. This configuration contains the minimum settings necessary for the device to boot, but it lacks essential security parameters. The Junos OS kernel enforces a strict security mechanism that prevents any administrator from successfully executing a commit command until a root-level password has been defined.

Specifically, the root-authentication object must be configured under the [edit system] hierarchy. This requirement ensures that no Junos device is deployed into a production environment with an open, unauthenticated root account. If an administrator attempts to commit changes without this setting, the configuration parser will return a " missing mandatory statement " error and the commit process will fail. While other settings—such as a system hostname, management IP address (on the fxp0 or me0 interfaces), or logical interface configurations—are critical for operational readiness, they are not strictly enforced by the system validation logic for the initial activation. Only the root-authentication (which can be a plain-text password or an encrypted key) is a hard prerequisite for transitioning the device from a default state to an active, running configuration.

The Routing Engine (RE) is the " brains " of a Juniper device, representing the control plane in the Junos dual-plane architecture. One of its primary functions is that it runs the Junos OS . The RE is essentially a high-performance workstation running a specialized version of FreeBSD that hosts the various software daemons responsible for the device ' s logic, such as the Routing Protocol Process (rpd) and the Device Control Process (dcd).

The second core function is that the RE processes all management traffic . Any packet destined for the router itself—such as an SSH session, an SNMP poll, a NETCONF request, or an NTP update—is handled by the Routing Engine ' s CPU. The RE also maintains the master routing table, manages configuration commits, and provides the CLI environment for the administrator.

It is critical to distinguish these control-plane duties from the duties of the Packet Forwarding Engine (PFE) . The PFE is responsible for the " heavy lifting, " such as processing transit traffic (data passing through the router) and evaluating firewall filters at wire speed. While the RE defines the policies and routing tables, it hands off a streamlined version of this information to the PFE so the RE isn ' t bogged down by millions of individual packets. This separation ensures that a busy management session or a complex routing calculation on the RE doesn ' t impact the device ' s ability to forward traffic at maximum capacity.

In networking architecture, point-to-point (P2P) links are used to interconnect two Layer 3 devices, such as a pair of Juniper MX series routers. Because these links only involve two endpoints, using a large subnet mask would result in wasted IP addresses. The standard historical prefix for a P2P link that provides exactly two usable host addresses is /30.

A /30 subnet mask (255.255.255.252) reserves 2 bits for the host portion. Applying the usable host formula ($2^2 - 2$) results in 2 usable addresses. In the case of 192.168.1.0/30:

192.168.1.0 is the Network Address.

192.168.1.1 is the first usable host address (assigned to Router A).

192.168.1.2 is the second usable host address (assigned to Router B).

192.168.1.3 is the Broadcast Address.

While modern Junos OS versions also support /31 masks for point-to-point links (which eliminate the network and broadcast address overhead to provide two hosts), the /30 mask remains the classic and most widely recognized answer for providing " only two usable host addresses " within the standard subnetting framework. Using /30 ensures compatibility across all legacy and multi-vendor environments while precisely meeting the connectivity requirements of a dedicated link between two interfaces.

Determining the appropriate subnet mask for a specific host requirement is a core task in designing Junos-based network infrastructures. The number of usable hosts in an IPv4 subnet is calculated using the formula $2^n - 2$, where $n$ represents the number of host bits remaining after the network prefix. In this scenario, the requirement is to support 50 hosts within a single broadcast domain.

Evaluating the options:

A /29 mask provides 3 host bits ($2^3 - 2 = 6$ hosts), which is insufficient.

A /28 mask provides 4 host bits ($2^4 - 2 = 14$ hosts), which is insufficient.

A /27 mask provides 5 host bits ($2^5 - 2 = 30$ hosts), which still fails to meet the 50-host threshold.

A /26 mask provides 6 host bits. Applying the formula: $2^6 - 2 = 64 - 2 = 62$ usable host addresses.

Since a /26 mask provides 62 usable addresses, it is the smallest standard subnet mask that fully satisfies the requirement of 50 hosts. Using a /26 mask allows for the 50 required hosts while providing a small buffer for future growth (12 additional addresses) without wasting the excessive address space associated with a /25 or /24 mask. This efficient allocation of address space is a best practice for maintaining scalable and organized routing tables on Juniper devices.

In Junos OS configuration management, the rename and replace pattern commands serve distinct roles for modifying the candidate configuration. The rename command is used when an administrator needs to change the identifier of a specific, single configuration object—such as changing an interface name or a policy-term name—while keeping the underlying properties of that object intact. In contrast, the replace pattern command is a powerful utility designed for bulk modifications across the configuration hierarchy. It utilizes string matching or regular expressions to find every occurrence of a specific text string and substitute it with another.

This is particularly useful in scenarios involving mass updates, such as migrating an entire subnet across multiple interface descriptions, firewall filters, and routing policy terms simultaneously. While rename acts locally on a specific path, replace pattern can be applied globally from the root of the configuration or constrained to a specific sub-hierarchy. As a Senior Architect, it is critical to understand that replace pattern does not just change names; it can modify any part of the statement text, making it an essential tool for efficient large-scale configuration refactoring without the need for manual, line-by-line edits. Reference: Configuration Basics, Modifying Configuration, Command Line Editing.

The Routing Engine (RE) in a Junos device serves as the centralized intelligence and management hub, primarily responsible for the control and management planes of the system. In this capacity, the RE is tasked with processing routing updates, such as OSPF Link State Advertisements (LSAs) or BGP Update messages. These updates are vital for the RE to maintain the Routing Information Base (RIB), calculate the shortest paths, and subsequently populate the Forwarding Information Base (FIB) which is then pushed to the Packet Forwarding Engine (PFE).

Furthermore, the Routing Engine handles all local management traffic. This category encompasses administrative access through the Command Line Interface (CLI) via SSH or Telnet, SNMP queries from network management systems, and system logging processes. Because the RE runs the Junos OS kernel, it must directly interpret and respond to these management-level requests to ensure the device remains configurable and observable. Conversely, transit traffic—the data passing through the device from one ingress port to an egress port—is offloaded to the PFE to be handled at wire speed. While the PFE manages the heavy lifting of data forwarding and Class of Service (CoS) application, the RE remains focused on high-level protocol maintenance and system administration, ensuring that control plane stability is maintained even under heavy traffic loads. Reference: Junos OS Fundamentals, Control Plane Functions, Routing Engine Traffic.

==========

The relationship between the routing table (Routing Information Base or RIB) and the forwarding table (Forwarding Information Base or FIB) is the cornerstone of the Junos OS architectural separation between the control and data planes. The routing table resides in the control plane on the Routing Engine (RE). Its primary role is to aggregate all reachability information from every configured protocol and select the best route for each destination prefix based on criteria like preference and metrics.

Once the Routing Engine has identified the single " active " best path for a destination, it distills this complex routing data into a simplified, streamlined version called the forwarding table . The forwarding table contains only the essential information needed to move a packet: the destination prefix, the egress interface, and the Layer 2 next-hop MAC address. The RE then " pushes " this forwarding table to the Packet Forwarding Engine (PFE) in the data plane. By having the PFE use a table built from the routing table , Junos ensures that transit traffic can be processed at wire speed without the overhead of complex routing logic. This one-way flow—from the comprehensive RIB on the RE to the optimized FIB on the PFE—allows the device to maintain high performance even while routing protocols are recalculating or the management plane is under heavy load.

The clear log command is a vital operational utility within the Junos OS used to manage the size and relevance of log files without interrupting the system ' s logging processes. When a Senior Architect executes the clear log ospf-trace command, the Junos kernel truncates the specified file, effectively removing all existing text and resetting the file size to zero bytes. Crucially, the file itself is not deleted from the /var/log directory, nor is the underlying traceoptions configuration modified in any way.

Because tracing is often used for real-time debugging of protocol behaviors like OSPF, trace files can rapidly grow to several megabytes, making it difficult to find specific events. By clearing the log, the administrator ensures that any subsequent OSPF events—such as adjacency changes, LSA flooding, or SPF calculations—are recorded at the very beginning of the file, free from historical clutter. The OSPF process (rpd) continues to write to the file immediately after the truncation occurs. This operational behavior distinguishes the clear command from the file delete command, which would remove the file entirely, or the set protocols ospf traceoptions configuration command, which defines which specific events the device should record. Utilizing clear log is a standard best practice during intensive troubleshooting sessions to maintain a clean and chronologically relevant diagnostic environment.

Maintaining the integrity of the Junos OS file system is a critical operational requirement, especially during maintenance that involves removing power from the hardware. To achieve a graceful power-down, the request system halt command must be used. This command initiates a systematic shutdown of all running software processes and daemons, flushes any pending data from the system ' s volatile memory (RAM) to the solid-state storage or hard disk, and unmounts the file systems correctly. Once the software has safely shut down, the console will typically display a message indicating that it is safe to turn off the physical power switch or remove the power cables.

Using request system halt prevents potential file system corruption that can occur if power is abruptly cut while the OS is actively writing logs or configuration data. This is distinct from request system reboot, which restarts the OS, or request system logout, which merely terminates the current CLI session. As a Senior Architect, it is essential to follow this procedure to ensure that the device remains in a reliable state for its next power-on cycle. For devices equipped with dual Routing Engines, the command can often be directed to a specific member or both simultaneously to ensure a synchronized and safe shutdown of the entire chassis. Reference: Operational Monitoring and Maintenance, System Halt and Reboot Procedures.

==========

When you initially unbox and power on a Juniper MX Series router, it loads a factory-default configuration . Unlike some consumer-grade or lower-end enterprise switches that might have all ports active in a default VLAN, high-performance routers like the MX Series prioritize security and intentionality. In the factory-default state, the transit interfaces are not configured .

While the physical hardware interfaces (such as ge-0/0/0 or xe-0/1/0) are detected by the Junos kernel, they lack any logical unit or protocol family definitions (like family inet or family inet6). Without a logical unit—even a simple unit 0—the Packet Forwarding Engine (PFE) will not accept or forward any traffic arriving on those ports. Furthermore, as discussed in previous questions, the device is essentially in a " locked " state; you cannot even commit new changes to enable these interfaces until you have defined a root-authentication password. This " blank slate " approach ensures that no traffic accidentally flows through a newly installed provider-edge device until an architect has explicitly defined the routing policies, firewall filters, and interface parameters required for the specific network environment. To begin passing traffic, you must manually define the logical units and assign the appropriate IP addresses or switching parameters to each interface.

The Junos OS Command Line Interface (CLI) utilizes an advanced command-line editing environment influenced by standard Emacs and Unix terminal behaviors. One of the most critical features for operational efficiency is the command history buffer. This buffer automatically records a sequence of previously executed commands, allowing administrators to recall, modify, and re-execute them without manual re-entry.

The navigation of this history buffer is strictly chronological and operates as a stack. When the up arrow key is pressed once, the CLI retrieves the most recent command that was successfully entered—in this scenario, show chassis errors fpc-slot 0. Pressing the up arrow key a second time moves the cursor one step further back into the history stack to the command that preceded the most recent one. Following the provided sequence, the command executed prior to the " errors " check was show chassis fpc detail. Consequently, the second press of the up arrow key will display show chassis fpc detail at the prompt. This mechanism is essential for architects during intensive troubleshooting sessions, enabling them to cycle through relevant diagnostic commands rapidly while maintaining focus on the hardware output rather than syntax repetition. Reference: User Interfaces, CLI Editing Features, Command History.

==========

The exhibit illustrates a Junos configuration rendered as a sequence of flat, executable lines that each begin with the set keyword. This is commonly referred to as the " set format. " By default, Junos OS displays the configuration in a hierarchical, brace-delimited format (often called " staza " or " curly brace " format). While the default format is excellent for visualizing the structural relationship between different configuration objects, the set format is often preferred for documentation, scripting, or copying specific configuration snippets between different devices.

To produce the output seen in the exhibit, an administrator must append the pipe filter | display set to the show configuration command. This filter instructs the CLI parser to flatten the hierarchical structure and prepend the necessary context to every individual leaf statement. These lines are highly functional because they can be pasted directly into the CLI of another device while in configuration mode to recreate the exact settings. In contrast, display inheritance is used to reveal hidden settings applied via configuration groups, and display detail provides additional technical metadata about the objects. Neither of those options would transform the output into the discrete set command lines shown in the exhibit. Understanding how to toggle between these display formats is a fundamental skill for any architect managing Junos infrastructures through the Command Line Interface.

In the Junos OS architecture and general networking standards, Layer 2 switches are designed to increase network efficiency by segmenting collision domains. Unlike legacy hubs, a switch creates a separate collision domain for each of its physical ports. This micro-segmentation allows for full-duplex communication, effectively eliminating the possibility of collisions on individual links. However, while switches segment collision domains, they maintain a single broadcast domain by default.

When a switch receives a broadcast frame, such as an ARP request, it must ensure the frame reaches all possible destinations within the local segment. Consequently, the switch floods the broadcast traffic out of all ports except the one on which it was received. This flooding behavior, while necessary for protocol discovery, makes Layer 2 networks susceptible to traffic loops. If redundant physical paths exist between switches without a loop-prevention mechanism like the Spanning Tree Protocol (STP), broadcast frames can circulate endlessly, leading to a broadcast storm that consumes all available bandwidth and processor resources on the Routing Engine. Furthermore, switches are highly active learners; they populate their Media Access Control (MAC) tables by observing the source addresses of incoming frames to ensure that subsequent unicast traffic is precisely forwarded rather than flooded. Therefore, understanding the management of broadcast domains and the risks of loops is a core competency for any Junos Associate.
