Juniper JN0-106 Dumps Questions Answers

In the Junos OS architecture and general networking standards, Layer 2 switches are designed to increase network efficiency by segmenting collision domains. Unlike legacy hubs, a switch creates a separate collision domain for each of its physical ports. This micro-segmentation allows for full-duplex communication, effectively eliminating the possibility of collisions on individual links. However, while switches segment collision domains, they maintain a single broadcast domain by default.

When a switch receives a broadcast frame, such as an ARP request, it must ensure the frame reaches all possible destinations within the local segment. Consequently, the switch floods the broadcast traffic out of all ports except the one on which it was received. This flooding behavior, while necessary for protocol discovery, makes Layer 2 networks susceptible to traffic loops. If redundant physical paths exist between switches without a loop-prevention mechanism like the Spanning Tree Protocol (STP), broadcast frames can circulate endlessly, leading to a broadcast storm that consumes all available bandwidth and processor resources on the Routing Engine. Furthermore, switches are highly active learners; they populate their Media Access Control (MAC) tables by observing the source addresses of incoming frames to ensure that subsequent unicast traffic is precisely forwarded rather than flooded. Therefore, understanding the management of broadcast domains and the risks of loops is a core competency for any Junos Associate.

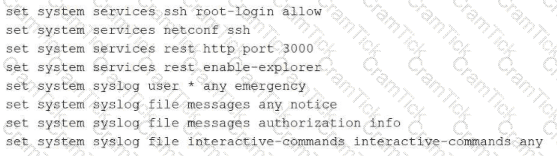

The exhibit illustrates a Junos configuration rendered as a sequence of flat, executable lines that each begin with the set keyword. This is commonly referred to as the " set format. " By default, Junos OS displays the configuration in a hierarchical, brace-delimited format (often called " staza " or " curly brace " format). While the default format is excellent for visualizing the structural relationship between different configuration objects, the set format is often preferred for documentation, scripting, or copying specific configuration snippets between different devices.

To produce the output seen in the exhibit, an administrator must append the pipe filter | display set to the show configuration command. This filter instructs the CLI parser to flatten the hierarchical structure and prepend the necessary context to every individual leaf statement. These lines are highly functional because they can be pasted directly into the CLI of another device while in configuration mode to recreate the exact settings. In contrast, display inheritance is used to reveal hidden settings applied via configuration groups, and display detail provides additional technical metadata about the objects. Neither of those options would transform the output into the discrete set command lines shown in the exhibit. Understanding how to toggle between these display formats is a fundamental skill for any architect managing Junos infrastructures through the Command Line Interface.

The Junos OS Command Line Interface (CLI) utilizes an advanced command-line editing environment influenced by standard Emacs and Unix terminal behaviors. One of the most critical features for operational efficiency is the command history buffer. This buffer automatically records a sequence of previously executed commands, allowing administrators to recall, modify, and re-execute them without manual re-entry.

The navigation of this history buffer is strictly chronological and operates as a stack. When the up arrow key is pressed once, the CLI retrieves the most recent command that was successfully entered—in this scenario, show chassis errors fpc-slot 0. Pressing the up arrow key a second time moves the cursor one step further back into the history stack to the command that preceded the most recent one. Following the provided sequence, the command executed prior to the " errors " check was show chassis fpc detail. Consequently, the second press of the up arrow key will display show chassis fpc detail at the prompt. This mechanism is essential for architects during intensive troubleshooting sessions, enabling them to cycle through relevant diagnostic commands rapidly while maintaining focus on the hardware output rather than syntax repetition. Reference: User Interfaces, CLI Editing Features, Command History.

==========
