NCP-DB Nutanix Certified Professional - Database Automation (NCP-DB v7.5) Questions and Answers

According to the Nutanix Database Automation (NCP-DB) learning documents, Nutanix Era supports x509 certificates in Base-64 encoded PEM format1. This format is used when an administrator needs to replace the default Nutanix self-signed certificates in Era1.

In Nutanix Database Service (NDB), when an administrator deprecates a software profile version, it is marked as obsolete and restricted from certain operations. Specifically, a deprecated software profile version can no longer be used for provisioning new database instances or VMs. This ensures that only current, supported versions are utilized for new deployments, maintaining consistency and security. Existing database servers using the deprecated profile can continue to operate and may still be patched (if updates are compatible), but the profile itself is excluded from future provisioning tasks.

Option A is correct because deprecation explicitly prevents the profile version from being selected for new provisioning, aligning with NDB’s lifecycle management.

Option B (It can be used in provisioning) is incorrect as this contradicts the purpose of deprecation.

Option C (Any database server using that profile will be updated to the latest software profile) is incorrect because deprecation does not automatically update existing servers; it only affects new provisioning.

Option D (Any database server using that software profile can no longer be patched) is incorrect because patching existing servers is still possible if compatible updates exist, independent of the profile’s deprecated status.

Deprecation is a deliberate administrative action to phase out outdated profiles while preserving existing deployments.

References

Nutanix Database Service (NDB) User Guide, Chapter 4: Managing Software Profiles, Section: Deprecating Software Profile Versions

Nutanix Support & Insights, Knowledge Base Article: "Software Profile Management in NDB"

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Blueprint, Section 4: Manage Database Software Profiles

In NDB, a Time Machine manages snapshots and log catch-up operations for database protection and recovery. The scenario describes a Time Machine where automatic snapshot and log catch-up activities (both automatic and manual) are halted, and manual snapshots cannot be created. This indicates the Time Machine is in a PAUSED state.

In NDB, the Time Machine states are:

FROZEN: A temporary state during specific operations (e.g., cloning), but it doesn’t halt all activities permanently.

OFFLINE: Indicates the Time Machine is unavailable or not operational, often due to connectivity or configuration issues, but this typically prevents access rather than just halting operations.

PAUSED: Explicitly stops all scheduled and manual snapshot/log activities, often manually triggered by an administrator or due to an error condition (e.g., resource constraints). Operations resume when unpaused.

READY: The normal operational state where snapshots and log catch-ups occur as scheduled.

Given the inability to create manual snapshots alongside halted automatic operations, PAUSED is the most fitting status, as it reflects an intentional or enforced suspension of activities.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 5: Data Protection and Recovery, Lesson 5.2: Managing Time Machines.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 5: Protect Databases Using NDB, Objective 5.2: Manage Time Machine States (applicable to v7.5).

Nutanix NDB Administration Guide: "Time Machine Statuses and Operations" section.

 To increase storage for a MongoDB database provisioned using NDB, the administrator needs to use the extend_storage parameter in the input file for the NDB CLI. This parameter specifies the amount of additional storage to be added to the database server VM in GB. For example, if the current storage size is 100 GB and the administrator wants to increase it to 150 GB, the input file should contain the following line:

extend_storage: 50

The other parameters are not relevant for this operation. The update parameter is used to update the database software version, the database parameter is used to specify the database name, and the data_percent parameter is used to specify the percentage of data to be copied during a clone operation. References: Nutanix Database Automation (NCP-DB) Course Details, Nutanix Database Automation (NCP-DB) Certification Details, Nutanix Database Automation (NCP-DB) YouTube Playlist, [Nutanix Database Automation User Guide].

Before registering a SQL Server VM with Nutanix Database Service (NDB), the administrator must ensure that the VM is configured to allow NDB to communicate with and manage it. For SQL Server VMs running on Windows, NDB relies on Windows Remote Management (WinRM) to facilitate remote administration, discovery, and management tasks. WinRM is a Microsoft protocol that enables secure communication between the NDB control plane and the Windows-based database server VM. It must be enabled and properly configured (e.g., with HTTP or HTTPS listeners and appropriate firewall rules) to allow NDB to register the VM and perform operations like provisioning, patching, or cloning.

Option A (Secure Shell - SSH) is incorrect because SSH is a protocol primarily used for Linux-based systems, not Windows-based SQL Server VMs. NDB uses WinRM for Windows environments.

Option B (Remote Management - WinRM) is correct as it aligns with NDB’s requirements for managing Windows VMs hosting SQL Server instances.

Option C (Remote Desktop - RDP) is incorrect because RDP is a protocol for interactive desktop access, not for the automated management and communication required by NDB.

Option D (Windows PowerShell) is incorrect as a standalone answer. While PowerShell can leverage WinRM for remote execution, NDB specifically requires WinRM to be enabled as the underlying service, not just PowerShell itself.

To verify WinRM is enabled, the administrator can run winrm quickconfig on the SQL Server VM or check the service status and firewall settings. NDB documentation emphasizes this prerequisite to ensure successful registration and management of SQL Server VMs.

References

Nutanix Database Service (NDB) User Guide, Chapter 2: Deploying and Configuring an NDB Solution, Section: Registering Database Server VMs

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Blueprint, Section 2: Deploy and Configure an NDB Solution, Objective 2.2: Configure an NDB Instance

Nutanix Support & Insights, Technical Note: "Preparing Windows VMs for NDB Registration"

The Time Machine Heal function in NDB is designed to address inconsistencies or gaps in the Time Machine’s restore point chain, ensuring a continuous and reliable recovery history. It identifies and repairs missing log backups or snapshots that may have been skipped due to failures (e.g., network issues or agent errors), thereby removing gaps in the restore capability. This function does not patch software, refresh clones, or restore from malware but focuses on maintaining the integrity of the Time Machine’s data protection timeline.

Other options are incorrect:

A. Patches a Time Machine to the latest NDB levels: This is a software update, not a heal function’s purpose.

C. Refreshes a database clone in Time Machine: Clone refresh is a separate operation, not related to healing.

D. Restores a Time Machine from snapshot in the event of malware: Restoration is a distinct action, while heal addresses data gaps.

Thus, the verified answer is B, reflecting the heal function’s role in restore continuity.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 5: Data Protection and Recovery, Lesson 5.4: Managing Time Machine Operations.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 5: Protect Databases Using NDB, Objective 5.4: Use Time Machine Features (applicable to v7.5).

Nutanix NDB Administration Guide: "Time Machine Heal Function" section.

Nutanix Era allows custom metadata to be assigned to entities (clones, time machines, databases, and database servers) by using Tags. Tags are a component of Nutanix Era that allows users to assign custom metadata to various entities, enhancing the ability to organize, search, and manage these entities within the Era platform1.

 Before patching a Linux OS on a database server VM provisioned using NDB, you must configure the repository for the OS updates. This can be done by creating a Repository Profile in NDB and specifying the URL, username, and password for the repository. The Repository Profile can be applied to one or more database server VMs during the provisioning process or later. By configuring the repository, you ensure that NDB can access and download the latest OS patches from a trusted source. References: Nutanix Database Automation (NCP-DB) Course Details, Nutanix Database Automation (NCP-DB) Certification Details, Nutanix Database Automation (NCP-DB) YouTube Playlist, Nutanix Database Automation User Guide.

When an administrator is creating a Windows Domain profile in Era, the SQL Service Startup Account is an optional field that can be skipped and provided during the provisioning process. This account is used to start the SQL Server service when the server starts up. If this field is not provided during the creation of the Windows Domain profile, it can be provided later during the provisioning process1.

For supported Linux-based database VMs managed by NDB, keeping software profiles updated for provisioning new database VMs requires a structured process. The administrator must first apply the necessary patches (e.g., OS updates and database engine patches) to an existing database VM for each supported database engine (e.g., PostgreSQL, Oracle). Then, a new software profile version must be created using the updated VM as the source. This new version captures the patched configuration and can be used to provision new VMs, ensuring they are deployed with the latest updates.

Option A (Create a Maintenance window under the policy menu, then under Database VM, add the database VMs to that maintenance window and check both Database and Operating system updates) is incorrect because a Maintenance Window schedules updates for existing VMs, not for updating software profiles for new provisions.

Option B (Apply patches to a database VM for each supported database engine, then create a new software profile version for each supported database VM for each one using the updated database VM as the source) is correct as it follows the standard NDB process for profile updates.

Option C (Associate the newly provisioned database VMs with a maintenance window so they are kept updated) is incorrect because this applies to ongoing maintenance, not initial profile updates for provisioning.

Option D (In the Administrator menu drop down, go the Maintenance tab and choose Download Upgrade) is incorrect because downloading upgrades is part of the patch process, not the profile creation step.

This method ensures new VMs are provisioned with the latest software configurations.

References

Nutanix Database Service (NDB) User Guide, Chapter 4: Managing Software Profiles, Section: Updating Software Profiles

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Blueprint, Section 4: Manage Database Software Profiles

Option A: On the Era Dashboard Database Summary Table under Source Database. The dashboard provides a summary of the databases, including their sizes1.

Option B: Under the Capacity widget on the Database Server VMS > List database summary page. While this might provide information about the capacity, it does not specifically provide the size of a Source Database.

Option C: On the Databases > Sources table. This table provides detailed information about the databases, including their sizes1.

Option D: On the Profiles > Database Parameters list for the assigned DB Parameter Profile. This list provides parameters for the database but does not provide the size of a Source Database.

To ensure the NDB server, NDB agent, and NDB database agent can communicate with the registered cluster via REST API calls, port 2009 must be opened. This port is used by NDB components to facilitate RESTful communication with the Nutanix cluster (e.g., Prism Element or Prism Central) for operations such as provisioning, monitoring, and management. Proper firewall configuration to allow traffic on this port is a prerequisite for NDB’s integration with the cluster.

Other options are incorrect:

B. 3205: Not a standard NDB port; used for other Nutanix services.

C. 3260: Associated with iSCSI, not REST API communication.

D. 9440: Used for Prism Element’s HTTPS management interface, not NDB-specific REST calls.

Thus, the verified answer is A, reflecting NDB’s REST API requirements.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 2: Deploying and Configuring an NDB Solution, Lesson 2.1: Network and Port Requirements.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 2: Deploy and Configure an NDB Solution, Objective 2.1: Prepare Hosts (applicable to v7.5).

Nutanix NDB Installation Guide: "Network Ports and Protocols" section, specifying port 2009.

To add Time Machine data access to a Nutanix cluster, the first step is to register the cluster in NDB. This will allow NDB to discover and manage the databases and snapshots on the cluster. You can register multiple Nutanix clusters in NDB using the Add Cluster option in the NDB settings page. You can also specify the cluster role, such as source, target, or both, depending on the data access and replication needs. Enabling or disabling multi-cluster in NDB is not the first step, as this is a global setting that affects the entire NDB instance. Deleting the TM data from the source database is not the first step, as this will remove the data protection and availability of the database. References:

Nutanix Database Management & Automation Training Course, Module 6: Managing NDB Multi-Cluster, Lesson 1: NDB Multi-Cluster Overview, Slide 5: Registering Nutanix Clusters

Nutanix Certified Professional - Database Automation (NCP-DB) 5 Exam, Section 6: Administer an NDB Environment, Objective 6.4: Apply procedural concepts to add Nutanix clusters to NDB

Before updating Oracle Database software, you need to download the Patch Set Update (PSU) from Oracle support. A PSU is a collection of critical and security patches for Oracle products. You need to have a valid Oracle account and access to the My Oracle Support portal to download the PSU. You also need to check the compatibility and prerequisites of the PSU before applying it to your Oracle Database software. NDB uses out-of-place patching for Oracle, which means you need to create a new software profile version with the patched Oracle software and use it to update your existing databases. References:

Patch Oracle Database Software, Nutanix Support & Insights

Nutanix Certified Professional - Database Automation (NCP-DB), Section 4 - Operate and Maintain an NDB Environment

Nutanix Database Management & Automation (NDMA) course, Module 4, Lesson 4.4 - Patching Databases

 In Nutanix Era, a Volume Group is the recommended storage provisioning method for a large I/O-intensive database that doesn’t support a multi-disk layout1. A Volume Group in Nutanix Era is a collection of disks that can be managed as a single entity, providing a way to aggregate the storage capacity of multiple disks into a larger storage unit1. This allows for better performance optimization as it enables the database to leverage the combined I/O capabilities of all the disks in the group1. It’s important to note that while other options like Load Balancing, Storage Spaces, and vDisk based provisioning can also be used in certain scenarios, a Volume Group is specifically designed for situations where a single, high-performance storage unit is required1.

In this scenario, a PostgreSQL instance managed by NDB on a Linux VM is malfunctioning after a manual OS update, and a new Linux DB server VM has been prepared to host the data. To migrate the data to the new VM, the administrator must integrate the new VM into NDB’s management framework. The correct action is to register the new DB Server VM in NDB, which allows NDB to recognize and manage the VM as a database server. Once registered, the administrator can use NDB’s features (e.g., cloning, restoring, or reprovisioning) to migrate the data from the broken instance to the new VM.

Here’s why the other options are incorrect:

A. Provision a new PostgreSQL instance from the Databases page: This creates a fresh instance without migrating existing data, losing the broken instance’s data unless separately restored.

B. From The Machine policy, Authorize Database Server VMs: Machine policies in NDB define rules for VM management, but authorizing VMs is not a direct migration action and assumes prior registration.

C. Follow the Provision a PostgreSQL Instance wizard: Similar to A, this provisions a new instance rather than migrating data to an existing prepared VM.

Registering the new VM in NDB (via the "Database Server VMs" section) enables the administrator to associate it with the existing PostgreSQL instance’s configuration and perform a data migration (e.g., using a snapshot or backup). This aligns with NDB’s workflow for replacing a broken server. Thus, the verified answer is D.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 3: Managing Database Instances, Lesson 3.3: Registering and Managing Database Server VMs.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 3: Manage NDB Solutions, Objective 3.2: Register and Manage DB Server VMs (applicable to v7.5).

Nutanix NDB Administration Guide: "Registering a Database Server VM" section.

Nutanix Era is a database management solution that automates and simplifies database administration tasks such as provisioning, patching, cloning, and backup. In the event of a database crash, the most effective way to minimize data loss and reduce restore time is to perform a restore of the source database by selecting the most recent point in time and including the Tail log Backup12.

The Tail log Backup includes all the transactions that have occurred since the last transaction log backup, which helps to minimize data loss. By selecting the most recent point in time for the restore, the administrator ensures that the database is restored to the state it was in just before the crash, thereby reducing the amount of data that needs to be reprocessed or reentered12. This approach aligns with the Nutanix Era’s capabilities and best practices for database recovery12.

Based on the exhibit, the administrator is logged in with the Database Admin account (bsmith@ntnxlab.local), which does not have the permission to create local users on NDB. Only the Super Admin account (bsmith) has this permission, as indicated by the User type column. Therefore, the administrator needs to log out and log in again with the Super Admin account to add a new database admin as a local user to NDB. References: Nutanix Database Automation (NCP-DB) Course Details, Nutanix Database Automation (NCP-DB) Certification Details, Nutanix Database Automation (NCP-DB) YouTube Playlist, Nutanix Database Automation User Guide.

Nutanix NDB provides the ability to create highly-available (HA) database pairs, leveraging replication and failover across clusters. The two databases explicitly supported for HA pairs in NDB are PostgreSQL and SQL Server. NDB orchestrates HA for PostgreSQL using streaming replication and for SQL Server using Always On Availability Groups or Failover Cluster Instances, ensuring data redundancy and failover capabilities across Nutanix clusters.

Other options are not supported for HA pairs:

A. MySQL: MySQL is supported by NDB but lacks native HA pair configuration.

D. MariaDB: Similar to MySQL, MariaDB is managed by NDB but does not support HA pairs.

Thus, the verified answers are B and C, reflecting NDB’s HA capabilities.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 4: High Availability and Disaster Recovery, Lesson 4.1: Configuring HA for Databases.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 4: Troubleshoot NDB Solutions, Objective 4.1: Configure HA for Supported Databases (applicable to v7.5).

Nutanix NDB Administration Guide: "High Availability Supported Databases" section.

According to the Nutanix Database Automation (NCP-DB) course, a Software Profile is a template that defines the configuration of the database engine, such as the version, edition, features, and parameters1. It also specifies the disk layout for the database installation, such as the size, type, and mount point of each disk1. However, the System Page File disk is omitted from the Software Profile, as it is automatically created by the NDB service based on the memory size of the database server VM1. The other options are included in the Software Profile, as they are essential for the database operation and performance1. References:

1: Nutanix Database Automation (NCP-DB) course, Module 2: Database Provisioning, Lesson 2.3: Software Profiles, slide 5

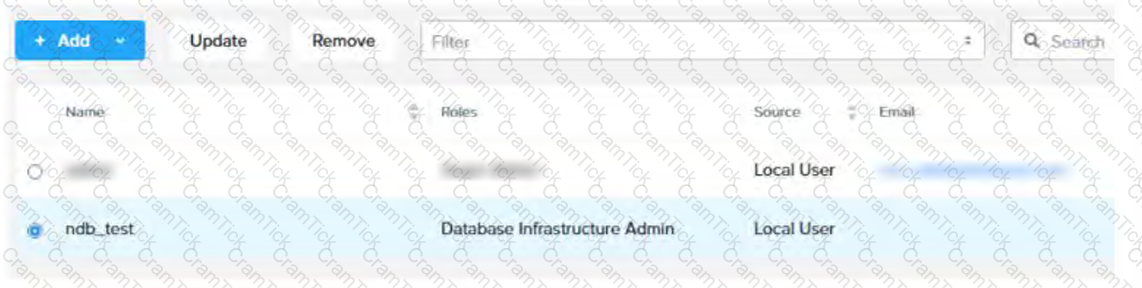

The exhibit shows the NDB user management interface with a newly created user named "ndb_test" assigned the "Database Infrastructure Admin" role and sourced as a "Local User." In NDB, the "Database Infrastructure Admin" role grants specific permissions, allowing the user to manage database-related tasks such as creating, managing, and deleting clones, as well as performing configuration tasks within the NDB environment (e.g., updating settings or managing database servers). However, this role does not extend to higher-level administrative functions like Access Control or Network Profiles, which are reserved for roles with broader administrative privileges (e.g., System Administrator).

Option A (Access Control) is incorrect because managing user access and roles requires a higher privilege level, such as System Administrator, not Database Infrastructure Admin.

Option B (Network Profiles) is incorrect because configuring network profiles is an administrative task outside the Database Infrastructure Admin scope.

Option C (Clones) is correct as the Database Infrastructure Admin role includes permissions to create and manage clones using Time Machine.

Option D (NDB Configuration) is correct as this role allows configuration of database-related settings within NDB, such as registering VMs or adjusting database parameters.

Thus, the "ndb_test" user can perform clone management and NDB configuration tasks.

References

Nutanix Database Service (NDB) User Guide, Chapter 6: Administering an NDB Environment, Section: User Roles and Permissions

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Blueprint, Section 6: Administer an NDB Environment

When consolidating Microsoft SQL Server instances on database server VMs managed by NDB using a medium compute profile, concerns about DB storage capacity can arise due to increased demand. In NDB, the appropriate task to address this is to "Update the Database Server VMs," which allows the administrator to adjust resource allocations, including storage capacity, for the VMs hosting the databases. This task can be performed within the NDB interface to expand disk space or reconfigure storage settings without altering the compute profile or requiring external tools.

Option A (Update the Database server VMs) is correct as it provides a direct method in NDB to modify VM resources, including storage.

Option B (Expand vDisk in Prism Element) is incorrect because NDB manages database VMs holistically, and storage expansion should be handled through NDB’s Update task rather than Prism Element directly.

Option C (Update the compute profile) is incorrect because compute profiles define CPU and memory, not storage capacity.

Option D (Scale the source database) is incorrect as scaling typically refers to database-level adjustments (e.g., adding nodes), not VM storage expansion.

This approach ensures seamless integration with NDB’s management framework.

References

Nutanix Database Service (NDB) User Guide, Chapter 4: Managing Database Servers, Section: Updating Database Server VMs

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Blueprint, Section 4: Manage Database Servers

The correct answer is C because it follows the recommended procedure for applying a CU to a SQL Server Software Profile in NDB. By applying the patch to the profile VM, the administrator ensures that the CU is compatible with the existing Software Profile settings and configuration. By creating a new Software Profile version, the administrator preserves the previous version of the Software Profile for rollback purposes and allows the new version to be tested and published. Option A is incorrect because it deletes the existing Software Profile, which may cause data loss and prevent rollback. Option B is incorrect because it does not apply the patch to the profile VM, which may result in errors or inconsistencies in the Software Profile. Option D is incorrect because it creates a new Software Profile instead of a new version, which may cause confusion and duplication.

The following sources provide more information about the Software Profile management and patching in NDB:

Nutanix Database Management & Automation (NDMA) course, Module 5: Patching Databases Using NDB, Lesson 5.2: Creating and Modifying Software Profiles

Nutanix Certified Professional - Database Automation (NCP-DB) v6.5, Knowledge Objectives, Section 4 - Operate and Maintain an NDB Environment

Nutanix Database Service (NDB) User Guide, Chapter 5: Patching Databases Using NDB, Section 5.2: Creating and Modifying Software Profiles

Nutanix Database Service (NDB) User Guide, Chapter 5: Patching Databases Using NDB, Section 5.3: Testing and Publishing Database Patches

 An Infrastructure Administrator is a role in NDB that has the permission to manage network and storage resources, such as VLANs, IP Pools, and Storage Containers. This role is suitable for the engineer who needs to add new VLANs or IP Pools in NDB. The other roles have either more or less privileges than required for this task. A Database Administrator can manage databases and database server VMs, but not network and storage resources. A Super Administrator can manage all aspects of NDB, but this is more than the least-privilege access needed. A Database Infrastructure Administrator can manage both databases and network and storage resources, but this is also more than the least-privilege access needed.

 Nutanix Support & Insights, section “NDB Roles and Permissions”

To add multiple databases to an existing PostgreSQL instance managed by NDB, the administrator should use the NDB graphical user interface (GUI). The GUI provides a user-friendly way to modify the parameter profile associated with the PostgreSQL instance, allowing the addition of new databases by adjusting settings such as database names, sizes, or configurations. This process typically involves navigating to the "Databases" or "Instances" section, selecting the PostgreSQL instance, and editing the parameter profile to include additional databases.

Other options are less appropriate:

A. Modify parameter profile using ncli: The ncli (Nutanix Command Line Interface) is used for cluster-level management in Prism, not for NDB database configuration.

C. Modify parameter profile using post script: Post-scripts are used for custom actions post-provisioning, not for modifying parameter profiles to add databases.

D. Modify parameter profile using NDB CLI: While NDB has a CLI, the GUI is the recommended and supported method for such configuration changes, offering a guided workflow and validation.

Thus, the verified answer is B, leveraging the NDB GUI for ease and compliance with best practices.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 3: Managing Database Instances, Lesson 3.4: Modifying Database Configurations.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 3: Manage NDB Solutions, Objective 3.3: Modify Parameter Profiles (applicable to v7.5).

Nutanix NDB Administration Guide: "Managing PostgreSQL Instances" section, detailing GUI-based modifications.

NDB alert policies are enabled by default and may be disabled when an administrator does not want a particular policy to generate alerts. The policy can later be enabled again, allowing alert generation to resume without recreating the policy or changing the monitored resource. This preserves the policy definition while suppressing unwanted notifications and events. NDB also supports operations such as configuring retention and resolving alerts, but those are separate alert-management functions. Pause is terminology associated with other scheduled processes, not the alert-policy control. Publish applies to objects such as software profile versions, and deletion is not the standard control exposed for built-in NDB alert policies. Consequently, Disable is the valid action among the choices. The supported behavior is described in Nutanix’s Disabling or Enabling Alert Policies procedure.

To provision a PostgreSQL HA instance from a software profile created from a VM with services like etcd, HAProxy, Patroni, and keepalived installed, the administrator must ensure the instance aligns with NDB’s HA framework. These services (e.g., Patroni for PostgreSQL HA management, HAProxy for load balancing) may conflict with NDB’s built-in HA mechanisms. Provisioning an HA instance with these services disabled allows NDB to manage HA using its native replication and failover capabilities (e.g., streaming replication), avoiding duplication or interference from the VM’s pre-installed services.

Option A (Provision an HA instance with the services enabled) is incorrect because enabling these services may cause conflicts with NDB’s HA management.

Option B (Disable the services, create a software profile version, and provision an HA instance) is incorrect because disabling services and recreating a profile is unnecessary; the provisioning step can handle service configuration.

Option C (Provision an HA instance with the services disabled) is correct as it ensures NDB’s HA features take precedence without interference.

Option D (Enable the services, create a software profile version, and provision an HA instance) is incorrect due to potential conflicts with NDB’s HA implementation.

Note: The typo "PostqreSQL" is assumed to mean "PostgreSQL."

References

Nutanix Database Service (NDB) User Guide, Chapter 4: Managing Database Engines, Section: Provisioning HA Instances

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Blueprint, Section 4: Manage Database Engines

Time Machine is a feature of Nutanix Era that allows you to create and manage snapshots of your databases. You can use Time Machine to create clones from any snapshot, either manually or automatically. You can also configure Time Machine to create clones from snapshots based on a schedule, such as daily, weekly, or monthly. This way, you can ensure that your clones are always up to date with the latest data from your production databases. In this scenario, the most efficient way to meet the developer’s requirement is to configure Time Machine to create a clone from a daily snapshot at 7:00am. This will save the developer’s time and effort, as well as reduce the storage consumption by using the existing snapshots. References:

Nutanix Database Management & Automation Training Course

Nutanix Certified Professional - Database Automation datasheet

Nutanix Certified Professional - Database Automation (NCP-DB) 5 Exam

The correct answer is B because the Time Machine feature of NDB collects logs and snapshots from databases and stores them in a distributed file system. The Time Machine enables the administrator to protect, clone, and restore databases using the SLA policies and the NDB UI or API. The Time Machine also manages the replication of database snapshots in an NDB multicluster environment. The other options are not correct because they describe different features or functions of NDB. Option A is not correct because Database Restore is an operation that uses the Time Machine to restore a source database or a clone to a previous point in time. Option C is not correct because SLA is a policy that defines the frequency and retention of database snapshots and logs. Option D is not correct because One-click Patching is a feature that allows the administrator to test, publish, and apply database patches using the NDB UI or API. References: Nutanix Database Management & Automation (NDMA) course, Nutanix Certified Professional - Database Automation (NCP-DB) certification, Nutanix NCP-DB Certification Exam Syllabus and Study Guide, Nutanix Support & Insights

To create a Microsoft SQL Server software profile for each of the three Nutanix clusters in an NDB environment, a key requirement is that each cluster must host at least one VM with the Microsoft SQL Server database engine installed. NDB uses these VMs to discover, validate, and generate software profiles tailored to the specific SQL Server versions and configurations present on each cluster. This ensures that the profiles are compatible with the cluster’s environment and can be used for provisioning or patching.

Option A (Compute profile must be created first on every cluster) is incorrect because compute profiles are optional and not a prerequisite for creating software profiles.

Option B (Enable Multi-cluster capabilities for NDB) is incorrect as multi-cluster support is already implied by the deployment across three clusters, but it’s not a specific requirement for profile creation.

Option C (Enable High Availability for the current NDB Service) is incorrect because HA is a separate configuration and not required to create software profiles.

Option D (Each cluster must host a VM with the DB engine) is correct as it aligns with NDB’s requirement to have a reference VM for profile generation.

This setup ensures accurate and cluster-specific software profile creation.

References

Nutanix Database Service (NDB) User Guide, Chapter 4: Managing Software Profiles, Section: Creating Software Profiles

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Blueprint, Section 4: Manage Database Software Profiles

The correct answer is D. When setting up a 3-node MSSQL Server AG with two database server VMs on a local site and a third database server VM on a remote site, the network at each site will require the following IP addresses:

1 Cluster VIP and 1 Listener IP on the local site123.

1 Cluster VIP and 1 Listener IP on the remote site123.

2 IPs in the local site and 1 on the remote site for the database server nodes123.

This configuration ensures that each node in the cluster has a unique IP address, and each cluster and listener also has a unique IP address. This is necessary for the proper functioning of the cluster and to ensure that all nodes can communicate with each other and with clients123.

When an administrator encounters an error provisioning a new Oracle database VM in NDB, the best action to provide Nutanix support with the most complete picture is to select the failed job in the Operations menu and choose Generate Bundle from the lower right. The "Generate Bundle" option creates a comprehensive diagnostic package, including logs, configuration details, and error traces specific to the failed operation. This bundle is ideal for troubleshooting and can be uploaded to Nutanix Support for analysis.

Other options are less comprehensive:

A. From the Administration section of NDB, go to the Diagnostics section and choose Generate Bundle: This generates a general diagnostic bundle, not specific to the failed job.

B. Copy the error message from the Operations menu: This provides limited context compared to a full bundle.

D. Take a screenshot of the error in the Operations menu: A screenshot lacks detailed logs and system data needed for support.

Thus, the verified answer is C, ensuring detailed support data.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 6: Monitoring and Alerts, Lesson 6.4: Troubleshooting and Support.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 6: Optimize NDB Solutions, Objective 6.4: Generate Support Bundles (applicable to v7.5).

Nutanix NDB Administration Guide: "Generating Support Bundles for Failed Operations" section.

In the Nutanix Database Automation (NCP-DB) framework, provisioning a new Oracle database through Era requires the configuration of both a Compute and a Storage profile1. The Compute profile is used to define the resources allocated to the database, such as CPU and memory, while the Storage profile is used to specify the storage configuration for the database. These profiles are essential in ensuring that the database is provisioned with the necessary resources and storage configurations for optimal performance23.

If a database administrator is unable to provision a new MongoDB database using an existing software profile, the most likely cause is that the administrator lacks the proper permissions in Prism Element. NDB relies on Prism Element for cluster-level operations (e.g., storage and compute resource allocation). The database administrator needs appropriate Prism Element roles (e.g., Cluster Admin) to interact with the underlying infrastructure, even if the software profile is available in NDB. Without these permissions, the provisioning action will fail.

Other options are less likely:

A. A database clone operation is in progress: This might delay actions but wouldn’t prevent provisioning unless it locks resources indefinitely.

B. The software profile was created by another user: NDB allows profile reuse across users if published, so this is not a barrier.

D. The software profile is undergoing a patching operation: Patching affects the profile’s state but doesn’t block provisioning unless explicitly locked.

Thus, the verified answer is C, highlighting the need for Prism Element permissions.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 3: Managing Database Instances, Lesson 3.1: Provisioning Databases.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 3: Manage NDB Solutions, Objective 3.1: Troubleshoot Provisioning Issues (applicable to v7.5).

Nutanix NDB Administration Guide: "Prerequisites for Database Provisioning" section, noting Prism Element roles.

 In Nutanix Era, the ability to add a new VLAN or IP Pool is typically associated with the role of an Infrastructure Administrator12. This role has the necessary permissions to manage network configurations, including the creation of VLANs and IP Pools12. It’s important to note that the exact permissions may vary depending on the specific configuration and policies of your organization12.

The correct answer is A and D because these are the two Time Machine options that are available when creating a database clone in NDB. Point in time allows the user to specify a date and time to create a clone from a specific point in the database history. Snapshot allows the user to select a previously taken snapshot to create a clone from a consistent state of the database. Option B is incorrect because Restore point is not a Time Machine option, but a feature that allows the user to restore a source database to a previous point in time. Option C is incorrect because Backup is not a Time Machine option, but a feature that allows the user to backup a database to a remote location.

The following sources provide more information about the Time Machine options and cloning features in NDB:

Nutanix Database Management & Automation (NDMA) course, Module 4: Protecting Databases Using Time Machine, Lesson 4.2: Cloning Databases

Nutanix Certified Professional - Database Automation (NCP-DB) v6.5, Knowledge Objectives, Section 5 - Protect NDB-managed Databases Using Time Machine

Nutanix Database Service (NDB) User Guide, Chapter 6: Protecting Databases Using Time Machine, Section 6.2: Cloning Databases

[Nutanix Support & Insights], NDB Time Machine Under the Hood

According to the Nutanix Database Automation (NCP-DB) learning documents, Era provides out-of-band patching of databases to eliminate database configuration sprawl1. The two Oracle software components that Era patches are:

A. Grid home2 B. Oracle home2

These components are crucial for the operation of Oracle databases and keeping them updated ensures data security and efficient validation of critical database updates1. Please refer to the official Nutanix documentation and training materials for more detailed information2.

When running the Linux prerequisites script for NDB, the -t argument is a required parameter that specifies the timeout interval. This argument defines the maximum time (in seconds) the script will wait for certain operations (e.g., connectivity checks, package installations) to complete before timing out. This is critical during the preinstallation phase to ensure the environment is properly configured and responsive, avoiding indefinite hangs. Other options are not associated with -t:

A. Operating System type: This is not a typical argument for the prerequisites script.

C. NDB server IP: This would be specified separately (e.g., via -s or a similar flag).

D. Database engine: This is irrelevant to the prerequisites script, which focuses on system setup.

Thus, the verified answer is B, aligning with the script’s purpose of managing execution timeouts.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 2: Deploying and Configuring an NDB Solution, Lesson 2.1: Running Prerequisites Scripts.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 2: Deploy and Configure an NDB Solution, Objective 2.1: Prepare Hosts (applicable to v7.5).

Nutanix NDB Installation Guide: "Running the Linux Prerequisites Script" section, detailing -t usage.

The first NDB management-plane VM on an AHV-based Nutanix cluster is deployed from the NDB QCOW2 disk image. The administrator downloads the QCOW2 image from the Nutanix Support portal, configures it through the Prism Element Image Service, and then creates the NDB VM from that image. QCOW2 is the appropriate virtual-disk format for AHV because AHV uses the KVM virtualization stack. VMDK is principally associated with VMware virtual disks, VHDX is used by Microsoft Hyper-V, and VDI is associated primarily with Oracle VirtualBox. Those formats are not used for the initial NDB VM deployment on a dedicated AHV cluster. Consequently, option C is correct. The VM must subsequently receive the required compute, network, and static-IP configuration before NDB initial setup is completed. NDB User Guide—Installing NDB on AHV

================

The administrator can remediate the issue of critical storage alerts by scaling up the storage directly from the Database Summary page for that specific DBA database. This action allows for an increase in storage capacity to alleviate space constraints and prevent future critical alerts related to storage space1. The other options are not correct, as they either involve scaling the entire database group, which may not be necessary or desired, or require additional steps outside of NDB, which may not be feasible or efficient. References:

1: Nutanix Database Automation (NCP-DB) course, Module 2: Database Provisioning, Lesson 2.4: Database Scaling, slide 5

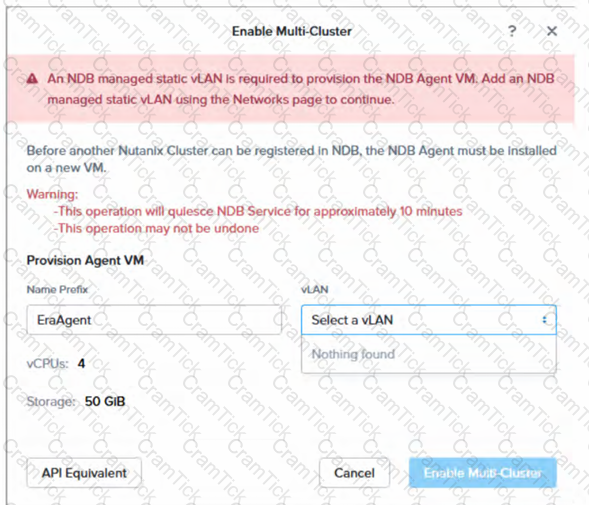

When registering a new Nutanix Cluster with Era, the Era Agent is installed on the target Nutanix cluster via the Register Nutanix Cluster workflow1. This agent is crucial for the functioning of the Nutanix Database Service (NDB) as it helps in managing and optimizing database workloads2. It also enables the application of procedural concepts to add Nutanix clusters to NDB2.

NDB requires management and storage connectivity to a registered Nutanix cluster. TCP 9440 carries Prism REST API communication between NDB components and the Nutanix cluster. TCP 3205 and 3260 support iSCSI redirection/data and standard iSCSI control traffic used when NDB attaches Volume Group disks. Therefore, both option B and option D must be allowed through the segmented network. Port 443 is used for HTTPS communication in other NDB paths, but it is not the required Prism/CVM port represented by this question. Ports 1433 and 5432 are database listener ports for Microsoft SQL Server and PostgreSQL, respectively, rather than NDB-to-CVM infrastructure ports. The source answer “D” is incomplete; the verified answer is B and D. Nutanix port reference

================

To create an NDB Software Profile Version for PostgreSQL, it is required to have an installer package for the database software. This package forms the basis of the software profile, enabling the deployment and management of PostgreSQL instances.

 According to the Nutanix Database Automation (NCP-DB) learning documents, when provisioning a new database, there are two options available for the target12:

Provision database to an existing registered: This option allows you to provision a database to an existing registered database server. This is useful when you want to add a database to a server that is already being managed by Nutanix Era1.

Provision databases to a new container: This option allows you to provision a database to a new container. This is useful when you want to create a new isolated environment for your database1.

According to the Nutanix Database Automation (NCP-DB) course, the ports 3205 and 3260 are required for iSCSI connections between the NDB server and the Controller VMs1. Port 3205 is used for the NDB iSCSI initiator service, which initiates the iSCSI sessions and sends SCSI commands to the Controller VMs1. Port 3260 is used for the iSCSI target service, which listens for incoming iSCSI requests and provides access to the storage devices on the Controller VMs1. The other options are not related to iSCSI connections. Port 22 is used for SSH, port 9440 is used for Prism Central, port 80 is used for HTTP, port 443 is used for HTTPS, port 5985 is used for WinRM HTTP, and port 5986 is used for WinRM HTTPS2. References:

1: Nutanix Database Automation (NCP-DB) course, Module 2: Database Provisioning, Lesson 2.2: Database Engine Installation, slide 13

2: Nutanix NCP-DB Certification Exam Sample Questions, Question 18, Answer

In the context of Nutanix Era, the term “Brownfield Database” is used to refer to an existing database that is registered with Era1. This process allows Era to bring Database as a Service (DBaaS) capabilities to your existing database2. It’s important to note that before you register a database with Era, certain prerequisites must be met3.

To allow a non-administrative NDB user to provision an Oracle database using a Software Profile created by an administrator, the administrator must promote the Software Profile to Published. In NDB, Software Profiles define the database software version and configuration (e.g., Oracle binaries). By default, a newly created profile is in a draft or private state. Promoting it to "Published" makes it available for use by other NDB users, including non-administrative ones, within the access control framework. This ensures the profile is validated and accessible without requiring individual user assignments.

Other options are incorrect:

A. Ensure that specified users have access to the Software Profile using Access Control: Access Control manages user permissions but does not make the profile available unless it is published.

B. Replicate the Software Profile to other Nutanix clusters: Replication is for HA or disaster recovery, not user access.

C. Ensure that the Software Profile has been properly versioned to the latest release of Oracle: Versioning ensures compatibility but does not grant user access.

Thus, the verified answer is D, aligning with NDB’s profile management workflow.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 3: Managing Database Instances, Lesson 3.1: Managing Software Profiles.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 3: Manage NDB Solutions, Objective 3.1: Configure Software Profiles (applicable to v7.5).

Nutanix NDB Administration Guide: "Publishing Software Profiles" section.

To assign the minimum permissions required for provisioning new databases in an NDB deployment, the IT manager should assign the Database Administrator role. This role provides the necessary privileges to provision, configure, and manage database instances within NDB, including creating new databases using software profiles and registering database servers. It is designed for database-specific tasks without granting broader infrastructure or administrative control, making it the least privileged role suited for this purpose.

Other options exceed the minimum requirements:

A. Infrastructure Administrator: Manages cluster infrastructure (e.g., storage, networking), which is more than needed for database provisioning.

B. Super Administrator: Grants full control over NDB, including user management and system configuration, far beyond provisioning.

C. Database Infrastructure Administrator: Includes infrastructure management in addition to database tasks, exceeding the minimum scope.

Thus, the verified answer is D, aligning with the principle of least privilege.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 1: Introduction to NDB, Lesson 1.4: Managing Users and Roles.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 1: Understand NDB Basics, Objective 1.3: Manage User Permissions (applicable to v7.5).

Nutanix NDB Administration Guide: "Role-Based Access Control (RBAC)" section, detailing Database Administrator role.

A stretched VLAN is a virtual network that spans across multiple Nutanix clusters and allows the communication between VMs on different clusters using the same subnet. A stretched VLAN can be used to provide high availability and load balancing for NDB components, such as HAProxy VMs, that require a virtual IP address (VIP) to be accessible from any cluster. To add a stretched VLAN across two clusters in NDB, the administrator needs to meet two prerequisites: the VLAN must be static and both clusters must be registered in NDB. A static VLAN is a VLAN that is manually created and configured by the administrator, as opposed to an IPAM VLAN that is automatically created and managed by NDB. A static VLAN can be added to a stretched VLAN in NDB, while an IPAM VLAN cannot. Both clusters must be registered in NDB before adding a stretched VLAN, as NDB needs to have the information and access to the clusters and their networks. The administrator can register the clusters in NDB using the Prism Element details, agent network configuration, and storage container information. The other option, Nutanix Cluster Management, is not a prerequisite for adding a stretched VLAN in NDB. Nutanix Cluster Management is a feature that allows the administrator to manage multiple Nutanix clusters from a single NDB UI, such as creating or deleting clusters, adding or removing nodes, or performing cluster operations. Nutanix Cluster Management is not required for adding a stretched VLAN, as the VLANs are created and configured in Prism Element, not in NDB. References:

Nutanix Certified Professional - Database Automation (NCP-DB) v6.5, Section 2 - Deploy and Configure an NDB Solution, Objective 2.3: Configure NDB High Availability

Nutanix Database Management & Automation (NDMA) Course, Module 3: Nutanix Database Service (NDB) Installation and Configuration, Lesson 3.3: Configuring NDB High Availability, Topic: NDB HA Architecture and Components

Nutanix Database Service High Availability Deployment Overview, Section: HAProxy VMs and Stretched VLANs

[Configuring a Virtual NIC to Operate in Access or Trunk Mode - Nutanix], Section: Creating a vNIC in Access or Trunk Mode

To automate OS and database patching in a Nutanix NDB environment, the administrator should configure a Maintenance Window. A Maintenance Window in NDB allows the administrator to schedule automated patching tasks (e.g., OS updates and database software updates) during specified time periods, minimizing disruption to production workloads. This feature integrates with software profiles and can be set to run periodically or on-demand, ensuring patches are applied efficiently and consistently across the environment.

Option A (Access Control) is incorrect because Access Control manages user permissions, not automation of patching.

Option B (Pulse) is incorrect because Pulse is a monitoring tool, not a scheduling mechanism for patching.

Option C (Maintenance Window) is correct as it provides the scheduling and automation framework for patching activities.

Option D (SMTP Server) is incorrect because SMTP is for email notifications, not patching automation.

This configuration enhances operational efficiency and reliability.

References

Nutanix Database Service (NDB) User Guide, Chapter 4: Managing Software Profiles, Section: Scheduling Maintenance Windows

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Blueprint, Section 4: Manage Database Software Profiles

A custom NDB Software Profile is generated from a database server VM that has already been prepared and registered with NDB. The resulting profile captures the operating-system image and installed database software so that NDB can reproduce a standardized database server during provisioning. NDB does not dynamically retrieve all required operating-system and database binaries from YUM or APT repositories as part of profile creation. Out-of-the-box profiles are supplied and maintained by Nutanix and are not intended to be freely customized in place. A Software Profile is also substantially more than a text file containing runtime parameters; database configuration values belong to Database Parameters Profiles. Therefore, option D correctly describes the construction of a custom Software Profile from an existing NDB-managed database server. NDB User Guide—Software Profiles

================

The correct answer is B because it allows the administrator to create a custom role with the specific privileges that the Jr DBA user needs, and then assign that role to the user. This way, the administrator can control the access level of the Jr DBA user without affecting the existing roles or users in NDB. Option A is incorrect because it involves cloning the Database Admin role, which has more privileges than the Jr DBA user requires, and then adding more privileges, which is unnecessary and redundant. Option C is incorrect because it involves creating a user for the Jr DBA, but not assigning a role to the user, which means the user will not have any privileges in NDB. Option D is incorrect because it involves cloning the Database Admin role, which has more privileges than the Jr DBA user requires, and then removing some of the privileges, which is inefficient and risky.

The following sources provide more information about the user roles and privileges in NDB:

Nutanix Database Management & Automation (NDMA) course, Module 8: Administering an NDB Environment, Lesson 8.6: Managing Access Controls in NDB

Nutanix Certified Professional - Database Automation (NCP-DB) v6.5, Knowledge Objectives, Section 6 - Administer an NDB Environment

Nutanix Database Service (NDB) User Guide, Chapter 8: Administering an NDB Environment, Section 8.6: Managing Access Controls in NDB

The NDB Windows Domain Profile centralizes the Active Directory information required when provisioning Microsoft SQL Server database server VMs. It contains the domain FQDN, domain credentials, organizational-unit paths, SQL Server service startup account, and NDB worker service account information. A group Managed Service Account is an Active Directory service identity and therefore belongs in this domain-related configuration rather than a Software, Database Parameters, or Network Profile. A Software Profile supplies the operating system and SQL Server binaries. A Database Parameters Profile controls SQL Server engine initialization and runtime settings, while a Network Profile specifies the VLAN and IP configuration used by the VM. Because the requirement concerns the identity under which SQL Server services operate in an Active Directory environment, the correct selection is C, Windows Domain Profile. NDB User Guide—Windows Domain Profiles

================

NDB requires the administrator to verify the Active Directory configuration before enabling the Save action. After entering the directory server, domain, service-account credentials, and related configuration information, the administrator must click Verify. NDB then tests whether it can connect to the Active Directory server and authenticate using the supplied service account. The Save button becomes available only after this verification succeeds. This prevents an unreachable server, invalid credential, incorrect domain, or connectivity problem from being stored as the active authentication configuration. SMTP alerting is a separate notification feature and has no dependency on Active Directory configuration. A secondary URL is not a mandatory field, and providing a domain IP address alone does not replace the connectivity-verification step. Nutanix documents this sequence explicitly in its official procedure for configuring Active Directory access.

When registering a Nutanix cluster with the Nutanix Database Service (NDB), the Prism Element user account used for registration must have sufficient privileges to perform cluster-level operations. The recommended role for this task is Cluster Admin. The Cluster Admin role in Prism Element provides the necessary permissions to manage cluster resources, including storage, networking, and integration with external services like NDB. This role is required because registering a cluster with NDB involves tasks such as establishing connectivity, validating configurations (e.g., Data Services IP), and ensuring that NDB can interact with the cluster’s Controller VMs and storage infrastructure.

The default administrative account in Prism Element (typically "admin") often serves as the initial Cluster Admin user. However, if an administrator needs to remove or replace this default account for NDB operations, a new user with the Cluster Admin role must be created and used instead. Other roles listed have different purposes:

Super Admin: This is not a standard role in Prism Element; it may refer to elevated privileges in other contexts but is not specifically defined for Nutanix cluster registration.

User Admin: This role is limited to managing users and permissions, lacking the broader cluster management capabilities needed for NDB registration.

Backup Admin: This role is specific to backup-related tasks and does not encompass the full scope of cluster management required for NDB integration.

Therefore, the Cluster Admin role is the recommended and verified choice for registering a Nutanix cluster with NDB, ensuring seamless operation and management.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 2: Deploying and Configuring an NDB Solution, Lesson 2.3: Registering a Nutanix Cluster with NDB.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 2: Deploy and Configure an NDB Solution, Objective 2.2: Register a Nutanix cluster in NDB (applicable to v7.5 with no significant role changes documented).

Nutanix Prism Element Guide: "Role-Based Access Control (RBAC)" section, detailing Cluster Admin privileges.

The log frequency in the Era IJI for log catchup operation can be configured to as low as 5 minutes. This allows the system to capture changes to the database at a high frequency, enabling more precise point-in-time recovery options. However, it’s important to note that a higher frequency of log catchup operations can lead to increased system load. Therefore, the optimal frequency may vary depending on the specific requirements and capabilities of your system12. Please refer to the Nutanix Database Automation (NCP-DB) Learning documents for more detailed information.

An NDB Software Profile is a template of the OS and database engine that you can use to provision or clone database server VMs using NDB. To create a software profile, you need to upload an installer package for the database software that you want to use, such as SQL Server or Oracle. The installer package must be compatible with the OS image that you have registered with Prism Element. You do not need a database server VM registered with NDB, a patch file for the installed databases, or an OS image registered with Prism Element to create a software profile. Those are required for other tasks, such as creating a software profile version, registering a database server VM, or provisioning a database server VM.

 Nutanix Benefit 8: Integrated Self-service Database Management, Nutanix Support & Insights, section “NDB Software”

The error message in the exhibit indicates that the operation failed during the “Create and Register Database Server VMs” step because “Provisioning of all the observers simultaneously took more than two hours.” This type of error is associated with MySQL, as it involves observers which are a part of MySQL Group Replication, used for ensuring high availability1. The other options are not related to the error message, as they do not use observers or Group Replication for clustering. References:

1: Nutanix Database Automation (NCP-DB) course, Module 5: Database High Availability, Lesson 5.2: MySQL Group Replication, slide 7

According to the NDB documentation, the NDB patching process for MongoDB Server Cluster follows these steps1:

NDB identifies the primary member of the MongoDB Server Cluster and patches it first.

NDB triggers a failover to elect a new primary member from the remaining secondary members.

NDB patches the former primary member, which becomes a secondary member after the failover.

NDB patches the remaining secondary members one by one.

NDB verifies the patching status and the cluster health.

This process ensures that the MongoDB Server Cluster always has a primary member available to handle write operations, while minimizing the downtime and the impact on the cluster performance.

 Nutanix Support & Insights, section “Patching a MongoDB Server Cluster”

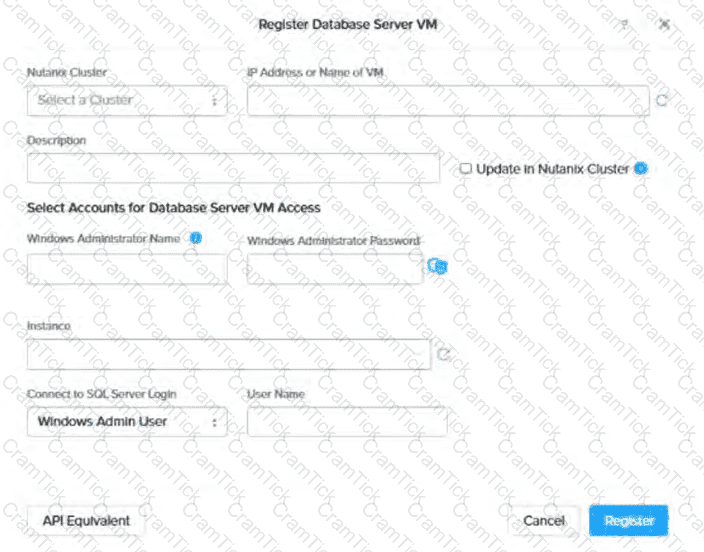

The image provided shows the "Register Database Server VM" interface in NDB, which includes fields for registering a database server, including options for Windows and SQL Server credentials. When an administrator wants to register a database using a SQL Server User (instead of Windows credentials), the appropriate place to specify this user is in the "Connect to SQL Server Login" section. The interface includes a "User Name" field under this section, which becomes relevant after selecting the option to use a SQL Server User (typically indicated by a radio button or dropdown, though not fully visible in the image). This allows NDB to authenticate and manage the SQL Server instance using database-specific credentials rather than relying solely on Windows Administrator credentials.

Option A (In the Windows Administrator Name field) is incorrect because this field is intended for Windows OS-level credentials, not SQL Server-specific login credentials.

Option B (In the Login field after selecting SQL Server User) is correct as it aligns with the "Connect to SQL Server Login" section in the interface, where the SQL Server User can be specified after the appropriate option is selected.

Option C (Only via the command line registration option) is incorrect because the GUI provides a direct method to specify SQL Server credentials, as shown in the image.

Option D (By modifying the code in the API Equivalent section) is incorrect because the API Equivalent section is for reference and does not allow real-time modification; it’s meant to guide API-based automation, not manual registration.

The image confirms the presence of a "User Name" field under "Connect to SQL Server Login," supporting the use of a SQL Server User for registration.

References

Nutanix Database Service (NDB) User Guide, Chapter 2: Deploying and Configuring an NDB Solution, Section: Registering Database Server VMs

Nutanix Support & Insights, Knowledge Base Article: "Registering SQL Server VMs with NDB Credentials"

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Blueprint, Section 2: Deploy and Configure an NDB Solution

Comprehensive and Detailed 100 to 150 words of Explanation From Nutanix Database Management & Automation (NDMA) topics:

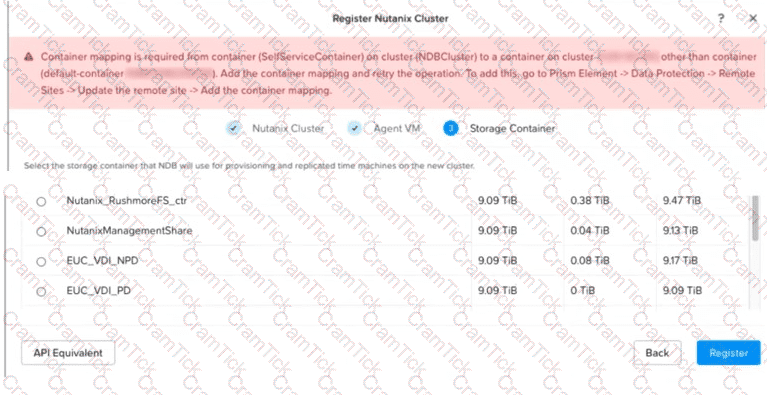

NDB cluster registration must account for storage containers associated with resources that need to be available during cross-cluster operations. Although the NDB control-plane VM and database provisioning operations use the same NDB container in this scenario, NutanixManagementShare is a separate Nutanix-managed service container. Its corresponding remote-container relationship must therefore be represented through storage mapping. Mapping the NDB container to default-container is unnecessary because the NDB server and provisioning storage are already consolidated. Removing SCSI disks from the NDB VM would damage the appliance configuration, while an attached CD-ROM does not justify altering the required storage mapping. This differs from the existing questions, which ask when mapping is required because the NDB server and provisioning containers are separate. Therefore, option A is correct. Nutanix cluster-registration documentation

NDB treats an Oracle RAC database as one managed database rather than as unrelated per-node databases. Nutanix documentation states that NDB creates a single Time Machine for a registered RAC database while collecting metadata for all nodes and instances forming that database. Consequently, an NDB database restore targets the RAC database environment as a whole, making option C the valid statement among the choices. It is not a node-level storage-repair or operating-system reconstruction function, and NDB does not restore only one RAC node or automatically rebuild that node by copying it from its peers. If the node’s VM, operating system, Grid Infrastructure, or database binaries are corrupted, those components may require separate remediation before the database-level restore. Nutanix’s Oracle RAC documentation confirms the single-Time-Machine management model, and its restore procedure applies to RAC databases.

To change the NDB GUI password via the CLI, the administrator should use the command era-server > security password reset. This command interacts with the NDB server (referred to as era-server in the CLI context) to reset the password for the GUI admin user. The process typically prompts for the new password and confirmation, ensuring secure password management. This is the supported method for CLI-based password changes in NDB.

Other options are incorrect:

A. sudo passwd era: The passwd command is for Linux user accounts, not NDB-specific GUI credentials.

B. sudo user name admin password: This is not a valid command syntax for NDB CLI.

C. era-server > username admin password: This lacks the correct subcommand (security password reset) and syntax.

Thus, the verified answer is D, aligning with NDB’s CLI security management.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 2: Deploying and Configuring an NDB Solution, Lesson 2.6: Managing NDB via CLI.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 2: Deploy and Configure an NDB Solution, Objective 2.5: Manage NDB Security (applicable to v7.5).

Nutanix NDB Administration Guide: "Changing GUI Password via CLI" section, detailing era-server commands.

Point in Time Recovery (PITR) is a feature of NDB that allows restoring a database to any point in time within the retention period of the SLA. To enable PITR, the SLA must support Continuous Log retention, which means that NDB captures and stores the database logs continuously. This allows NDB to replay the logs from the last snapshot to the desired point in time during the restore process. The other options do not enable PITR, but rather affect the frequency and timing of the snapshots and log catch up operations.

 Nutanix Support & Insights, section “NDB Time Machine Point in Time Recovery”

In NDB, database groups are used to manage multiple Microsoft SQL Server databases collectively, enabling centralized administration and protection policies. The statement "Databases within a database group can share multiple Time Machine configurations" is true. A Time Machine in NDB manages snapshots and log backups for recovery, and a database group can be associated with multiple Time Machine configurations to support different retention policies or recovery point objectives (RPOs) for the databases within the group. This flexibility allows tailored data protection strategies.

Other options are incorrect:

A. Microsoft recommends 35 databases within a single database group: There is no specific Microsoft recommendation for this limit; NDB imposes its own constraints based on performance and resource usage.

C. NDB supports one database group per database server VM or database server cluster: NDB allows multiple database groups per server or cluster, depending on configuration.

D. Databases within a database group must be all of the same size: NDB does not enforce uniform database sizes within a group.

Thus, the verified answer is B, reflecting NDB’s Time Machine flexibility.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 3: Managing Database Instances, Lesson 3.6: Managing Database Groups.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 3: Manage NDB Solutions, Objective 3.5: Configure Database Groups (applicable to v7.5).

Nutanix NDB Administration Guide: "Database Groups and Time Machine Configurations" section.

When provisioning a PostgreSQL cluster instance with an external load balancer in NDB, the administrator creates a software profile from a reference VM. The reference VM typically includes software like Patroni (for HA management), HAProxy (for internal load balancing), keepalived (for high availability IP management), and etcd (for distributed configuration). Since an external load balancer is used, the internal HAProxy can be omitted from the reference VM. NDB will rely on the external load balancer to distribute traffic, eliminating the need for HAProxy in the software profile, while the other components remain essential for cluster management.

Option A (Patroni) is incorrect because Patroni is required for PostgreSQL HA management.

Option B (HAProxy) is correct as it can be omitted when an external load balancer is configured.

Option C (keepalived) is incorrect because keepalived is needed for HA IP failover.

Option D (etcd) is incorrect because etcd is necessary for distributed configuration in the cluster.

This adjustment streamlines the profile for external load balancer use.

References

Nutanix Database Service (NDB) User Guide, Chapter 4: Managing Software Profiles, Section: Creating Software Profiles for HA Instances

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Blueprint, Section 4: Manage Database Software Profiles

The administrator should begin with the NDB dashboard because its Storage Usage information provides a consolidated view of capacity consumed by registered clusters and NDB-managed entities. The dashboard distinguishes consumption associated with source databases, clones, and Time Machines, making it the fastest location for identifying the largest storage consumers before investigating an individual entity. Database Server Details focuses on a selected server and does not provide the same environment-wide comparison. Time Machine Properties applies only to a particular protection entity, while Software Profile Management concerns database software images and versions rather than database storage consumption. NDB also records historical storage information, enabling administrators to assess trends and determine whether capacity pressure is increasing. Nutanix’s official NDB Dashboard documentation confirms that the Storage Usage view reports consumption for data sources, clones, Time Machines, and registered Nutanix clusters.

A Time Machine frozen status indicates that the database that was associated with the Time Machine has been de-registered from NDB, but the Time Machine itself has not been deleted. This means that the Time Machine still contains the snapshots and logs of the de-registered database, but it cannot perform any further operations on it. To resume the normal functioning of the Time Machine, the administrator can either re-register the database with NDB, or delete the Time Machine and free up the storage space.

 Nutanix Support & Insights, section “Resolving All Alerts for a Time Machine”

NDB requires Prism Element credentials when a Nutanix cluster is registered. These credentials authorize NDB to communicate with the cluster and perform the infrastructure operations required for database lifecycle management. Depending on the workflow, those operations can include discovering resources, creating database server VMs, attaching or mapping storage, taking snapshots, and managing networking-related configuration. Active Directory credentials may be required for a Windows domain or database-specific authentication workflow, but they are not the fundamental credentials used to register the Nutanix cluster. Similarly, a syslog server identity and Nutanix Objects store information are not required for basic cluster registration. Nutanix’s official NDB cluster-registration documentation requires the cluster address and appropriate Prism Element administrator username and password so that NDB can access and manage the target cluster.

To migrate an existing Microsoft SQL Server (MSSQL) database to NDB, the recommended approach is to:

Provision a new database server VM and database: Use the NDB interface to provision a new VM and configure an MSSQL database instance on the Nutanix platform. This leverages NDB’s automated provisioning capabilities to ensure compatibility with Nutanix infrastructure.

Migrate the data: Transfer the data from the existing MSSQL database to the newly provisioned database. This can be achieved using native MSSQL tools (e.g., backup/restore, log shipping, or replication) or NDB’s data migration features, such as cloning or restoring from a backup, depending on the source environment.

Other options are incorrect or incomplete:

A. Use Nutanix Move to migrate the database server VM: Nutanix Move is designed for VM migration between platforms, not for database-specific migrations within NDB, which requires data migration to a new instance.

C. Create a new database server VM and database then register it with NDB: Registering an existing VM with NDB does not handle data migration from the source MSSQL database.

D. Backup your database VM and import it into Nutanix: Backing up the entire VM and importing it does not integrate the database with NDB’s management framework, and data migration would still be required separately.

Thus, the verified answer is B, providing a structured migration process tailored to NDB’s capabilities.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 3: Managing Database Instances, Lesson 3.5: Migrating Databases to NDB.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 3: Manage NDB Solutions, Objective 3.4: Migrate Databases (applicable to v7.5).

Nutanix NDB Administration Guide: "Migrating MSSQL Databases to NDB" section, outlining provisioning and data migration steps.

 According to the Nutanix Database Automation (NCP-DB) learning documents, when dealing with an Availability Group (AG) database, the database should be registered as an Availability database1. This is because the AG database is hosted on replicas with different named instances, and registering it as an Availability database allows for Copy Data Management operations to be performed across all instances. This is particularly important when services such as the Analytics service running on SQLAGN3\DW require real-time data1.

If an SQL database clone deletion fails immediately in NDB, the most likely cause is that the clone has been marked as Immutable. An immutable clone is protected from deletion to prevent accidental data loss, often set for critical development or testing environments. This protection must be explicitly removed by the administrator (e.g., via the NDB GUI or CLI) before the deletion can proceed.

Option A (A refresh operation is in progress) is incorrect because a refresh operation would delay but not immediately fail the deletion.

Option B (The clone has been marked as Immutable) is correct as immutability blocks deletion until changed.

Option C (The database was not marked as Offline before the operation) is incorrect because the offline state is not a prerequisite for clone deletion.

Option D (The database data drives are shared with other applications) is incorrect because shared drives might cause issues, but immutability is a more direct cause of immediate failure.

References

Nutanix Database Service (NDB) User Guide, Chapter 5: Configuring Time Machines, Section: Managing Clones and Deletion

Nutanix Support & Insights, Knowledge Base Article: "Troubleshooting Clone Deletion Failures in NDB"

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Blueprint, Section 5: Protect Databases Using Time Machine

The NDB database agent is a service that runs on each database server VM and communicates with the NDB instance. It uses port 443 for HTTPS API calls and port 9440 for Nutanix cluster API calls. These ports are required to be open on the database server VMs for NDB to function properly. References: Nutanix Database Management & Automation (NDMA), page 9; Ports and Protocols Reference Chart | Nutanix Community, section “Nutanix Database Service (NDB)”

To deploy a database resilient cluster engine across three Nutanix clusters, the database engine must support high availability (HA) and distributed deployment capabilities that NDB can manage across multiple clusters. PostgreSQL is the only database engine listed that NDB supports for a resilient cluster deployment across multiple clusters. NDB’s HA features for PostgreSQL include automated failover, replication, and data consistency across geographically distributed clusters, making it suitable for a three-cluster scenario. This is achieved through PostgreSQL’s built-in streaming replication and NDB’s orchestration of HA policies.

Other options are not supported for this use case in NDB:

A. MariaDB: While MariaDB supports replication, NDB does not currently provide multi-cluster HA or resilient cluster deployment for MariaDB.

B. MySQL: Similar to MariaDB, MySQL lacks native multi-cluster HA support within NDB’s framework.

D. Oracle: Oracle databases can be managed by NDB, but multi-cluster resilient deployments are not natively supported; Oracle RAC (Real Application Clusters) requires specific configurations beyond NDB’s standard capabilities.

Thus, the verified answer is C, as PostgreSQL aligns with NDB’s multi-cluster resilience features.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 4: High Availability and Disaster Recovery, Lesson 4.2: Configuring Multi-Cluster HA.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 4: Troubleshoot NDB Solutions, Objective 4.3: Configure HA Across Clusters (applicable to v7.5).

Nutanix NDB Administration Guide: "Supported Database Engines for HA" section, highlighting PostgreSQL multi-cluster support.

In Nutanix Database Service (NDB), a Network Profile is used to define networking configurations for database VMs, including VLAN assignments and IP address ranges. The correct procedure to create a Network Profile that assigns a VLAN and provides IP addresses to a database VM is as follows:

Create Network Profile: Start by initiating the creation of a new Network Profile within NDB. This is done from the NDB interface under the "Network" or "Profiles" section.

Select the VLAN: During the Network Profile creation process, you specify the VLAN that the database VM will use. This involves selecting an existing VLAN configured in the Nutanix cluster (e.g., via Prism Element) or defining a new VLAN ID if applicable.

Define IP Range: Finally, you define the IP address range (e.g., a subnet or specific IPs) that will be assigned to the database VM(s) within the selected VLAN. This ensures the VM receives a valid IP address for communication.

The sequence in option B aligns with the NDB workflow, where the Network Profile is created first, followed by associating it with a VLAN and then defining the IP allocation. Other options are incorrect:

A: "Add the VLAN" is vague and does not specify where the VLAN is added, disrupting the logical flow.

C: Adding a VLAN before creating the profile is not the standard NDB process, as VLANs are associated during profile creation.

D: Defining an IP range before creating the profile is out of sequence, as the profile must exist to hold the configuration.

Thus, the verified answer is B. Create Network Profile, Select the VLAN, Define IP Range.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 3: Managing Database Instances, Lesson 3.2: Configuring Network Profiles.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 3: Manage NDB Solutions, Objective 3.1: Configure Network Profiles (applicable to v7.5).

Nutanix NDB Administration Guide: "Network Profiles" section, detailing VLAN and IP configuration steps.

Nutanix Database Service (NDB) uses software profiles for database patching to keep your databases secure and optimized1. When a new database is provisioned, it will be on your current environment’s database version to maintain consistency and stop version sprawl1. Therefore, after an administrator has applied an Oracle security patch to a database server VM registered in Era, the change can be made available to other existing database instances by creating a new software profile in Era from the patched VM1.

The Alerts dashboard in Nutanix displays alert messages with three severity levels: Critical, Warning, and Info1. These severity levels help users understand the importance and urgency of each alert, allowing them to prioritize their responses accordingly1.

In a multi-cluster NDB instance with HA enabled, the NDB architecture includes multiple API server VMs to ensure availability. If more than one API server VM is down after a failure, the administrator should ensure at least one API server VM is online. NDB’s HA design tolerates multiple API server failures as long as one remains operational, and the remaining VMs will recover automatically through the HA failover mechanism. This leverages Nutanix’s distributed architecture and self-healing capabilities to restore full functionality without manual intervention beyond ensuring one VM is running.

Other options are incorrect:

A. Restart all database server VMs as NDB HA only tolerates single API server failure: NDB HA can handle multiple API server failures, and restarting database VMs is unnecessary.

B. Manually distribute connections across remaining clusters: This is not required, as HA manages connections automatically.

C. Call Nutanix support to reset all API server connections: Support is not needed for this scenario; recovery is automated.

Thus, the verified answer is D, reflecting NDB’s HA resilience.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 4: High Availability and Disaster Recovery, Lesson 4.3: Recovering from Failures.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 4: Troubleshoot NDB Solutions, Objective 4.4: Recover NDB HA (applicable to v7.5).

Nutanix NDB Administration Guide: "High Availability Recovery Procedures" section.

 NDB SLAs are service level agreements that define the data protection and recovery objectives for NDB-managed databases. NDB SLAs consist of data retention policies that specify how long the snapshots and log backups of a database are kept in the Time Machine. Data retention policies can be customized to meet different business and compliance requirements, such as daily, weekly, monthly, or yearly retention periods. NDB SLAs also determine the frequency and schedule of the snapshots and log backups, as well as the storage location and replication options. An administrator who is tasked with auditing NDB SLAs will be reviewing the data retention policies of each database and Time Machine, as well as the snapshot and log backup history and status. The administrator will also be able to monitor the storage usage and performance of the NDB SLAs, and modify or delete the SLAs as needed. The other options are not part of the NDB SLAs, but rather separate features or concepts of NDB. Snapshot schedules are the intervals at which NDB takes snapshots of the databases, which are determined by the SLAs. Clone management is the process of creating, refreshing, or deleting database clones from the Time Machine. Recovery time objective (RTO) is the maximum acceptable time for restoring a database after a failure, which is influenced by the SLAs, but not defined by them. References:

Nutanix Certified Professional - Database Automation (NCP-DB) v6.5, Section 5 - Protect NDB-managed Databases Using Time Machine, Objective 5.1: Create, delete, and modify SLA retention policies

Nutanix Database Management & Automation (NDMA) Course, Module 4: Nutanix Database Service (NDB) Data Protection, Lesson 4.1: Data Protection Overview, Topic: SLA Concepts

Nutanix Database Service (NDB) User Guide, Chapter 6: SLAs, Section: SLA Overview

A Development team requesting updated data for a cloned MongoDB instance used as source data for a script needs the latest snapshot or point-in-time data. In NDB, the "Clone Refresh" task updates an existing clone with the most recent data from the source database, ensuring the development team has access to current information without recreating the clone. This is the most efficient approach for maintaining an updated clone.

Option A (Clone the DB from the latest point in time data) is incorrect because it creates a new clone, duplicating effort instead of refreshing the existing one.

Option B (Execute a clone update) is incorrect as "clone update" is not a standard NDB task; refresh is the correct term.

Option C (Provision a MongoDB instance) is incorrect because it provisions a new instance, not an update to the clone.

Option D is correct as Clone Refresh syncs the clone with the latest source data.

References

Nutanix Database Service (NDB) User Guide, Chapter 5: Configuring Time Machines, Section: Managing Clones and Refresh

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Blueprint, Section 5: Protect Databases Using Time Machine

To enable iSCSI connections between the Nutanix Database Service (NDB) server, Controller VMs (CVMs), and Prism Element, a Data Services IP must be configured in Prism Element. The Data Services IP acts as a cluster-wide address that facilitates iSCSI target discovery and connectivity. It is used by Nutanix Volumes (a block storage service) to present storage to external clients or services, such as the NDB server, via the iSCSI protocol. This IP ensures that iSCSI traffic is routed correctly and remains available even if a CVM fails, as ownership of the Data Services IP can move to another CVM in the cluster.

Configuring the Data Services IP is a prerequisite for integrating NDB with a Nutanix cluster, as NDB relies on iSCSI to manage database storage operations like provisioning and cloning. Without this configuration, the NDB server cannot establish the necessary connections to the CVMs for database-related tasks. Options like Virtual IP, Secondary DNS IP, and Backplane IP are not relevant in this context:

Virtual IP: This is typically associated with high-availability setups for applications, not iSCSI connectivity.

Secondary DNS IP: This pertains to network resolution, not storage connectivity.

Backplane IP: This is an internal network IP for cluster communication, not for external iSCSI access.

Thus, the correct and verified answer is the Data Services IP.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 2: Deploying and Configuring an NDB Solution, Lesson 2.2: Configuring NDB Prerequisites.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 2: Deploy and Configure an NDB Solution (applicable to v7.5 as foundational concepts remain consistent).

Nutanix Support & Insights Portal: "Configuring iSCSI Data Services IP for Nutanix Volumes" (general Volumes configuration applicable to NDB).

Before registering a database server VM to NDB, an administrator must verify that all required software (e.g., database engine, OS dependencies) and configuration settings (e.g., WinRM for Windows, SSH for Linux) are in place. NDB provides a prerequisites script, which can be run on the target VM to check these dependencies automatically. This script ensures compatibility and readiness, reducing registration failures.

Option A (LCM - Lifecycle Manager) is incorrect because LCM is used for cluster upgrades, not VM prerequisite checks.

Option B (Upgrade Software) is incorrect as it applies to updating existing software, not initial dependency verification.

Option C (Prerequisites script) is correct as it is the designated tool for pre-registration validation.

Option D (NCC - Nutanix Cluster Check) is incorrect because NCC checks cluster health, not VM-specific software dependencies.

References

Nutanix Database Service (NDB) User Guide, Chapter 2: Deploying and Configuring an NDB Solution, Section: Preparing Database Server VMs

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Blueprint, Section 2: Deploy and Configure an NDB Solution

NDB sends alert notifications using configurations auto-populated from the cluster during the initial setup, typically relying on default SMTP settings. If a dedicated SMTP server is required (e.g., for security or compliance), the administrator must change the SMTP Server configuration in NDB Service. This is configured under the NDB Admin Center, where the administrator can specify the dedicated SMTP server’s details (e.g., hostname, port, credentials, and security settings like TLS/SSL).

Other options are incorrect:

A. IDP configuration in Admin Center IAM page: Identity Provider (IDP) settings are for authentication, not email alerts.

B. Alert Email configuration in Prism Element: Prism Element manages cluster alerts, not NDB-specific email settings.

D. SNMP configuration in Prism Central: SNMP is for network monitoring, not email notifications.

Thus, the verified answer is C, reflecting NDB’s alert notification setup.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 6: Monitoring and Alerts, Lesson 6.1: Configuring Alert Notifications.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 6: Optimize NDB Solutions, Objective 6.2: Manage Alerts (applicable to v7.5).

Nutanix NDB Administration Guide: "Configuring SMTP for Alerts" section.

The exhibit shows an error during the provisioning of NDB from the Prism Central Marketplace, with a failure reason stating "IP not found" in the "EraService - Substrate Create" step. This indicates that the provisioning process could not assign or detect an IP address for the NDB instance, likely due to an unconfigured or missing IP address during deployment. To prevent this issue, the administrator should configure an IP address when deploying the application. This involves specifying a static IP or ensuring IP Address Management (IPAM) is properly set up to allocate an IP during the Prism Central Marketplace deployment wizard.

Other options are less directly relevant:

B. Import the proper image in the Prism Central: This ensures the correct NDB image is available but does not address the IP assignment issue.

C. Provide a subnet with IP Address Management: While useful, this is a broader configuration step and not the specific action needed during deployment.

D. Register NDB using the correct IP address: Registration occurs after deployment and does not prevent the initial IP assignment failure.

Thus, the verified answer is A, as configuring the IP address during deployment directly addresses the "IP not found" error.

Official Nutanix Database Automation References

Nutanix Database Management & Automation (NDMA) course, Module 2: Deploying and Configuring an NDB Solution, Lesson 2.2: Deploying NDB from Prism Central.

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Knowledge Objectives, Section 2: Deploy and Configure an NDB Solution, Objective 2.2: Deploy NDB (applicable to v7.5).

Nutanix NDB Installation Guide: "Deploying NDB via Prism Central Marketplace" section, emphasizing IP configuration.

The command era-server > era server set ip=ip_address gateway=gateway_address netmask=ip_netmask nameserver=ns1 ntp_server=ntp1 is used to assign a static IP address to the NDB VM via the era-server CLI. This command requires core network parameters (ip, gateway, and netmask) to configure the VM’s network interface correctly. However, optional parameters like nameserver (DNS server) and ntp_server (Network Time Protocol server) can be omitted if the administrator relies on default or externally configured DNS and NTP settings (e.g., via DHCP or another management system). These optional parameters enhance functionality but are not mandatory for the basic static IP configuration.

Option A (ntp_server) is correct as it is optional and can be configured separately or omitted if NTP is managed externally.

Option B (netmask) is incorrect because the netmask is a required parameter to define the subnet for the IP address.

Option C (gateway) is incorrect because the gateway is a required parameter to specify the network route.

Option D (nameserver) is correct as it is optional and can be omitted if DNS is handled outside NDB.

Note: The typos in the question (gatevay_address, ip_J2etmas^c, narnesetver, ntpl) are assumed to be gateway_address, ip_netmask, nameserver, and ntp1 based on context.

References

Nutanix Database Service (NDB) User Guide, Chapter 6: Administering an NDB Environment, Section: Configuring Network Settings via CLI

Nutanix Support & Insights, Knowledge Base Article: "Configuring Static IP for NDB VM"

Nutanix Certified Professional - Database Automation (NCP-DB) v7.5Blueprint, Section 6: Administer an NDB Environment

Ports 3205 and 3260 are important when working with Era because they must be open on the Era server and all Controller VMs (CVMs) to facilitate iSCSI connections1. Specifically, port 3205 is used for iSCSI redirection2. Please be careful of routing iSCSI traffic, as it could impact performance2.

NDB supports database and database server VM deployment on NC2 on Azure by using overlay networks created through Nutanix Flow Virtual Networking. A Flow overlay subnet provides the logical network used by the NDB-managed database server VMs while allowing the networking configuration to operate consistently within the NC2 environment. Flow underlay subnets are not the supported choice for this NDB deployment model. AHV IP Address Management is associated with AHV-managed networks and does not represent the required NC2 on Azure networking type. Azure-native networking exists beneath the NC2 infrastructure, but NDB-managed database provisioning uses the Flow overlay network exposed within NC2 rather than directly attaching database VMs to a native Azure network. Nutanix’s official NDB on NC2 documentation confirms support for Flow Virtual Networking overlay networks on NC2 environments.

NDB High Availability uses multiple API Server VMs to provide the user interface and REST API services. The platform can automatically tolerate the failure of up to two service VMs, but if every API Server VM is offline, the API service becomes completely unavailable and manual intervention is required. Recovery requires bringing at least one API Server VM back online. Once an API Server is running, the NDB API service can restart and the remaining HA components can rejoin or recover through the normal resiliency mechanisms. Restarting HAProxy first cannot restore an API service when no API Server is available. Repository VMs should not be recreated because they contain NDB metadata, and registered Nutanix clusters do not need to be registered again. Therefore, the correct answer is A. NDB HA failure and recovery scenarios

================
