PEGACPRSA22V1 Certified Pega Robotics System Architect 22 Questions and Answers

In Pega Robot Studio, when an automation (especially one invoked as a robot activity by Pega Platform) finishes execution, it must return a Completion Status. This status helps the Pega Platform determine the outcome of the automation and decide whether to continue the workflow, retry, or handle an exception.

According to the Pega Robotics System Design and Implementation Guide, section “Robot Activity Completion Status and Workflow Integration”:

“Each robotic activity returns a Completion Status to the Pega Platform after execution.

The completion status communicates the final outcome of the automation’s operation, indicating whether it successfully completed, encountered errors, or produced invalid data.

The most common statuses used are:

Complete: The automation ran successfully, and data passed all validation checks.

DidNotComplete: The automation ran to completion, but business validation failed or data was deemed invalid.

CompletedWithErrors: The automation could not complete execution due to a system or process error.”

Detailed Reasoning:

Complete

Indicates that the robotic automation successfully executed and the resulting data passed all validation checks within Pega.

This allows the Pega case flow to continue normally.

Correct Match: “If data passes business validation, the processing flow continues.”

CompletedWithErrors

Used when the automation fails to complete due to a technical issue or system error (for example, an application did not load or a connector failed).

This causes the flow to route as a failure in Pega.

Correct Match: “If the automation fails to complete, it routes as a failure.”

DidNotComplete

Indicates that the automation successfully executed technically but failed business validation, such as incorrect data, missing inputs, or business rule mismatches.

Correct Match: “If the automation completes processing, but the data fails business validation.”

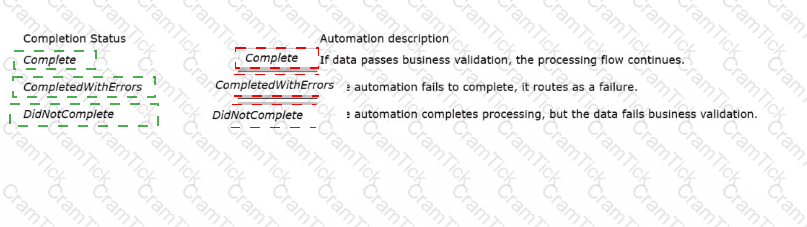

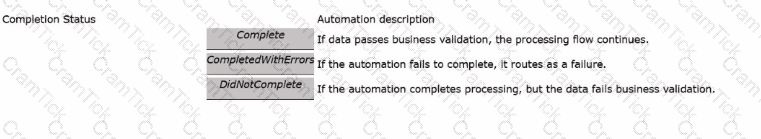

Final Correct Matching Order:

Completion Status

Automation Description

Complete

If data passes business validation, the processing flow continues.

CompletedWithErrors

If the automation fails to complete, it routes as a failure.

DidNotComplete

If the automation completes processing, but the data fails business validation.

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

In Pega Robot Studio, when interrogating Java applications, sometimes a child process is created separately from the main application process. In such cases, controls in the child process cannot be detected unless the adapter is configured to attach to child processes as well.

According to the Pega Robotics System Design and Implementation Guide, in the section “Java Application Integration and Child Processes”:

“For Java applications that spawn additional processes, set the HookChildProcesses property of the adapter to True.

This enables the adapter to attach to both the main process and any child processes created by the parent application, allowing interrogation and automation of controls within those secondary windows.”

Detailed Reasoning:

HookChildProcesses ensures that when a Java application spawns a new process (such as a popup or a grid), Pega Robotics attaches to and monitors that process.

Without enabling this property, the adapter would only recognize the primary Java process, leaving controls in secondary processes unrecognized.

Option Analysis:

A. HookChildProcesses: Correct. Allows interrogation of child processes.

B. EnableMatchInProcess: Incorrect. Used for controlling object matching within the same process context.

C. TargetPath: Incorrect. Defines executable location for adapters.

D. IgnoreMainBrowser: Incorrect. Related to web adapters, not Java applications.

Reference http://help.openspan.com/80/Platform_Configuration/RuntimeConfigXML.htm

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

When deploying robotic solutions to Pega Robot Manager, the connection and authentication details — such as Robot Manager server URL, authentication mode, and registration configuration — are stored in the file CommonConfig.xml.

This configuration file is shared between both Pega Robot Studio and Pega Robot Runtime, ensuring that both use consistent connectivity settings.

According to the Pega Robotics System Design and Implementation Guide, section “Pega Robot Manager Integration and Configuration Files”:

“The CommonConfig.xml file contains shared configuration information that is used by both Pega Robot Studio and Pega Robot Runtime.

It includes global settings such as:

Connection information for Pega Robot Manager (URL, ports, authentication)

Deployment configuration values

Environment registration and runtime connectivity settings.

PegaRuntimeConfig.xml and PegaStudioConfig.xml are used for local settings only, while CommonConfig.xml stores the Robot Manager connection configuration used during deployment.”

Detailed Reasoning:

A. PegaStudioConfig.xml – Used for developer-specific configuration within Robot Studio, not for deployment or server settings.

B. CommonConfig.xml – Correct. This file contains the Robot Manager connectivity configuration and shared settings.

C. PegaRuntimeConfig.xml – Controls runtime behavior on client machines, not Robot Manager connections.

D. PegaConfig.xml – Not a valid configuration file in Pega Robotics.

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

In Pega Robot Studio, the Increase Deployment Version property in the project settings is used to automatically update the deployment version number each time the project is deployed.

This ensures version consistency across builds and deployments in environments managed by Pega Robot Manager.

According to the Pega Robotics System Design and Implementation Guide, section “Project Deployment and Version Control”:

“The Increase Deployment Version property, when set to True, automatically increments the project’s deployment version number during the deployment process.

This feature helps maintain proper version tracking and eliminates the need for manual version adjustments before deployment.”

Detailed Reasoning:

A. Environment Overrides – Used to specify environment-specific configuration overrides, not for version control.

B. Version field – Displays the current version number but does not auto-increment it.

C. Description field – Used for textual descriptions of the project only.

D. Increase Deployment Version – Correct. When set to True, it automatically adjusts the version numbering upon deployment.

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

According to the Pega Robotics Interrogation and Matching Engine Documentation:

“When you interrogate controls in a web application using Chrome or Edge browsers without X-ray Vision, Pega Robot Studio utilizes a simplified set of match rules because these browsers do not expose a full DOM structure with automation identifiers.”

The documentation specifies:

“In non-X-ray Vision interrogation mode, the following three match rules are applied automatically to identify a control:

• Attribute Value Match Rule – Matches a control by its defined attribute (such as ‘id’, ‘name’, or ‘class’).

• Property Value Match Rule – Matches the control based on its property values exposed during interrogation (for example, ‘InnerText’ or ‘TagName’).

• Element Path Match Rule – Matches the control by its relative position in the DOM hierarchy.”

It also states:

“Without X-ray Vision, browser-specific identifiers and deep hierarchical context are not available; therefore, only the Attribute Value, Property Value, and Element Path rules are utilized for Chrome and Edge interrogation.”

References (Exact Extract Source):

Pega Robotics Studio User Guide – Web Adapter and Match Rules Section

Pega Academy – Robotics System Architect Course (Interrogation in Web Applications)

Pega Robotics Help – Interrogation with and without X-ray Vision

Final Verified Answer: B, C, F

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

Application Discovery is the initial phase in Pega Robotics project development where developers analyze target applications before interrogation. The goal is to understand how each application behaves, what technology it uses, and how it interacts with other systems.

According to the Pega Robotics System Design and Implementation Guide, section “Application Discovery and Analysis Before Interrogation”:

“Before interrogating applications, conduct application discovery to ensure that automations can be designed effectively.

During discovery, developers should:

Determine the type and technology of each application (web, Windows, Java, or text-based).

Verify how each application is launched and operates outside Robot Studio to ensure accessibility.

Identify how many instances of each application the user accesses concurrently.

Observe dependencies or interactions between applications for orchestration planning.”

Detailed Reasoning:

A. Verify the number of application instances accessed by the user simultaneously.

Correct. This ensures that the automation can handle multiple instances (e.g., several browser windows or desktop clients).

C. Verify how the application opens outside of Pega Robot Studio.

Correct. Understanding launch methods (desktop shortcuts, URLs, credentials) helps configure adapters correctly.

E. Identify the technology on which the application is built (web, Windows, text).

Correct. This determines which adapter type (Web, Windows, or Text adapter) to configure in the project.

Incorrect Options:

B. Verify that the automation works as intended.

Incorrect. This happens after interrogation during testing, not during discovery.

D. Verify the interactions between all applications in the project.

Partially correct but not part of the discovery phase—it’s addressed in the design phase.

F. Verify the match rules on all interrogated controls.

Incorrect. This is performed after interrogation, not during discovery.

Final Correct Answer: A, C, E

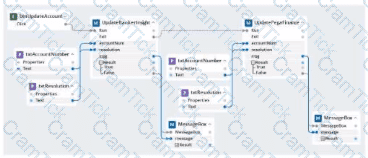

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

“After adding the application method, Pega Robot Studio includes the application in the Palette. External elements are not available underneath the application, such as:

Globals

Other applications

Automations that are not scoped within the application”

In other words: when you are working within an application method under a specific application (such as BankerInsight), you cannot include items from the global scope (Globals), you cannot include items from other applications (such as Pega Finance controls belong to a different application), nor can you include automations that are not scoped to the same application (automations outside BankerInsight).

Why each option is correct/incorrect:

A. Automations that are not scoped within BankerInsight — Not available (Correct). According to the extract, “Automations that are not scoped within the application” are listed as external elements that cannot be used.

B. BankerInsight controls — Available. Controls belonging to the same application are within scope, so you can use these.

C. External data sources — The documentation snippet does not explicitly list “external data sources” as unavailable under the application method. So by the extract we cannot verify it as not available — thus we do not choose it.

D. Pega Finance controls — Not available. These belong to a different application (Pega Finance), so they fall under “Other applications” which are external to the current application and so cannot be used.

E. Globals — Not available. Explicitly listed in the documentation as external elements not available underneath the application.

If you like, I can check whether “External data sources” are allowed or not in that context and provide a more detailed explanation with additional reference pages.

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

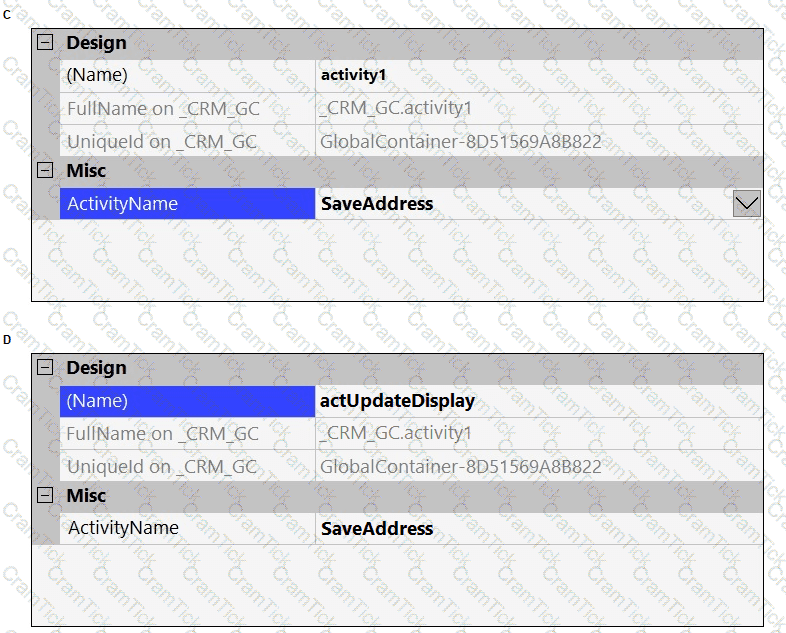

When building robotic automations intended for integration with Pega Platform (through Robotic Desktop Automation (RDA) or Robotic Process Automation (RPA)), Pega Systems outlines a set of best practices to ensure reliable execution, data consistency, and seamless communication between the automation and Pega case workflows.

According to the Pega Robotics System Design and Implementation Guide, in the section “Developing Robot Activities for Pega Integration”, the following recommendations are provided:

“When developing automations intended for execution by Pega applications, adhere to the following guidelines:

Always return a valid completion status from the automation to indicate success or failure to the calling Pega activity.

Ensure that the data exchanged between Pega Platform and the automation matches in both type and format to prevent runtime errors or data transformation issues.

The activity name in Pega Platform (as specified in the robotic automation name field) must exactly match the name defined in the Robot Activity component in Robot Studio to establish a valid invocation link.”

Detailed Reasoning:

A. Set valid completion status.

Correct. Each automation that is invoked from Pega must return a valid completion status (e.g., Success, Fail, Completed, Error). This status is sent back through the Robot Activity response data transform.

This ensures that the Pega case or data page correctly interprets the automation’s result and can take subsequent actions (e.g., proceed, retry, or raise an exception).

D. Ensure data formats agree between the automation and the Pega application.

Correct. The data types and structure between Pega and the robotic automation must align (for example, string-to-string, integer-to-integer, JSON format consistency).

Mismatched or unstructured data results in serialization errors when passing data through the RDA bridge.

E. Match the Pega automation identifier with the robot activity component name.

Correct. The Robotic Automation Name specified in the Pega data page or case configuration (e.g., FETCH_SCORE) must exactly match the ActivityName property defined in the Robot Studio’s Robot Activity component.

This linkage ensures that the correct automation is triggered when the case executes the RDA call.

Incorrect Options:

B. Design an automation to complete multiple tasks.

Not recommended. Pega advises building modular automations, where each automation performs a single defined task to simplify debugging and improve reuse.

C. Use an unlimited number of transferable data items.

Not recommended. The number of data items passed between Pega and Robotics should be limited to those necessary for the task, as excessive data transfers can degrade performance.

F. Run automations synchronously.

Not required. RDA automations typically run asynchronously, returning results through callback mechanisms to avoid blocking the user interface.

Therefore, the three recommended developer considerations are:

A. Set valid completion status

D. Ensure data formats agree between the automation and the Pega application

E. Match the Pega automation identifier with the robot activity component name

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

When debugging automations in Pega Robot Studio, breakpoints are used to pause execution at specific points in an automation to inspect data and control flow. Before deploying or packaging a robotic solution, it is recommended to remove or clear all breakpoints to ensure that the production build executes uninterrupted.

According to the Pega Robotics System Design and Implementation Guide, section “Debugging Automations and Managing Breakpoints”:

“Breakpoints can be added, enabled, disabled, or deleted directly from the automation design surface or from the Debugging Tools window.

To remove breakpoints, developers can:

Right-click a breakpoint in the automation and select Remove Breakpoint.

Clear all breakpoints globally from the Breakpoints tab within the Debugging Tools window.

Breakpoints are maintained per automation and persist between sessions until manually removed or cleared.”

Detailed Reasoning:

A. Clear all automation breakpoints in the Breakpoints tab of the Debugging tools window.

Correct. This is the global method to remove all existing breakpoints across multiple automations at once.

The Breakpoints tab under Debug → Windows → Breakpoints lists every active breakpoint and includes the Clear All option to delete them.

B. Right-click a breakpoint in an automation, and then select Remove Breakpoint.

Correct. This is the direct method for deleting an individual breakpoint from within a specific automation.

C. Use the hot keys to remove each automation link that includes a breakpoint.

Incorrect. There is no hot key dedicated to breakpoint removal in Pega Robot Studio.

D. Right-click an automation on the automation surface, and then select Delete all breakpoints.

Incorrect. There is no such option available at the automation (background surface) level. Breakpoints are only removable individually or through the Breakpoints tab.

E. Click a breakpoint in an automation, and then press the Delete key.

Incorrect. The Delete key removes automation components, not debugging breakpoints.

Final Correct Answers:

A. Clear all automation breakpoints in the Breakpoints tab of the Debugging tools window.

B. Right-click a breakpoint in an automation, and then select Remove Breakpoint.

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

The Excel Connector in Pega Robot Studio is a lightweight component that provides direct interaction with Excel files without relying on the Microsoft Excel application. It is ideal for background processing, where users are not required to interact with Excel directly.

According to the Pega Robotics System Design and Implementation Guide (Excel Integration and Connectors section):

“The Excel Connector allows automations to open, read, and modify Excel workbooks without requiring Microsoft Excel to be installed.

It operates directly on the file system level, supporting operations such as reading or writing to specific cells, entire worksheets, or data ranges.

The connector does not use Excel Interop; therefore, no interrogation or Excel application process is necessary.”

Explanation of Options:

A. Correct — The Excel Connector supports data range operations such as defining, reading, or writing to specific sets of cells within a worksheet.

B. Incorrect — The connector does not depend on any installed version of Microsoft Office; it functions independently.

C. Incorrect — Interrogation applies to UI applications, not file-based connectors like Excel Connector.

D. Correct — The connector works without Excel being installed; it manipulates workbook data directly through file handling APIs.

E. Incorrect — When user interaction with Excel is required, Excel Interop (Excel Application Connector) should be used instead of the file-based Excel Connector.

Therefore, the correct statements are A and D.

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

Assisted Sign-On (ASO) is a feature of Pega Robot Studio that allows users to securely store and automatically populate login credentials for applications used in automations.

By default, Pega Customer Service (PCS) applications are integrated with Assisted Sign-On to streamline agent desktop interactions and reduce manual logins when launching multiple applications.

According to the Pega Robotics System Design and Implementation Guide, section “Assisted Sign-On Integration with Pega Applications”:

“Pega Customer Service applications include Assisted Sign-On by default.

This feature uses Credential Manager and Runtime configuration to securely authenticate users across multiple enterprise systems during attended robotic operations.”

Detailed Reasoning:

A. Pega Sales Automation – Does not include ASO by default.

B. Pega Customer Decision Hub – Focused on decision management, not attended user login automation.

C. Pega Customer Service – Correct. Assisted Sign-On is preconfigured for Customer Service use cases to streamline agent authentication.

D. Pega Robot Manager – Used for deployment and management of bots, not for user authentication.

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

In Pega Robot Studio, the Credential Manager is designed to securely store user credentials (such as usernames and passwords) in an encrypted form within the user’s local profile. When properly configured, Pega Robotics can automatically log in to target applications without creating a separate automation.

From the Pega Robotics System Design and Implementation Guide (Application Configuration and Credential Management section):

“When an application requires credential-based authentication, developers can configure the application’s login controls during interrogation and assign the appropriate credential properties (Username and Password).

Once defined, credentials are stored securely in the user’s local profile and automatically retrieved and decrypted during runtime to perform the login without explicit automation logic.”

Detailed Reasoning:

During interrogation, the login controls (such as username and password fields) are identified and linked to the credential properties of the application object.

Pega Robotics automatically handles the retrieval and secure decryption of credentials stored in the local user profile at runtime.

This eliminates the need for any manual automation steps or scripts for logging in.

Option Analysis:

A. Incorrect — Robot activities are server-executed tasks, not used for local application authentication.

B. Incorrect — Credentials must be configured after interrogating target controls to map them correctly.

C. Correct — Interrogating the login fields and setting the application credential properties allows Pega Robotics to securely manage and automate login automatically.

D. Incorrect — Creating a script defeats the purpose of using the built-in credential manager.

Thus, Option C is the correct method for configuring automatic login using encrypted credentials.

In Pega Robot Studio, an environment override allows developers to configure multiple deployment environments (such as test, staging, and production) using a single project. This helps you avoid creating separate projects for each environment and ensures consistent automation logic while dynamically switching between environment-specific settings at runtime.

According to the Pega Robotics System Design and Implementation Guide, section “Managing Environment Overrides and Multi-Environment Deployments”:

“Environment overrides provide a mechanism to define environment-specific configuration values for applications within a project.

For example, the same automation logic can be used for both test and production systems by creating separate environment override files — one for the test environment and one for the production environment — each specifying unique paths, credentials, or URLs for the corresponding system.”

Detailed Reasoning:

The HR system has different access points for test and production, which typically means different URLs or executable paths.

The automation logic (how the robot interacts with the HR application) remains identical; only the connection configuration changes.

Therefore, instead of creating multiple applications or modifying logic, you configure two environment override files — one for production and one for test — each defining environment-specific details such as:

Application path (for Windows adapters)

StartPage URL (for web adapters)

Credentials or runtime parameters

This allows a single automation project to adapt dynamically based on which environment override is active during deployment or testing.

Option Analysis:

A. Incorrect — A single override cannot contain two sets of environment details; each override corresponds to one environment.

B. Incorrect — Creating two applications increases complexity and redundancy; both would duplicate the same logic.

C. Incorrect — Adding both separate applications and overrides is unnecessary; overrides alone are sufficient for environment flexibility.

D. Correct — Two environment overrides (one for production, one for test) allow the same project and automation logic to function properly across both environments.

Therefore, the correct answer is D. Create two environment overrides for the HR System project: one override for production, and one for test.

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

The Lookup Table is a global component in Pega Robot Studio that can be accessed from multiple automations within a project.

To use its methods—such as ImportDelimitedFile, FindRecord, or AddRecord—you must drag the lookup table instance from the Globals section to the automation surface.

According to the Pega Robotics System Design and Implementation Guide, section “Using Lookup Tables in Automations”:

“Lookup tables are global components that store data used across automations.

To call lookup table methods, drag the table from the Globals section of the Palette to the automation design surface.

The Select Action dialog box will open, allowing you to filter and select from available methods such as ImportDelimitedFile, FindRecord, and ClearTable.”

Detailed Reasoning:

A. Select the ImportDelimitedFile method in a design form... – Incorrect. The lookup table is not part of the UI form.

B. Drag the lookup table from the Locals section... – Incorrect. Lookup tables exist under Globals, not Locals.

C. Open the Globals tab and filter... – Incorrect. You must drag the component onto the automation surface to expose its methods.

D. Drag the lookup table from the Globals section... – Correct. This exposes the ImportDelimitedFile method through the Select Action dialog.
